OEM Subtank Retrofit/Install Project With Pics

Joined
Jan 4, 2005
Messages
1,960
Location
Shufflin' Through the Texas Sand
OEM Subtank Retrofit/Install Project With Pics & Part Numbers

EDIT>> Sunvisor modifications added 4/7/08, pics and details are at the bottom of this first post #1.

There are several dozen posts here related to the 80 Series non-USA factory subtank system. After reading all the posts on existing hybrid installs and the debates
about whether or not our trucks were wired for an OEM system, I decided to investigate this further. I began searching for a tank, dual filler neck and transfer pump, thinking OEM would be the easiest (and I am a vintage kinda guy.) Last July (2007) while bidding on a subtank transfer pump on eBay Oz, the Seller also had listed a little metal box called a fuel transfer ECU. I emailed him and he replied from the top of a Ranger station tower somewhere in the Australian Outback to tell me that this little box held all the brains for the OEM subtank transfer system. Oooo, that sounded nifty. So I asked him where it connected and he pointed me to look behind the driver’s side rear cargo interior panel and sure enough there it was, a connector. The project had begun.

As a result of obtainng the ECU, I contracted Subtank-itis over the past 8 months. I have sent dozens of emails, begged for scans and photos and sifted through hundreds of part numbers in my quest. I have accumulated numerous photos and wiring diagrams from Canada, France, the UK, Japan and Australia. I think I probably have EVERY OEM and aftermarket wiring diagram ever published for this system, petrol or diesel, from 1991 through 1997. (Some of them aren’t entirely accurate actually.) And as medicine for Subtank-itis I managed to obtain my very own personal copy of the Toyota MicroCat electronic parts catalogue (which is the coolest Cruiser accessory on the planet, bar none.) And with that I was able to compare my truck to those built with subtanks and subsequently nail down the required parts to do this 100% OEM.

Credits…

Thanks to all of you who have corresponded with me over the last year about this; you know who you are. Special thanks to Dave Stedman (IH8Mud member Japan4X4 and owner of Japan 4X4) for patiently supplying all the non-USA parts. If you need parts from overseas, I highly recommend Dave (sales@japan4x4.com.) Also thanks to Dan Busey (Mud member CDan/American Toyota) for providing some parts but more importantly some subtle, “sage” advice (like to not use a Sawzall to cut the main gas tank supply pipe.) And a special thanks to my new long distance friend Steve in Adelaide, Australia. I won his eBay auction for the subtank and little did he know that he was subsequently adopting me. He babysat me through making comparisons between our trucks so I could figure out if this was even possible. He even undertook a partial disassembly of his truck to answer some key questions. The global reach of the Cruiser community is just unbelievable.

Okay, enough of that crap…

OEM Subtank 101

Prior to January 1995, non-USA petrol trucks used logic in a stand-alone ECU to control the fuel transfer system. From January 1995 onward, that logic was programmed into the main truck ECU. However, neither the transfer logic nor the correct pin-outs are present in the USA ECU. Therefore, I reverted back to the pre-January 1995, non-USA OEM wiring diagram as the basis for my install. Ironically, in the case of my 1997 truck, the rear harness is wired for BOTH internal and external ECU configurations. Gotta love Mr. T.

System Highlights:

- The tank, transfer pump, solenoid and fuel transfer ECU all use the existing wiring in the USA truck from the driver’s kick panel back, no modifications necessary, EXCEPT, the existing USA sub-harness between the main fuel tank sender/pump and the truck (connecting under the driver side passenger door) is replaced by a new non-USA OEM sub harness. This new sub-harness not only contains the wiring for the main tank pump/sender, but also includes connections for the transfer pump/solenoid and main tank level switch.

- This system uses all Toyota parts including subtank, dual filler neck/hoses, fuel transfer pump/solenoid, main tank level switch, fuel transfer ECU, dash switch and the non-USA tank harness with both main fuel pump AND subtank connections.

- The system is connected into the truck’s Data Link Connector circuit to enable OEM diagnostics. I even found the section of the non-USA FSM that explains how to use the DLC to decode the ECU’s diagnostic signals (finding that was better than the Christmas morning when I got a Red Ryder BB gun.) By jumpering the DLC under the hood, the ECU sends intermittent flashes to the light in the dash switch in case of a fault.

- The OEM wiring harness is also now in place for the overhead console with gauge and altimeter, to be installed shortly.

Above I mention something called a “main tank level switch.” USA trucks are NOT fitted with this switch. The switch is installed in the top of the main tank on a flat boss adjacent to the main fuel pump bracket (that you access through the oval access panel under the middle seats.) This switch tells the ECU if the tank is above or below 75% full. If it is above, no transfer permitted. If it is below, it will permit a transfer until the main tank is back to 75%, then it shuts off automatically. To retrofit this switch involves either having an Oz or Japanese main tank from a subtank truck sent over, or in this case, dropping the main tank and having a hole cut in the tank and a bung/mounting ring welded on in which to mount the new switch. It then mounts with threaded OEM screws just like the subtank fuel sender. Not a big deal if you have a gas tank repair shop nearby (and I have the local machine shop ready to make more weld-on bung rings if needed.) The subtank system supplies fuel to the main tank via a fill pipe that passes through the non-USA main tank fuel pump bracket. This bracket bolts right into the USA main tank using the existing fuel pump and sending float.

Wiring for the subtank sender, transfer pump assembly and ECU all travel forward in the floor harness up to the kick panel where the harness terminates in two open connectors. After separating the 6 or 7 required wires from the existing connectors I grouped them together into their own connector. Into that connector I brought power, switching from the dash switch, the DLC wire and the signal wire to the overhead console. So the only fundamental difference from a factory assembly-line install is this small amount of wiring to bring the switch and power into the floor harness. All of those connections use OEM Toyota connectors supplied by CDan, American Toyota. I even sourced a USA 80 Series wiring harness from a wreck so I could maintain color consistency with the dash switch and power source wiring up front to the circuits in the back.

My overhead console is installed using an OEM harness that came with the console from Oz. Beige/tan consoles are very rare in salvage yards and I am not sure you can still get them from Toyota either. So I sprayed my used gray Oz console using Toyota Oak 42-colored spray dye from Classic Dye Products and it matches perfectly and looks brand new. Their stuff is OEM grade and awesome. There were very few 80s produced outside the USA with sable/beige/oak interiors. As a result, beige visors and consoles are impossible to find in overseas salvage. There are over 200 part numbers for 80 Series visors in my EPC and no matter what we order, they all show up gray, even the ones with tan color suffixes. So the sable/beige/oak visors are no more from what I can tell, though I am now checking South America. So until I stumble across a set, I modified mine by removing the "wing" portion that interferes with console. Pics below.

I am embarrassed to say how many hours I have in reading, researching, comparing and gathering everything together to make this work. I am not much of a wiring guy (or at least I wasn’t before this) so it took me a while to grasp it all. Fortunately, this system is a circuit unto itself within the truck, so it started making sense after staring at the diagrams a while (as in ….2 months.) Suffice it to say I am “very” well versed on all the various 80 Series OEM subtank systems (there are at least 4) as well as Toyota wiring now.

This is a fairly straightforward project, certainly no tougher than nor nearly as dirty as a knuckle rebuild. I estimate that I have about $1200 in the installation including all parts and some labor to add the level switch to the main tank. It a safe design/installation, anyone driving the truck can use it and should it ever fail me, I can diagnose it and replace with OEM parts.

Joel Hocker in Arizona (Mud member JPHockerAZ) contacted me a few months back wanting to go OEM as well so we have been working in parallel on our installs, swapping part numbers and working out the various details. I am sure he will be contributing his information and pics.

I am tidying up some final bits and pieces this weekend but if anyone wants to take a stab at this, let me know and I can help you with the part numbers to get it done.

If you have any questions/comments or picture requests, fire away. I prefer email as opposed to a PM.

Jim

The finished look:

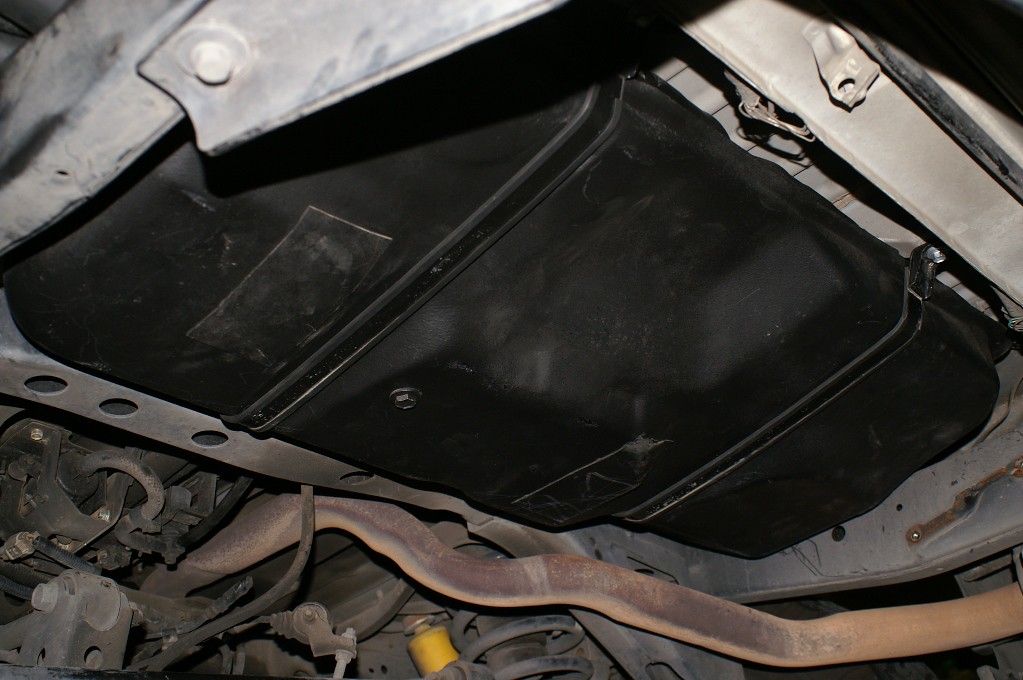

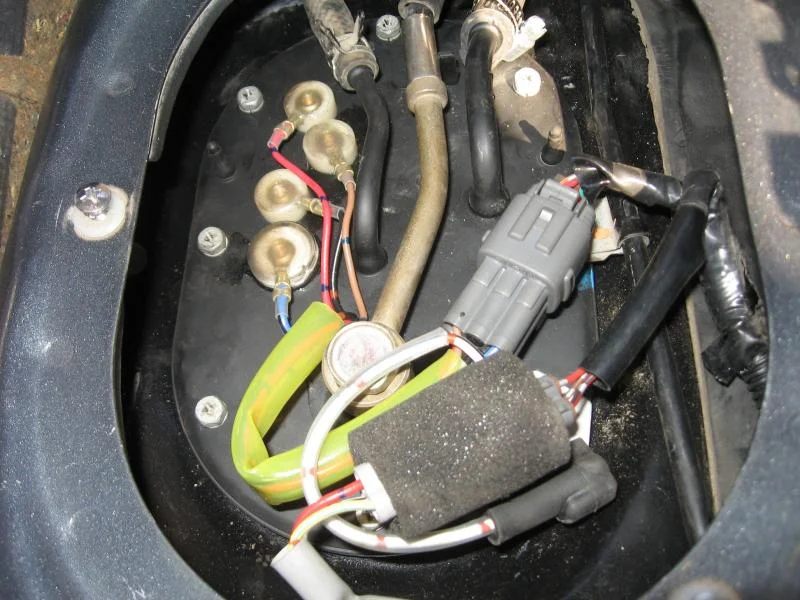

Tank installed and plugged into existing harness:


Dual filler neck:

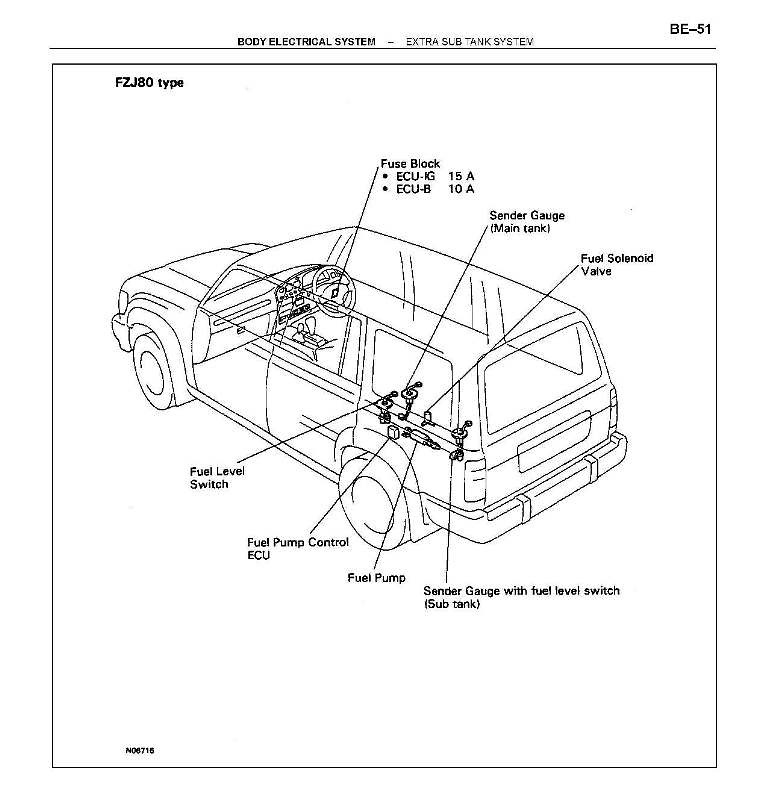

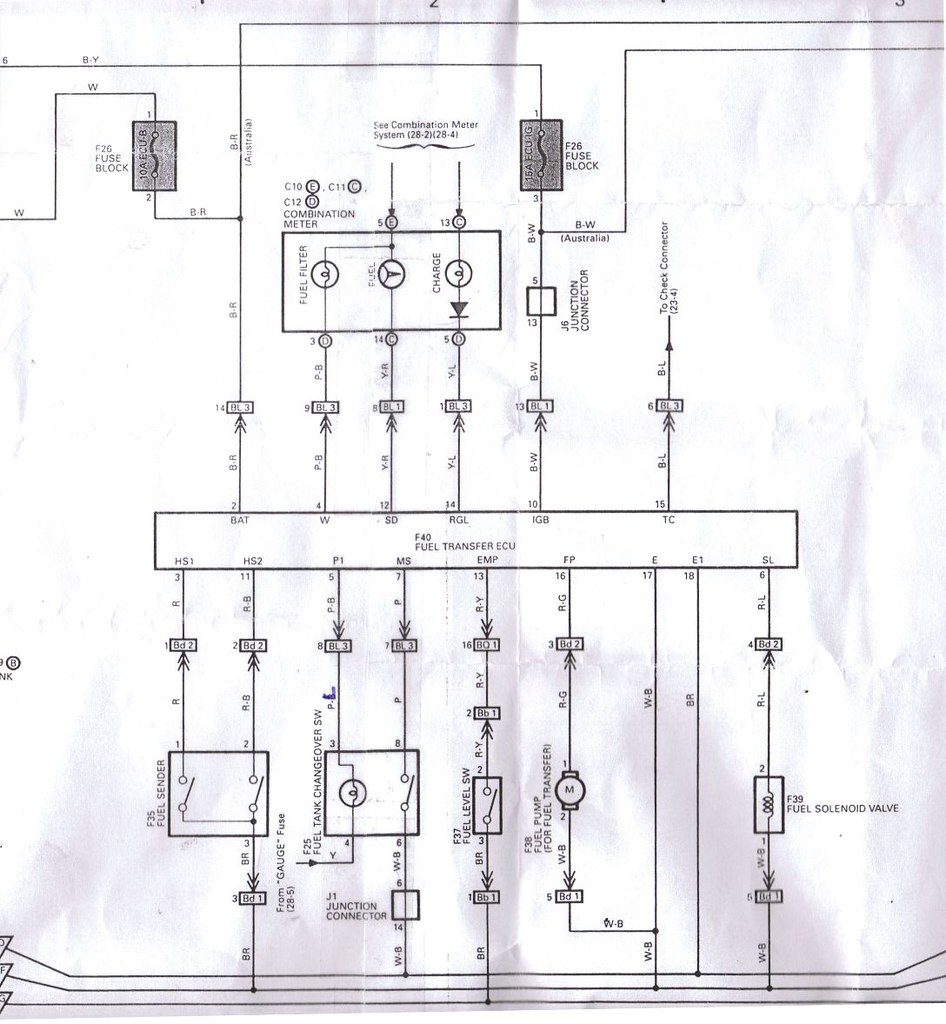

The master OEM diagram:

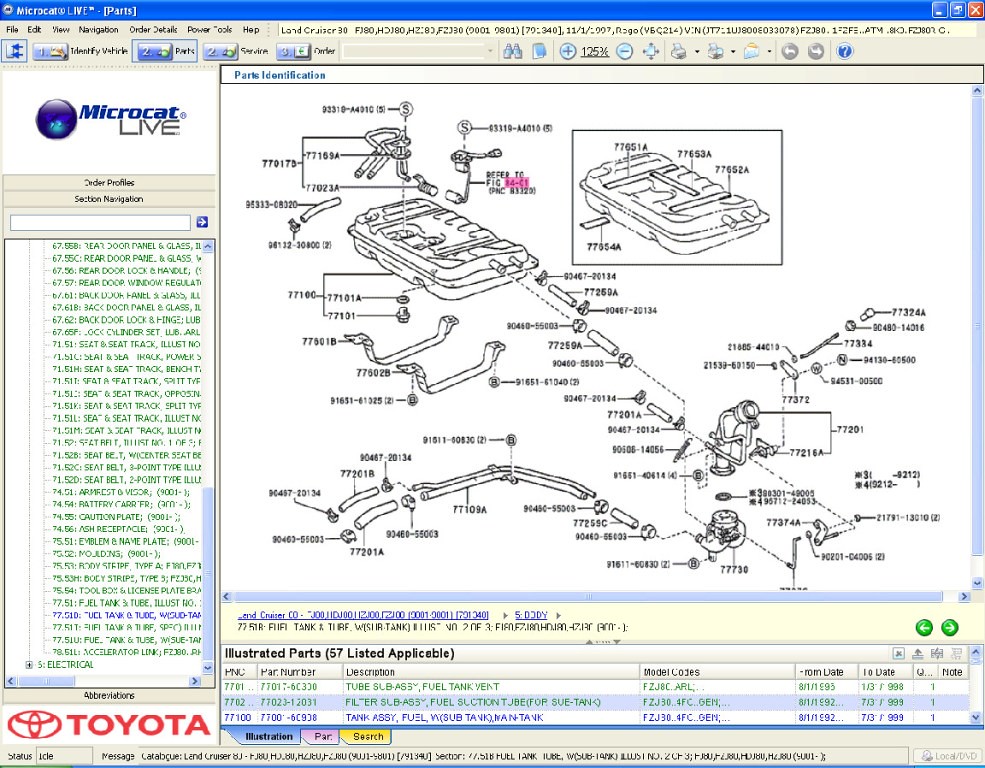

MicroCat EPC parts system

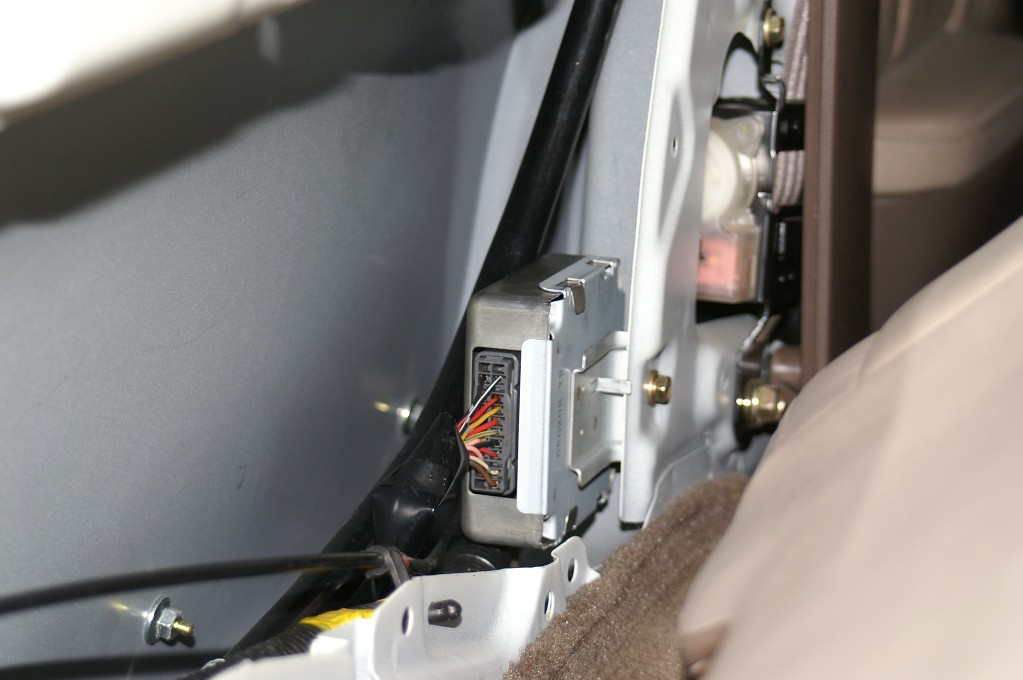

ECU mounted:

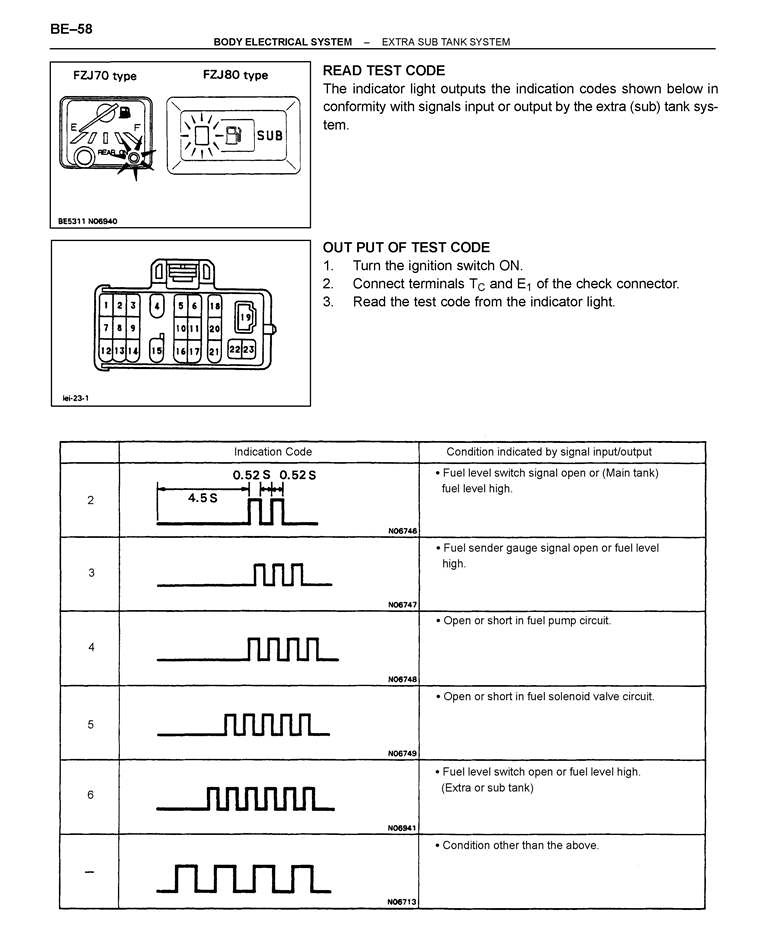

Two of the ten OEM diagnostic pages:




Replacement wiring harness (for connecting subtank pump, solenoid, main tank pump and level switch to sill/floor harness):


Replacement main tank bracket with extra pipe for attaching line from subtank:

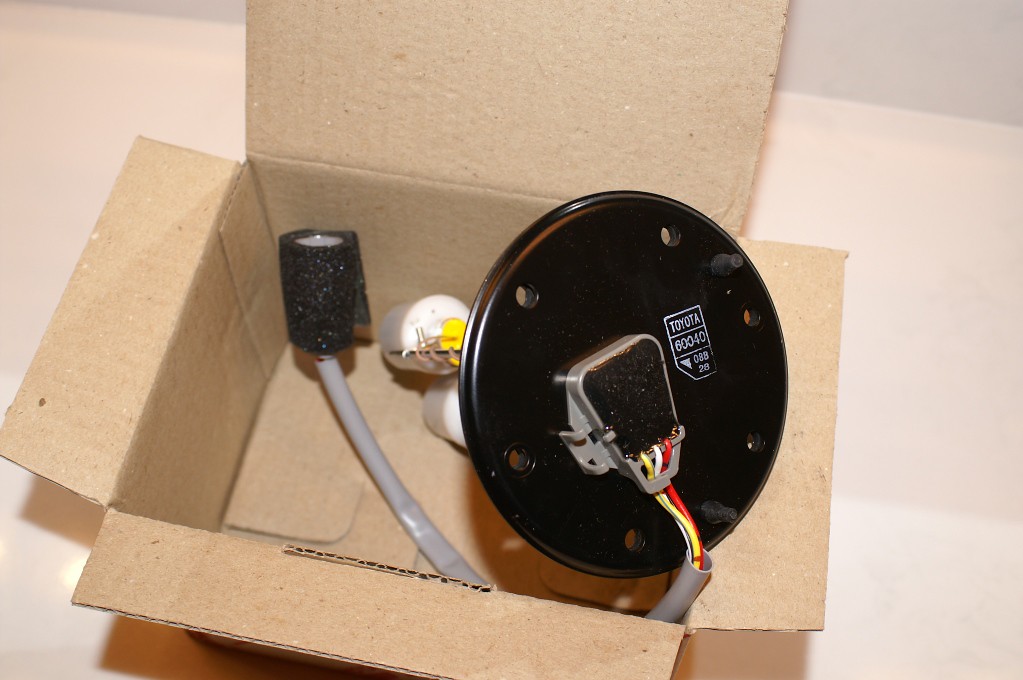

The fuel level switch for the main tank:

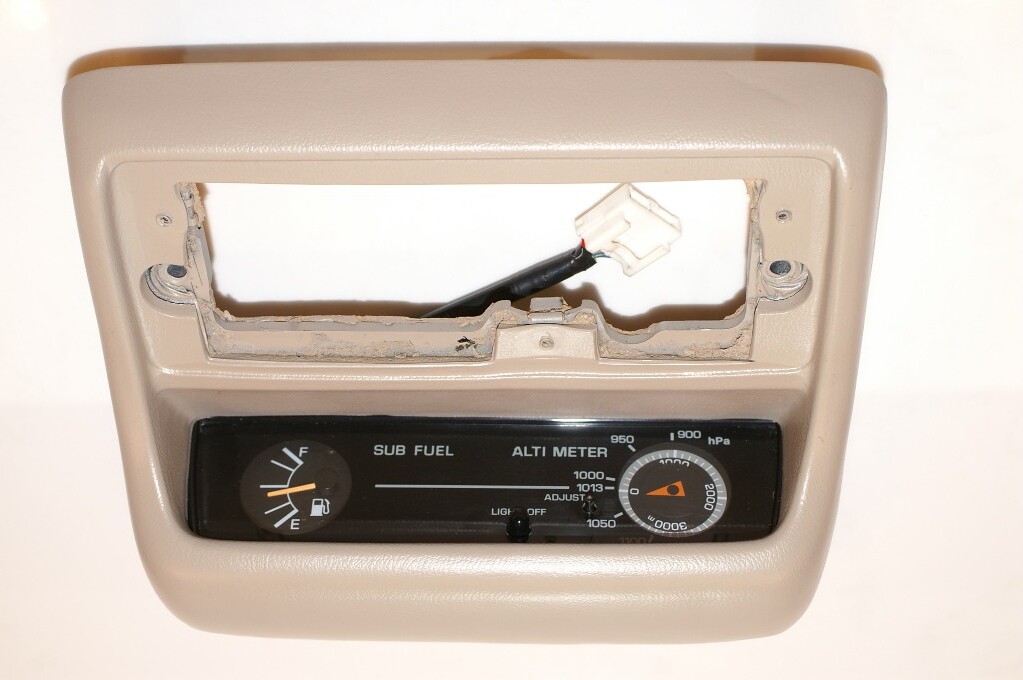

Overhead Console:

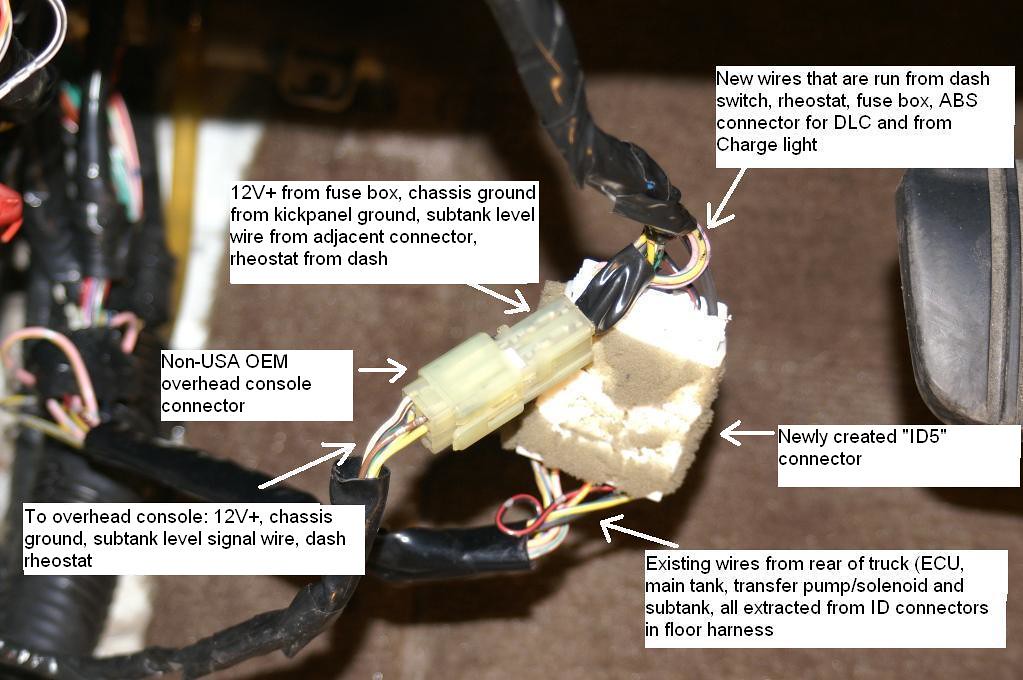

Kick Panel Wiring Connectors (power and switching wires and overhead console harness):


The "Switch":


Here is a list of part numbers that should cover the majority of the major items, exlcuding a few bolts and nuts. I recommend sourcing a tank, transfer pump assembly and dual filler neck either on eBay OZ or from an Oz salvage yard. If you decide to buy new ones, email me and I can give you part numbers.

Fuel transfer ECU , 89570-60110
Fuel transfer dash switch (momentary 7-pin), 84560-60020
Female plug for dash switch, 90980-10801
Wires splices for dash switch(6) , 82998-12340
Housing for kickpanel connection, 90980-10807
Wire splices for kickpanel connector, 82998-12340
Fuel system wiring harness (wire #2), 82182-60050
Overhead console roof wire harness (w/moonroof), 82171-60241
Fuel pump bracket, 23206-66030
Fuel pump bracket gasket, 77169-60010
Fuel pump in-tank filter, 23217-16490
Main tank level switch w/gasket, 83330-60040
Screws for tank switch (6), 90159-A4010
Large fuel hose (2), 77213-60090
Large clamp (4), 90460-55030
Small vent hose (2), 95311-13022
Small clamp (4), 90467-20134
Dual filler neck mounting bracket (1) 90119-08686
Fuel line gasket for banjo fitting (2), 90430-12026
Fuel tank drain plug gaskets (2), 90430-12245
Fuel door decal (1) 74572-60010

Subtank, sender, mounting straps (RH and LH), Used
Tank mounting bolts (4), 90129-08001
Dual filler neck, Used

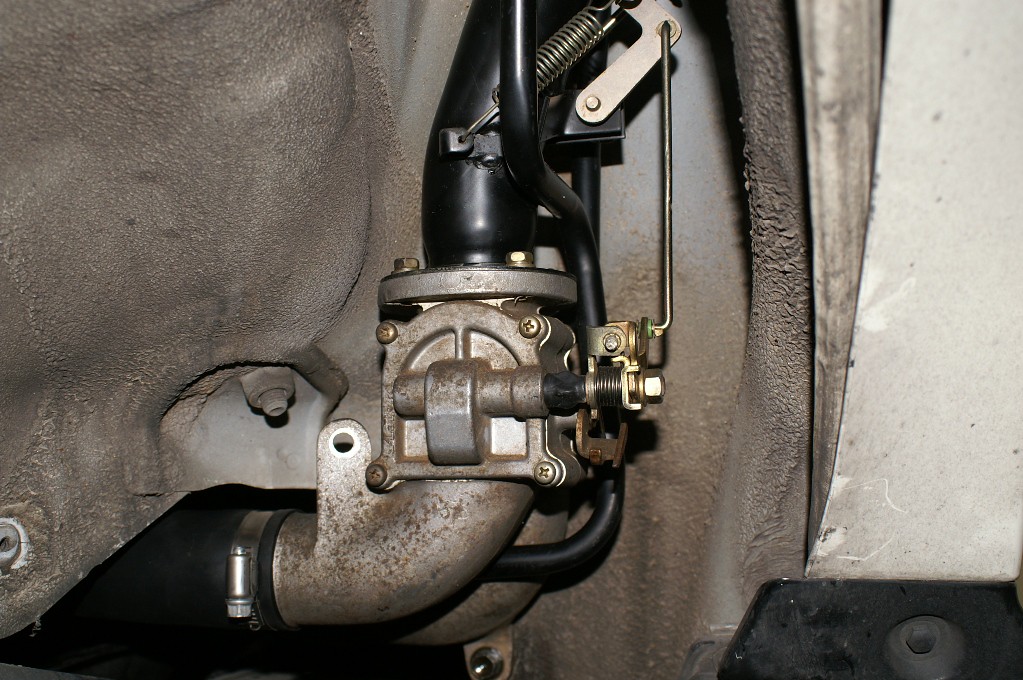

Transfer pump and solenoid assembly, Used
Overhead console w/accessory meter, Used
5/16" fuel hose
Custom mounting ring for main fuel tank switch (available from El Mariachi)


If you have a diesel donor tank, your fuel pickup assembly may have dual pipes, one for the fuel pickup and one for fuel return. The return line is not needed on petrol installs so if you want to replace the pickup with the correct part, the part # is 77017-60300.

Update>> I gave up on finding tan non-USA visors with vanity lights, so I modified my USA sunvisors to accommodate the overhead console, as follows:

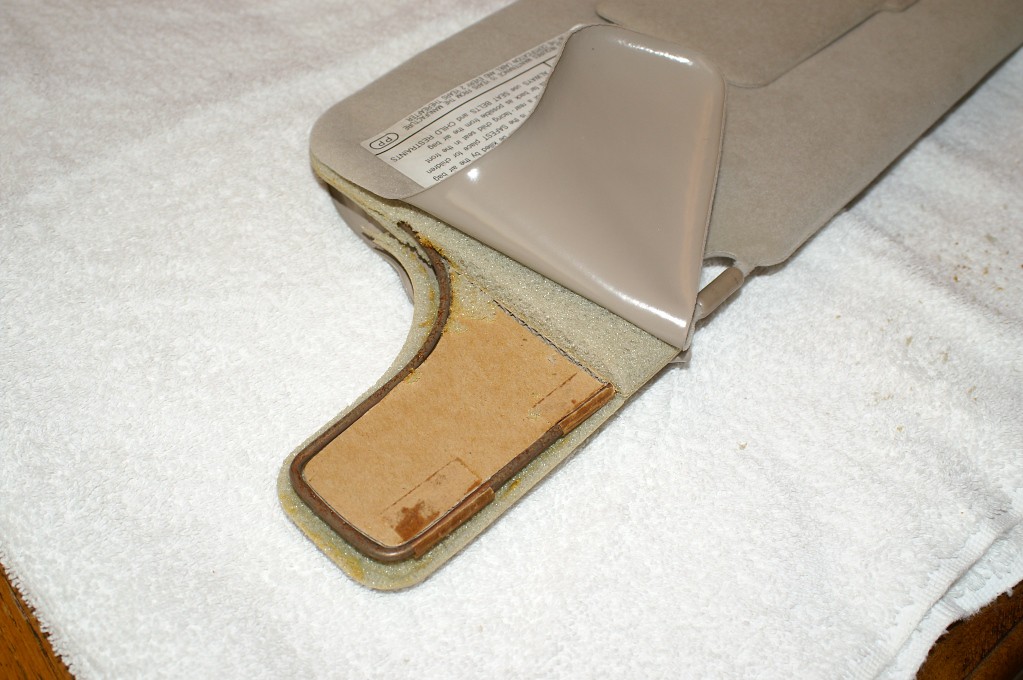

Using a razor blade I carefully cut the outer visor material exactly on the heat seam:

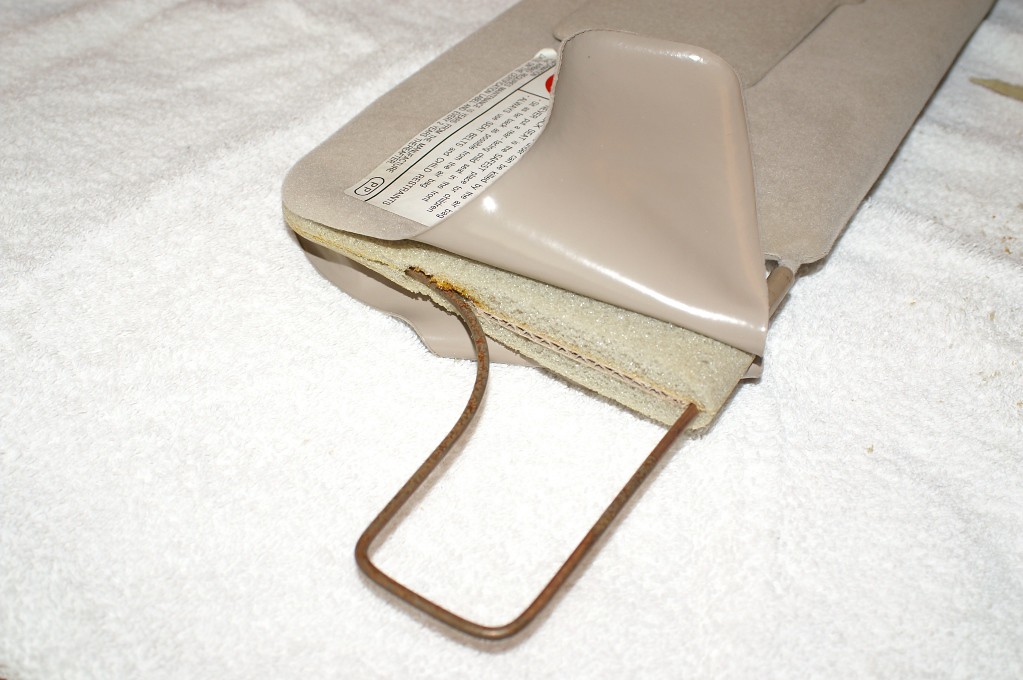

I then marked a right-angled edge and cut the "wing" off, including the cardboard insert, exposing the frame wire:


I used some small aluminum splices I found in the parts bin at Home Depot (they called them spacers) to join the wires together.

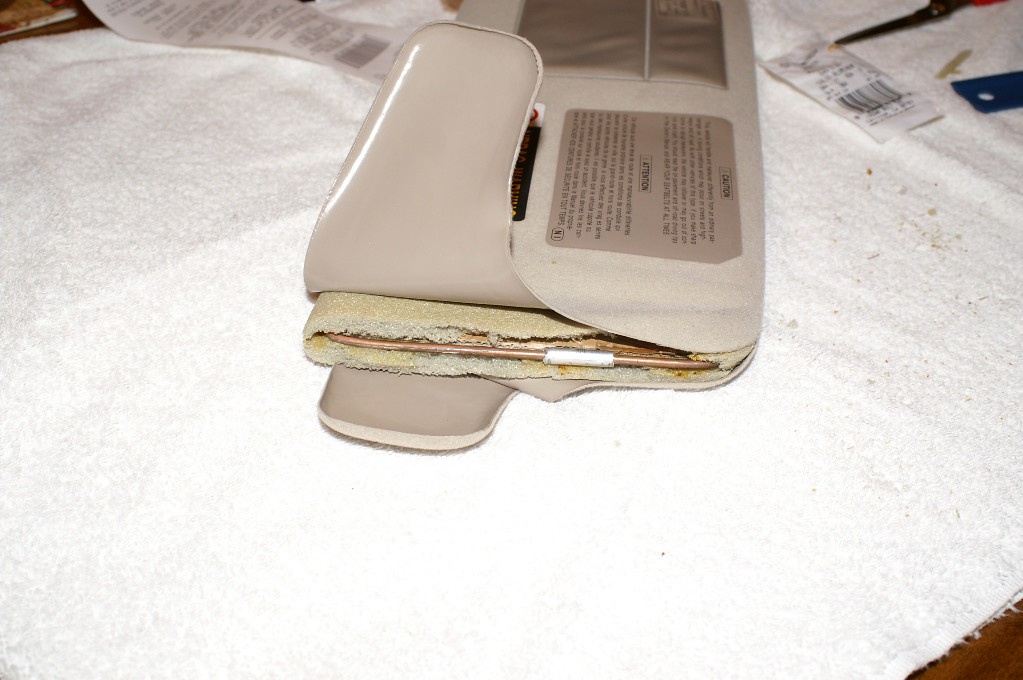

After cutting the wire and making the new bend, I inserted each end into the aluminum spacer and crimped it in a few places. They fit perfectly in the splice: :


I slowly began rebonding the seam a couple inches at a time with Liquid Nails Adhesive "Perfect Glue," which dries clear and sets up in 10 minutes. I used masking tape to hold the seam while drying.

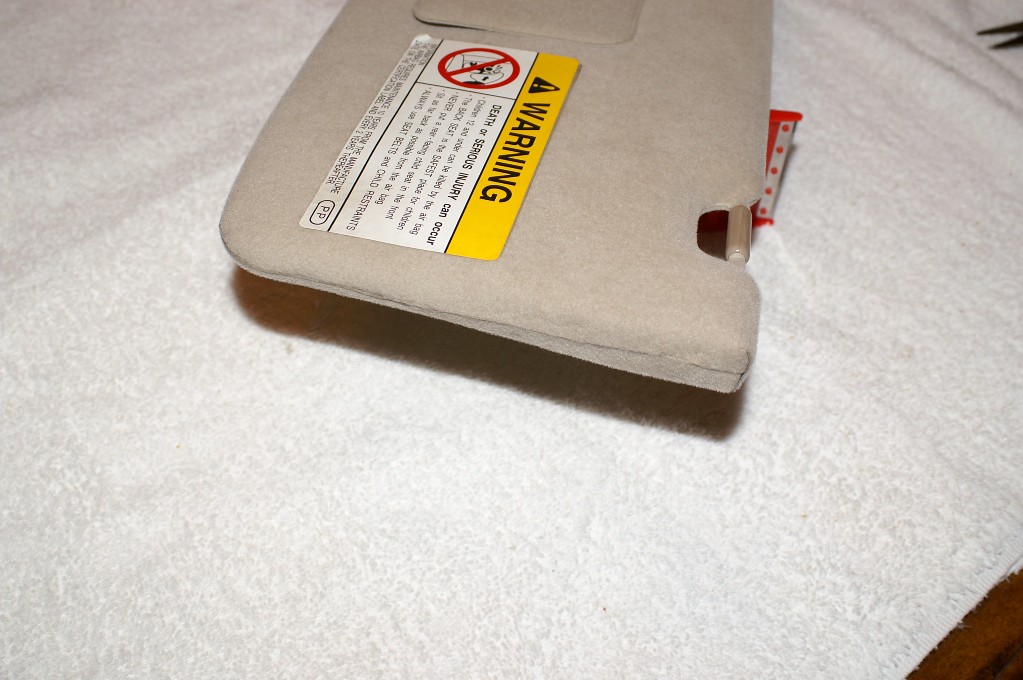

Finished visor. Its a slight bit wavy on the edge because I had lost some of the foam while messing with the wire, but the seam is nearly perfect and I saved $350.

Last edited:
Joined
Oct 7, 2004
Messages
2,589
how nice it will be to keep on driving instead of stopping all the time. great write up.

Joined
Aug 22, 2006
Messages
246
First off, Jim put in alot of research, effort, and a huge AMEX bill to figure this out to Toyota specs, many thanks to him. Having nearly completed this exact install, It is one for the land cruiser addict who absolutely loves clean factory specd modifications and is willing to spend the time and money making it happen.
I am almost done with this install and am in the process of getting a few more very small parts to make it 100% OEM. Ok, 99% OEM :D I dropped my main tank and had it modified to install the fuel level switch instead of buying a new main tank (See first picture of location before reinstallation).

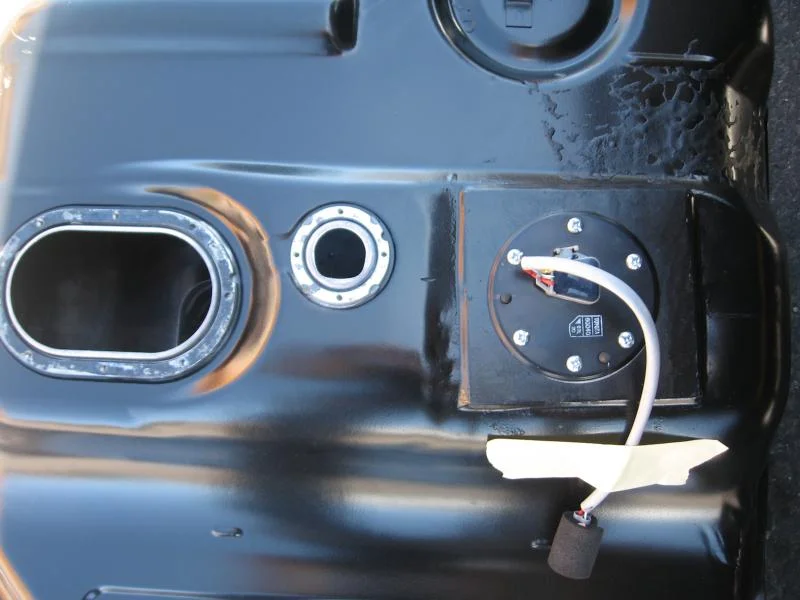

level switch.jpg

Last edited:
Joined
Aug 22, 2006
Messages
246
Then I added the new non-us fuel pump bracket with subtank filler. I also added the wiring harness Jim posted in post 1 to tie in the fuel level switch, fuel pump, and fuel transfer pump/solenoid.

Joined
Aug 22, 2006
Messages
246
I have wired up the drivers side kickpanel portion and my truck is a 94 whereas Jims is a 97.There are differences in connectors and wire locations. I do not know what years had the different connectors but I feel that the wiring, as extensive as it is to someone who has horrible wiring skills, would not be that hard to do on any year. You do need the later 7 pin dash switch to make this setup work PN 84560-60020. There are 5 pin models but those were for the diesel models and had different functions.

Last edited:
Joined
Sep 21, 2007
Messages
1
Location
Adelaide, South Australia
Hey there Jim, Steve from Adelaide, South Australia here. Happy to see the installation has gone well. It looks very professional. I see you have put in a lot of time and effort into it. Probably works better than the original factory set up. I am glad to have been of some help for you.:cheers:

Joined
Nov 6, 2006
Messages
1,495
Perfect timing. Great write up and photos. Joel, were you still going to e-mail me that info? I'm especially interested in the wiring harness.

Thanks

Joined
Aug 21, 2003
Messages
7,293
Nice work Jim!

This is one of the mods I'd like to have done, but not sure if my :banana: skills will ever be up to it!

Great job!


landtank

Supporting Vendor
SILVER Star
Joined
Mar 27, 2003
Messages
20,147
Location
Groveland MA
Very impressive, hell of a job with this mod!! I've wanted to put in a factory sub for a while but wasn't keen on how they were being done.

Any chance at some point in getting a list of parts needed to do this?

Joined
Jan 4, 2005
Messages
1,960
Location
Shufflin' Through the Texas Sand
I believe the console is switched, but someone with one already installed will have to comment as mine is still here on my desk awaiting stubby visors. I am going back through the part numbers now and will post the key ingredients in a few days. Let me tell you, $110 for a fill up takes the "cool" out of this real damn quick.:crybaby:

Joined
Dec 27, 2006
Messages
1,132
Location
The Land of Frank Rizzo
Congratulations - You are now the official Subject Matter Expert in sub tank retrofit.

You need to publish a parts list with numbers and cost.

This is by far the most definative post about this subject and should be moved to the FAQ.

I wish there was someone on the East Coast that could do the work/job, I don't know if this is a job for the novice/shade tree mechanic...any thoughts??

Joined
Jan 4, 2005
Messages
1,960
Location
Shufflin' Through the Texas Sand
I don't know if this is a job for the novice/shade tree mechanic...any thoughts??

I'd say if you can replace a starter, install a stereo etc you can do this. Its lots of steps but none of them are hard. The hard part was finding all the part numbers.

How do you get Microcat Live?

It came from a close friend at Toyota.

Joined
Jan 26, 2007
Messages
585
Location
South America
The best post on subtanks, Period.

Just a question: since you welded the plate that hold the new level switch on the main tank, could this welding be more prone to rust or did the shop something to protect the surrounding area ?

As many are aware the aussie Long Ranger and LRA aux tanks are made of aluminized steel and sooner or later they start to rust from the inside only at the welding points.

Regarding the inside color, we never got the grey interior only the tan. But unfortunately we also never got the aux tank.

And only on the VX top of the line trim you can find the sub tank access port under the rear cargo carpet, the others didn't have it.

Last edited:
Joined
Jan 4, 2005
Messages
1,960
Location
Shufflin' Through the Texas Sand
Any chance at some point in getting a list of parts needed to do this?

I have added the parts list to the bottom of Post #1.

Just a question: since you welded the plate that hold the new level switch on the main tank, could this welding be more prone to rust or did the shop something to protect the surrounding area ?

The shop I used coated it with something they use on tanks to prevent rust. When I get time I'll post more pics of that.

Hey there Jim, Steve from Adelaide, South Australia here. Happy to see the installation has gone well. It looks very professional. I see you have put in a lot of time and effort into it. Probably works better than the original factory set up. I am glad to have been of some help for you.:cheers:

Steve, you're the best and thanks again for all your help. You a have friend in Texas if you ever need anything.:beer:

Last edited:
Joined
Jan 26, 2007
Messages
585
Location
South America
The shop I used coated it with something they use on tanks to prevent rust. When I get time I'll post more pics of that.

I would appreciate if you could post the name of the product used by the shop since I will do some maintenance on my aux tank and fix a hit it received at the bottom side and will be a great chance to coat it.
