My slow '78 Mustard Yellow build (1 Viewer)

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
I guess its time to post up my '78. I bought this cruiser about 11 years ago. It came with a Chevy V8, TH350 & a 4spd case. I've only driven her about 100 miles and most of that was on the ride home from buying it.

When I bought it the tranny or t-case was making a whining noise. I figured there was a bad bearing somewhere and i'd have no trouble just rebuilding the offending unit. I tore it all apart and discovered the genius who did the conversion welded the input shaft of the t-case to the input bearing:mad:. On further teardown I found the input gear had stress cracks on every spline and tooth! it was a bomb waiting to go off. So I had a useless th350 adapter a V8 and an automatic I didn't really want. a little time passed..

I bought a hard top with side doors and ambulance doors. Paint is now a bit faded but better than the rest of the truck! I also bought the correct windshield frame with the wipers at the bottom. its primed and has been for years but not installed.

I searched around and found a th-400 adapter used in good condition and my buddy got me a free th400 tranny that I had rebuilt. Time passed and I never got around to installing the th-400 and I sold it. I decided I wanted a manual and I found a sm420 with an adapter and t-case already assembled. I bought all the parts I needed for the conversion and then let it sit for another couple of years.

I got into building turbo MR2's and even put a 7mgte in my '85 pickup and still the cruiser sat.

I finally found MUD a few months ago and got inspired reading all the build threads to get the cruiser up and running again. I still havent done much other than plan and sell off all the stuff I won't need.

My plan is:

1. 1KZ-TE 3.0L Turbo diesel, maybe setup for WVO.
2. NV4500 (my uncle gave me a used one, 29 spline dodge HD)
3. Mini truck PS
4. Milemarker Hyd. winch.( took it off my truck, I hope it fits, haven't measured yet...)
5. Rear disk brakes.
6. Rebuild steering, its scary!
7. gets some factory wheels and caps with the "tall skinny" look tires. 33x 10.50's?
8. fix the little bit of rust it has and paint it.

The biggest challenge will be getting the NV4500 mated up to the 1KZ. I'm trying to get a bellhousing, flywheel and Pressure plate for the 1KZ that I can modify to fit the NV4500. Its hard to find and import manuals so i'm just getting the parts I need.

I'm still selling stuff and saving money so if anyone is in need of a 7mgte powered '85 4x4 or a nice seemingly low mileage 350 4 bolt crate motor let me know!

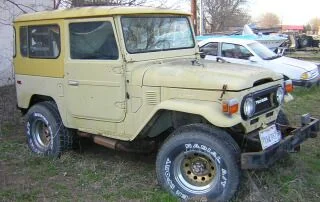

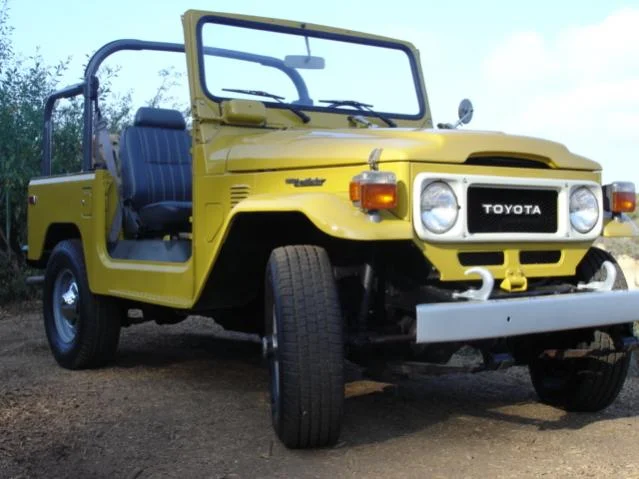

Here are some pics as it sits:

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
Hi Toddm.

Get stuck in.

As you've already discovered - There's plenty of inspriration here.

Doing up one little section at a time works for me.

If it was mine, I'd concentrate on getting it mobile and road registered first of all. That way I could enjoy driving it whenever I got sick of working on it.

:cheers:

PS. I couldn't tackle a "ground-up restoration" because I'd lose interest before I got it all back together. But I do admire the people who can!

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
Yeah thats the plan, mechanicals first then work on the looks.

Oh and i did notice the bezel was upside down. I might filp it over.:hillbilly:

I have a kid coming the end of august so i'm hoping to have most of it done by then. We will see if I can get out of my 11 year rut!

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
Its right? I thought the thick part went down so the "Toyota" was centered. Well one less thing to do I suppose.

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
I have been looking at the AA nv4500 to 16 spline case adapter. Is Advanced Adapters considered the best or are there others out there? My web searches aren't bringing up any options.


Hogan

Three on the Tree
SILVER Star
Joined
Nov 5, 2003
Messages
910
Location
Forest Lake MN
You definetely want to get it on the road before the baby comes. Time will be at a premium after the new arrival.

I know I bought a 1962 FJ40 in 1997 while we were pregnant with our second, and it's still in parts. I was lucky and stumbled on to a 1971 FJ40 in Oct 2006 and got it running so I have my summer toy.

1962 FJ40 top 1971 bottom

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
Bezel is correct. Are you messing with the Bezel police's heads???

apparently. Maybe i'll turn it the wrong way for a while to really get them stirred up.

I got my cruiser over to my shop last weekend. One of the 33" tires it has been sitting on was flat. It was leaking really badly at the bead. I took the tire off and the bead basically fell off in my hand. I wanted to get new tires for it anyway due to the dry rot, now I have my chance.

I' guess i'll order the AA adapter on monday. Still trying to source a bell housing for the diesel.

Also I discovered that the input shaft on the NV4500 can be swapped for one of the "light duty" ones for a GM or the non-diesel dodge. This will allow me to use a 1.125" 10 spline off the shelf clutch disk. I have been having trouble finding a 1.250" 10 spline disk that would fit the flywheel of the 1kz without going to a custom disk. Now I Just need to decide if I need the longer Dodge input shaft or the shorter GM version.

Todd

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
I got my 1KZ-TE this week, finally. I pulled the tranny off to take a peek at the flex plate. It turns out it has a 23Lb flywheel that the flexplate bolts to. I think I can have a plate machined to fit the flywheel and adapt a chevy clutch disk and pressure plate to it. Once I get the bellhousing from OZ I can start mocking up the tranny and clutch.

I also started on the wiring. I pulled all the automatic transmission wiring out and some of the body harness, I left all the power wires from the fuse box till I decide what I want to use. I located all my power and grounds from the fuse box and once I get the motor in the cruiser I can finalize the lengths and routing. The wiring is really not that complex. Putting a supra motor in my pick-up was worse. I still need to figure out a tach that will work with the diesel.

I'll try to add some pics later.

Todd

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
It Runs! well kinda. I had the motor hanging from an engine hoist. took me about 4 hours to track down a ground I forgot to tighten up on the engine harness. DOH!! After that it fired right up!

Its pretty quiet even without an exhaust system. I think i'll try it with a 3" system, then add a muffler later if needed.

I also got the AA t-case adapter bolted up to the NV4500 and cut the output shaft down to length. I think i'll need a hoist to mate the NV to the t-case, Its heavy.

Todd


40's rock

SILVER Star
Joined
Feb 5, 2006
Messages
1,467
Location
Dallas
welcome a-board! check out the Lone Star Landcruiser Club in Dallas. Also the White Trash of the Elwood Chapter...also a lttle north of Dallas. You can find the link on the TLCA/Clubhouse tab in the header.
I'm in the frame only stage of a 79 40 rebuild...look forward to sharing the misery and extra parts....Good Luck!

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
40's rock, Sorry, i haven't checked in in a while. I went to a couple of the LSLC meetings back about 5 years ago maybe it was 7 years ago, I forget. I'm not good with dates.

I have made some progress:

1. Had the insert for the flywheel machined.
2. Bought a new input shaft for the NV4500.
3. Bought a clutch for a late 60's 427 corvette. I figure it will hold the torque and its a perfect fit on the flywheel.
4. Got the Bellhousing from OZ. alot of measuring welding and cutting later it fits on the motor and the tranny.
5. Cut down the "snout" to fit the throwout bearing better.
6. Cut up and welded a clutch fork from a R151F to fit.
7. Had to cut the throwout bearing and the snout again to allow enogh room for the throwout bearing. Using a Dodge NV4500 T-out bearing.
8. Made engine mounts and test mounted motor in the cruiser.
9. cut and rewelded the t-case shifter so I could get low range.
10. Interated the engine harness into the LC harness and stripped out all the old LC stuff i wasn't using anymore, all the carb wiring, distributor, emmission controls, etc.
11. Made a mount for an MR2 clutch slave cylinder that I modified a bit.


Lots still to do. My first kid is about a week away now!

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas
I finally bought a star!

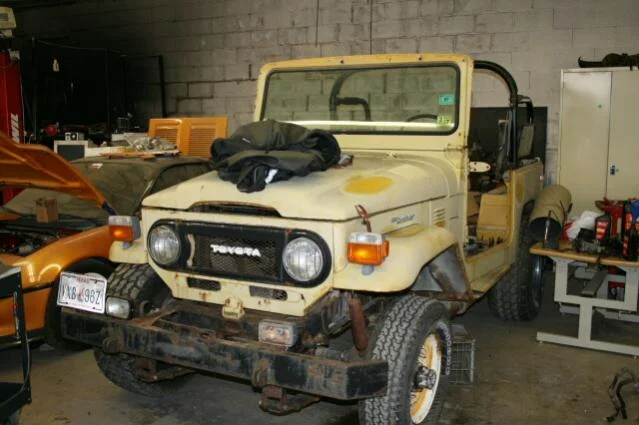

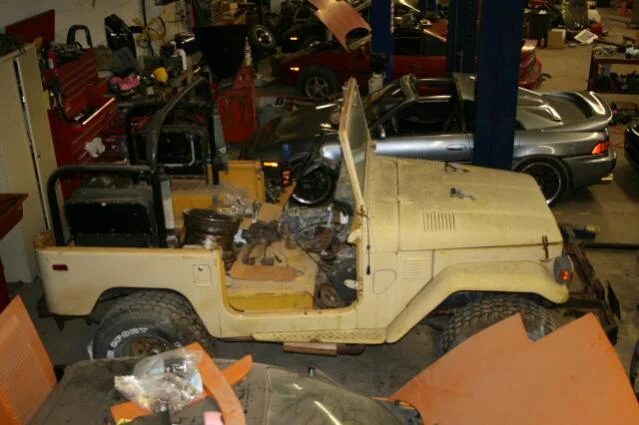

Pics of the cruiser at my shop, finally out of the weather. And one of my free NV4500, my Uncle Dave rocks!
new home.jpg
new home2.jpg

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas

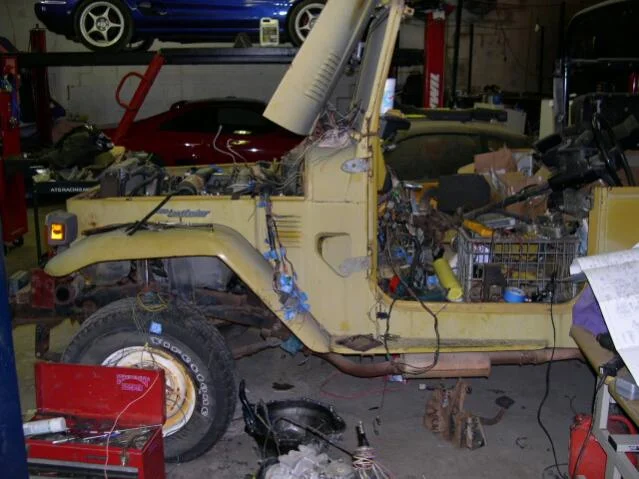

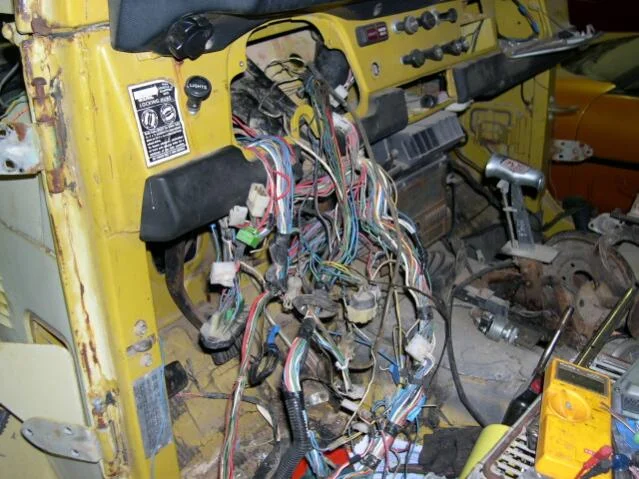

pics of the wiring

I pulled all the wires out of the engine harness that i didn't need, mainly auto tranny stuff.

Then I integrated the engine harness into the body harness of the cruiser, I harvested some plugs off of an MR2 so I can unplug the engine harness if needed.
wiring mess.jpg

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas

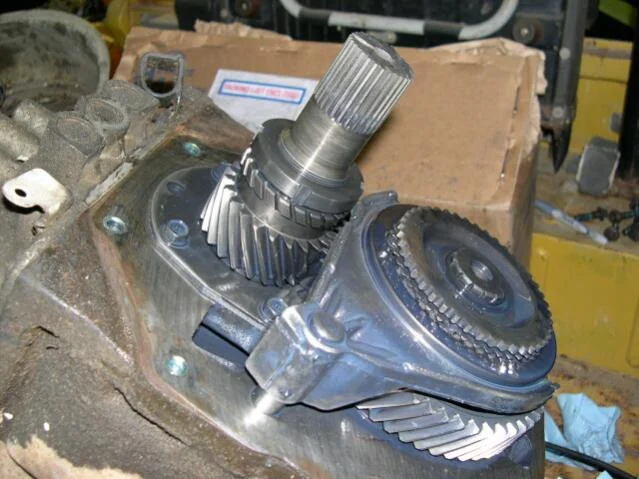

I had to cut the output shaft of the NV4500 to fit the Advanced adapter....adapter. Its straighter than it looks!

I also had to make a new spacer for the transfercase shaft. somehow I got the measurement off by half an inch and had to make an additional spacer. :doh:

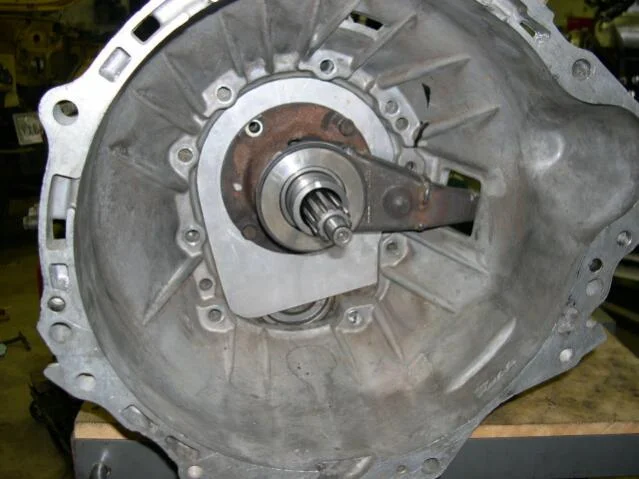

I did alot of work to the bellhousing. First I welded the plate you see into the back where it meets the transmission. I put the auto bellhousing on a mill with the dowel pins firmly bolted to the mill table, I indicated the center, then swapped the manual bellhousing on to the mill and cut the center hole for the NV's input housing. I also had to cut down the NV output housing a little so i wouldn't need to cut into the pivot for the clutch fork.

Then I added (4) 1.5x1.5 aluminum blocks to the outside of the bellhousing as ears to mount to the tranny. Then I drilled and tapped them and was finally able to bolt the bell onto the tranny. Aluminum absorbs alot of heat! It took a while to get all the welding done on the bellhousing. One time i got a little too hard on the pedal and a piece of molten tungsten almost landed in my lap! I turned the current down after that and just went slower.

I had to cut the snout for the throwout bearing about an inch so it wouldn't hit the clutch disk, I also had to cut down the back of the Throwout bearing and the back of the snout so the throwout bearing because it was pushing on the presure plate a little when fully assembled.

I also cut the clutch fork apart and re-welded it to fit around the larger throwout bearing.
cut shaft.jpg
inside of bellhousing.jpg

Joined
Dec 27, 2006
Messages
189
Location
North Of Dallas

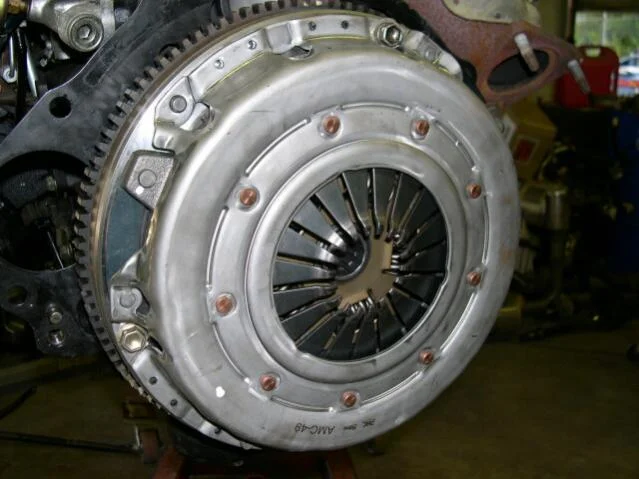

Here are a few of the clutch and one of the motor in the truck.

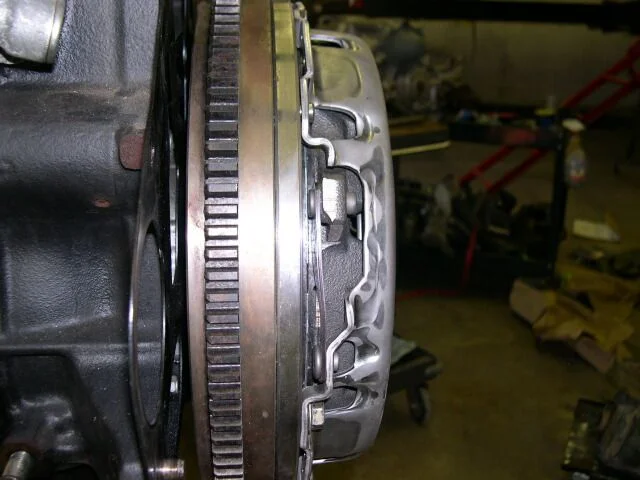

The flywheel is the standard one from an automatic with an adapter plate I had machined to fit in it. It sticks out about half an inch past the flywheel and gives a good friction surface for the clutch disk. The adapter plate is mounted with bolts that go throught the back of the flywheel. The adapter is about 24 Lbs and the flywheel is about 23 Lbs for a total of 47 lbs, thats only 10 lbs lighter than the stock dual mass flywheel.
test fit.jpg
