Leaf Spring Numbers (1 Viewer)

[kvanoort]

I'm cleaning up and painting my OEM front leaf springs on my '72 Fj40 and noticed that they had white numbers painted on the top of the leafs. Does anyone know what the actual numbers are so that I can make a stencil and repaint the numbers? Thanks!



[spotcruiser]

pm Josie'sLandCruiser



[Fast Eddy]

they had white numbers painted on the top of the leafs.

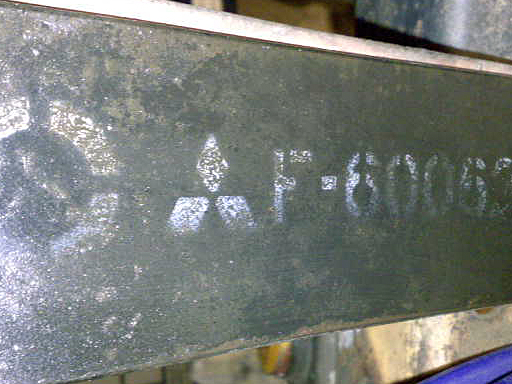

Probably little Mitsubishi triple diamond logos too.



[kvanoort]

Probably little Mitsubishi triple diamond logos too.

You know what I'm talkin' about.



[spotcruiser]

Sorry. I take back my last post. I read OEM and thought OME. Alan (Josie'sLandCruiser) is the OME spring part number guru.

OEM numbers, as best I can tell are:

Rear RH pack -- 48210-60120
Rear LH pack -- 48220-60120

Front RH pack -- 48110-60060
Front LH pack -- 48120-60060

I don't know which number is painted on top of the springs. It might be the top leaf number: Rear 48211-60120 and front 48111-60060.



[kvanoort]

Hopefully someone will have a picture they could share. That would be great...



[Teebag]



[Coolerman]

Here is a pic of mine before I tore them down...



[kvanoort]

Thank You

You guys are the best!!! Thank you for providing this information and for taking the time to post pictures.
Happy Holidays to all!!!



[spotcruiser]

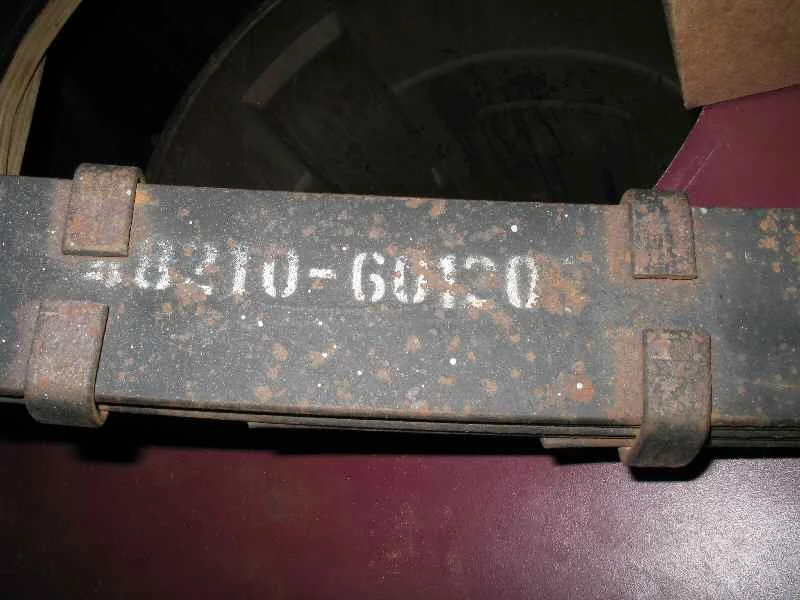

There you go. RH rear spring pack.
Rear RH pack -- 48210-60120
Rear LH pack -- 48220-60120

Front RH pack -- 48110-60060
Front LH pack -- 48120-60060

Here is a pic of mine before I tore them down...



[kvanoort]

Perfect! Just perfect... Thanks again!



[kvanoort]

After doing some stencil font searching tonight online, I couldn't find a match. Anyone happen to know what font Toyota used for painting the part numbers? Thanks.



[Dizzy]

Bump. Anyone have a stencil?



[demos]

Bump. Anyone have a stencil?

Did you ever make a stencil for this? I'm looking to do the same thing.
