Recently and after the monthly meeting I have had a lot of question on solar set ups and needs. I camped over nite and took some notes on my solar set up and performance.

My set up:
Solar Panel - Grape Solar 100w thin (.12") 20"x40"
Charge Controller - Mornigstar ProStar 30m
Battery - Optima Blue top separated from starting battery when vehicle is off
Load - Waeco CF-50 fridge (1/2full), Net book power supply and GPS dongle

IMG 7793


Vehicle off and batteries separate Saturday @ ~6:30 PM
Beginning battery voltage 12.6v
Vehicle pointing Northeast panel at ~30°
Weather, Light rain, low overnight temp 45°
Fridge temp I keep it at 32° during the day and bump it to 38° at nite
7:15 AM Battery voltage 12.4v
7:20 AM Sun pops over the mountain voltage 12.5v Solar amps 2.9
8:00 AM Time to leave battery voltage 13.6v Solar amps 3.6

IMG 7802
IMG 7803

murf

murf

Lifer
Joined
Jun 24, 2007
Messages
10,557
Location
Scottsdale, Arizona
Very worthwhile to have the extra juice...I like that the roof mounted solar panel is so thin that it is both unseen and won't catch branches.

Last edited:
Cee Fish

Cee Fish

Joined
Sep 30, 2010
Messages
178
Location
Arizona
Chuy

Chuy

07' GX470
Joined
Nov 11, 2010
Messages
523
Location
Peoria
That setup is really awesome, thanks for posting the stats Phil.

Cee Fish

Cee Fish

Joined
Sep 30, 2010
Messages
178
Location
Arizona

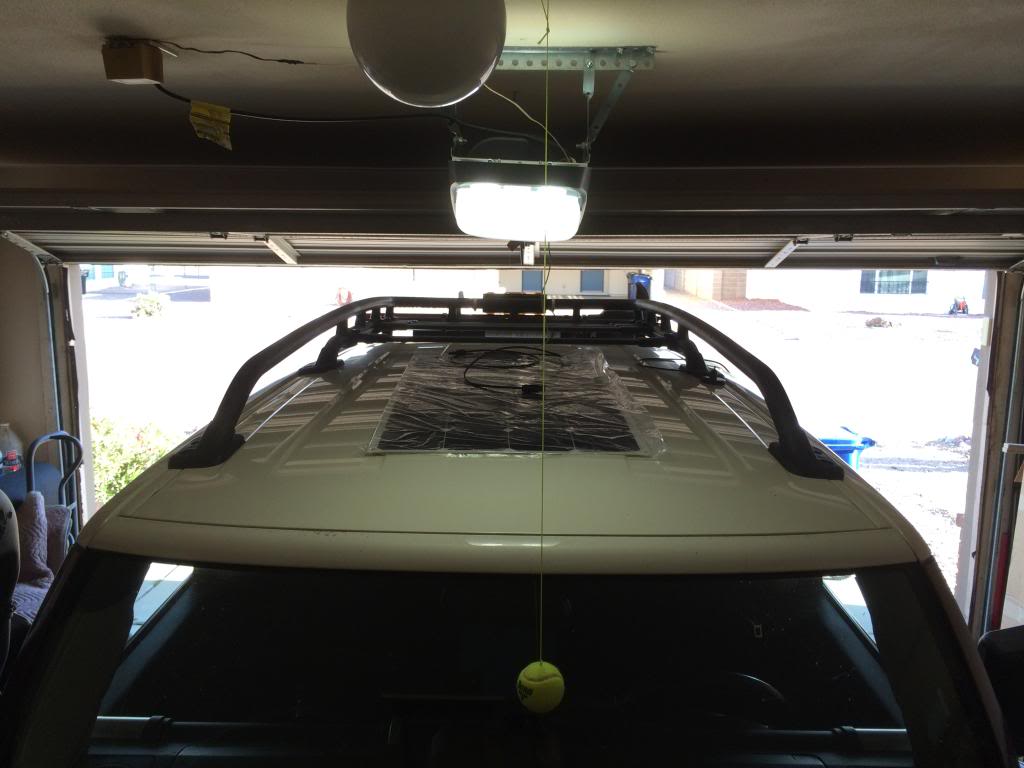

Panel and controller are here, still waiting on a few small parts.

Should be punching a hole in the roof weekend after next.

Changed my mind and went with the slim panel like LCPhil.

Talked to Grape solar about install and the decision was made to use 3M VHB tape to stick directly to the roof of the FJC...

Moar pics to come...




GWcruiser

GWcruiser

Joined
Jun 30, 2013
Messages
815

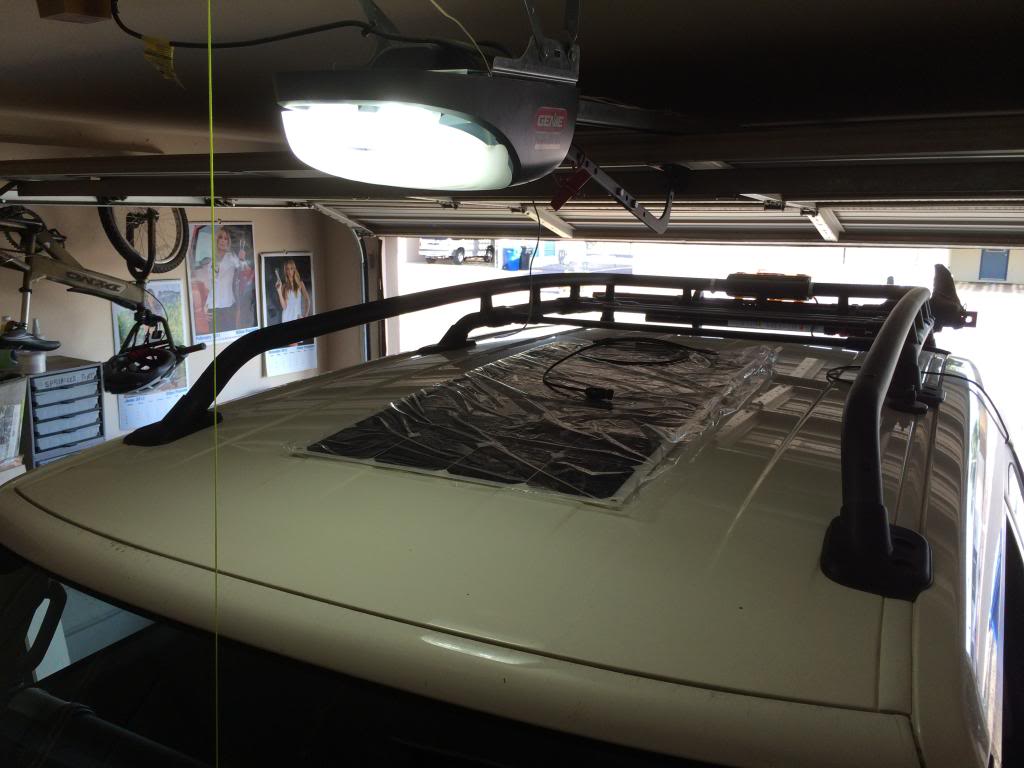

Looks nice. I can't tell for sure from the photo, but depending on shadow angles and wiring of the panel internals (are any rows or columns in parallel), you may want to consider moving the panel a bit more forward from under that first cross bar. The 2" shadow from the bar on a 4" cell is 50% loss (even one shaded cell normally limits total panel current). If that's on several series elements it might really suck down the total power available from the panel. I tend to be overly conservative about these things, you may want to ask the cell vendor their thoughts.

Stepmurr

Stepmurr

Lookin' fer the end of that old white line
SILVER Star
Joined
Dec 29, 2007
Messages
1,610
Location
Noteop, Arizona
So who is the chick in the posters?


Panel and controller are here, still waiting on a few small parts.

Should be punching a hole in the roof weekend after next.

Changed my mind and went with the slim panel like LCPhil.

Talked to Grape solar about install and the decision was made to use 3M VHB tape to stick directly to the roof of the FJC...

Moar pics to come...




Cee Fish

Cee Fish

Joined
Sep 30, 2010
Messages
178
Location
Arizona
GWcruiser, i agree 100%, the panel is not mounted down at this point. I was just getting an idea for placement.

Stepmurr, those are old Dillon calenders...I chose the best month for permanent status in the garage...

puulboy

puulboy

Joined
Feb 6, 2007
Messages
730
GWcruiser, i agree 100%, the panel is not mounted down at this point. I was just getting an idea for placement.

Stepmurr, those are old Dillon calenders...I chose the best month for permanent status in the garage...

What is the difference between these 2 types of panels. Besides the price and the wattage One is monocrystaline the other is polycrystaline

http://www.homedepot.com/p/Grape-So...ERCH=REC-_-ATCModal_rr-2-_-NA-_-204211365-_-N
http://www.homedepot.com/p/Grape-So...-Systems-GS-S-105-Fab8/202960004?N=5yc1vZbm18

GWcruiser

GWcruiser

Joined
Jun 30, 2013
Messages
815
Generally it's efficiency ... not saying they are these numbers, but just as an example, one might be 18% the other 22%. You can get a good idea by looking at the panel dimensions. If one panel is 40x20 inches the other 36x18 and both are 100W - the smaller panel has more efficient cells. A small change in efficiency is important where you need lots of power and multiple panels to get there, and extra efficiency usually costs more.

Looking at those two panels, one is a 36 cell panel the other a 24 cell panel. You can probably find info out there that explains advantages of either construction -- the HD site doesn't do a good job of providing detailed specs like voltage / current vs illuminance. Onepanel may give 100W at 20v the other at 17v. And depending on charge controller the 17v model may be better for an application.

ps: I did a lot of research years ago when outfitting my sailboat with panels when an 85W ultra efficient panel was $600... things have changed since, but many details are still true.

Last edited:
Rudster

Rudster

Joined
Jan 26, 2009
Messages
2,633
Location
Chandler, AZ
s
100 3698
100 3701
Put my panel and system in last week. Ran wire through the roof from the existing factory roof rack which I took out years ago. Ran wires through the truck and Phil helped with the final wiring hookup - thanks Phil.

Cee Fish

Cee Fish

Joined
Sep 30, 2010
Messages
178
Location
Arizona
My system is coming together. One final piece inbound. I decided to ditch the factory FJ roof rack and replace with a full length rack from Baja Rack.

This will give me some better options to mount the panel and still have some usable storage on the roof.

Install should be next weekend as UPS managed to LOOSE the roof rack after it left San Diego. :hillbilly:

How do you loose a package the size of a twin mattress??? :bang:

1Louder

1Louder

Joined
Jan 22, 2014
Messages
344
Location
Chandler
Website
www.4xoa.com
Mark,

I hacked the UPS tracking system so it is headed to my house. So they didn't lose it. Oops should have told you that..... Wish you could have negotiated a 2 for 1 deal!

LandCruiserPhil

LandCruiserPhil

Peter Pan Syndrome
Supporting Vendor
Joined
Mar 10, 2004
Messages
25,179
Location
Scottsdale Arizona
My system is coming together. One final piece inbound. I decided to ditch the factory FJ roof rack and replace with a full length rack from Baja Rack.

This will give me some better options to mount the panel and still have some usable storage on the roof.

Install should be next weekend as UPS managed to LOOSE the roof rack after it left San Diego. :hillbilly:

How do you loose a package the size of a twin mattress??? :bang:

Update it been a week! :rolleyes:
