I am doing the mod on the key cylinder light from regular light bulb to led. I accidentally short out the light socket and fried the dome fuse (10amps). Fuse replaced but now the light is not working and the dome light(middle of the truck) works on the ON position but not on DOOR position. Check the key cylinder light and got hot wire instead of one hot and one ground. I know I shorted out something somewhere. Is any one have the wiring diagrams for this circuit? Thanks in advance.
key cylinder light
- Thread starter 2klc100
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Does not look too good - it seems they are connected to Body ECU ;-(
- Thread starter
- #3
Dame...I had fried the ECU well part of it. Thanks you.
- Thread starter
- #4

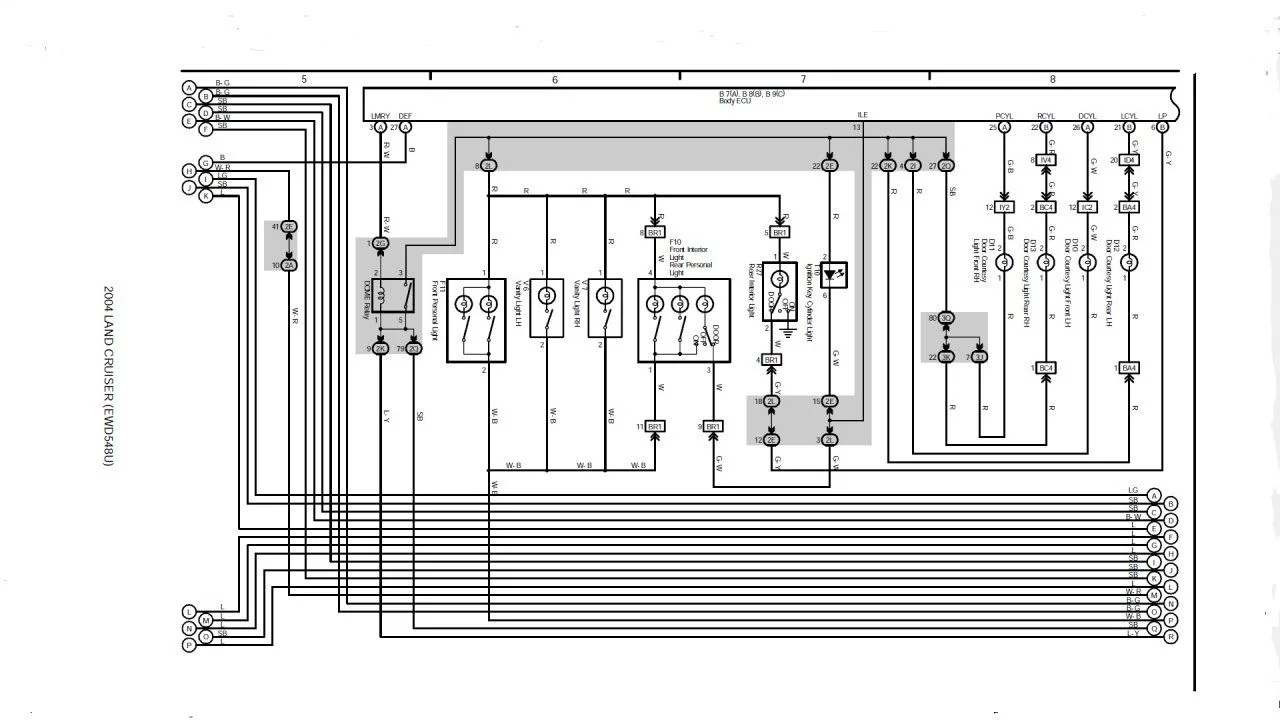

This is the 2004 model diagrams... this is my left J/B 2000 model base. Anyone has the print for this? Thanks
Is this what you are looking for? I am not sure about year but it is pre 2005
- Thread starter
- #6
Yes....that is what I am looking for...so it's not the diode for my key cylinder light and dome light.
Thanks
