Hydraulic Crimper Base

Discussion in 'Tools and Fabrication' started by Hack, May 1, 2018.

  1. Hack

    Hack

    Messages:
    387
    Likes Received:
    385
    Joined:
    Jul 18, 2015
    Location:
    Canton, Michigan

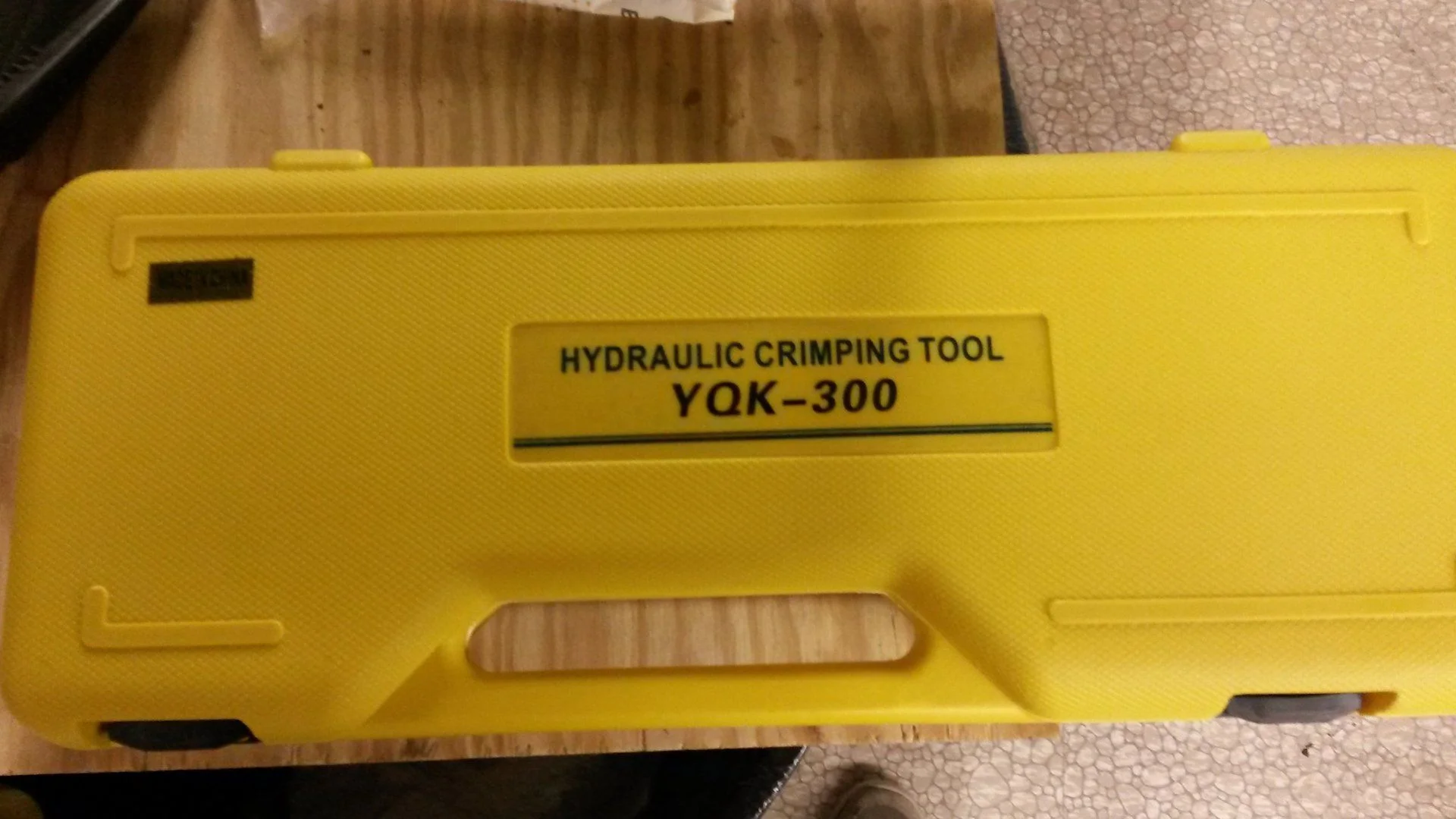

    So I've got a bunch of cables I need to fab up for my 8274 winch, and I picked up one of these 16 ton crimping tools off Amazon:


    Since I was only born with two hands, and help around the shop is scarce (I've tried to get the cat enthused, but he's not interested), I figured a mounting base was in order.

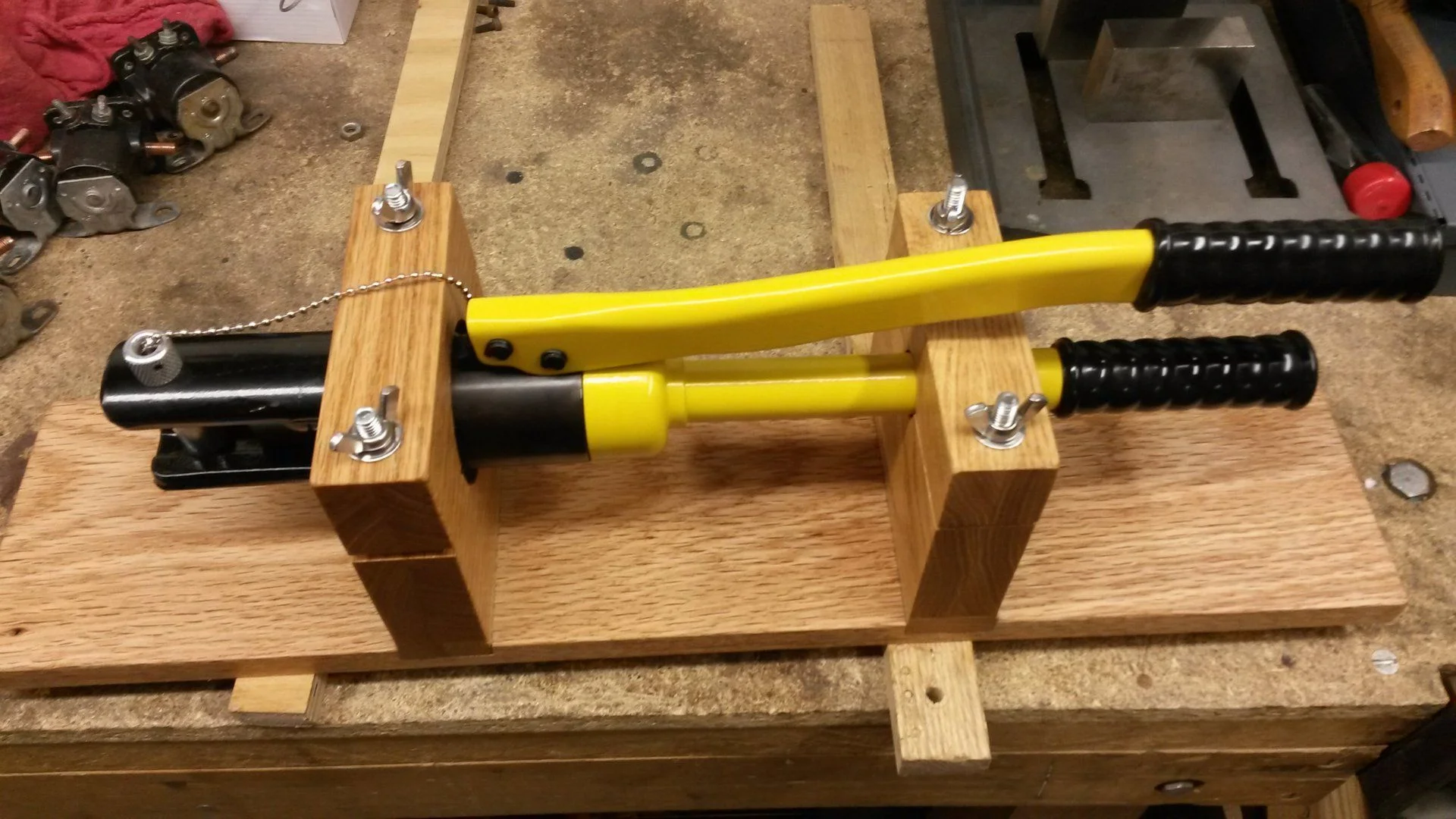

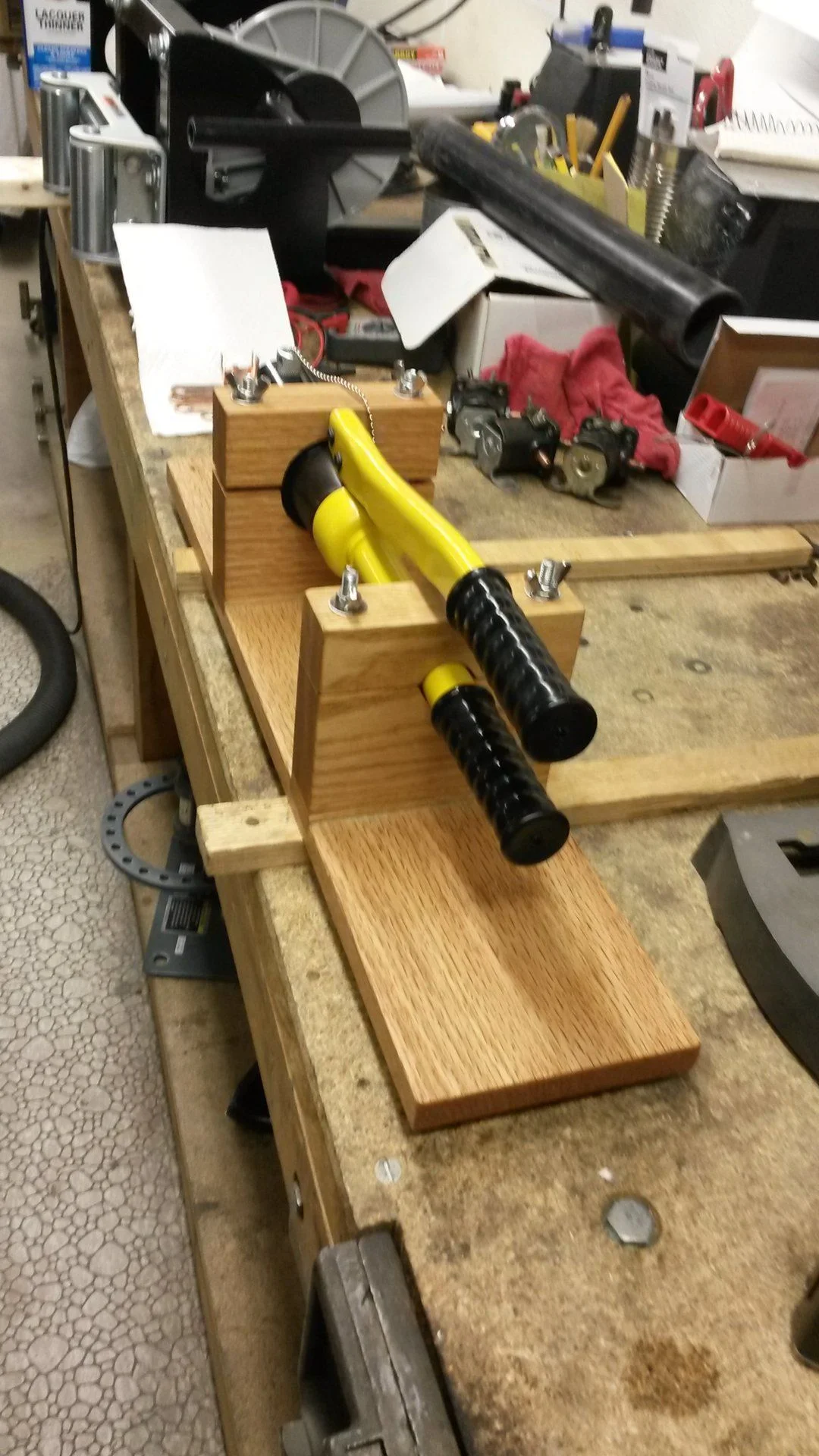

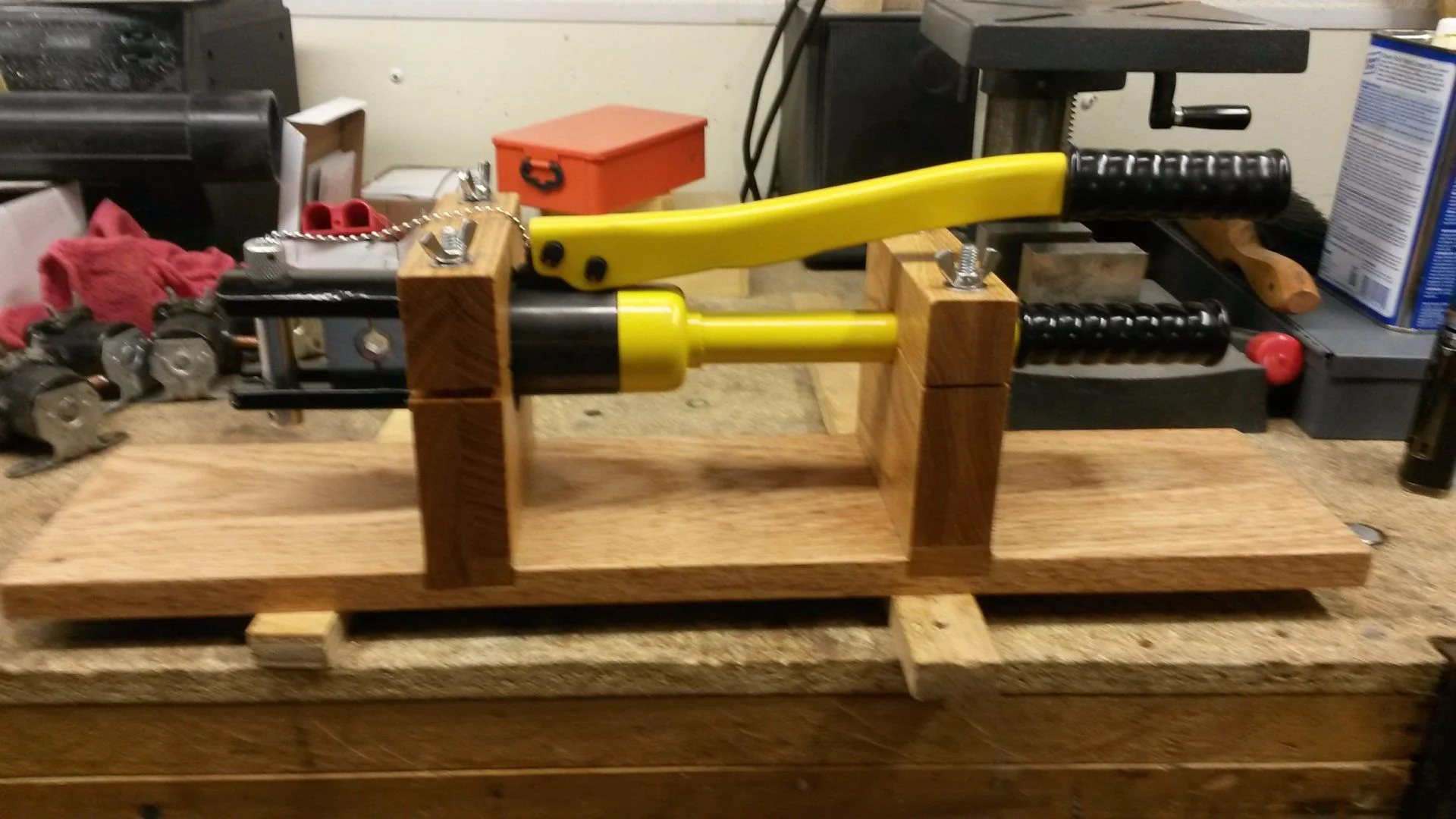

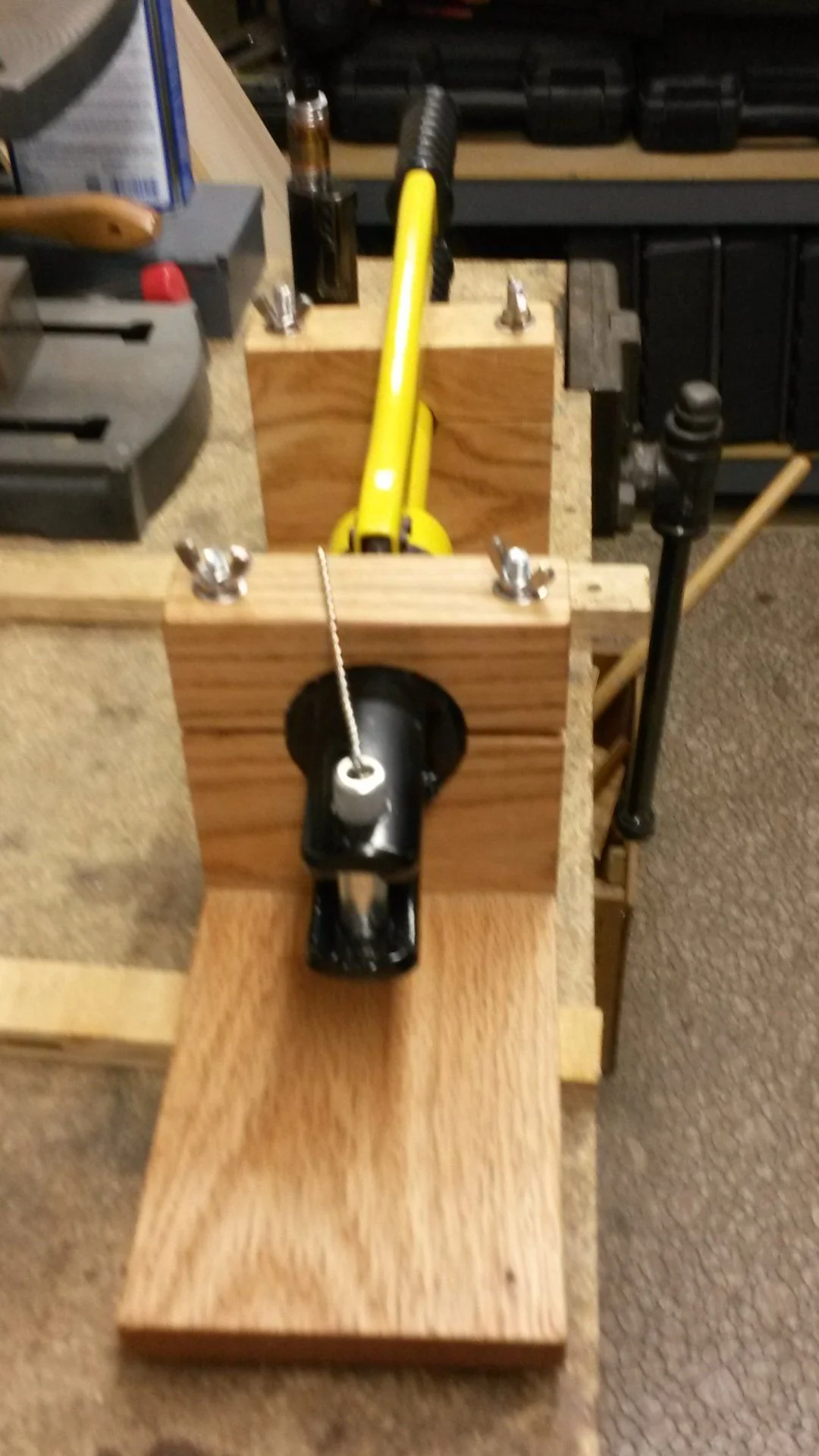

    This is what I came up with:





    Went a bit over the top and used red oak. I glued up a couple pieces (and some scrap oak) to make the thicker sections. I made the base long/wide enough to clamp to a variety of places.

    Now to crimp some terminals and get that 8274 project done...

  2. Coolerman

    Coolerman SILVER Star

    Messages:
    6,260
    Media:
    2
    Albums:
    1
    Likes Received:
    1,295
    Joined:
    Jan 5, 2004
    Location:
    Paint Lick, KY
    What? You went to all that trouble to make that super nice holder, and we don't get to see a video or at least pics of it in action? :eek:

    Hack likes this.
  3. Hack

    Hack

    Messages:
    387
    Likes Received:
    385
    Joined:
    Jul 18, 2015
    Location:
    Canton, Michigan
    Unfortunately, no pics or vids. I used it to crimp 2 ga terminals on my Warn 8274. And it worked great. Like most of the specialty tools I own, they all seem to end up being a single use item.

    But if I ever need it.......

  4. Cruiserdrew

    Cruiserdrew On the way there SILVER Star

    Messages:
    15,555
    Likes Received:
    4,575
    Joined:
    Mar 15, 2003
    Location:
    Sacramento, CA
    That is pretty great. Way over the top, which is how we like it here!

    Hack likes this.
  5. Prairie Swamp

    Prairie Swamp

    Messages:
    811
    Media:
    113
    Albums:
    3
    Likes Received:
    677
    Joined:
    Aug 22, 2015
    Location:
    Ohio
    More importantly a pic of the cat lounging idly by watching others do the actual work. Annoyed that the food bowl is empty....again.

    Nice job. I'm guilty of putting more time into the tool than the output of the tool.

    Hack likes this.
  6. Hack

    Hack

    Messages:
    387
    Likes Received:
    385
    Joined:
    Jul 18, 2015
    Location:
    Canton, Michigan
    [​IMG]

    My ongoing tablesaw upgrade project. Otherwise known as lipstick on a pig:

    [​IMG]

    [​IMG]

    More on the tablesaw project when it's done, and I start a thread on it.

    Prairie Swamp likes this.
  7. e9999

    e9999 You want to do what...? Moderator

    Messages:
    16,700
    Likes Received:
    573
    Joined:
    Sep 21, 2003
    Location:
    US
    I stick mine in a bench vise, but not as pretty for sure!

    Hack likes this.
