Help! Water/electrical damage (1 Viewer)

[Tgervacio]

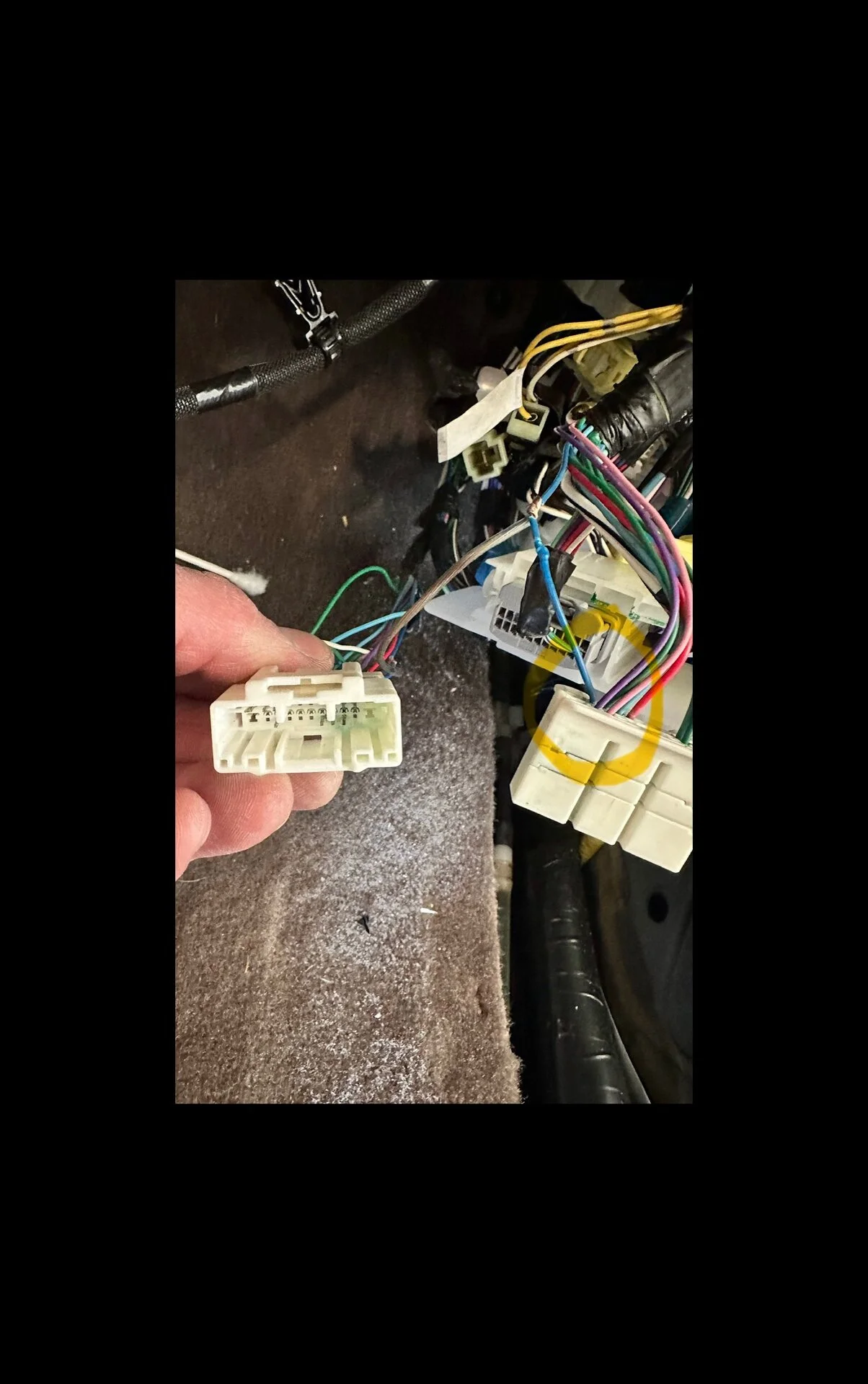

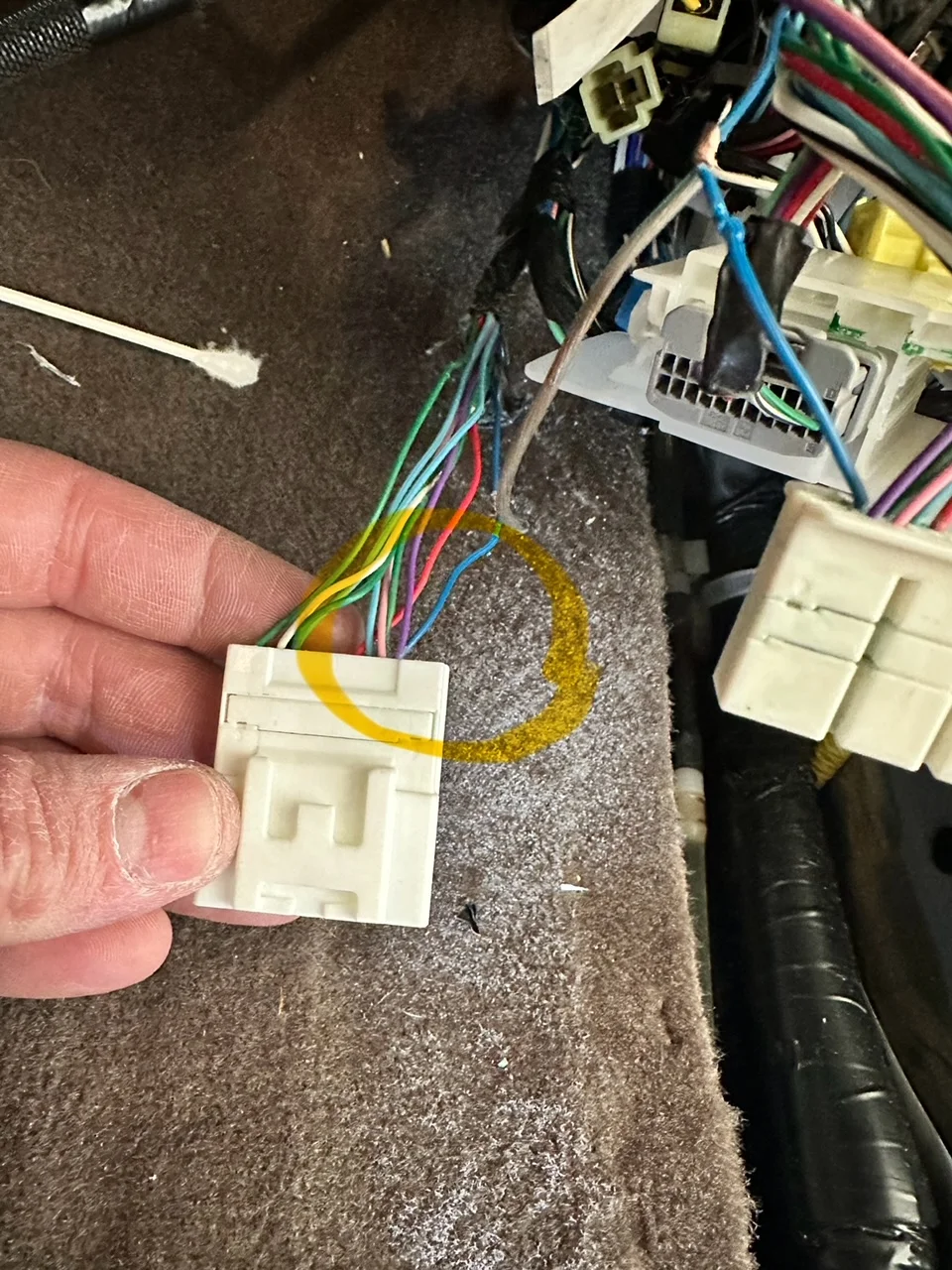

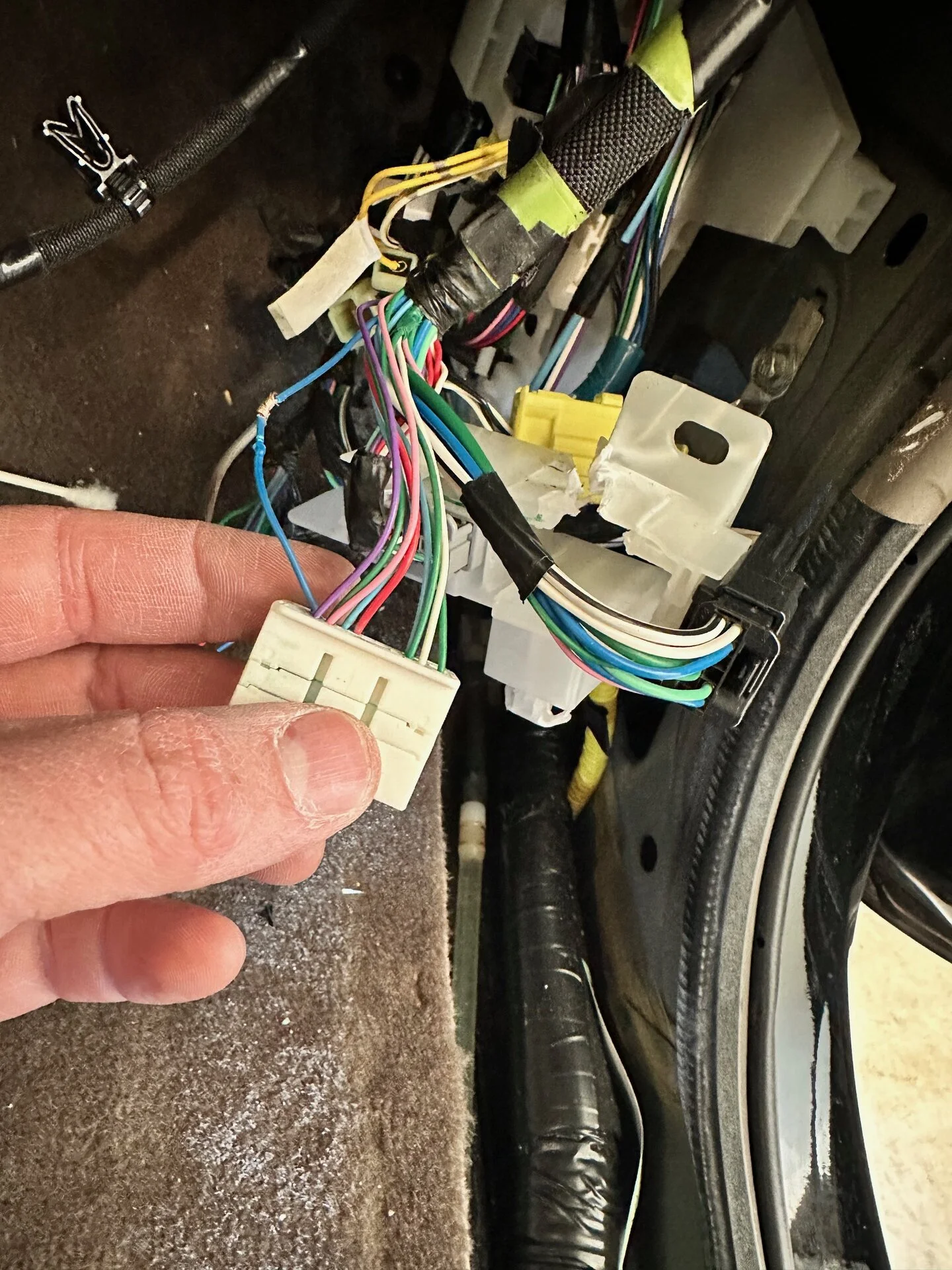

Had some water come in after a car wash and found this connector damaged. Does anyone know where to find the wiring diagram for this? It is inside the passenger side kick panel. One of the male pins broke off and is stuck inside the female side. The blue wire. Made a jumper wire just to see and didn't help. Truck is stuck in limp mode, CEL, Traction, and flashing 4Lo lights on. PO121 throttle position is the code that won't clear. Thanks! 2011 GX460



[Acrad]

FSMs with wiring diagrams are here

GX 460 Manuals

This post will hopefully be a permanent thread along with the "150 Series Pic Thread" thread as a easy to find resources for all types of GX 460 manuals. Suggested manuals/material to post being: Factory Service Manual (FSM) Owner Manuals (for each year) Wiring diagrams Anything that may relate...

forum.ih8mud.com



[r2m]

And to add to Acrad's post, you will probably need to get something to read codes, e.g.: OBDLink MX+ OBD2 Bluetooth Scanner (https://www.amazon.com/gp/product/B07JFRFJG6/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 ), TechStream (https://www.amazon.com/gp/product/B07BCNPDDG/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 ) or a hand held scanner.
Acrad, myself and others on this forum use the OBDLinnk MX+ and works really well on reading and clearing codes, assuming whatever tripped the code has been corrected. It's also great for keeping tabs on your TPMS for each tires pressure and temperature, along with engine and transmission temperatures and much, much more, all live while you're driving.



[Tgervacio]

I have a scanner now and only get P0121



[r2m]

Have you seen this yet? https://www.carparts.com/blog/p0121...n-sensor-a-circuit-range-performance-problem/
This is probably your issue with limp mode.
