Help needed with Roof weather seal pads installation (1 Viewer)

[78fj40mg]

Hi Y'all,

I'm not sure how these three weather strips/seals are exactly fitted, does anyone have installed pics of these items?

The pics below shows the general location but lack specificity and orientation of pads. I've tried fitting them and unfortunately no cigar, I've checked the FSM and there are no references for the FJ40 roof.

I'd appreciate your assistance in determining how to install these seal pads.

Thanks in advance.

Mike

SOR page link

In this pic from SOR item #4 this pic shows the general location but lacks specificity and orientation of pad

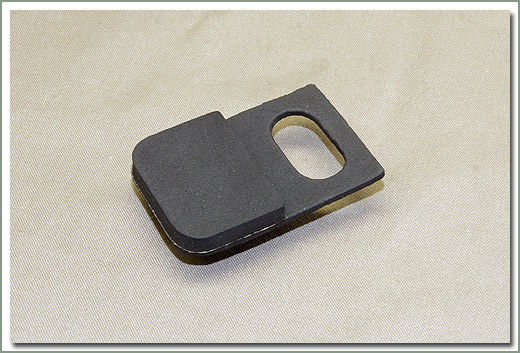

Item #4 does the hole on this pad attach to something or fastened down somehow?

SOR Items #70 and #71 this pic shows the general location but lacks specificity and orientation of pads



[gcrump01]

try this.

Were the hell dose this top corner pad go!



[gcrump01]

and this.

Part Seldom Seen



[78fj40mg]

and this.

Part Seldom Seen

Thanks this thread had some useful pics, I hope this will help someone else, here are the pics.

SOR Items #70

SOR Items #71



[gcrump01]

I'm still not sure how #4 in your first pic attaches, if you find out post it here.

40 left & 41 right go on either side of the header over the ambulance doors. Between the end of the header & the side panels



[78fj40mg]

I didn't find any installed pics for this pad in your attached threads

I did find this but an installed pic would help
