Having Issues routing the wire harness BJ74

[deepseacruiser]

Does any one have a picture of the proper routing of a bj74 RHD wiring harness. I knew it would bite me in the ass not taking a picture of this before hand. I cant seem to find any clear pics in any of the manuals or searching the forum. Thank You for your help



[stayalert]

Nice and sunny here at the moment….my '87 in sitting right outside….what do you need photos of?



[rick_d]

I can get you a photo the end of next week. Dash is out of my truck.



[deepseacruiser]

Stayalert. Looking for a picture of how the wiring harness routes along the firewall. Trying not to get the dash back in and realize a connectors won't reach. Thank you



[stayalert]

inside the engine bay side?, guess it doesn't matter…..I'll try a few and let me know if they help or are wasting our time….



[stayalert]

I don't know if I can get a useful photo with my phone….A big bunch of wires goes through between the brake booster and the apron….



[stayalert]

Is this bluriness and limited level of accuracy of any use?



[deepseacruiser]

Is this bluriness and limited level of accuracy of any use?

Sorry should have been more clear. I was looking for the routing on the interior side of the wiring harness.



[stayalert]

Doh! fraid I won't be much help them. Sorry!



[Shes Mad]

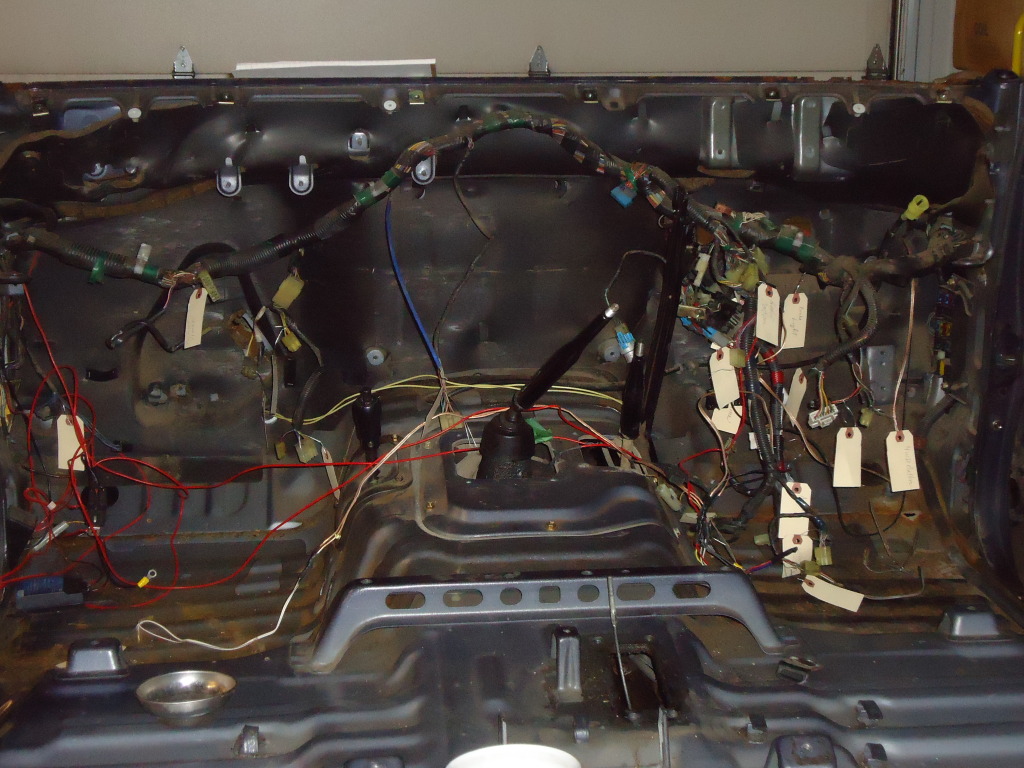

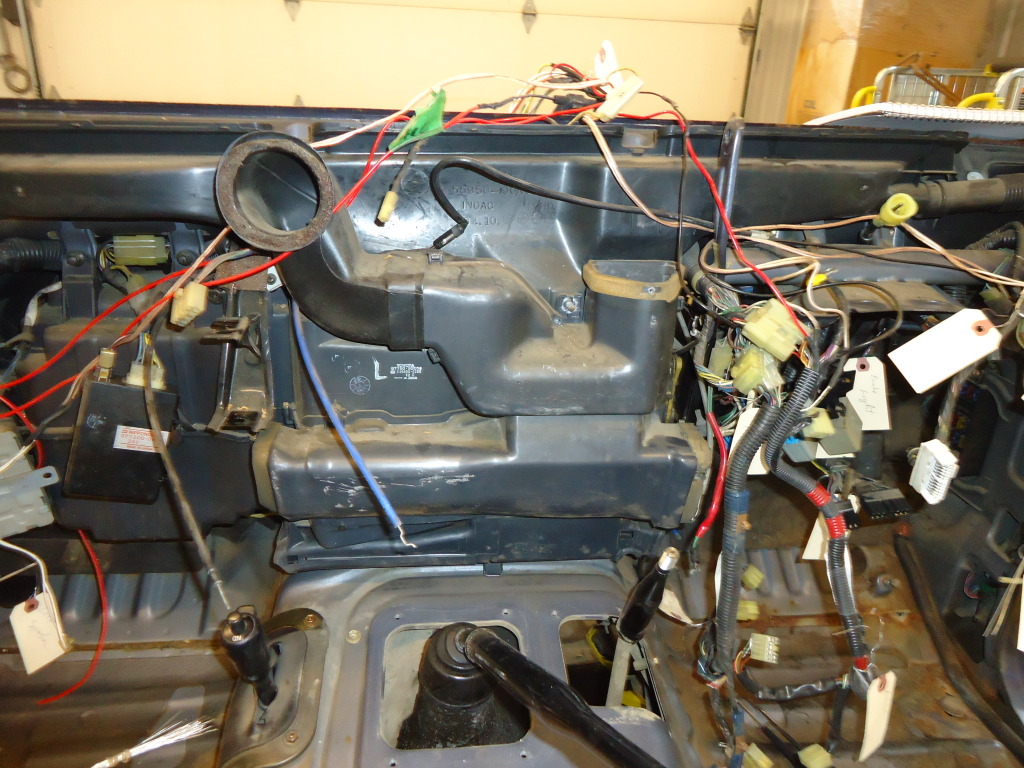

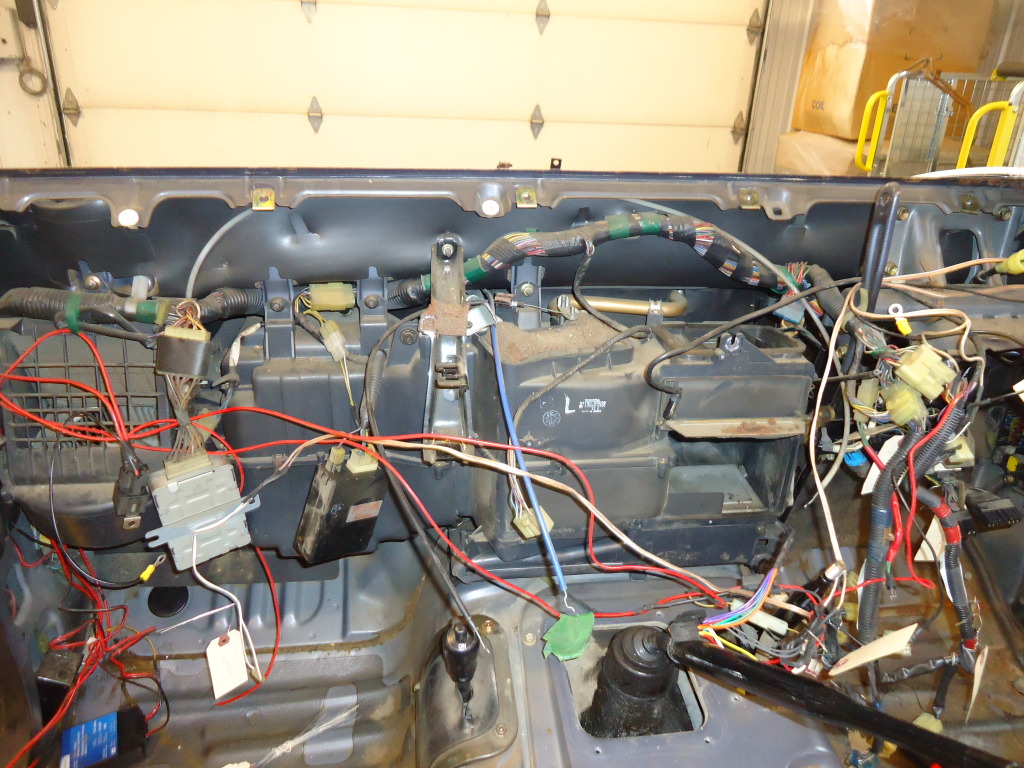

These should help



[cruiserdan]

It's hard to do better than that.......



[stayalert]

or worse than my photo!



[deepseacruiser]

These should help


Thank those are a great deal of help. I got it pretty close to that on my own. But I might need to redo the driver's section at some point because I have the harness going over top and i think the pressure the harness is putting on the speedo cable is causing it to bounce? You don't happen to have one more detailed of routing where the drivers seat is? Thank you either way



[Shes Mad]

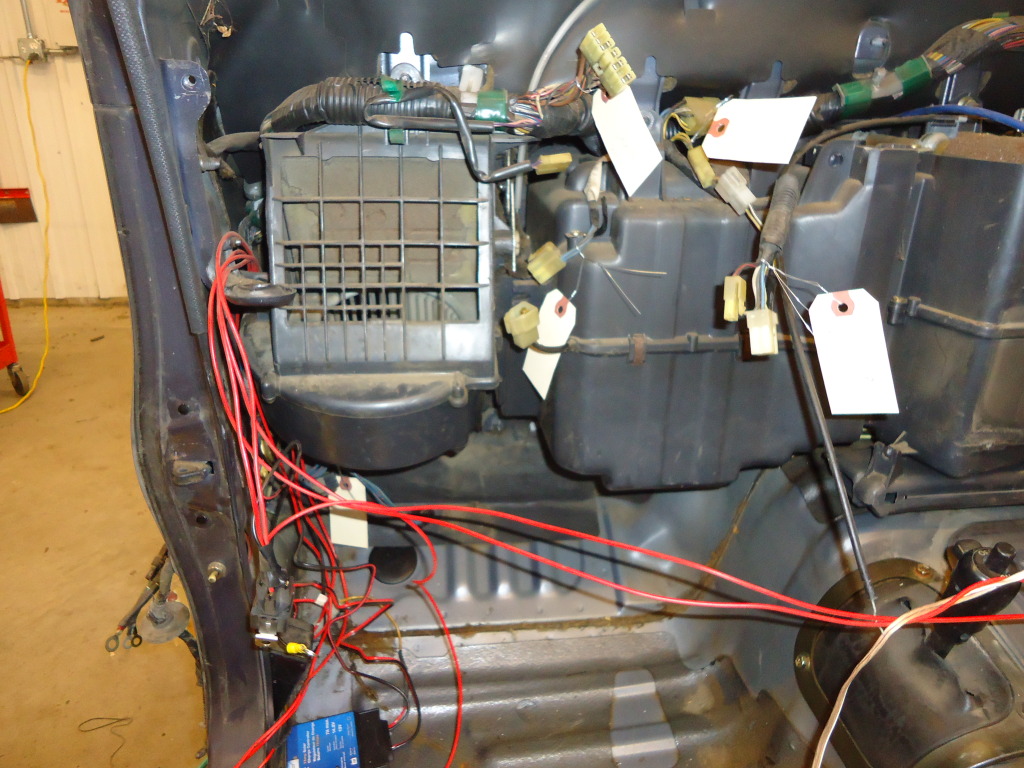

I have this one but it's probably not much help. I know the speedo cable is tight as he'll in there



[deepseacruiser]

Each one of those pics helps. Thank you very much. I wish I didnt get so impatient and took more picture when disassembling



[Shes Mad]

Really glad I did!
