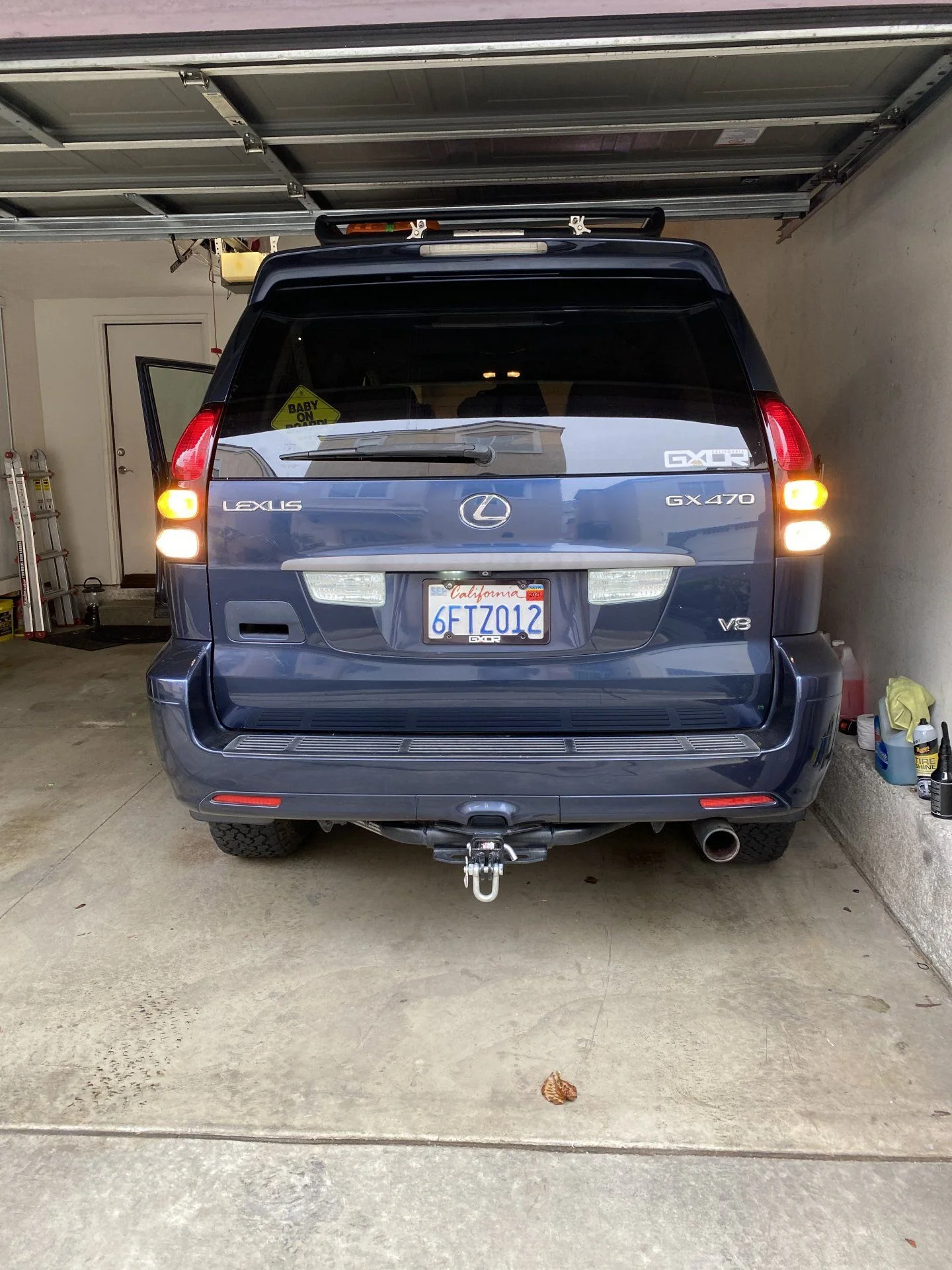

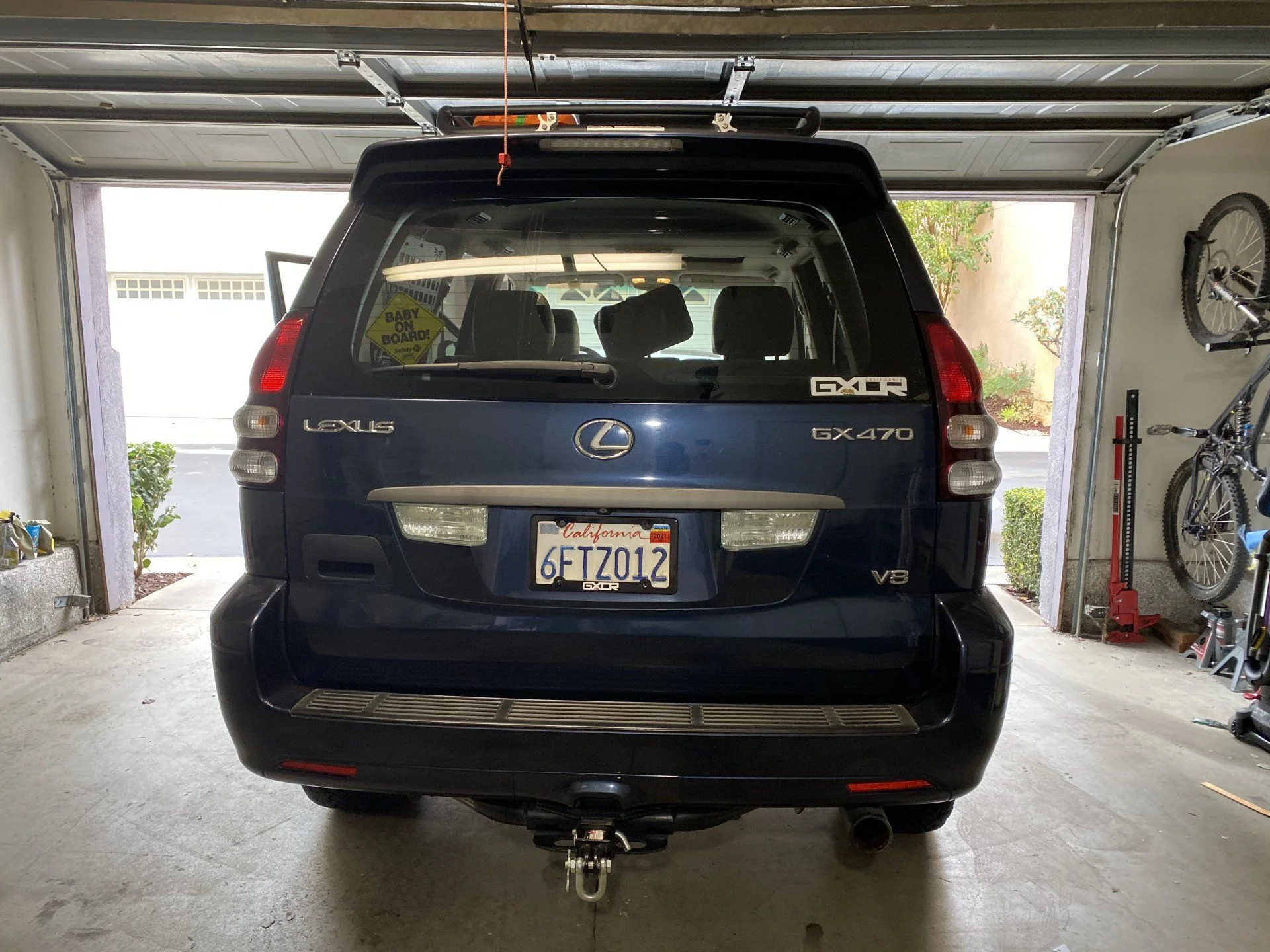

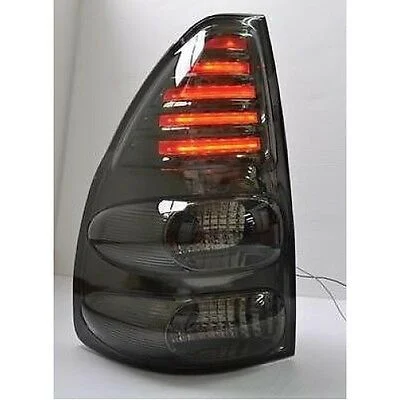

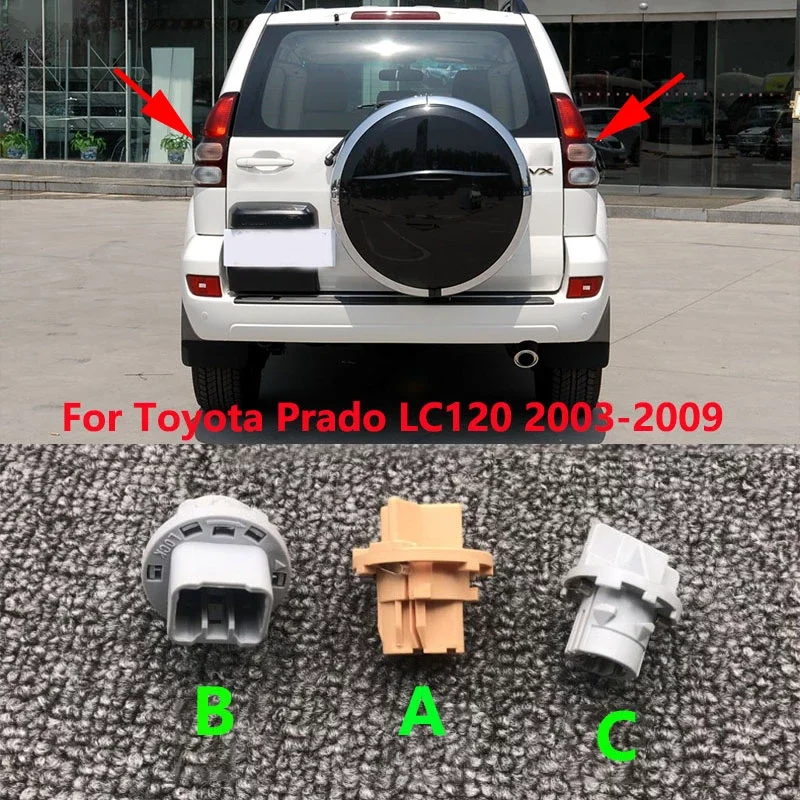

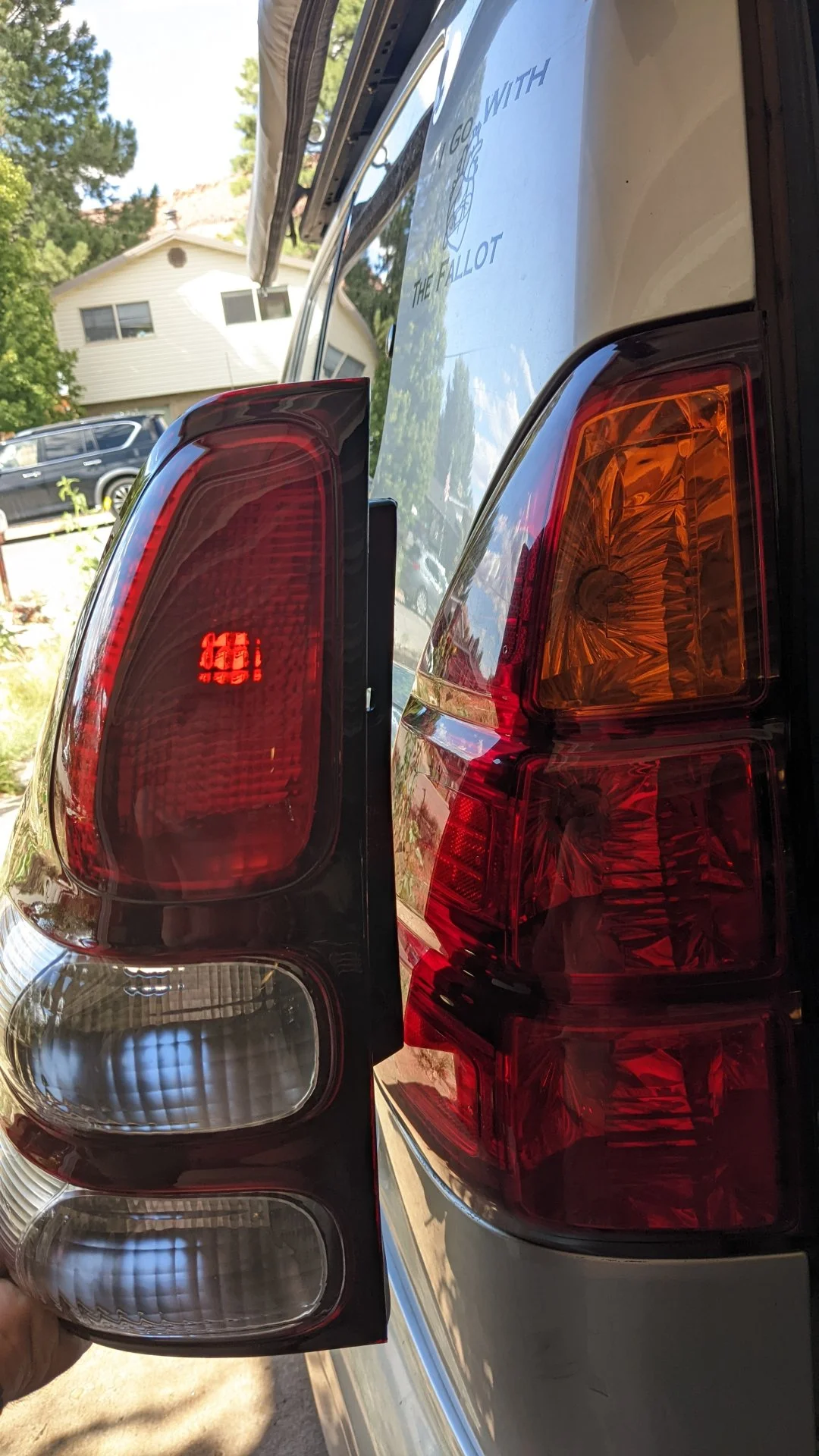

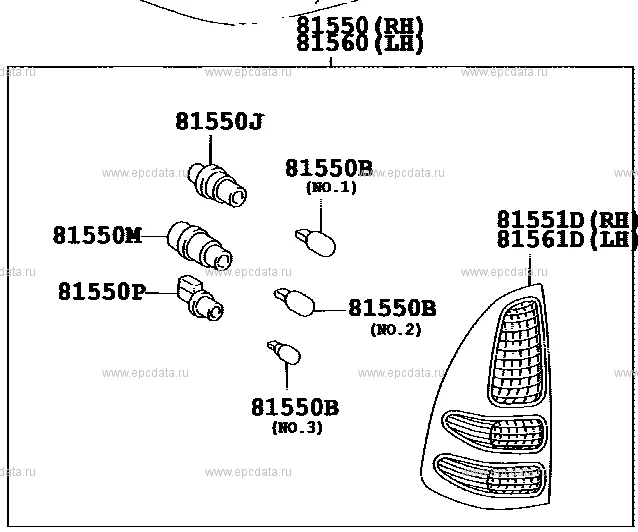

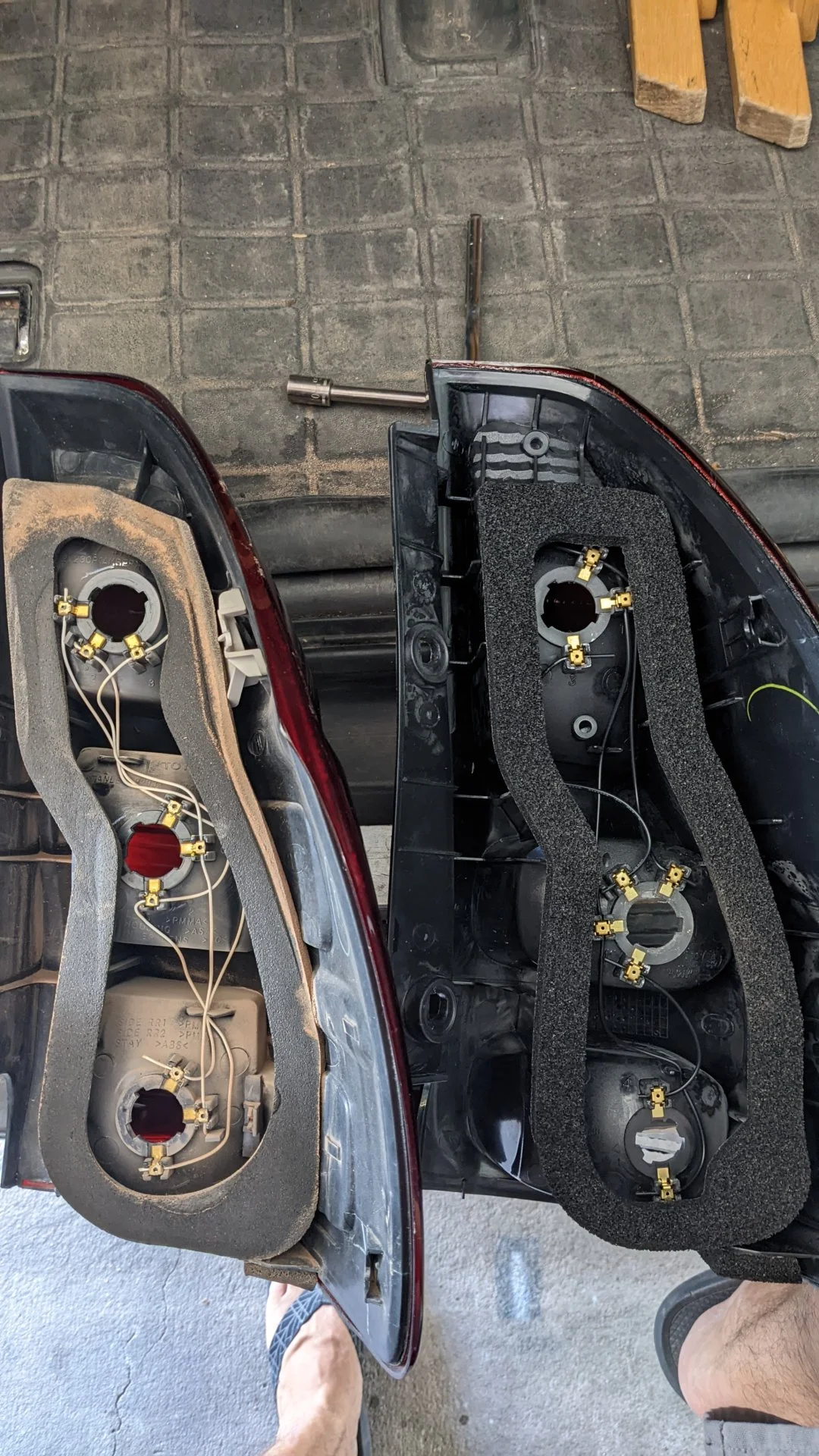

Just a quick summary of the Prado tail conversion. Purchased depot tail lights on Ebay, sockets from japan and bulbs from Autozone. One of the hardest part is deciding how you want the tail lights to function. As for me, I decided to use Red top cavity as STOP (of course). Middle cavity as blinkers/turn signal. Bottom as driving lights.

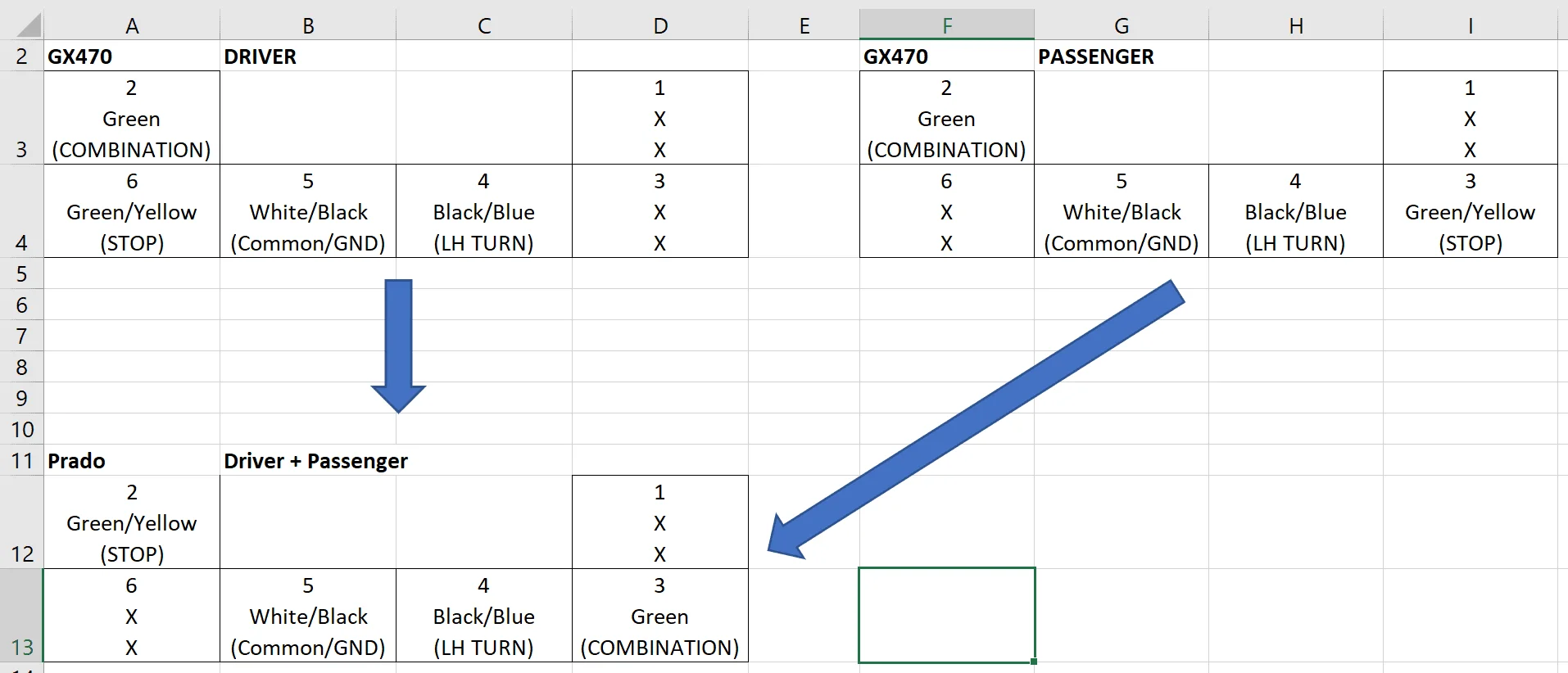

Then reverse engineering the wiring yielded these new pinouts for the connector wires:
Repinning them is faily easy, I just used a fine tip tweezer to unlatched the pins from the from of the connector and pulled the wire out of the pin cavity.

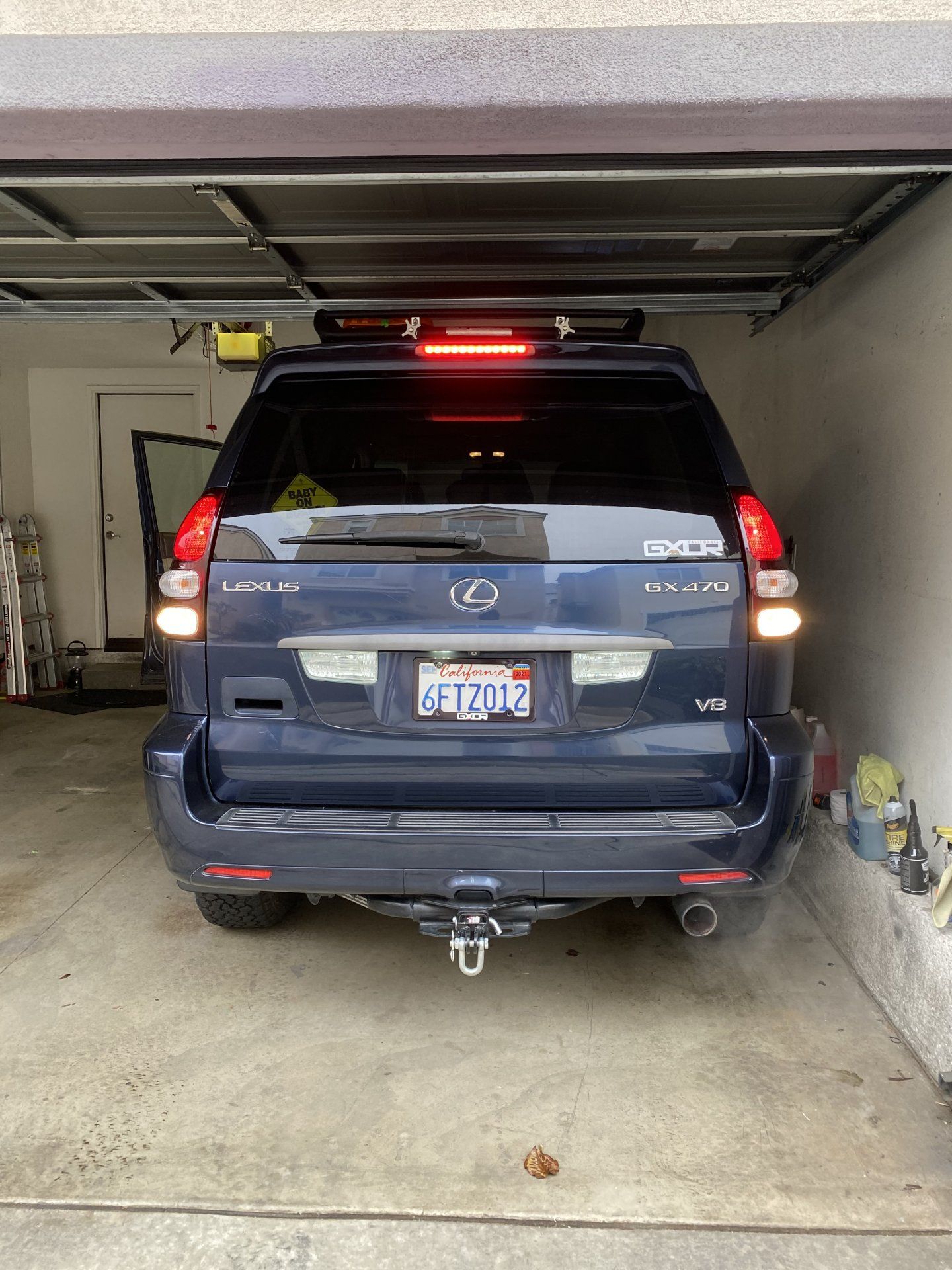

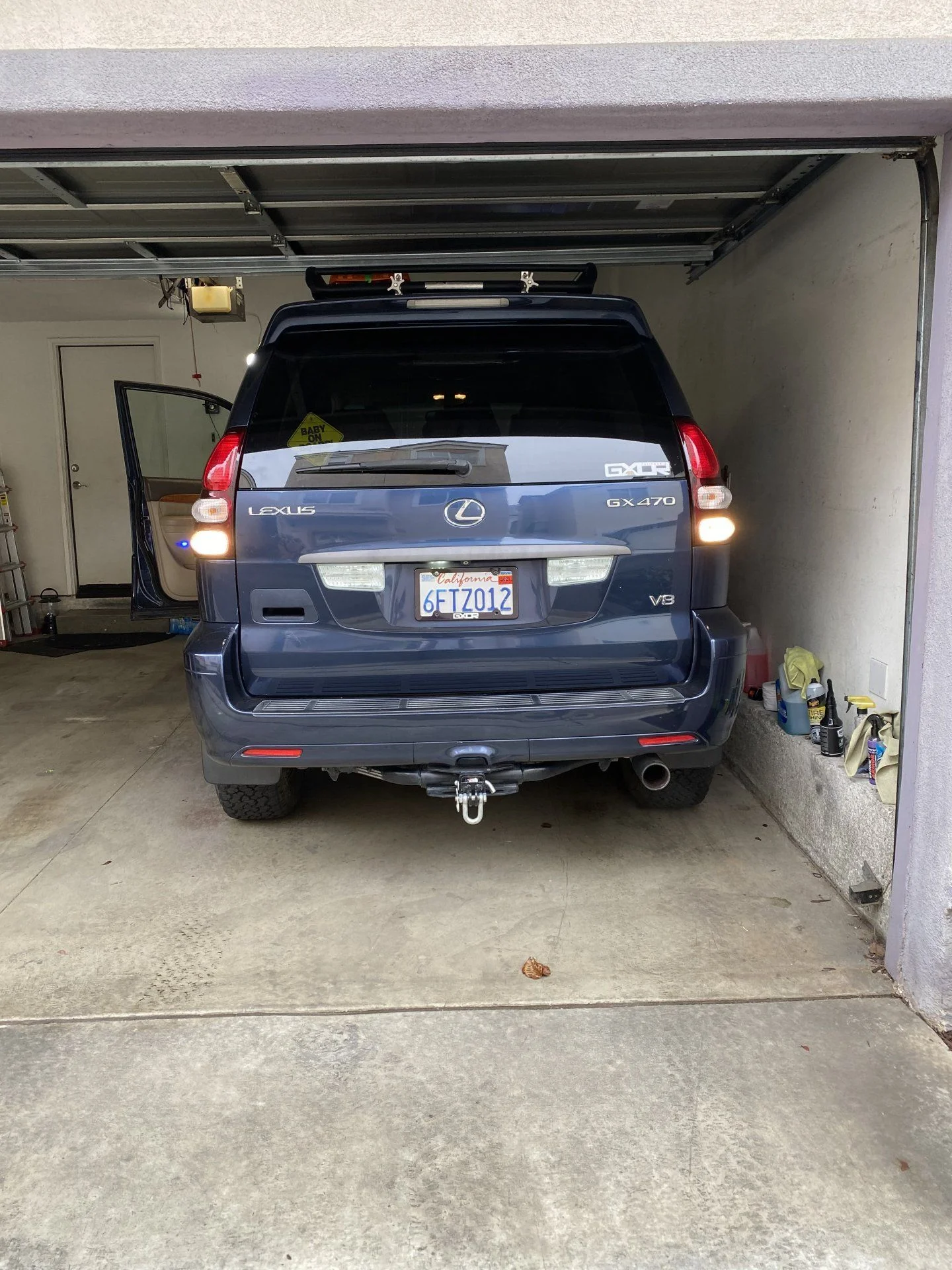

Blow are the pictures with the above pinouts:
Then reverse engineering the wiring yielded these new pinouts for the connector wires:
Repinning them is faily easy, I just used a fine tip tweezer to unlatched the pins from the from of the connector and pulled the wire out of the pin cavity.
Blow are the pictures with the above pinouts:
