FJ40 Wiring Help

jrcfj40

SILVER Star
Joined
May 17, 2010
Messages
197
Location
Virginia

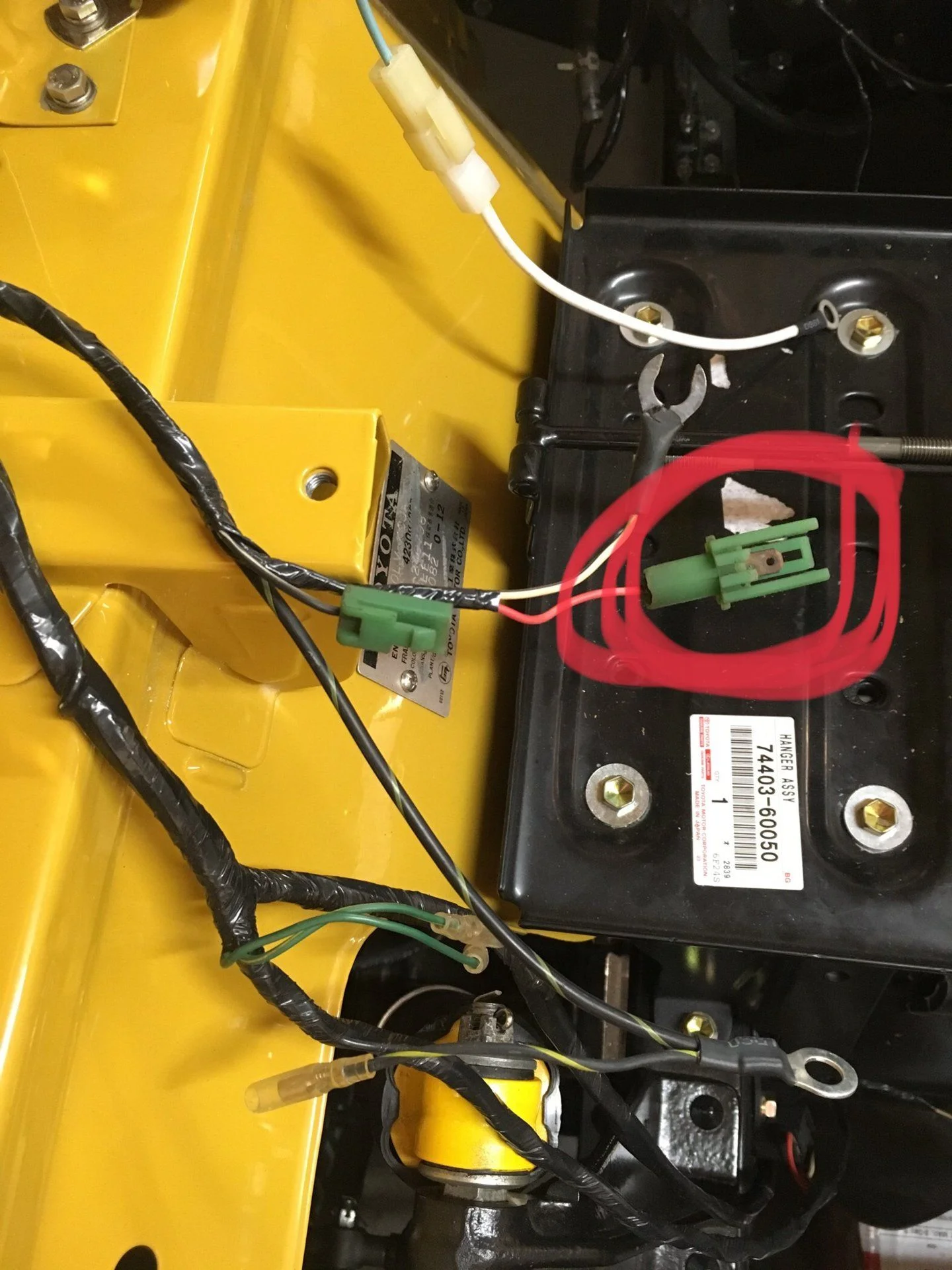

Help! Can someone please tell me what/where the green connector circled in red goes to? It comes off the wire harness located on the passenger fender near the igniter/coil on a 5/1977 FJ40.

Thanks!
Jeff


RAGINGMATT

Factory Focus-Point Mind-Set Approach.....
Supporting Vendor

Joined
Aug 12, 2007
Messages
6,560
Location
East Coast
Help! Can someone please tell me what/where the green connector circled in red goes to? It comes off the wire harness located on the passenger fender near the igniter/coil on a 5/1977 FJ40.

Thanks!
Jeff
View attachment 1683092

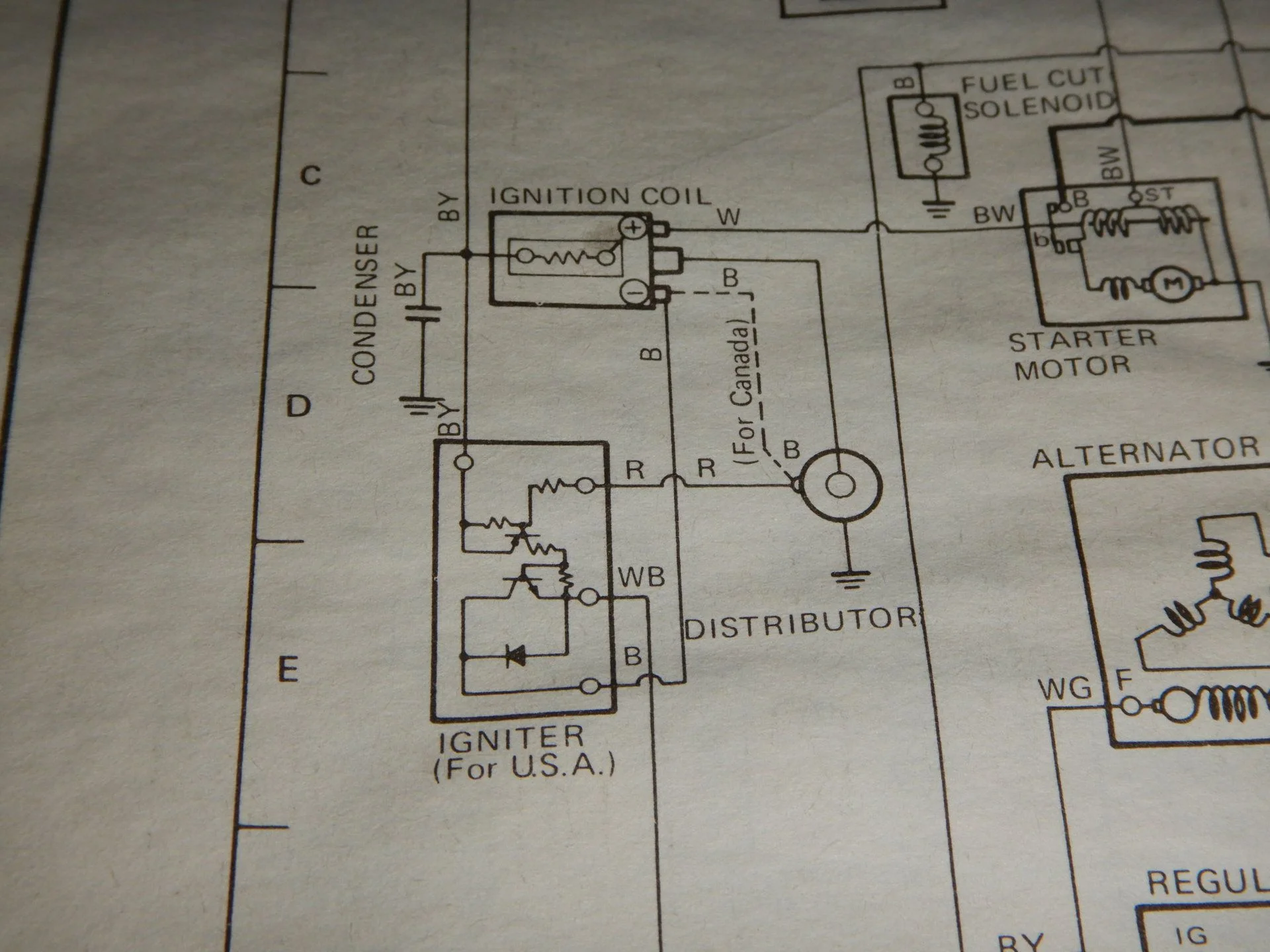

That red wire comes from Your Distributor & Goes to / Plugs into Your igniter , see the R wire in the diagram



jrcfj40

SILVER Star
Joined
May 17, 2010
Messages
197
Location
Virginia
Thanks Matt.

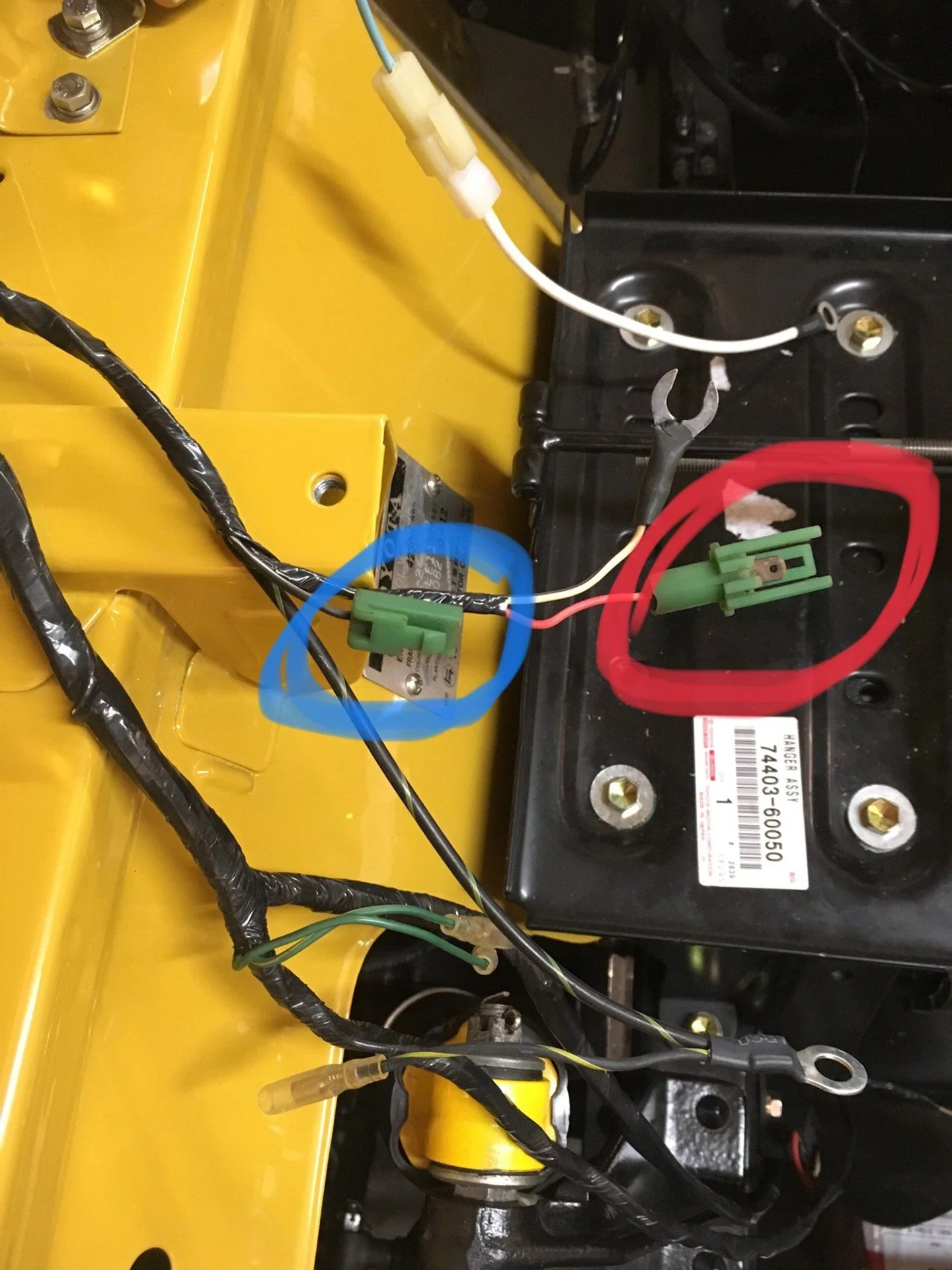

If the wire circled in red goes to the igniter then where does the wire circled in blue go?


RAGINGMATT

Factory Focus-Point Mind-Set Approach.....
Supporting Vendor

Joined
Aug 12, 2007
Messages
6,560
Location
East Coast
It is a black wire with a white stripe and green connector.
Take Note of the Starter Motor detail in the wire diagram , there is a black wire w/ white tracer stripe that goes to the positive side of the ignition coil , but oddly o_O changes to a white / W wire

preform a continuity test on the black wire w / white tracer strip u have circled in blue and see if the same black wire w / white tracer stripe U have at your starter ?

it just might be

and or there could be a missing short white wire pigtail , or the W wire is a miss-print in the EWD diagram


RAGINGMATT

Factory Focus-Point Mind-Set Approach.....
Supporting Vendor

Joined
Aug 12, 2007
Messages
6,560
Location
East Coast
Check Your Igniter / Ignition coil set up , The wire the green connector plugs into on it Might Just be a White wire

this would explain the change in wire color on the EWD Diagram


Coolerman

SILVER Star


Joined
Jan 5, 2004
Messages
6,432
Location
Paint Lick, KY

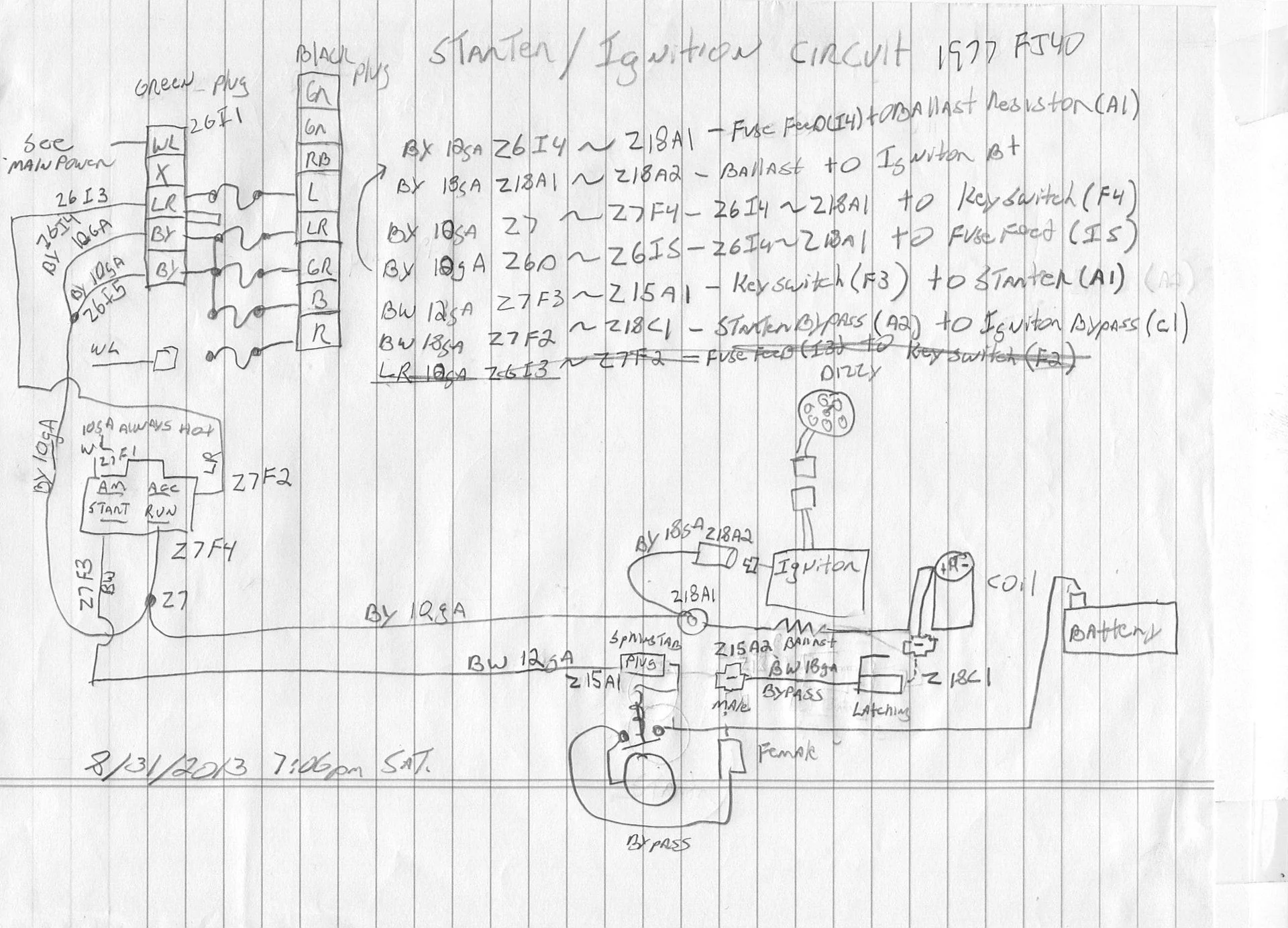

That Black/White is the ballast bypass wire. It plugs into a male connector from the + side of the ignition coil. It's function is to provide the coil with the full battery voltage for easier starting. Once the truck starts the coil gets it's voltage through the ballast resistor. Here is a drawing I did for the 1977 ignition circuit...



Martyt

SILVER Star
Joined
Feb 13, 2018
Messages
1,016
Location
San Diego
Coolerman, I have decided that you almost certainly are a hoarder.

Note the date, time, and even day of the week....

In this case, and so many others on these forums, your OCD is to our benefit. :clap:
LOL--love it--Saturday night, not much going on, I think I will do a super detailed and accurate schematic for my 77's starter/ignition circuit


Coolerman

SILVER Star


Joined
Jan 5, 2004
Messages
6,432
Location
Paint Lick, KY
I get asked all the time how I came about my FJ40 electrical knowledge. It all started when I could not figure out my 2/71 FJ40 electrical issues despite the fact I have a degree in electronics. I thought, "How can a simple 12V DC circuit cause me so much grief?" Long story short: GROUNDS!!! In order to help me figure this out I documented my 2/71 harness...

I'm a visual person. I have to SEE, in schematic format, how a circuit works before I understand it. That is why I have traced out every wire in every circuit for most of the 63 to 78 FJ40's. (Still have not done a 1973 or a 1975 as those harnesses seem to be pretty rare and one has not crossed my work bench yet.)

It takes me about 40-60 total hours to fully tear a harness apart and document it. If I decide to build that year harness new for sale, I create a jig board, (4x8 sheet of plywood that the harness circuit is drawn on it full scale so that a new one can be built. ) Add another 10-15 hours for that. Then 4-8 hours to create a build sheet from my drawings for that jig board and verify that it is correct.

I'm not an expert at anything, but electrical is what I am most comfortable with. I, like most here, still turn to folks like FJ40Jim, Orange45, Pin Head, Poser, and the many others here with far more mechanical knowledge than I for help.

Hoarder? Thankfully not of FJ40 parts, but of FJ40 electrical knowledge? Why... YES I AM! :D

FYI: Some of my drawings even include the current weather outside!

and that as they say is that! :grinpimp:

Joined
Nov 21, 2015
Messages
423
Location
Needham ma
I get asked all the time how I came about my FJ40 electrical knowledge. It all started when I could not figure out my 2/71 FJ40 electrical issues despite the fact I have a degree in electronics. I thought, "How can a simple 12V DC circuit cause me so much grief?" Long story short: GROUNDS!!! In order to help me figure this out I documented my 2/71 harness...

I'm a visual person. I have to SEE, in schematic format, how a circuit works before I understand it. That is why I have traced out every wire in every circuit for most of the 63 to 78 FJ40's. (Still have not done a 1973 or a 1975 as those harnesses seem to be pretty rare and one has not crossed my work bench yet.)

It takes me about 40-60 total hours to fully tear a harness apart and document it. If I decide to build that year harness new for sale, I create a jig board, (4x8 sheet of plywood that the harness circuit is drawn on it full scale so that a new one can be built. ) Add another 10-15 hours for that. Then 4-8 hours to create a build sheet from my drawings for that jig board and verify that it is correct.

I'm not an expert at anything, but electrical is what I am most comfortable with. I, like most here, still turn to folks like FJ40Jim, Orange45, Pin Head, Poser, and the many others here with far more mechanical knowledge than I for help.

Hoarder? Thankfully not of FJ40 parts, but of FJ40 electrical knowledge? Why... YES I AM! :D

FYI: Some of my drawings even include the current weather outside!

and that as they say is that! :grinpimp:
Nice man. Do you sell entire harnesses?


Coolerman

SILVER Star


Joined
Jan 5, 2004
Messages
6,432
Location
Paint Lick, KY
I can build new harnesses for 1963 to 9/1971 FJ40's. Anything after 9/1971 you are SOL. There are OEM connectors that cannot be gotten, so I do not build those, I just document them.

If you have a later harness that is in pretty good shape, has not been in a fire, had a meltdown in the charge circuit, is not covered in paint, under coating, or heavy grease. It can be repaired and refurbished to look almost new.

I only do full harness building in the winter months due to my day job keeping me really busy. I will build rear chassis harnesses, bib harnesses, or wiper harness any time. I also sell parts anytime.
