For Sale EXTRA TALL CUSTOM MADE STAINLESS STEEL LUG NUTS 12X1.5, 21HEX

Joined
Sep 5, 2020
Messages
11
Location
Federal Way
I am owner of JDM 1992 HZJ77 Toyota Land Cruiser. I am in Seattle. Never been satisfied with whatever lug nuts available on the market: not tall enough; not 21 hex, rusts; etc,...

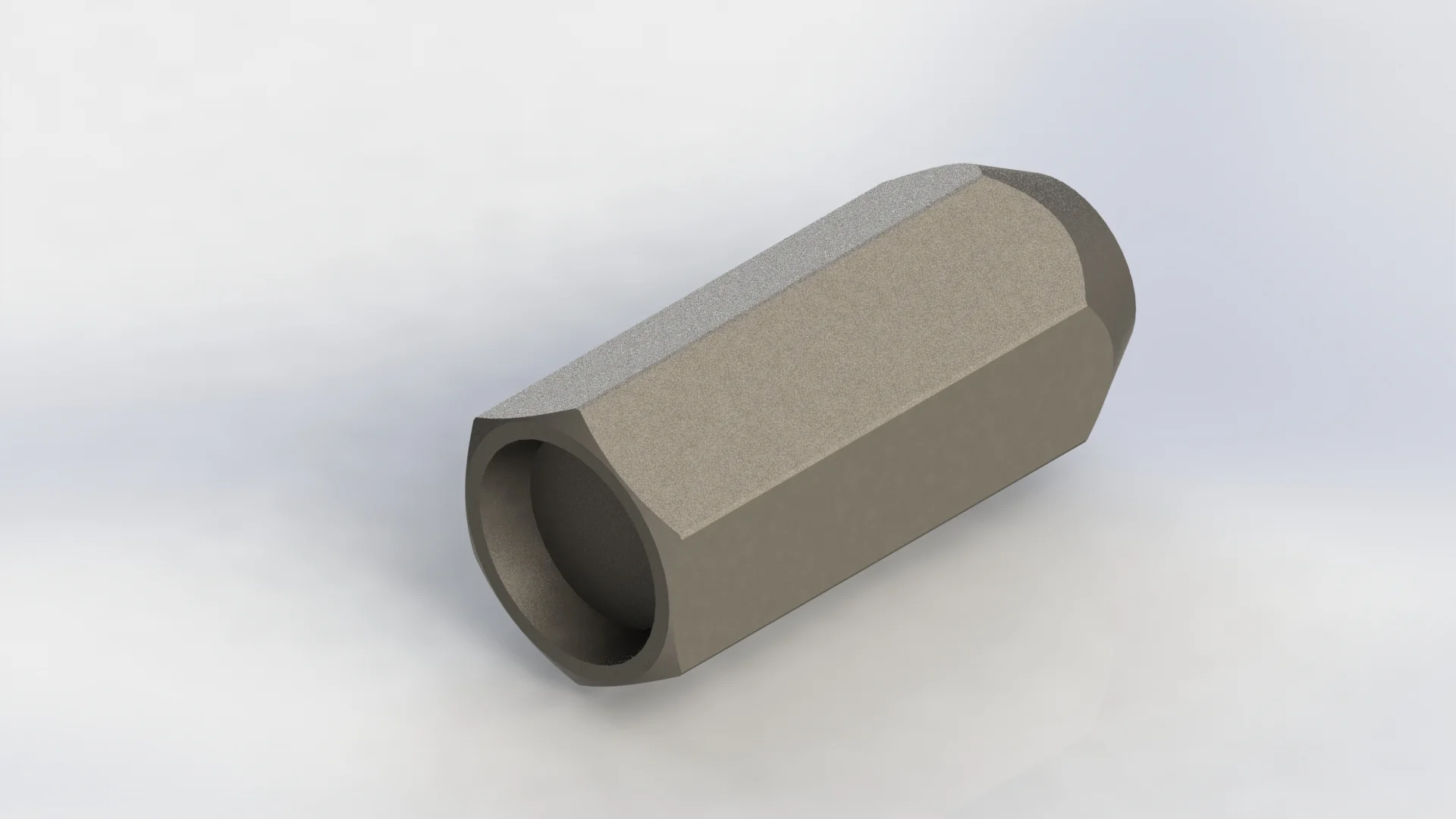

So, I have designed my own custom lug nut based on OEM part dimensions and placed my order with one small manufacturing company in China. Yes, I tried to find US manufacturer, but, you know, the price would be beyond anyone's reach. If someone may like my custom lug nut, I will be glad to sell them in any quantities.

My custom lug nut specs:

- Material, solid 304 stainless steel, raw machining finish (someone can polish it easy if want to)
- Wrench size, 21mm (13/16")
-Thread, 21x1.5mm
- Height, 50mm (1.97")
- Designed to meet JIS

Price for one LUG NUT: $10

Price for set of 24 LUG NUTS: $200


Price is negotiable.

drop

Joined
Sep 5, 2020
Messages
11
Location
Federal Way
Today I received confirmation from the manufacturer that my order is completed and ready to ship.

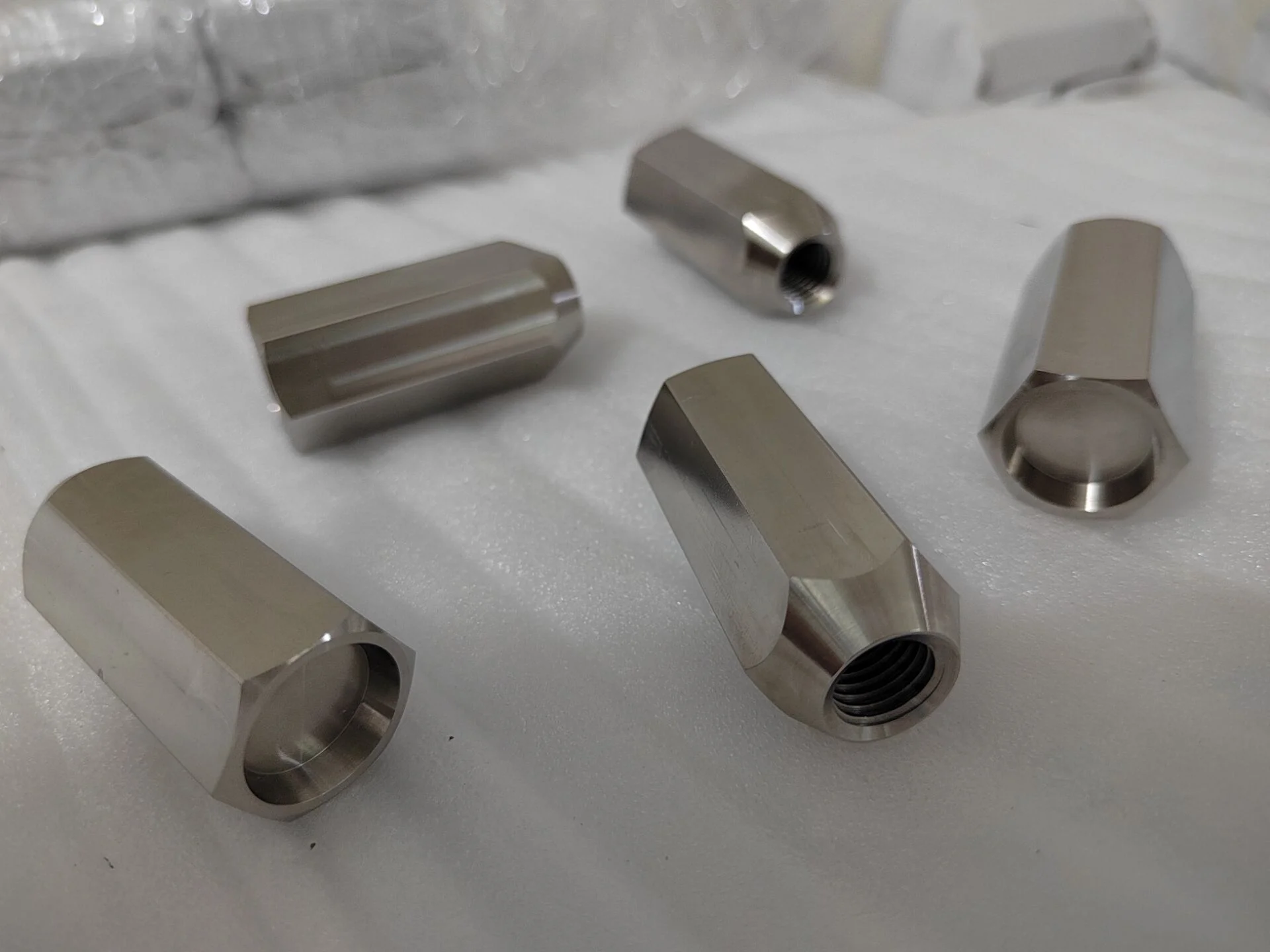

Attached is the picture of actual nuts. I have these lug nuts specifically designed to match Japanese WEDS wheel rims: older style MAD MASTER and more recent ADVENTURE.
Also will match other off-road rims like Black Rhino and many more.


Joined
Sep 5, 2020
Messages
11
Location
Federal Way
I’m interested in a full set when you receive them
I have got them today.
They are heavy, much heavier than I thought. One nut is 0.25lb. Toyota Land Cruiser standard lug nut (9094201081) weight 0.11lb.
I will be need to test a few samples for a max tightening torque.

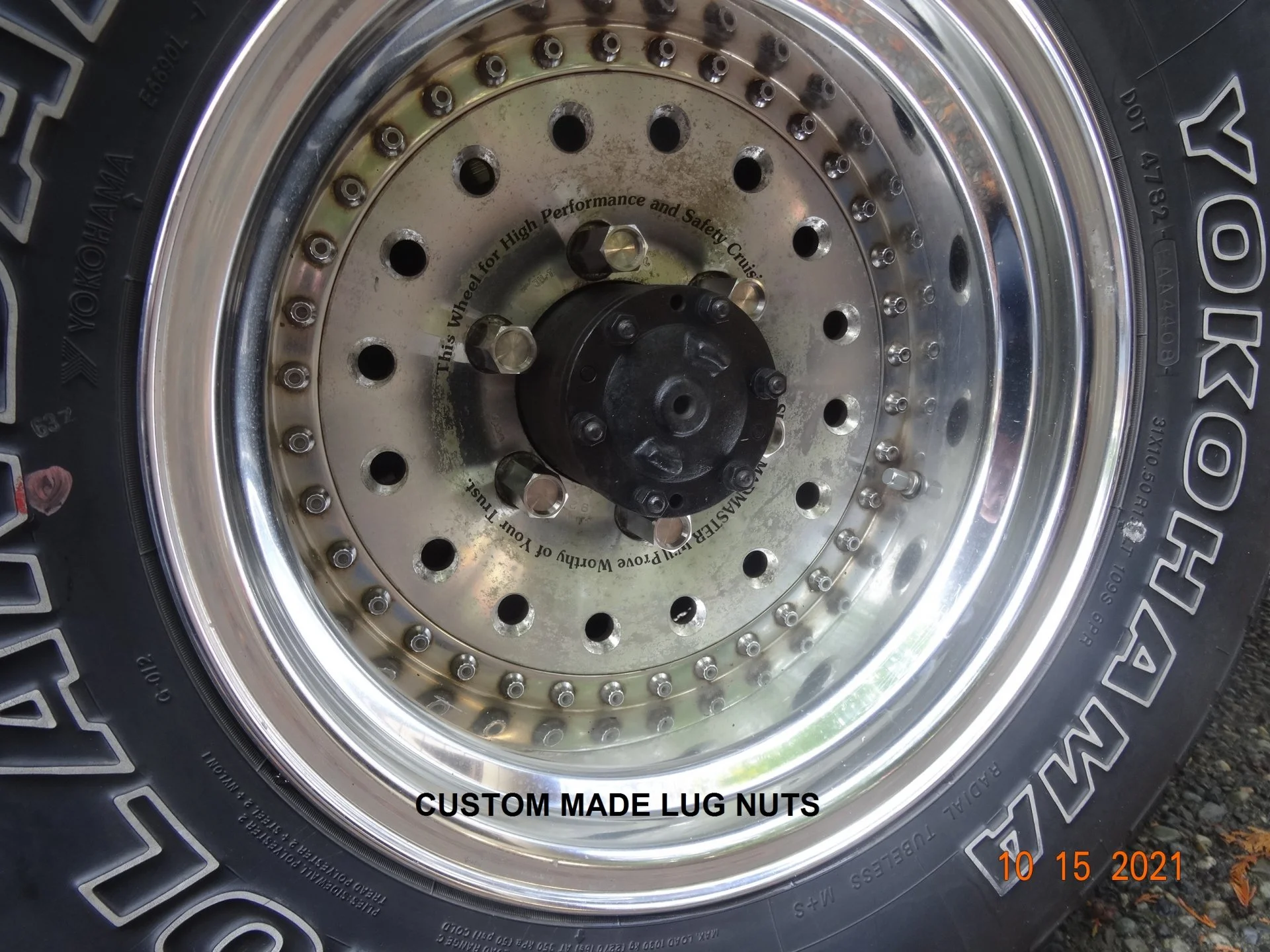

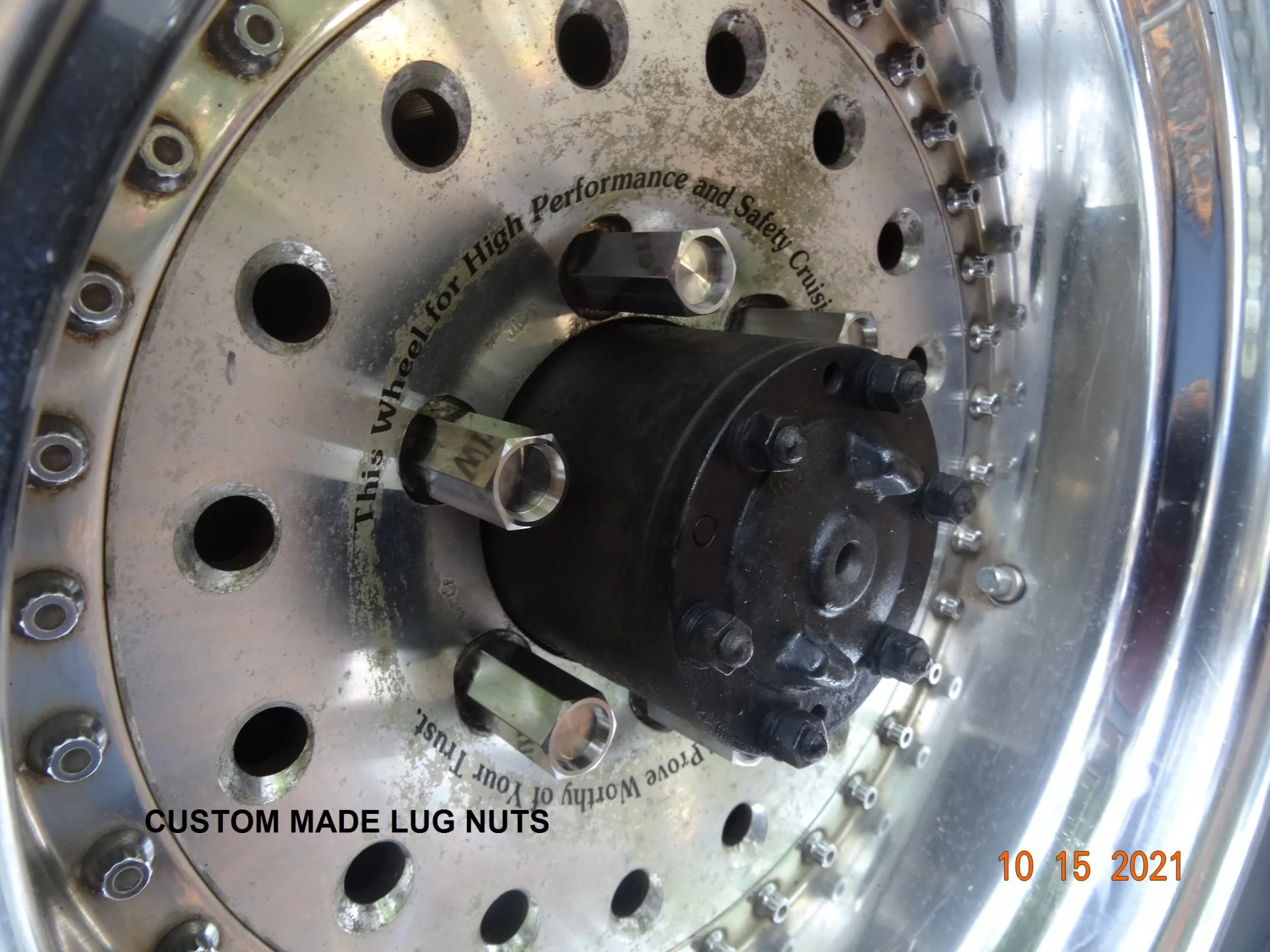

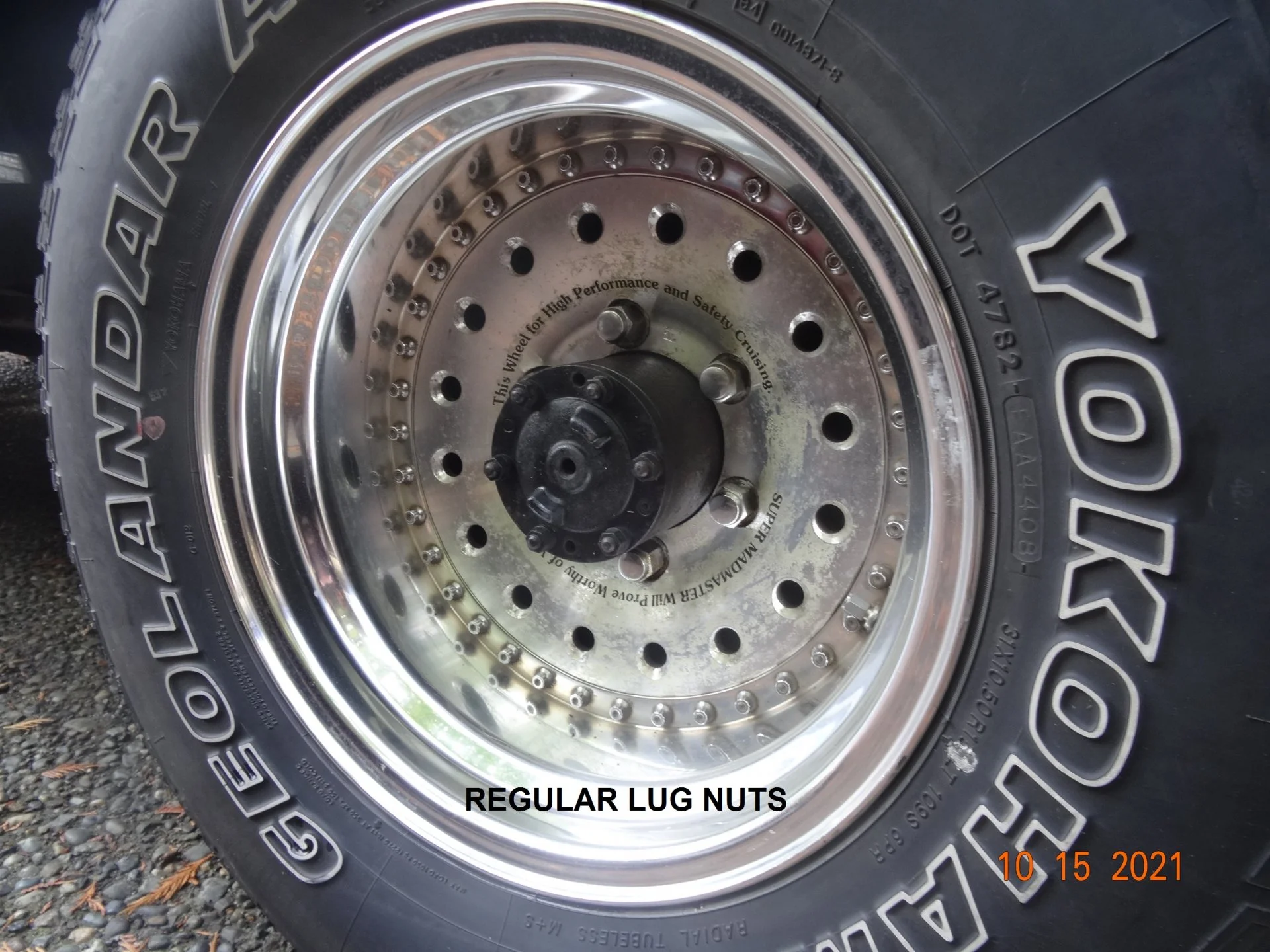

I put them on my old WEDS Madmaster and took a few pictures just to show how they look like in comparison with regular nuts. And it is clear that regular nuts visually are not within style of real off-road rims.

Are you are still interested?







Camotubebender

SILVER Star
Joined
Feb 26, 2013
Messages
562
Location
Good Thunder Minnesota
They look good but I did some googling and sounds like S.S. Lug nuts on steel studs causes some corrosion problems. I think with anti-sleaze on the studs you should be ok but I think I’ll pass.

Joined
Sep 5, 2020
Messages
11
Location
Federal Way
This normally happens with boat trailers because seawater has electrolytic properties. However there are many ways to suppress galvanic corrosion process.
As my self, I never had ss nuts on my vehicles before. I am going to install these nuts on my wheels without any protection. So, I will be able to produce some test results in a while.
