Can you post a few pictures of your results? I am a complete noob on electrical. Thank youIf memory serves, Stop, LT, RT, Tail and Reverse are all in those two plugs under the vehicle in the rear. Looking at the EWD I found that those should be:
Green wire: Taillight
Green/White wire: Stop
Red/Black wire: Reverse
Green/Black: LT
Green/yellow: RT

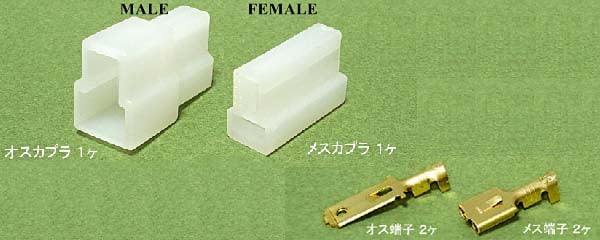

I was able to order plugs and connectors from Eastern Beaver and make my own wires up that plugged right in.
The only downside is that the factory plugs aren't weatherproof. One could easily upgrade to Sumitomo or Yazaki connector with weather seals if you live in a humid environment.
