My dash has cracks from heat damage. I located a replacement dash, but can only find YouTube videos on older models being replaced, it’s mostly screws and clips into place, but it appears to involve removal of steering wheel, console, etc before you can get to the upper dash itself, does anybody have a video or recommendation on a repair manual with step by step instructions on how to pull out the cracked dash on a ‘96 LC and replace with the used replacement dash?



[NeverFinis]

The Toyota factory service manual (FSM) has the procedure well documented. The FSM can be found in the resources section.

Bag and tag everything. Take photos as you go.

I dropped the steering wheel down (2 nuts, 2 bolts), and didn't remove it, or disconnect it from the steering shaft.



[BHLP]

Thanks, I’ll take a look.



[Gerry McGerry]

I've got a complete late dash sitting around, I'll take it apart tonight & write up what I find about removing the upper piece.

LHD & RHD may have some differences.



[JOFS]

Just take your time and look around carefully. I took pictures at the time but threw most of them out.

I didn’t remove or do anything with the steering wheel.

Use the FSM and read it to familiarize yourself and if you get stuck on a section reference it again. It is just slow going but very manageable.

Wobble extensions seem to stick in my brain as being very helpful. Good luck



[BHLP]

Thanks, I’ll take a look.

Pages 313-20 in the FSM cover it but a video would nice.



[BHLP]

Just take your time and look around carefully. I took pictures at the time but threw most of them out.

I didn’t remove or do anything with the steering wheel.

Use the FSM and read it to familiarize yourself and if you get stuck on a section reference it again. It is just slow going but very manageable.

Wobble extensions seem to stick in my brain as being very helpful. Good luck

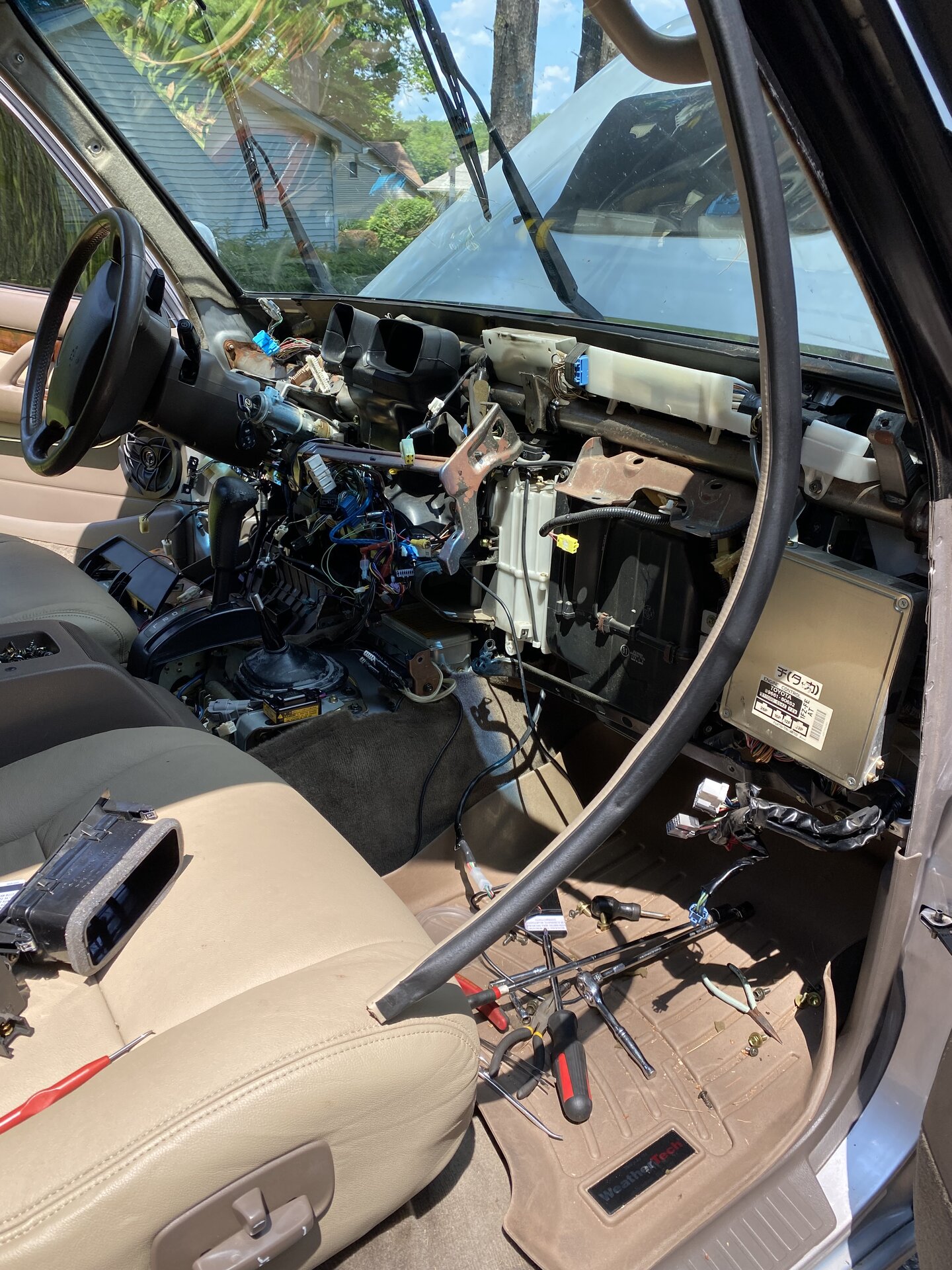

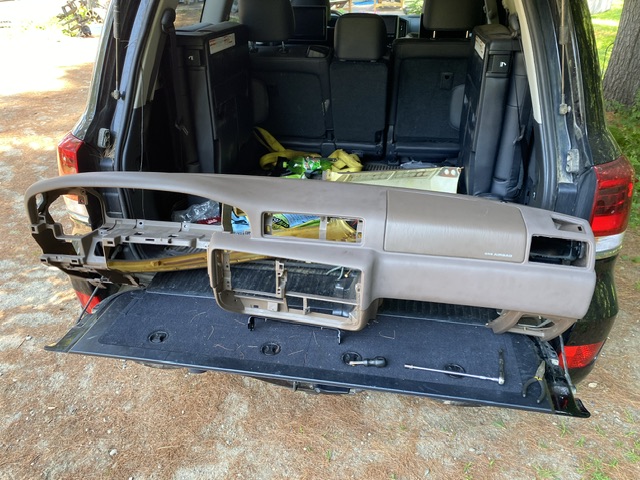

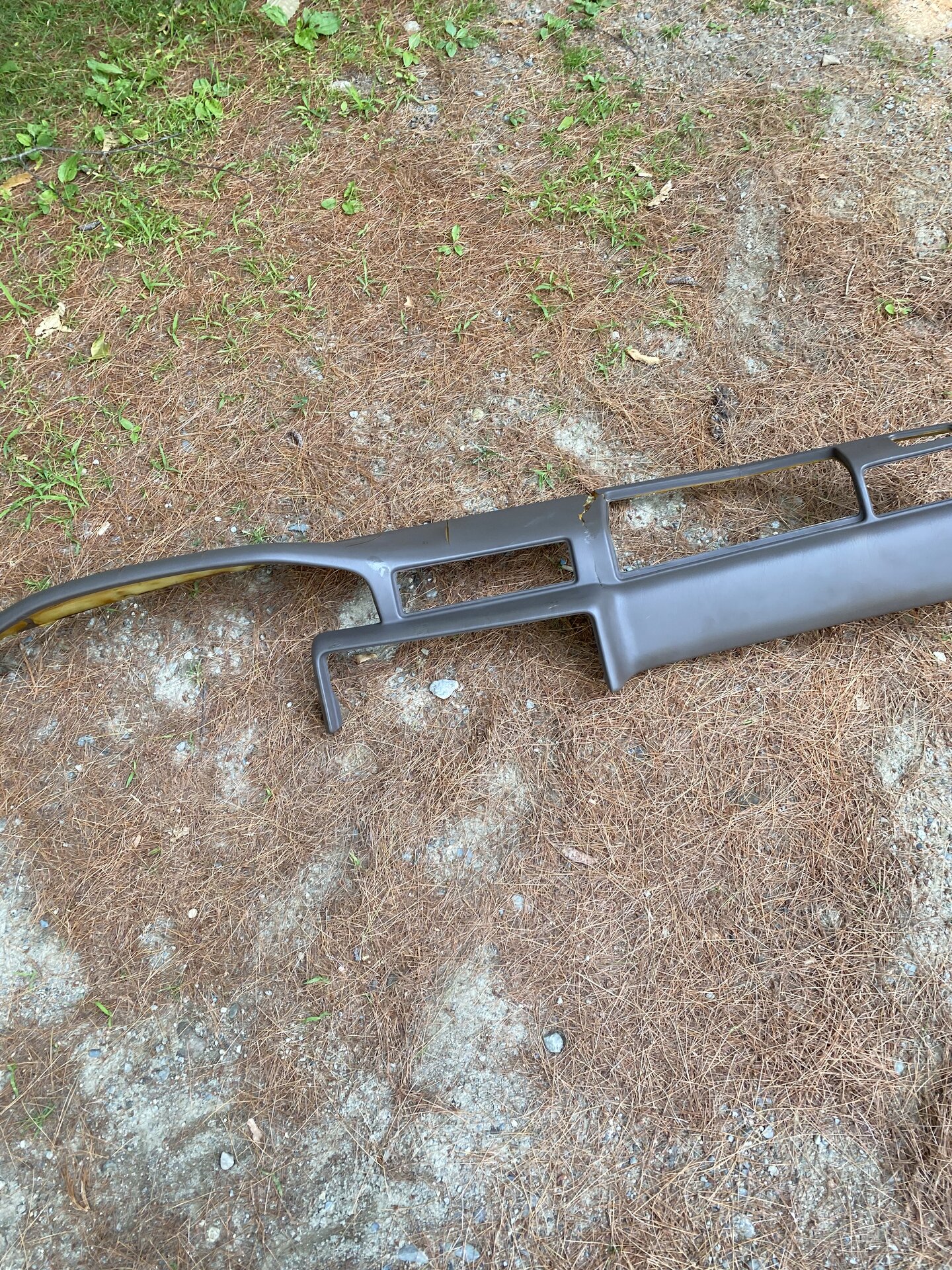

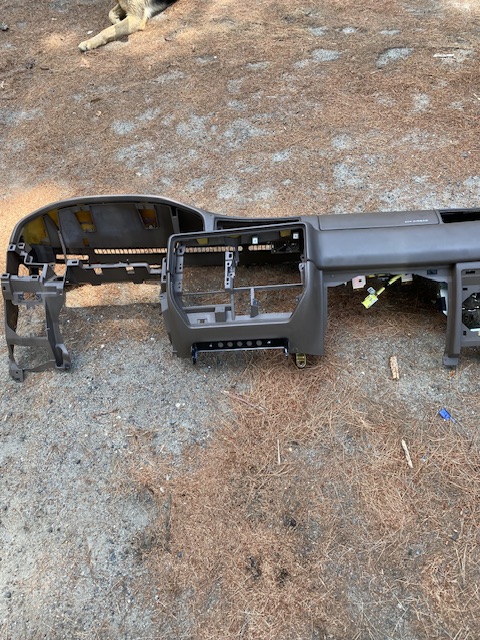

View attachment 3560453View attachment 3560455View attachment 3560456View attachment 3560459

What is a wobble extension?



[NeverFinis]

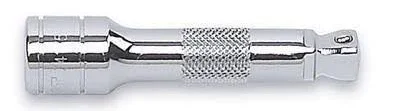

It is a drive extension that allows extra angle. Notice the difference in the end where you attach a socket.



[JOFS]

It is a drive extension that allows extra angle. Notice the difference in the end where you attach a socket.

View attachment 3562912

Yup
Exactly
Just seems to be sticking in my brain that there were a few spots where that made it much easier.

Good luck
John



[BHLP]

Just take your time and look around carefully. I took pictures at the time but threw most of them out.

I didn’t remove or do anything with the steering wheel.

Use the FSM and read it to familiarize yourself and if you get stuck on a section reference it again. It is just slow going but very manageable.

Wobble extensions seem to stick in my brain as being very helpful. Good luck

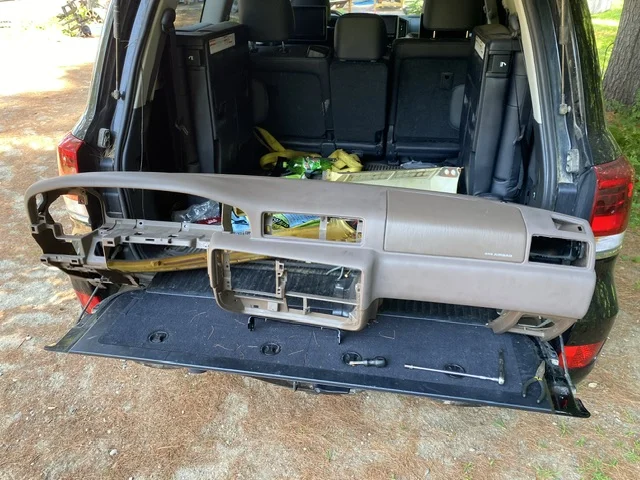

View attachment 3560453View attachment 3560455View attachment 3560456View attachment 3560459

What are wobble extensions?



[BHLP]

What are wobble extensions?

Thanks. I may have one of those?
