Correct re-wiring for Deso 138600?

Joined
May 3, 2011
Messages
398
Location
Qatar
I all

I have a Denso 138600 on my 100 series cruiser.

I am going to need to rewire it, as the factory wiring is fried and Ive pulled everything out along with the thermal cut off that uses a solenoid mounted next to the battery.

I also don't have the factory winch remote so want to use the antenna switch on my dash for the winch.

I'm very new to this kind of work so was wondering which of the below wiring diagrams I should be using to rewire my solenoid pack and inboard switch.

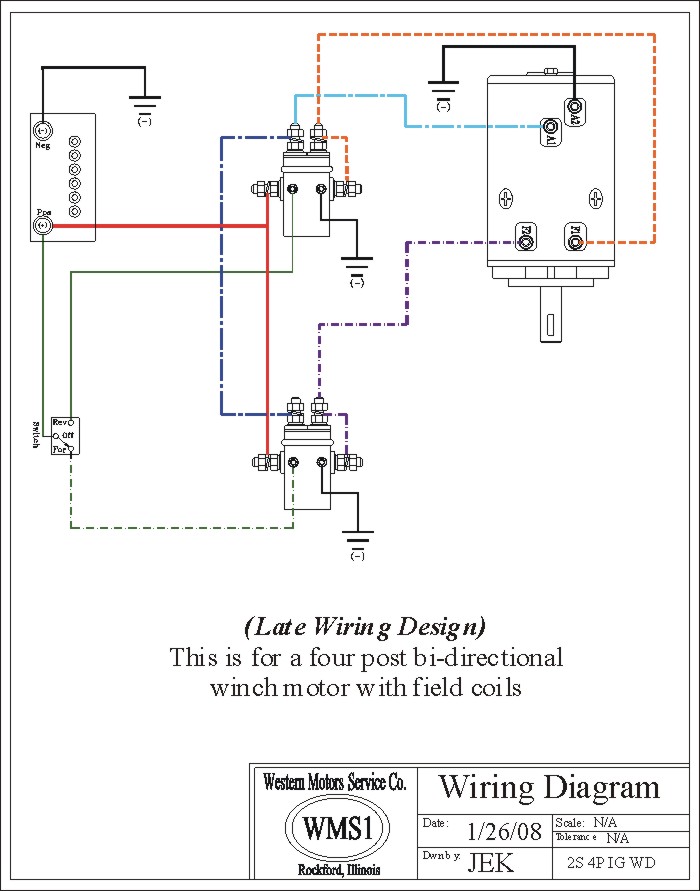

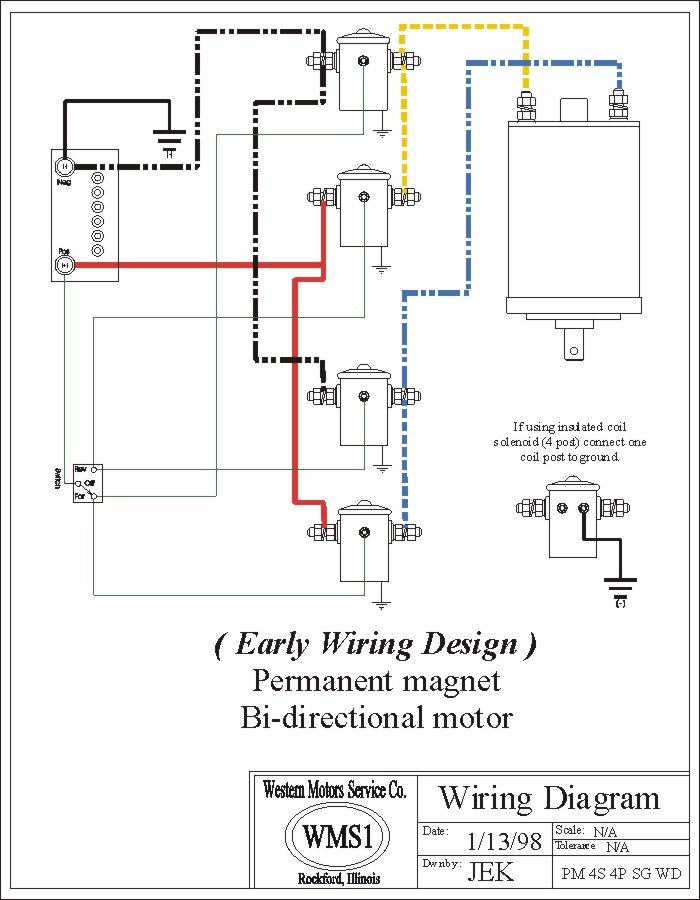

ONE


TWO


THREE



FOUR



FIVE




many thanks

:cheers:

Joined
Feb 6, 2002
Messages
15,313
Location
OC, CA
Which diagram you use depends on which motor you have, which should be obvious. The 4th diagram is the one that has some kind of thermal overload protection switch on it, but if you don't want to use it, diagrams 3-5 are the sae thing except for the specifics of how the motor is grounded.
