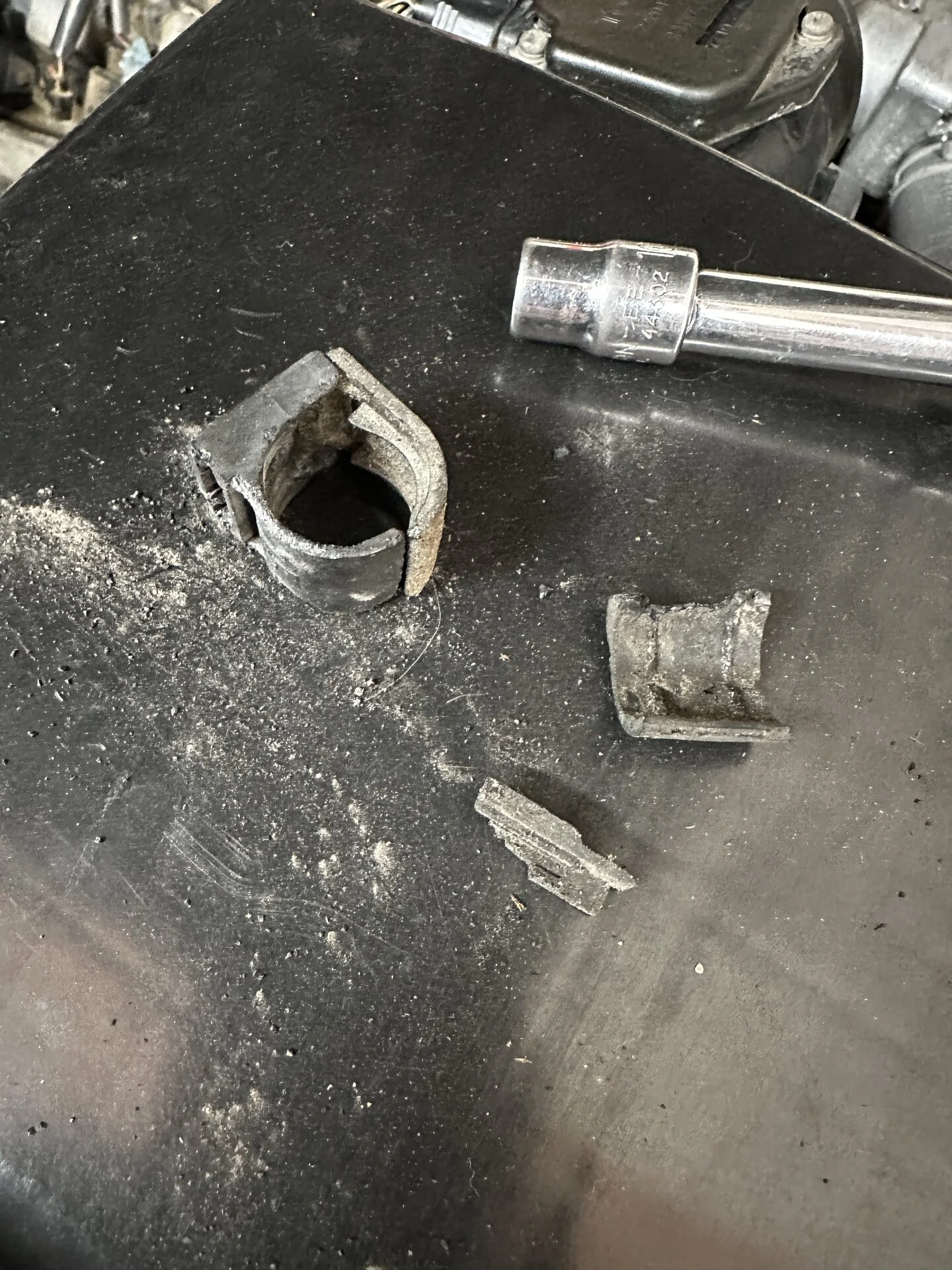

Can anyone tell me a part number for these wire harness clips?
- Thread starter tincan45
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Serviced with the engine wiring harness.
- Thread starter
- #3
Joey for the win!

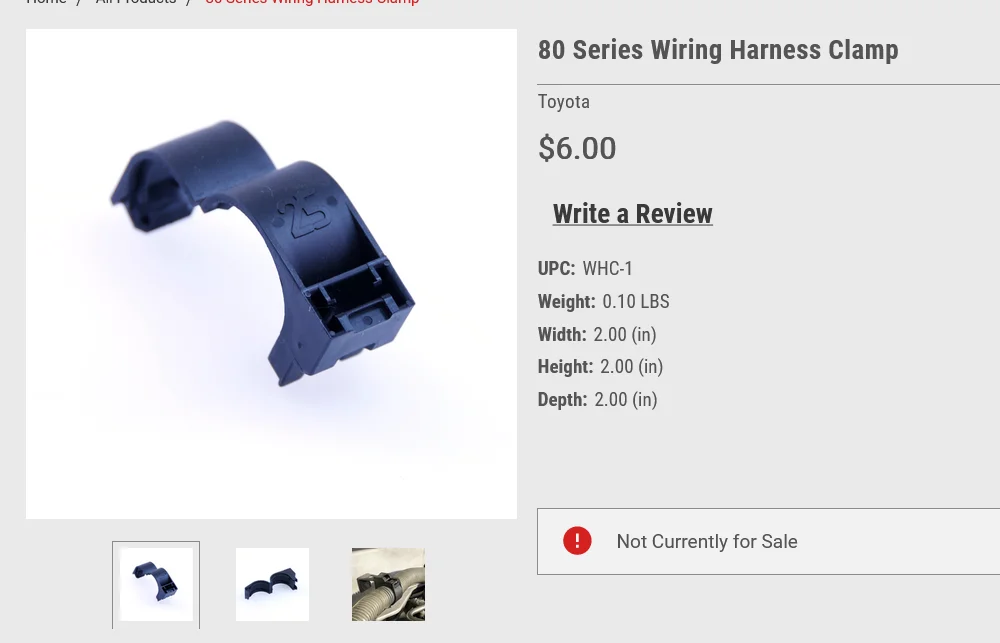

80 Series Wiring Harness Clamp
80 Series Wiring Harness Clamp (WHC-1) 82711-3H180
Except not at this time.
- Thread starter
- #5
I bought the two he had, but that part number appears to be stocked at a few places.
That one has a harness diameter of 1 inch. Hopefully it will work for you
- Thread starter
- #7

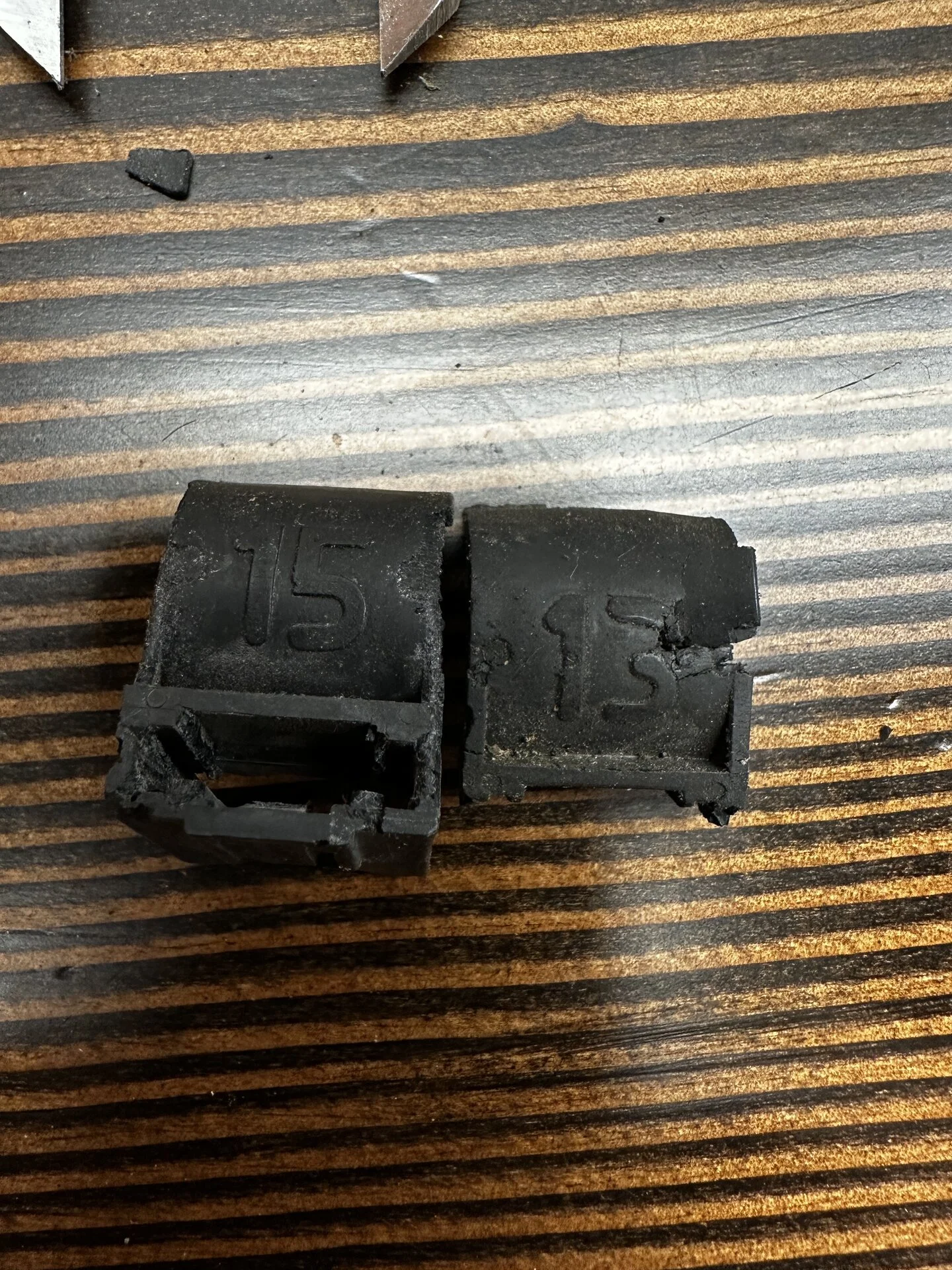

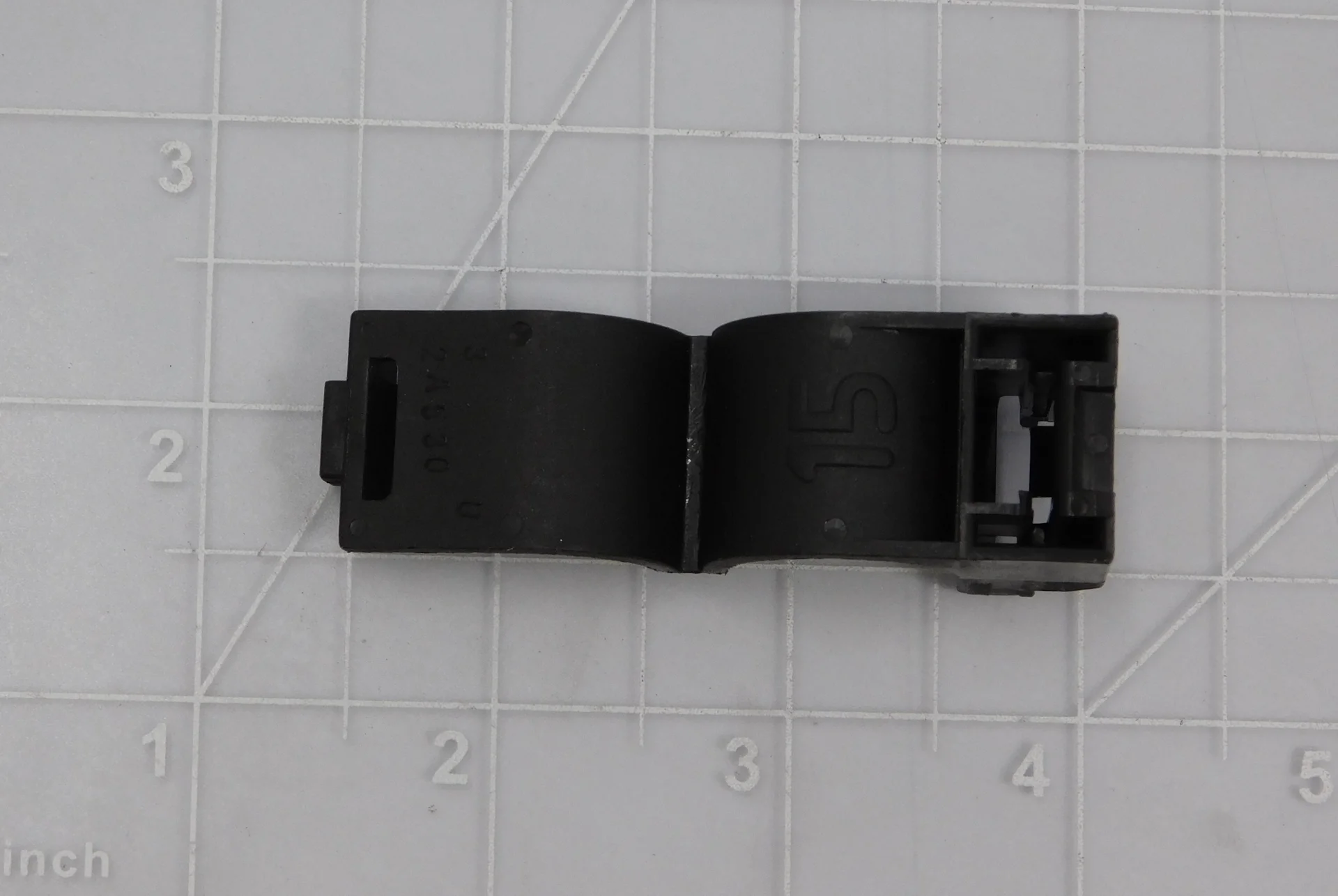

Good point. It might be too large. I noticed these all have large numbers on them, I'm assuming this indicates size. The two I need are 15 and 13. 13 being the front so it's a bit smaller. It appears they were used on several Toyota models maybe even other manufactures in the 90's, perhaps I can get lucky with a little more digging.
- Thread starter
- #12
Hopefully this will be helpful for someone else out there, I compiled a list of the known (to me) sizes of the wire clamps and the corresponding Toyota part numbers:
Metal Tab Clamps
7mm = 82711-24010
10mm = 82711-2A420
13mm = 82711-2A600
15mm = 82711-2A530
20mm? =
25mm = 82711-3H180
28mm = 82711-20870
I never got a visual confirmation on the 20mm. It would be great if someone could confirm.
Metal Tab Clamps
7mm = 82711-24010
10mm = 82711-2A420
13mm = 82711-2A600
15mm = 82711-2A530
20mm? =
25mm = 82711-3H180
28mm = 82711-20870
I never got a visual confirmation on the 20mm. It would be great if someone could confirm.
Last edited:
The reference is confusing. Usually the diameter is called out. In this case it's "R". is that radius or a typo? Someboy's going to have to buy one and find out.
EDIT: It looks like you have that part number down twice. Once as 7mm and once as 20mm.
EDIT: It looks like you have that part number down twice. Once as 7mm and once as 20mm.
- Thread starter
- #14
Yes, thanks. I think it's safe to say the 24010 is the 7mm. I'm still not sure about the 20mm. I "think" the R is the radius outside of the ribbing. Best guess - the stamped number is the inner ribbing radius (smaller than the clamp radius)
It's too bad there isn't a "standard parts catalog" like GM has. One that lists fasteners and such. Toyota does that to a small degree with these clips, but only in model-specific catalogs. In many cases it shows retainers not serviced when a substitute exists. You have to think way outside the box to chase them down.
- Thread starter
- #16
It's frustrating for sure.

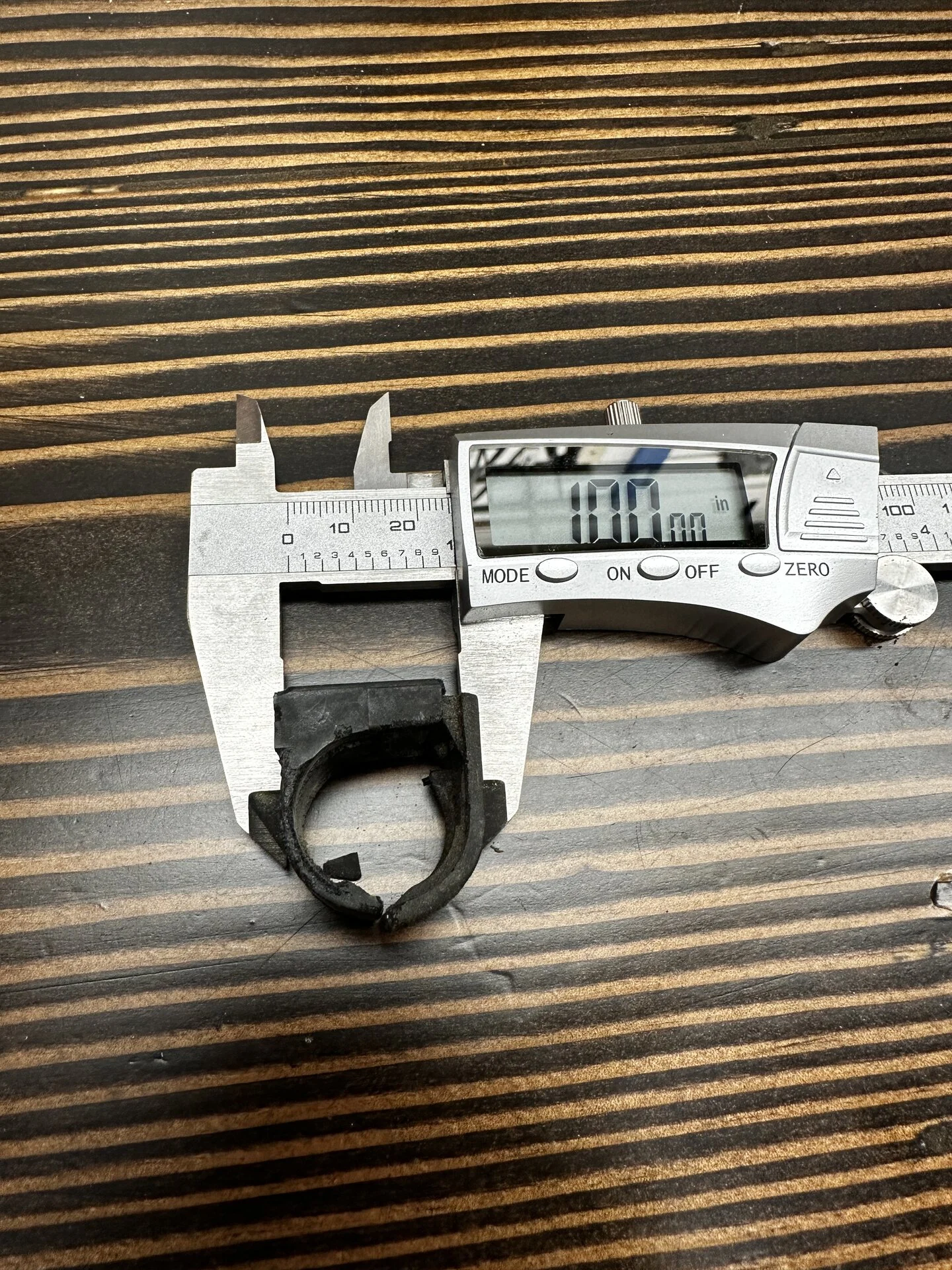

Since I had the 25mm I'm not using I took some measurements. The diagram shows 26.7 whish is about right to the inside of the ribs. It's over 30mm to the outside of the ribs. My best guess would be the 25 is an indicator for the size loom in mm you want to clamp.
great info! these part numbers are very hard to find

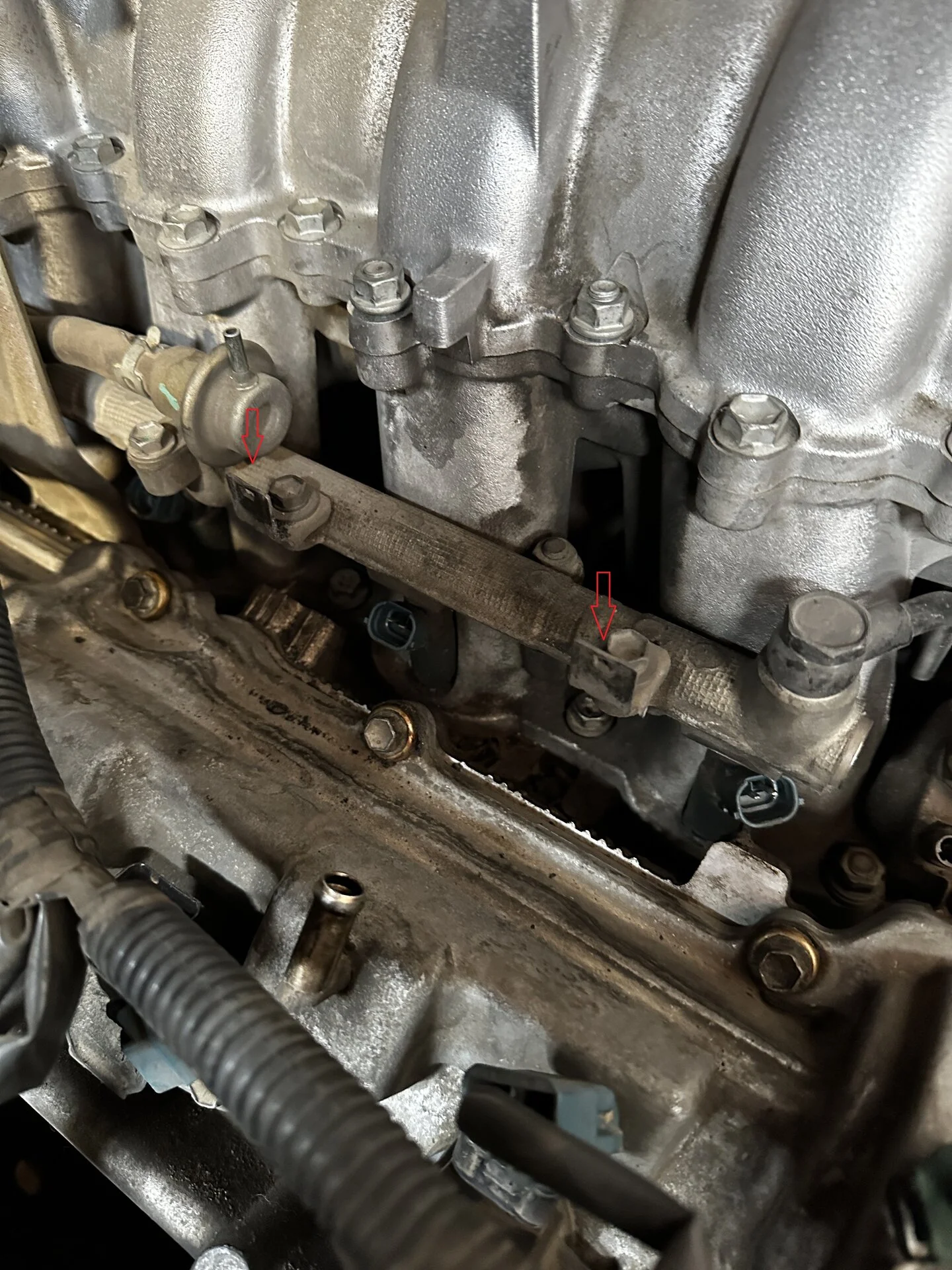

Were you able to find these clips? I have the part numbers you confirmed fit but don't work for me and seem to fit the metal brackets with the triangle cut out. The metal bracket in your second photo have a square cut out and a raised back edge to capture the plastic retainer clip. Appreciate the help if you found the correct part number for the 15 and 13 along the fuel rail. Or, if somebody could snap a picture of their clip with the last 5 digits of the part number in fine font that usually is the part number that goes after 82711-XXXXX. Thank you.
- Thread starter
- #19
Yes - See the post above. They were the correct fit for my 98
