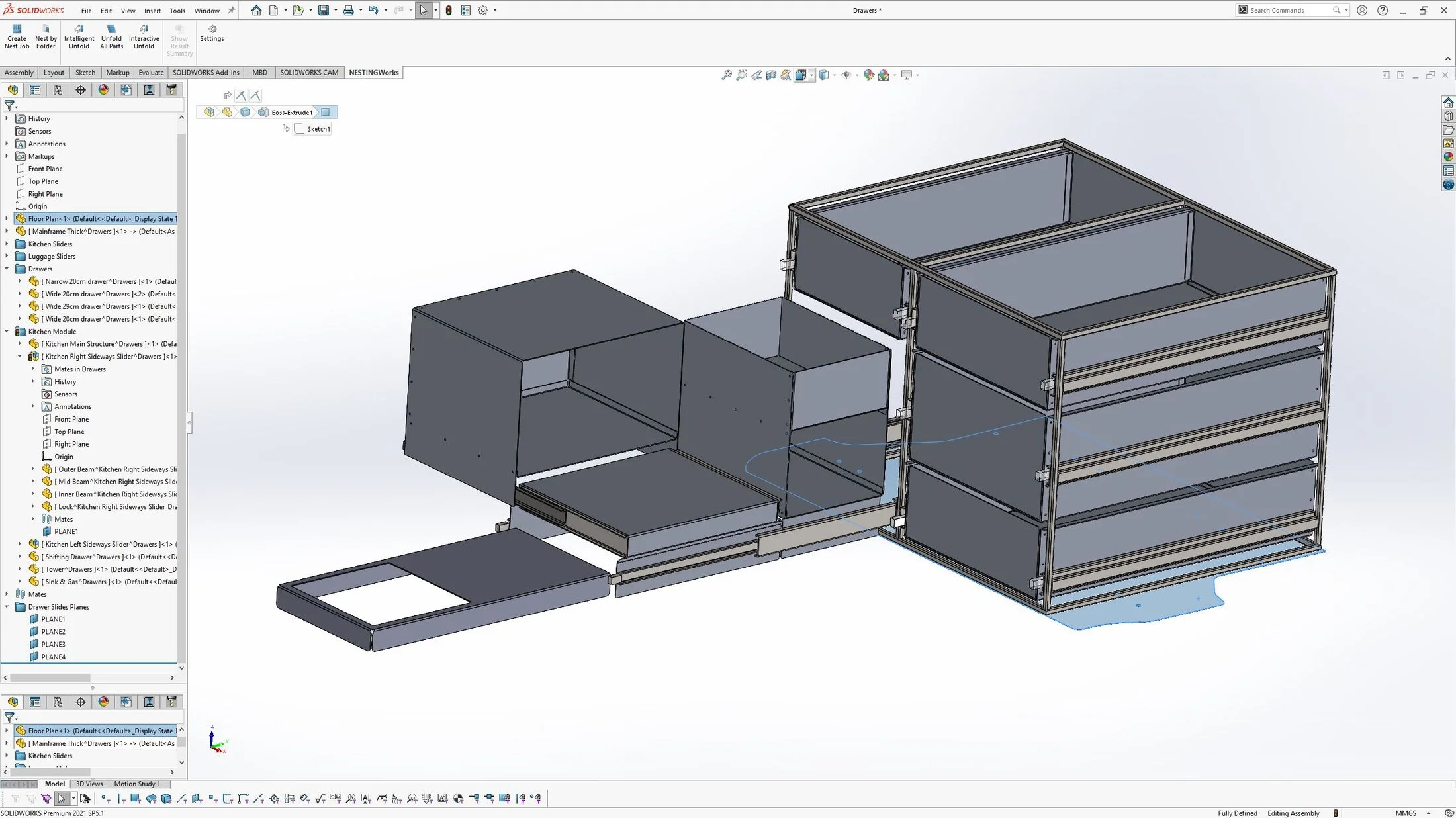

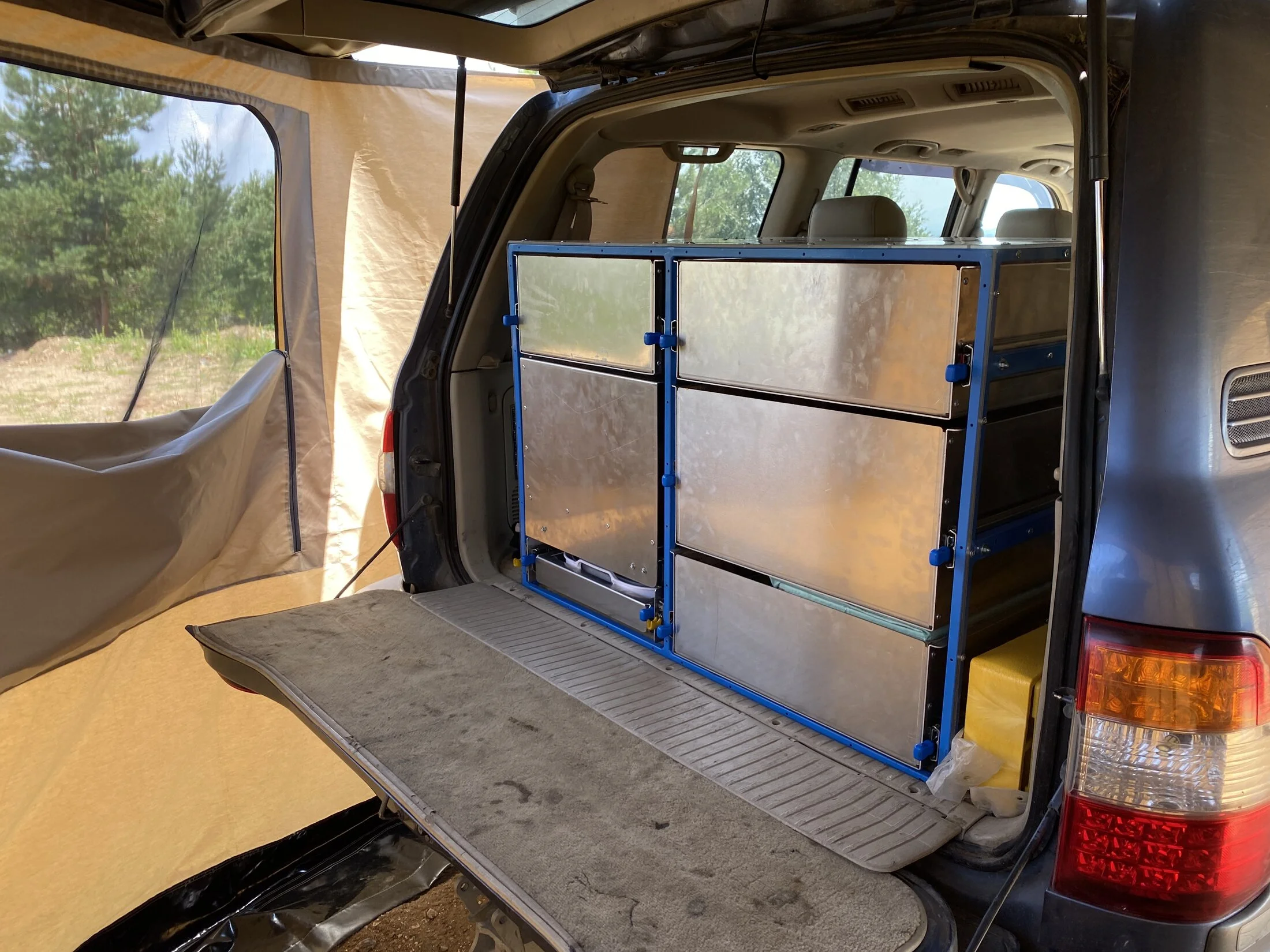

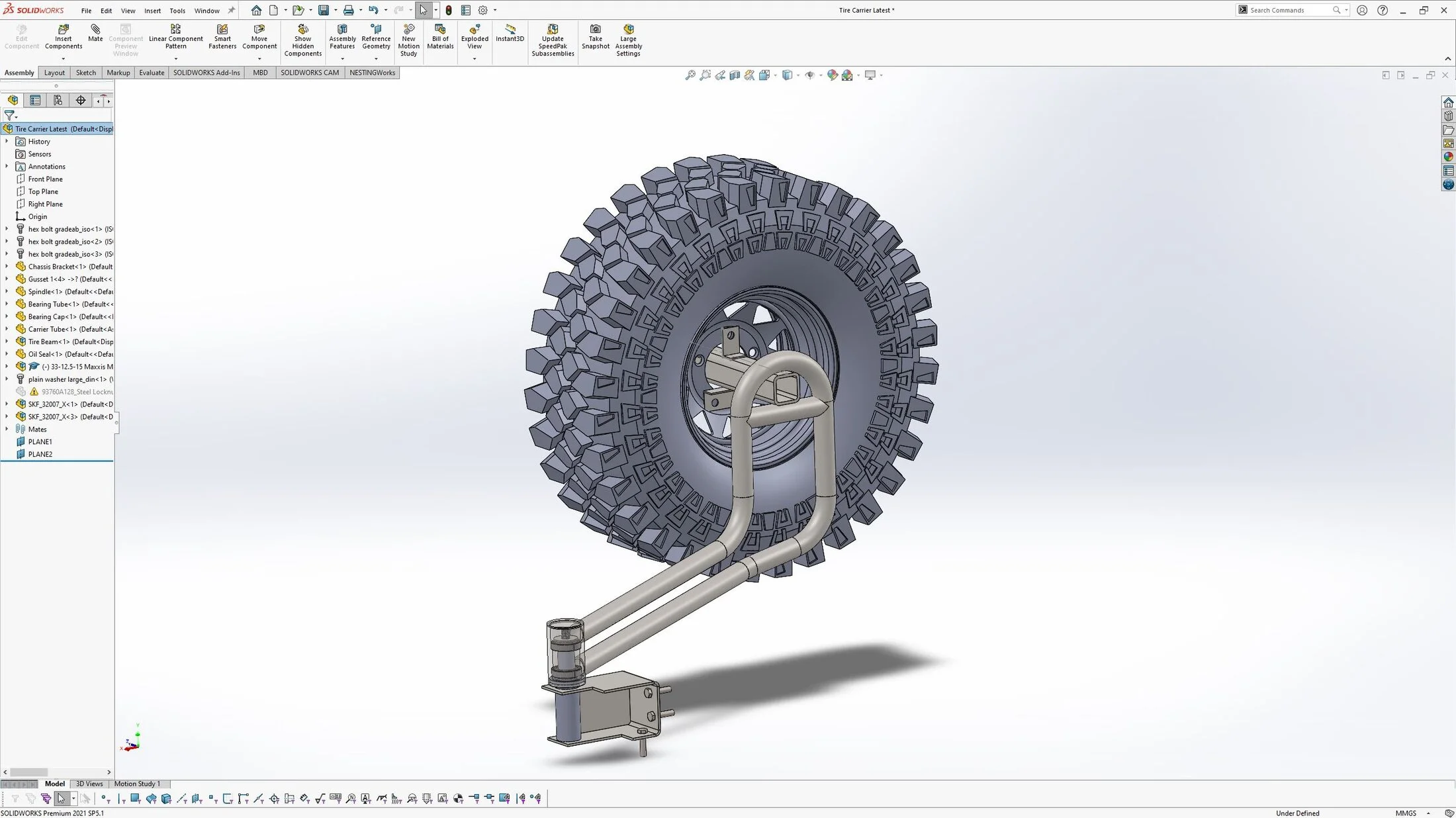

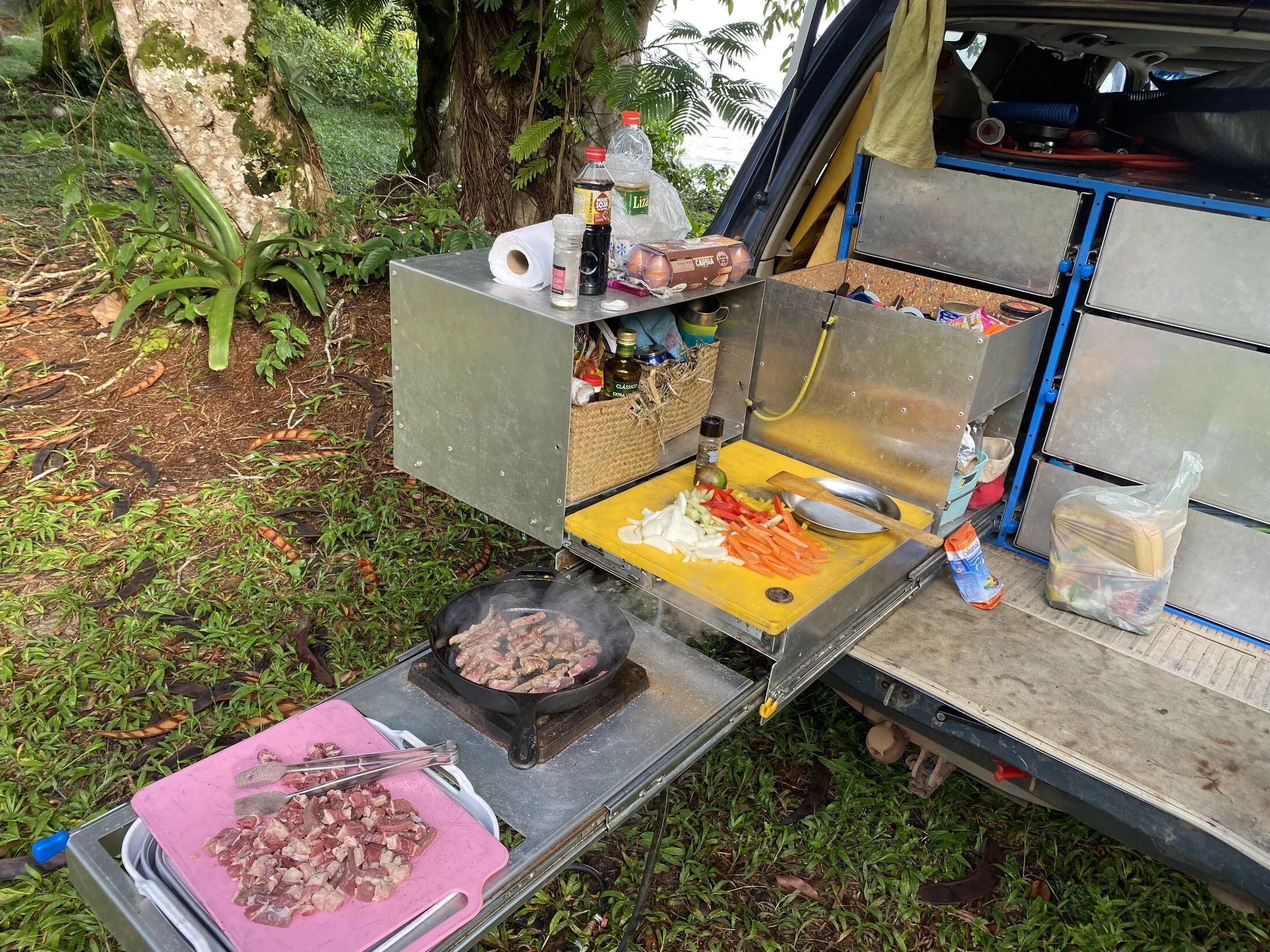

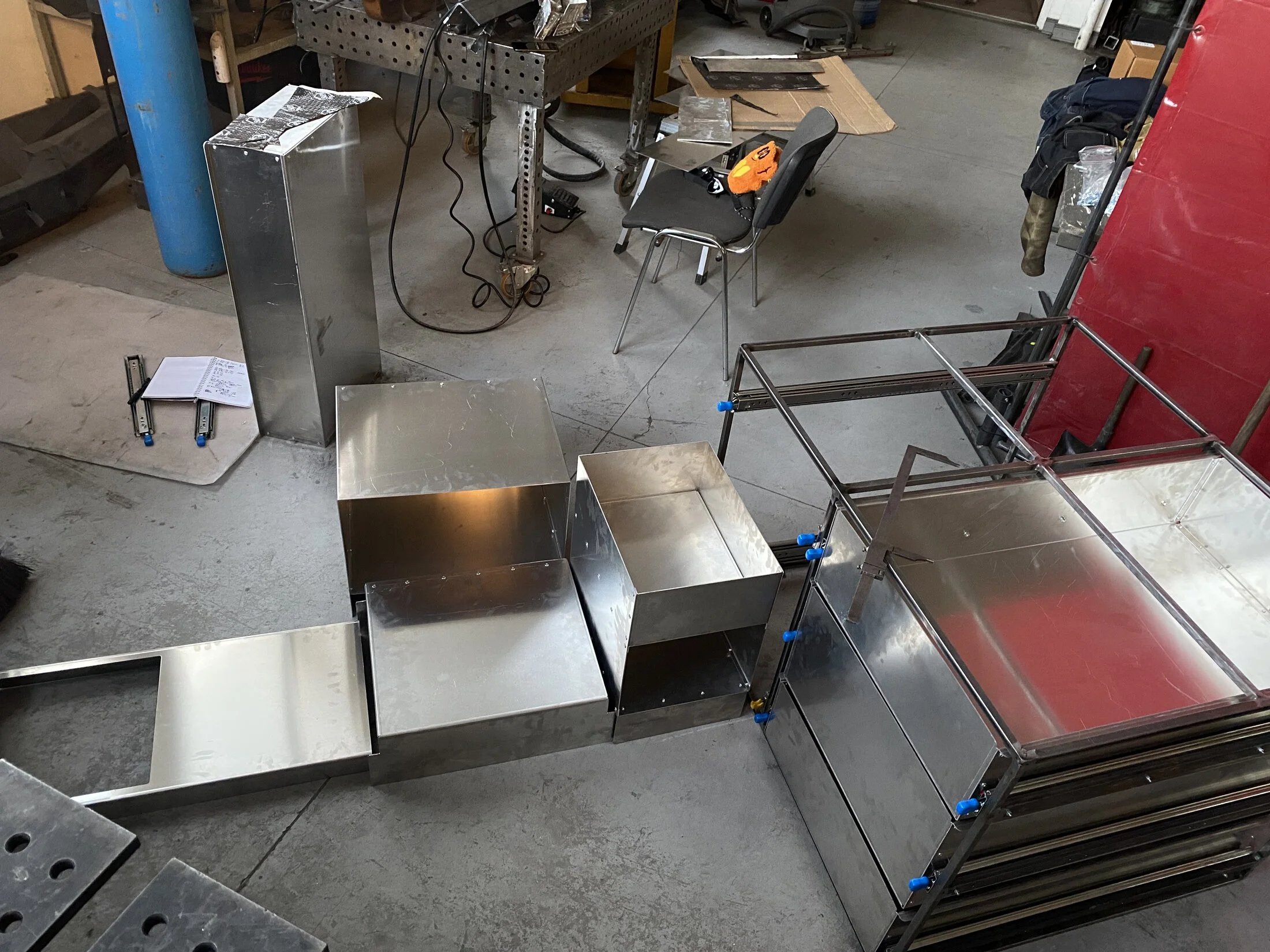

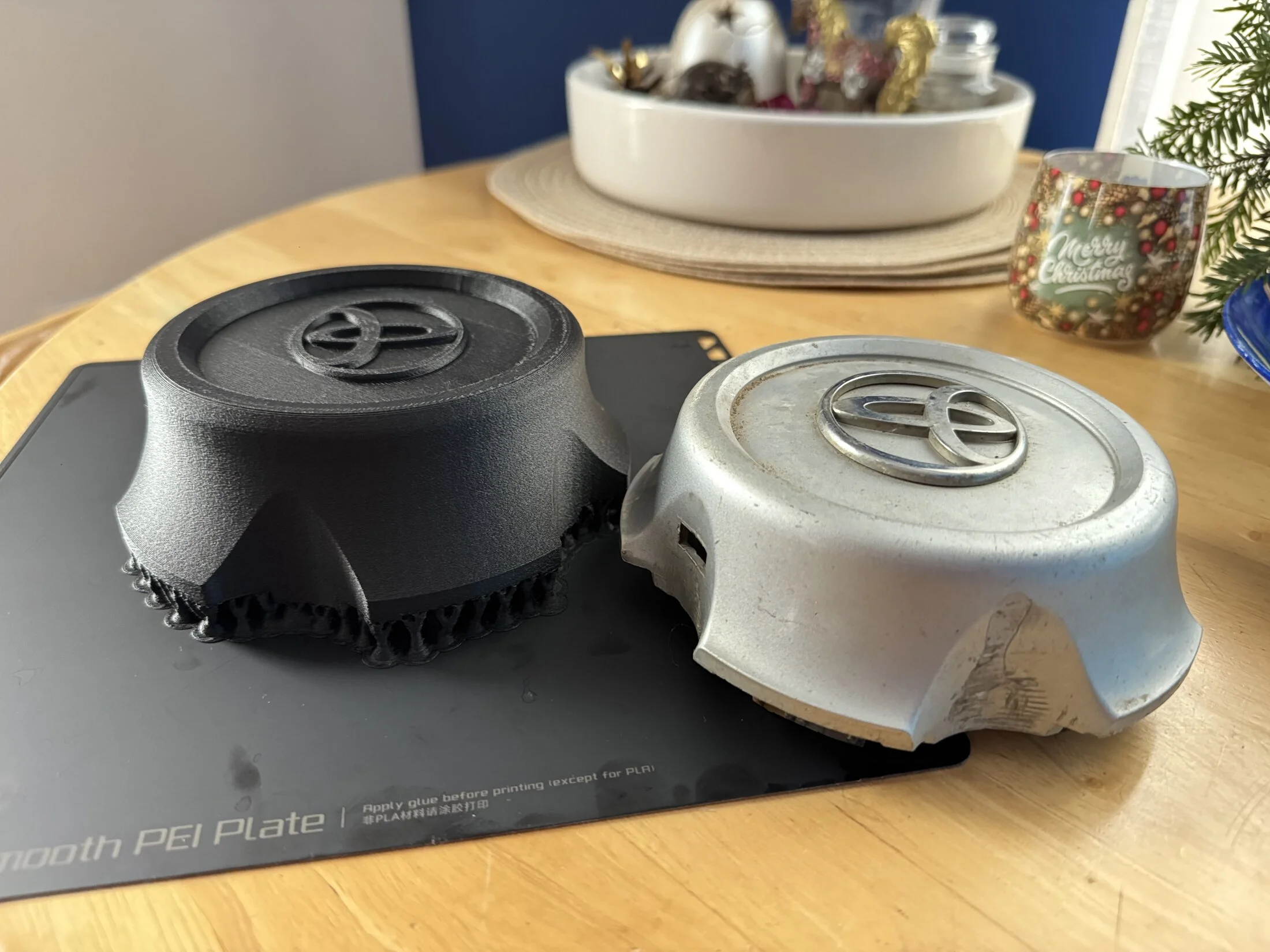

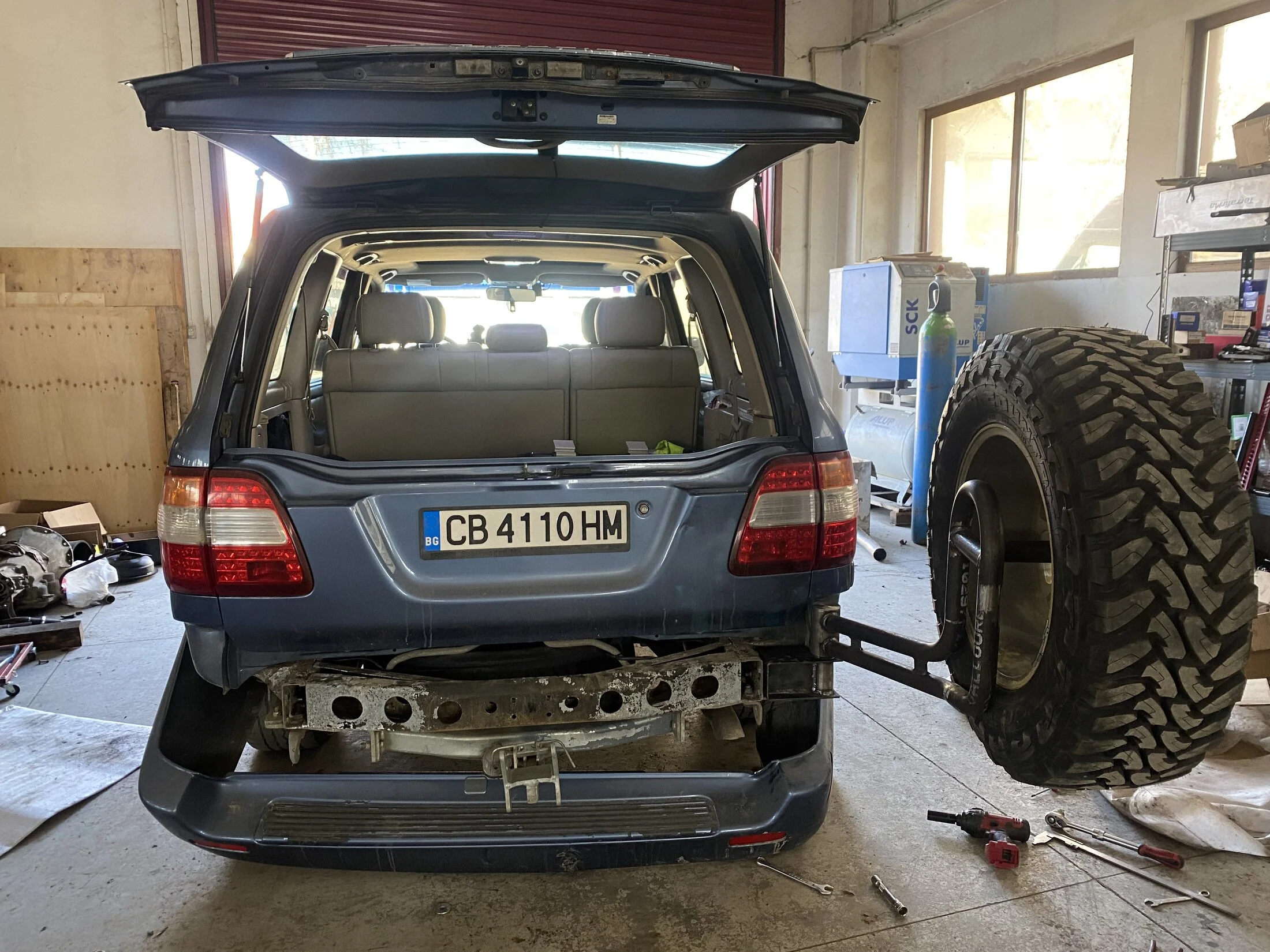

I will upload CAD designs of some of the stuff that I build for my cruiser here. If anybody wants to share his we might build an index.

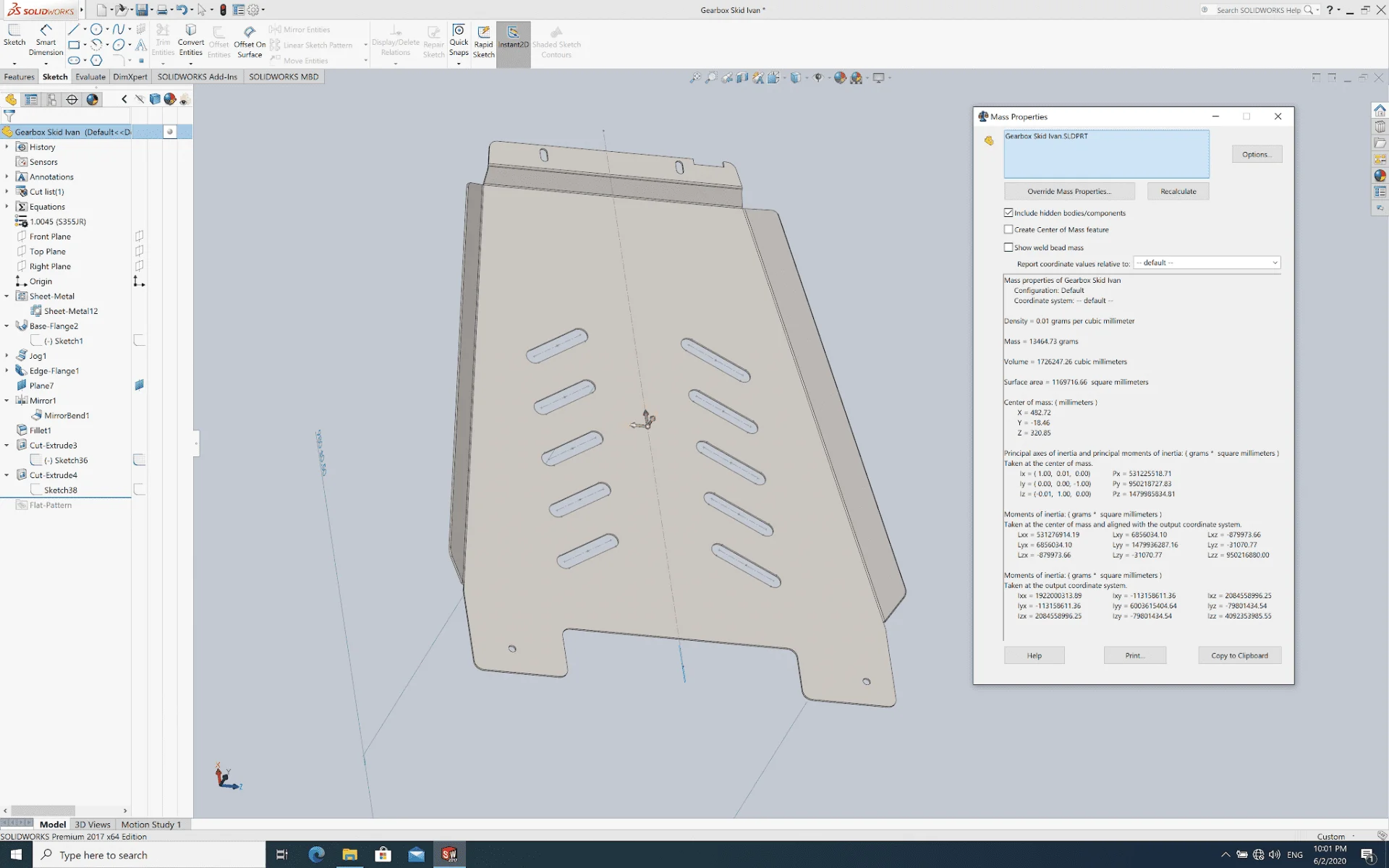

1. Gearbox skid plate for LHD 5 speed Diesel

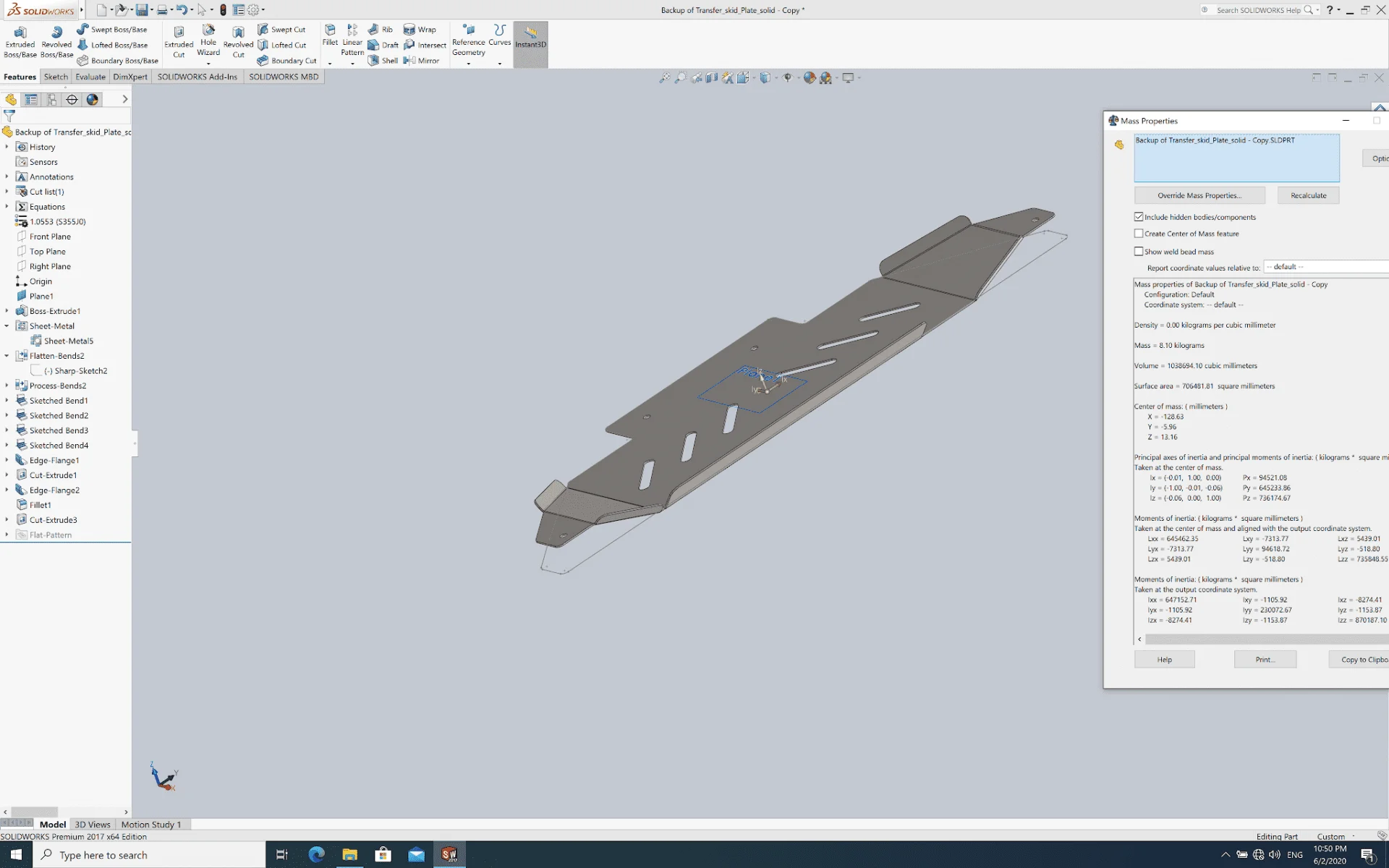

2. Transfer case skid plate for LHD 5 speed Diesel
There are 2 holes that have to be drilled through the gearbox crossmember and 2 are reused.
The holes in the front between the control arms and the ones in the back on the chassis are already there and reused.
An improvement would be to add an access door for the oil drain on the gearbox plate. I might add one in the future, if I smash this one or become too annoyed with unmounting it (4 bolts) when changing oil.

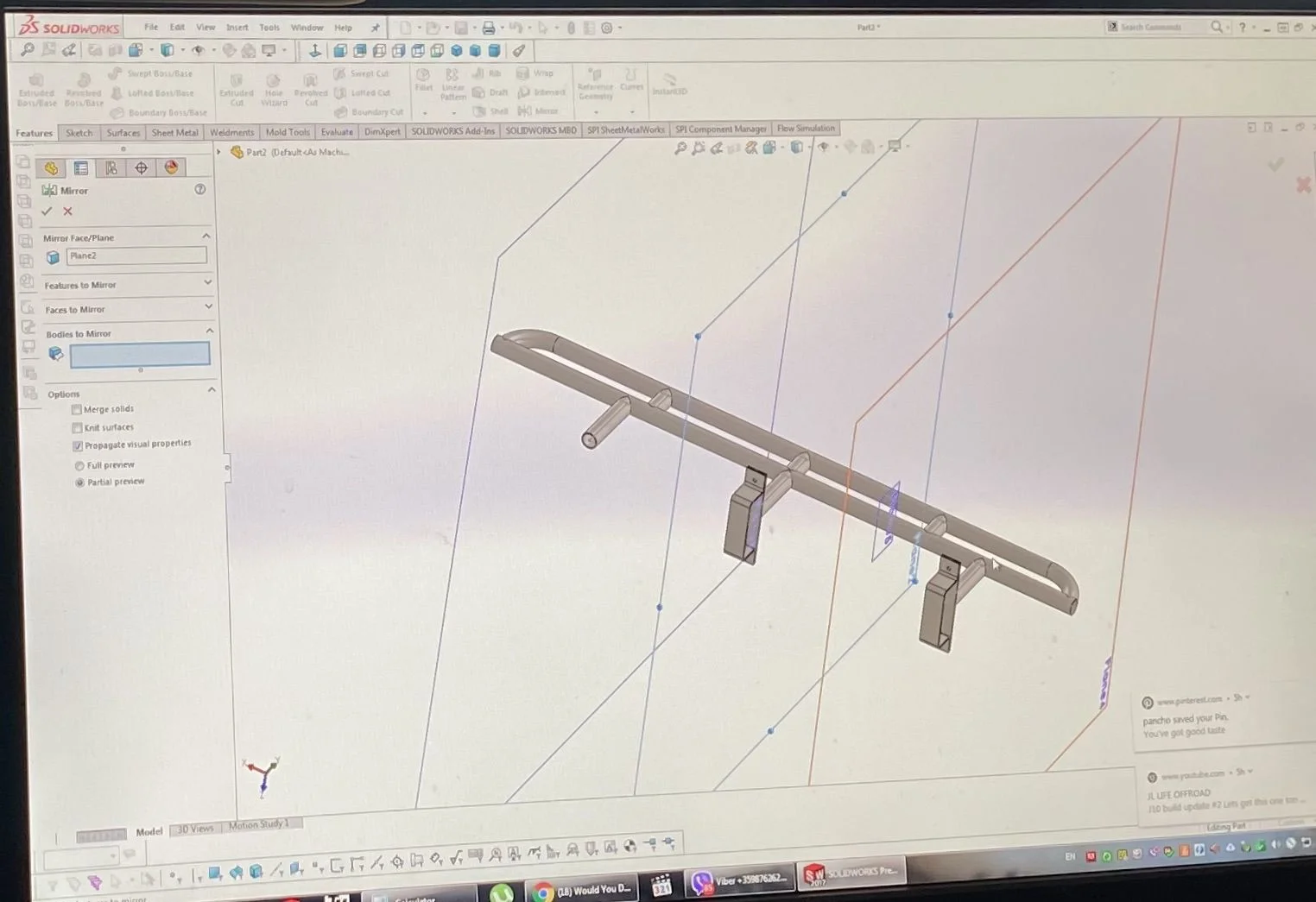

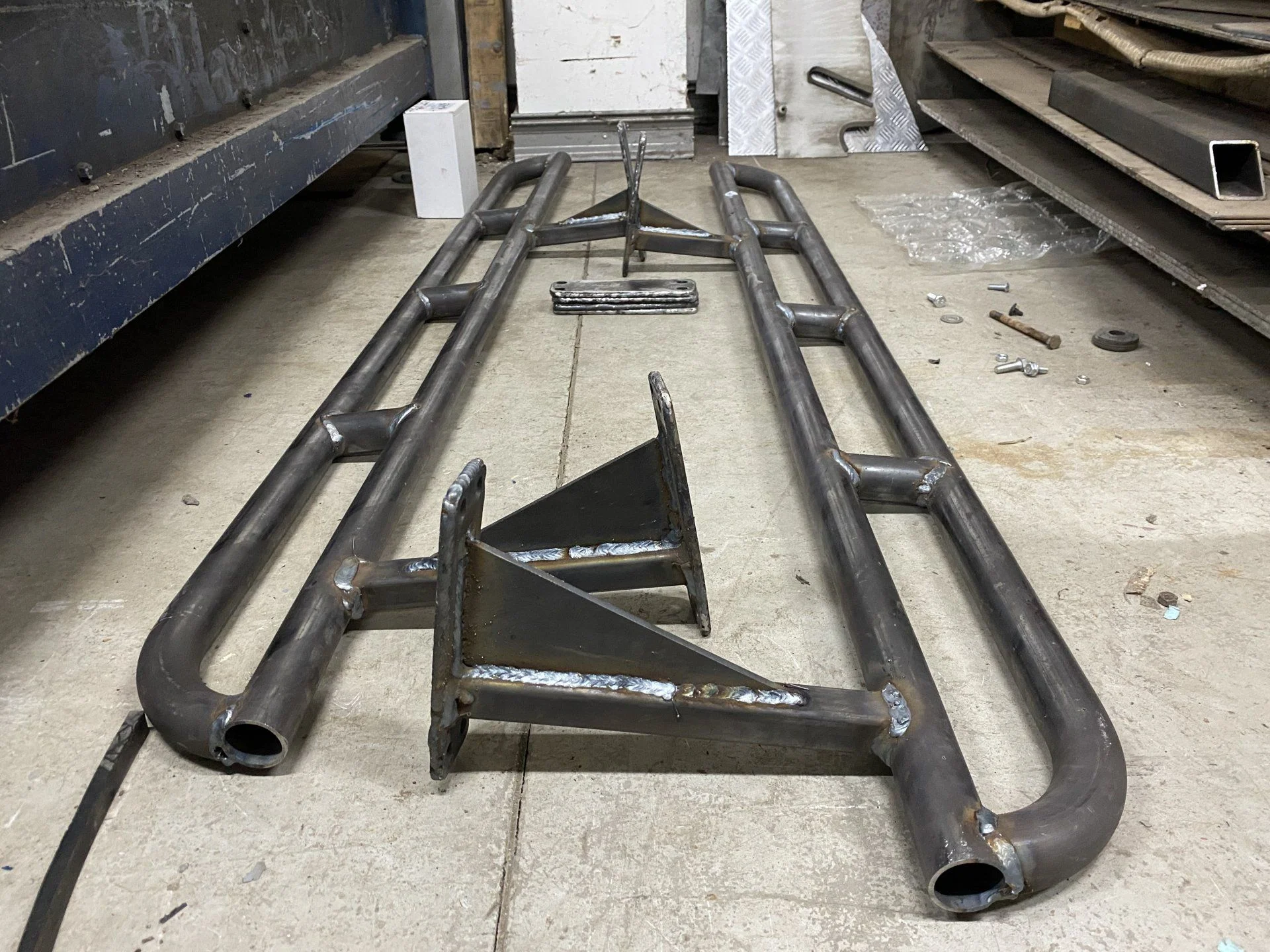

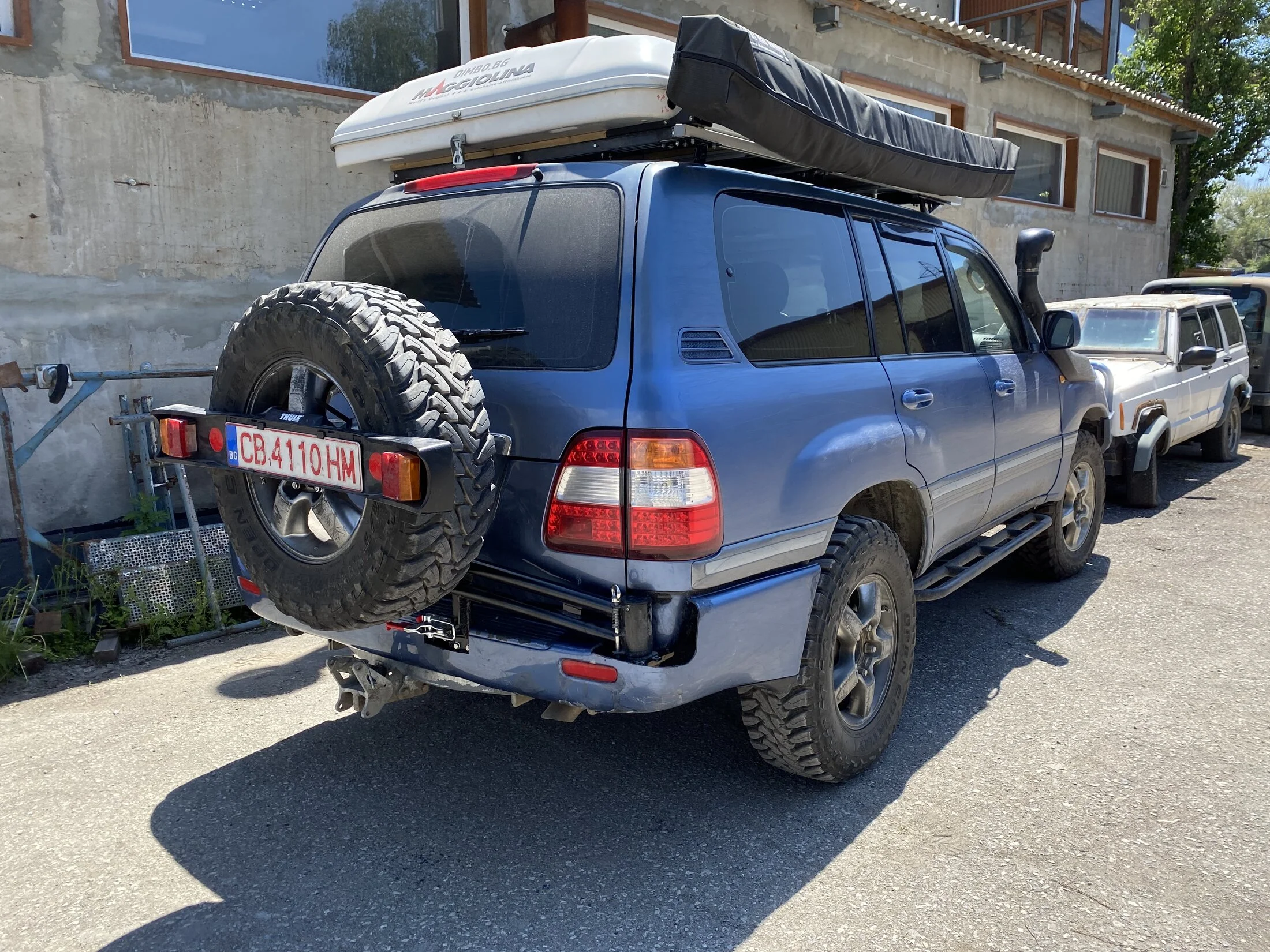

3. Rock sliders
A friend helped me a lot with a model for sidesteps but this quickly diverged to pencil marks on the steel, so I will have to take measurements and update the model before uploading
Two steps - AHC compatible. Passenger side could be made with 3 steps. The AHC accumulator blocks the driver side.
Square tubing would be better for the main beam
1. Gearbox skid plate for LHD 5 speed Diesel
2. Transfer case skid plate for LHD 5 speed Diesel
There are 2 holes that have to be drilled through the gearbox crossmember and 2 are reused.
The holes in the front between the control arms and the ones in the back on the chassis are already there and reused.
An improvement would be to add an access door for the oil drain on the gearbox plate. I might add one in the future, if I smash this one or become too annoyed with unmounting it (4 bolts) when changing oil.
3. Rock sliders
A friend helped me a lot with a model for sidesteps but this quickly diverged to pencil marks on the steel, so I will have to take measurements and update the model before uploading
Two steps - AHC compatible. Passenger side could be made with 3 steps. The AHC accumulator blocks the driver side.
Square tubing would be better for the main beam
