Bronco brake booster link in an FJ40

[RockDoc]

Beauty!! Thanks for posting up. I'll have to take a peak in your build thread



[Poser]

Or maybe I’ll do a new thread specific to the process.

Please do start another thread specific to this!



[Rigger]

@DomSmith that looks great!



[RockDoc]

A few pics of how mine was put together. Not seen is a bracket down from the front of the booster to the fender. Has worked well over the last couple weeks.



[DomSmith]

Please do start another thread specific to this!

Steve-

I’ll start gathering all the pics, etc and hopefully start it soon.



[FJ40Jim]

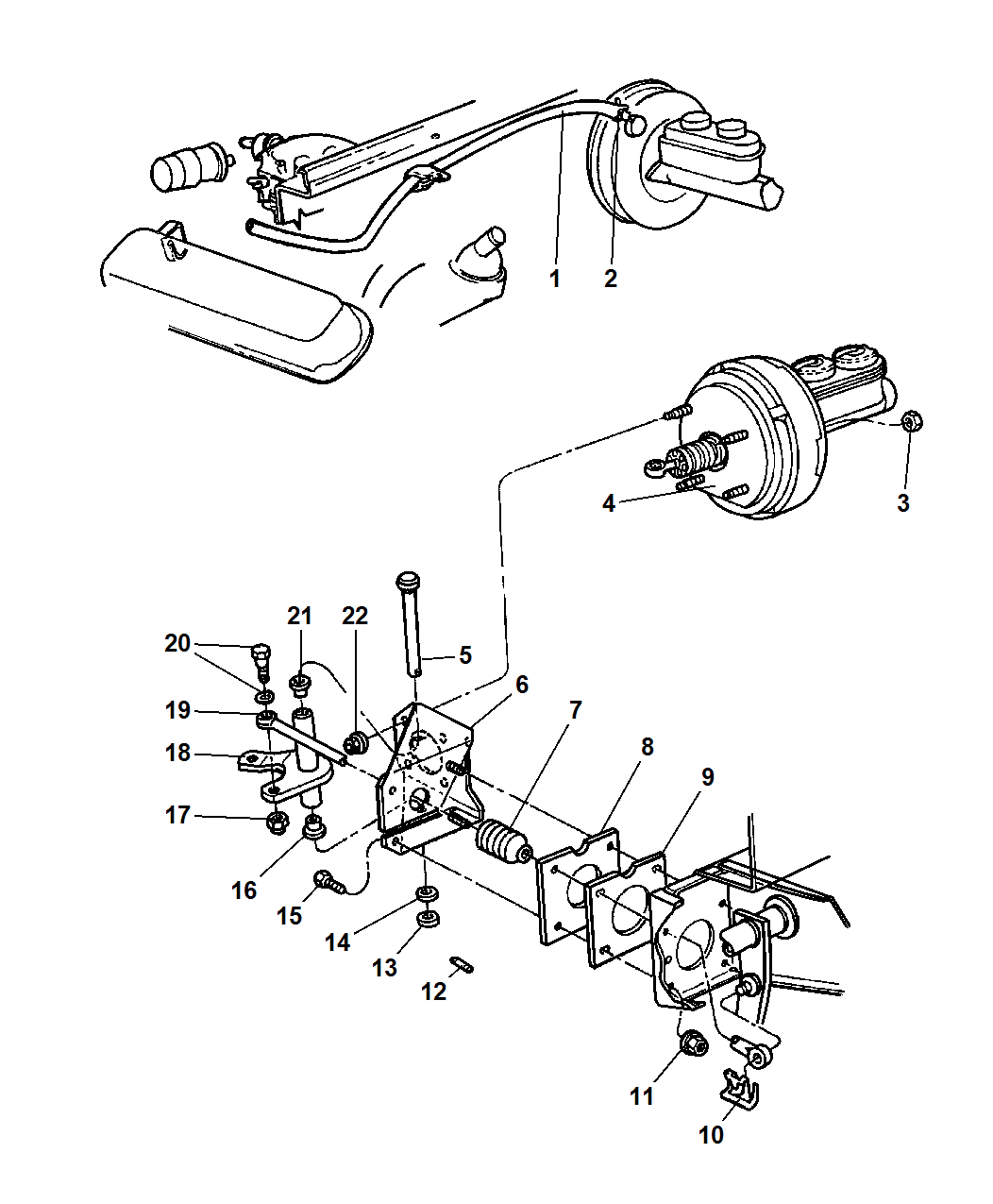

Dodge vans used a similar setup for many years, from 1970s into 1990s. They might cough up some useful linkage bits to save fabricating it all at home.



[Frank Traverse]

Does anyone know what the consequences are of removing the vertical rib in the pre-late '70 40s? Other than butchering a stock body? Maybe it compromises the firewall?



[65swb45]

wow, this gave me another flashback!
