Bosch iBooster Brackets for 60/80 Series – Tested in Moab, Ready to Go

[Marvelicious]

Does any have a wiring diagram or can anyone explain how to wire up the eBay wiring harness please?

Yep, if you're using the harness linked in this thread, they actually have the three wires defined in the listing: Red: constant hot, Black: ground, Green: switched hot. There's a whole bunch of other wires in the stock plug, but they don't matter to us.

If you want a deeper dive, or if you're making your own pigtail, here's a thread...

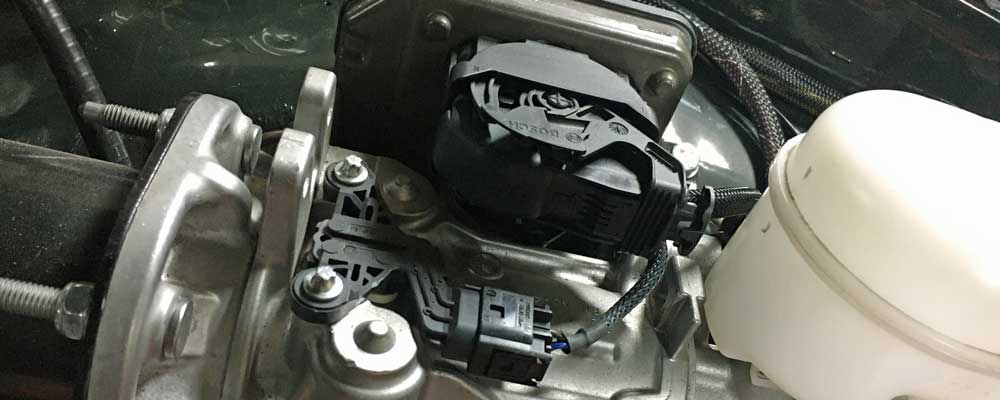

Wiring the iBooster - EVcreate

An iBooster in your car is very attractive. This article explains wiring the iBooster GEN1 and GEN2 in detail. Our connector kit makes that even easier.

www.evcreate.com



[Super6]

Yep, if you're using the harness linked in this thread, they actually have the three wires defined in the listing: Red: constant hot, Black: ground, Green: switched hot. There's a whole bunch of other wires in the stock plug, but they don't matter to us.

If you want a deeper dive, or if you're making your own pigtail, here's a thread...

Wiring the iBooster - EVcreate

An iBooster in your car is very attractive. This article explains wiring the iBooster GEN1 and GEN2 in detail. Our connector kit makes that even easier.

www.evcreate.com

Thank you so much!
