What's your method for transferring that intersecting trapezoid to metal? Print out the pattern from the rendering and trace or something fancier?
Builds Blender, My LX450/FZJ80 + FJ45esk + GM + Land Rover crazy concoction (1 Viewer)
- Thread starter Mieser
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #402
Basically cardboard. The model was just a conceptual pic I found when doing research. My ring is offset slightly so that complicates things a wee bit.
I guess I could model it, but I don't have a good way to print out templates that large. Sometimes for one off stuff it's just easier to fab on the fly.
Agreed. This would be gold!
- Thread starter
- #405
Back home after a week abroad for work...

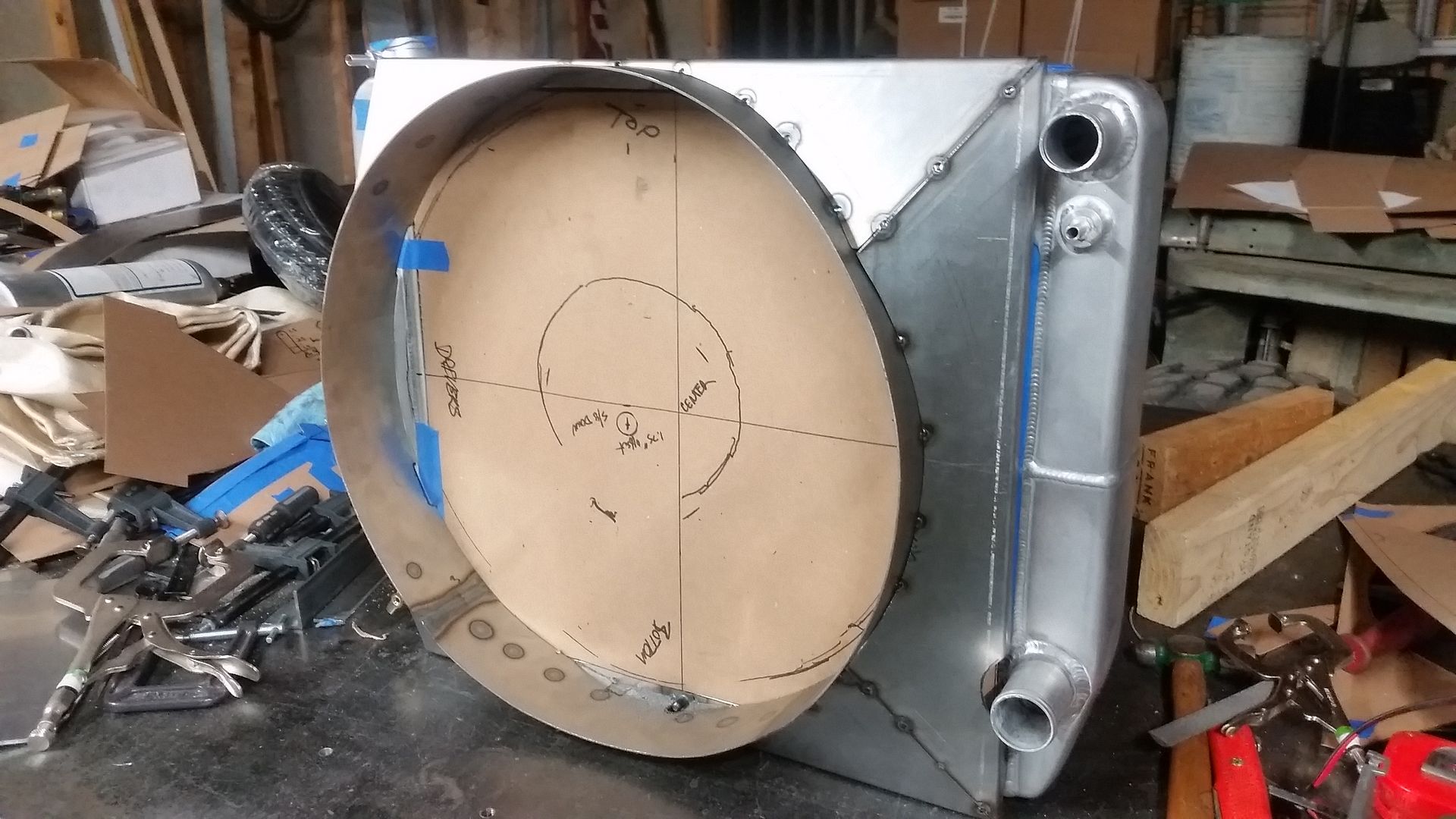

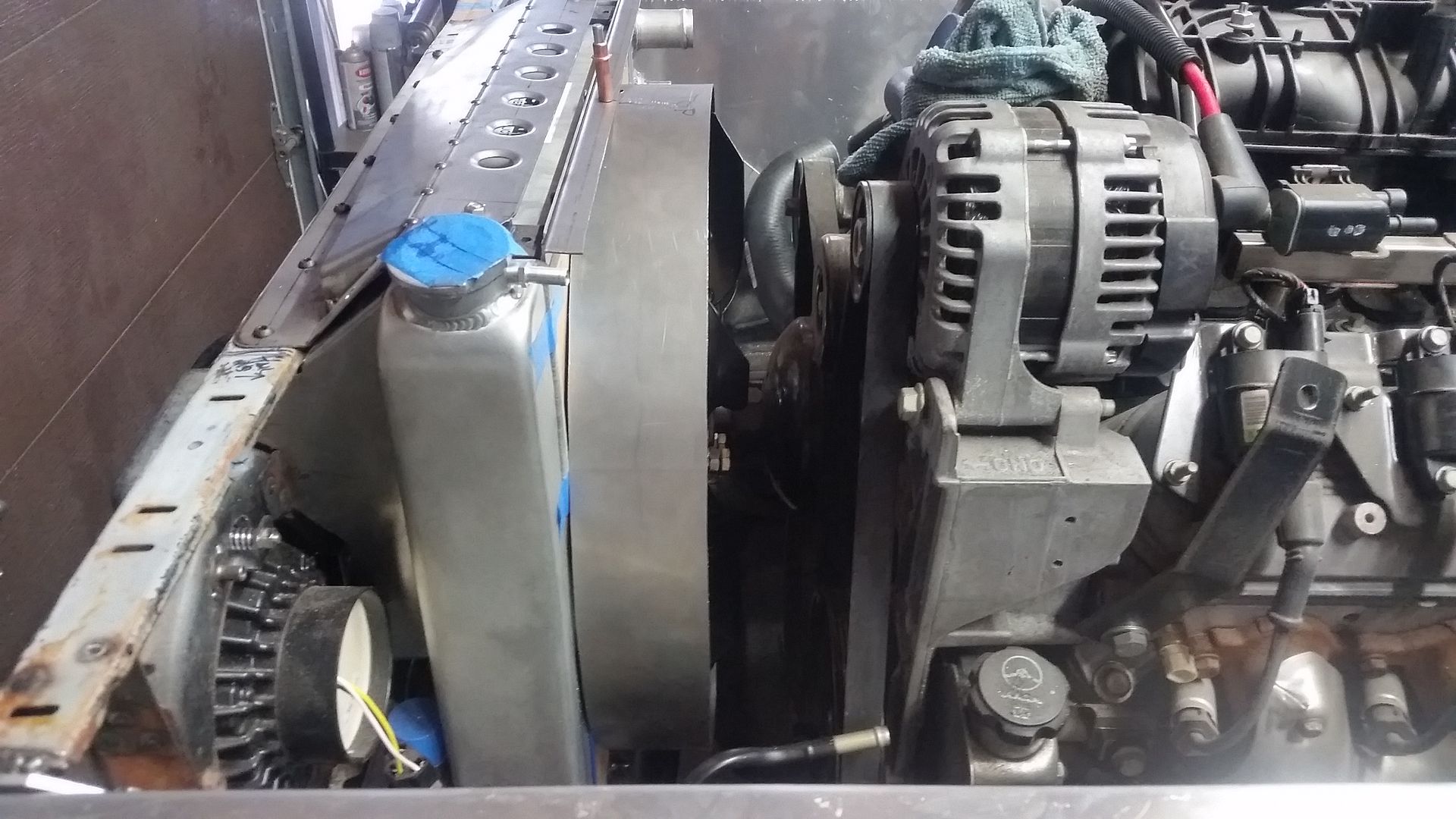

I test fit the shroud ring in the vehicle to double check the position. Everything looks pretty good. The ring might be a little long? I have about 1/3 of the fan sticking out of the shroud. It's easier to trim a little vs adding some I think.

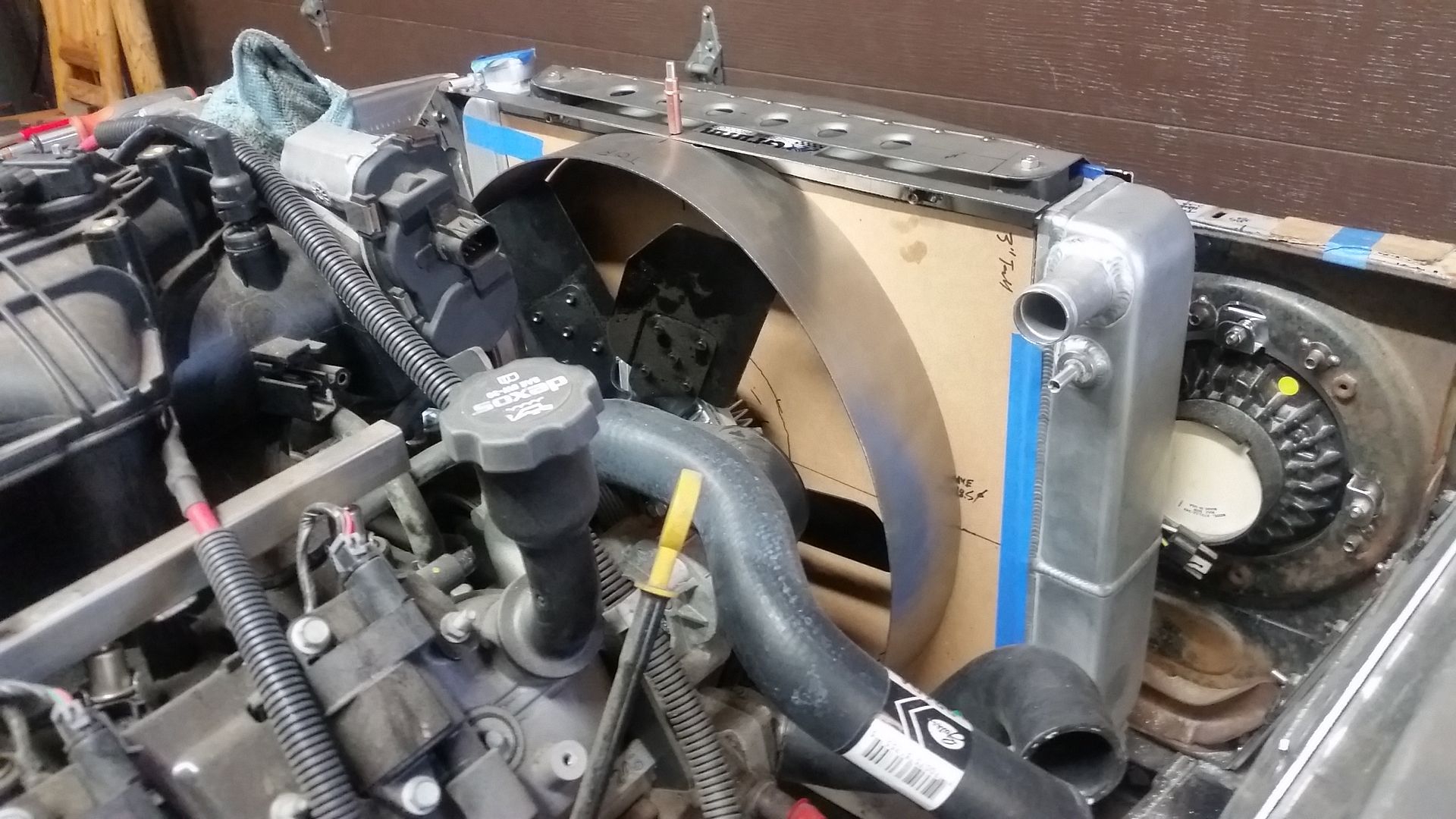

The fit on the fan looks pretty good. I have about a finger width of clearance all the way around ( about 3/8-1/2" ). This should allow for some movement if needed, but be tight enough for good airflow.
Now for the hard part. I have to make the transition sections from the square core to the round ring. After that it done and welded I will trim the back side of the ring to the new shape.
I test fit the shroud ring in the vehicle to double check the position. Everything looks pretty good. The ring might be a little long? I have about 1/3 of the fan sticking out of the shroud. It's easier to trim a little vs adding some I think.
The fit on the fan looks pretty good. I have about a finger width of clearance all the way around ( about 3/8-1/2" ). This should allow for some movement if needed, but be tight enough for good airflow.
Now for the hard part. I have to make the transition sections from the square core to the round ring. After that it done and welded I will trim the back side of the ring to the new shape.
Looks great! Can't wait to see it fleshed out.
- Thread starter
- #408
Welp, get ready for round two of Photobucket destroying thousands more build threads. I was informed today that they will not renew any existing paid image hosting plans. I have been on on a paid plan for the better part of of a decade now. They are basically trying to make me upgrade to the $400yr plan as they did all the 'free' members a few months back. Any thoughts? I don't really want to fork over that much money, but I also don't want want to lose the thousands of posts of information I have typed out in my build threads.....
- Thread starter
- #409

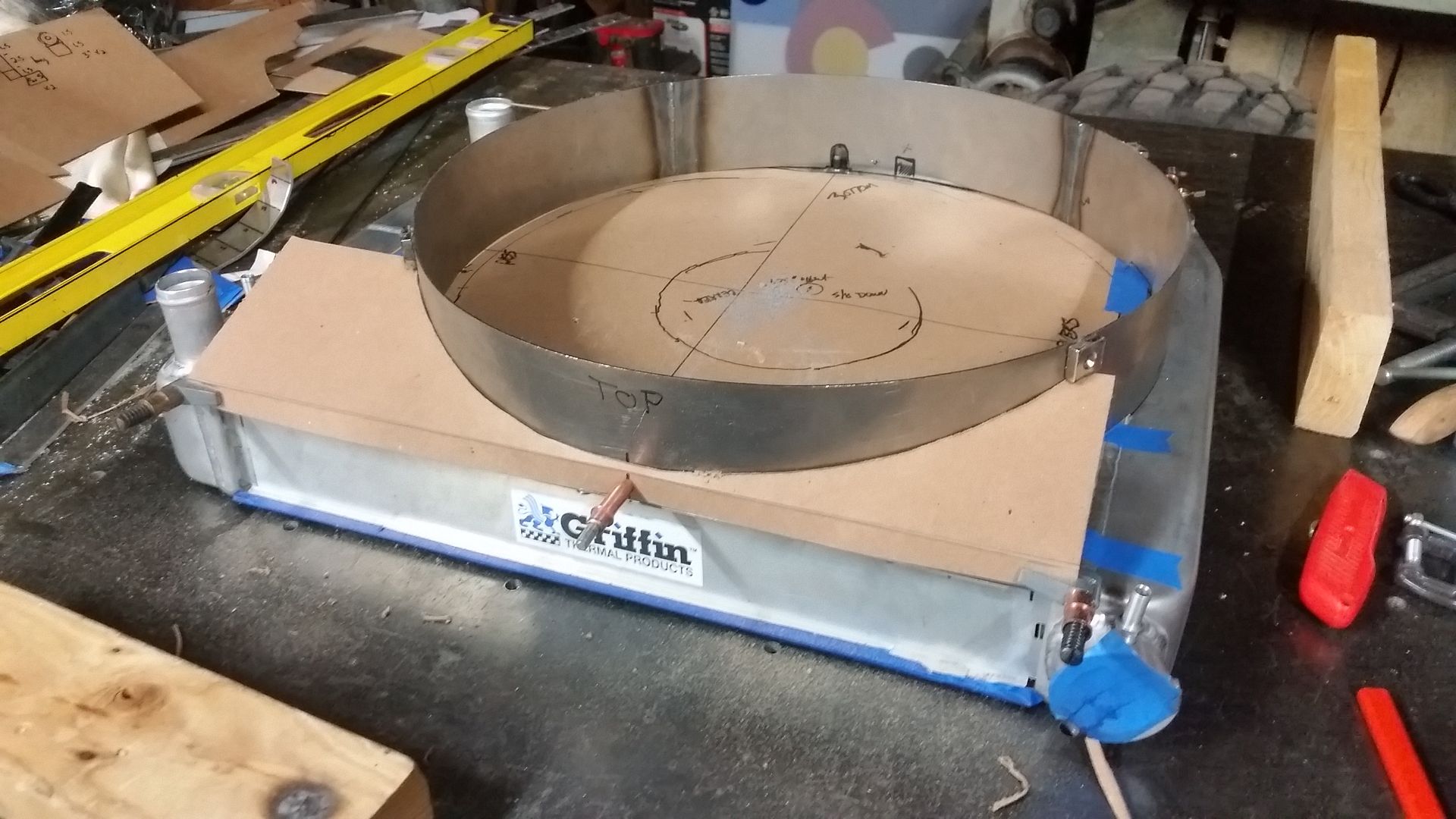

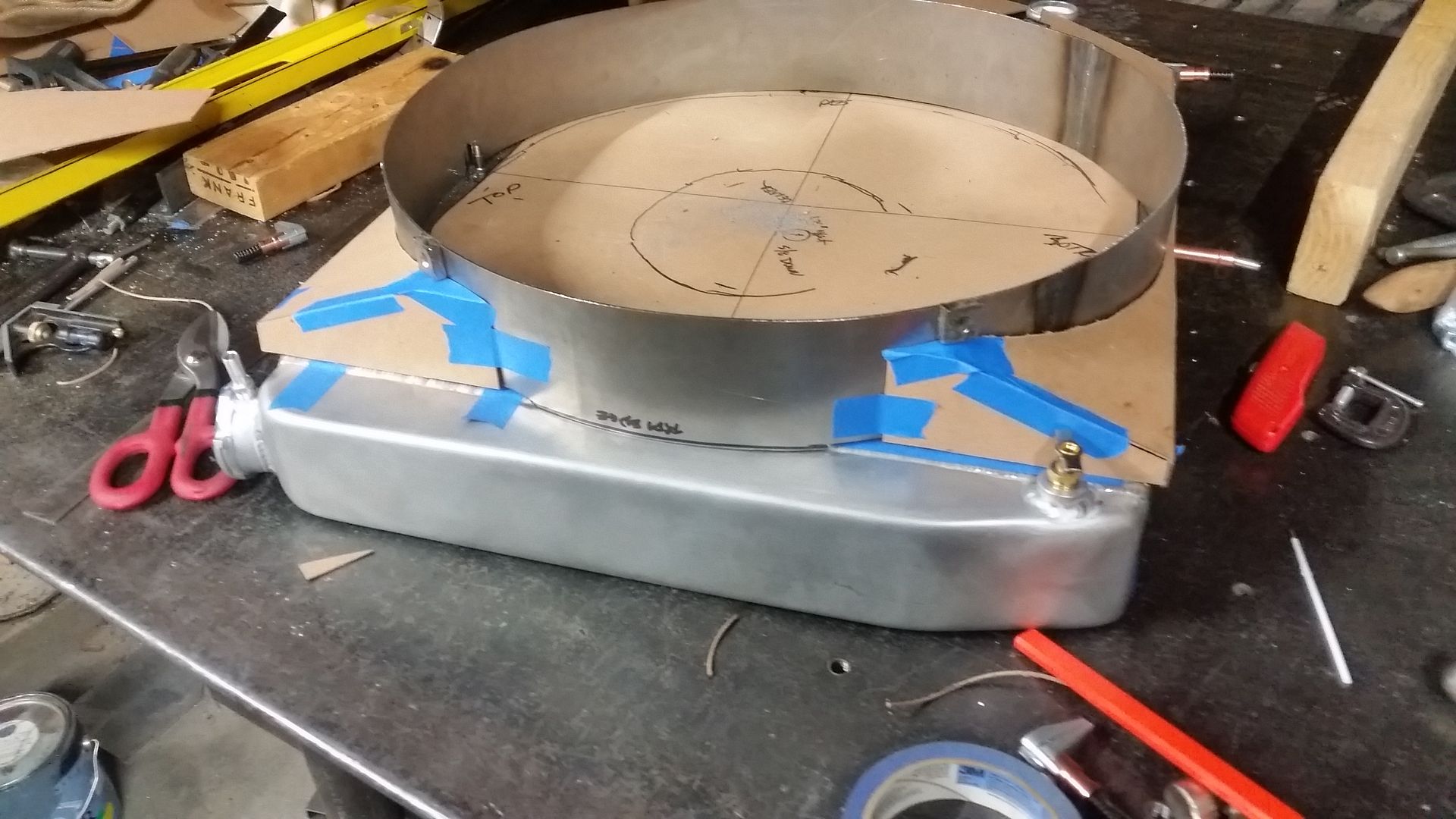

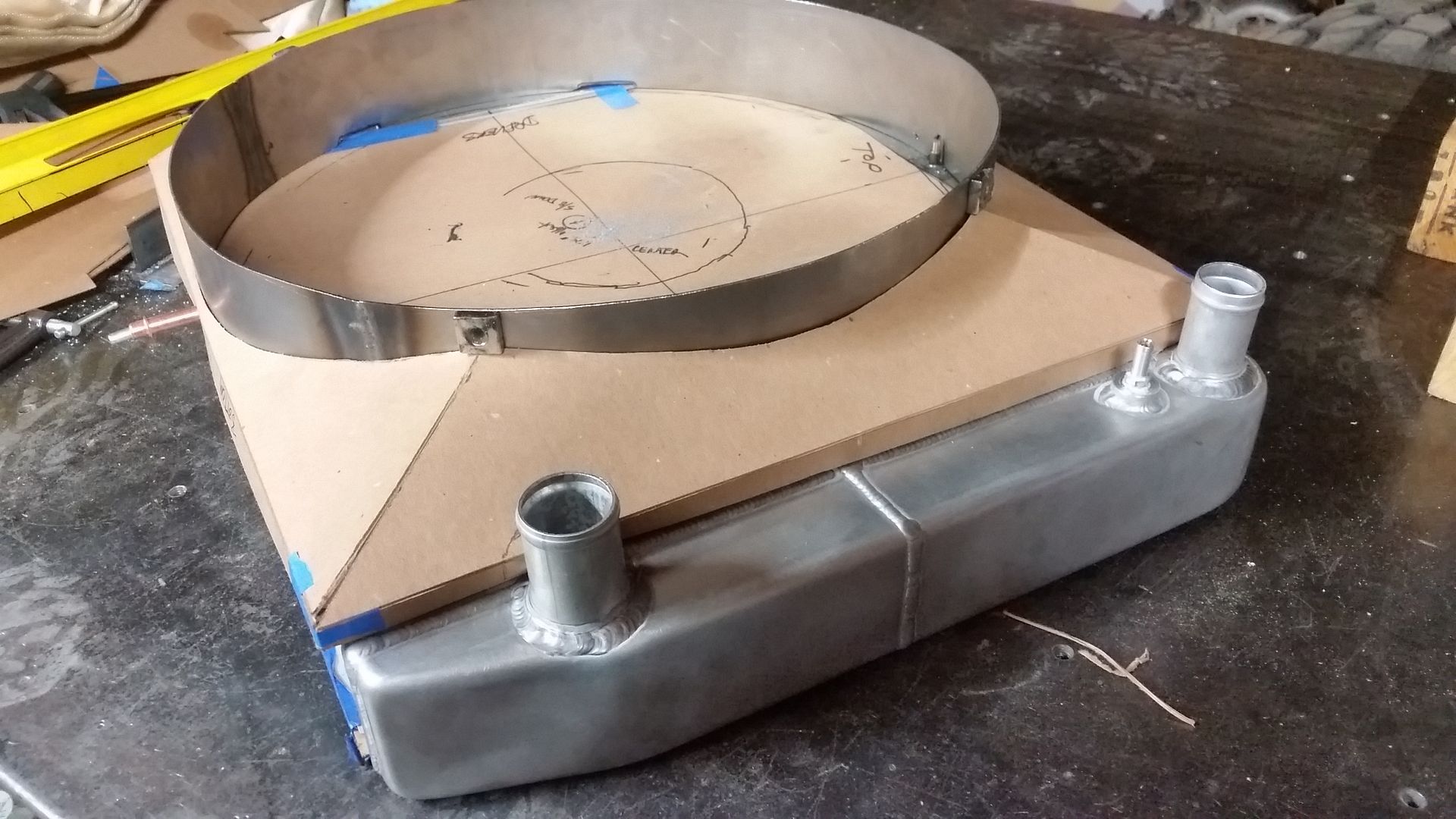

Starting to convert chipboard to sheet metal....

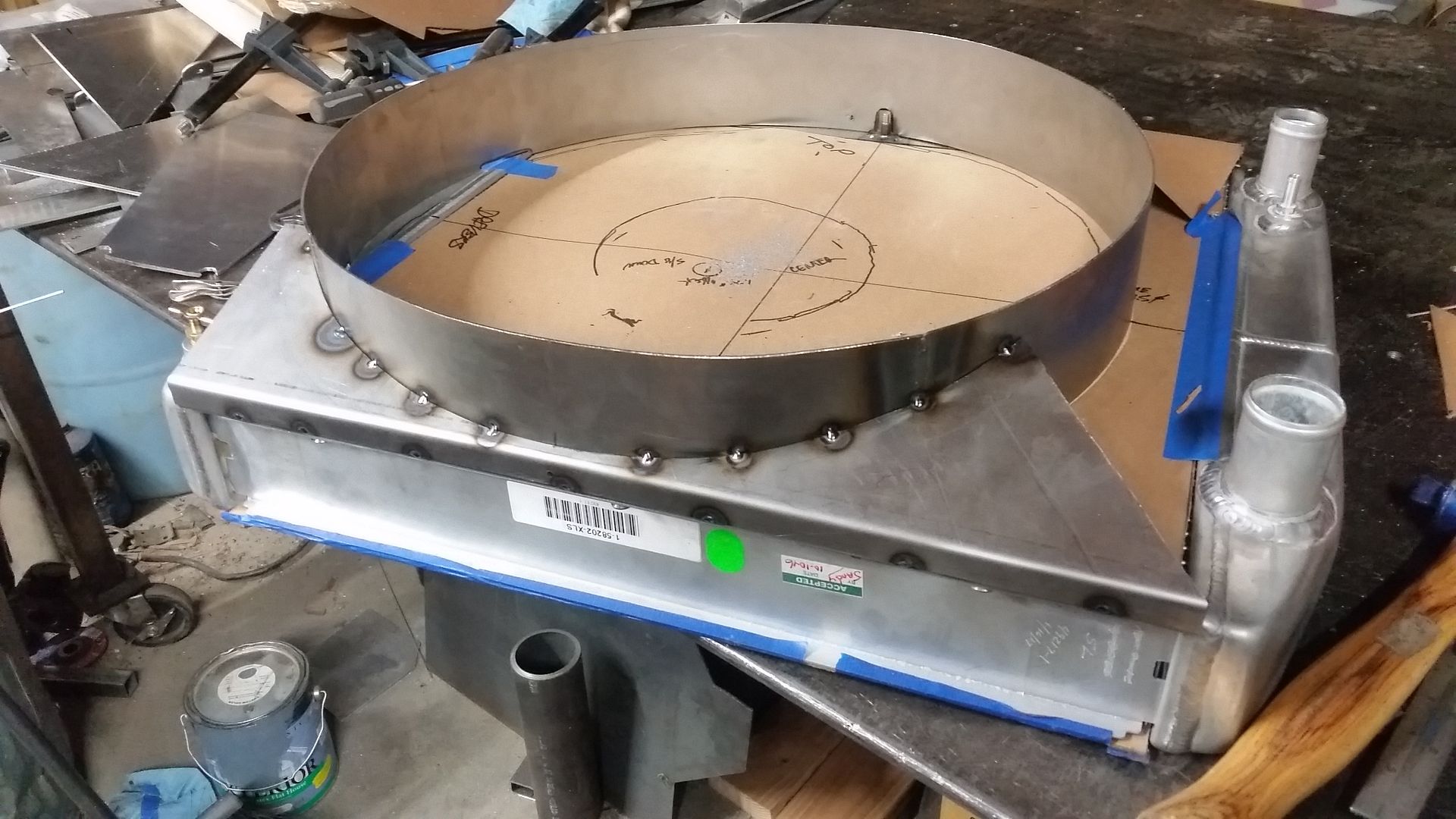

This actually went pretty fast. The template was close. The sheet metal moves pretty quick with a flap wheel or a file to fit the gap.
Two more major panels to go and then a few little ones and much trimming of the ring. Then I will add the upper/lower split flanges....
This actually went pretty fast. The template was close. The sheet metal moves pretty quick with a flap wheel or a file to fit the gap.
Two more major panels to go and then a few little ones and much trimming of the ring. Then I will add the upper/lower split flanges....
Last edited:
That sucks man. Let it expire, then get a browser plugin to fix the pictures for you:
Photobucket Hotlink Fix
There are similar plugins for Firefox.
Moving forward, I've been using Google Photos for ~10 years and still don't have a paid subscription. Love them. Move your a copy of your photobucket photos over there and upload fresh photos to Google Photos.
- Thread starter
- #411
For me it isn't that simple. This is one of my smaller threads. I have others on other forums that have thousands of pages of content and about 9000 photos. This change could ruin hundreds of not thousands of hours of tech content work for me.....
What I'm saying is that you can leave your photobucket pictures alone. Download that browser extension and it'll do the fixing for you (for your browser session). Many people are downloading those extensions now.
What other threads do you have? I'd like to do some more reading
What other threads do you have? I'd like to do some more reading
- Thread starter
- #413
What I'm saying is that you can leave your photobucket pictures alone. Download that browser extension and it'll do the fixing for you (for your browser session). Many people are downloading those extensions now.
What other threads do you have? I'd like to do some more reading
Right, but 9000 images may not fit on the 'free' account through Photobucket.
- Thread starter
- #415
What other threads do you have? I'd like to do some more reading
My flat fender build thread....
Rango....1942 Willys MB - Pirate4x4.Com : 4x4 and Off-Road Forum
My Dodge Truck build thread.
Project: Doitall Dodge - Expedition Portal
Here's a temporary fix.... here's a conversation I had with them
1st email from photobucket
My response
Yeah, that's what I thought B*tch
and for the record, I have plans for when the year is done to make their miserable lives a bit more miserable....
and for the record, I have plans for when the year is done to make their miserable lives a bit more miserable....
i bet they are shaking in their bytes!

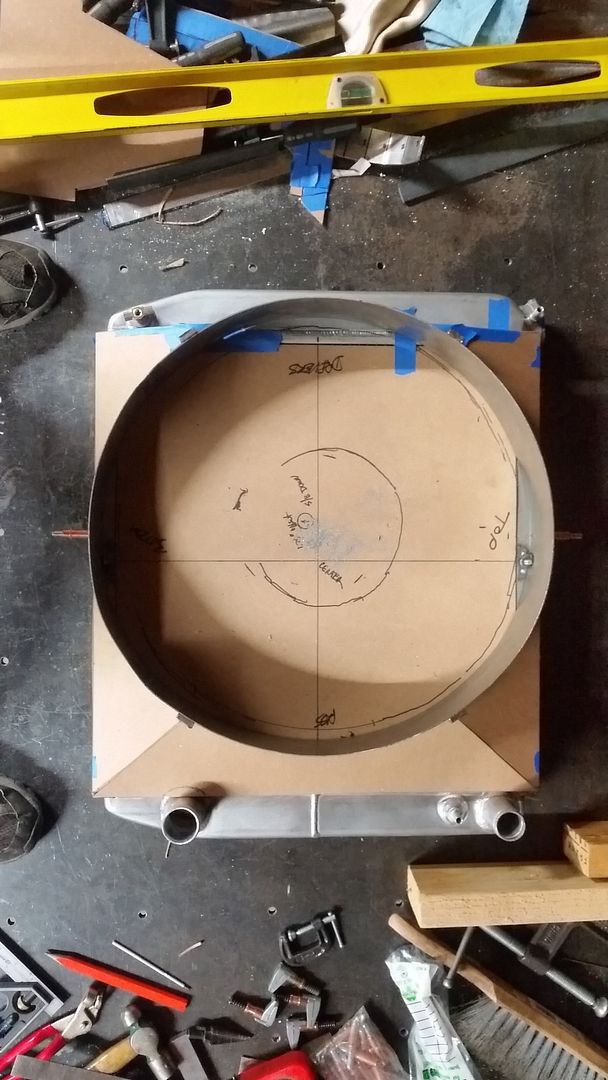

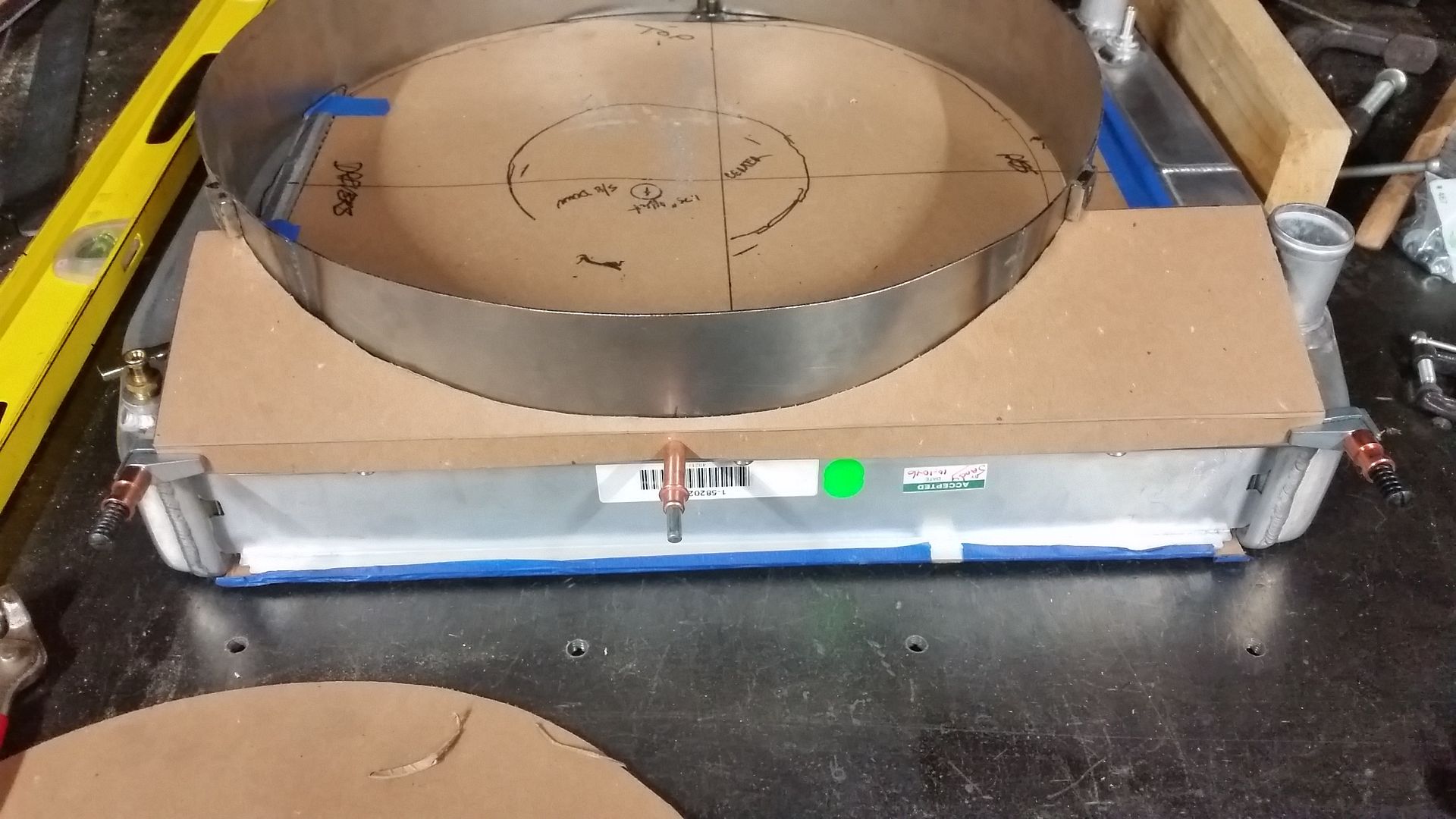

Tonight's progress....
Just about ready for lots of TIG welding.
looks sweet. Are you keeping it as a single piece?
- Thread starter
- #420
I will probably split it after welding. I'm not sure I 'need' to split it however. I can't really unscrew the fan clutch or remove the fan with the radiator in place, there just isn't that much room. Splitting it will make it easier to pull the radiator without pulling the grill however.
