BJ40 Build Up/Resto

Discussion in '40- & 55-Series Tech' started by canadian bum, Feb 9, 2009.

  1. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

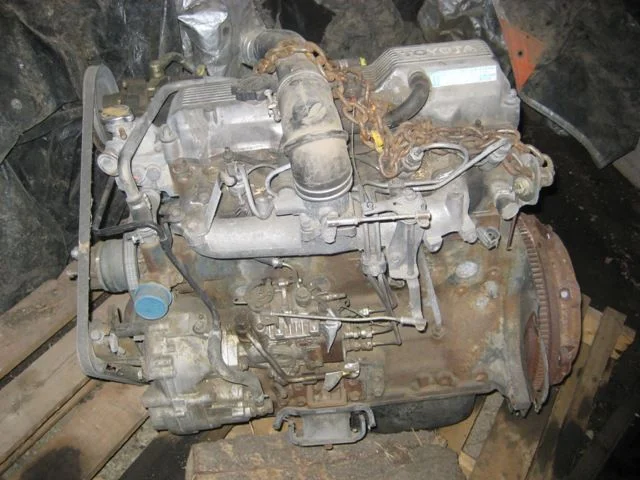

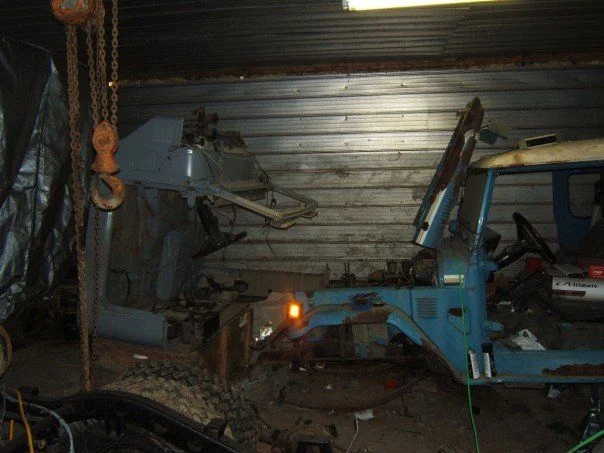

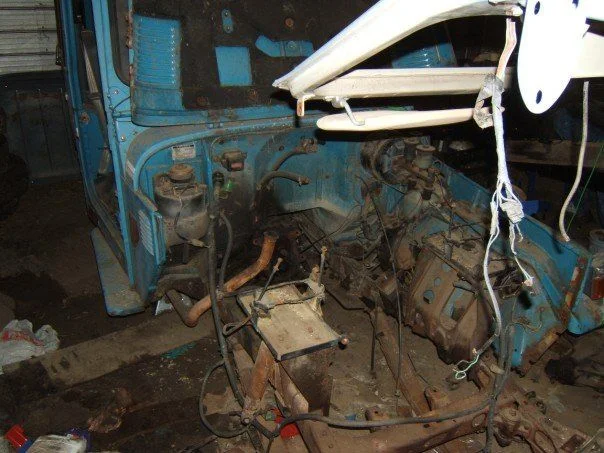

    Well here is latest and final plan. I have a 79 BJ40. I had a 3B diesel engine and a turbo charger off of a Hino engine. But now have a 12H-T 6 cylinder turbo diesel with a 5 speed. I bought an 80 series for the 1HD-T for my 45 series. I am going to use the axles out of the 80 series and convert the 40 from leaf springs to custom link set up to run either coil overs or coils. I am aiming for 36 inch Irocks. ARB lockers front and rear, snorkel, custom rock sliders that tie into the front bumper as well as the rear bumper and tube front fenders. More to come as I make progress.
    n510930776_398309_3892.jpg n510930776_398308_3627.jpg n510930776_398311_4770.jpg

    Last edited: Aug 12, 2009
  2. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

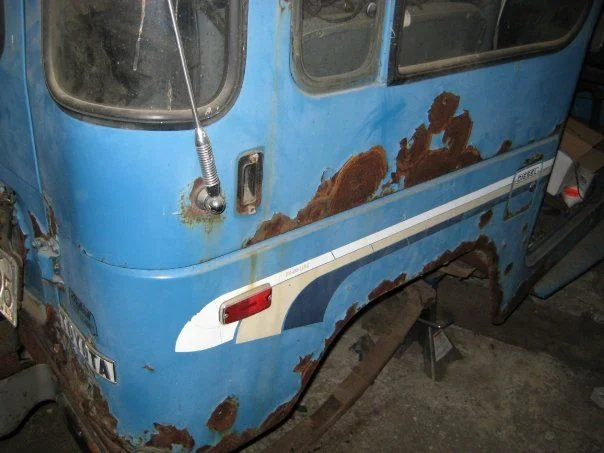

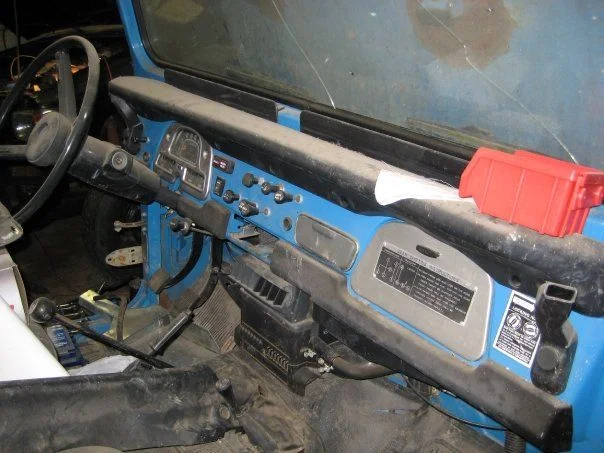

    More pics
    n510930776_1811936_9276.jpg n510930776_1811937_9551.jpg IMG_0167.JPG

  3. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

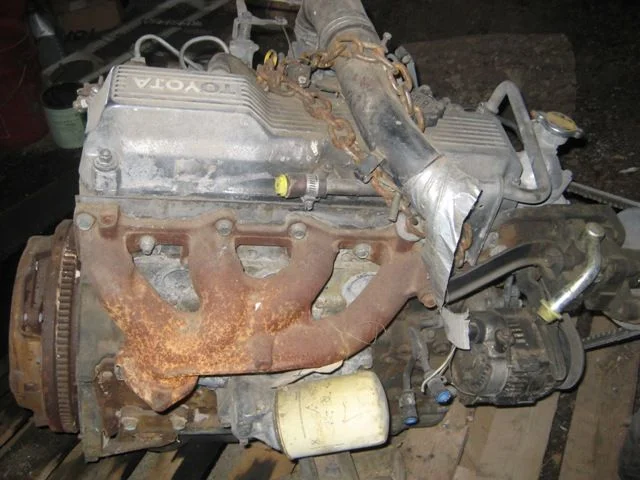

    More Pics
    IMG_0166.JPG IMG_0165.JPG IMG_0168.JPG

  4. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

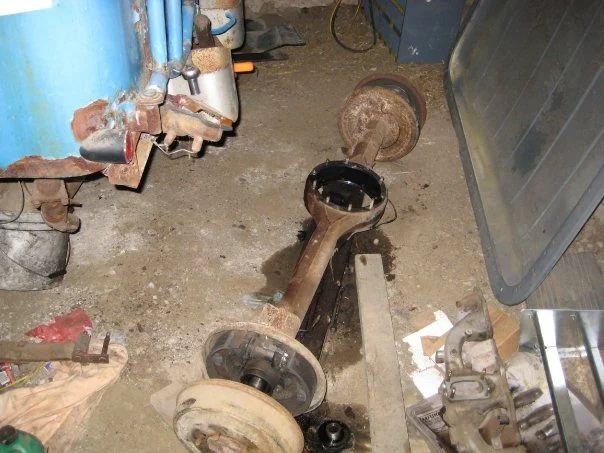

    If anyone is intersted in the semi float axle as seen in this pic let me know.
    n510930776_398310_4143.jpg n510930776_1811934_8659.jpg n510930776_1811935_8986.jpg

  5. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

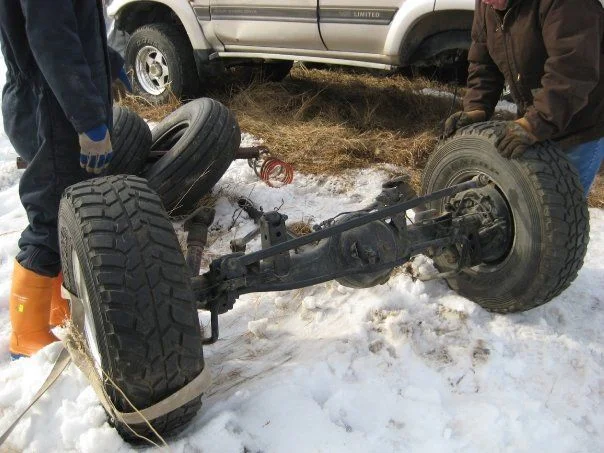

    Full float rear with discs.
    n510930776_1811940_484.jpg n510930776_1850066_7384.jpg n510930776_1850069_8178.jpg

  6. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

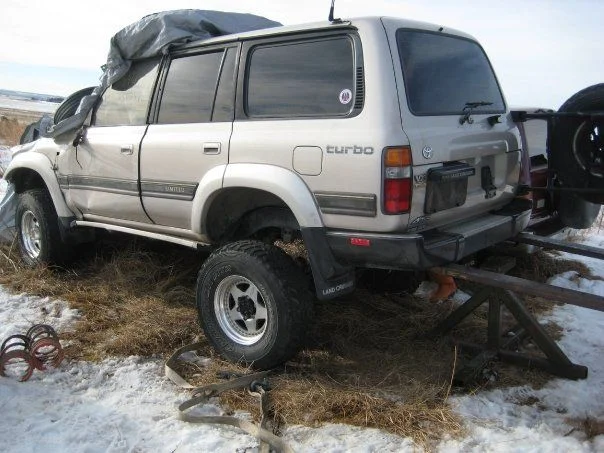

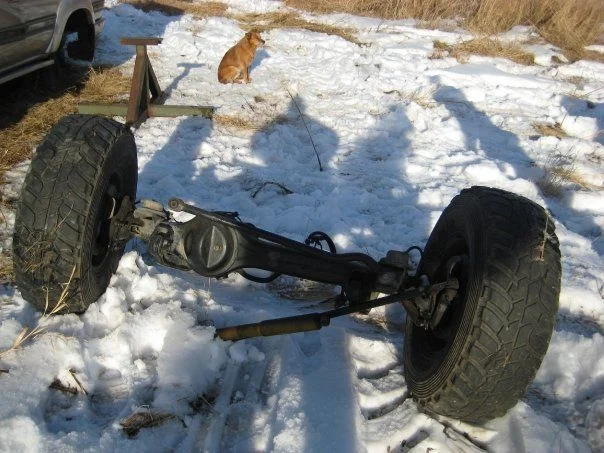

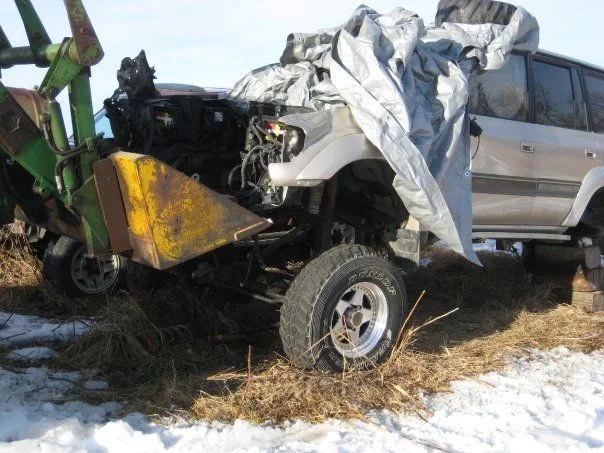

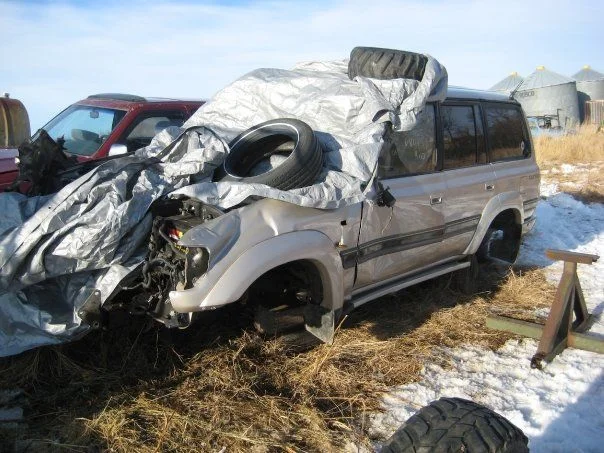

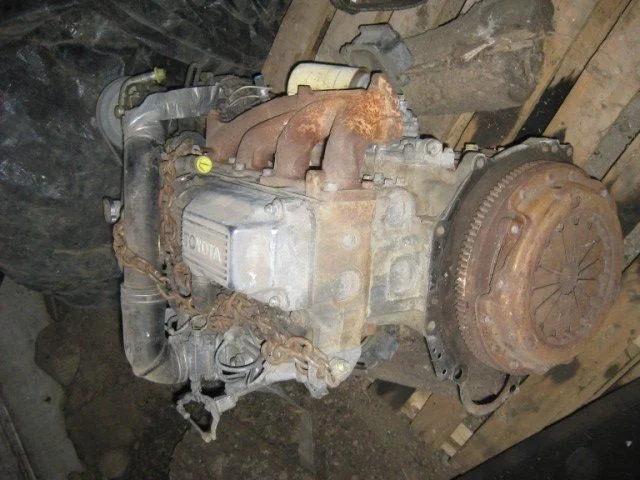

    Front axle and whats left of the 80 series. I measured the the semi float rear axle and the full float rear axle and have gained about 5 inches total in width.
    n510930776_1850071_8748.jpg n510930776_1850072_9018.jpg n510930776_1850073_9298.jpg

  7. alkarich

    alkarich

    Messages:
    1,444
    Media:
    7
    Albums:
    3
    Likes Received:
    23
    Joined:
    Mar 2, 2002
    Location:
    Duluth, Minnesota
    That's quite the project you've got there. Really dig the 70's stripes. My old '79 had similar graphics. Could you add a pic of the hood at some time. Thanks, Alan.

  8. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta
    Yeah its going to take some time I have to mock everything up then take it apart again to get the frame sand blasted and painted. Yeah sure I will take a pic of it next time I'm out at the shop.

  9. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

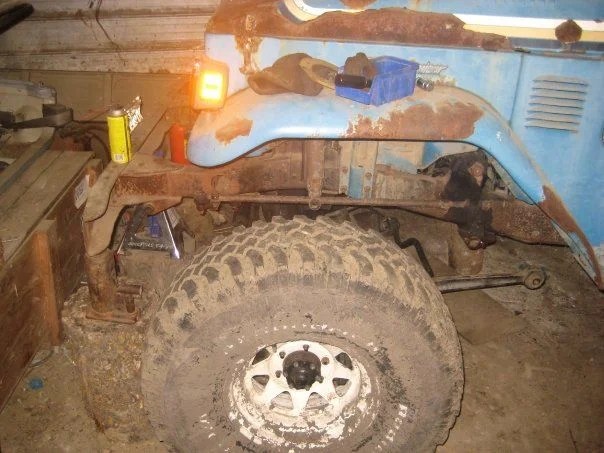

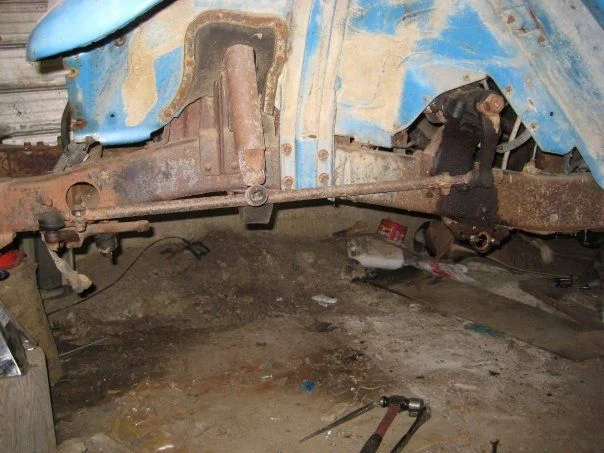

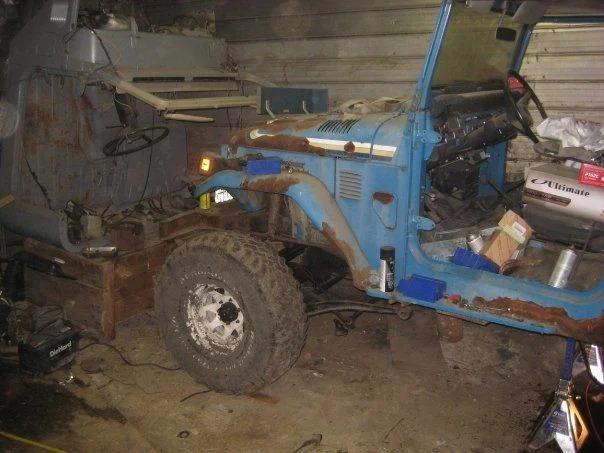

    Well here is what got done this weekend. I pulled the leaf springs out as well as the fuel tank. And then got the axles sitting about where I want them. Now I just have to mount the axles to the frame set the final ride height. I used 35's since they are the closest thing I have to the 36 inch Irocks I want to run. This is obviously the front axle.
    n510930776_1884313_7615.jpg n510930776_1884314_7983.jpg n510930776_1884318_9587.jpg

  10. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

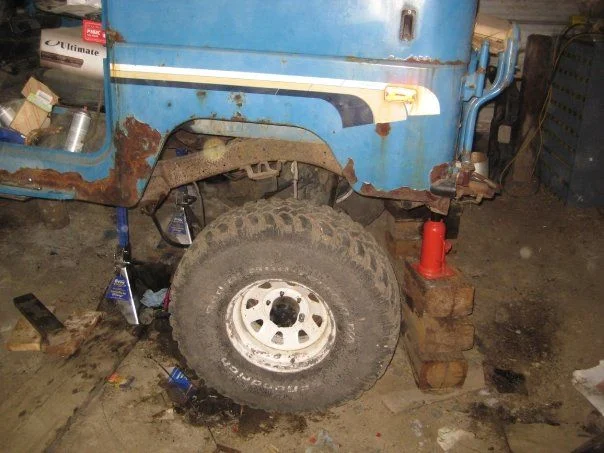

    One last pic of the front and beginning of the rear. I am going to have to do some fender trimming in the rear to set the axle where I want it.
    n510930776_1884317_9187.jpg n510930776_1884315_8396.jpg n510930776_1884321_762.jpg

  11. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

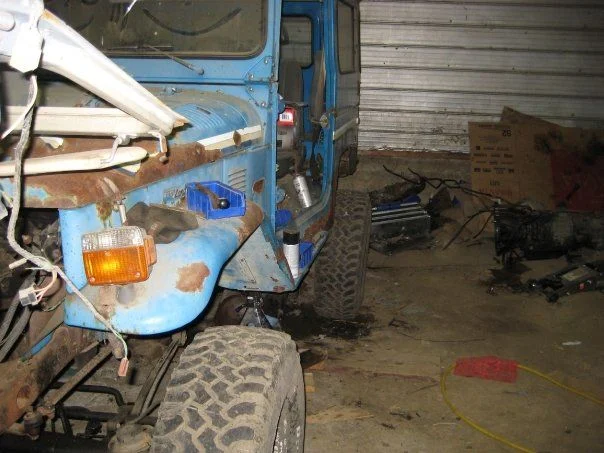

    Picture of the whole thing. I want to bring the height down some more. Its a ways up there but the wider axles and longer wheel base are going to make this 40 a lot more stable.
    n510930776_1884319_9989.jpg n510930776_1884320_375.jpg n510930776_1884322_1157.jpg

  12. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

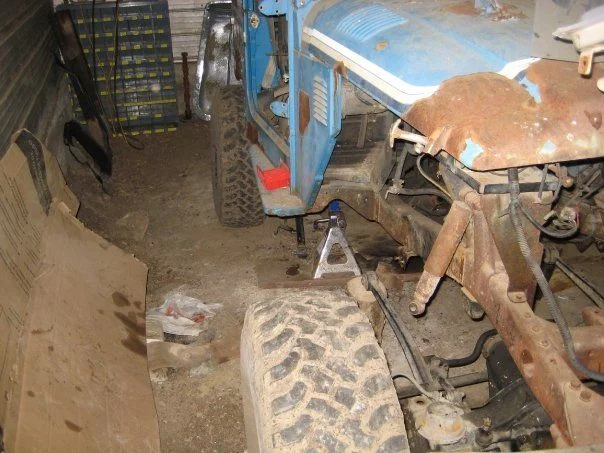

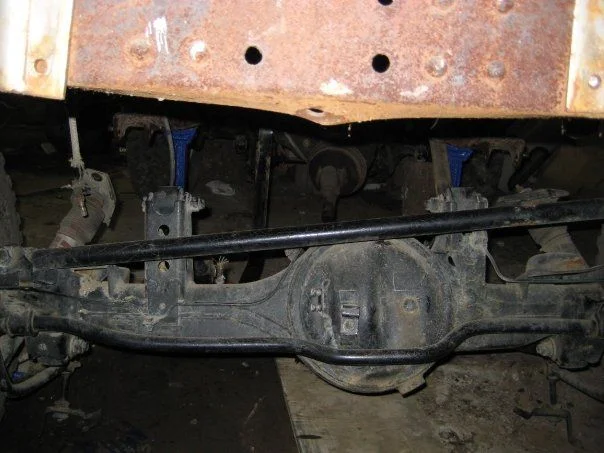

    Last few pics for now showing the gain in width. And now the careful task of mounting the axles properly and making mounting points.
    n510930776_1884323_1558.jpg n510930776_1884324_1951.jpg n510930776_1884325_2364.jpg

  13. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta
    Well I got the front axle sitting where I want it. Got a rough measurement of the wheelbase and it will be somewhere between 100 and 102 inches. I may have some major work to do to the rear axle to clock the pinion up so that the driveshaft angle isn't so extreme I'll get some pics of that tomorrow.

  14. lulo

    lulo

    Messages:
    916
    Likes Received:
    7
    Joined:
    Oct 5, 2007
    Location:
    A Coruña - España (Spain)
    Nice Rebuilding!!! :clap:


    Great Job! :steer: :wrench:


    :beer: :cheers:

  15. 4x4 Station Wagon

    4x4 Station Wagon

    Messages:
    1,163
    Media:
    8
    Albums:
    4
    Likes Received:
    2
    Joined:
    Jan 31, 2008
    Location:
    Oregon
    Great Start! Can't wait to see the outcome

  16. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta
    Thanks. Not even close to being done. Once I get this all mocked up mounted I have to take it all apart again to get the frame coated and fix the body.

  17. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta

    Yeah if you look in the one picture the coil is actually hitting the drag link. I also want power steering so I am going to mount a different steering box to the frame. I also have to convert the 80 series axle to LH steer from RH. Stock steering will deffinatly not work with this set up.

  18. cruiser_guy

    cruiser_guy

    Messages:
    11,197
    Likes Received:
    36
    Joined:
    Jan 20, 2003
    Location:
    Wherever the truck stops!!
    What about the tranny? The stock H42 found in Canadian trucks is going to be a little high with 35's. I have an H41 gearset for a "B" series engine which is the 4.9:1 first gear. I can get that to Cranbrook in the summer if you're interested. PM me if you're interested

  19. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta
    I am planning a regear to 5.29 or maybe 5.72 in the axles with ARB's. In the future if the 3B ever kicks the bucket or I find a 13BT resonably with a 5 speed that would be going into the truck and then I would be done with it. So hopefully if I am lucky I will come across something in the future.

  20. canadian bum

    canadian bum

    Messages:
    1,404
    Media:
    268
    Albums:
    6
    Likes Received:
    47
    Joined:
    Sep 13, 2004
    Location:
    Red Deer, Alberta
    Oh and with the axle sitting where it is now in the front I am planning on using the factory shock towers since I lined the axle shock location up with the tower itself and that is where is ended up. Not bad plus it gives an even fixed location to measure from.
