All Land Cruisers Manuals, Factory Lit, etc.

[JohnnyC]

more



[JohnnyC]

Toyota Training Series

Electrical Automatic Transmission
Engine Performance OBD I Auto Trans Diagnosis
Engine Performance OBD II Brakes
Hybrid Electrical (New 623 Course)
Hybrid Diagnosis Web Series

see link: (click on "Technical Articles")
Automotive Training and Resource Site



[JohnnyC]

two toyotas ....thanks BIGREDFJ40

1972



[JohnnyC]

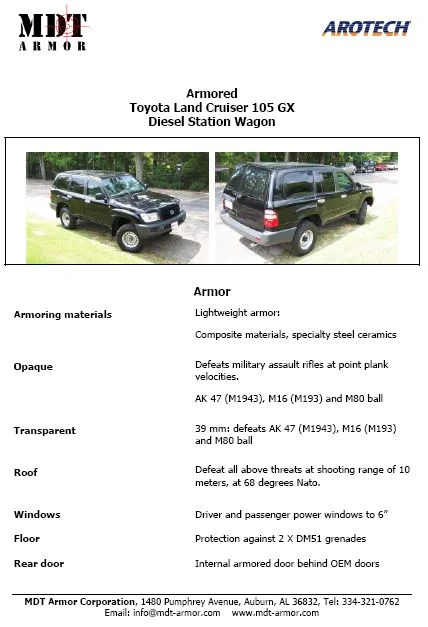

armored 80...nice rear doors in USA to boot and diesel



[JohnnyC]

got from toyota epc

Engines........years....................................TLC's
F.............6903 - 7501.................Fj40, Fj42, Fj43, Fj45,Fj55

2f............7501 - 8604.................Fj40, Fj43, Fj45,Fj55,Fj60

3f............8411 - 9301..................Fj62

3fe..........8808 - 9208..................Fj62,Fj80

1fz-fe.......9208 - 9801.................Fzj80 (uj80)

22r...........8008 - 9305.................Rj70

22r-e........8812 - 9604.................Rj70, Rj73

3rz-f.........9309 - 9505+...............Rzj90, Rzj95

3rz-fe..........................................Rzj90, Rzj95

5vz-fe.......9604 - ........................Vzj90 (vj90), Vzj95 (vj95)

B..............7402 - 8808.................Bj40, Bj43

2b.............7708 - 8204................Bj55

3b.............8008 - .......................Bj42, Bj45, Bj46,Bj60,Bj70, Bj73, Bj75

13b-t.........8510 - 8608................Bj71

H..............7204 - 8104.................Hj45

2h.............8008 - 9001................Hj47,Hj60

12h-t.........8510 - 9001................Hj61

1hz............9001 - 9801...............Hzj70, Hzj73, Hzj75,Hzj80 (pj80)

1hd-t..........9001 - 9501...............Hdj80 (tj80)

1hd-ft..........9501 - 9801..............Hdj80 (tj82)

1pz..............9001 - 9208..............Pzj70, Pzj73, Pzj75

2l................8401 - 9712+.............Lj70

2l-t..............8510 - 9608+.............Lj70, Lj73, Lj77

2l-te.............................................Lj71, Lj78

3l.................8908 - 9707+.............Lj72, Lj79,Lj90, Lj95

1kz-t............9305 - 9604................Kzj70, Kzj73, Kzj77

1kz-te...........9604 -.......................Kzj90 (gj90), Kzj95 (gj95)



[JohnnyC]

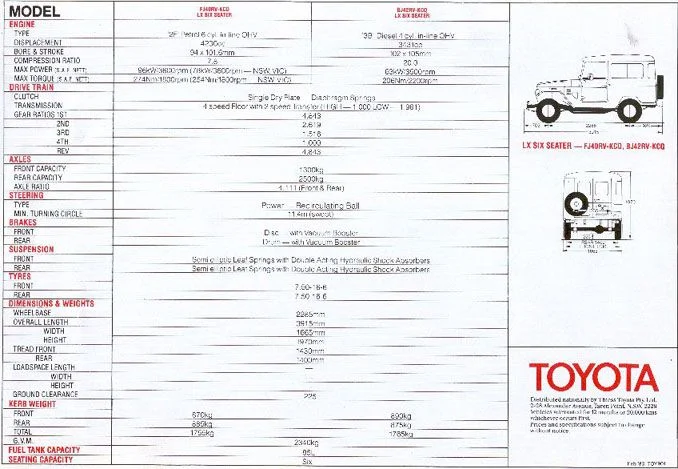

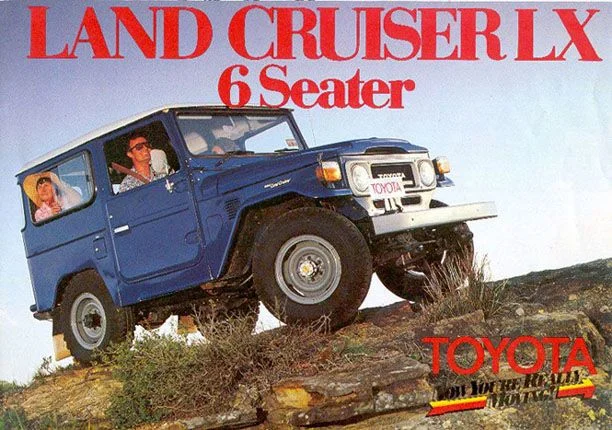

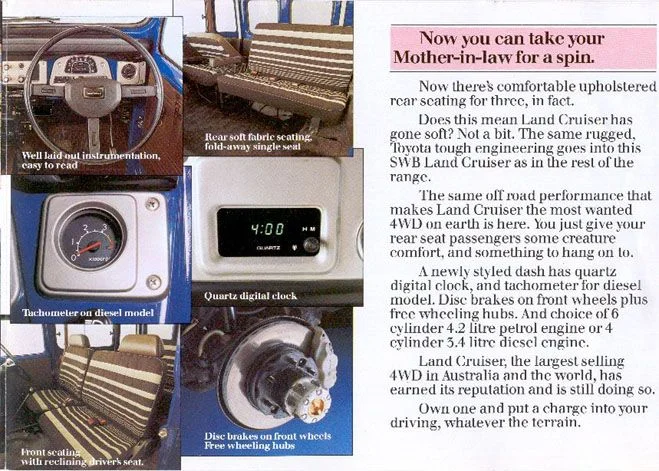

these lx factory literature is from our very own 'Otis' here on Mud ...what a great find....thanks Otis !



[JohnnyC]

and last page of the LX from Otis



[JohnnyC]

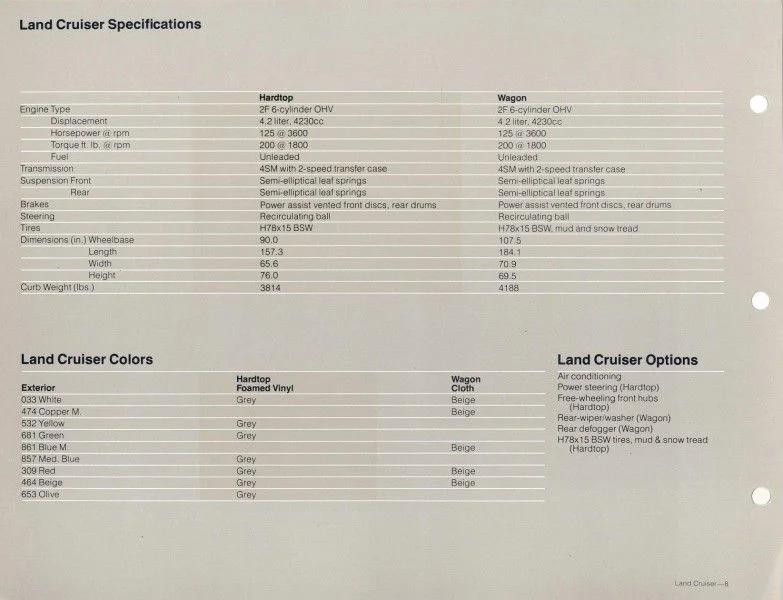

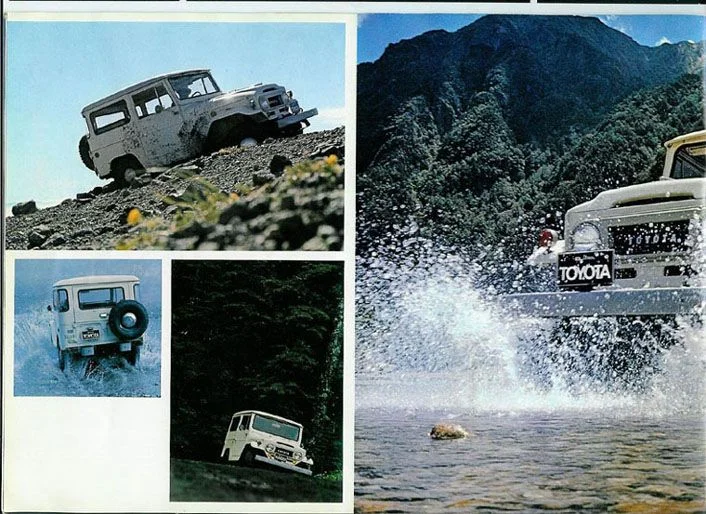

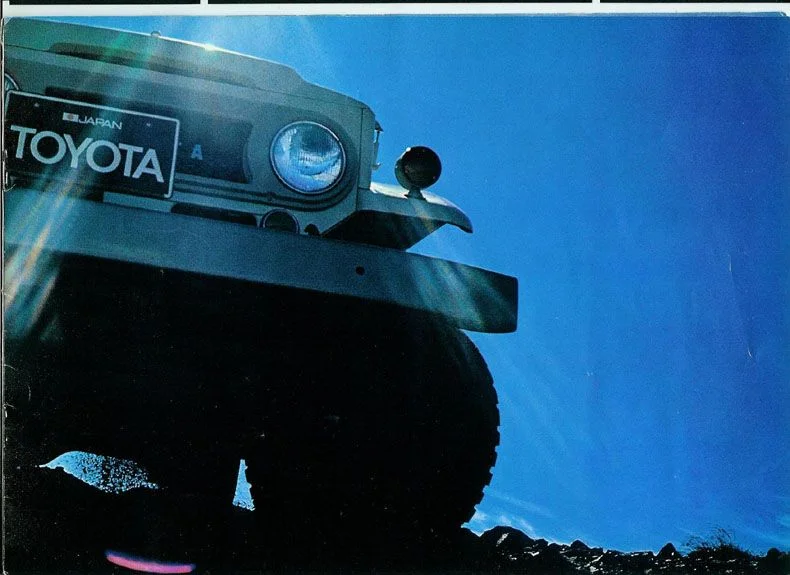

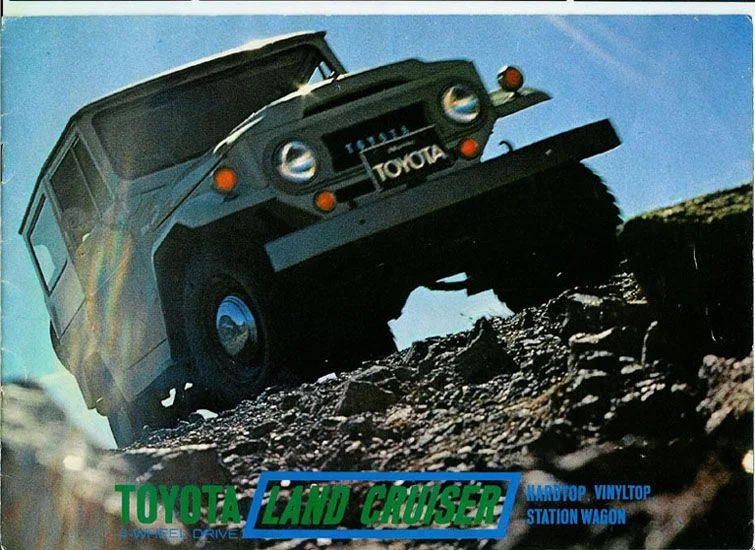

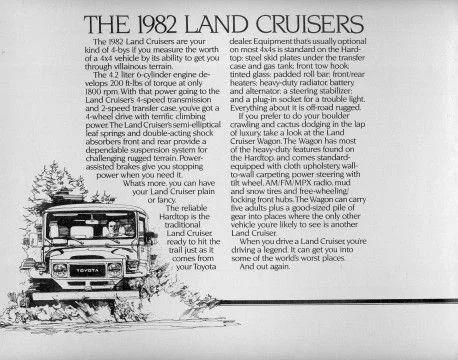

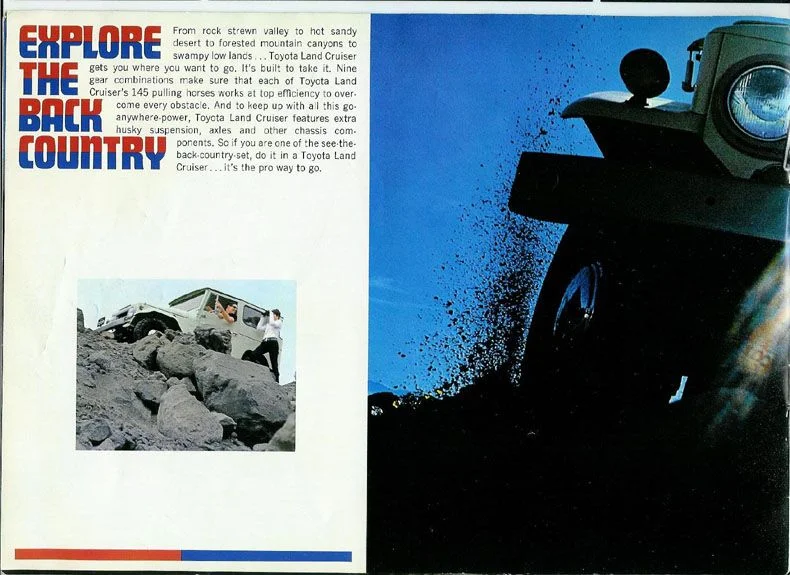

some from my original lit



[JohnnyC]

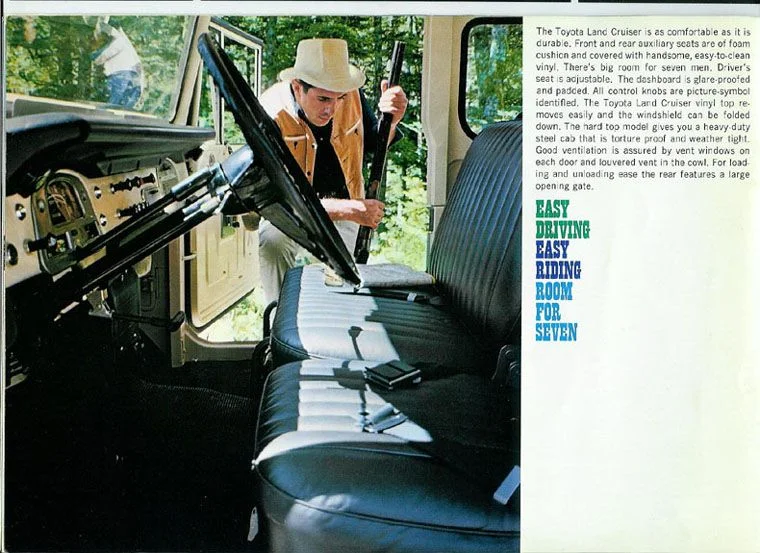

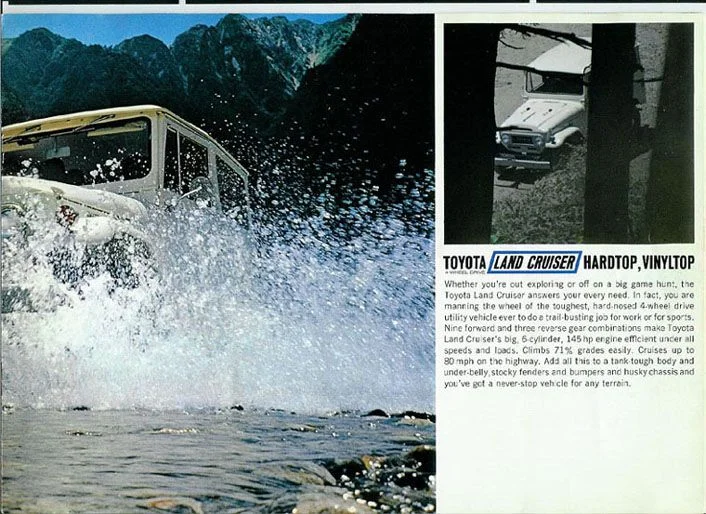

pg 4,5,6



[JohnnyC]

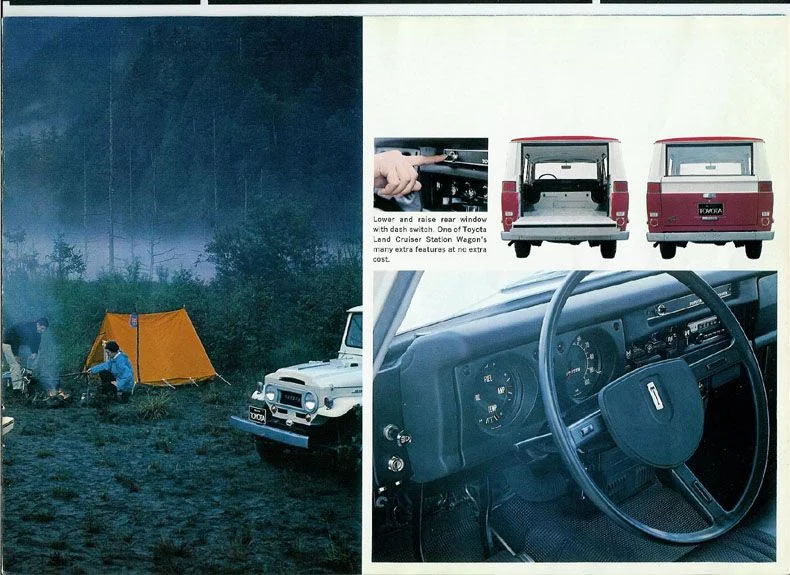

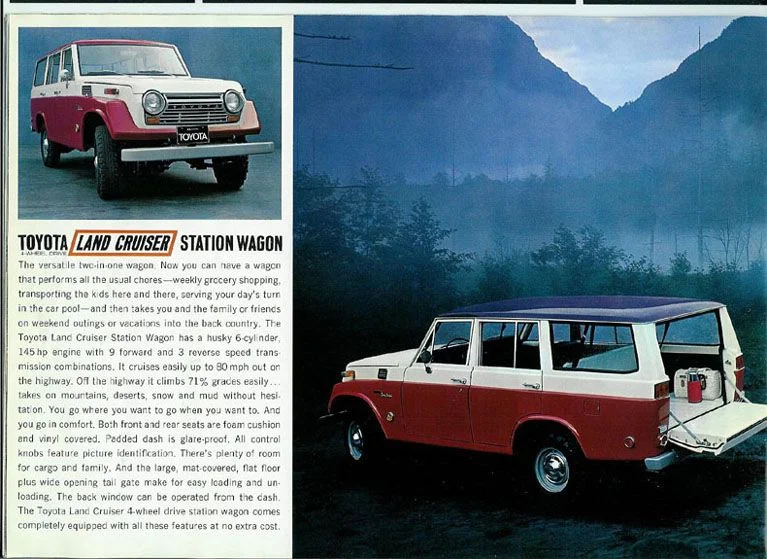

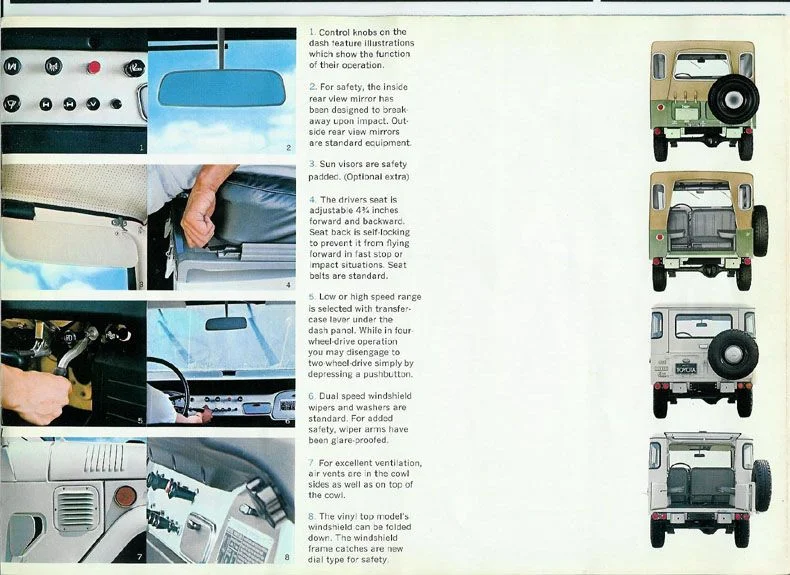

7,8,9



[JohnnyC]

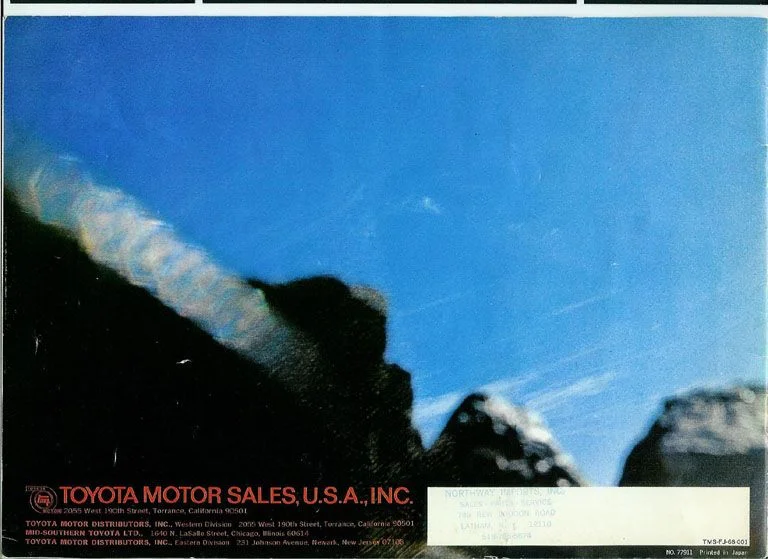

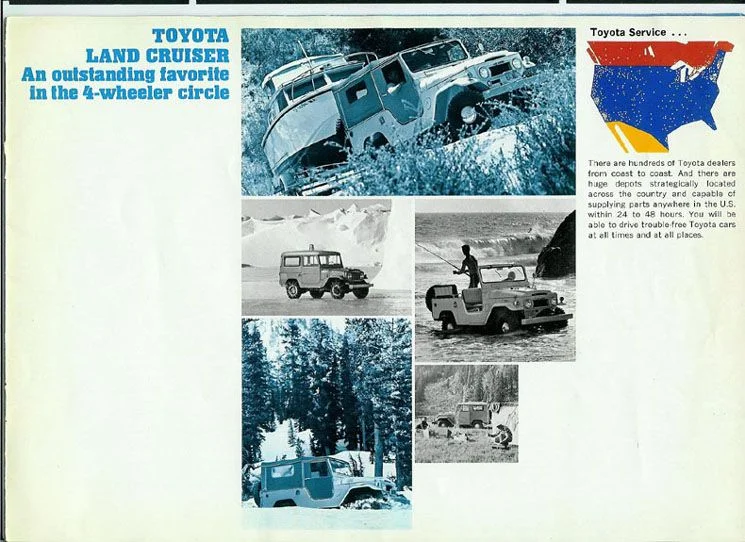

10,11,12 (last pg)



[JohnnyC]

great website for 70 series literature and info...and good info on the aussie connection to the Land Cruiser:
Pressroom - Toyota - Press Kit Details



[JohnnyC]

two more



[kiwi-fj40]

if anyone is wanting the toyota factory workshop manuals, i have one for the FJ40 - covers body and chassis, and also one for the 2F engine.

- Dave



[pbgbottle]

i have a few that need scanning and a parts catalogue



[lostmarbles]

i have a few that need scanning and a parts catalogue

I'm envious Jake



[JohnnyC]

been some time since i posted up...i was kinda waiting for you guys to get caught up

no body else has stuff to post?

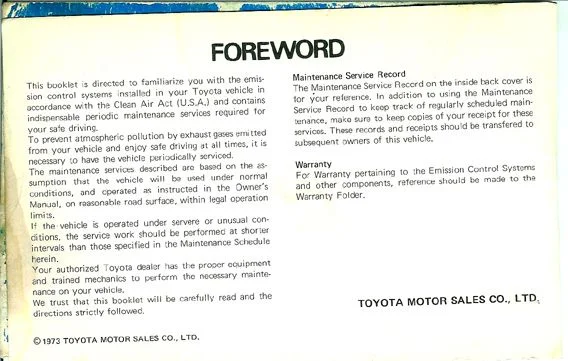

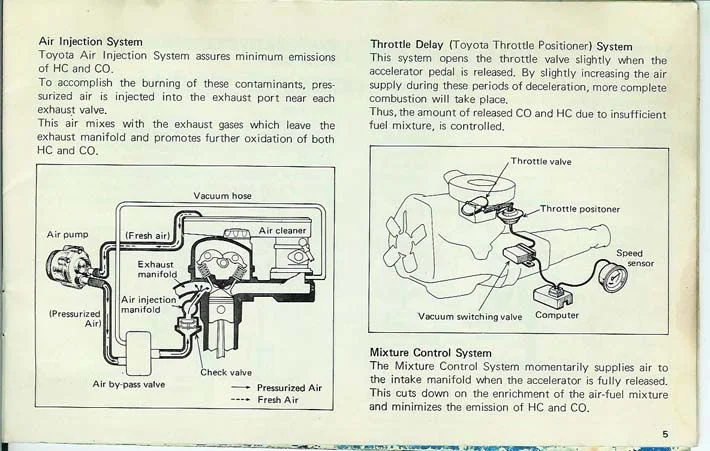

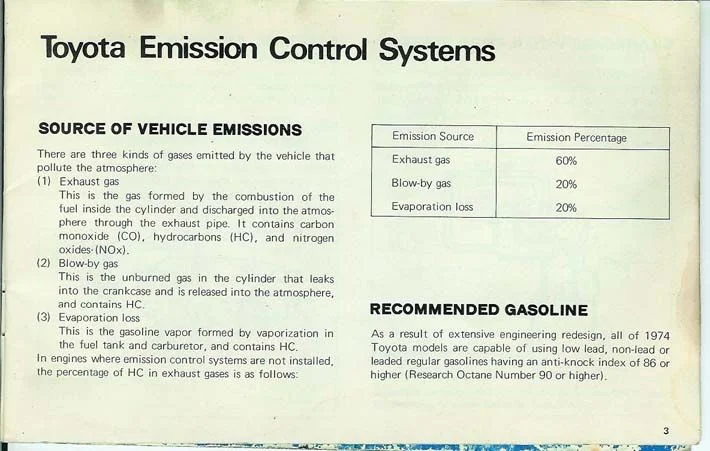

well ....here is a nice 74 emissions manual...enjoy...full of good info...quality is not the greatest...but hay...your getting it free



[JohnnyC]

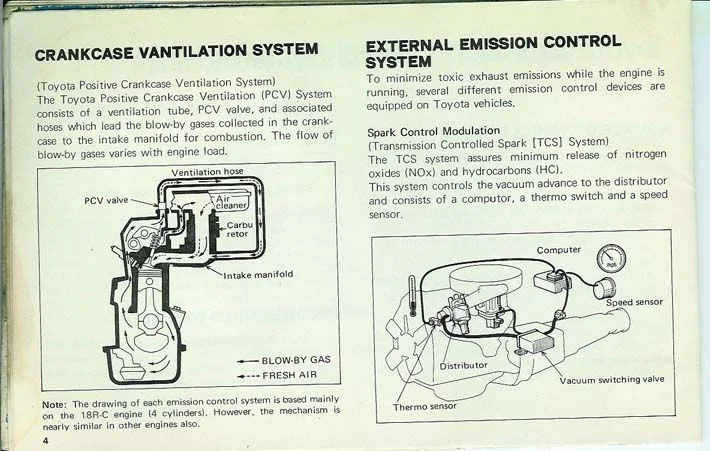

pg 4,5,6



[JohnnyC]

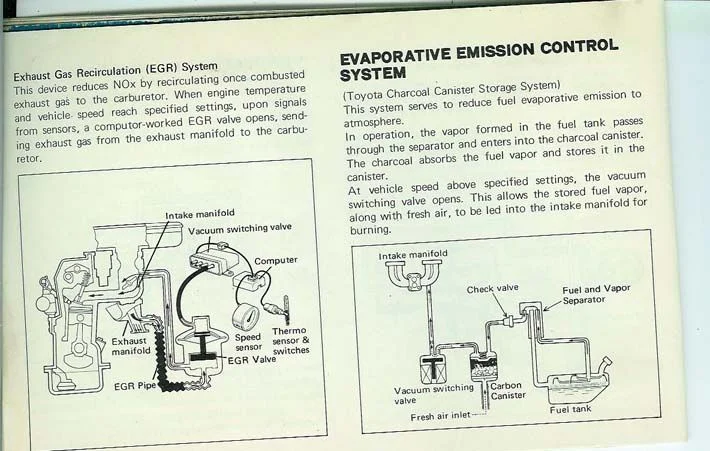

pg7,8,9



[JohnnyC]

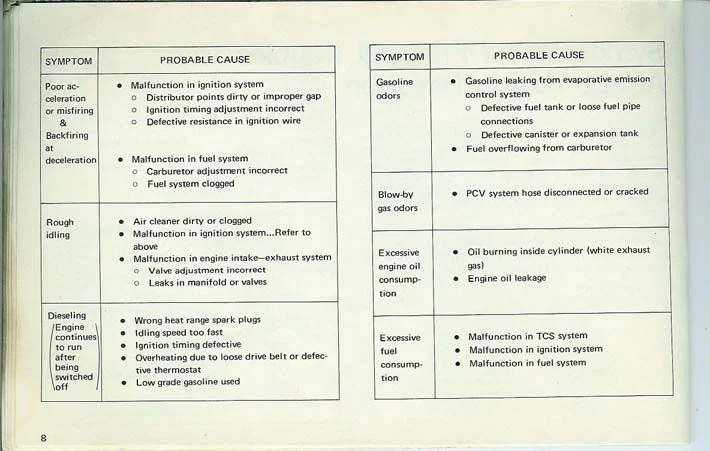

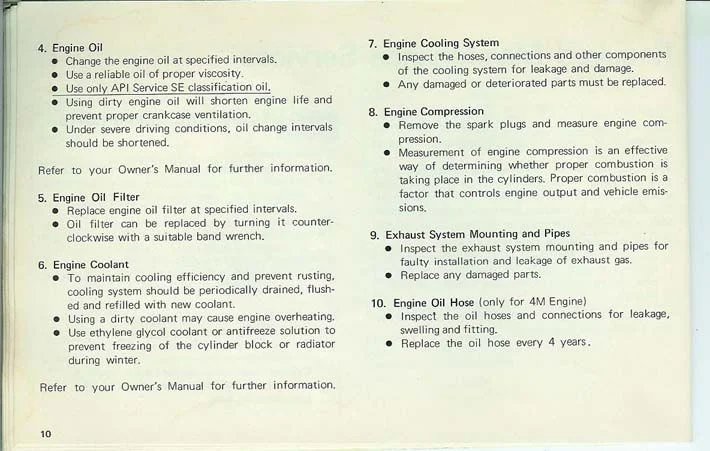

pg10,11,12
