67 wiper switch wiring connections

[msahr]

I'm rewiring most of my 67 and currently going through dash /engine compartment wires. I'm trying to figure out which wires go where on the old rotary switch. Here's what I have:



[msahr]

Can someone take a pic of their switch or just tell me what wires go where? Also there's a black wire that disappears into the wiring harness on the windshield frame side. Any info on that?

None of my FSMs or aftermarket manuals show that wire.

Thanks!



[Krondor]

1966 FJ40 Wiper Motor Needs Help

Need wiring help 66 FJ40 and I have different wiper motors. The existing wiring is old a no good anymore so I need to rewire and replace switch if bad. I found on here diagrams for 58-70 showing diagrams with 2 screws..., but I have 3. (I am assuming one is for park???) Does anybody know/have a...

forum.ih8mud.com



[msahr]

Thanks! I found the correct diagram. That's the same issue I had that's mentioned in that thread. I have that same old FSM, but the switch connections aren't shown. They are now...



[Horhey44]

Can someone take a pic of their switch or just tell me what wires go where? Also there's a black wire that disappears into the wiring harness on the windshield frame side. Any info on that?

None of my FSMs or aftermarket manuals show that wire.

Thanks!

Can someone take a pic of their switch or just tell me what wires go where? Also there's a black wire that disappears into the wiring harness on the windshield frame side. Any info on that?

None of my FSMs or aftermarket manuals show that wire.

Thanks!

Can someone take a pic of their switch or just tell me what wires go where? Also there's a black wire that disappears into the wiring harness on the windshield frame side. Any info on that?

None of my FSMs or aftermarket manuals show that wire.

Thanks!



[msahr]

Thanks, that's perfect.



[Horhey44]

Thanks, that's perfect.

Great was cleaning up the back and a lil wd40 in front she twist nice now , but iam missing the wiper knob



[msahr]

Thanks, that's perfect.

Except for the mystery black wire.



[Horhey44]

Except for the mystery black wire.



[Horhey44]

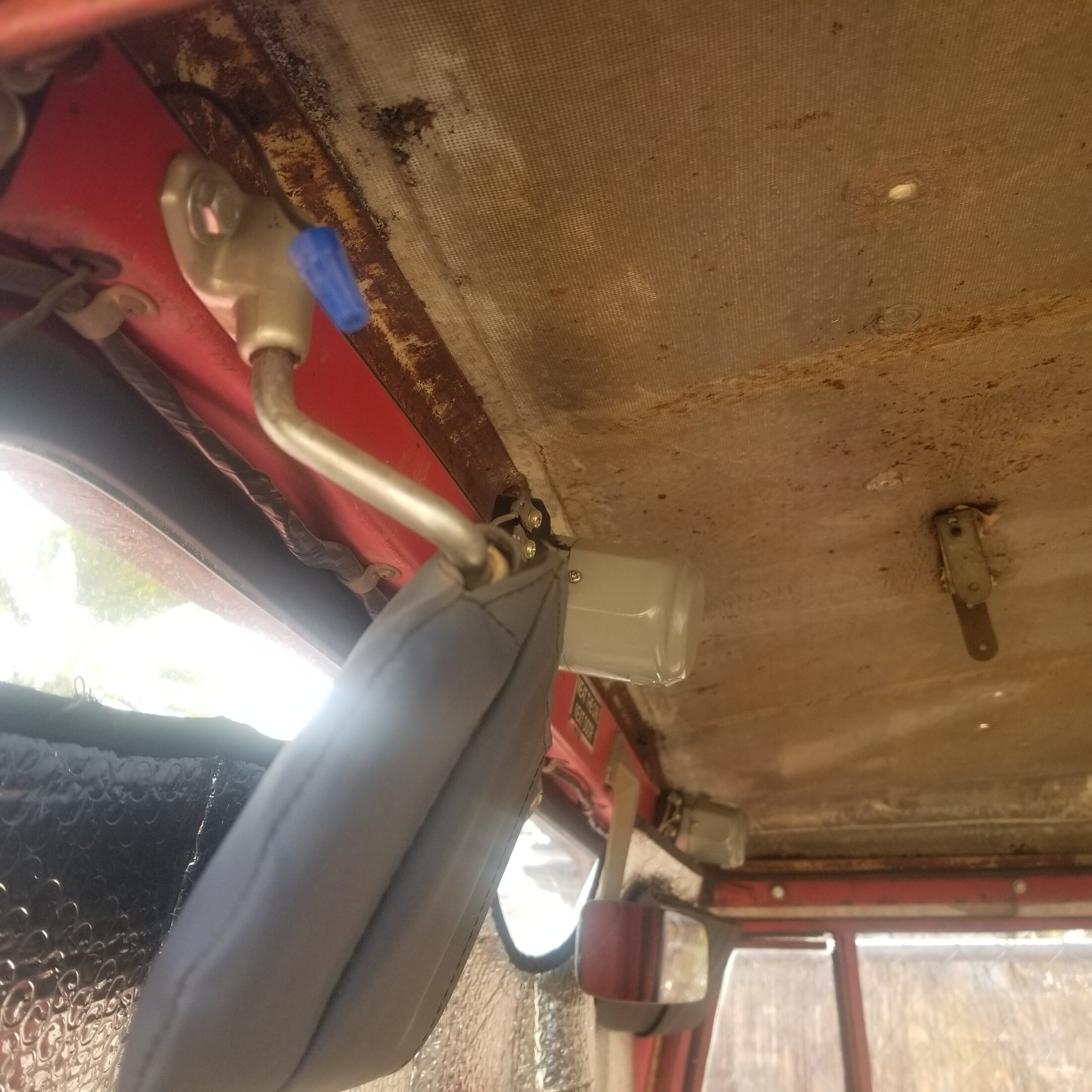

View attachment 3675357

View attachment 3675357

Think my black wire was for a CB radio at one time but idk



[Living in the Past]

Think my black wire was for a CB radio at one time but idk

That hole with grommet is for the wire for the room light behind the B pillar on the driver's side.not sure when those started. My 9/67 which first month of the 68 model. My 9/64 FJ45LP-B has a room light from the factory as well.



[msahr]

"Room light" LOL



[Living in the Past]

"Room light" LOL

Okay "ROOM LAMP" as Toyota calls it. Think area lamp would be better since a small area is all it lights not the whole inside of the cab. Interesting the 45 pickup cab had a larger lamp.



[Coolerman]

Toyota used Black, Red/Green and Red/Black for the "Dome" light wire at differnt times during the FJ40/45 production run.
From the harnesses I have autopsied, Black was used in the early trucks up to I believe 1967. Red/Green was used from 1968 on and the one harness I have that has a Red/Black for the dome light wire was probably a fluke. It was a 1973 harness.
