6 pin voltage regulator wiring help

Discussion in '40- & 55-Series Tech' started by Brybrys1978, Nov 9, 2018 at 8:44 PM.

  1. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    9DAE86FC-DA46-4788-B931-1F3BD2ED5D6D.jpeg BEFEB0C7-5EE5-4EB8-BCC4-ACC94F7F025B.jpeg I have the attached Voltage Regulator (Toyota 27700-54040-84) I’m attempting to wire into a harness I’m building for a 1982 FJ43. For the life of me, I can’t determine with certainty what wire is what and I’m asking to prevent frying the unit.

    I believe (but looking to confirm) the following:

    IG = red wire
    N = White wire
    F = Green wire
    E = Yellow wire
    L = Black wire
    B = Blue wire

    IG N F
    — — —
    — — —
    E L B

    And when looking at a 1982 wiring schematic, do both the IG and E go to ground/earth? Asking because earlier years (1980) did not ground the IG via a condenser...so I’m confused.

  2. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast


    u do understand that the primary color wires on the 54040 regulator side are simply the Tracer stripe wire colors on the harness side

    so solid yellow = white with a yellow tracer stripe


    hope that helps ..........

  3. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    That was my suspicion, but could not find that in writing anywhere. Thank you

  4. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    But to my original problem: I’m building a wiring harness from scratch because the old one was bastardized by PO and doesn’t match specs (or anything close...it had a ford four pin VR). So I’m having to recreate the wheel.

    I need to determine what color wire corresponds to what function: IG N E F B and N.

    RAGINGMATT likes this.
  5. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast

    alot of this depends on what alternator u are running ?

    do u have a factory EWD , Both USA & NON-USA

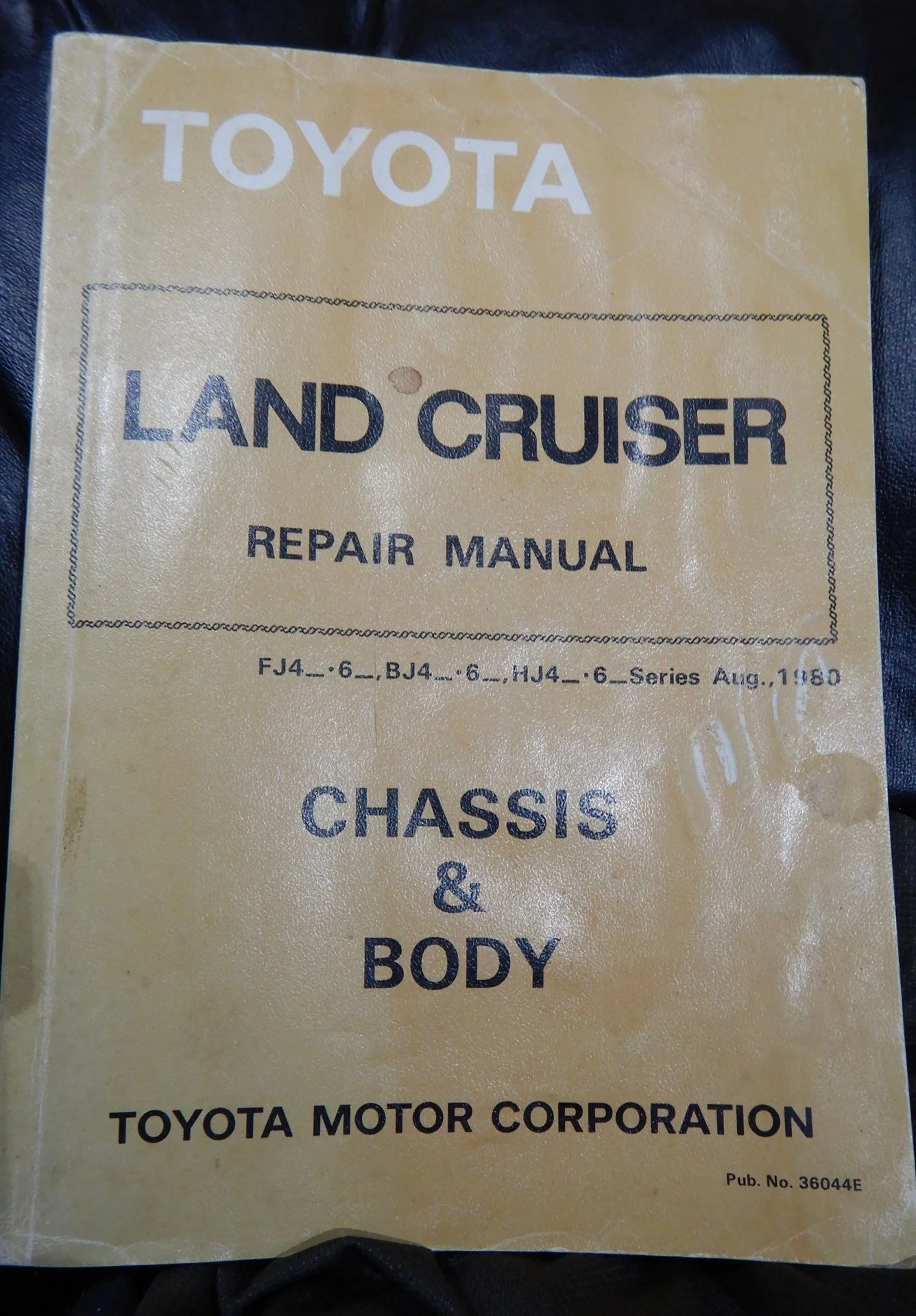

    The big Tan Chassis Body FSM has some great diagrams that cover both applications #36044 & #36044E

  6. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
  7. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    Do U have a 30a AMP meter cluster
    or
    A 50a AMP meter cluster

    u should have a 50A AMP on a FJ43L-KC 1982

  8. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    I have a 12v Altenator that runs F N E and B.

    RAGINGMATT likes this.
  9. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    off topic :

    it looks like u have a Illuminated back-Lit knob Hazard switch in your photo just under your radio ?

  10. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast

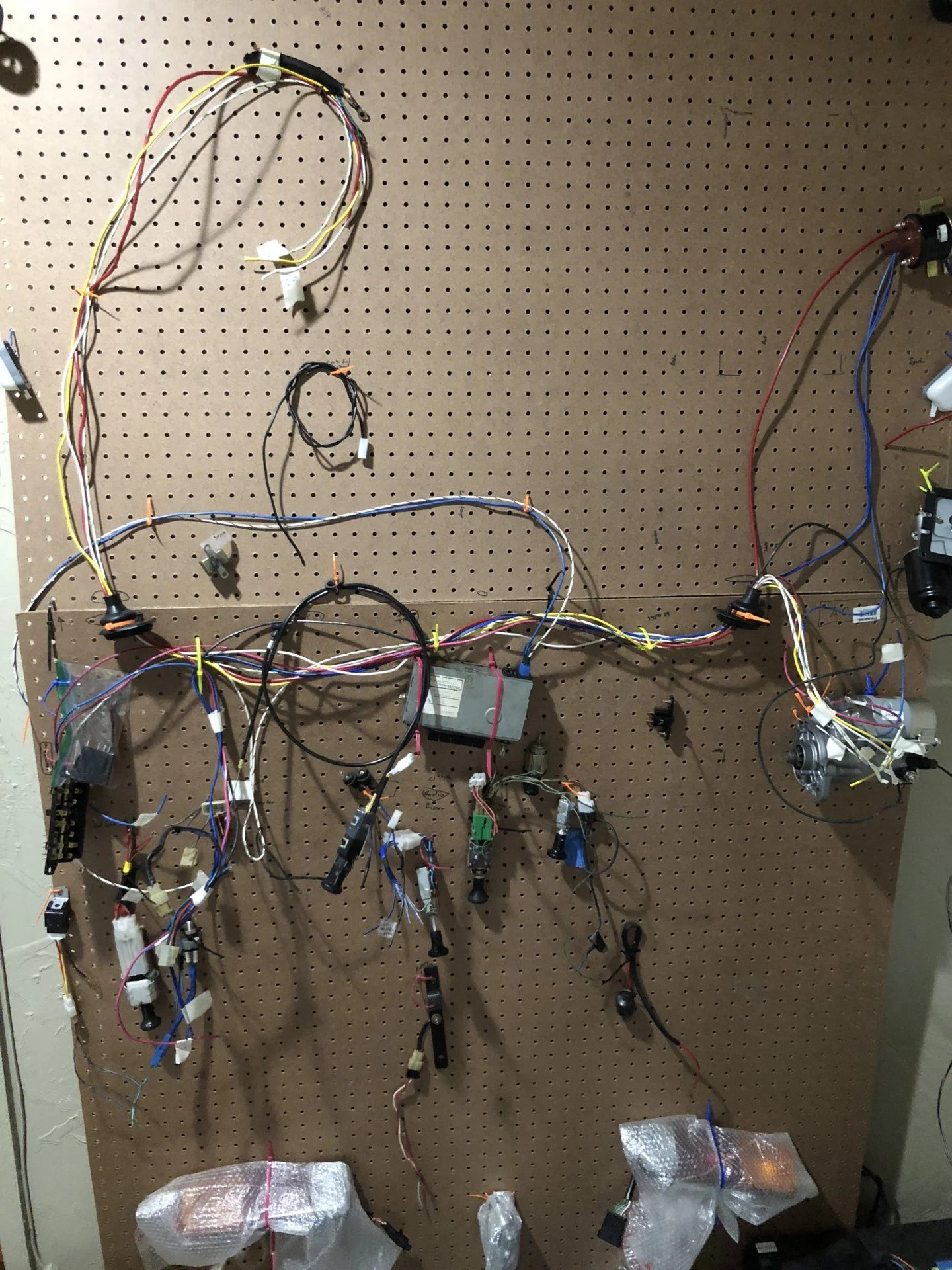

    I like the Peg board approach Very Much

  11. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    I’m not sure honestly. It came with the charging indicator light next to the parking brake. I’m planning on wiring it to US specs as near as I can. My alternator is a 30amp.

  12. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    Yes...I’m taking a few liberties. Restomod just because

    RAGINGMATT likes this.
  13. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas

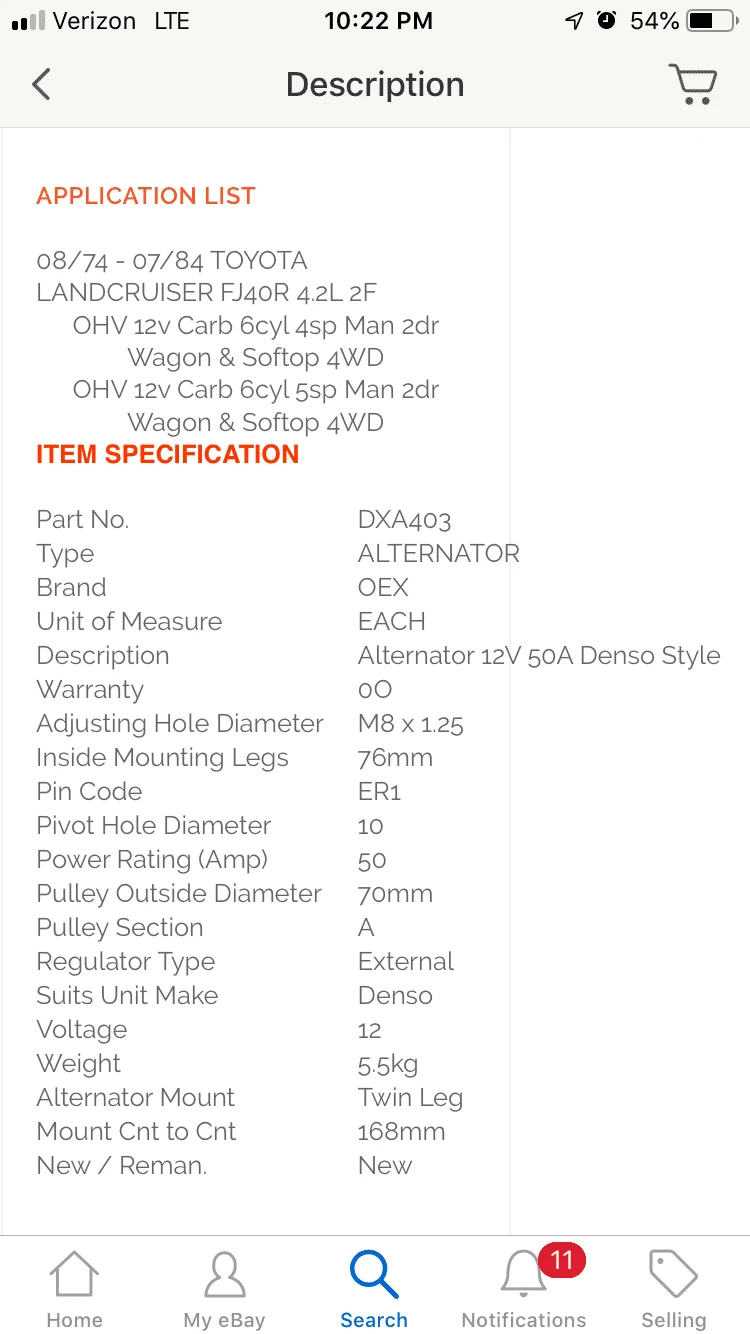

    I’m sorry: I have a 50 amp. Here are the specs.

  14. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    New wire harness - Red wire w/ black tracer stripe : Interior Illumination




    your old FJ43 harness had a solid green wire feeding the Cluster illumination ( most likley )

    Last edited: Nov 10, 2018 at 4:18 AM
  15. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    I was referring to your instrument cluster , regarding the AMP meter inside it

  16. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast

    yea ,


    i like taking " liberties " too just because

    Last edited: Nov 10, 2018 at 4:19 AM
  17. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast

    Last edited: Nov 10, 2018 at 4:30 AM
  18. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast

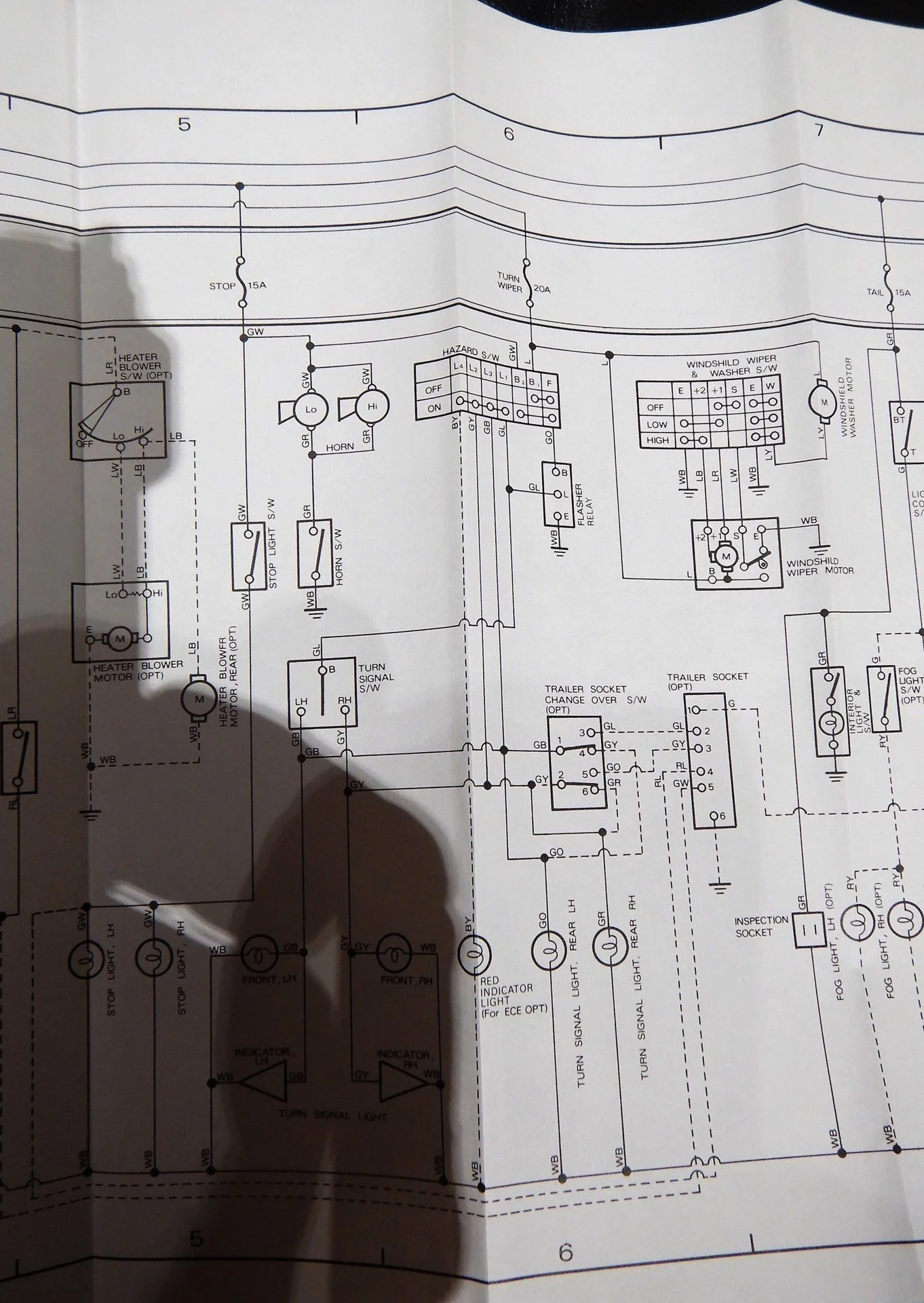

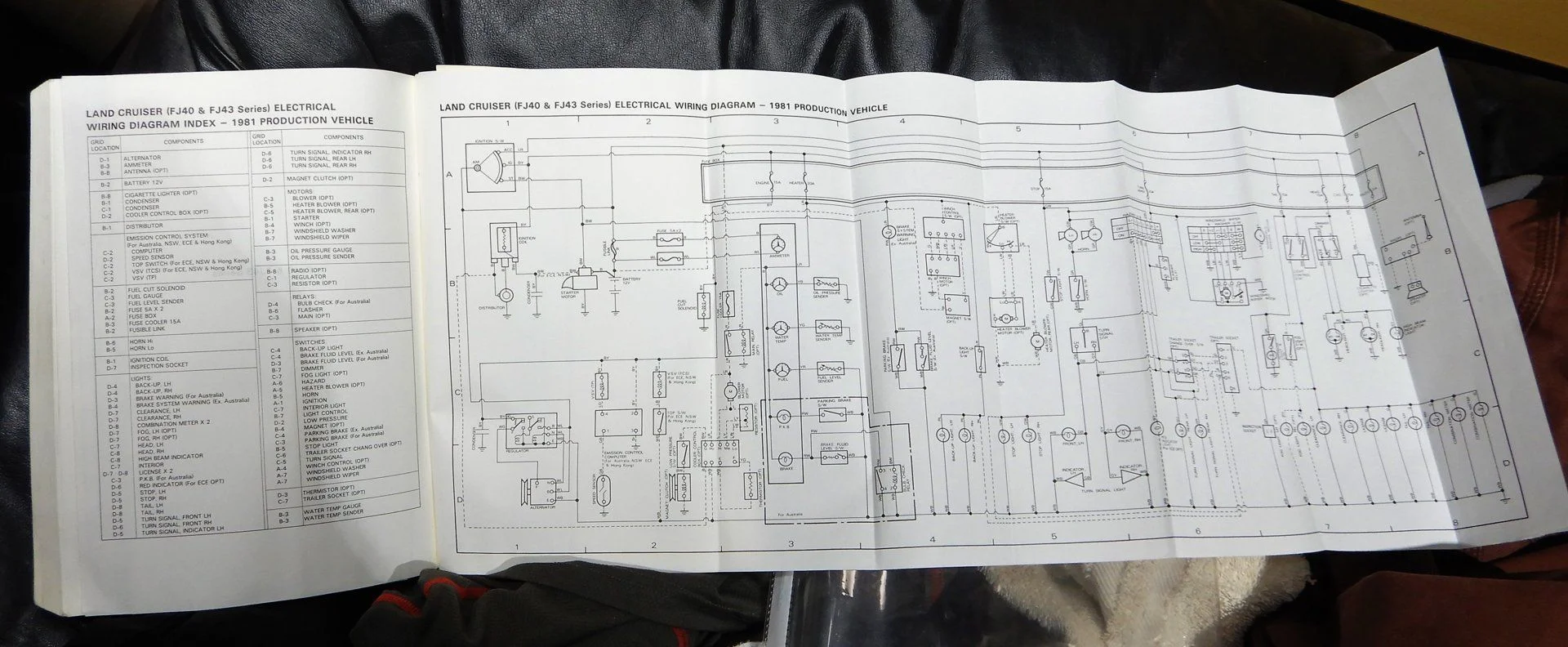

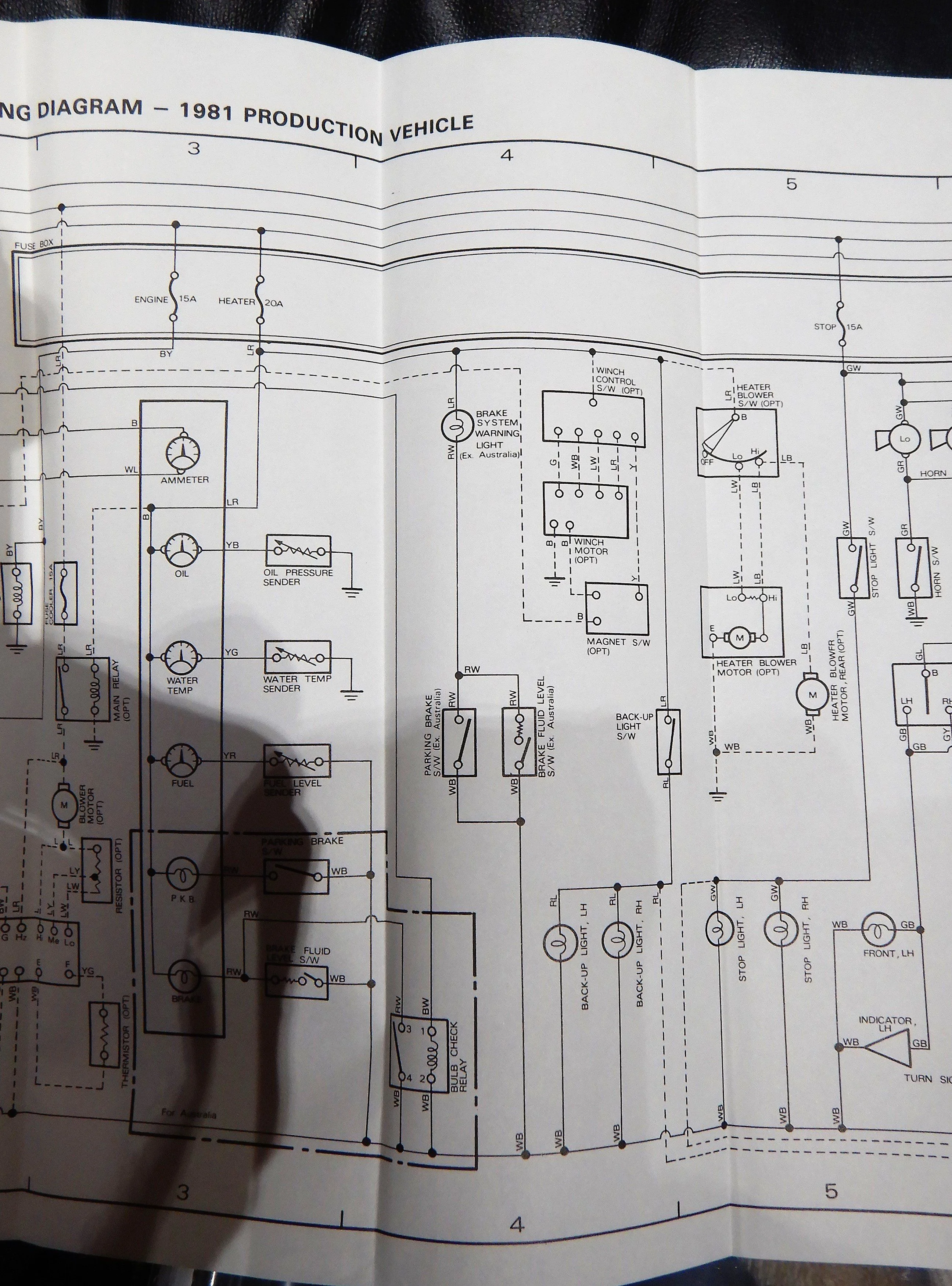

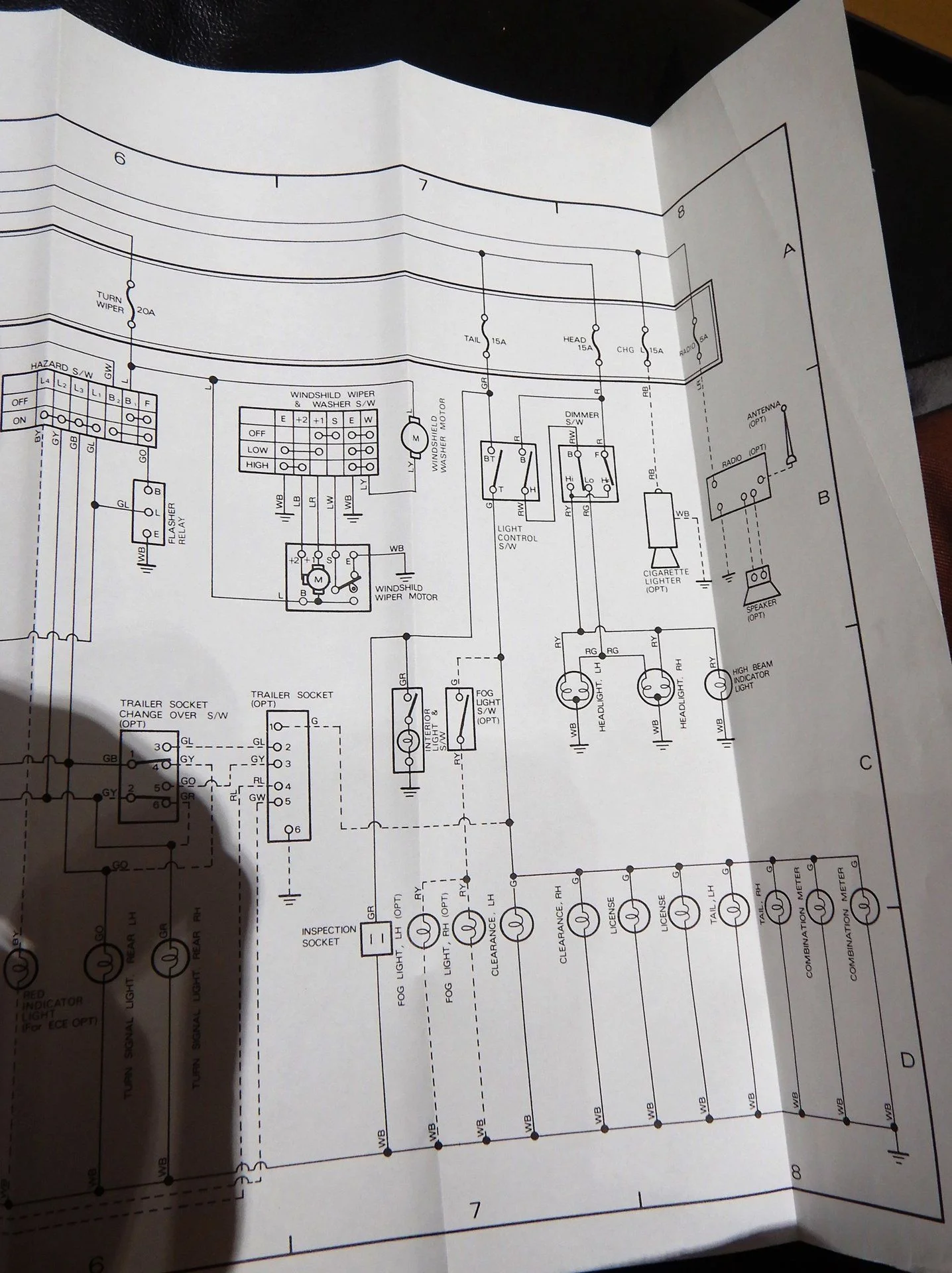

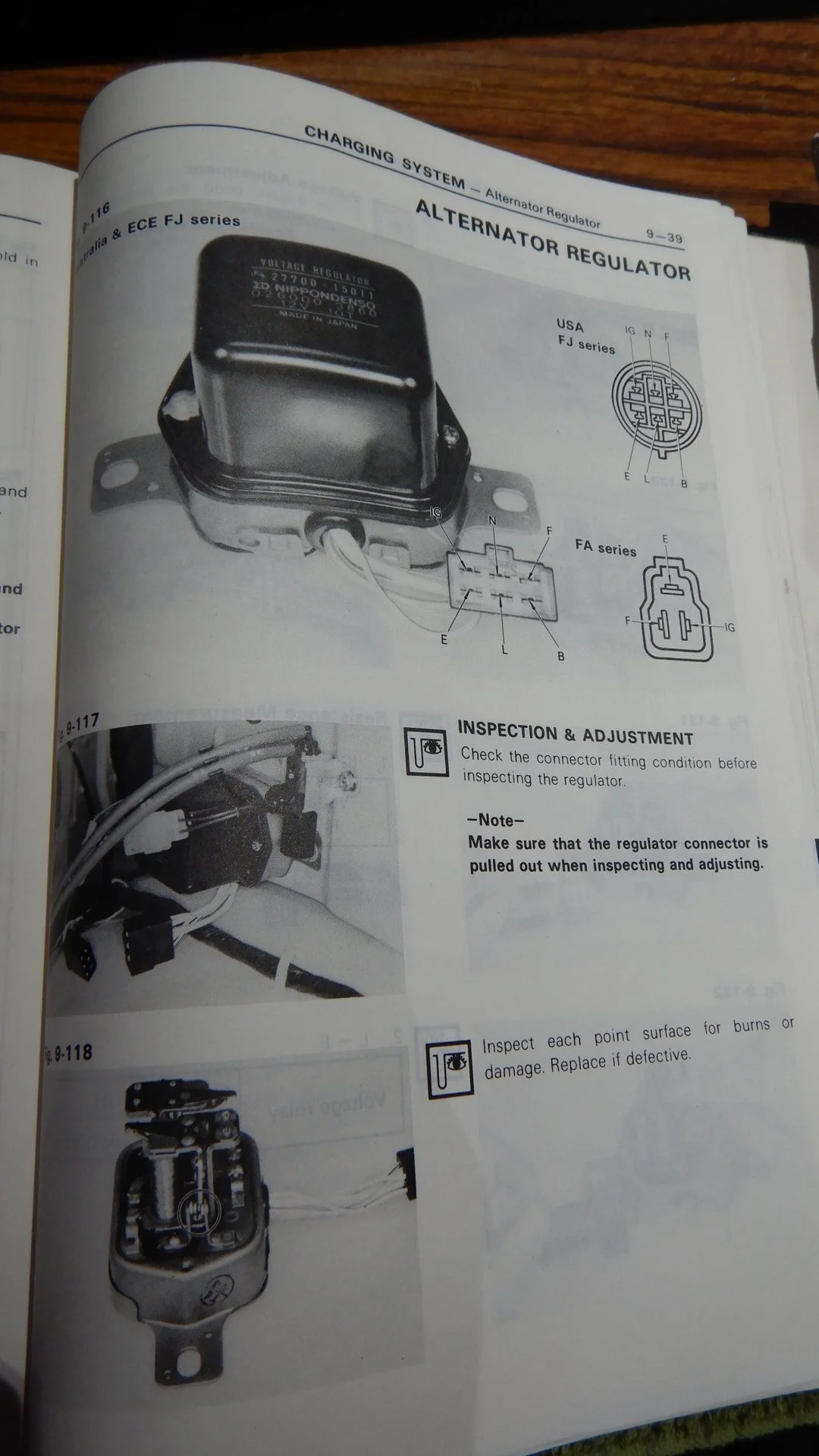

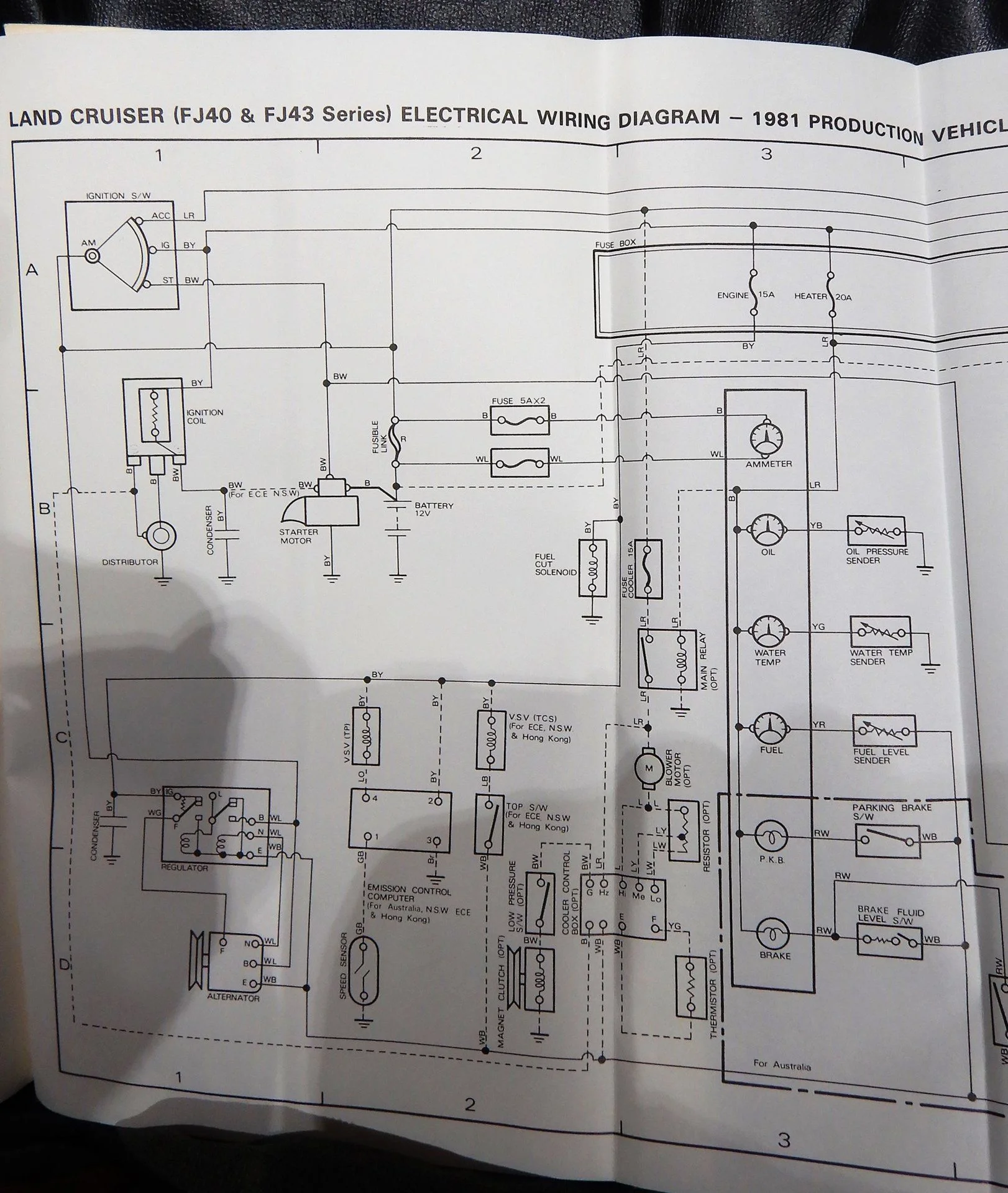

    this should be what your after ?

    let me know if this helps or not , I have other diagrams & Print Media FSM's EWD's for what your trying to do


    DSCN9830.JPG DSCN9831.JPG DSCN9832.JPG DSCN9833.JPG DSCN9834.JPG

  19. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    3,860
    Media:
    21
    Likes Received:
    2,332
    Joined:
    Aug 12, 2007
    Location:
    East Coast
  20. Brybrys1978

    Brybrys1978

    Messages:
    21
    Likes Received:
    9
    Joined:
    Jun 13, 2017
    Location:
    Ft Worth Texas
    Woke up to a hijacked thread. To get us back on track, I am asking the original question in another way:

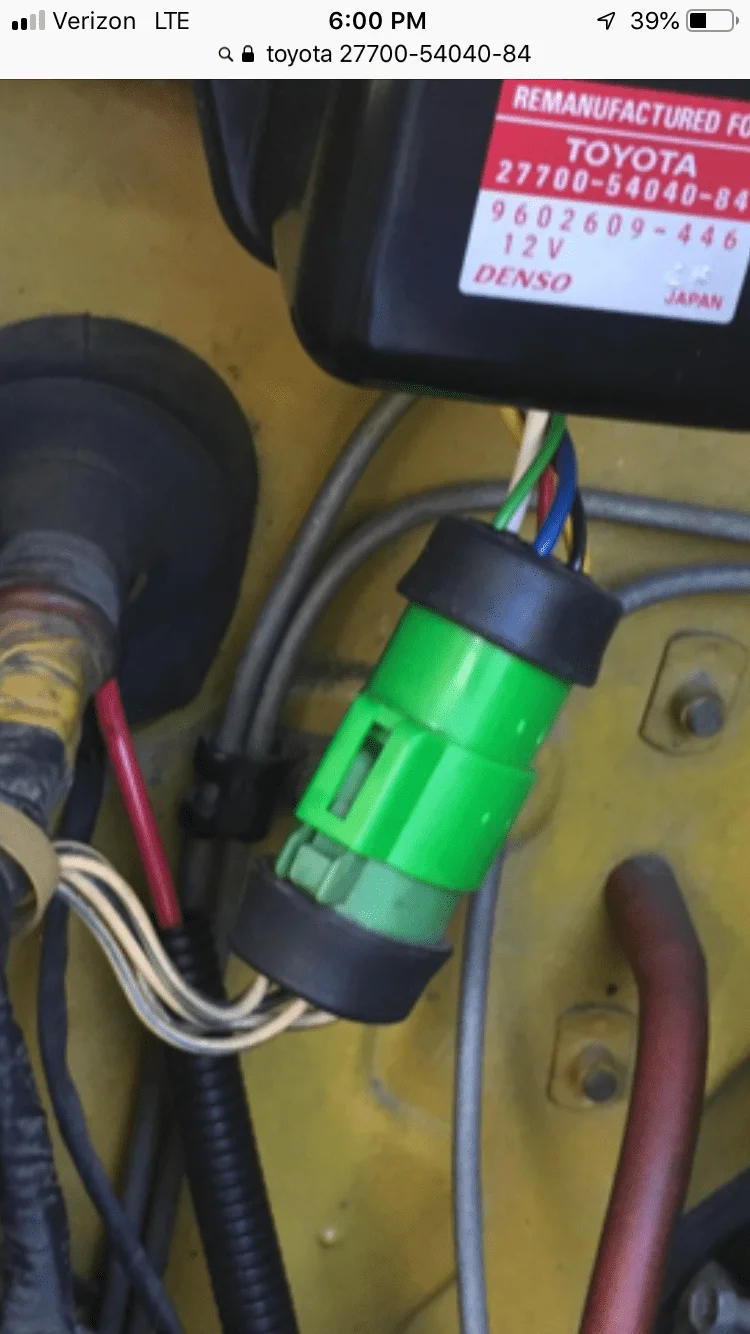

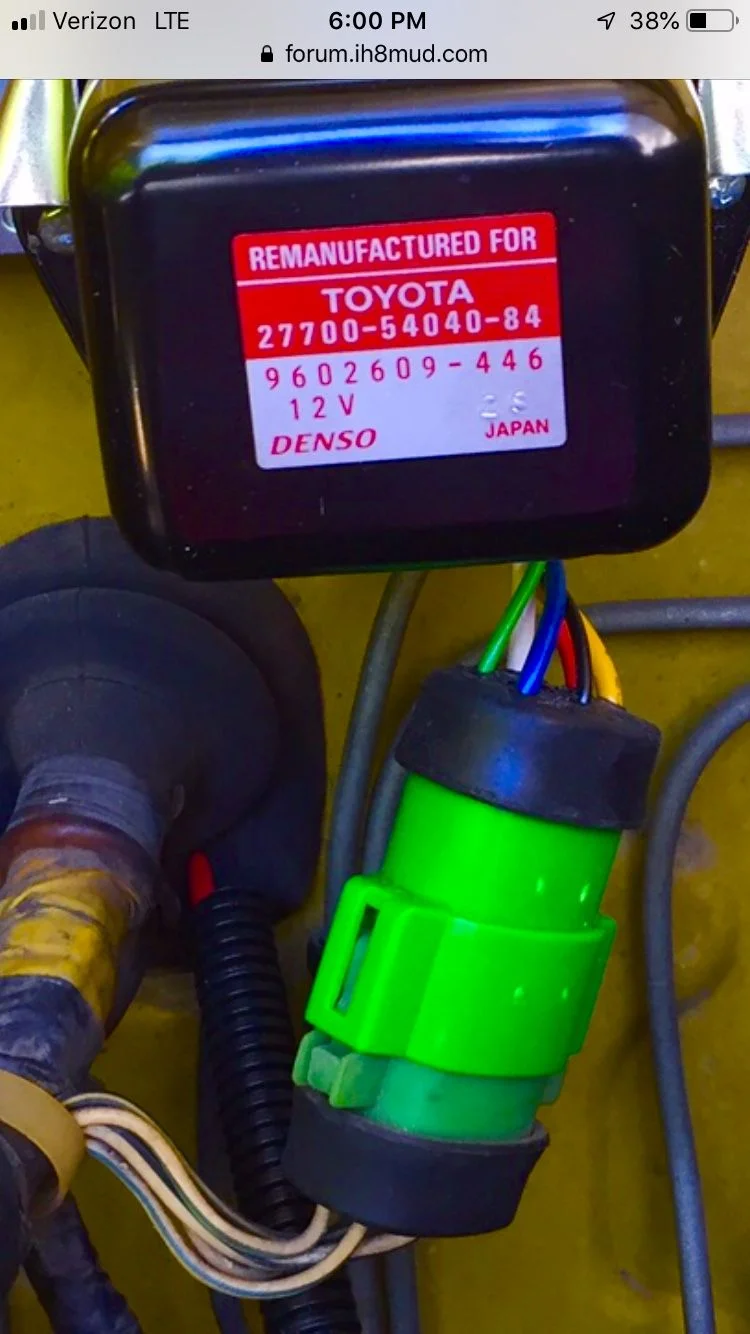

    I have the voltage regulator in this picture (borrowed from another thread) I am creating a new wire harness because old one didn’t exist and I’m starting from scratch. Help me identify the wires coming out

    red wire = what?
    White wire = what?
    Green wire = what?
    Yellow wire = what?
    Black wire = what?
    Blue wire = what?

    They are what of the following choices?

    IG N F
    — — —
    — — —
    E L B

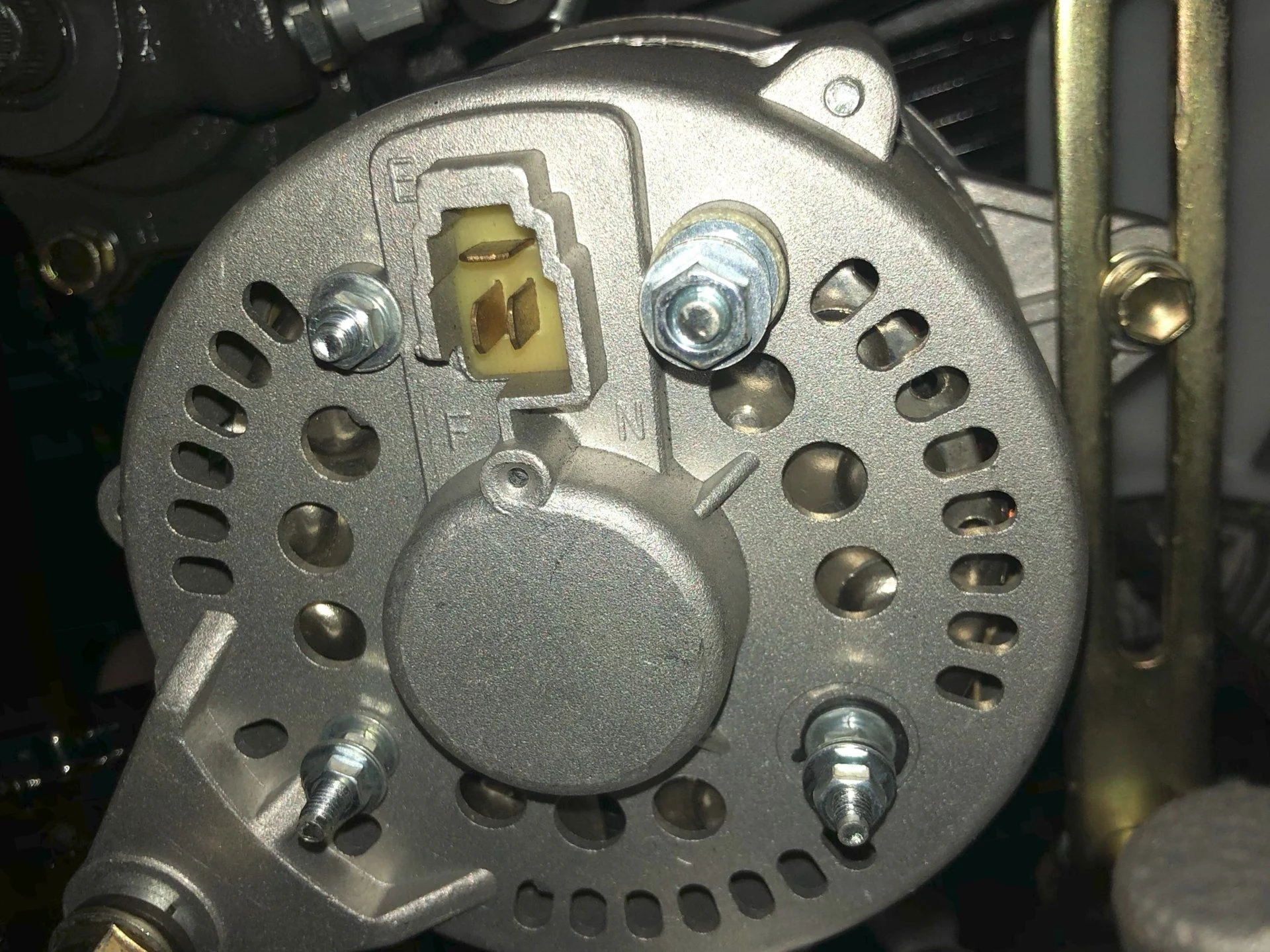

    To answer any other questions, I have a 50 amp alternator and instrument cluster. The alternator has E F N and B connectors with an external voltage regulator pictured. D6C2530F-6E1B-4615-AE6B-B9AB507371E9.png 0481F0FA-45A2-44D3-BF34-1C40C4FE92B9.jpeg

    Thank you. You can direct message me with questions not related to the above.
