40-60-70 DIY Bumper Kits

[TRAIL TAILOR]

Front bumper DIY kits and ComeUp winch combo deals... PM me for pricing.

Jason



[TRAIL TAILOR]

All, with the WY winter weather... I-80 has been closed off and on all week. I hope that this clears up. Just a heads up that packages and pallets may be delayed a bit.

J



[HJ61GUY]

very interested in a kit for my HJ61



[TRAIL TAILOR]

very interested in a kit for my HJ61

Front or rear? let me know more detail and I'll get you a price.

J



[HJ61GUY]

Front or rear? let me know more detail and I'll get you a price.

J

I am interested in both a front and rear kit. Would like the rear to include the swing arm with spare tire and roof ladder



[bluehawk]

Jason, here are a few of my bumper so far. Just a few questions. First picture, What angle do you bend the bumper wings to? Second picture, what angle is the spindle shaft cut to? Do you put it in place and mark with the bottom edge of wing end? I tacked the wings flush with the top and back edge. Also along with the front edge. The very bottom does not come all the way even with bottom edge of main shell. Is this supposed to be like that?



[bluehawk]

One more picture



[TRAIL TAILOR]

One more picture View attachment 1194225

R,

The spindle angle is right at 37 degrees.

The wings... score the plate on the line (about halfway through) then bend to match the angle pitch of the end and bottom.

J



[bluehawk]

Thanks J. Do you have any pictures off this stage of the fit up? Also of the piece your calling a stiffner and then the bottom piece tacked in.



[TRAIL TAILOR]

R,

the "stiffner", goes from the frame bracket over to the bumper end (not all the way to the end of the bumper)approx. 3" end from the front to the face of the bumper. The bottom cap will guide you as to where the stiffner need to be positioned.

Give me a few and I'll mock up a pic.

Beer thirty and need to break free from Andrea for 5 minutes..

J



[bluehawk]



[TRAIL TAILOR]

OK R,

Here is the MOCK UP.. This is the general perspective. Please let me know if you have any questions. I will have a 60 rear base complete by Friday and can post more pics if you need them.

Just let me know.

J



[TRAIL TAILOR]

Here it is welded out R,

J



[bluehawk]

Thanks J, that's perfect. I'll let you know how it goes and if I need anymore pictures.



[bluehawk]

Knoxville is getting a little snow today.



[bluehawk]

J, need a little help. First picture, what are these for? Second picture, does the slot go on top and I guess the angle is up like the picture? Can you give me some measurements of where the upright for the tire carrier welds to swing out and also where the ladder welds up?



[bluehawk]

Also what exactly is this rod for?



[TRAIL TAILOR]

J, need a little help. First picture, what are these for? Second picture, does the slot go on top and I guess the angle is up like the picture? Can you give me some measurements of where the upright for the tire carrier welds to swing out and also where the ladder welds up?View attachment 1198360 View attachment 1198361 View attachment 1198362

R,

first picture.... reinforcement recovery sleeves that go in the frame bracket. Second and third picture are correct the orientation.

J



[TRAIL TAILOR]

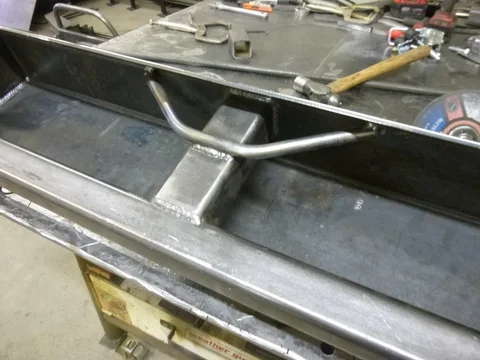

Also what exactly is this rod for?View attachment 1198369

Chain hook rod for the receiver.

J



[bluehawk]

Chain hook rod for the receiver.

J

View attachment 1198370

Aha, pictures say it all. Thank you sir. Just when you get a chance. Need a few measurements for where to mount the tire upright and the ladder.
