I am trying to sort out issues with a 3FE from an '88 62.

I need to confirm my vacuum lines are as they should be.

My '88 FSM does not show all vacuum connections, esp related to the fuel pressure regulator.

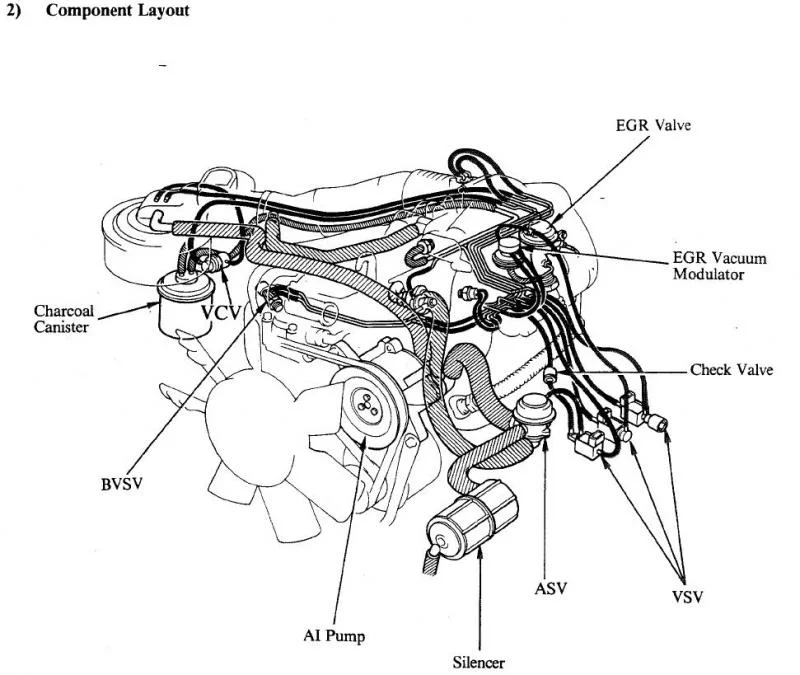

Does anyone have a complete vacuum schematic for the 3FE?


PabloCruise

SILVER Star
Joined
Jun 3, 2004
Messages
19,939
Location
Northern Colorado



Somewhere there is a lonely little FJ62 with a metal plate on its firewall - minus the 3FE that is in my FJ55!!!

Thus my quest for info...

Thanks,


PabloCruise

SILVER Star
Joined
Jun 3, 2004
Messages
19,939
Location
Northern Colorado

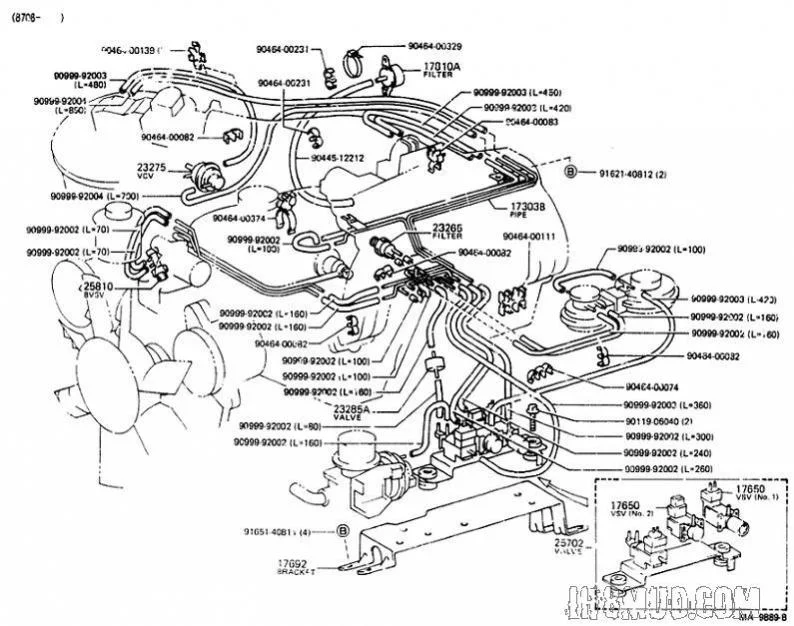

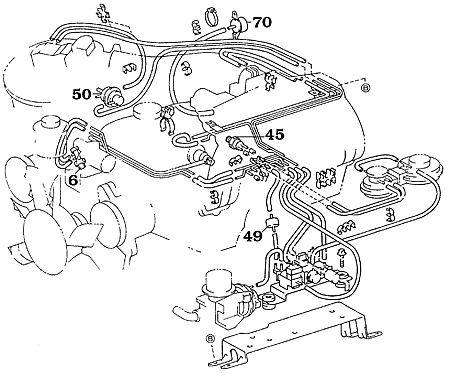

So I marked the diagram up a little to check the individual circuits for continuity, and also to make the changes to my circuits for Evaporative Charcoal Canister.

I also tracked the circuit for Fuel Pressure Regulator. It connects to the gas valve on the intake.

My hope is that this will help future searchers...

How the F does the gas Valve work, and how do you test it?
3FE Vacuum 001.jpg
