I'm about to replace my head unit on my 2000 LX with Nakamichi.
I'm going to bypass the amp.
Which wires do I combine for power, accessory, and ground so that the head unit gets power? The helpful tlcfaq.com lists only for the Land Cruiser connectors.
I have the 22 pin connector at the head unit with the following wiring :

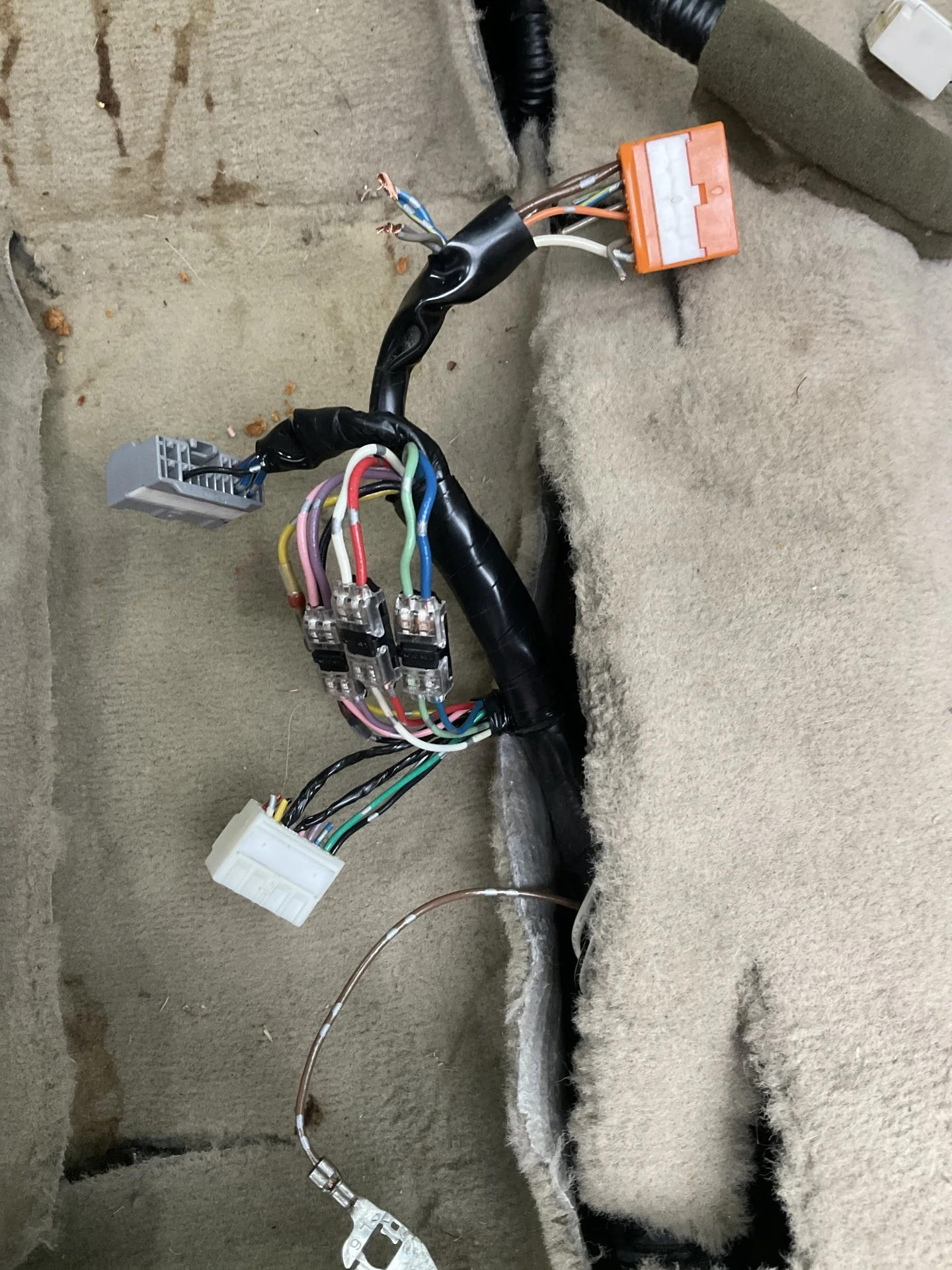

I can find the B, ACC, and Ground with a continuity test at the under seat amp end, but how do I know which the "other" one is (one set is "in", one set is "out", and I feel like I can only figure out one set.)
Thanks yall.
I'm going to bypass the amp.
Which wires do I combine for power, accessory, and ground so that the head unit gets power? The helpful tlcfaq.com lists only for the Land Cruiser connectors.
Stereo Wiring: Land Cruiser / LX 470 (1998-02)
Article by: RobRed Applicable Models: 1998 - 2002 / 100 Series Land Cruiser or Lx 470 Changing your head unit to an aftermarket unit is pretty stra
tlcfaq.com
Land Cruiser notes:
- Toyota has a feedback loop for power to the head unit via the factory amplifier. The radio connections in the upper dash have several feeds coming from the factory amplifier. So if you use the factory connections in the upper dash and you are changing out the amplifier you will need to tie wires together at the amp location for power, accessory and ground. The amplifier has two connectors (S6 is 16 Pin and S7 is 14 pin). If the following connections are not made or bypassed you won’t have power to the new radio.
- On Connector S7 remove pin 3 (B+ out) and on Connector S6 remove pin 7 (B+ in) and tie them together using appropriate crimp or solder them.
- On Connector S7 remove pins 2 (accessory in) and 9 (accessory out) and tie them together using appropriate crimp or solder them.
- On Connector S7 remove pin 10 (ground int) and on Connector S6 remove pin 13 (Ground out) and tie them together using appropriate crimp or solder them.
- On Connector S7 remove pin 1 to use for your new amplifier “turn on” signal.
I have the 22 pin connector at the head unit with the following wiring :
- 1 +B (white)
- 2 +B2 (blue/yellow)
- 3
- 4 Illumination (green)
- 5 Antenna + (black/red)
- 6 Signal FL + (pink)
- 7
- 8 Signal RR + (red)
- 9 Signal RL + (black)
- 10 Acc + (gray)
- 11 E Ground (brown)
- 12
- 13 Illumination + (white/green)
- 14 Amplifier + (black/red)
- 15 Mute (amplifier) (orange)
- 16 Beep (green)
- 17 Signal FR – (blue)
- 18 Signal FR + (light green)
- 19 Signal FL – (violet)
- 20
- 21 Signal RR – (white)
- 22 Signal RL – (yellow)

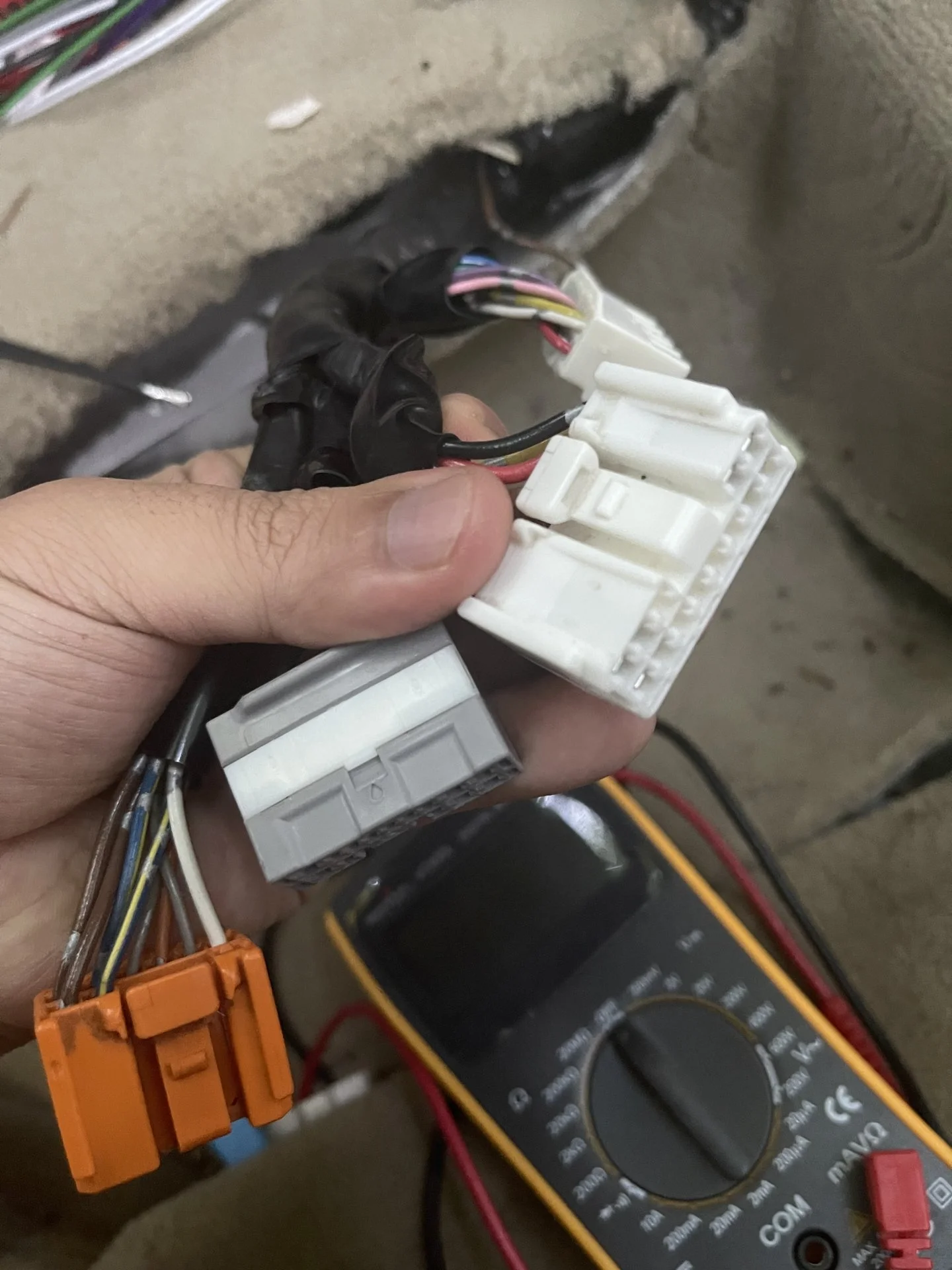

I can find the B, ACC, and Ground with a continuity test at the under seat amp end, but how do I know which the "other" one is (one set is "in", one set is "out", and I feel like I can only figure out one set.)
Thanks yall.
