200 series frame dimensions?

[turbo8]

Does anyone have a 2d drawing of the 200 series frame drawings? If you have a source for a 3d model that would be even better!

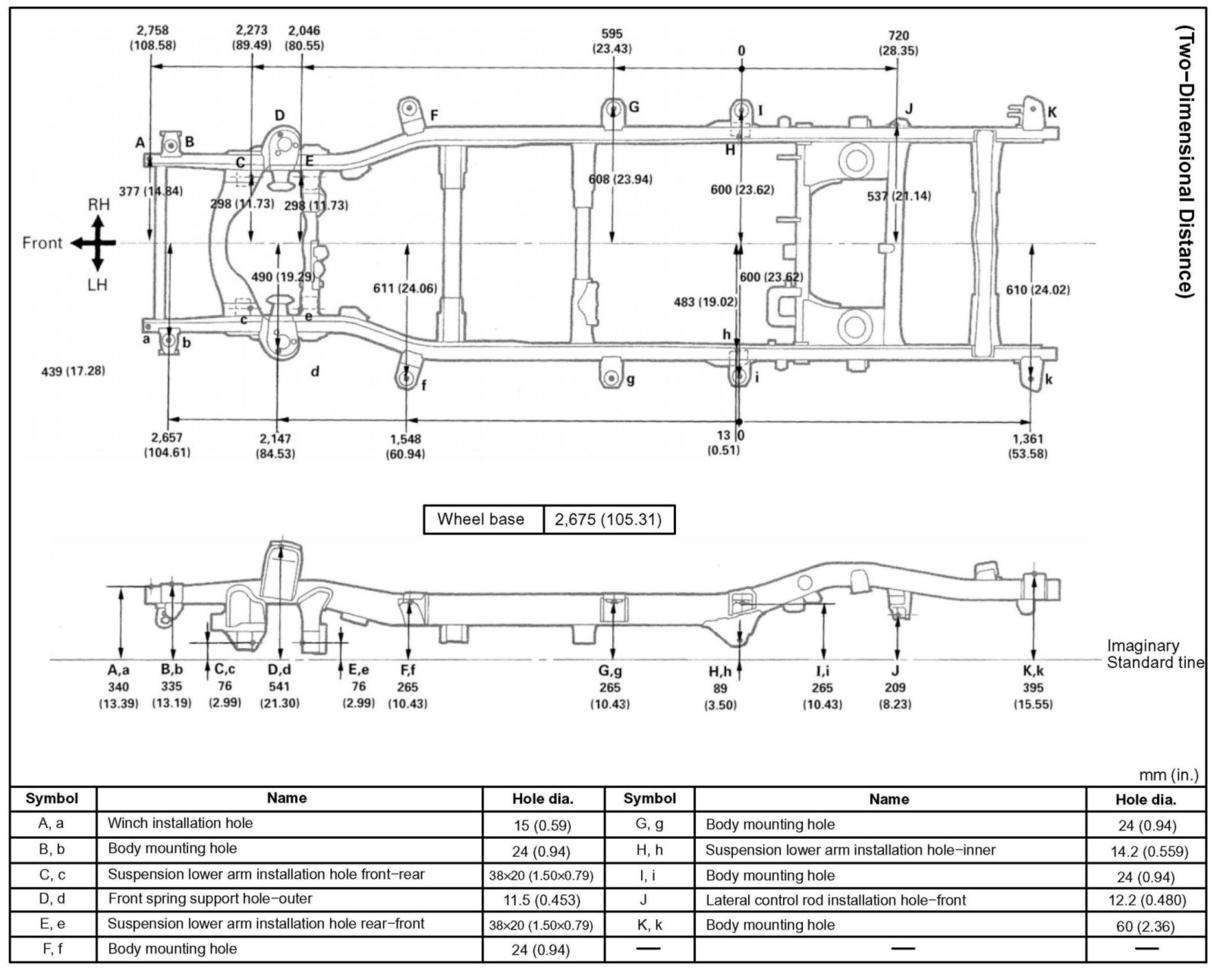

something like this:



[Njck22]

You can download those drawings from the online Toyota TIS, they'd be in the 200 series Landcruiser body collision repair manual. 20$ subscription is very pricey. Maybe you could ask a dealership kindly and they might hook you up?



[Sac Cerevisiae]

Does anyone have a 2d drawing of the 200 series frame drawings? If you have a source for a 3d model that would be even better!

something like this:
View attachment 2024617

I can pull it for you tomorrow.



[turbo8]

Sweet, thanks!



[Sac Cerevisiae]

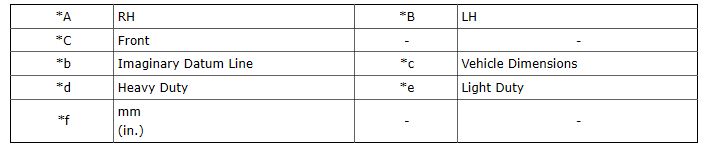

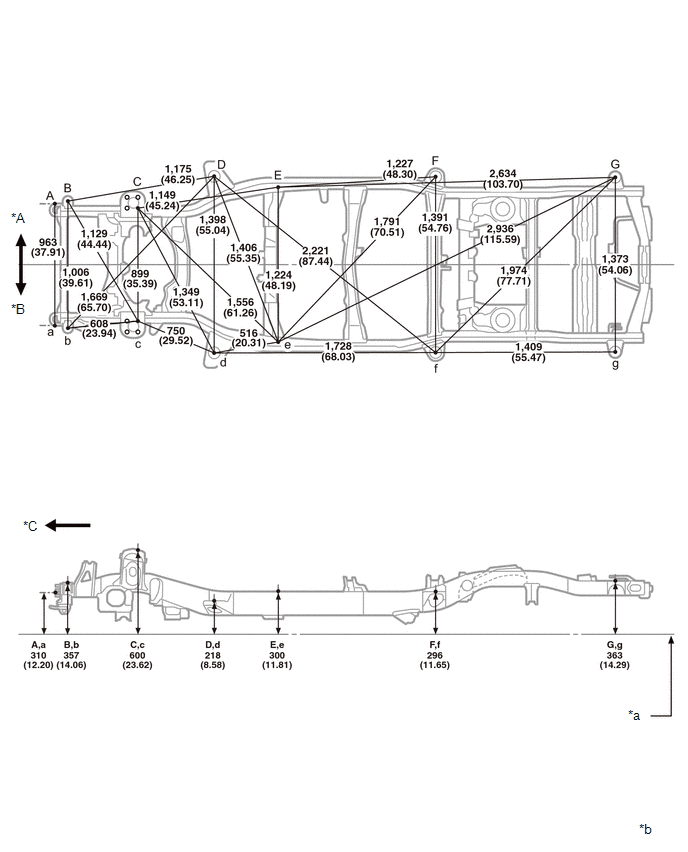

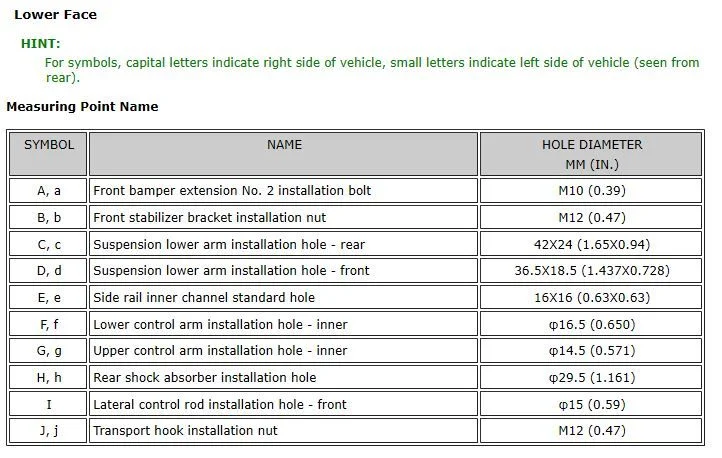

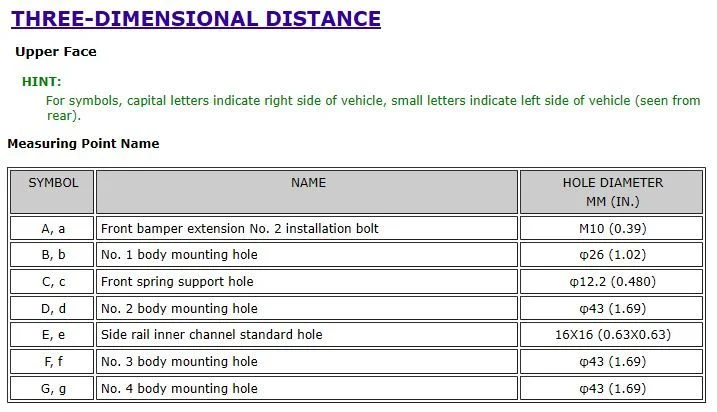

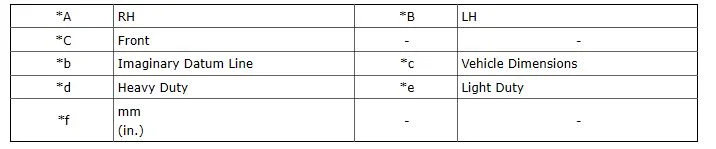

NOTE: FOR NON-KDSS



[Sac Cerevisiae]

NOTE: FOR NON-KDSS



[Sac Cerevisiae]

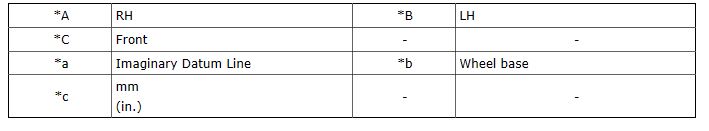

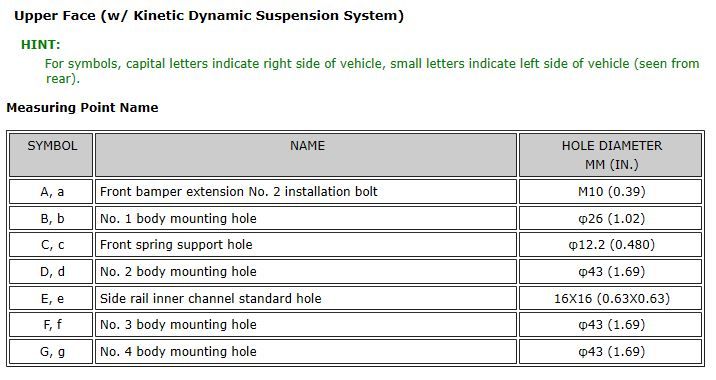

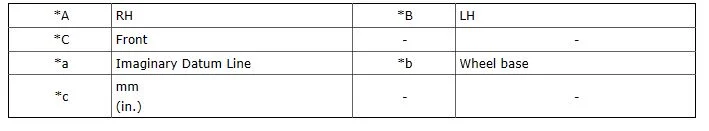

NOTE: WITH KDSS



[Sac Cerevisiae]

NOTE: WITH KDSS



[Sac Cerevisiae]

NOTE: FOR NON-KDSS



[Sac Cerevisiae]

NOTE: FOR NON-KDSS



[Sac Cerevisiae]

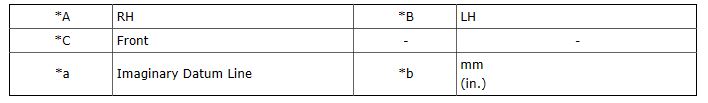

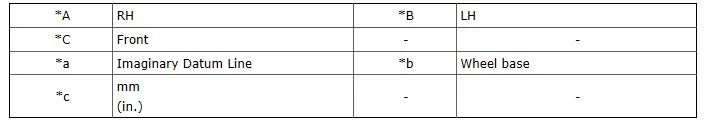

NOTE: WITH KDSS



[Sac Cerevisiae]

NOTE: WITH KDSS



[turbo8]

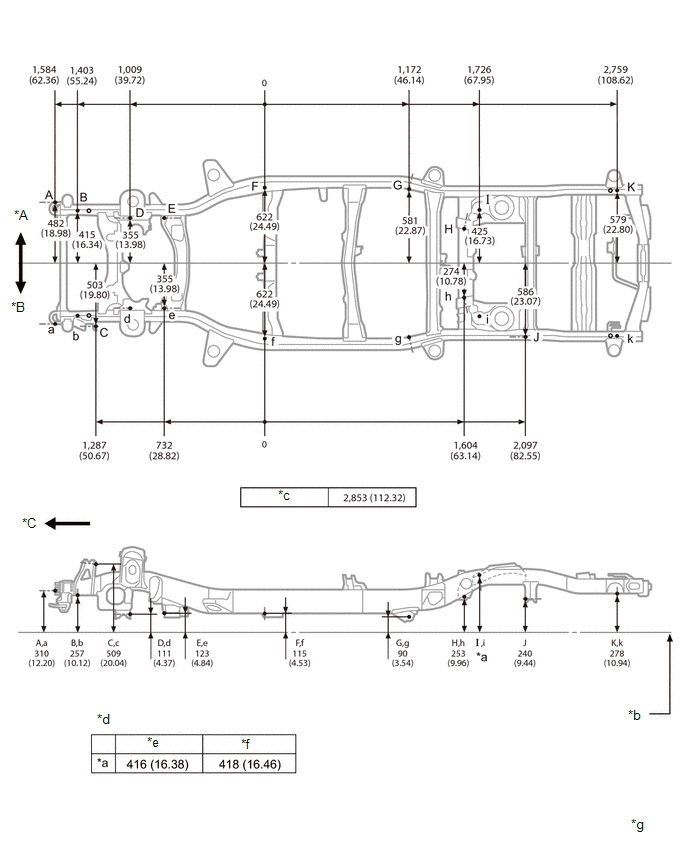

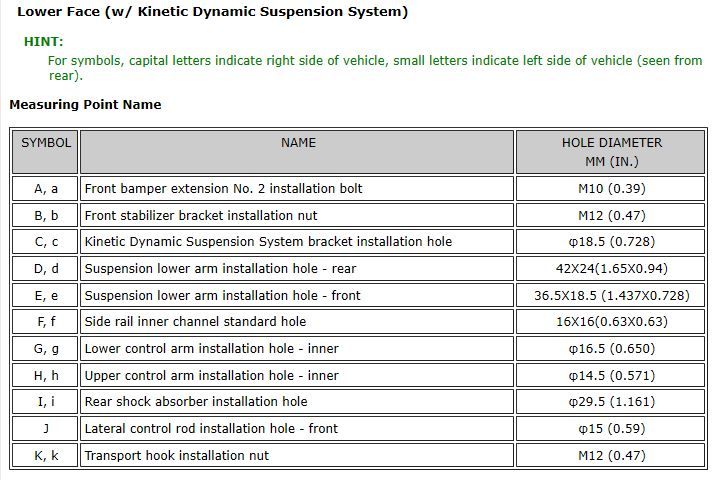

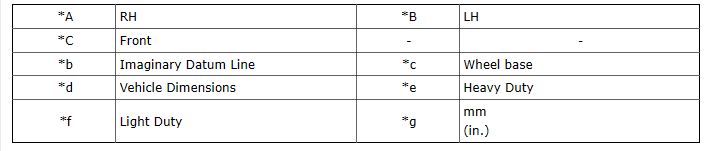

NOTE: WITH KDSS
View attachment 2025198View attachment 2025198View attachment 2025200

View attachment 2025199

Thanks Sac Cerevisiae !!



[Sac Cerevisiae]

Thanks Sac Cerevisiae !!

Happy to help.



[UCrazyKid]

Not the diagram you are looking for... but a really cool picture~!



[TonyP]

The number of 8 body mounts is interesting.
Less than the 80 and much less than the 75.
Though they are larger.



[turbo8]

This is a good one too. Does anyone know why the belly "skid" was made from plastic?
