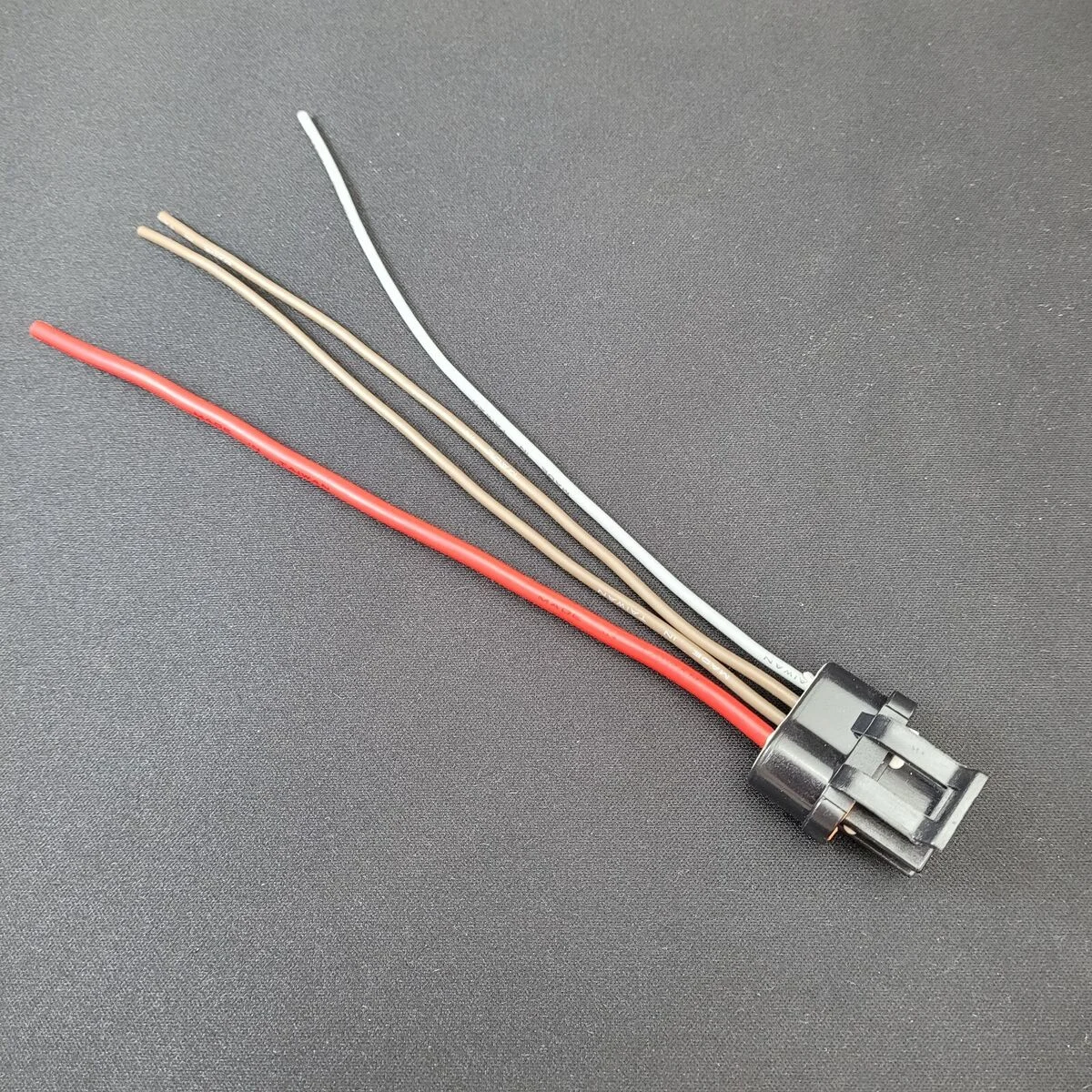

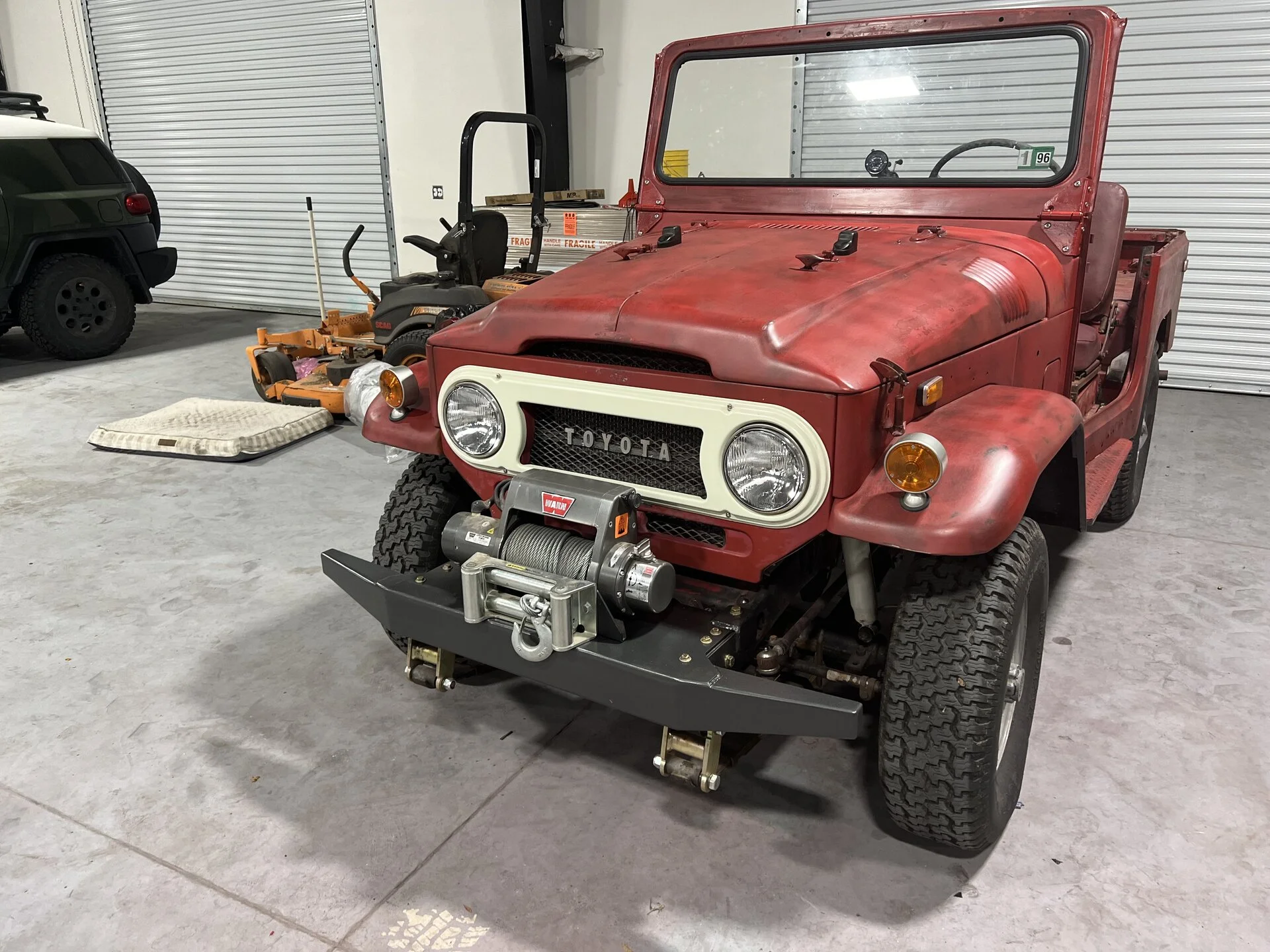

I have a 1970 fj40 with F engine. After reading a number of alternator threads I have purchased a 1990 dodge Monaco alternator. Truck has basically no wiring, just the 4 wires to crank and run so no old wiring or reg to work around. What is the pinout on the 4 terminal plug?



[panaceabeachbum1]

I am sure it's been covered, I have searched the fj40 section and Google as best I can, plenty of recommendations for this alternator for the 1f. just don't wanna fry my new alt.



[panaceabeachbum1]

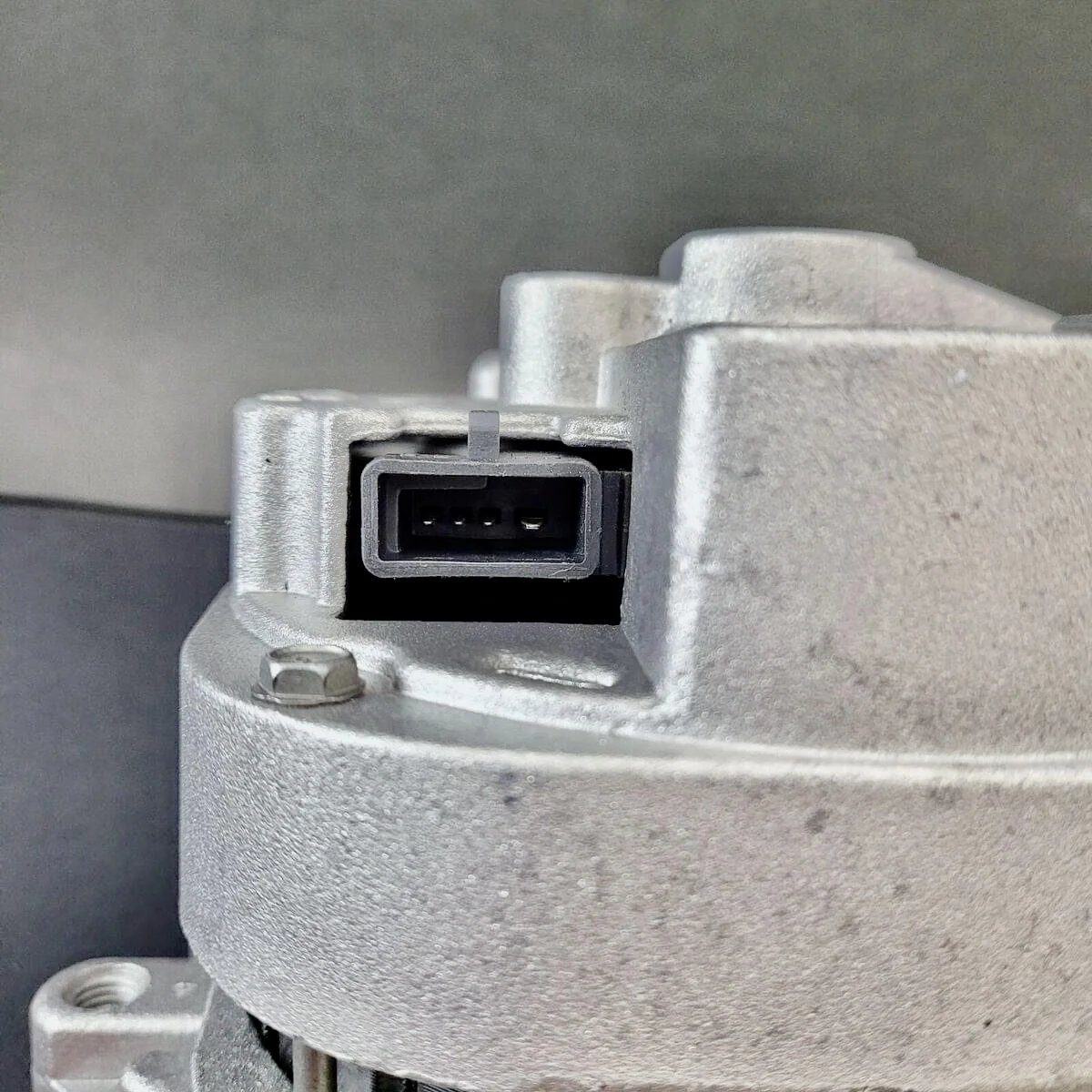

Here is output of alt , the only pic I have found has shown the large red run back to the out put terminal and 2 of the others into a harness, I imagine 1 to ign and other to a lamp



[panaceabeachbum1]

Here you go, LOL, hope this helps someone down the road CS-130 Alternator Wiring - Land Cruiser Tech from IH8MUD.com - https://www.ih8mud.com/tech/cs130.php
