1989 fj62 3f wiring diagram for instament cluster (3 Viewers)

[ryan22]

Hi I'm chasing a 1989 fj62 wiring diagram for the instrument cluster so I can wire up my oil pressure gauge and sender unit cheers



[ToyotaMatt]

Hi I'm chasing a 1989 fj62 wiring diagram for the instrument cluster so I can wire up my oil pressure gauge and sender unit cheers

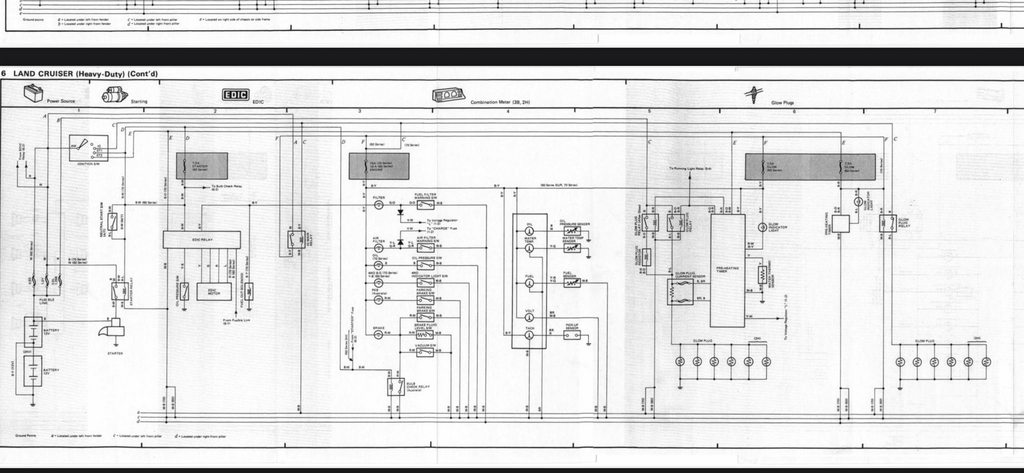

View attachment 3203091

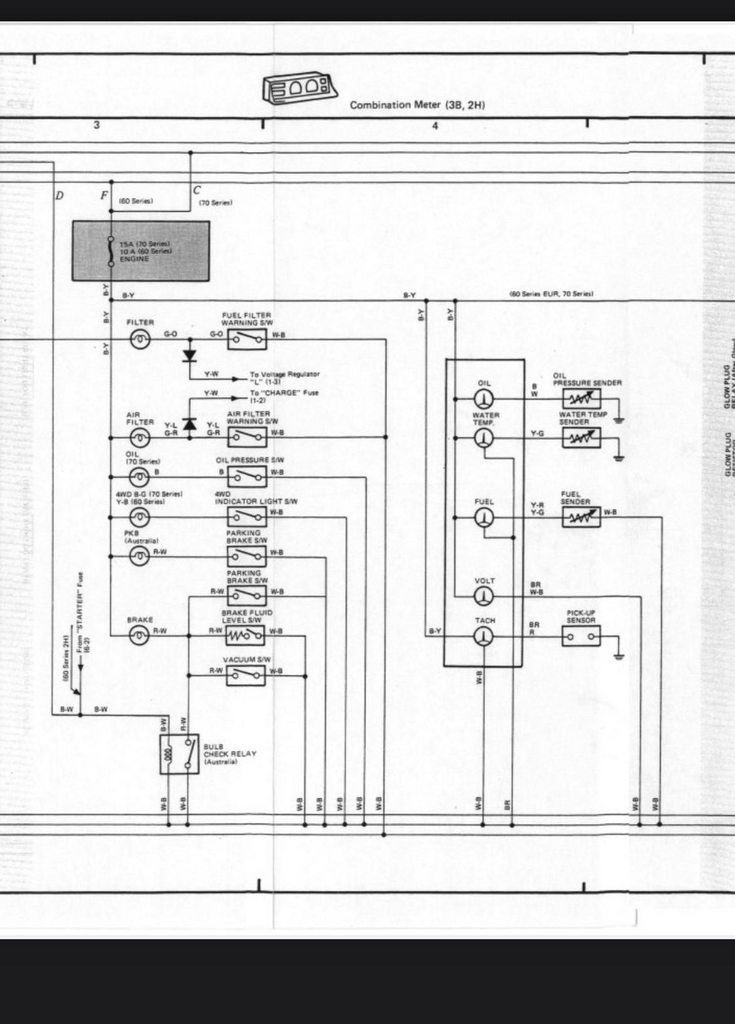

View attachment 3203094

View attachment 3203096

Yellow wire w/ Black Tracer stripe is your oil pressure sender wire ....

this is a across the board all land cruisers 1962-1997


your oil wire should be this one , correct ?


the black tracer is out of view , correct ?



[ryan22]

Mine doesn't seem too have a yellow and black trace wire where it pluggs into the gauge that wire its just yellow no trace



[ToyotaMatt]

is this a usa spec truck or a non usa truck ?

you need to say this any time you ask for tech on MUD

i just noticed the PERTH

you down in OZ mate ?



[ryan22]

Hey mate yeah I'm in Perth and it's a non USA truck my apologies 1989 fj62 gxl



[dbbowen]

Does this help any?



[cruisermatt]

why do you need to wire it? you should just plug the gauge cluster in and attach the yellow/black wire in your engine bay to the sender. You shouldn't have to be adding any wires to your dash harness



[ToyotaMatt]

Hey mate yeah I'm in Perth and it's a non USA truck my apologies 1989 fj62 gxl

your Solid Brother

us Yanks , need to know all the need to know so we know ,

you know ?



[ryan22]

Cheers for the help fellas I was trying too find the signal wire too tap into for the oil pressure gauge as I had a engine bay fire and burnt the wiring that goes too the pressure sender I must add that it's got a 350 sbc crate motor conversion I have looked on the wiring loom in the engine bay and found what seems too be the yellow/ black trace wire so ill try tap into that
