The 14B-T is maybe my favourite B engine and during much internet trawling, I finally came up with some official-looking specs. It comes from a Taiwanese customs website, looks to be an official document for import/registration in Taiwan.
The 14B-T was mostly sold in Japan in 24V Dyna/Toyoace trucks, except for two LHD, 12V General Market models (maybe only Taiwan, but who knows). I assume because of this, there is no English-language FSM (though there is a manual for the Yamaha ME372, a marinised 14B-T) and little information about it.

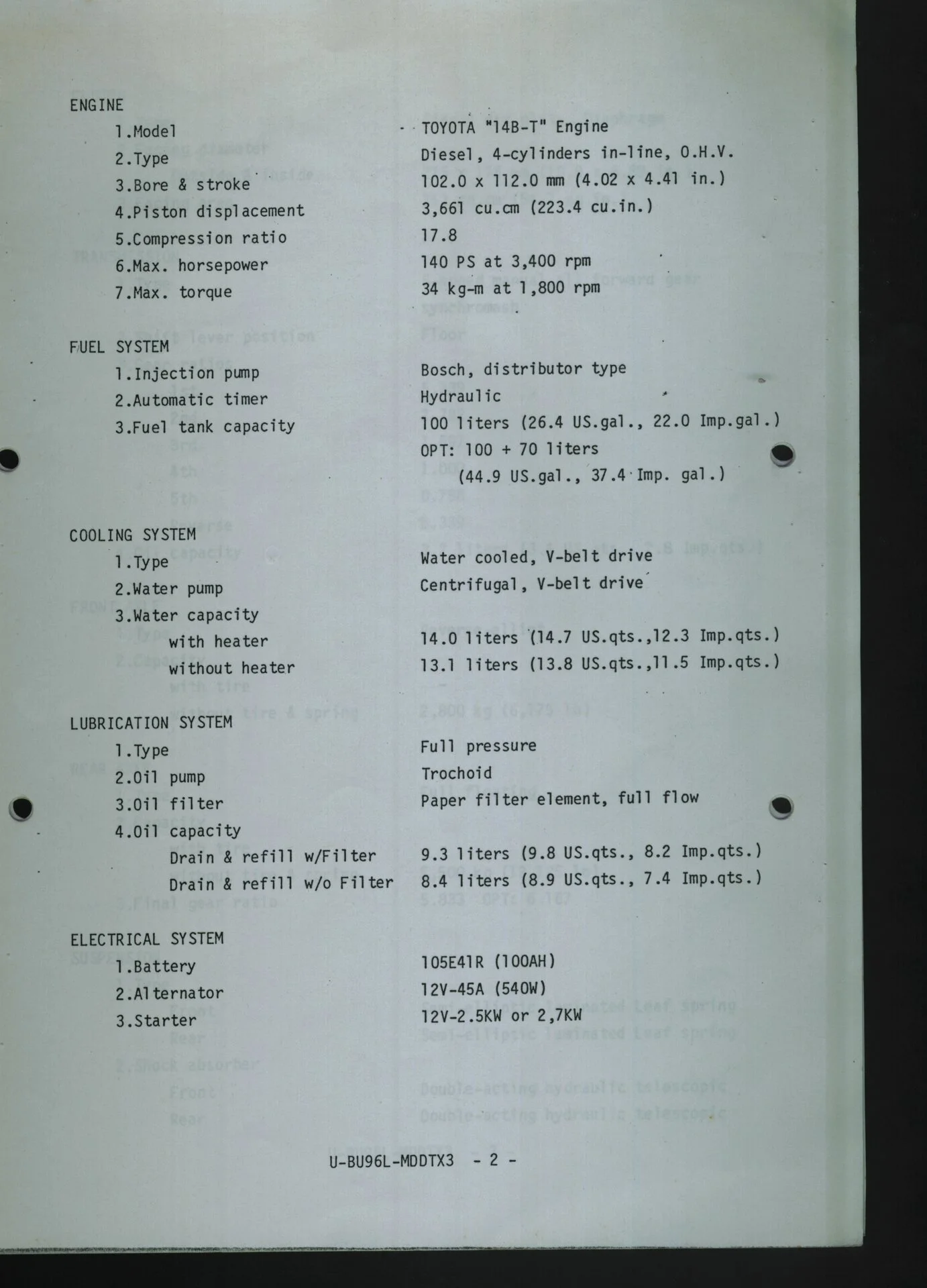

Anyway, here you go (there are more pages, but they are specific to a Dyna BU96 vehicle, not the engine):
EO
The 14B-T was mostly sold in Japan in 24V Dyna/Toyoace trucks, except for two LHD, 12V General Market models (maybe only Taiwan, but who knows). I assume because of this, there is no English-language FSM (though there is a manual for the Yamaha ME372, a marinised 14B-T) and little information about it.
Anyway, here you go (there are more pages, but they are specific to a Dyna BU96 vehicle, not the engine):
