2Lt to 5l Coverstion Alternator Help

[Yellow70]

ok so the last thing i have to do on my LJ70 is wire up the alternator off the original lume theres 3 wires a Green , Blue and White that connect to a plug that go's to the alternator reg.

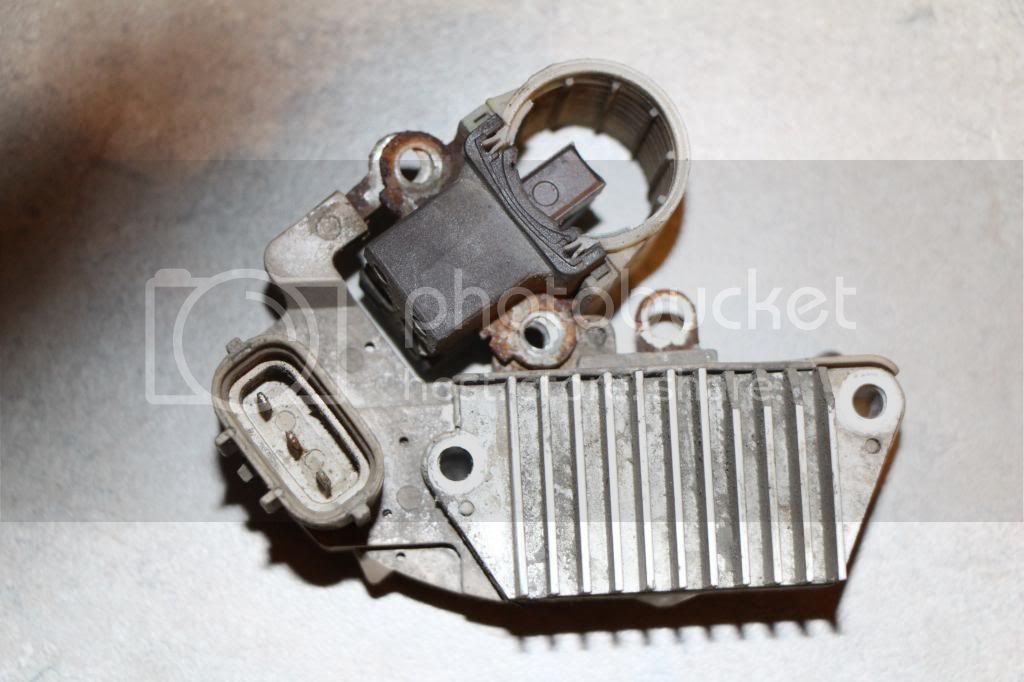

this is the 3L or 5L alternator reg



So i need to work out what colour wire go to what can you's help me

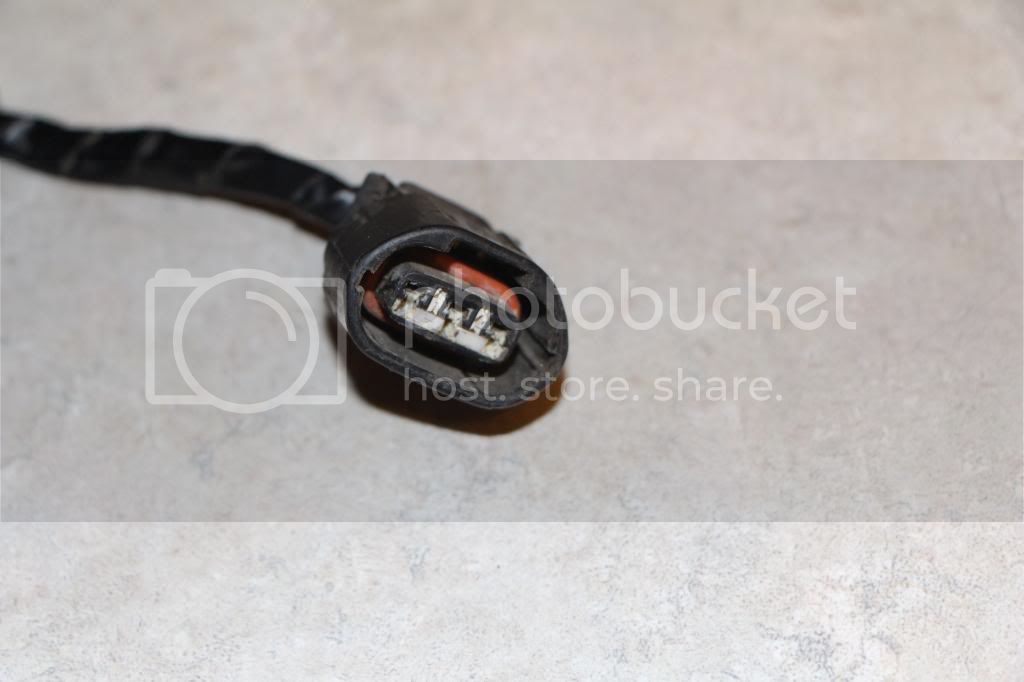

this plug has 3 wires off it yellow/black Black/yellow white



Thanks

Luke



[Yellow70]

Anyone?



[DanS HJ-45]

I wouldn't modify the alternator itself.

Modify the wiring that connects the truck to the alternator. All alternators work the same way, and it's just a matter of how many wires (and which ones they are) as to how to make them work.

If you're not clear enough on doing it yourself--take it to an alternator shop and they can probably tell you just by looking at it how to wire it up.

Dan



[Yellow70]

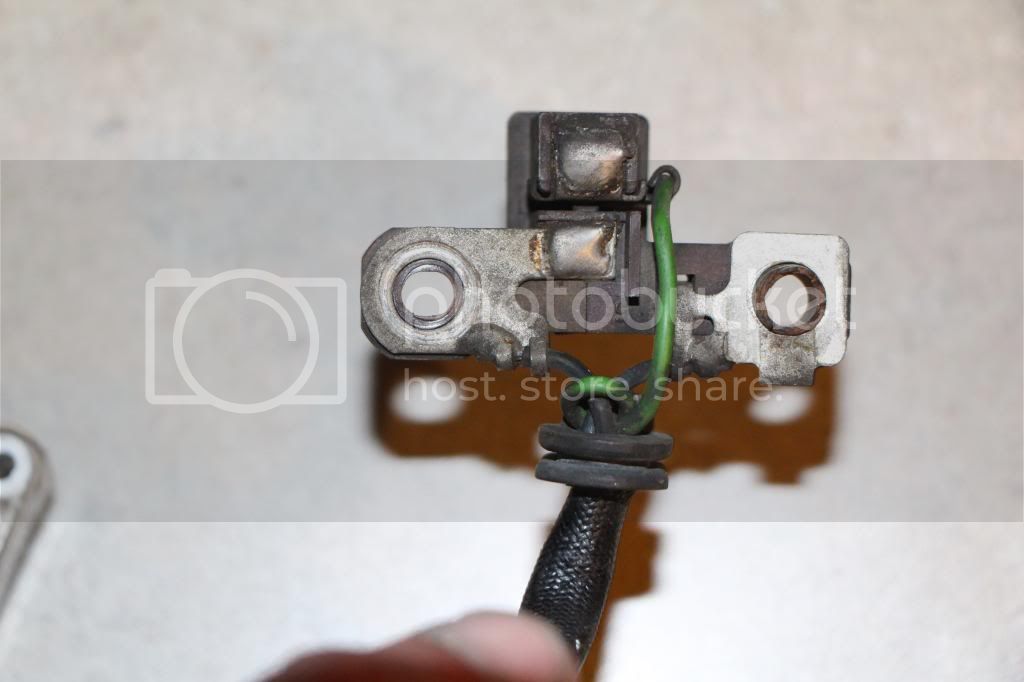

didtnt want to modify it just put the photos up so someone could work out what wires what. tested them last night. theres 3 wires out of each of the plugs 2 small wires that connect to a brush each on both regs. 1 bigger wire on both regs not sure if it matters the order of both small wires off the brushes?



[bj40green]

Does this help?

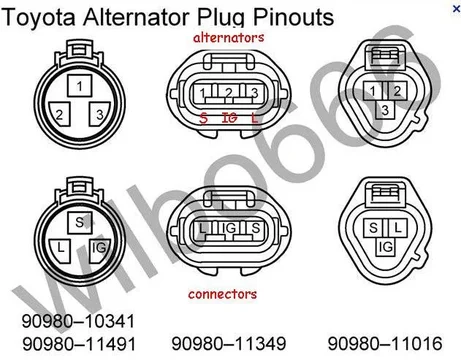

S = Sense
IGN = Ignition
L = Lamp

Rudi
