wiring connector chart?

[jblueridge]

I need to replace some wiring harness connectors.
I found some charts via internet but I am not sure of their applicability, ie, date of publication.

Here's one:
Toyota Wiring Connectors - Wire Harness Repair Manual RM1022E - Land Cruiser Tech from IH8MUD.com

Is this the right era? My JDM BJ74 is an '88.



[JuanJ]

Hello,

70 Series connectors changed very little over time, so yes, it is correct.

This manual is useful as a repair and identification guide.

If you have the chassis and body manual to complement this one you are golden.





Juan



[coldtaco]

There is a time that connectors have been changed, like the tail lights and after cab wiring harness have different style connectors between my 85 HJ-75 and -79 pickup



[jblueridge]

I am trying to identify tail light connectors.
I'll take some photos later and post them.



[jblueridge]

Photo is terrible. I need a tripod I guess.

The outline of this 16 pin connector does not seem to correspond with any connector in the charts.



[coldtaco]

Don't know what you're seeking for exactly but here is a picture of a 1985 pickup tail lights next to a -79series pickup tail light plug.



[jblueridge]

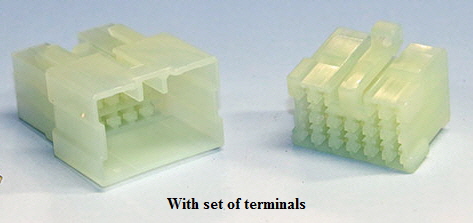

I am pretty sure it is the 16 pin connector below. Pic from Eastern Beaver website.

I want to make a pigtail so I can wire a trailer up without cutting into any original wires.
My first car was/is an MGB: the PO of that car made many electrical "mods" that made my life miserable.

090 Connectors



[hotgemini]

Anyone able to identify the plug for the fusible links in a BJ74, the battery side of mine was removed by a PO and I'd like to get back to something nicer than a spade 1/4" female spade terminal stretched to jam over the 8mm contact in the stock plug.



[jblueridge]

I used the 0.312" terminals from Eastern Beaver. I kept the original plastic housings.

fusible link replace

Open Barrel
