    This is what happens when you have your evenings free, access to a welder and exhibit OCD tendencies in regards to rust and storage.

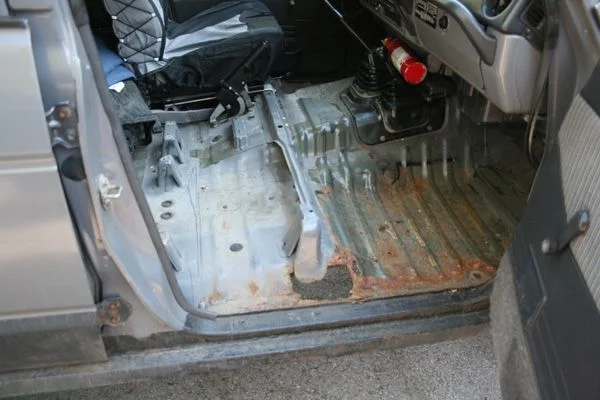

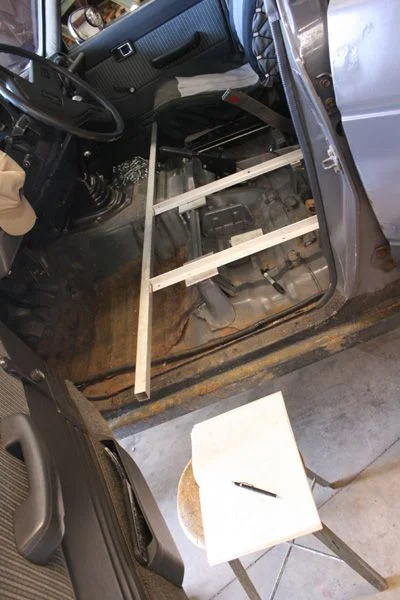

    It all started with big rusty holes hiding under my carpet and a hatred of the dirt collecting-wasted space under my seats.
    IMG_0894.jpg IMG_0625.jpg IMG_0900.jpg

  2. euclid

    euclid

    Messages:
    5,981
    Media:
    14
    Albums:
    1
    Likes Received:
    344
    Joined:
    May 15, 2002
    Location:
    Jackson, MS
    Fred Flintstone Power!

    Keepem comin you cruiser savant!

    FAQ'd cause I see what's coming.

  3. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR

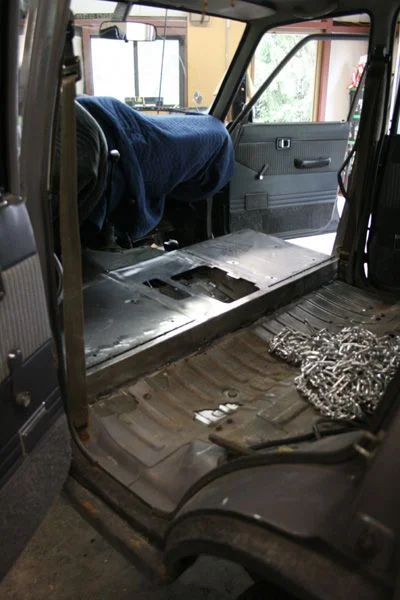

    Instead of being practical and cutting out the rust, I cut the whole floor out.
    IMG_0911.jpg IMG_0917.jpg IMG_0927.jpg

  4. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR

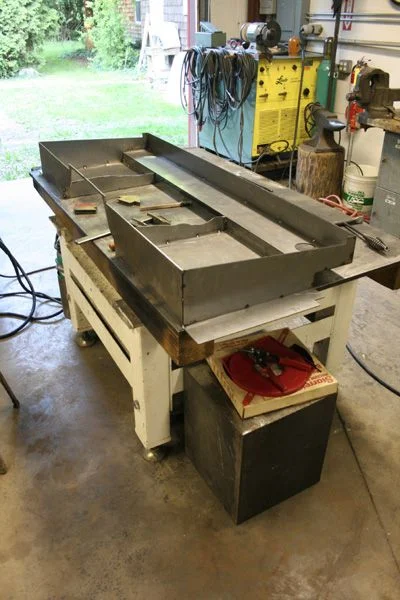

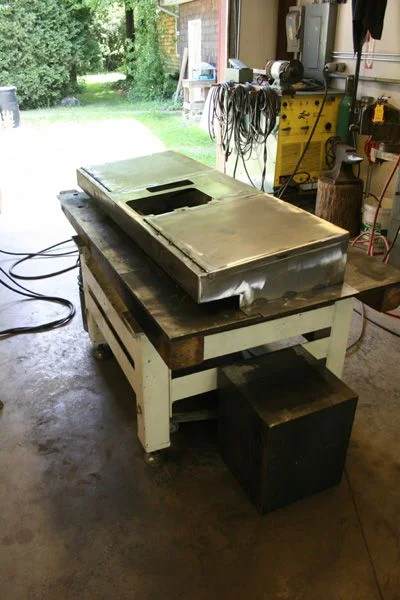

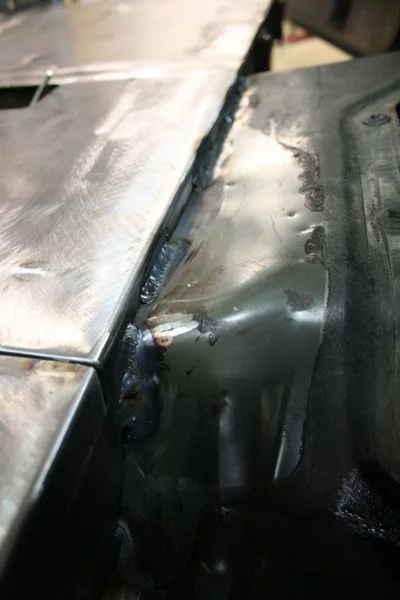

    I welded a box together and stitch welded it into the big hole in my floor.
    IMG_0940.jpg IMG_0933.jpg IMG_2129.jpg

  5. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR

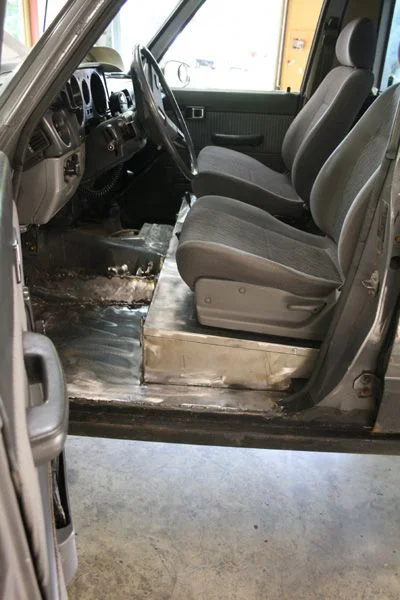

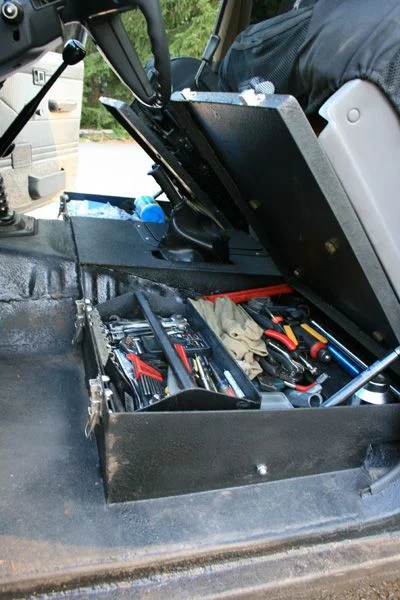

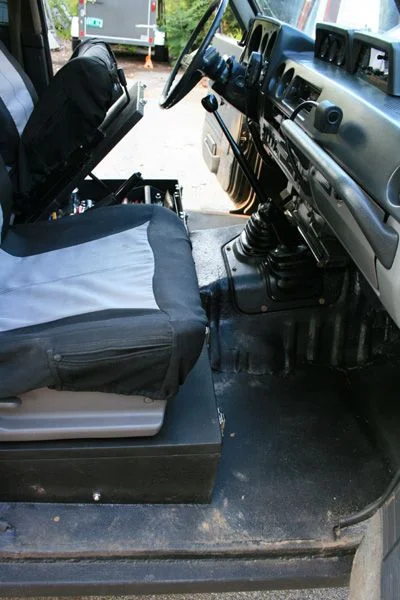

    Here it is nice and dirty after 7000 test miles, worked great. Both the rear drawers can now be used solely for camping and cooking stuff and the best part is that when not on a long trip the cargo boxes can be removed and all the tools, supplies and emergency gear can stay in the truck.

    I am quite happy with the amount of room in there, all my tools and recovery gear fit quite nicely and the wieght of those heavy items is about as low and forward as you can get. I used a marine hatch for access to the "center console" Without an actual console there it makes a great place for the dog to sit and provides a pass through to the back, very nice since we sleep back there.
    Still need to make a new shift boot cover.


    And lastly, the pile of rust that was my old floor.
    IMG_2131.jpg IMG_2130.jpg IMG_0939.jpg

    Last edited: Aug 17, 2007
  6. brokenparts

    brokenparts

    Messages:
    4,039
    Likes Received:
    83
    Joined:
    Apr 4, 2006
    Location:
    Hillsboro, OR
    holy shat batman... that's a great idea! Looks friggin good too!

  7. Dirtgypsy

    Dirtgypsy

    Messages:
    2,311
    Likes Received:
    14
    Joined:
    May 27, 2006
    Location:
    Dundee, Oregon
    looks great. are you concerned with those little latches holding all your gear, seats and yourself in one spot if you ever roll it?

    clint

    SEAWOLF likes this.
  8. brokenparts

    brokenparts

    Messages:
    4,039
    Likes Received:
    83
    Joined:
    Apr 4, 2006
    Location:
    Hillsboro, OR
    oh geez... mr. technical. :)

  9. OlympiaFJ60

    OlympiaFJ60

    Messages:
    1,032
    Likes Received:
    3
    Joined:
    Apr 9, 2002
    Location:
    Olympia, WA
    Very nice. Do you have plans/drawings for that or did you just measure cut and weld your way through.

    That's freakn' awesome.

  10. fowldarr

    fowldarr

    Messages:
    825
    Likes Received:
    5
    Joined:
    Feb 15, 2006
    Location:
    SE Idaho
    That's awesome, between those and the rear quarter/tailgate storage that we've seen the last couple of days, you could really load down your rig with everything you could possibly want.

  11. flybynight

    flybynight

    Messages:
    358
    Likes Received:
    1
    Joined:
    Jul 9, 2007
    Location:
    Oak Town, CA
    With no stiffening ridges in the floor, does it flex under your feat?
    Or do the boxes provide enough stiffening?

    BTW, a cam lock aka "coffin lock" would be a good solution for those who are worried about boxes opening at an inopportune time.

    Very nice idea and build!

  12. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR
    Very valid concern, and yes I was, but those little latches are $40 a piece, stainless steel, race application, load-rated, dead bolt draw latches. When they are closed a spring loaded dead bolt is pushed between the two halves, locking them together in all directions. Not only that but there is a safety catch that must be pressed in from the side for the latch to open. I actually think the box as a whole, including the latches, is stronger that the little OE pedestals. But all that is irrelevant since it is certainly safer than the rusted out seat mounts that were flapping in the breeze.
    I feel safe driving it. :D


    I have an exploded CAD drawing of all the parts that I had laser cut, not really a plan, but it seemed to work.

    Manchild likes this.
  13. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR
    Not a bit, I rolled the edges of the new floor pans and there is a slight bend about three inches in to provide a slope down to the sill, the front of the box acts as a rib and the whole thing is made from 11ga, I didn't want it to rust out again any time soon. :doh:

  14. NocalFJ60

    NocalFJ60

    Messages:
    3,549
    Media:
    6
    Albums:
    1
    Likes Received:
    4
    Joined:
    Aug 2, 2004
    Location:
    San Francisco Bay Area
    No ejection seats?:bounce:

    You got some skills. Looks great. Thanks for sharing. Way to be creative with that rust.

  15. mtb_rider

    mtb_rider

    Messages:
    881
    Likes Received:
    2
    Joined:
    Feb 17, 2007
    Location:
    Wilsonville, OR
    That's sweet. Definately a first. Expect followers!

  16. sirenmoses

    sirenmoses

    Messages:
    3,284
    Likes Received:
    2
    Joined:
    Dec 12, 2006
    Location:
    7400', central NM
    Wow!! Even with rust I'd've been afeared to cut up that much of my truck. Bowing to your ingenuity. :cheers:

    Hadn't thought about that location for fire extinguisher: do you carry a larger one in another location? I've worked a couple car fires that started as smoke coming from under the dash: not sure if that happened when I was driving I'd think to reach TOWARD the problem for the solution. Just my 2c.

    What lives in the marine hatch, a gub? I know my dog would love the perch!

    IIRC you have the rear seat removed, yes, so no issue tilting the seats back into where the rear seat would be flipped forward?

    Amazing skills, and love the flintstone photo. Maybe someone should make a shirt from that...

    Can't wait to see what you come up with next. :popcorn:

  17. overhanger

    overhanger

    Messages:
    1,065
    Likes Received:
    160
    Joined:
    Jun 11, 2004
    Oh Yeah?

    You should see his Pappy's truck! Heard of the "Trickle Down" theory? :D
    Both the Rowland boys got skills!

  18. D'Animal

    D'Animal Rescuer of Beagles & Landcruisers Moderator

    Messages:
    21,172
    Media:
    180
    Albums:
    8
    Likes Received:
    403
    Joined:
    Mar 31, 2006
    Location:
    Central California
    Looks really nice.

  19. kling-on

    kling-on Kool Arrow

    Messages:
    5,472
    Media:
    12
    Albums:
    1
    Likes Received:
    96
    Joined:
    Apr 26, 2003
    Location:
    Pimpin part in SanAntonio TX
  20. kevinmrowland

    kevinmrowland Forum Lifer

    Messages:
    2,278
    Media:
    16
    Albums:
    1
    Likes Received:
    29
    Joined:
    Sep 2, 2005
    Location:
    Eugene, OR

    I haven't settled on fire extinguisher locations yet, I have one up front and one in the back but I keep moving them around trying to find a place I like.

    The hatch has all the usual center console stuff: paper, pens, little plastic tackle box of small stuff, bag of change............ There is about the same amount of space as the OE console, just flatter. :doh:

    And the seat is removed, but the cargo boxes fill the same space. When the seat is in you just flip the latches and the gas shocks take over. With the seat flipped down or the cargo boxes in, you need to flip the seat back forward, flip the latches and push on the seat slide handle. Then the gas shocks take over, pushing the lid up and the seat forward at the same time.
    Takes a minute to write but only a few seconds to do. I think it is a reasonable compromise for the amount of storage it afforded.
