Turbo 3FE FJ80 Build

Discussion in 'AZ- Copper State Cruisers' started by Dimples, Dec 21, 2016.

  1. murf

    murf Lifer Supporting Vendor SILVER Star

    Messages:
    10,016
    Media:
    179
    Albums:
    4
    Likes Received:
    4,536
    Joined:
    Jun 24, 2007
    Location:
    Scottsdale, Arizona
    turbo love(r) for Ron~!


    Dimples and LandCruiserPhil like this.
  2. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

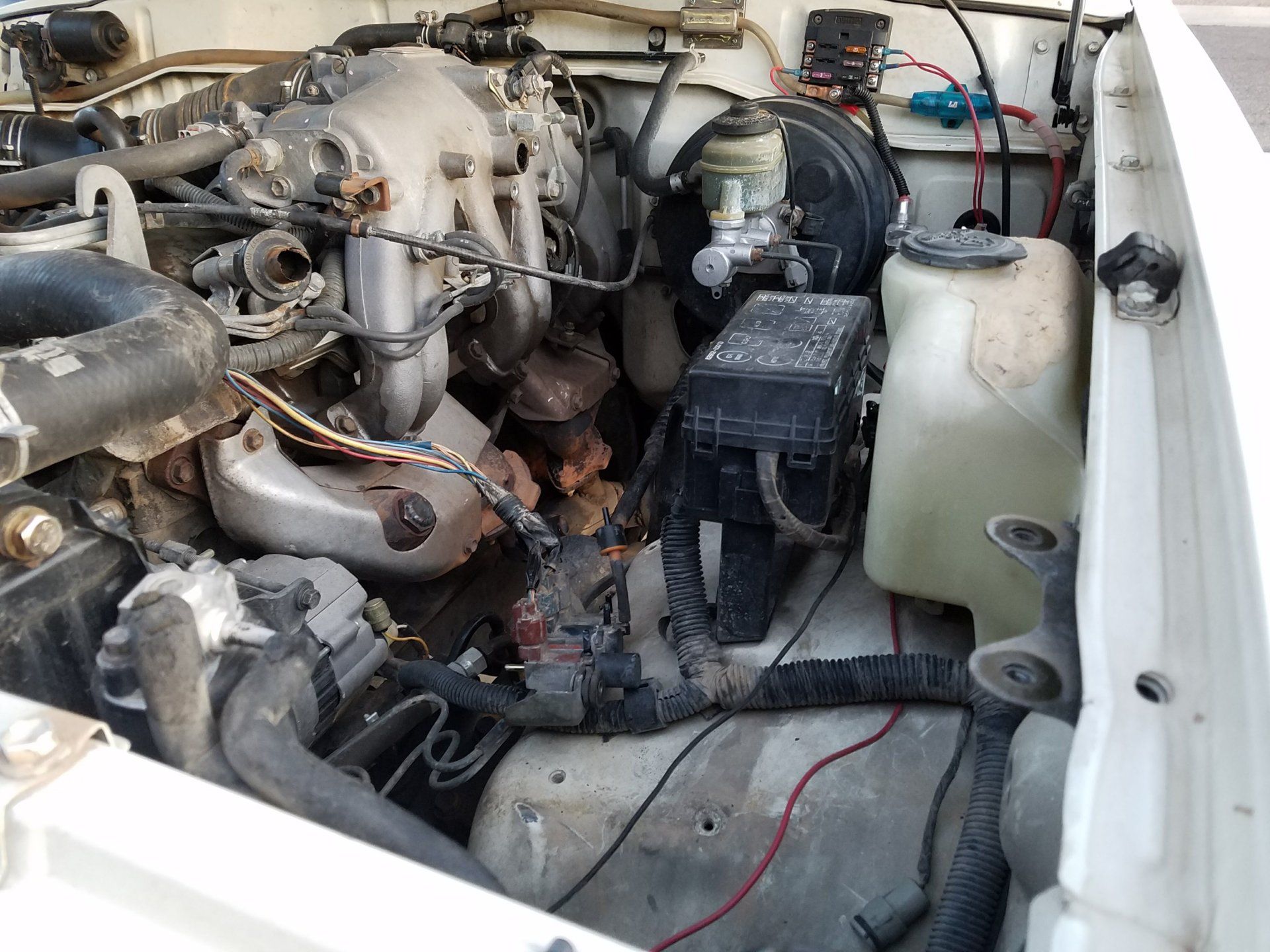

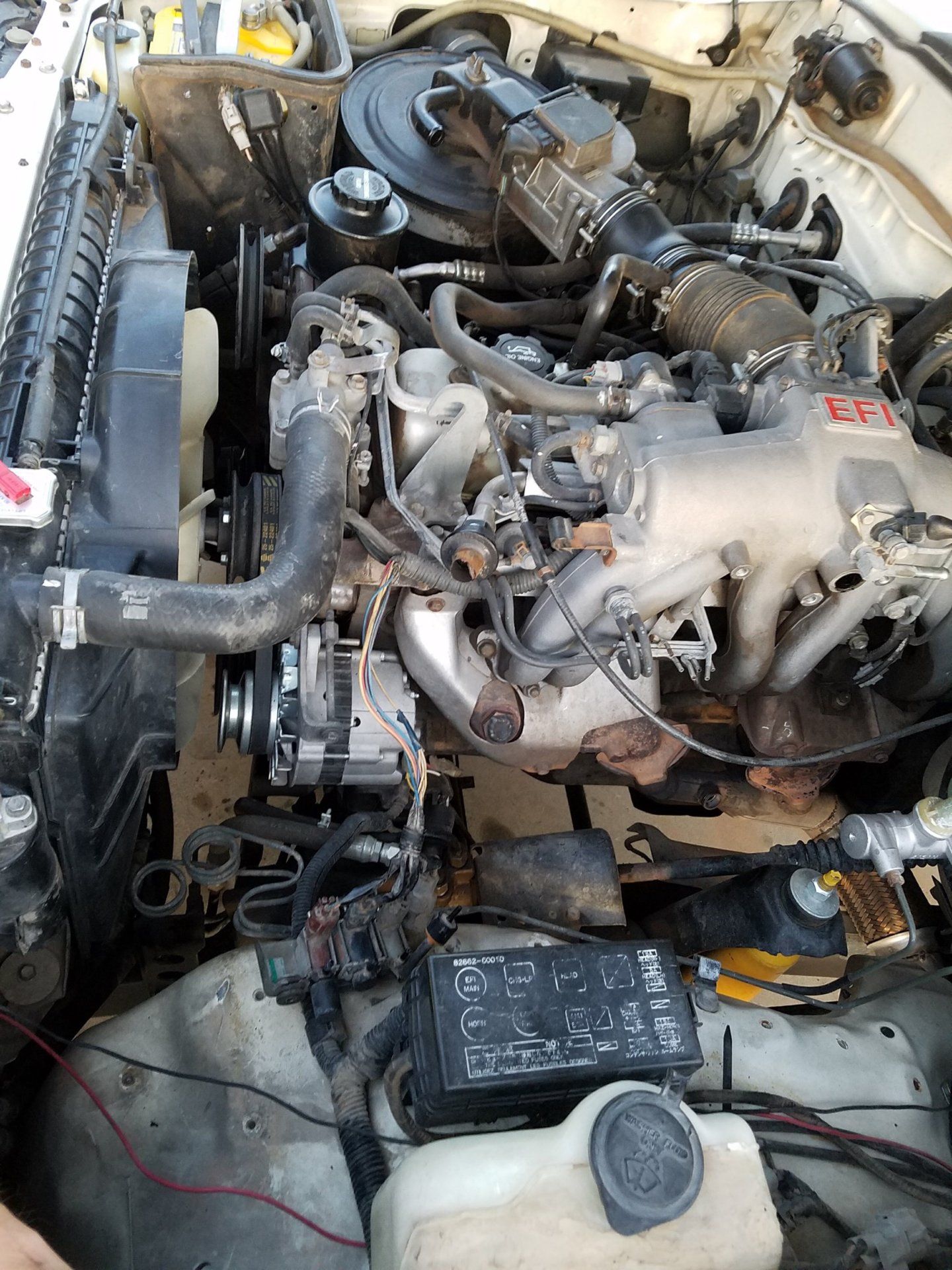

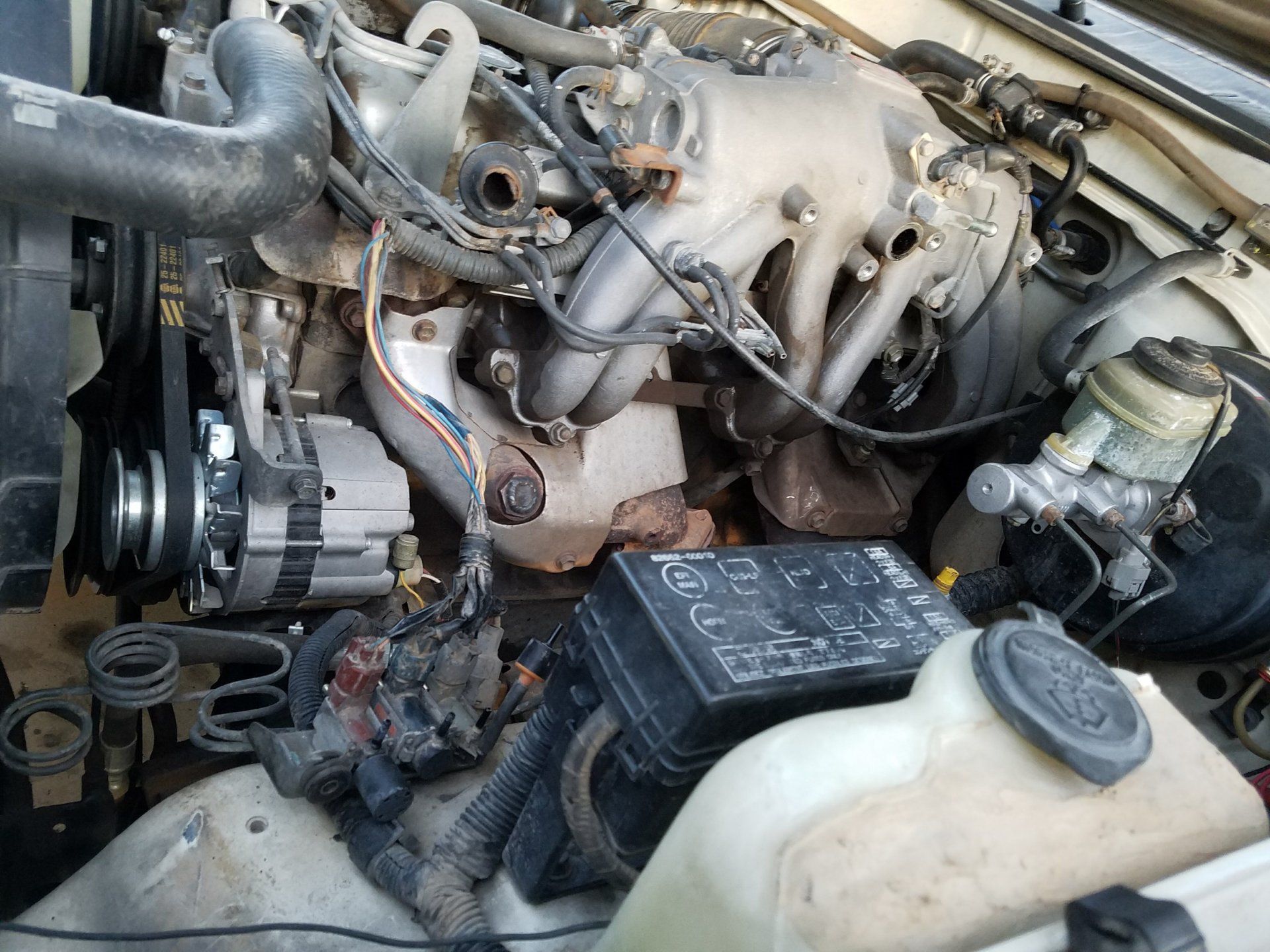

    Well most of the emissions system is out of the way now to pull the intake and do some clean up and block off some unneeded holes.
    9EEF8DC9-3C1C-49BF-925E-21F74AE1A01A.jpeg 1882D7E3-2BA7-4DC6-9920-E31718960CA1.jpeg EC5A96AC-2B61-40DB-8739-2A9F0B45569F.jpeg

    ScottyDog, murf and red66toy like this.
  3. KRArtice

    KRArtice

    Messages:
    80
    Likes Received:
    69
    Joined:
    Feb 16, 2017
    Location:
    Hill Country

    Looks like you’ve already got some custom exhaust workin. I’ve got to figure out how to disassemble mine with the nuts being rusted out.

  4. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Sawzall

    LandCruiserPhil likes this.
  5. KRArtice

    KRArtice

    Messages:
    80
    Likes Received:
    69
    Joined:
    Feb 16, 2017
    Location:
    Hill Country
    Yeah that’s how I got 3 out of 4. Got to figure out how to extract the stud in that tight space...

  6. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Ya I cut everything out up to point it goes over the frame in front of the firewall. Then the two flanges came out relatively drama free

  7. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Well took the intake manifold off for cleaning. While I have it off going to adjust the valves, clean and paint the valve cover, and replace some hard to reach hoses. My waste gate is water cooled so this is probably a good time to consider plumbing for that.

    ScottyDog likes this.
  8. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

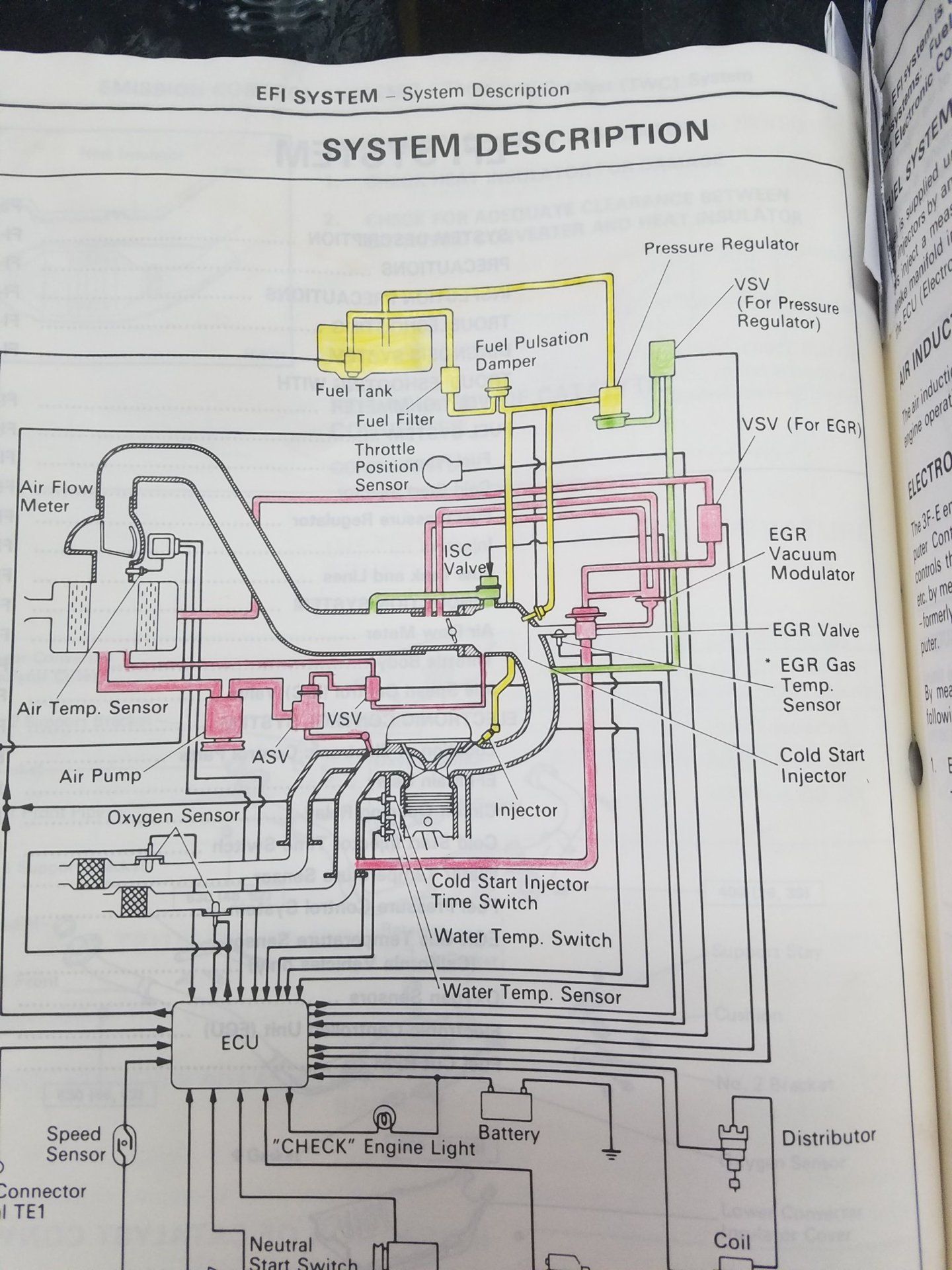

    I color coded my vacuum schematics so I know what is going and what is staying. Yellow is fuel system, and is colored just for clarity. Green is staying and red is eliminated. Should make life and troubleshooting easier.

    D821223C-43A1-47B4-ADDD-D4488D65231D.jpeg BC98A445-D8DA-403B-8F3C-5FD733D3A416.jpeg

    KRArtice likes this.
  9. Vanny

    Vanny

    Messages:
    1,128
    Likes Received:
    78
    Joined:
    Jan 12, 2006
    Location:
    Ladner, BC, Canada
    And in a few months, all of Canada. Watching this thread from up north :)

  10. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Of all the weird stuff to slow me down. I didn’t think the valve cover would be an issue, but here I am. The valve cover is made up of two pieces of steel one inside the other with a very narrow gap between them. The inside piece acts like an oil seperator and splash guard with several holes along its lower edge for oil to drip back down. The narrow passage feeds the pcv and main crank ventilation tubes, or should. Problem is the passages are all clogged up with soot and carbon. My 3fe probably hasn’t had pcv working for years.

  11. GWcruiser

    GWcruiser

    Messages:
    609
    Media:
    15
    Albums:
    3
    Likes Received:
    46
    Joined:
    Jun 30, 2013
    Location:
    PNW
    Also an issue if EGR gets plugged or otherwise doesn't breath well.

    Side note, on an early EFI Z car I lost a few MPG when I tried defeating the EGR but just 'knew' I was getting more power. EGR valve seat later clogged and started sticking open which caused poor idle and lean running... lol. So I went full circle, put all the smog stuff back on and the car started running better. Sometimes the Japanese knew what they were doing.

  12. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

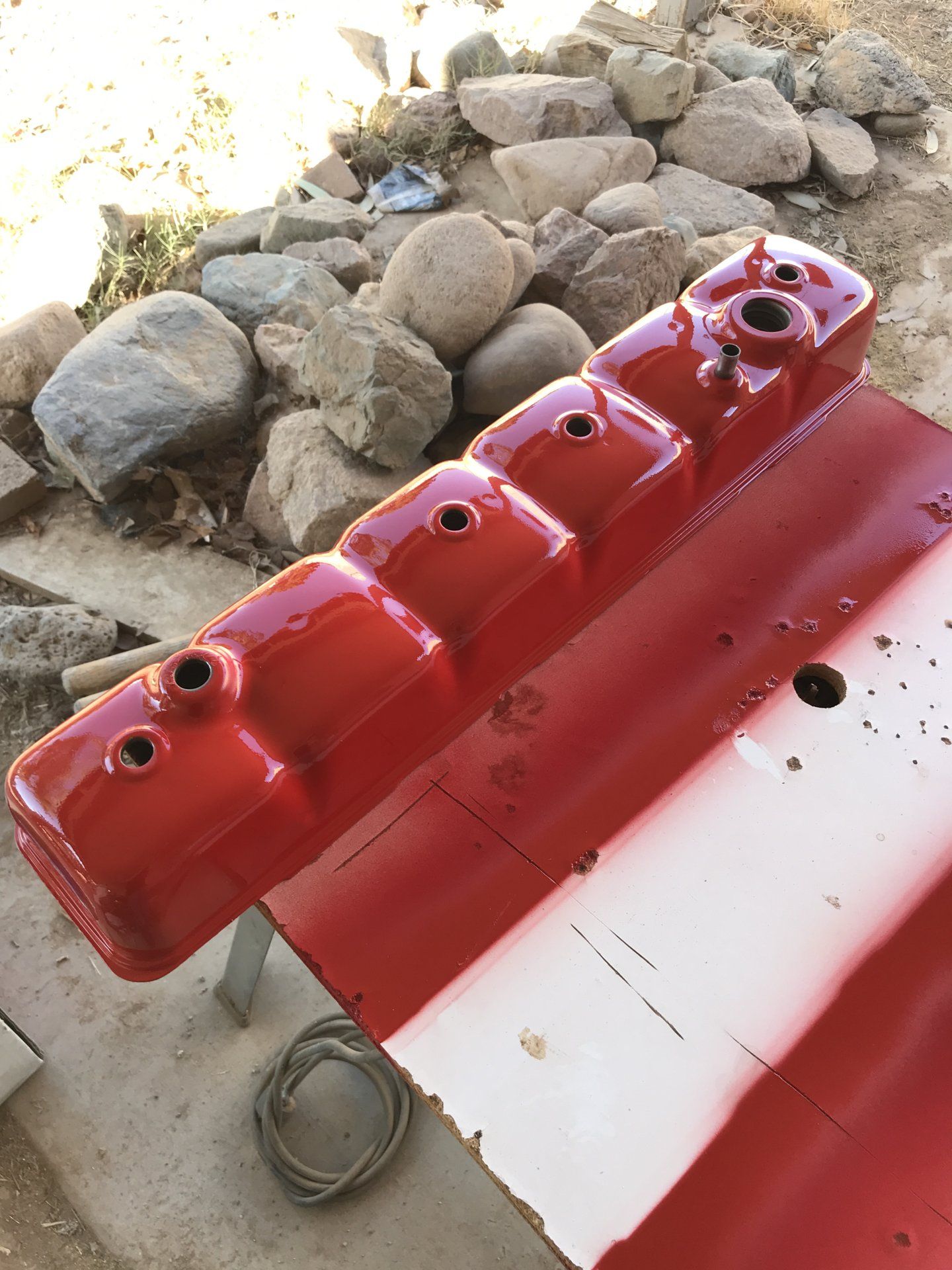

    Here is the valve cover painted after I got all the carbon removed from the passageways. Used carbon-off which is some serious stuff. It is also a very effective paint stripper.

    The red matches my accent stripes.


    jclarke450, murf, Saddletramp and 2 others like this.
  13. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Got the valves adjusted. Now I need to reroute some misrouted cables and the valve cover goes back on.

    jclarke450 likes this.
  14. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

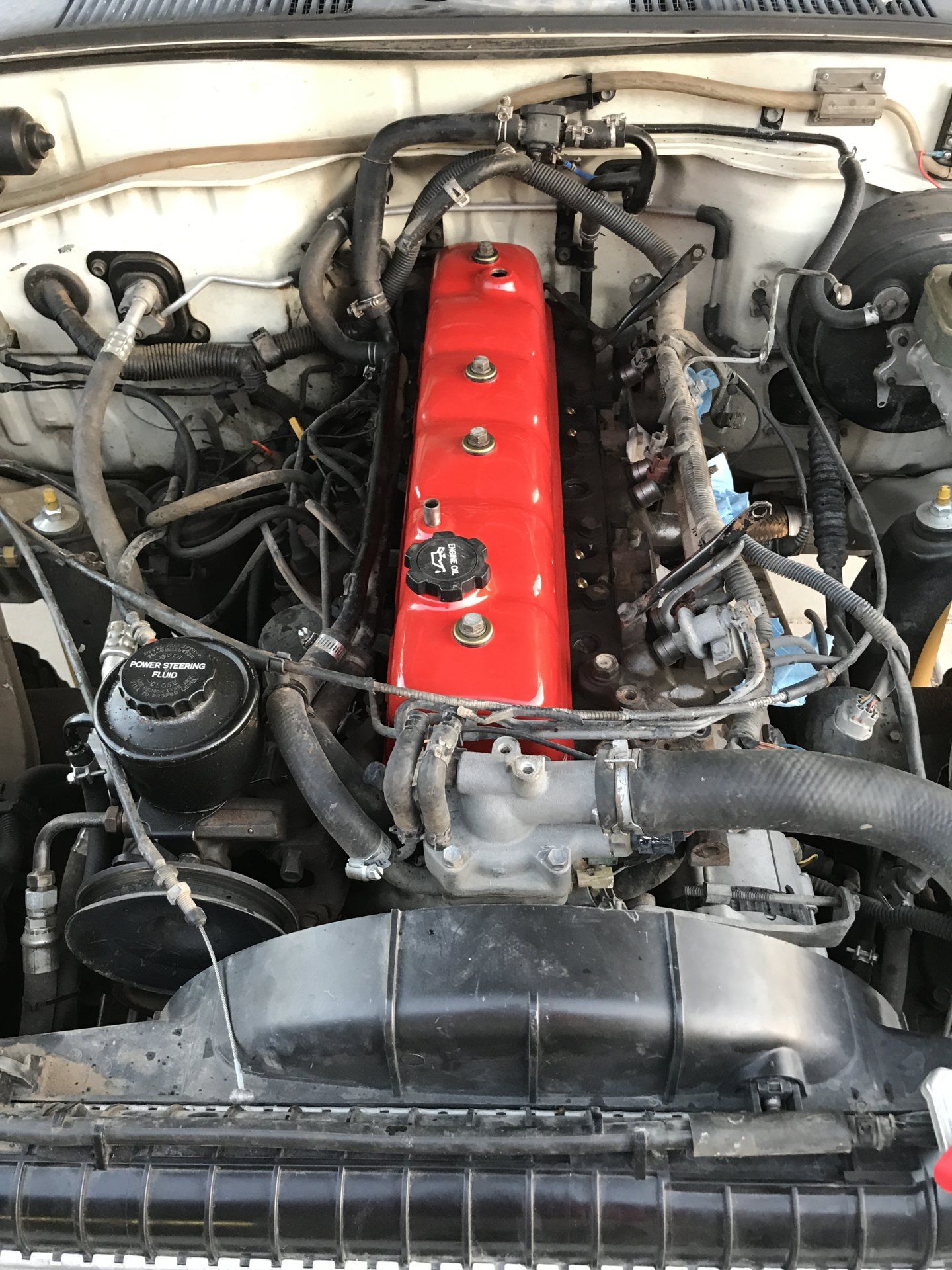

    Valve cover back home.


    Chrismanjs and Abigail like this.
  15. Chrismanjs

    Chrismanjs

    Messages:
    595
    Likes Received:
    499
    Joined:
    Dec 8, 2015
    Location:
    Tempe AZ
  16. Saddletramp

    Saddletramp GOLD Star

    Messages:
    3,770
    Media:
    3
    Albums:
    1
    Likes Received:
    2,457
    Joined:
    Mar 24, 2006
    Location:
    Scottsdale, AZ
    Looking great Ron

  17. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

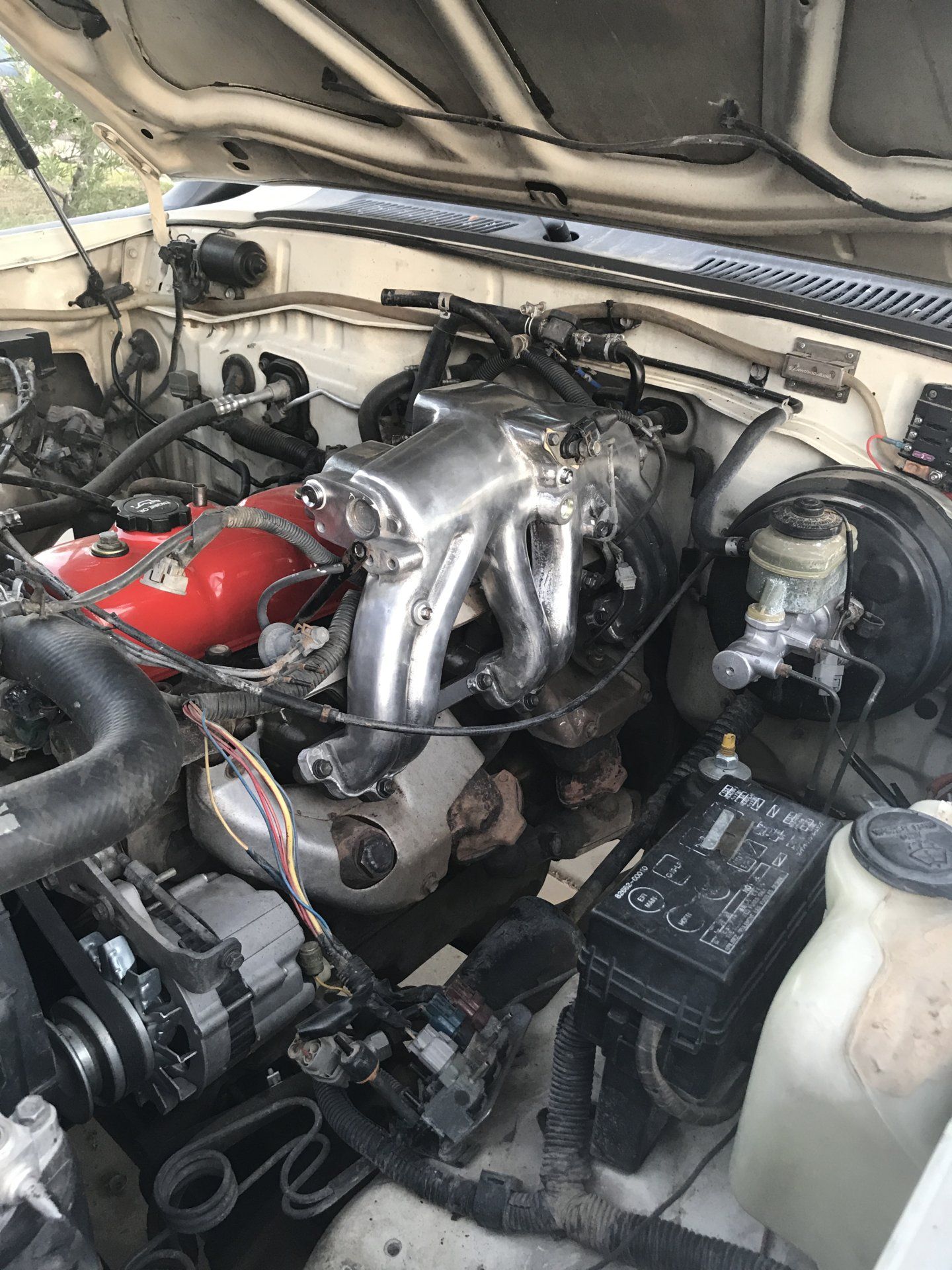

    Intake manifold reinstalled after some cleaning.

    77EFA5E9-5E86-43AC-BC13-9AF1F561D2FB.jpeg 1FD23FDE-A2EC-4EF3-A5E8-2248FE260B49.jpeg

    Saddletramp and LandCruiserPhil like this.
  18. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Cleaned up the wiring mess that was the VSVs. I eliminated two of the 3 so only the Fuel Pressure VSV remains.

    old mess:
    wiring separated and half loomed

    Wiring fully loomed and new VSV location


  19. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona
    Inter cooler install location


    jclarke450 and Saddletramp like this.
  20. Dimples

    Dimples I owe my soul to the TRD store.

    Messages:
    1,246
    Media:
    6
    Albums:
    2
    Likes Received:
    929
    Joined:
    Nov 19, 2015
    Location:
    Arizona

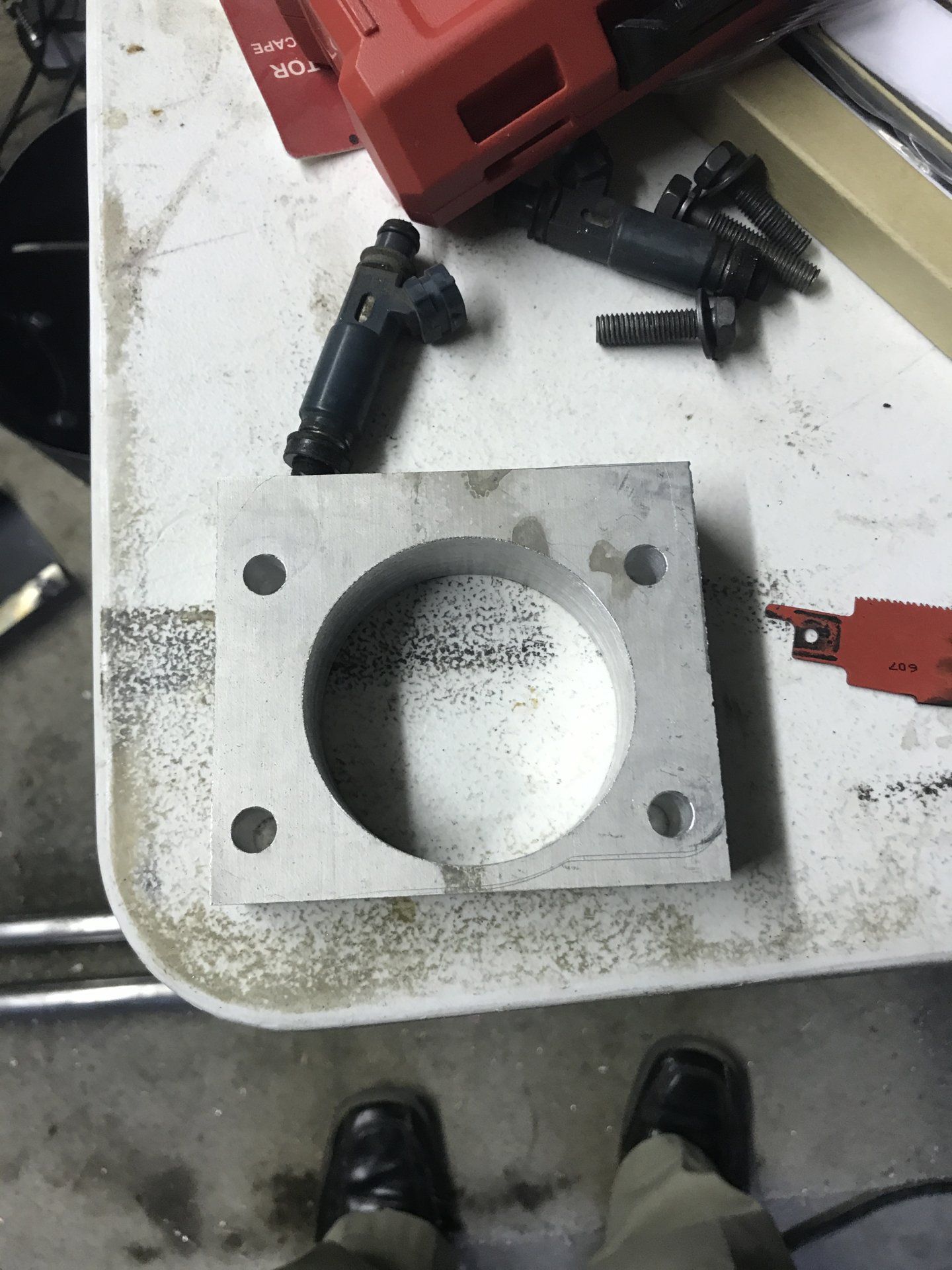

    Received some aluminum stock today so I was able to start machining my throttle spacer plate/additional fuel injector holder. Made pretty good progress. Just meet to machine a fuel rail tomorrow.

    E9A93EFA-8021-4070-83AA-A1D9394585F4.jpeg B0248DFB-2DDD-4D4D-8150-421736E57087.jpeg
