Thread Specs for OEM Oil Pressure Gauge Sender?

Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
Does anybody know the thread specs on the OEM oil pressure sender? I thought it was 1/8" NPT, but upon trying to install a t-adapter, that is slightly too large for the sender port. We also tried threading the sender into the female 1/8" NPT side, but it is way too loose.


OSS

SILVER Star
Joined
Jun 30, 2017
Messages
3,888
Location
Oblivion
Nothing on any Toyota is NPT. If it’s a tapered threaded hole, is BSPT. Close but different enough to not quite fit.

Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
Nothing on any Toyota is NPT. If it’s a tapered threaded hole, is BSPT. Close but different enough to not quite fit.
Thank you. That's some level of progress. Do you have any idea if the OEM sender port in the oil filter block is tapered?


OSS

SILVER Star
Joined
Jun 30, 2017
Messages
3,888
Location
Oblivion
Just by looking at photos and knowing how it screws in, it looks tapered to me



Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
@OSS, I think your BSPT tip is the winner. It does look tapered. Presuming it is BSPT, this looks like the product I need: Amazon product 1/8 BSPT male with three ports (2x 1/8 NPT, 1x1/8 BSPT). This lets me use the sender tap, connect the NPT oil pressure sensor, the NPT low oil pressure sender, and the BSPT OEM oil gauge sender in one matrix.

What say you, professor?

  • Like
Reactions: OSS

Spike Strip

Let's Go Brandon !
SILVER Star
Joined
Nov 22, 2005
Messages
15,635
Location
Kalifailure
What's the appx size of the sender (overall)? The Autometer one I plan to use is 7.5x5.5 inches. A bit large to just stick in that limited space by the oil cooler and filter just using a 1/8 BP tapered to a 1/8 NPT ... I was thinking of using a couple feet of braided stainless line to move the sender onto the fender or otherwise out of the way ...

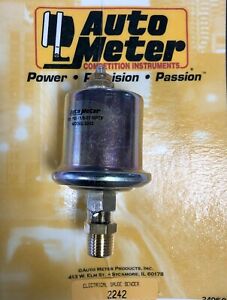

Autometer sender:


Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
What's the appx size of the sender (overall)? The Autometer one I plan to use is 7.5x5.5 inches. A bit large to just stick in that limited space by the oil cooler and filter just using a 1/8 BP tapered to a 1/8 NPT ... I was thinking of using a couple feet of braided stainless line to move the sender onto the fender or otherwise out of the way ...

Autometer sender:

The Glowshifter sender for the pressure gauge is far smaller. You can see it in the photo that shows all the parts. Amazon product
You can see here that @db3 did what you describe. Low Oil Pressure & High Temp Alarm - https://forum.ih8mud.com/threads/low-oil-pressure-high-temp-alarm.1144151/#post-14042276 I'm just uncomfortable with such a significant change to such a critical system. I want to keep it all solid metal fittings/adapters.

Last edited:

Spike Strip

Let's Go Brandon !
SILVER Star
Joined
Nov 22, 2005
Messages
15,635
Location
Kalifailure
The Glowshifter sender for the pressure gauge is far smaller. You can see it in the photo that shows all the parts. Amazon product
You can see here that @db3 did what you describe. Low Oil Pressure & High Temp Alarm - https://forum.ih8mud.com/threads/low-oil-pressure-high-temp-alarm.1144151/#post-14042276 I'm just uncomfortable with such a significant change to such a critical system. I want to keep it all solid metal fittings/adapters.

I feel the same way, but I'm not too worried about a couple feet of Stainless braided tubing that I would also cover with quality split loom or rubber hose.

Don't know why the Autometer sender is so large, but they are known for accurate readings and reliability. My other gauges are all Autometer so want to stay the same.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
17,129
Location
EAST COAST
Website
vintageteqparts.com
its a J.I.S. Taper Pipe thread tap needed .........

the tech is : 1/8 -28 JIS

the BSP will get you by most likely , and i have gotton by too with one , but . finally invested in JIS tap and dies set a while back

notable and well NOTABLE difference for the better !

how ever JIS has MORE taper then a BSP by a small but notable amount ........

Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
its a J.I.S. Taper Pipe thread tap needed .........

the tech is : 1/8 -28 JIS

the BSP will get you by most likely , and i have gotton by too with one , but . finally invested in JIS tap and dies set a while back

notable and well NOTABLE difference for the better !

how ever JIS has MORE taper then a BSP by a small but notable amount ........
It that perhaps JIC rather than JIS?

Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
I feel the same way, but I'm not too worried about a couple feet of Stainless braided tubing that I would also cover with quality split loom or rubber hose.

Don't know why the Autometer sender is so large, but they are known for accurate readings and reliability. My other gauges are all Autometer so want to stay the same.
I don't blame you.

Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
its a J.I.S. Taper Pipe thread tap needed .........

the tech is : 1/8 -28 JIS

the BSP will get you by most likely , and i have gotton by too with one , but . finally invested in JIS tap and dies set a while back

notable and well NOTABLE difference for the better !

how ever JIS has MORE taper then a BSP by a small but notable amount ........
Can you provide more detail on "NOTABLE difference" please?


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
17,129
Location
EAST COAST
Website
vintageteqparts.com
NO TOYOTA Engine block or Cylinder head or gear box or axle , has Taped Female threads i am aware of ,

ONLY and always i have noticed the Sensor , sender , switch , or any part like a Fluid fitting for example has the MALE Tapered threads ONLY

if a sensor sender or any above part that attaches to a Toyota PRIMAY major parts application like a engine or transmission transfer-case or axle housing has STRAIGHT threads ? \

there are INDEED 2 scenarios :

- 1 : a copper or aluminum or steel CRUSH ring is used to make a seal and retain torque yield

- 2 : a inside Female beveled surface mates with a MALE beveled surface to form a torque yield fluid or air proof seal much like a feral and compression nut on a FUEL line from pump outlet to carb inlet


if im in-correct here ? 🤔


please chime in with a concrete example of the opposite scenario ?

i also have never seen a DOUBLE tapered mating threads situation or application on any Toyota ?


here is what i refer to in a TECH Diagram , out of a T-TEN Student Course book of basic fundamentals etc .......








Joined
Aug 9, 2007
Messages
825
Location
Tucson, AZ
NO TOYOTA Engine block or Cylinder head or gear box or axle , has Taped Female threads i am aware of ,

ONLY and always i have noticed the Sensor , sender , switch , or any part like a Fluid fitting for example has the MALE Tapered threads ONLY

if a sensor sender or any above part that attaches to a Toyota PRIMAY major parts application like a engine or transmission transfer-case or axle housing has STRAIGHT threads ? \

there are INDEED 2 scenarios :

- 1 : a copper or aluminum or steel CRUSH ring is used to make a seal and retain torque yield

- 2 : a inside Female beveled surface mates with a MALE beveled surface to form a torque yield fluid or air proof seal much like a feral and compression nut on a FUEL line from pump outlet to carb inlet


if im in-correct here ? 🤔


please chime in with a concrete example of the opposite scenario ?

i also have never seen a DOUBLE tapered mating threads situation or application on any Toyota ?


here is what i refer to in a TECH Diagram , out of a T-TEN Student Course book of basic fundamentals etc .......




Thank you for the contribution of information. It is curious that the sender appears to have a tapered thread, yet no crush ring appears visible. In fact, some threads are still visible as shown in your diagram.


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
17,129
Location
EAST COAST
Website
vintageteqparts.com
Thank you for the contribution of information. It is curious that the sender appears to have a tapered thread, yet no crush ring appears visible. In fact, some threads are still visible as shown in your diagram.


NO crush rings are involved in any Toyota TAPER male threads i have ever seen or know of ............

ONLY toyota Straight threads like service plugs have crush rings / gaskets to be clear


do you follow the TECH with what in saying here ?

if not i can try to better explain

matt
