Temp sensor wiring 78 (1 Viewer)

[GA Architect]

For you Matt

View attachment 2235780

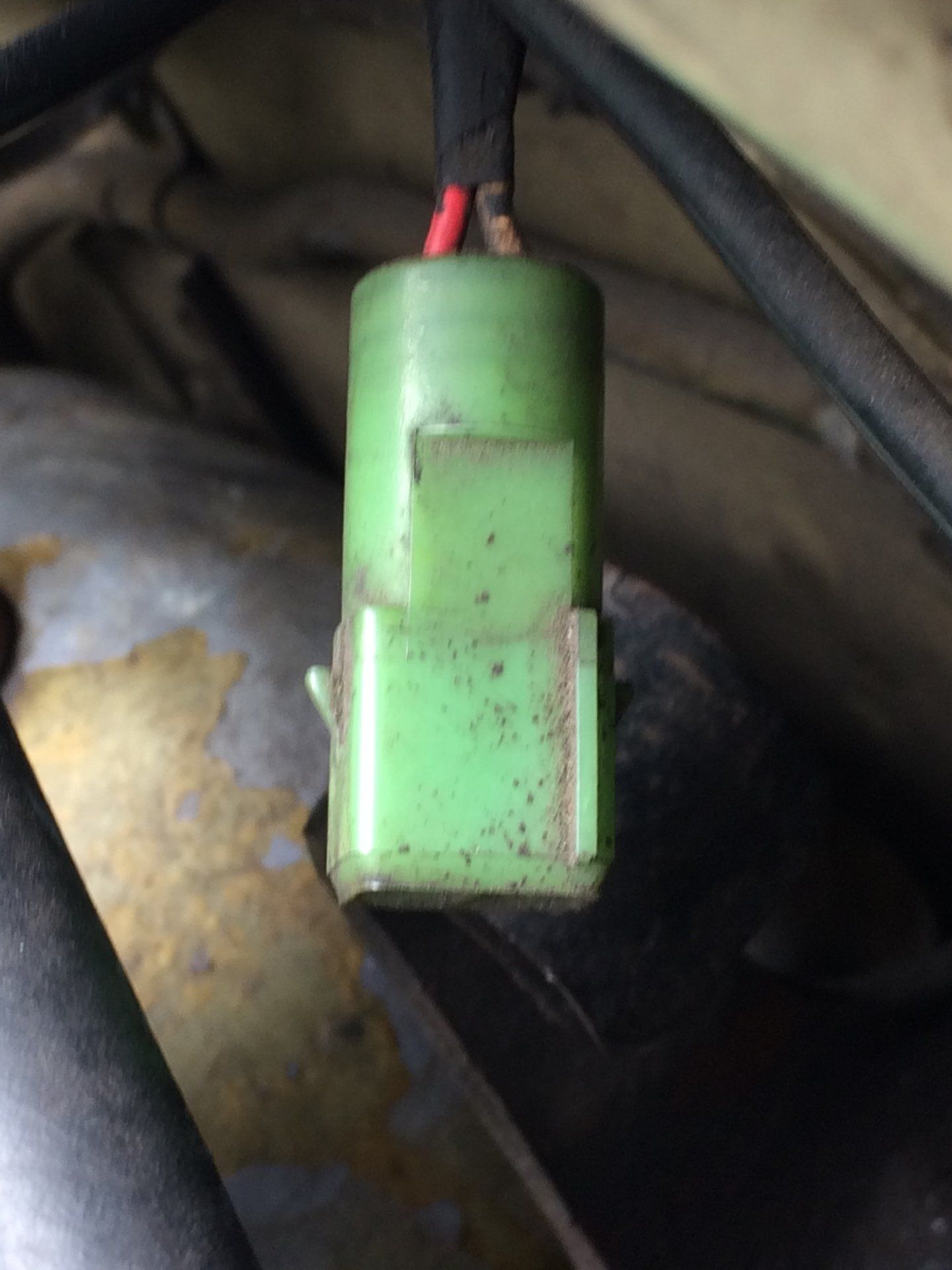

Looks like this now, well just before I installed the Sniper.



[Catching Neutral]

Thank you GA. How is the sniper working out



[GA Architect]

Thank you GA. How is the sniper working out

It's not, right now......

BUT, a new part to replace a defective one, should be on its way.......



[Catching Neutral]

i look forward to seeing it



[ToyotaMatt]

i look forward to seeing it

just one question , ?

i know it looks like a freeze plug , but i see a piece of old vacuum hose over a potential Recessed HEX hole spot plug possible in your green arrow photo ?

i would double verify thats indeed a freeze plug now
\

if it is , you simply have a older non-california cylinder head with ONLY

2 threaded coolant ports towards the back the two we outlined last night where

your New Hose BIB will Go , and the first new Temp Sensor Union for gauge in dash

if your Not required to take smog inspections , then simply deleting the thermo sensor and capping off its wire , for potential later use if needed is a good plan in my opinion ...........

- i am curious ?

where is your choke solenoid Wire's ? / wire


if u have a 2 wire one then on the fender , but if u have a single wire one then ?

- i do recall seeing a single wire choke solenoid leed coming from one of the
2 green wire plug terminals in the past ?



[Catching Neutral]

Matt,
Double checked , it is a freeze plug. Had a vacuum port cap in it.
No smog requirements in my state.
The choke solenoid is there, I am unable to bring it up and around toput it in its holder(clamp) due to the way it was put together. It’s on my list but I haven’t looked yet at how to accomplish that.



[Catching Neutral]

Much better



[Catching Neutral]

Here you go.



[ToyotaMatt]

I like working with you.......


you provide exact tech spec data i need !

​



[ToyotaMatt]

​

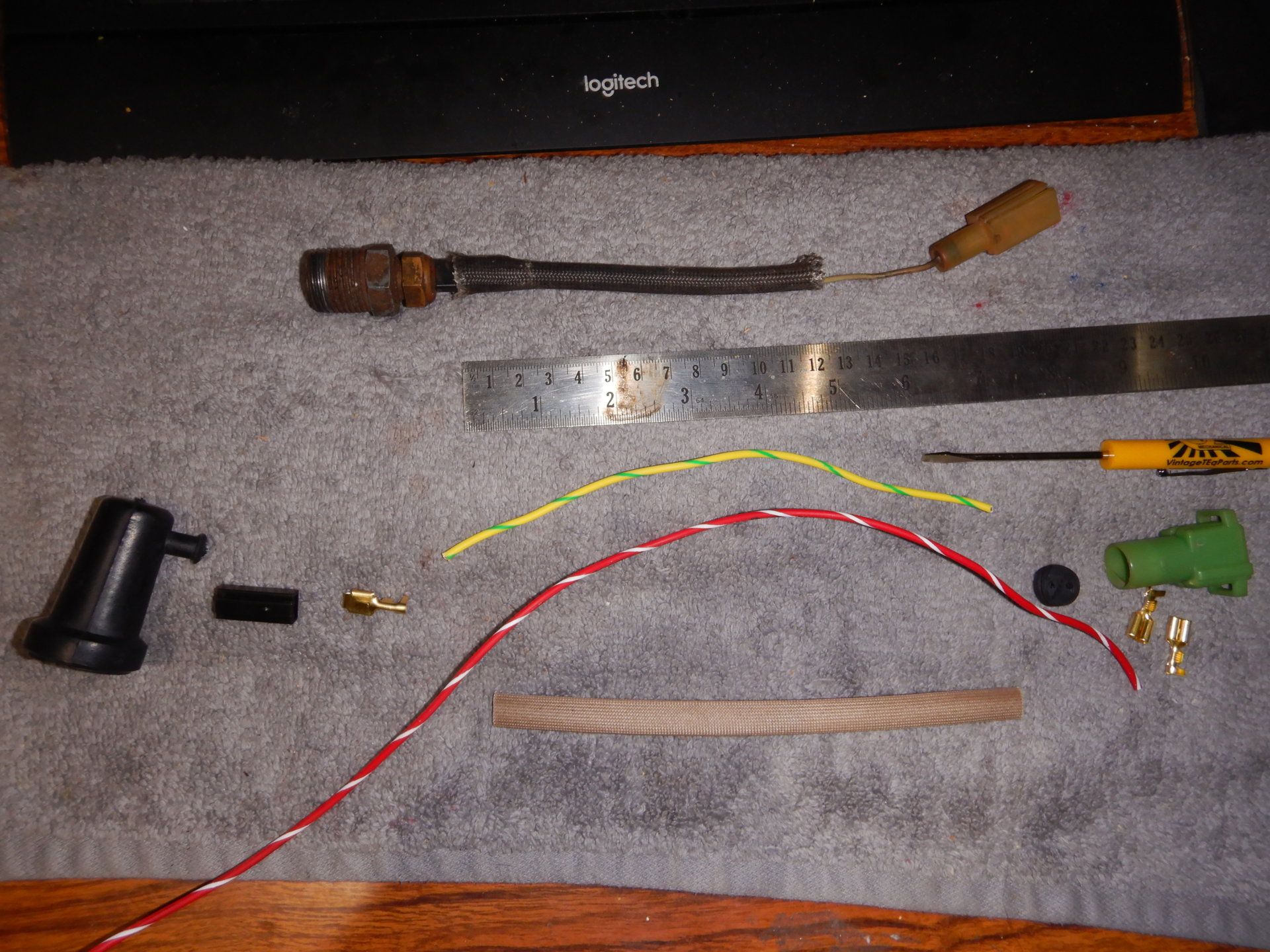

ok , here we are from start to a FSM finish level .

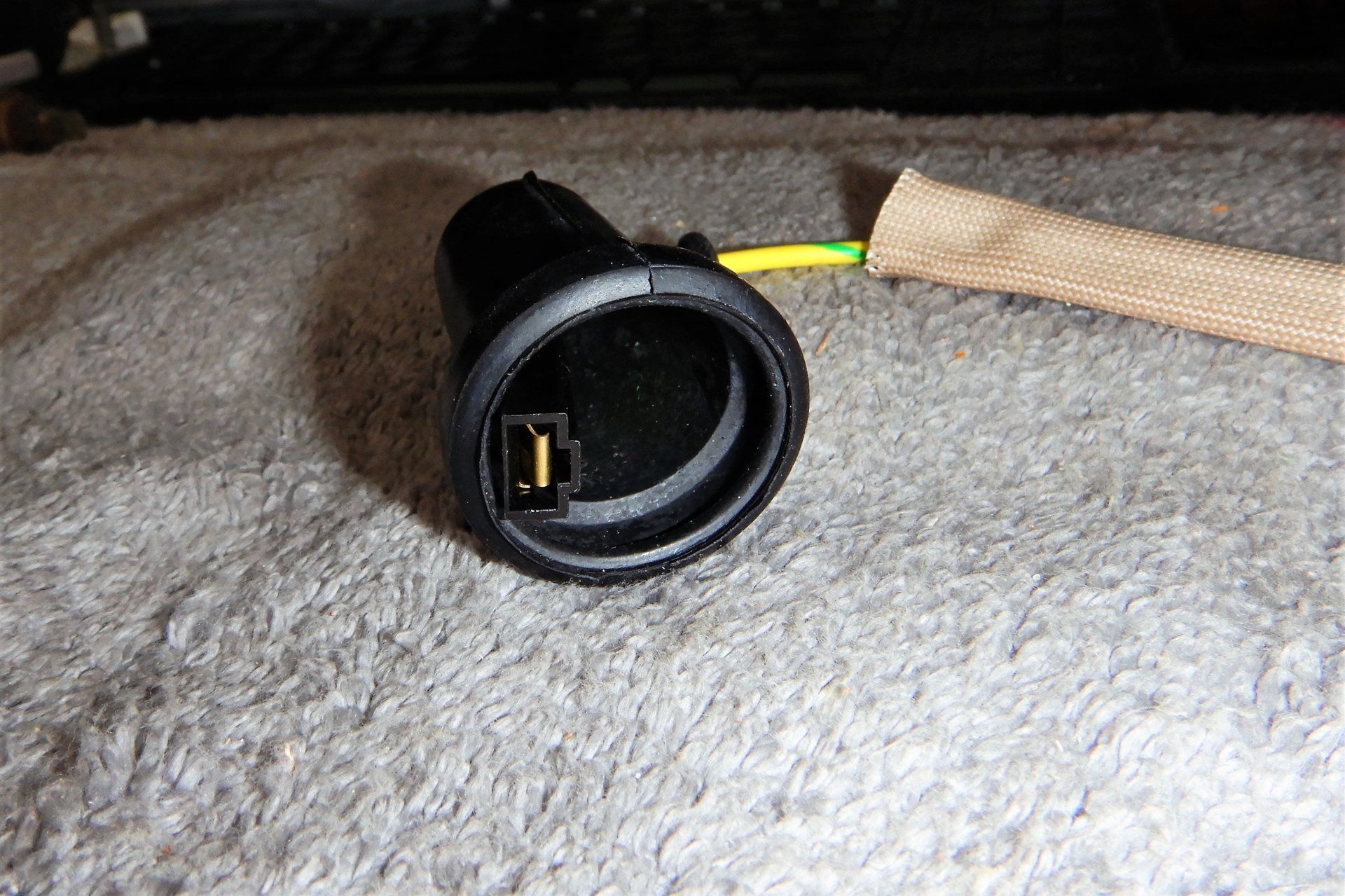

- your long dormant Thermo Red Wire will simply tuck up inside the Flame Proof Loom for possible later Use ....

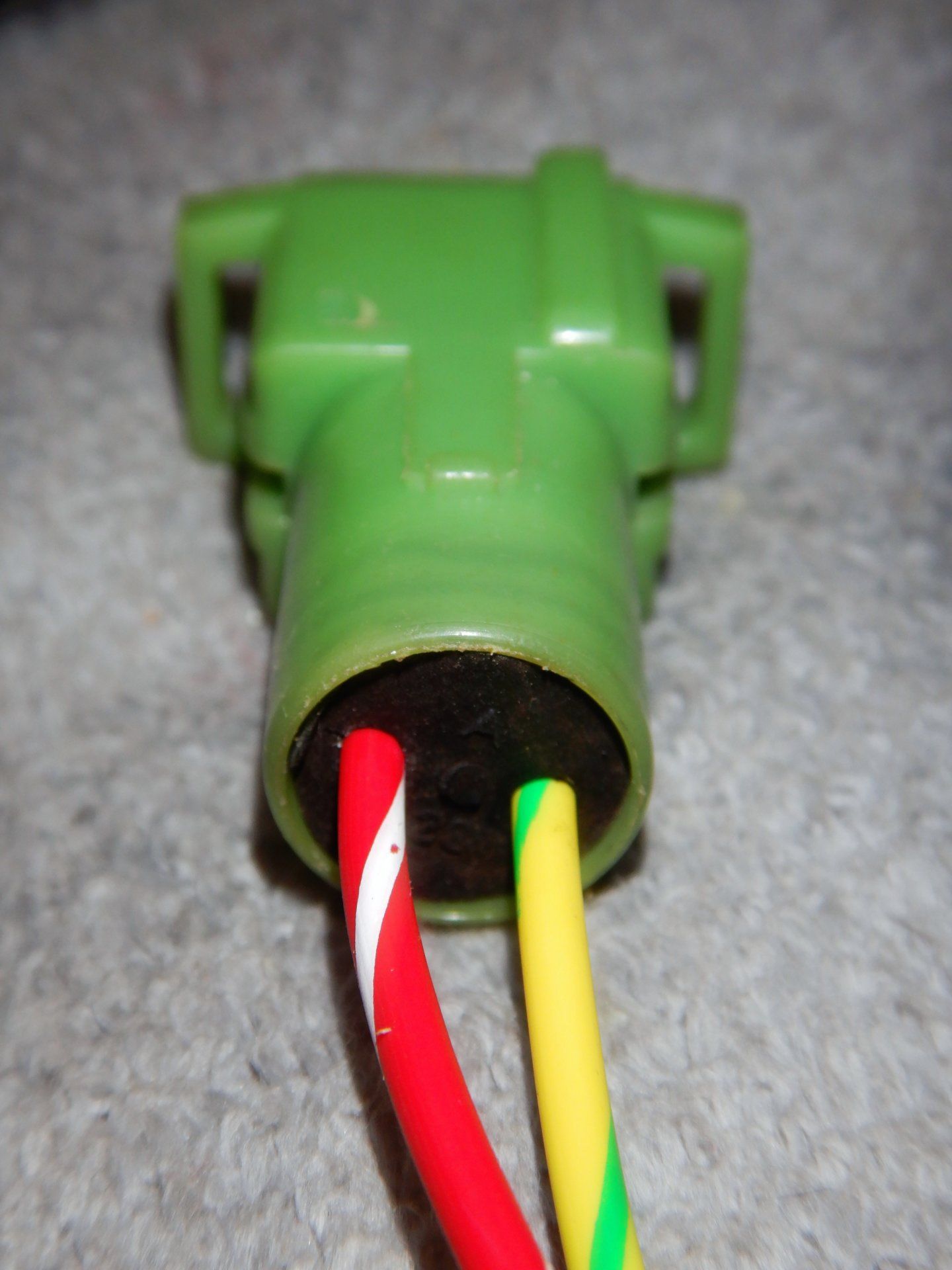

- i had i last NOS green matching Connector , and followed your profile photos as we discussed

- i will cap off the thermo wire end for u

- well , Plug and Play she is !

​



[ToyotaMatt]



[Catching Neutral]

Awesome, Looks great. PM me PayPal info and I’ll take care of it. Going on Vaca for spring break a Saturday. I’ll have something to look forward to when I get home.



[ToyotaMatt]

Awesome, Looks great. PM me PayPal info and I’ll take care of it. Going on Vaca for spring break a Saturday. I’ll have something to look forward to when I get home.

Thanks

PM sent



[Catching Neutral]

I’ll post up some photos here once I get the project going



[Catching Neutral]

One more problem solved. And it makes me so happy. The wiring from Toyota Matt looks great and confirms that the temperature sensor and temperature gauge work. I will leave it connected to one of the current temp sensors for now as I am acquiring the parts and pieces to replace all the heater and radiator hoses. Also rigged a way to get the in dash gauges covered with the radio blank. Looks like a PO butchered the factory hole.
