Source for vacuum advance chamber on an 86 FJ60 Dizzy (1 Viewer)

[Bad Coco]

My vacuum advance is toast and I'm having a heck of a time finding a new one. I am a FJ-40 guy running a 60 dizzy. Can anyone here help point me in the right direction? Or what have you guys done when your vac advance chamber goes kaput?

Thanks in advance,
Eric



[gt7058a]

Those things are NLA from Toyota and aftermarket sources but rare NOS ones are available on occasion. I think your best bet is a used dizzy. There is a thread on here where someone resealed the diaphragms.



[mrboatman]

Get a hold of @4Cruisers he has a salutation for that problem.



[Spike Strip]

Yes, @4Cruisers rebuild uses a new Denso single diaphragm advancer curved for desmog.

I couldn't find the exact thread for large cap dissy, but like this:

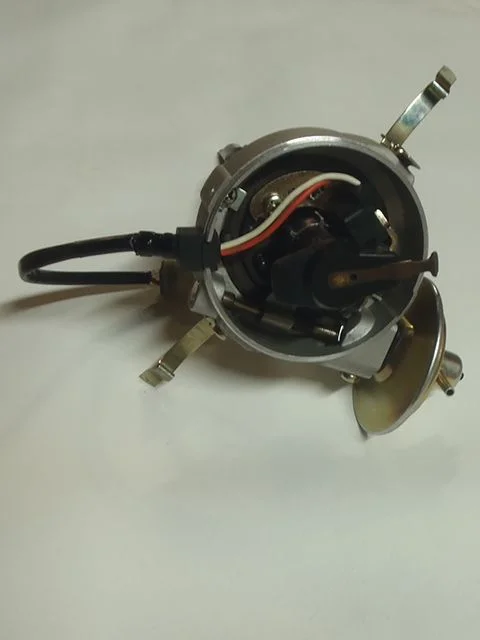

Distributor Tech - '75 through '77 Conversion to Electronic Ignition Using Toyota/NipponDenso Parts

This evening I finished upgrading a lightly used 2015 Trollhole electronic distributor using Toyota/NipponDenso parts. I replaced the stationary (breaker) plate with a '78 through '80 2F stationary plate, replaced the electronics with a new Camry (Celica, not Camry - it was late at night when I...

forum.ih8mud.com



[Pighead]

Get a hold of @4Cruisers he has a salutation for that problem.

Yup, he also has a solution for that problem.

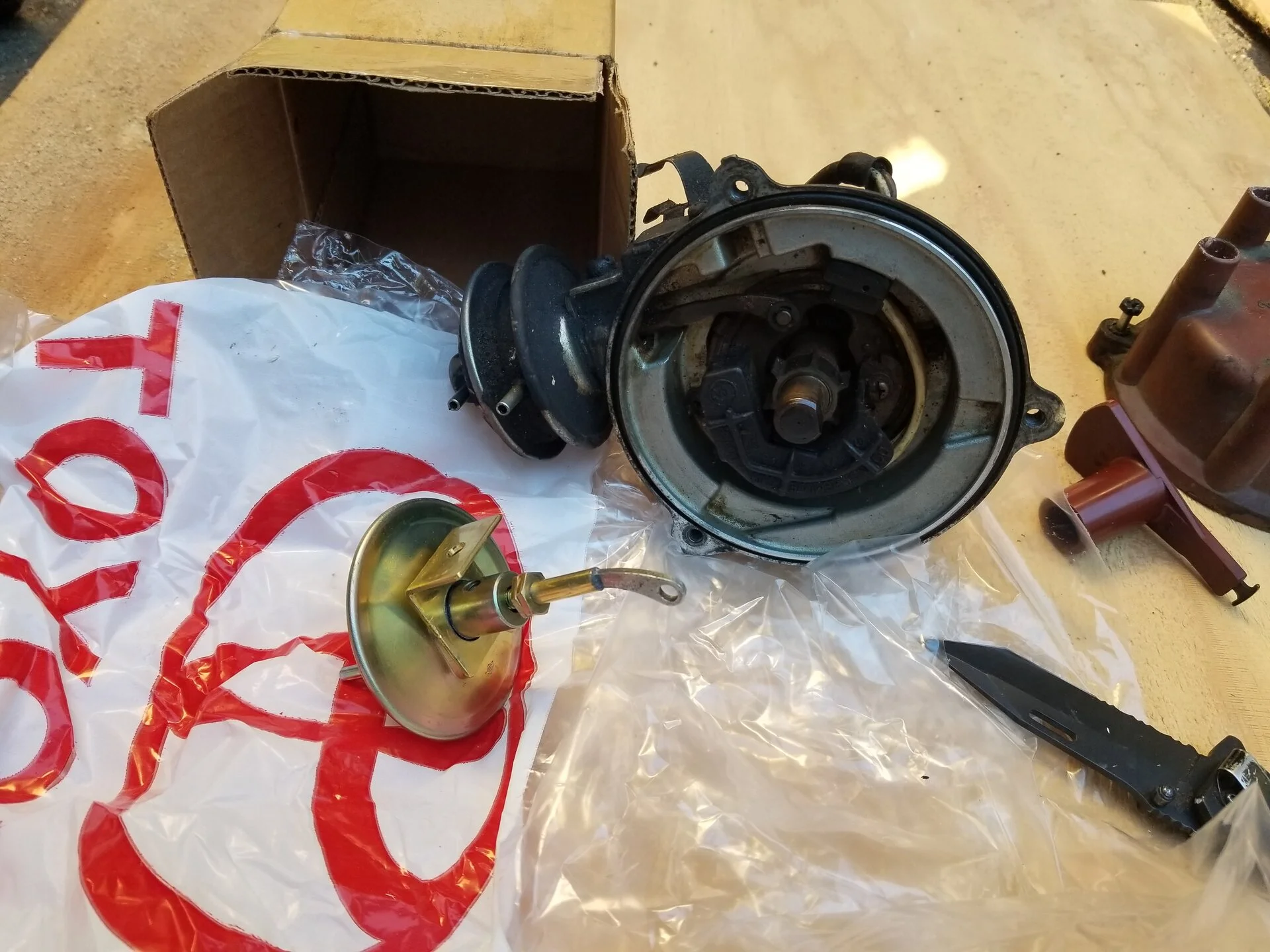

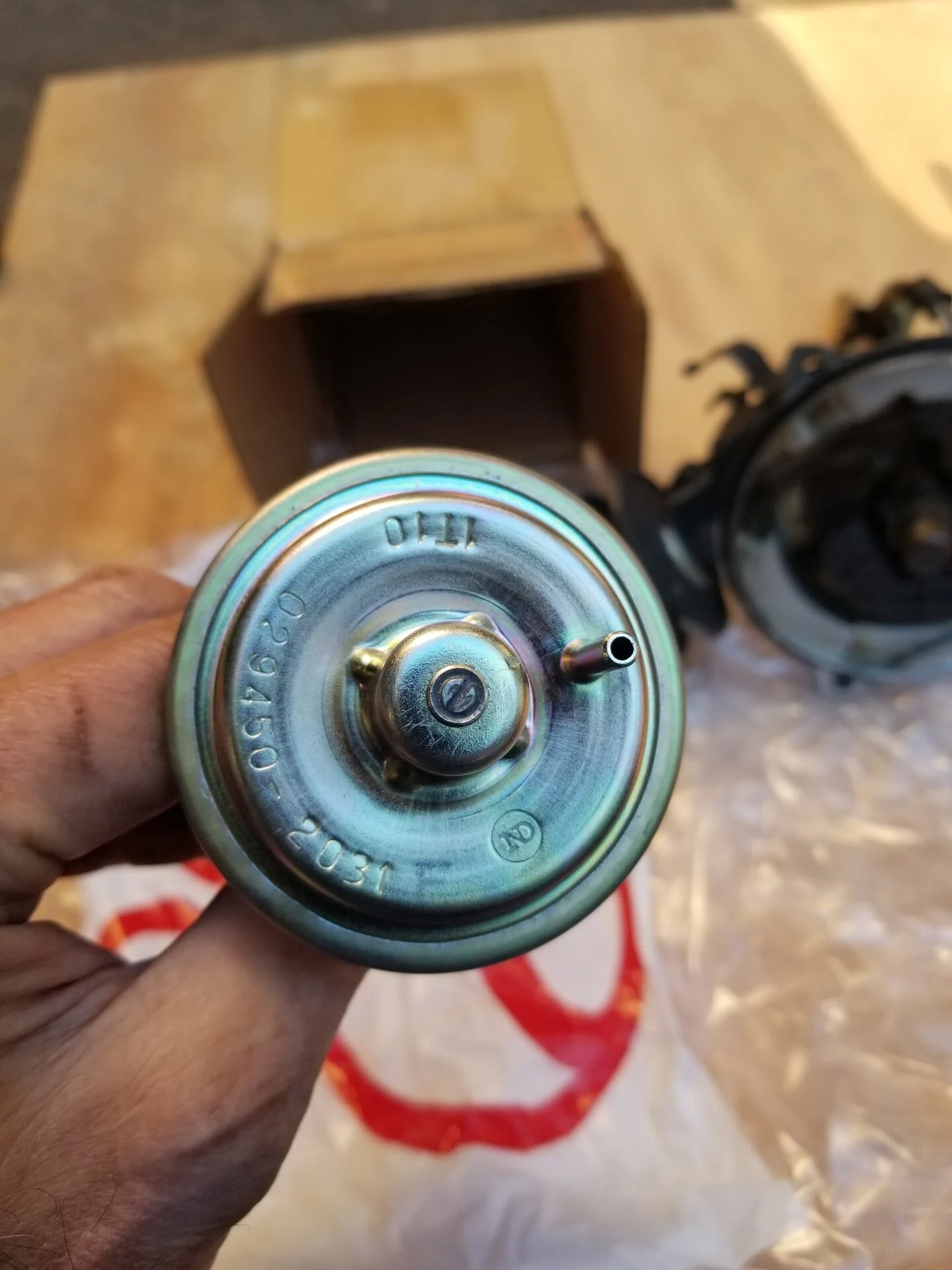

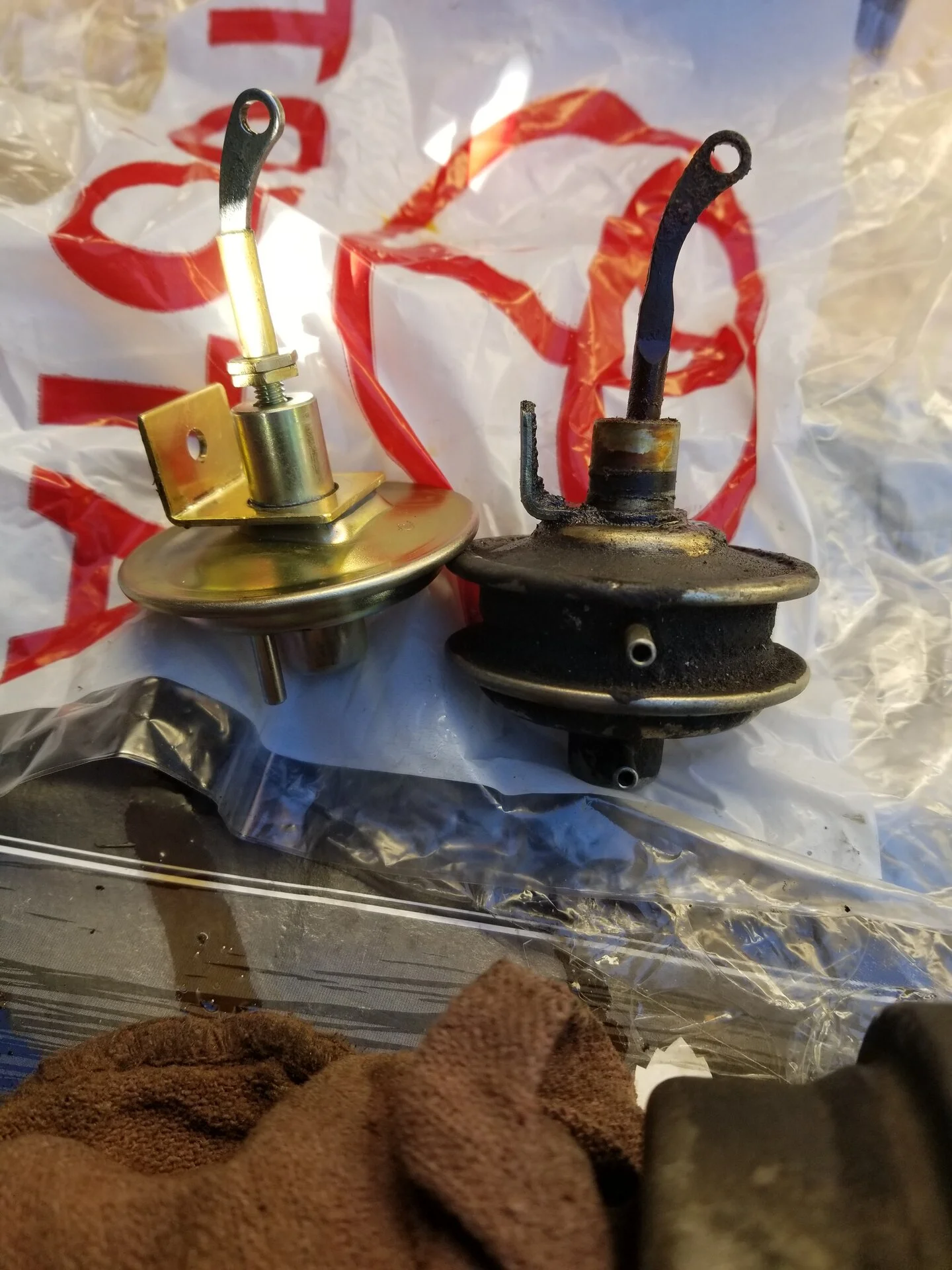

he sent me this one for the big cap dizzy in the early 2F in my '74 FJ55
