Last weekend I put the t-case in 4Low.
The green 4WD dash light did not come on though it was in 4Low.
Later, I shifted back to 2High but it took a long time for the front drive to disengage.
I am reading up on these systems but I don't understand a few things.

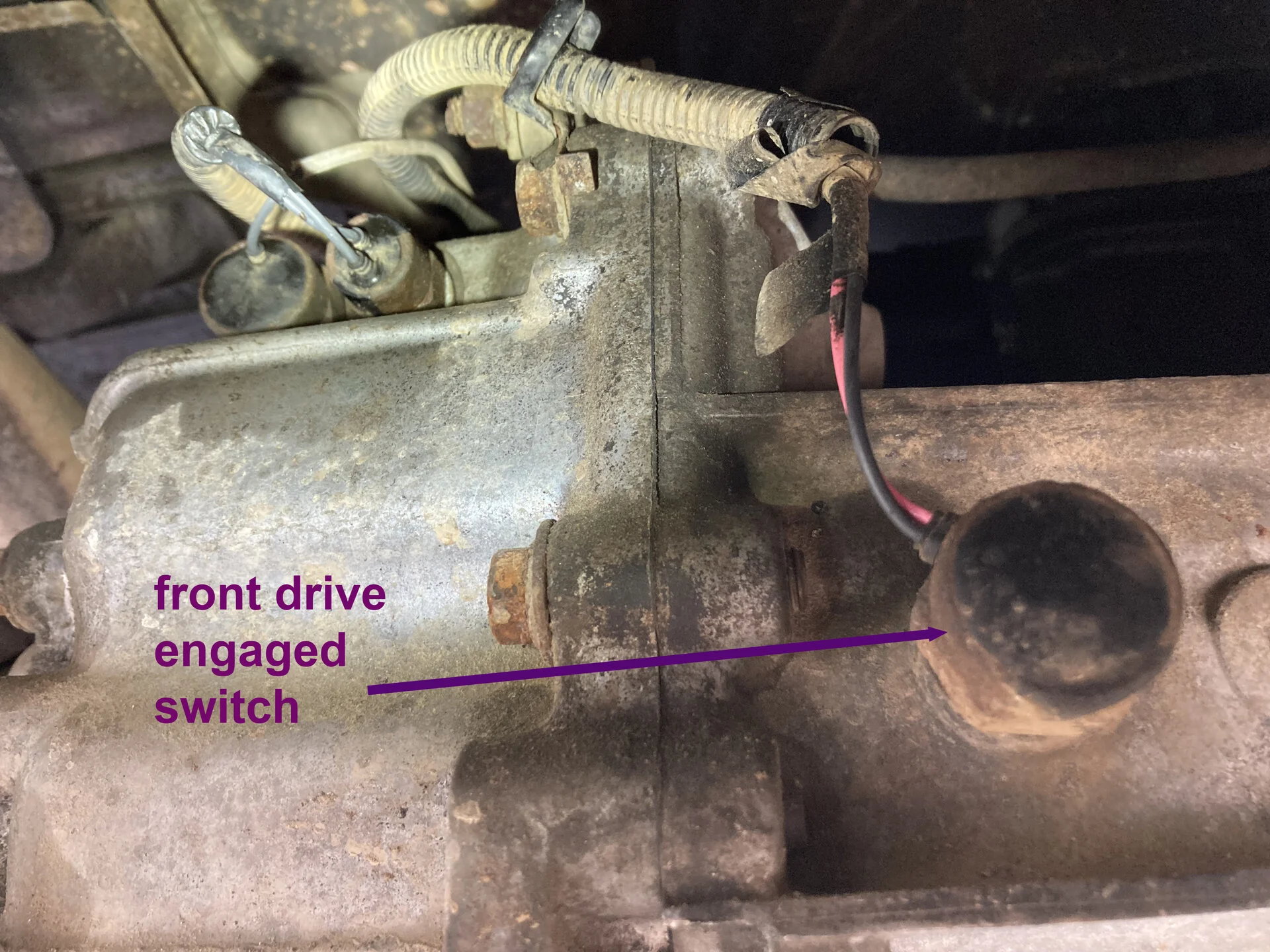

Why are there 3 Transfer Indicator switches, as listed in parts manual? see pic below

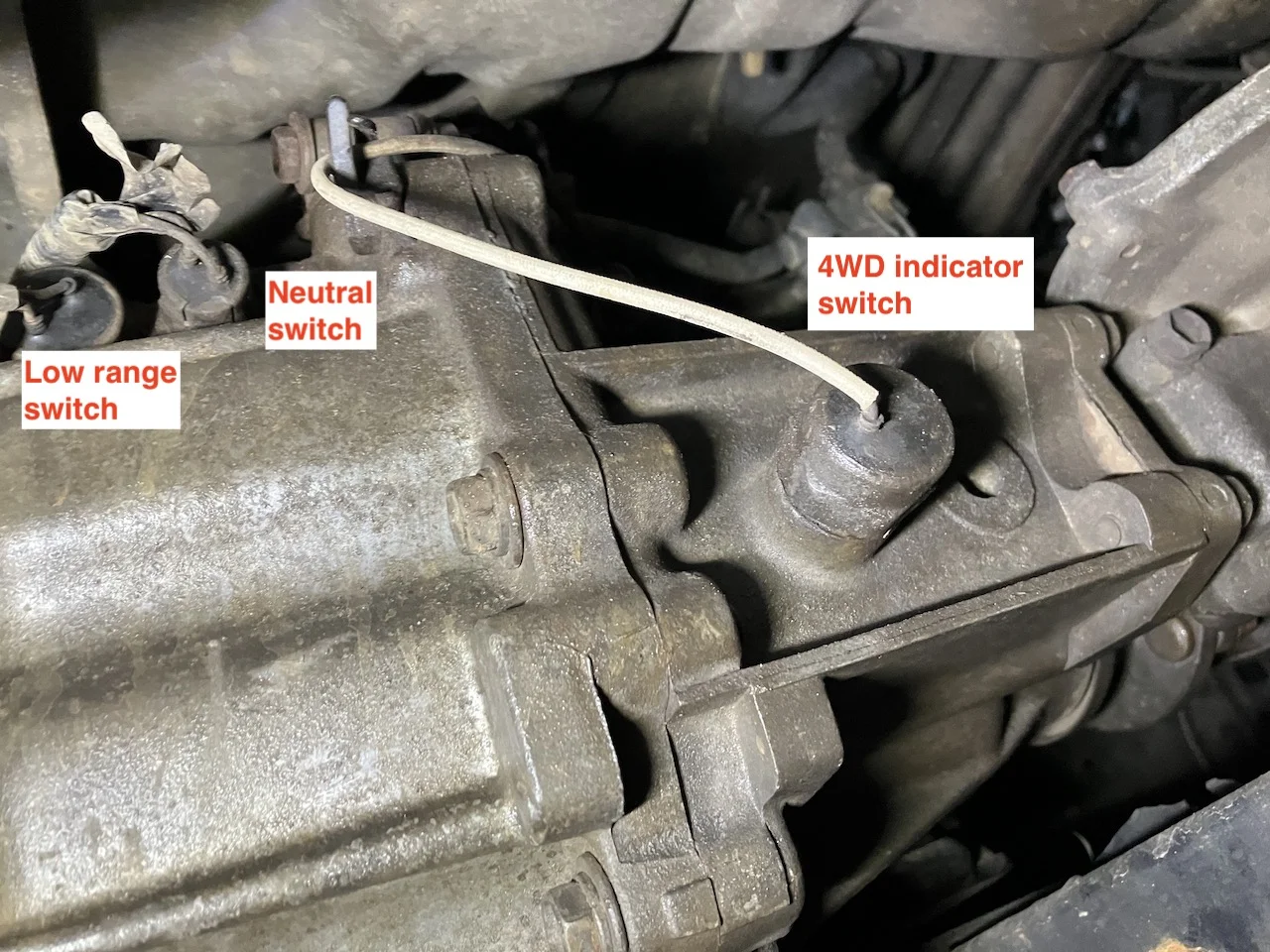

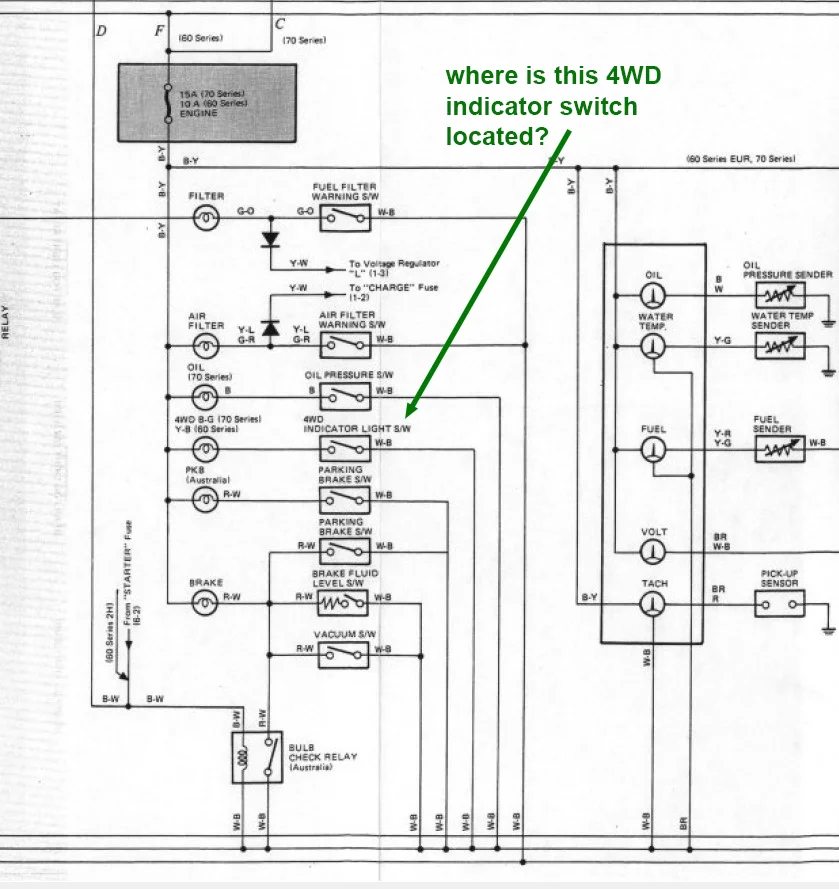

Where is the 4WD indicator switch located, the one that causes the dash light to come on?

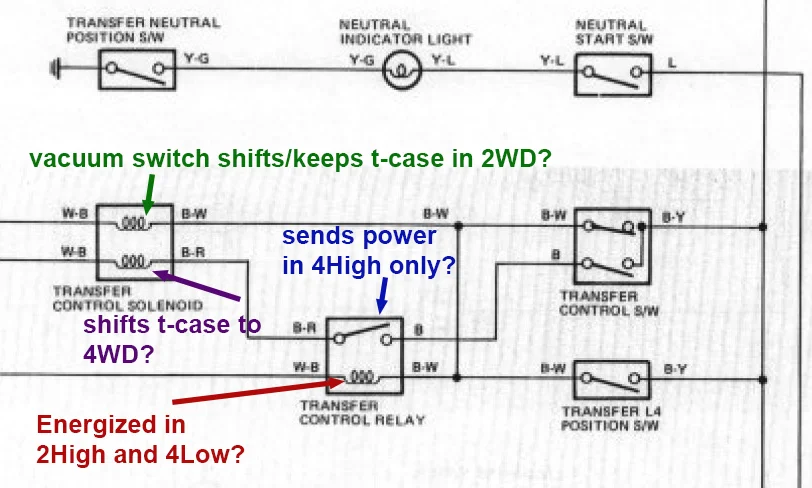

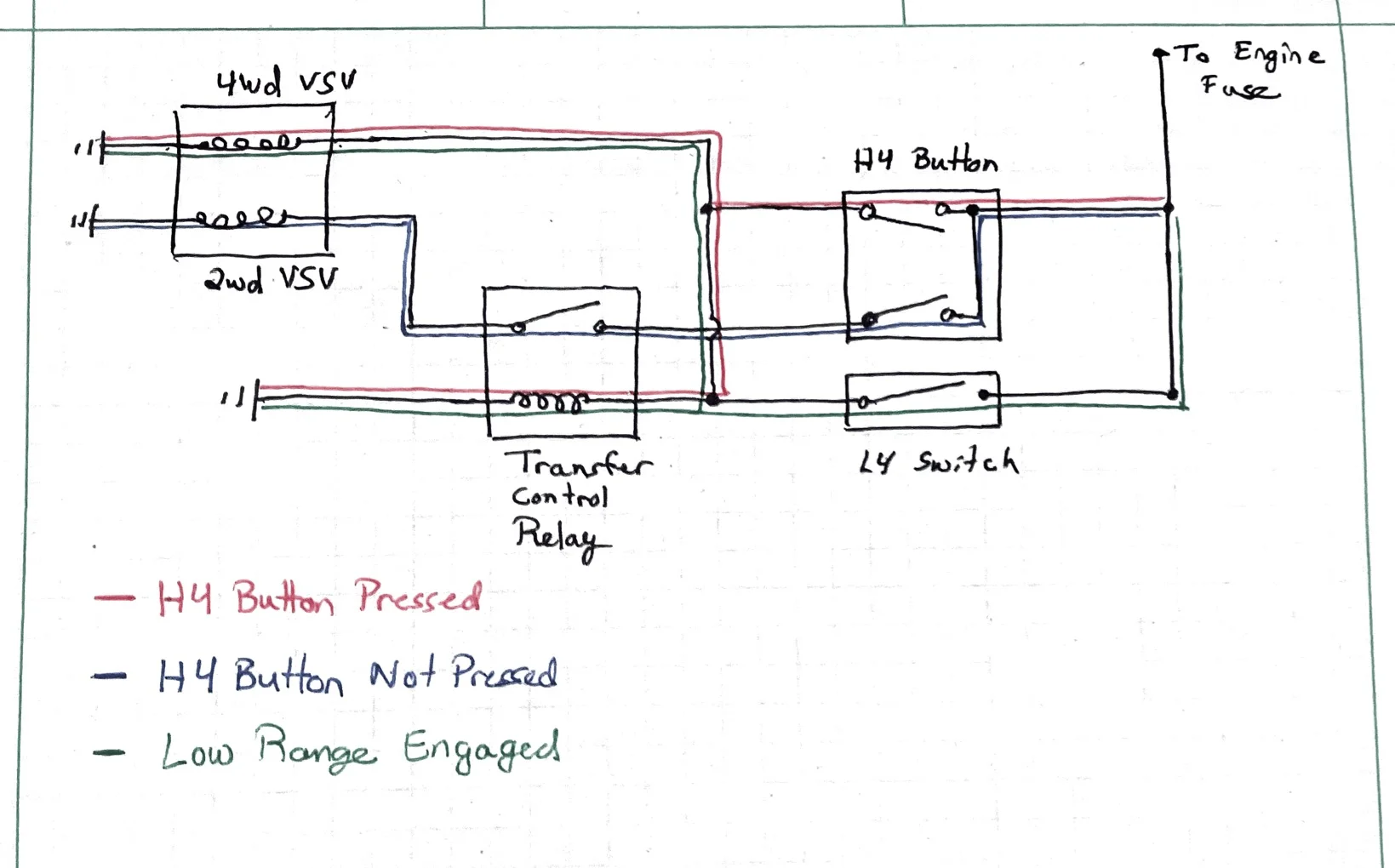

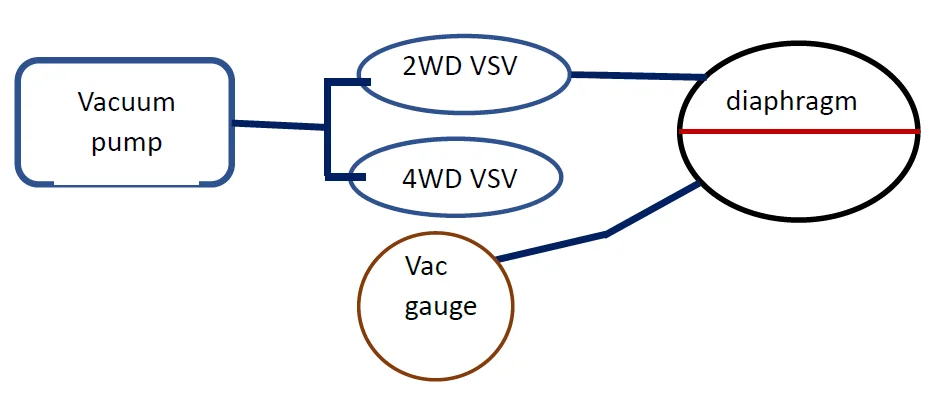

Can someone explain the electrical diagram I included below that shows the vacuum switches?
Lastly, Parts List says there are 2 transfer relays but the diagram shows only one. Is there another diagram I need?
Thanks for any wisdom you might share.
