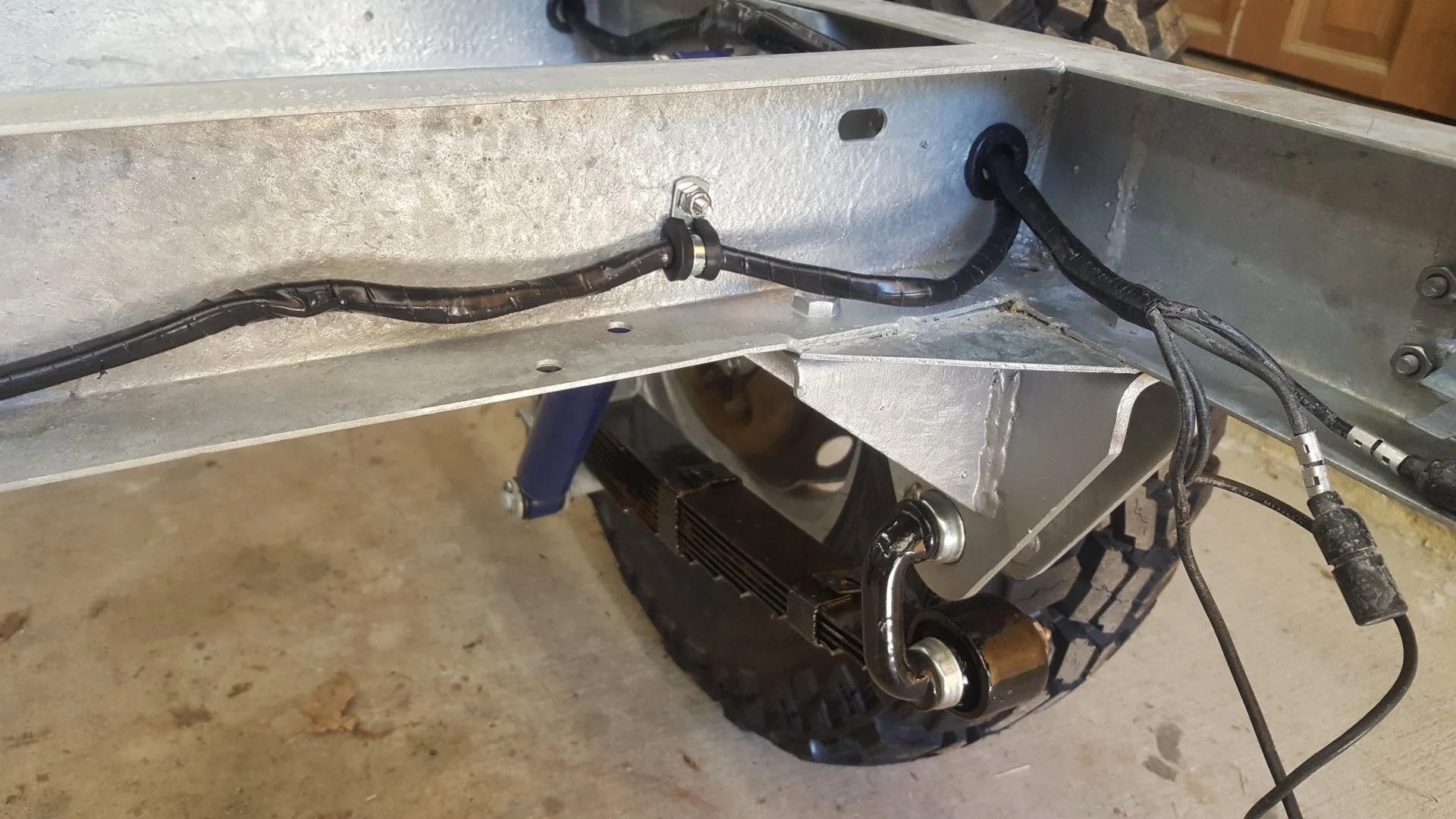

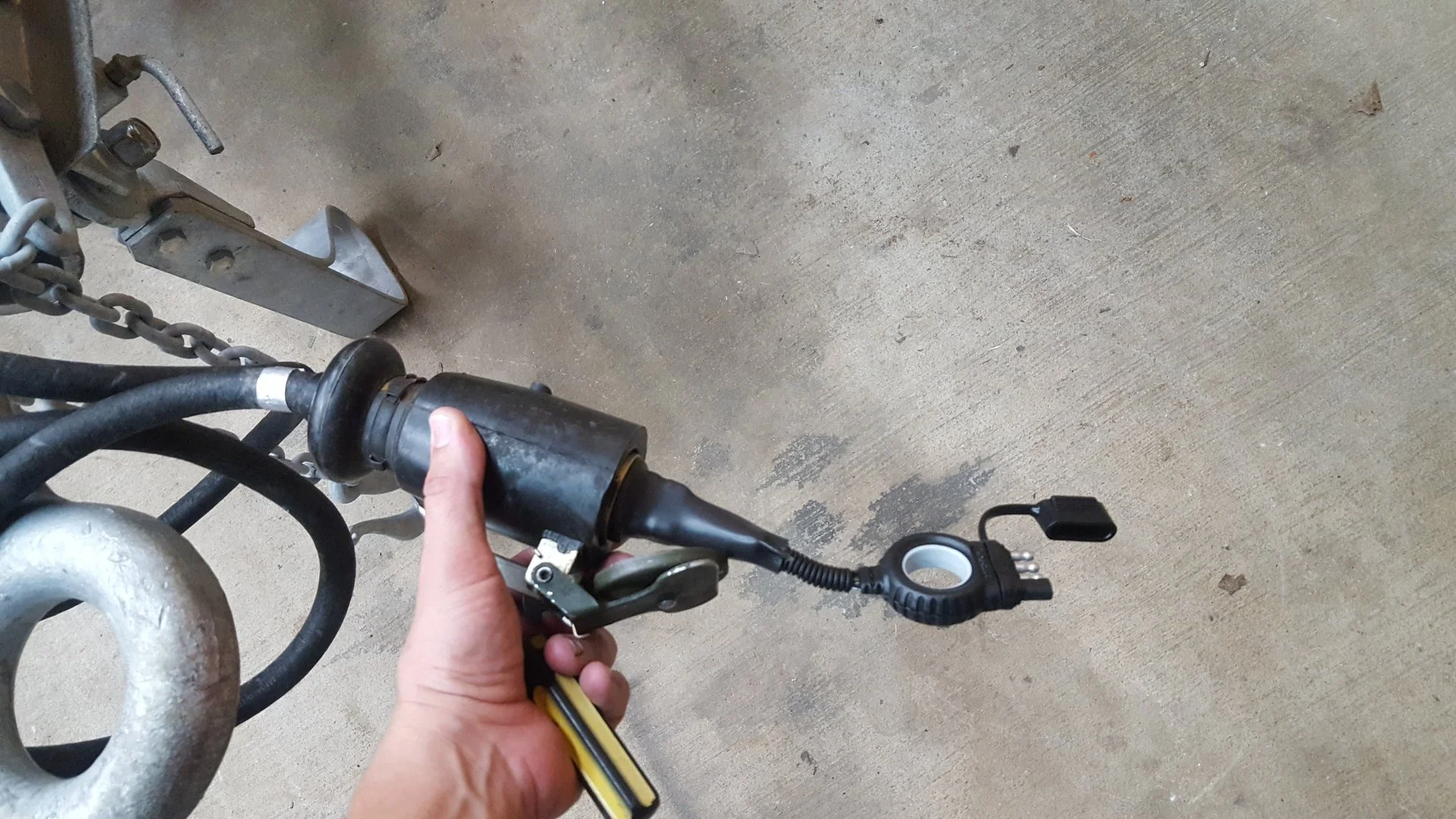

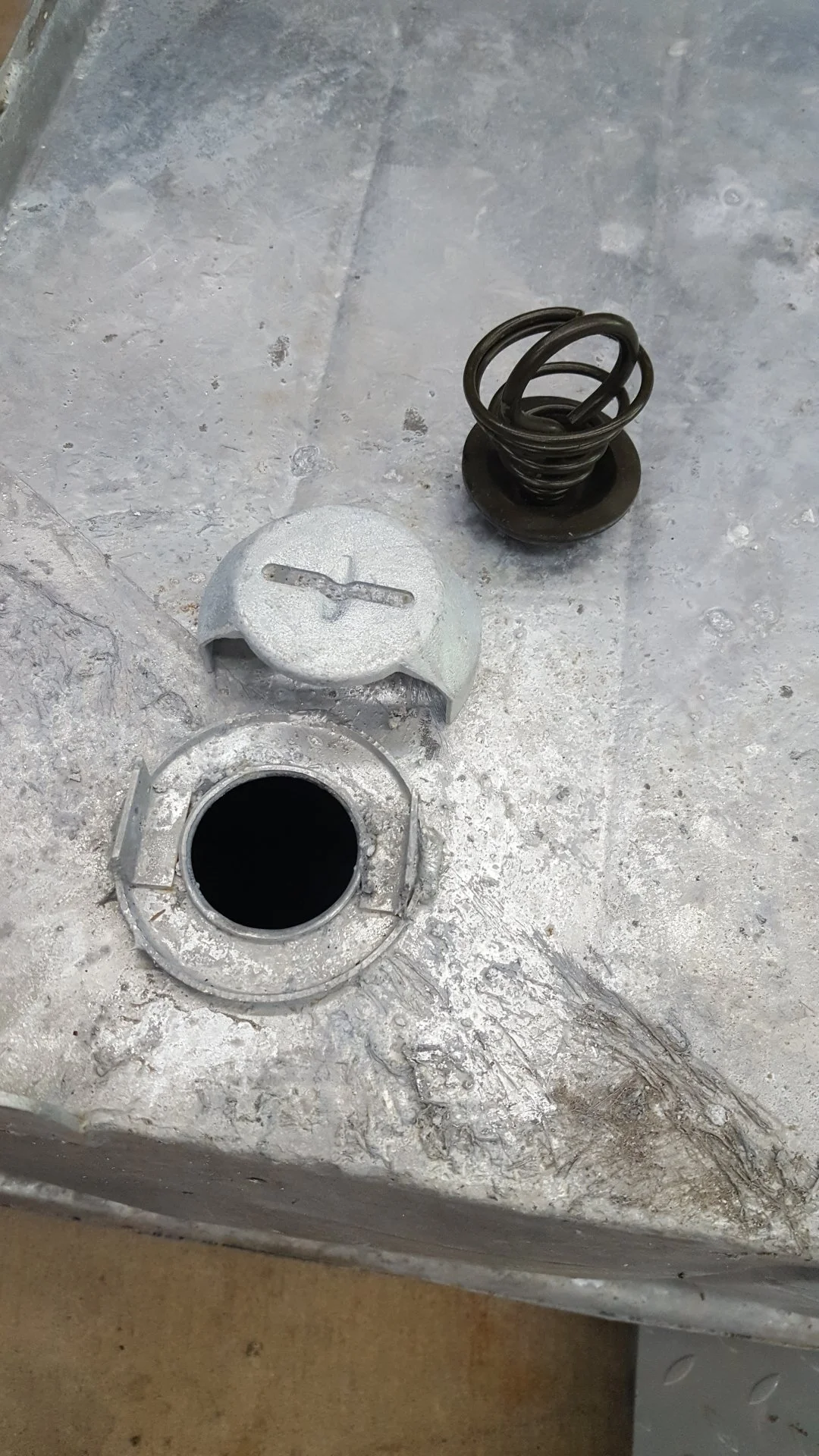

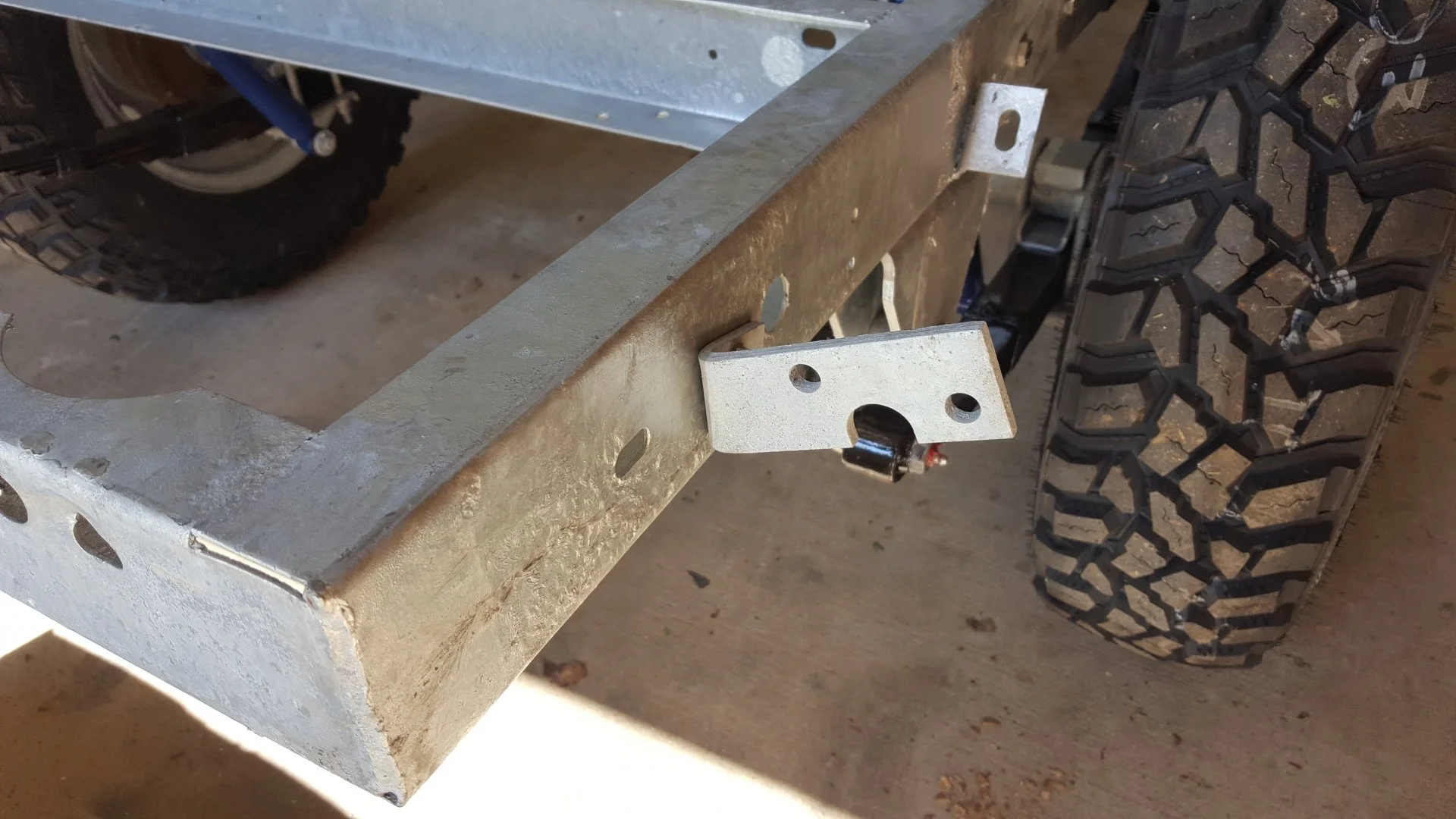

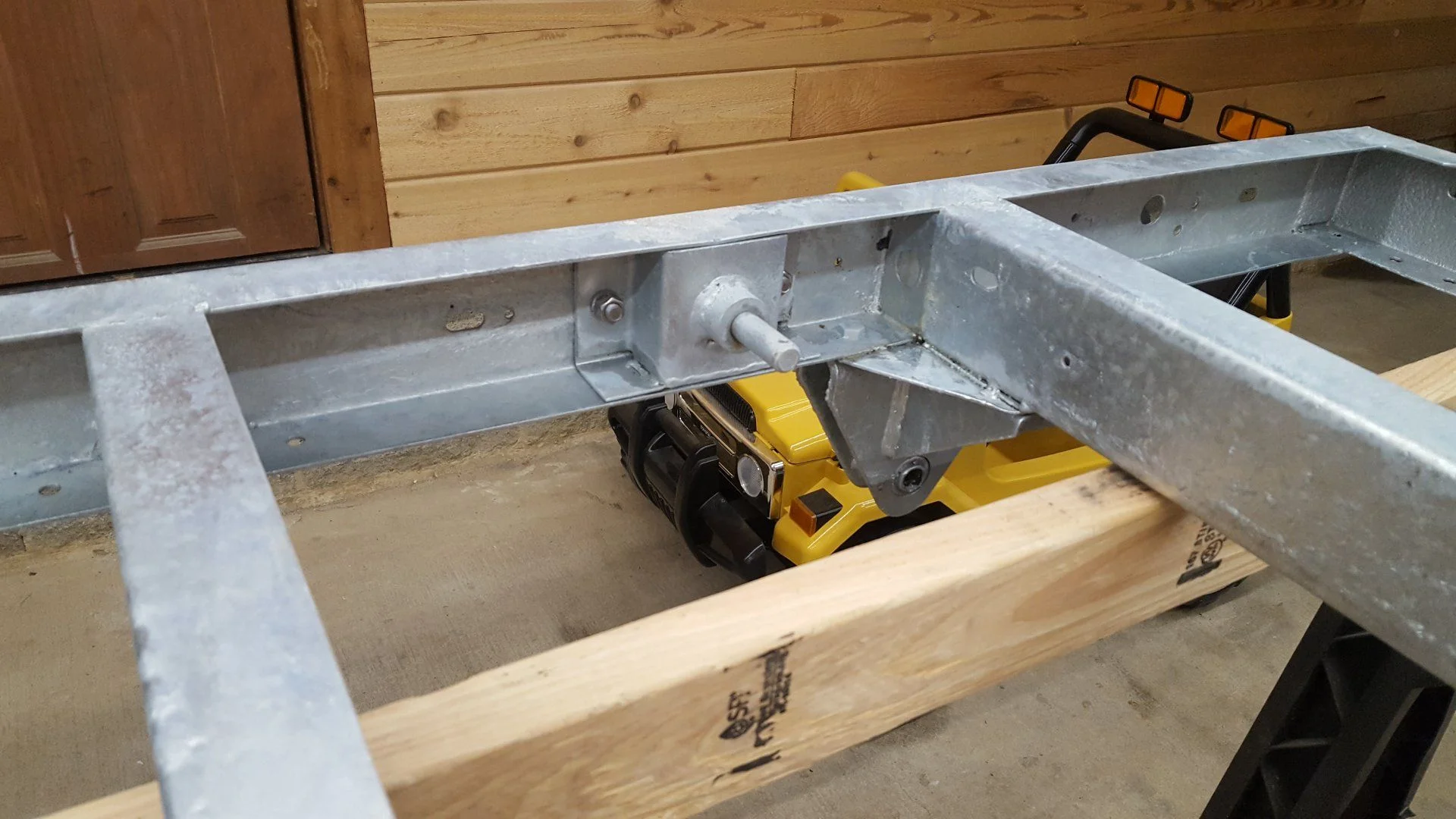

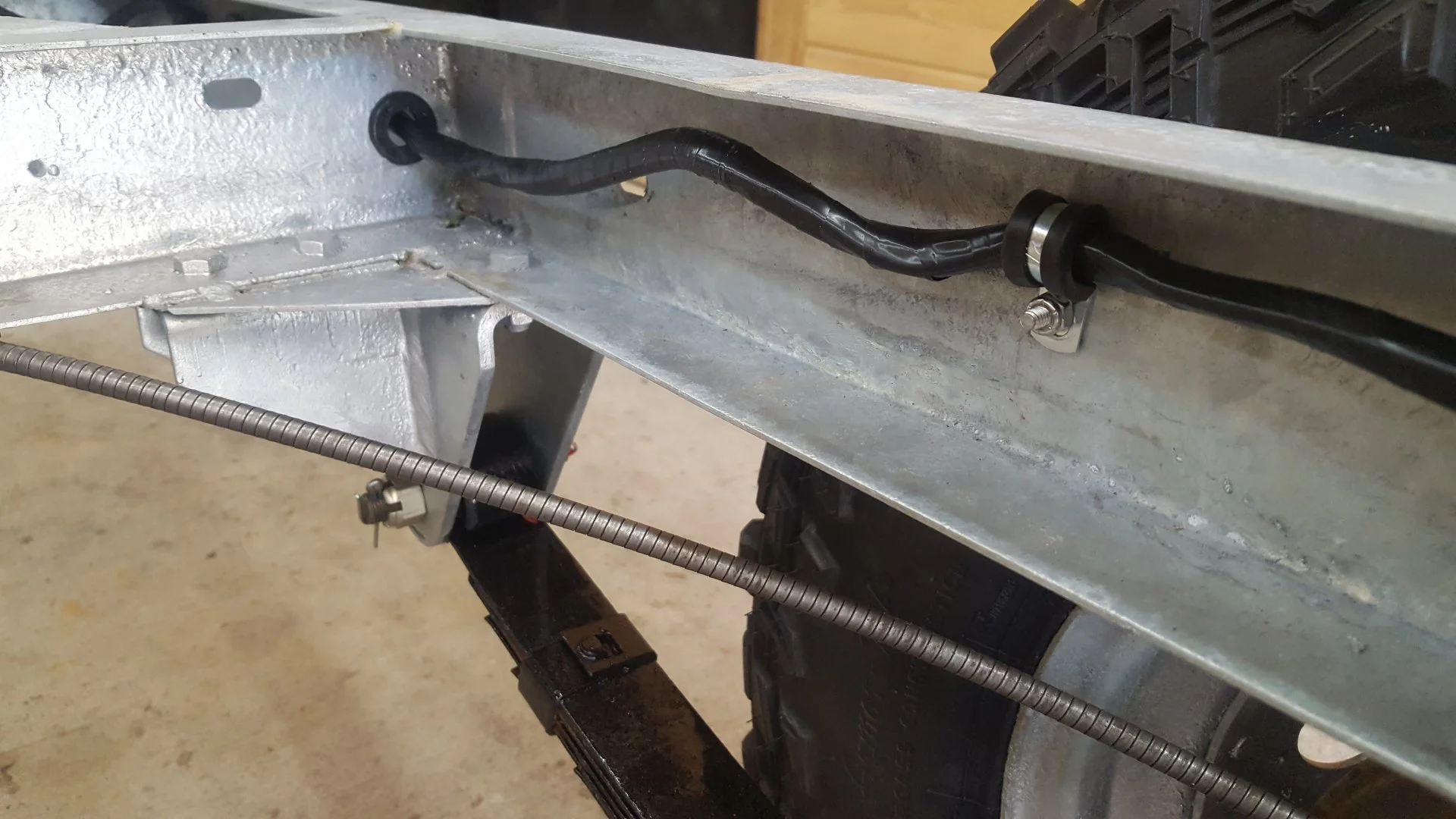

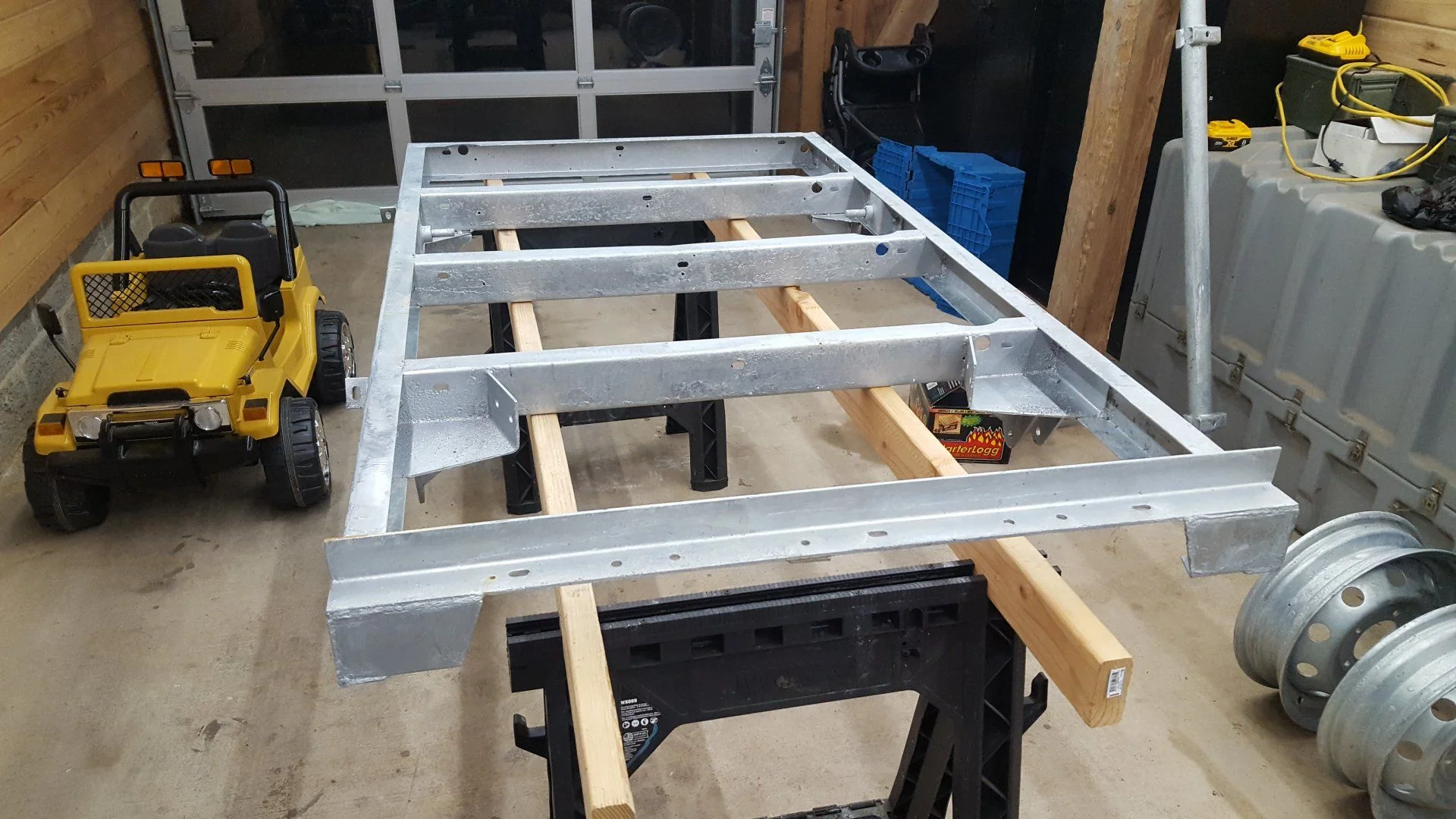

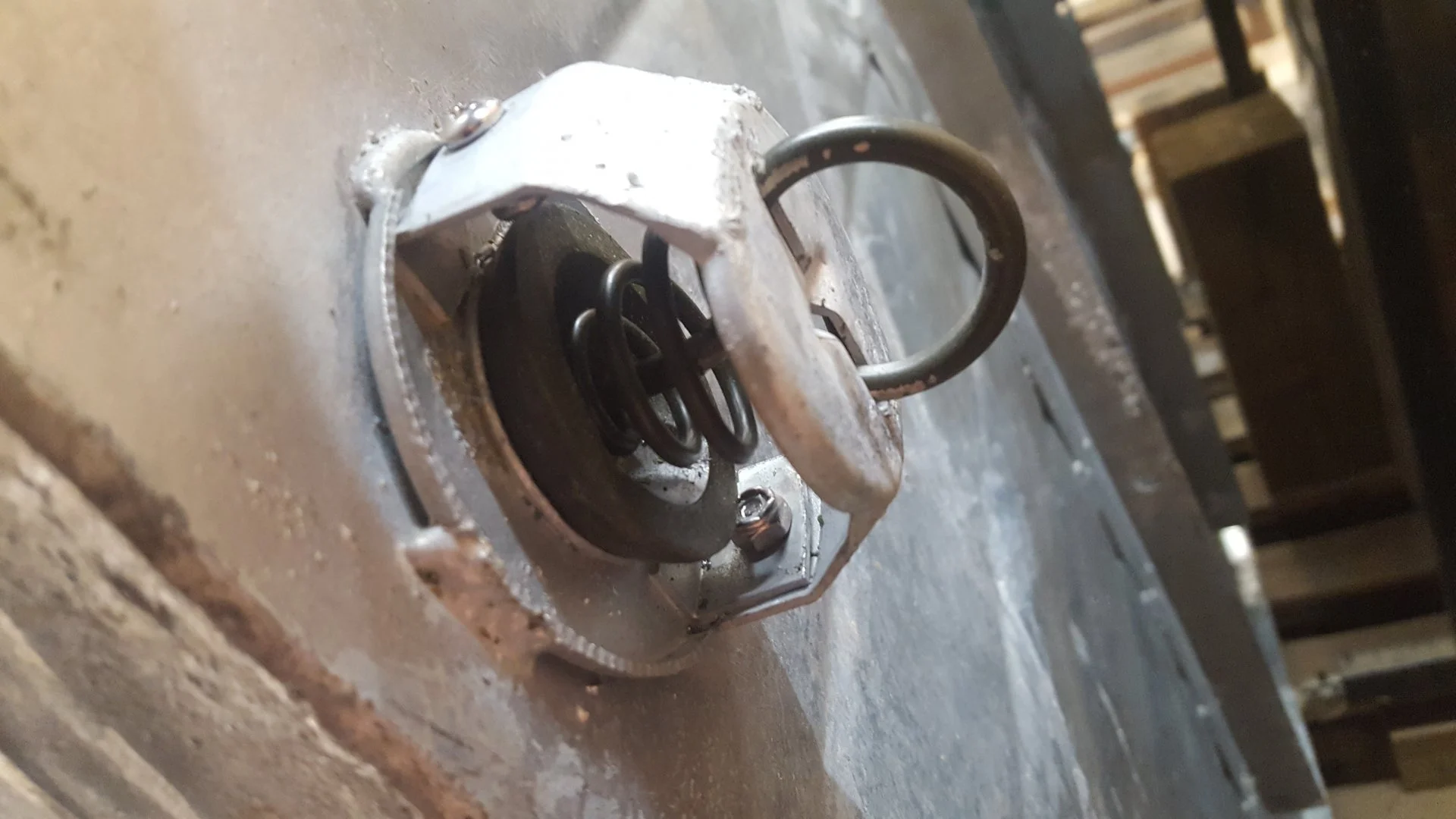

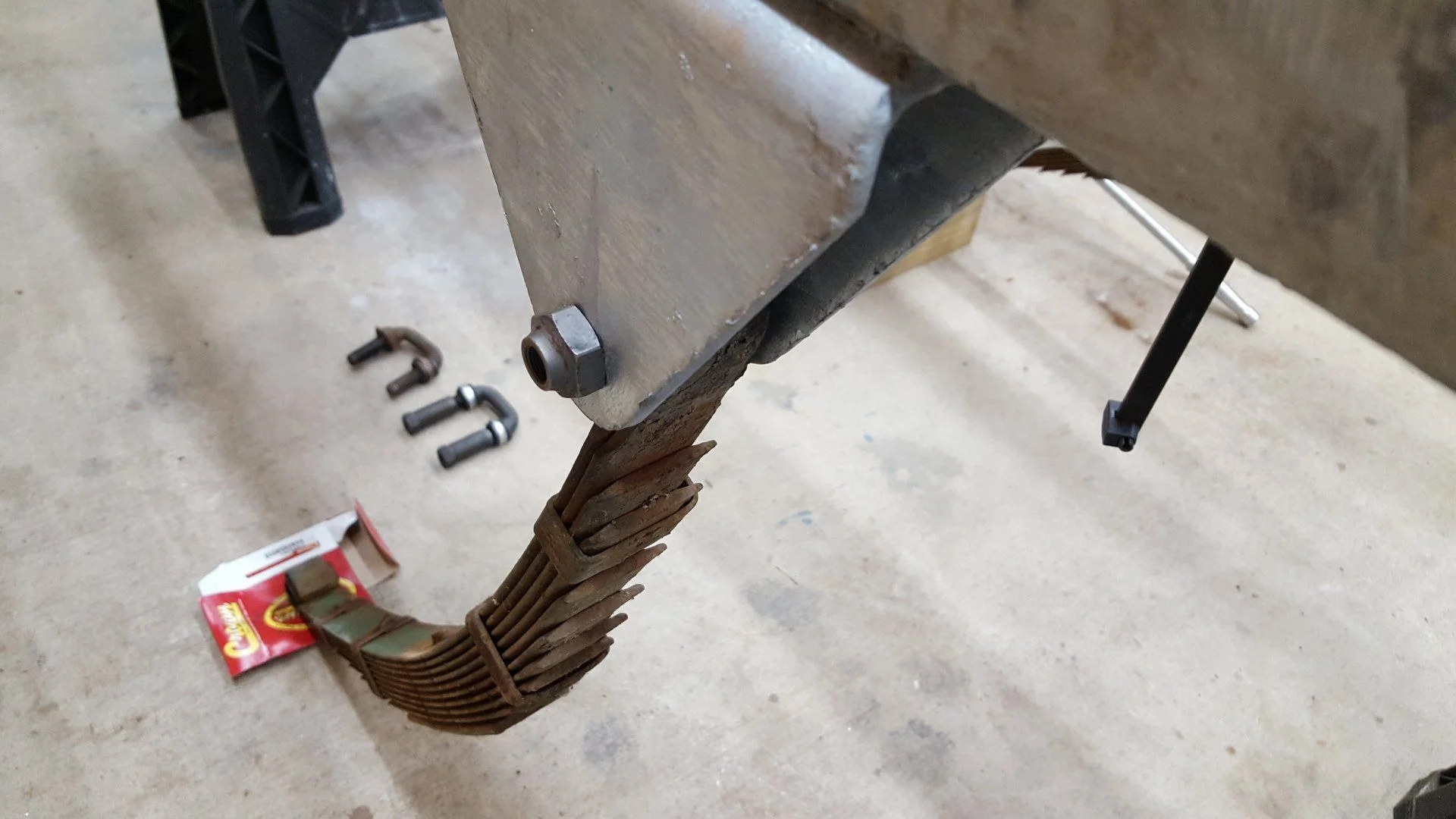

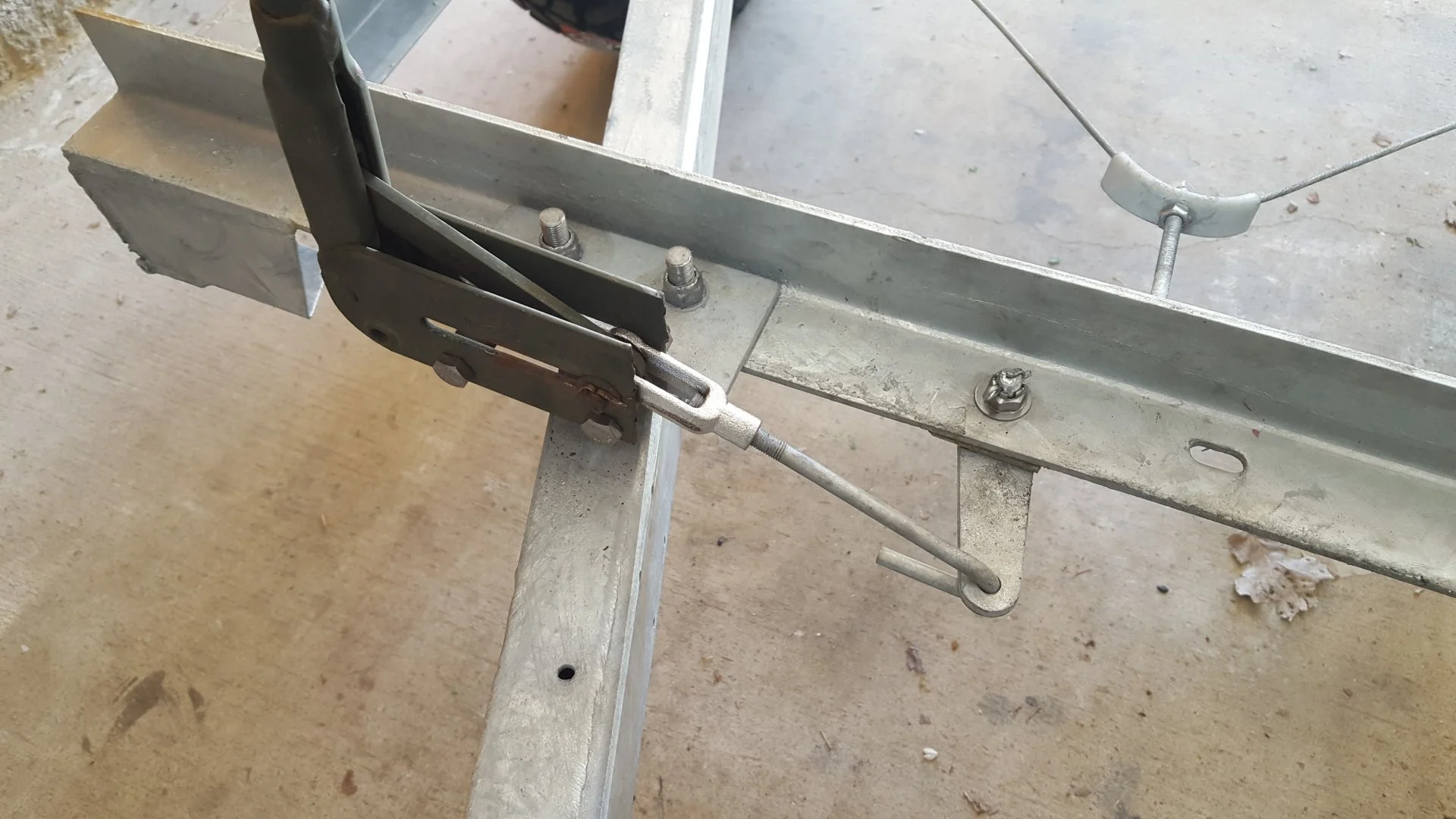

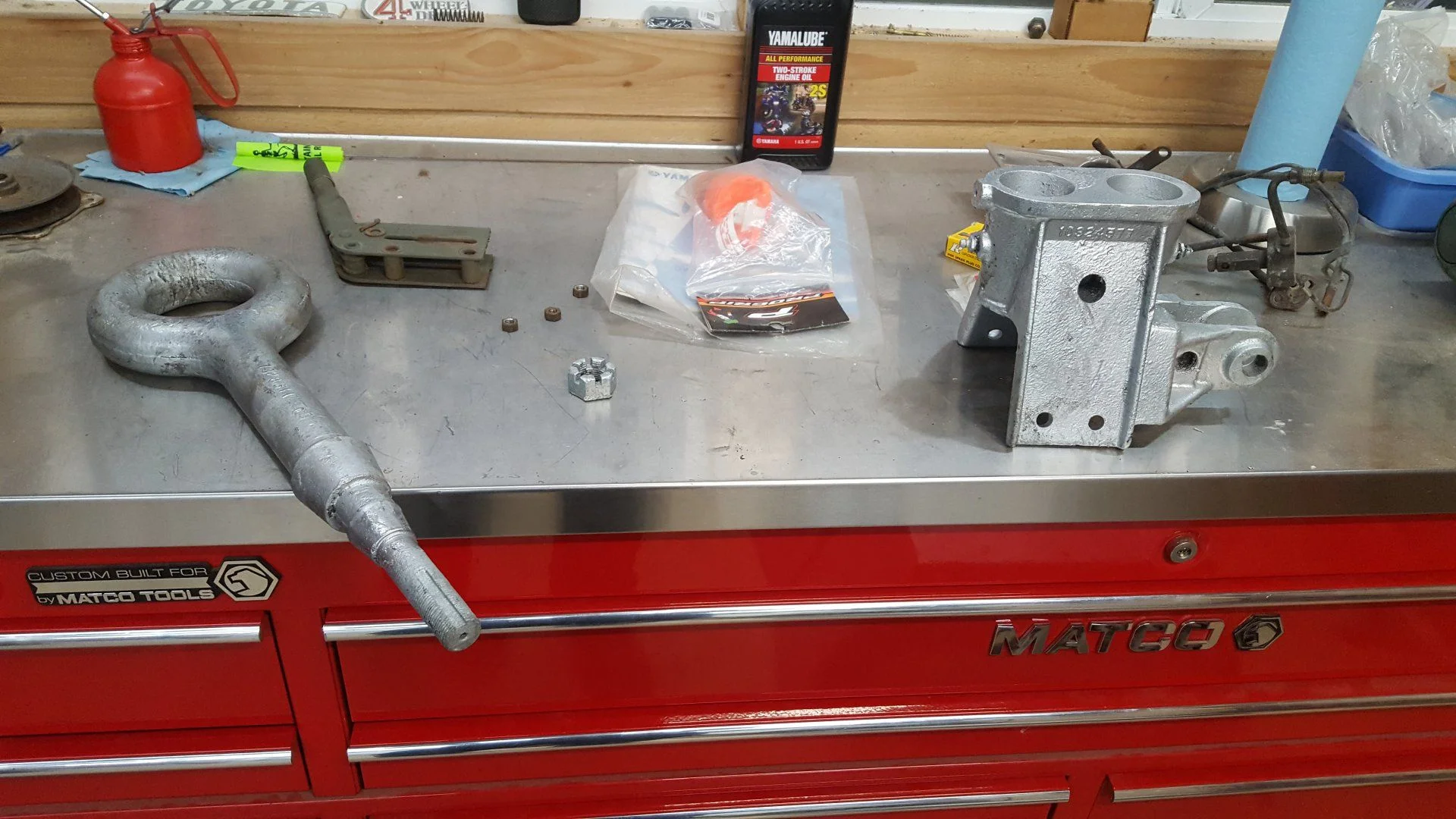

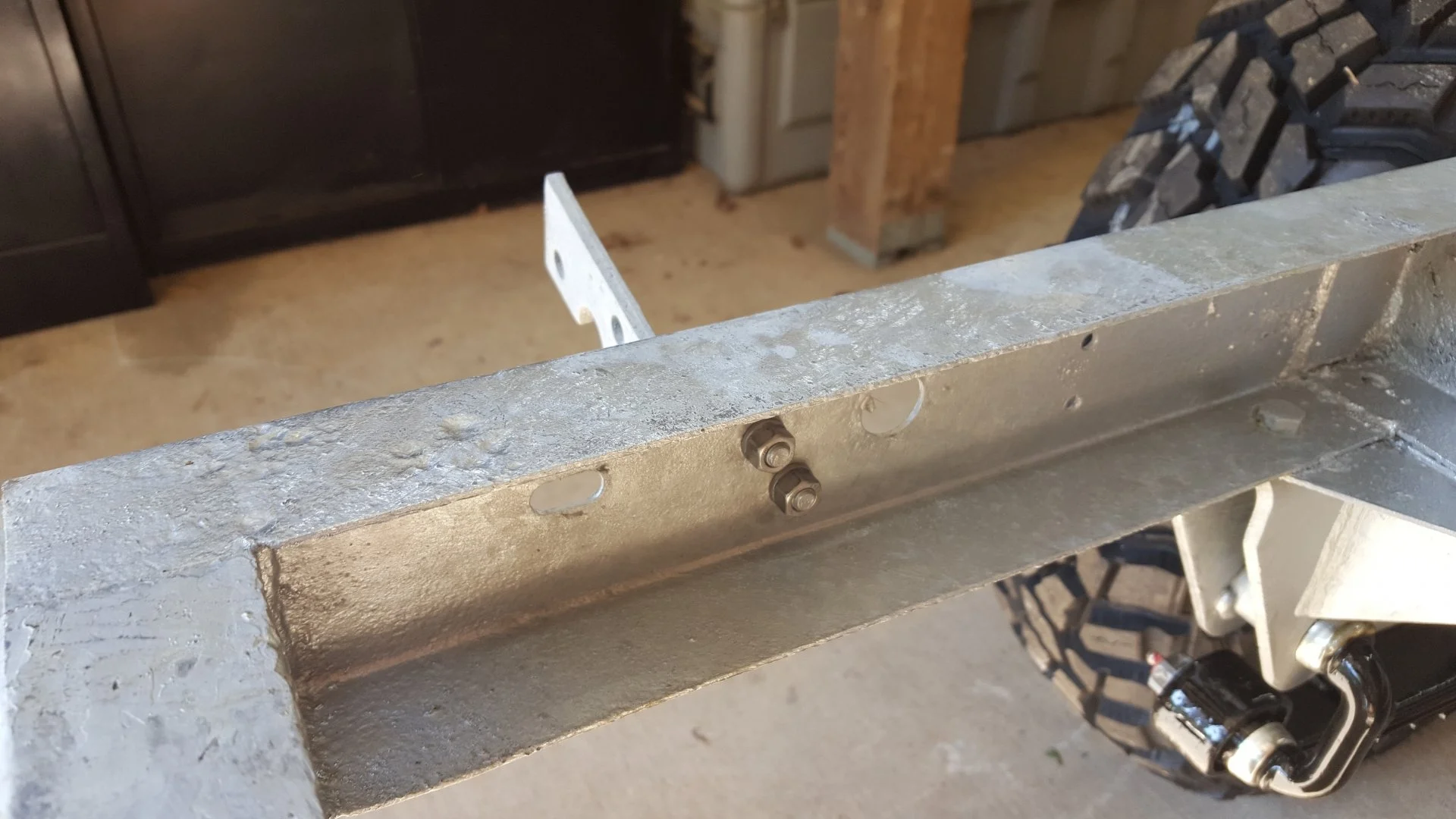

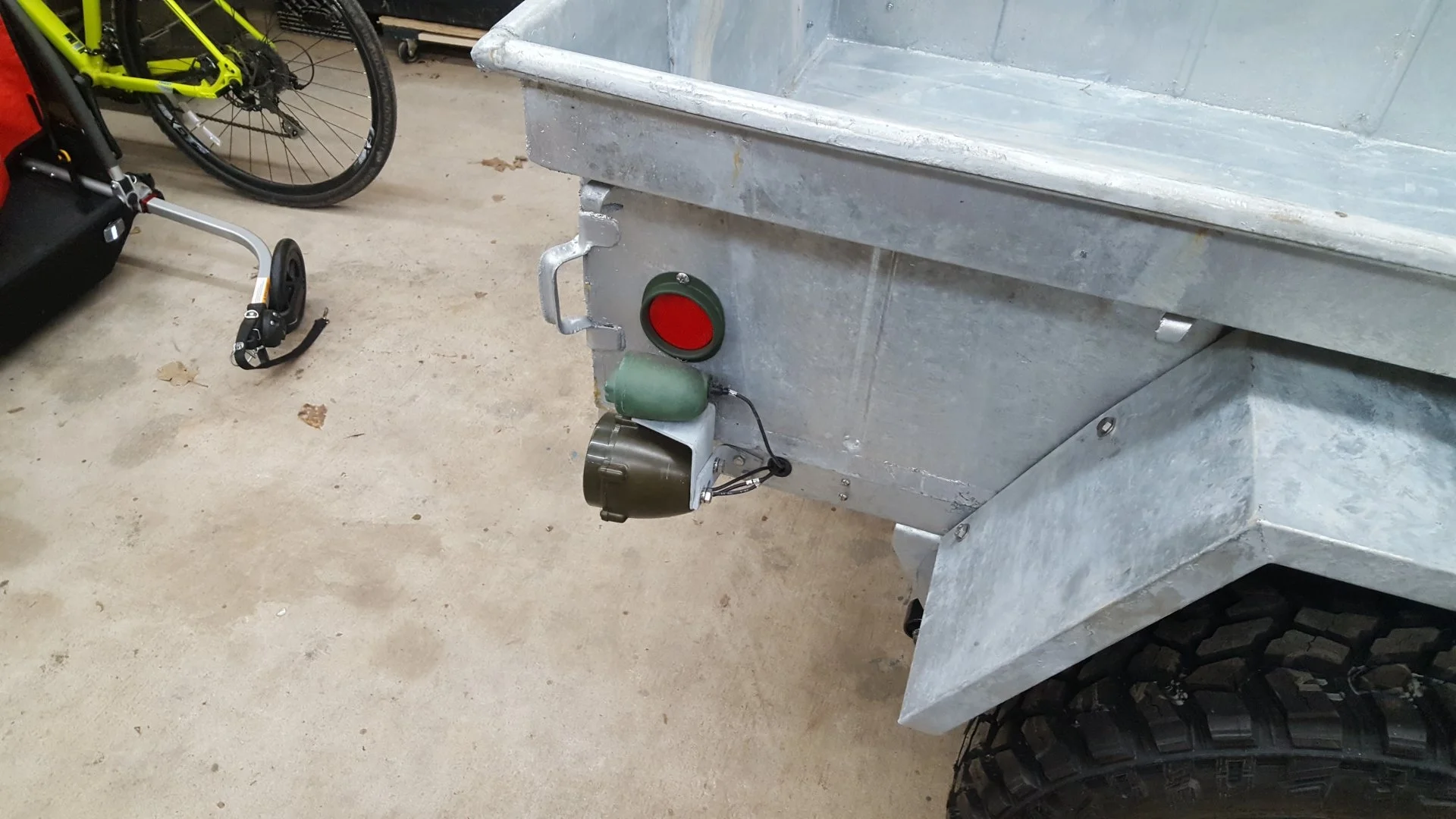

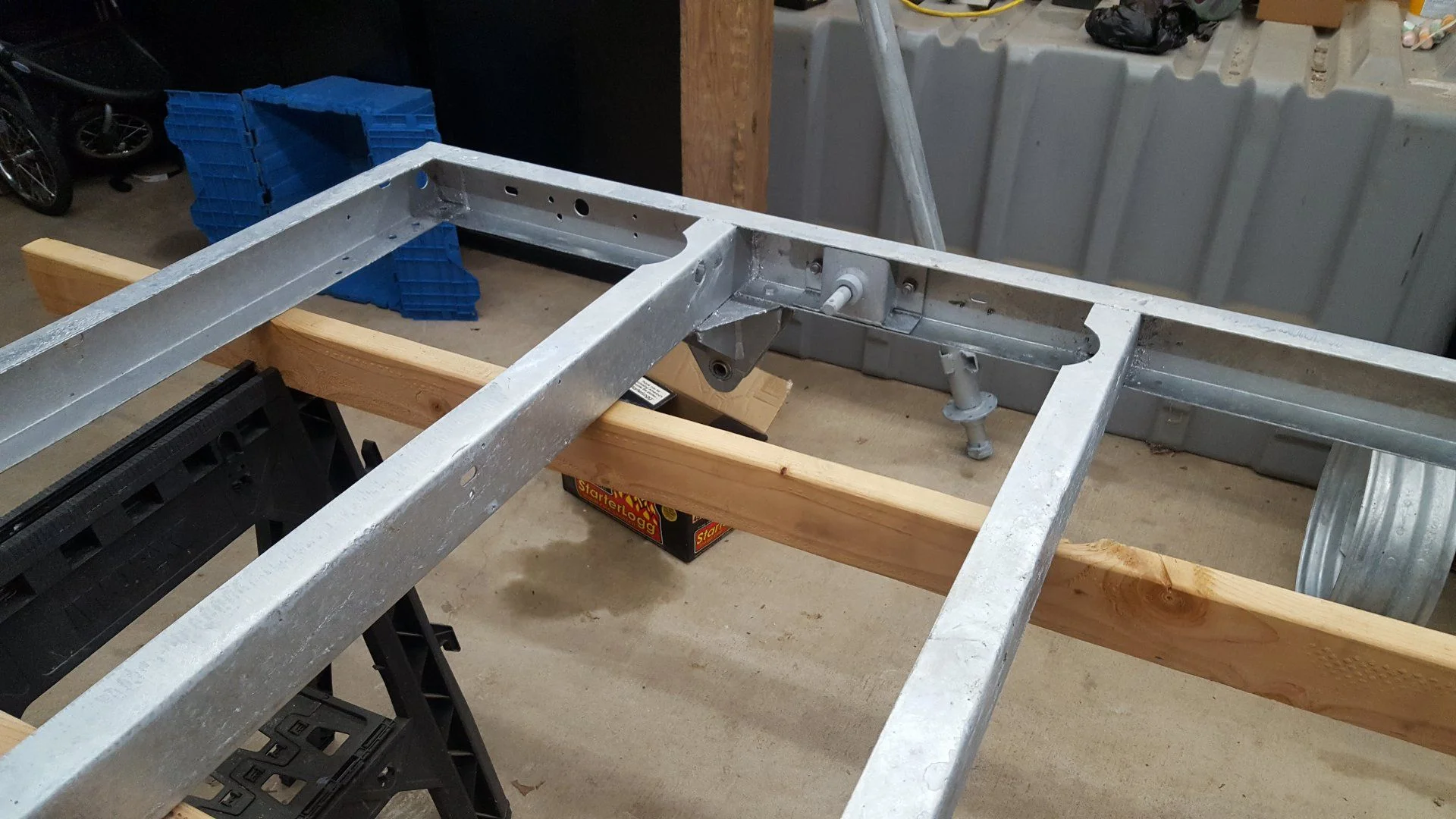

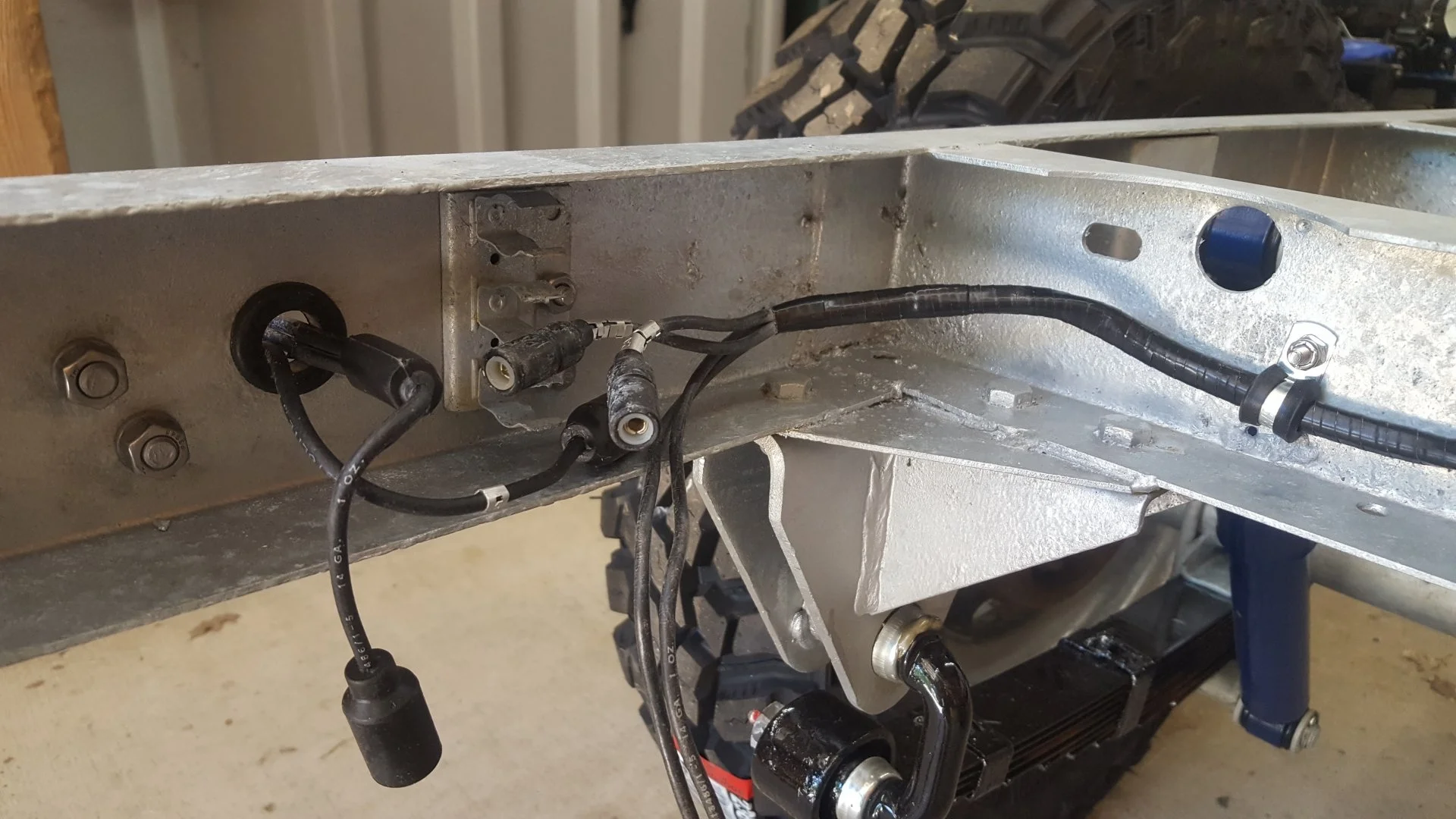

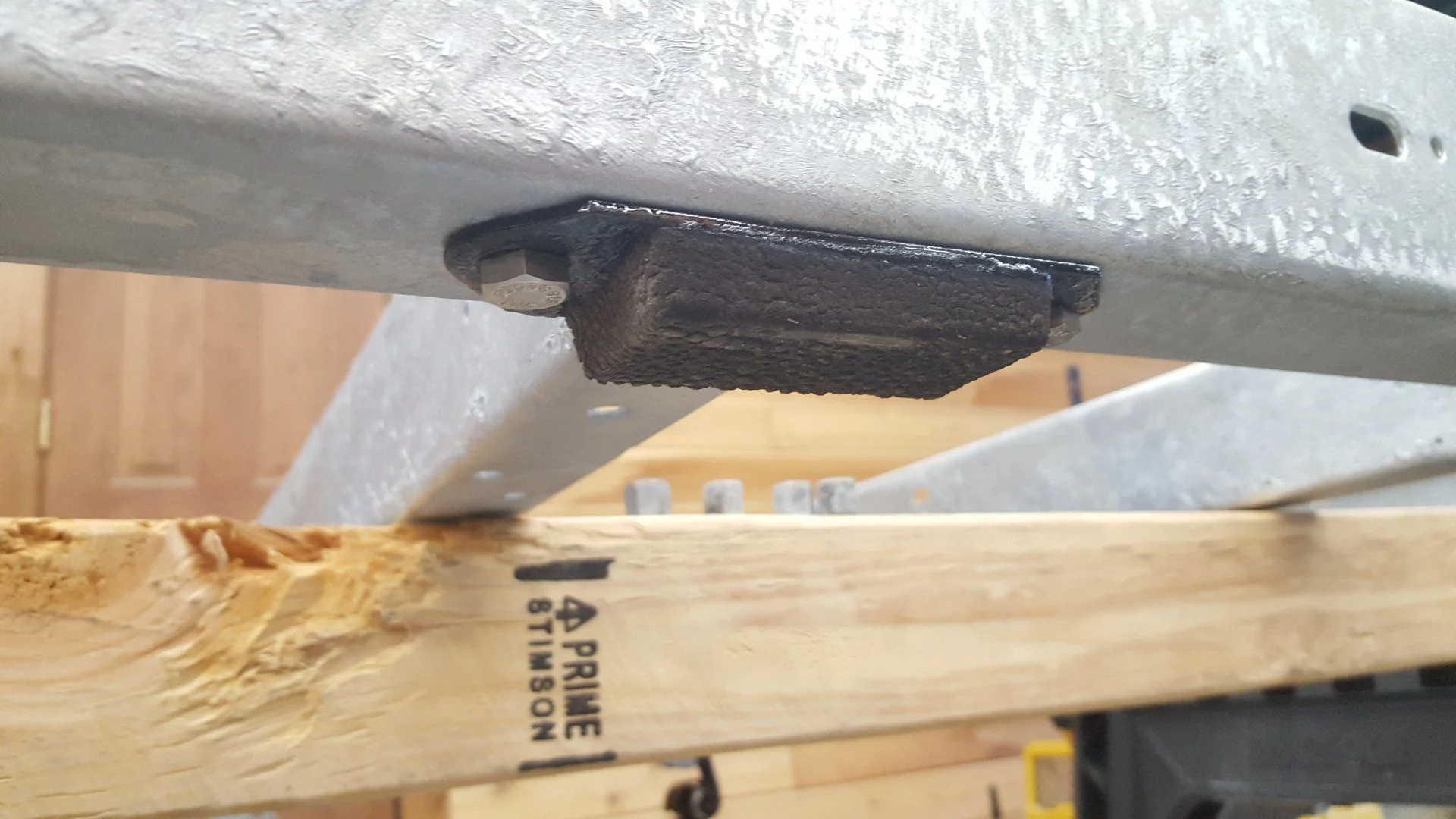

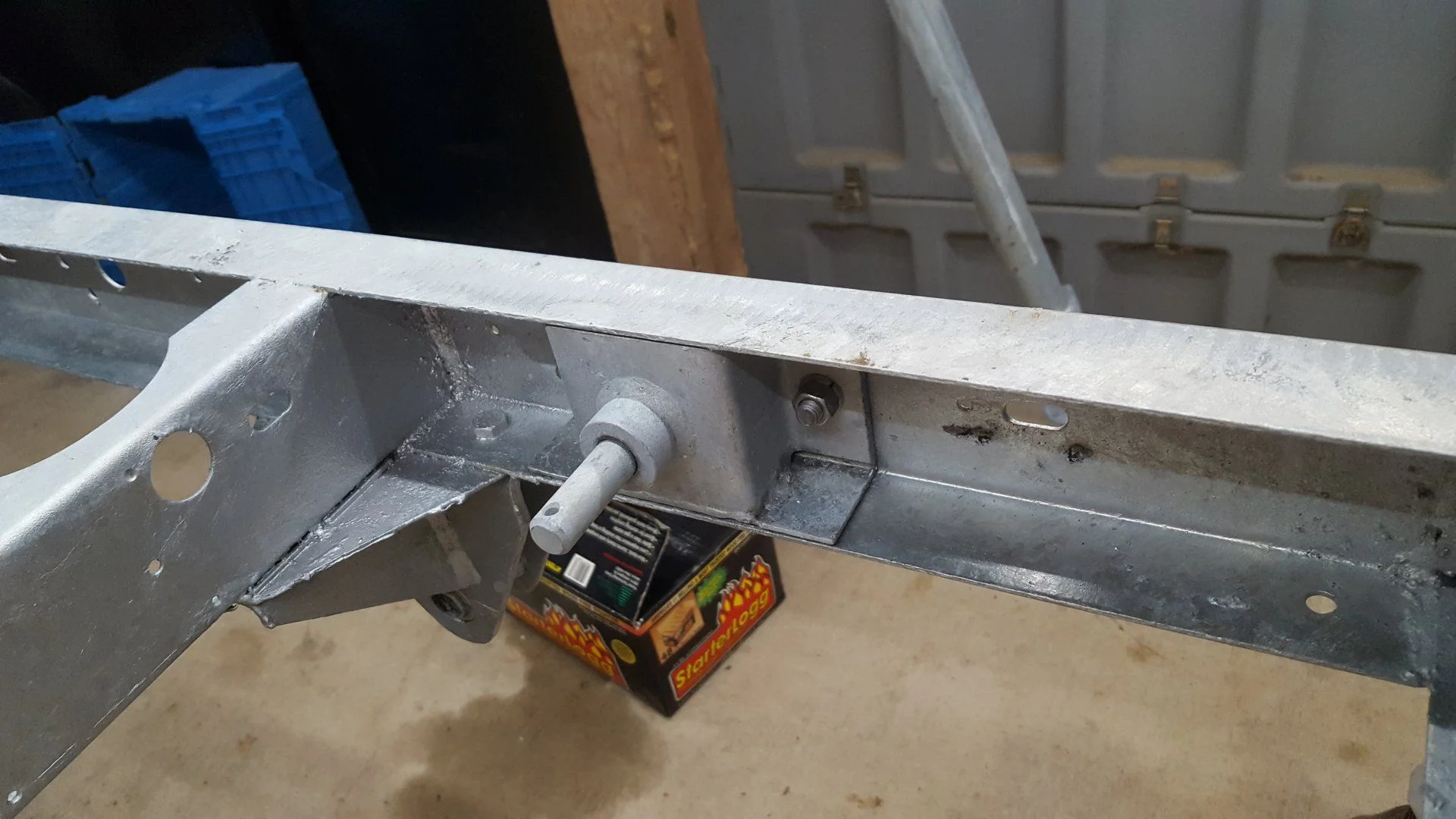

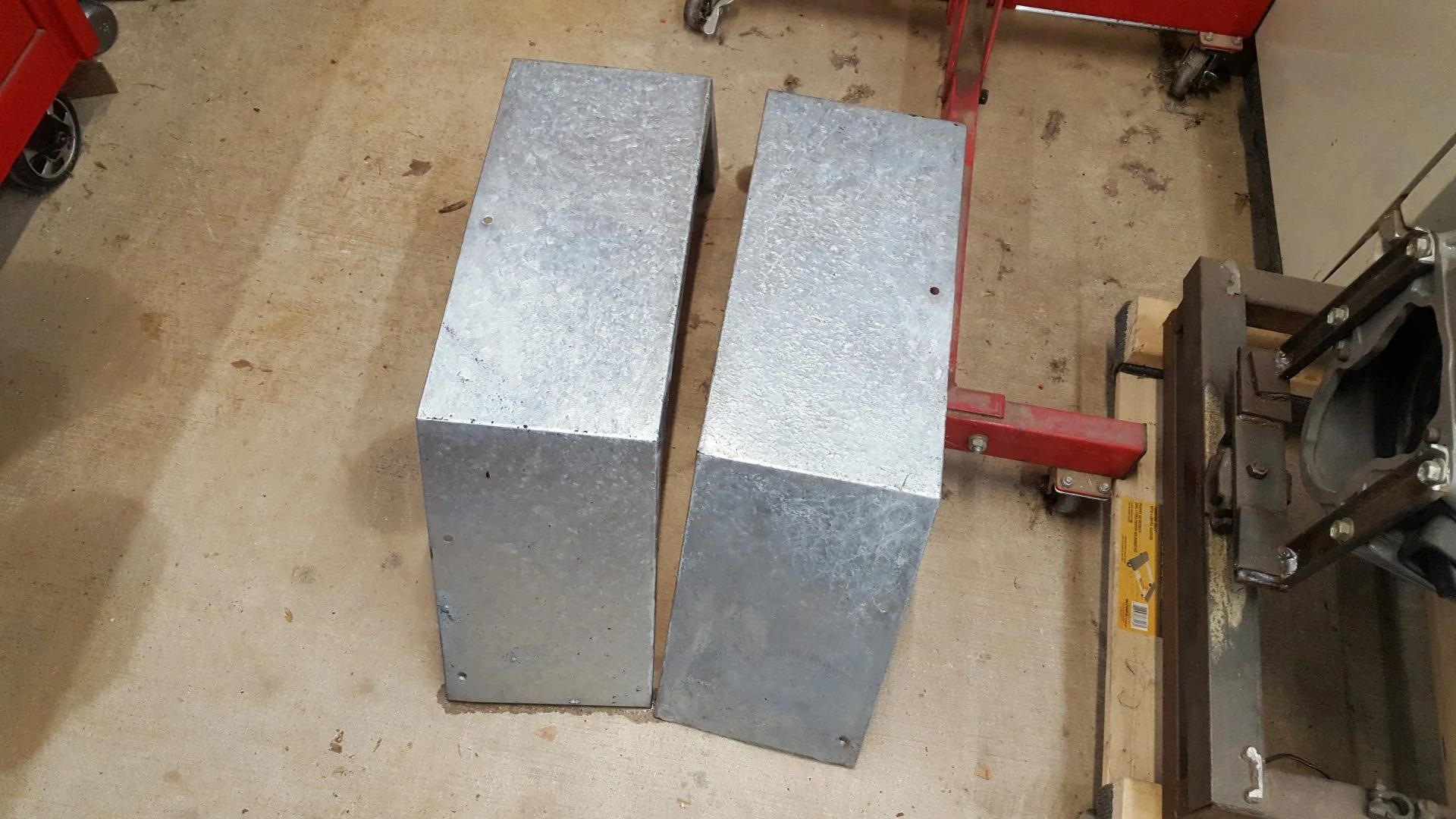

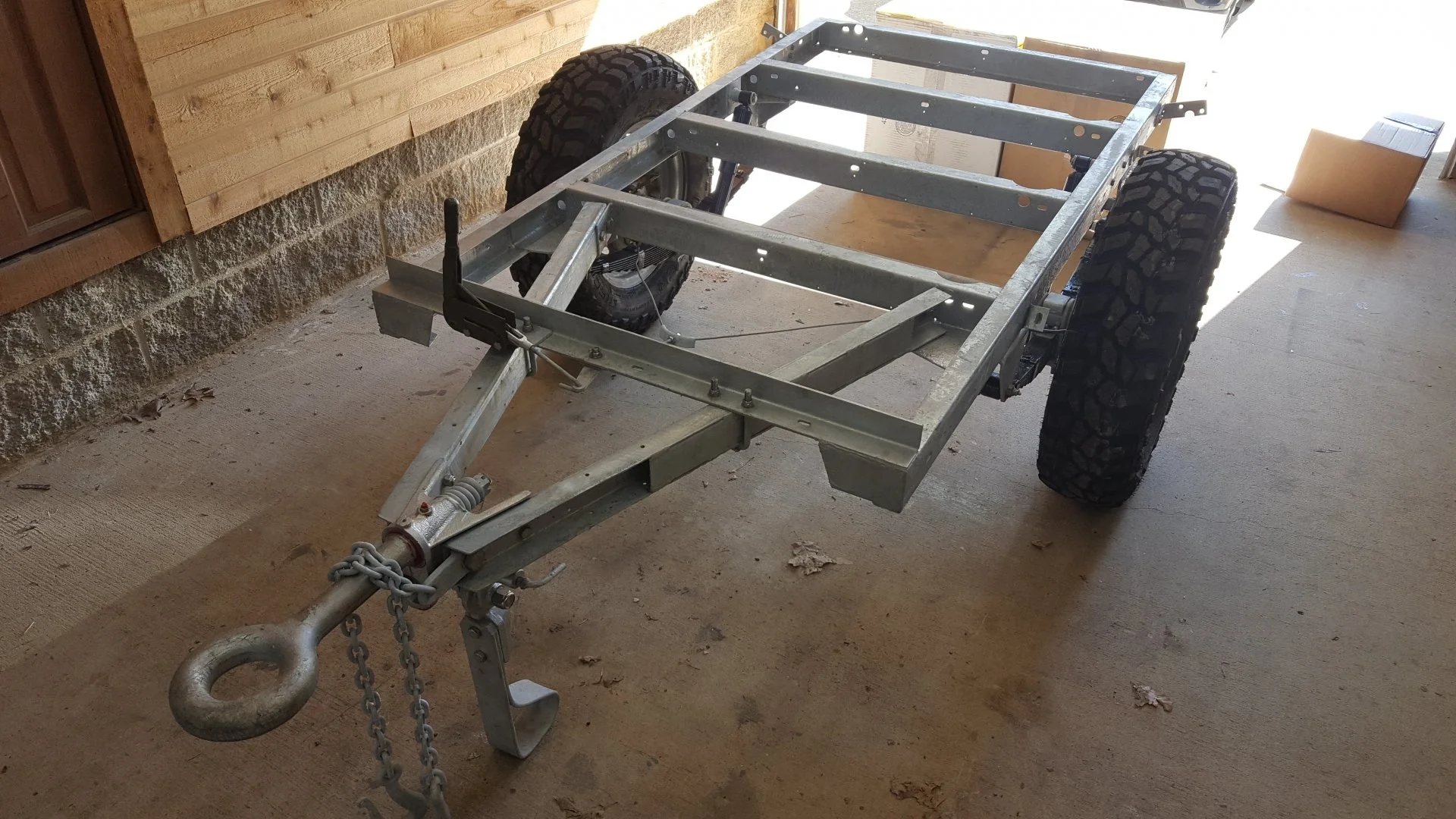

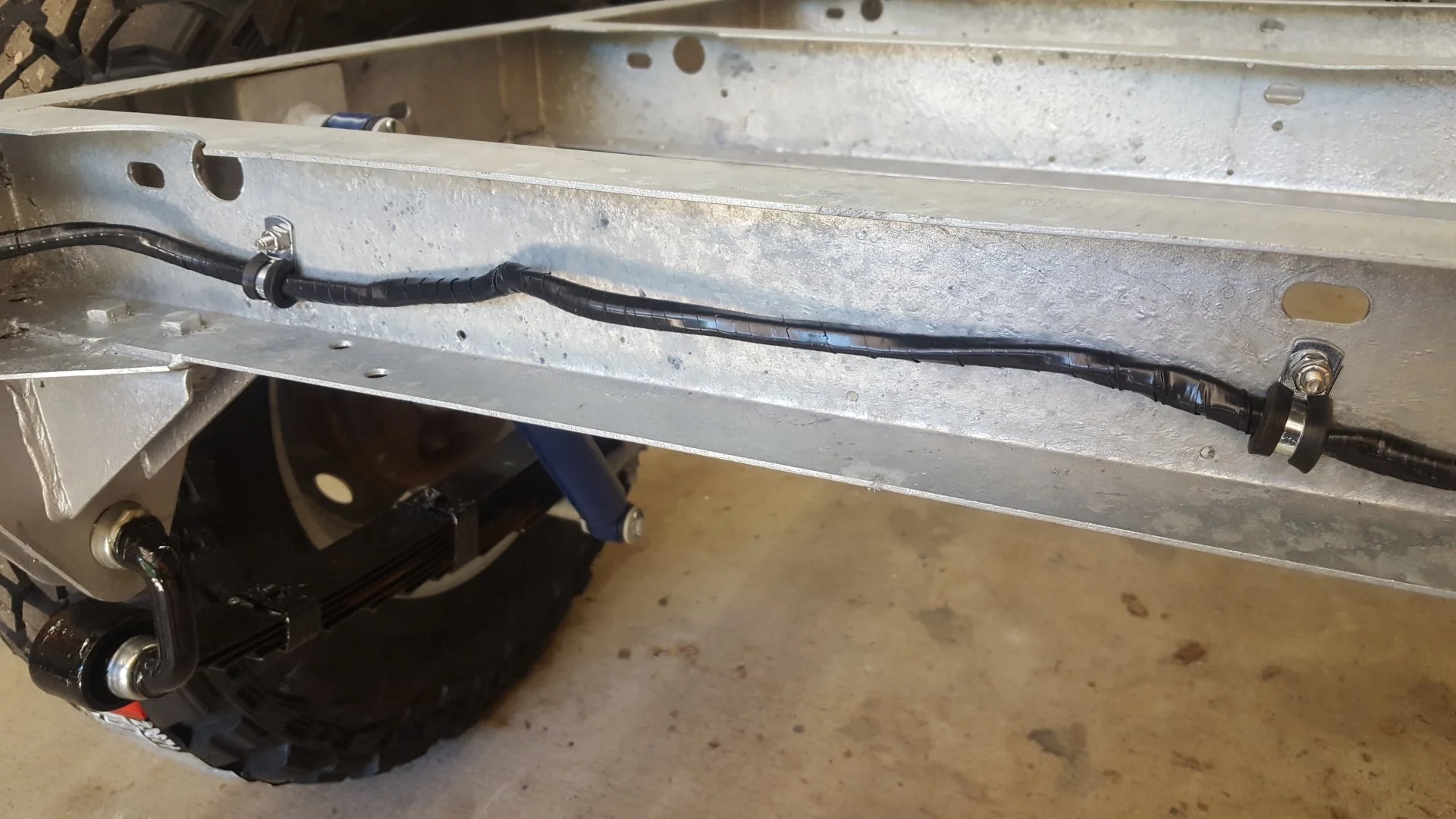

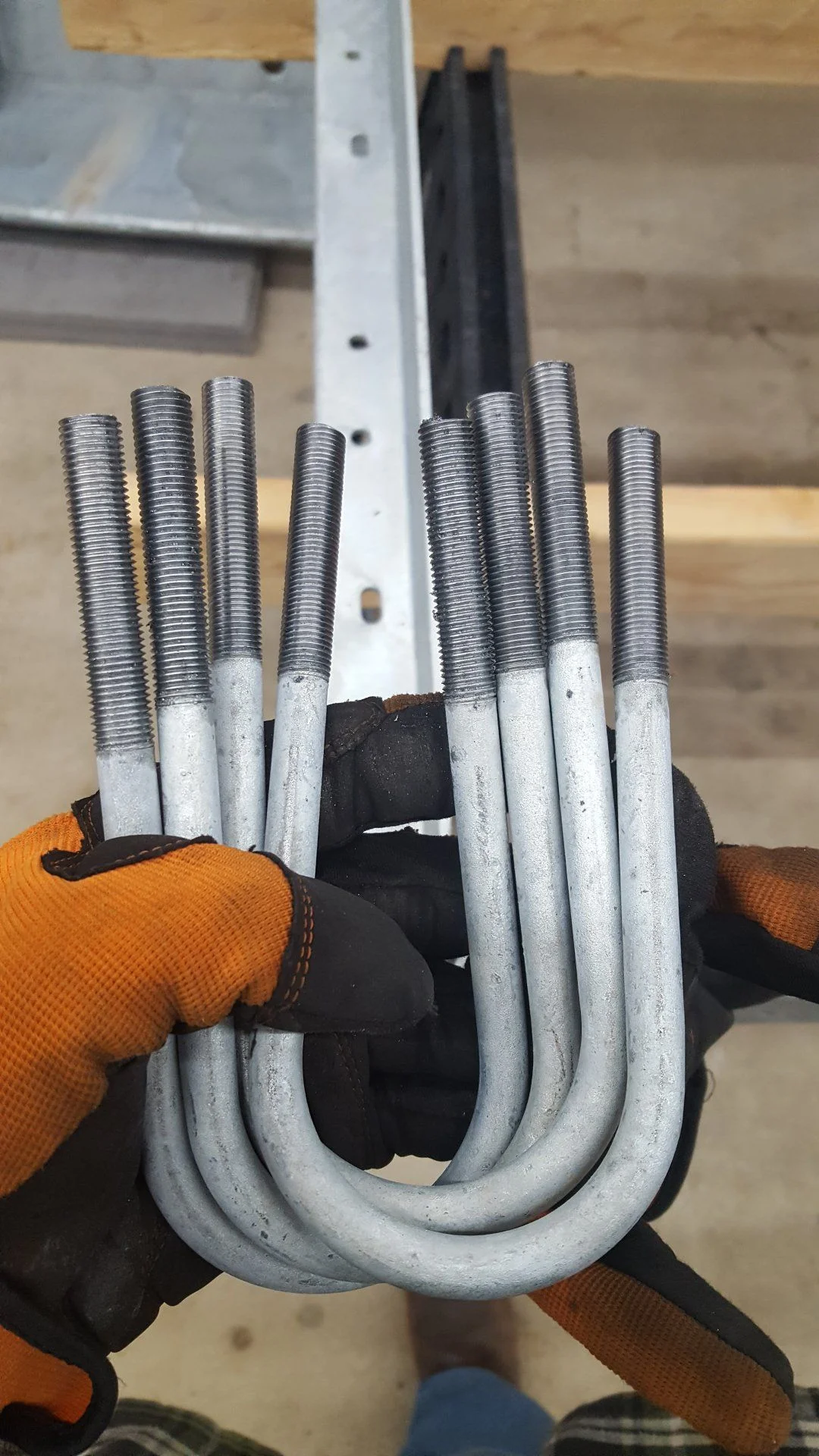

Sorted through all the bits this evening and looks like a few of the u bolt nuts and washers and brake handle pin are unaccounted for. I guess it could be worse. I bolted on the first two little pieces back up as well. The upper shock brackets went in place with new stainless hardware and lots of antisieze. Hopefully I'll never touch these again in my lifetime.



Kleatus

GOLD Star
Joined
Jun 6, 2012
Messages
1,130
Location
Missouri
Awesome work Roma. I am jealous you have a hot dip place around. I really wanted to do my 40 frame but nobody would touch it near Seattle 😒.
I need to start thinking harder about a little camping/multiuse trailer this size!

Joined
Mar 30, 2011
Messages
5,344
Location
Huntsville AL or Yuma AZ
Awesome work Roma. I am jealous you have a hot dip place around. I really wanted to do my 40 frame but nobody would touch it near Seattle 😒.
I need to start thinking harder about a little camping/multiuse trailer this size!

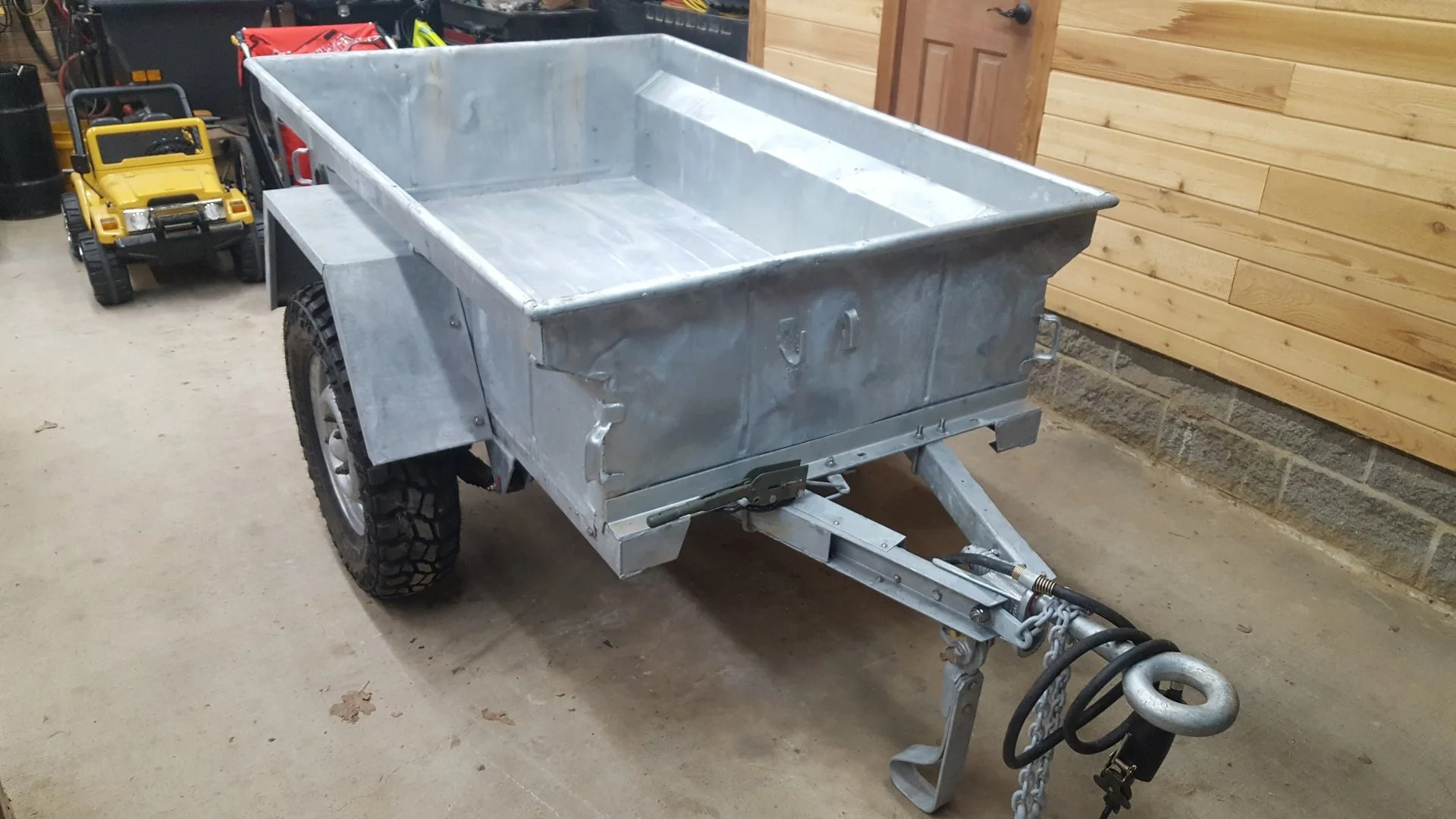

Thanks! It's been a fun little build for sure. If I had it to do over again I'd spring for one of those aluminum 416 boxes and build a frame from scratch.

Joined
Mar 30, 2011
Messages
5,344
Location
Huntsville AL or Yuma AZ

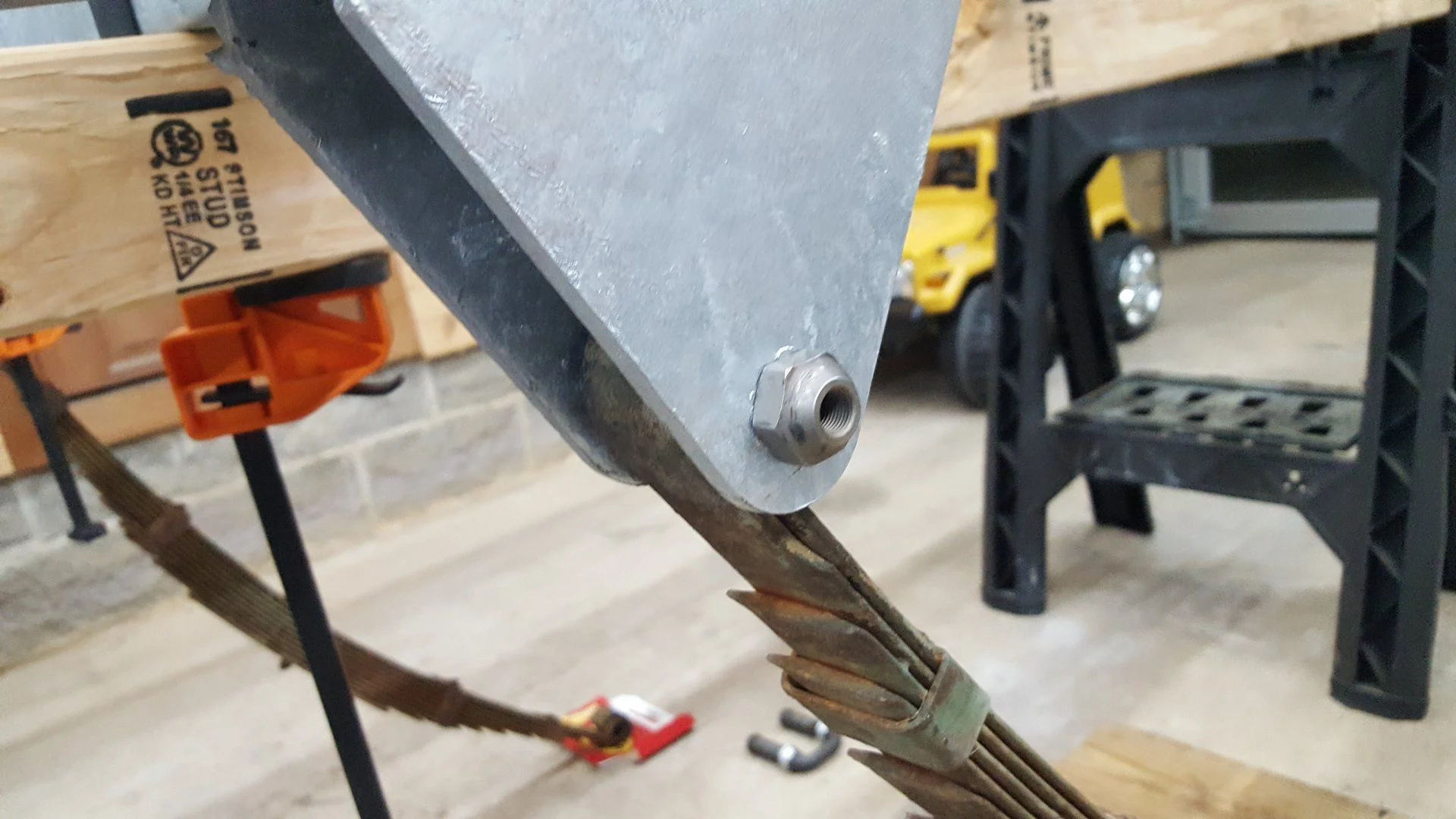

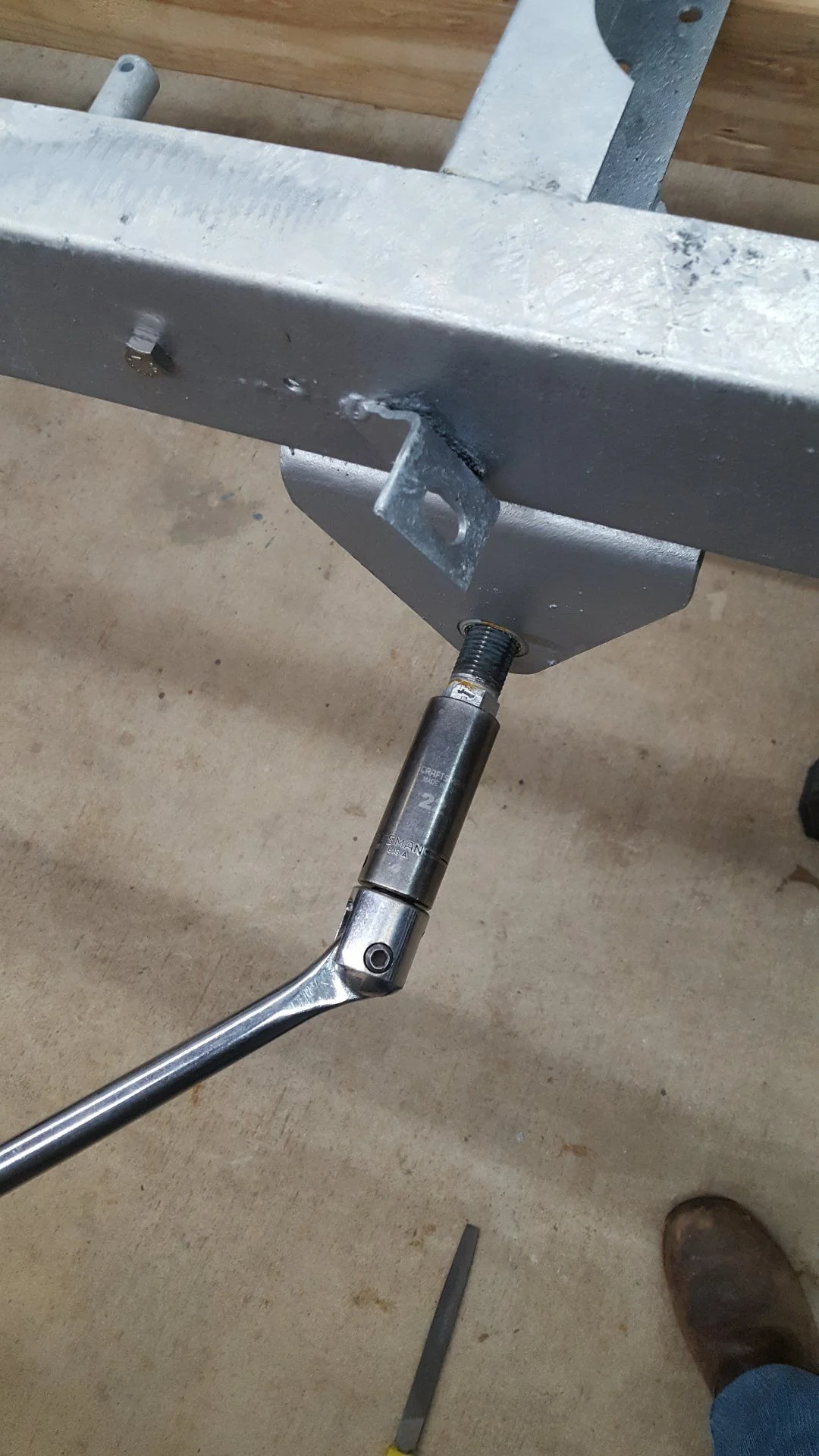

With a breaker bar and a cheater bar I was finally able to break the shackles loose from the springs. The right rear has reverse thread on the spring end.


New spring pins for the fixed side of the springs. I need to put the zerks in and give them a good greasing once they are full bolted up.

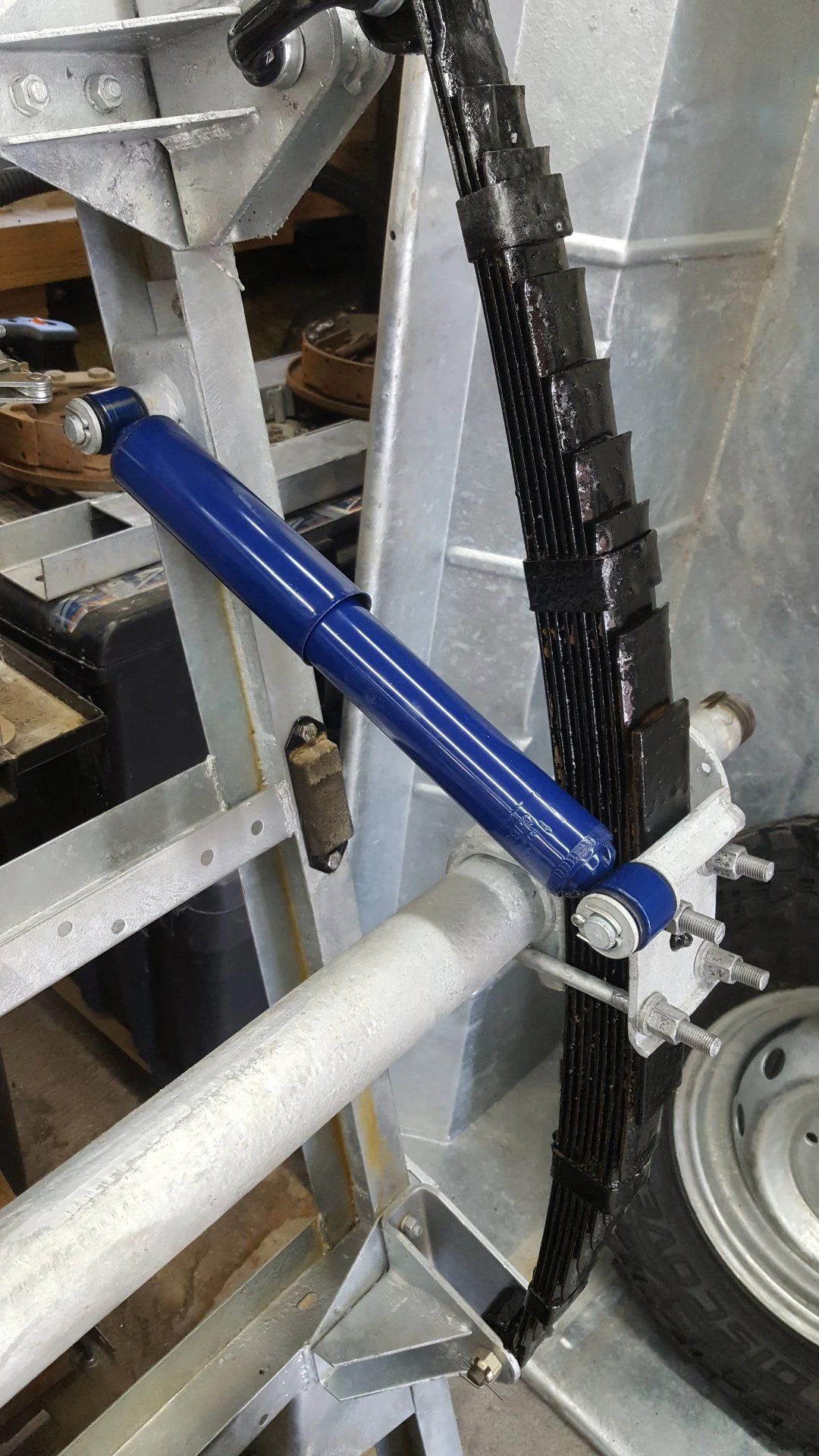

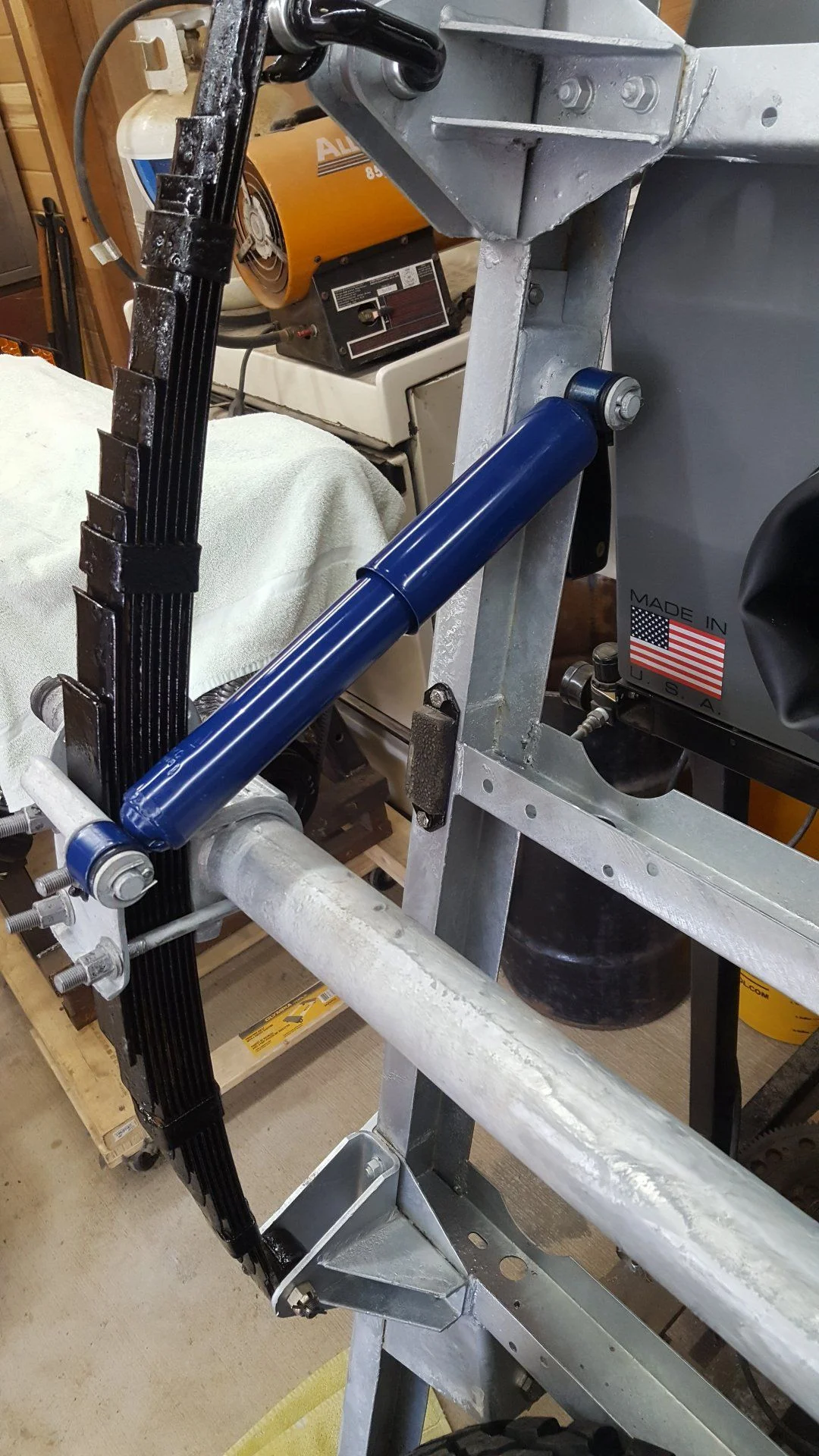

Also picked up some new replacement shocks from Napa.

Joined
Mar 30, 2011
Messages
5,344
Location
Huntsville AL or Yuma AZ

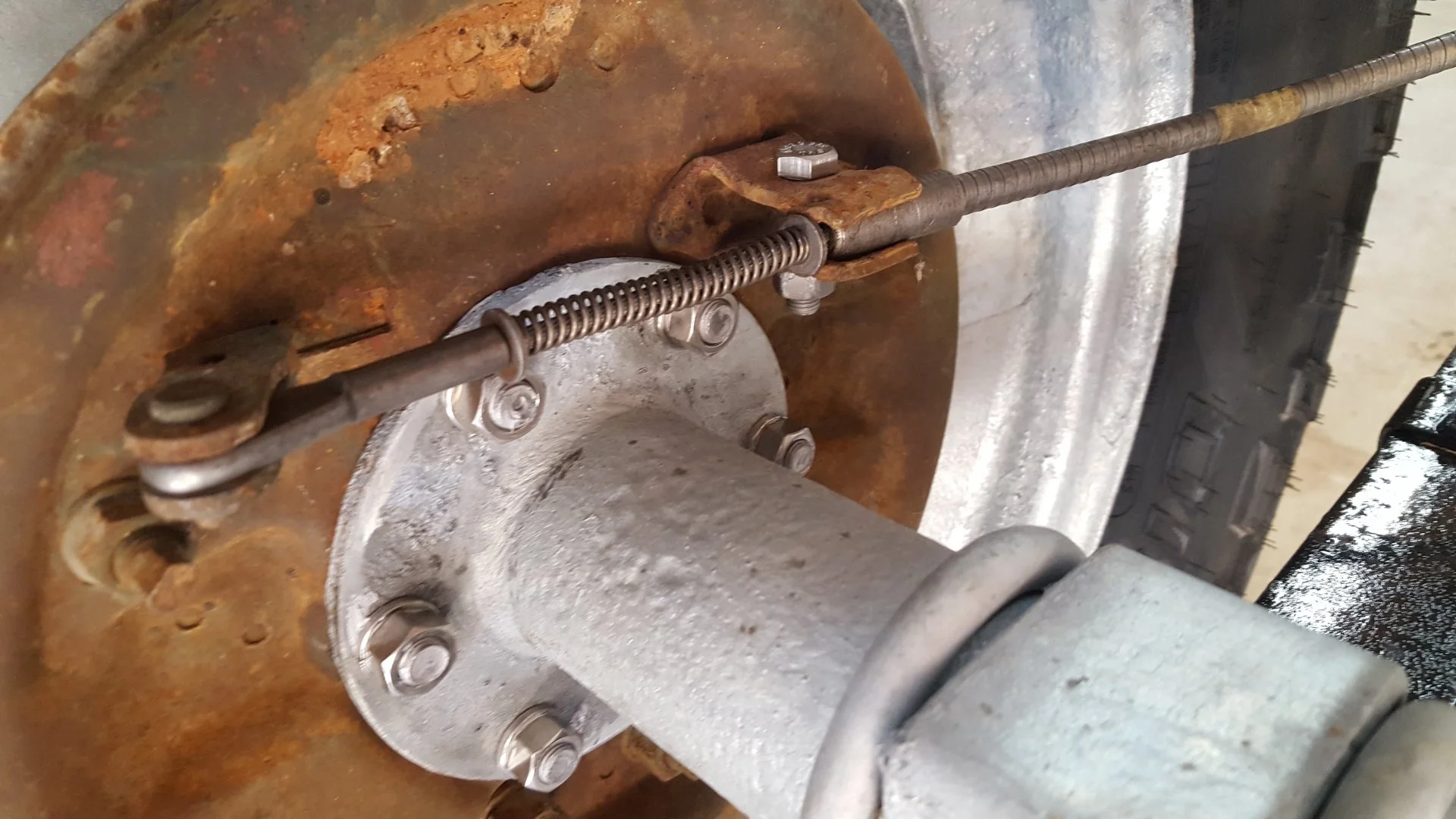

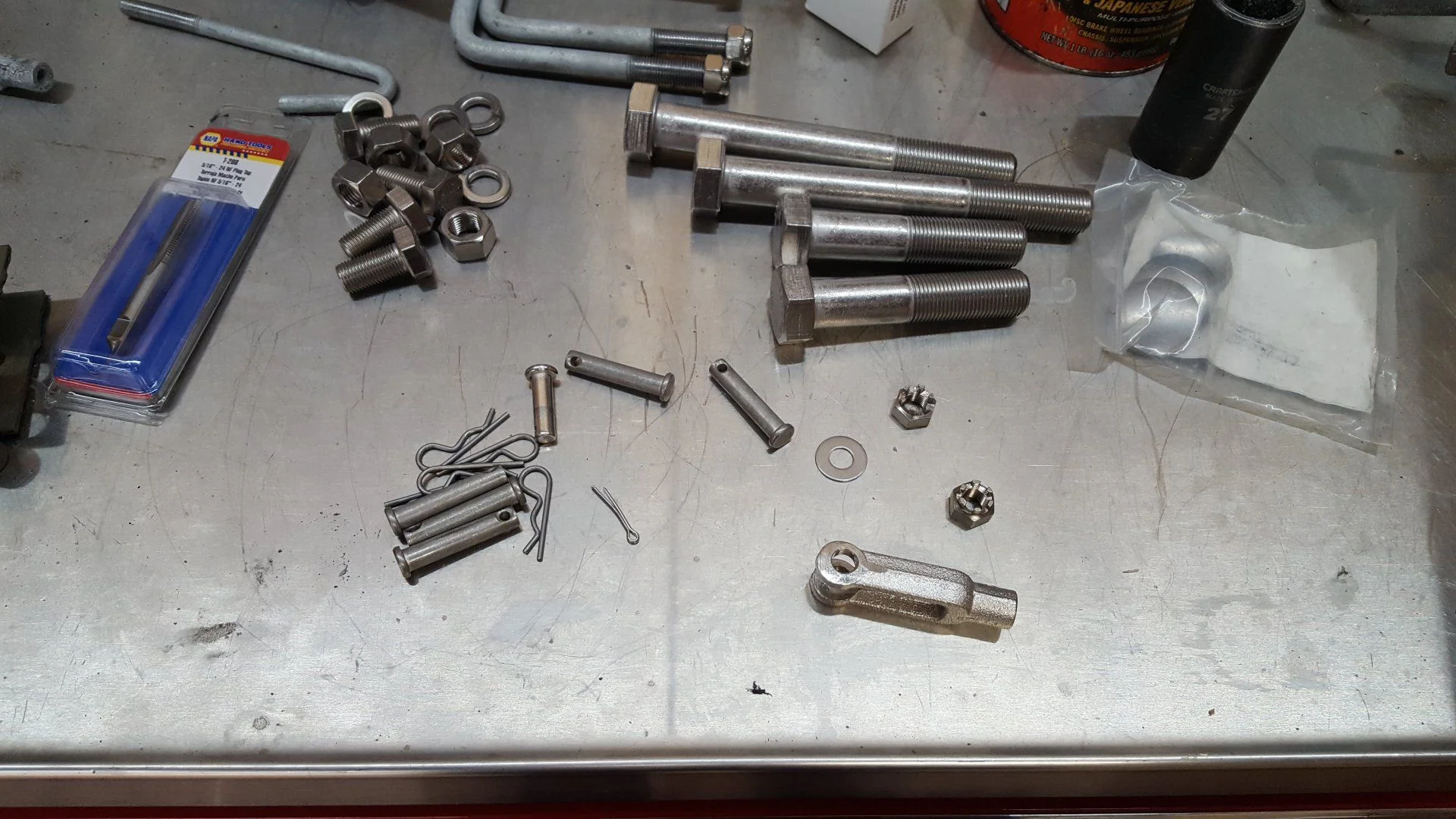

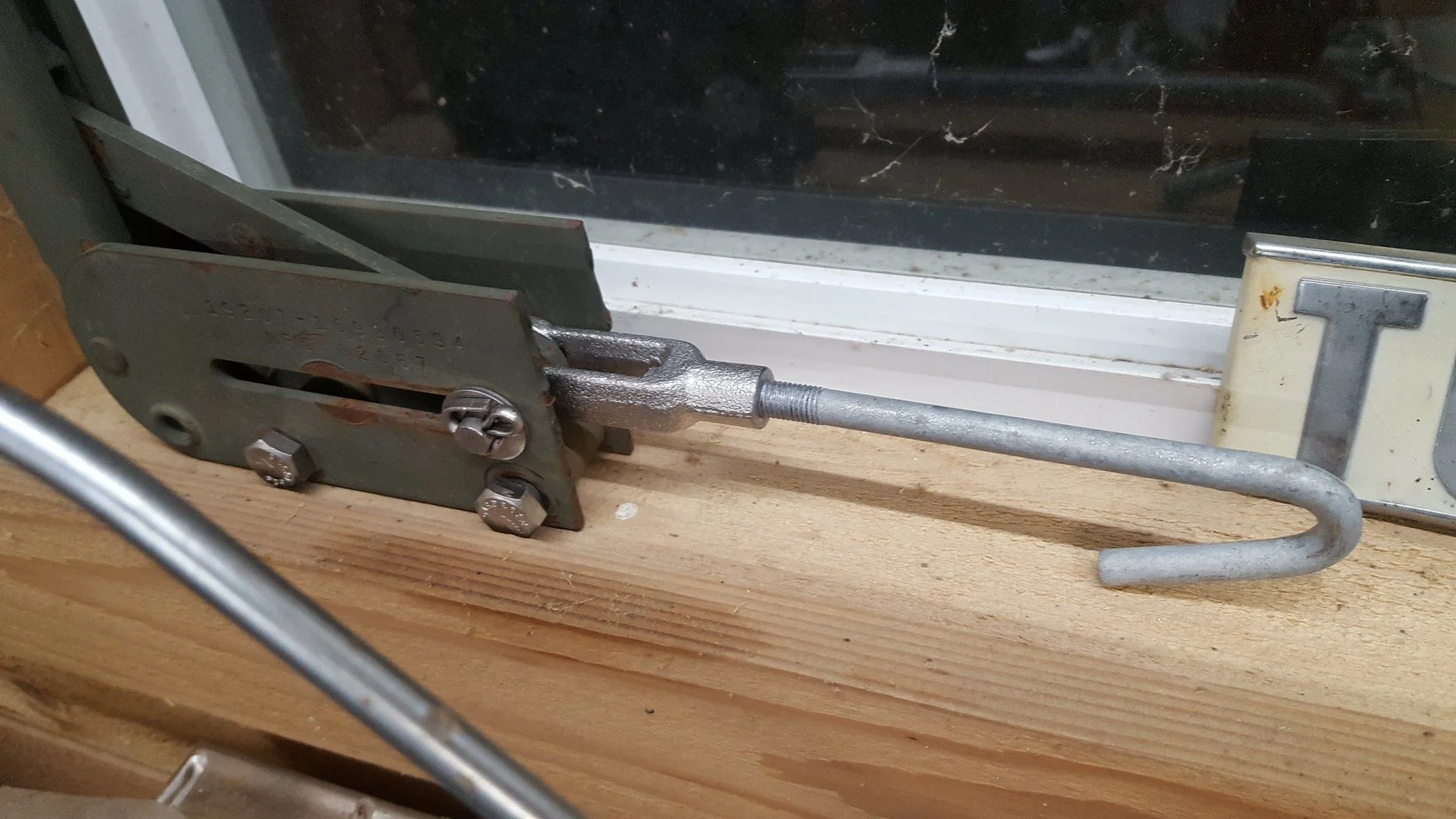

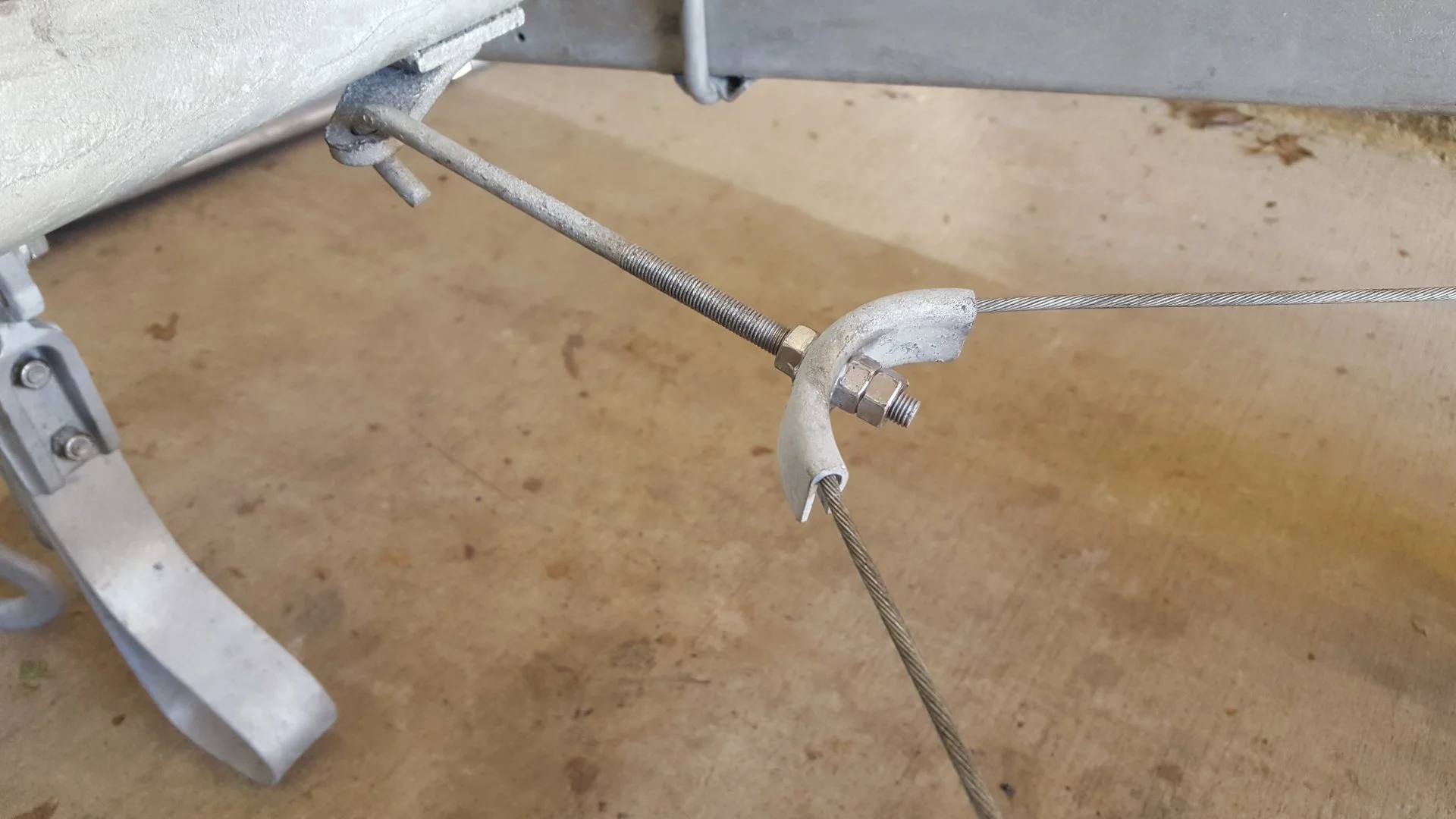

Well the two 3/4" bolts i couldnt find in stainless at bolt depot were driving me nuts so I ordered some from McMaster. I also got some stainless castle nuts for the parking bellcranks and a stainless clevis for the brake handle. Couldn't help myself.




Joined
Mar 30, 2011
Messages
5,344
Location
Huntsville AL or Yuma AZ

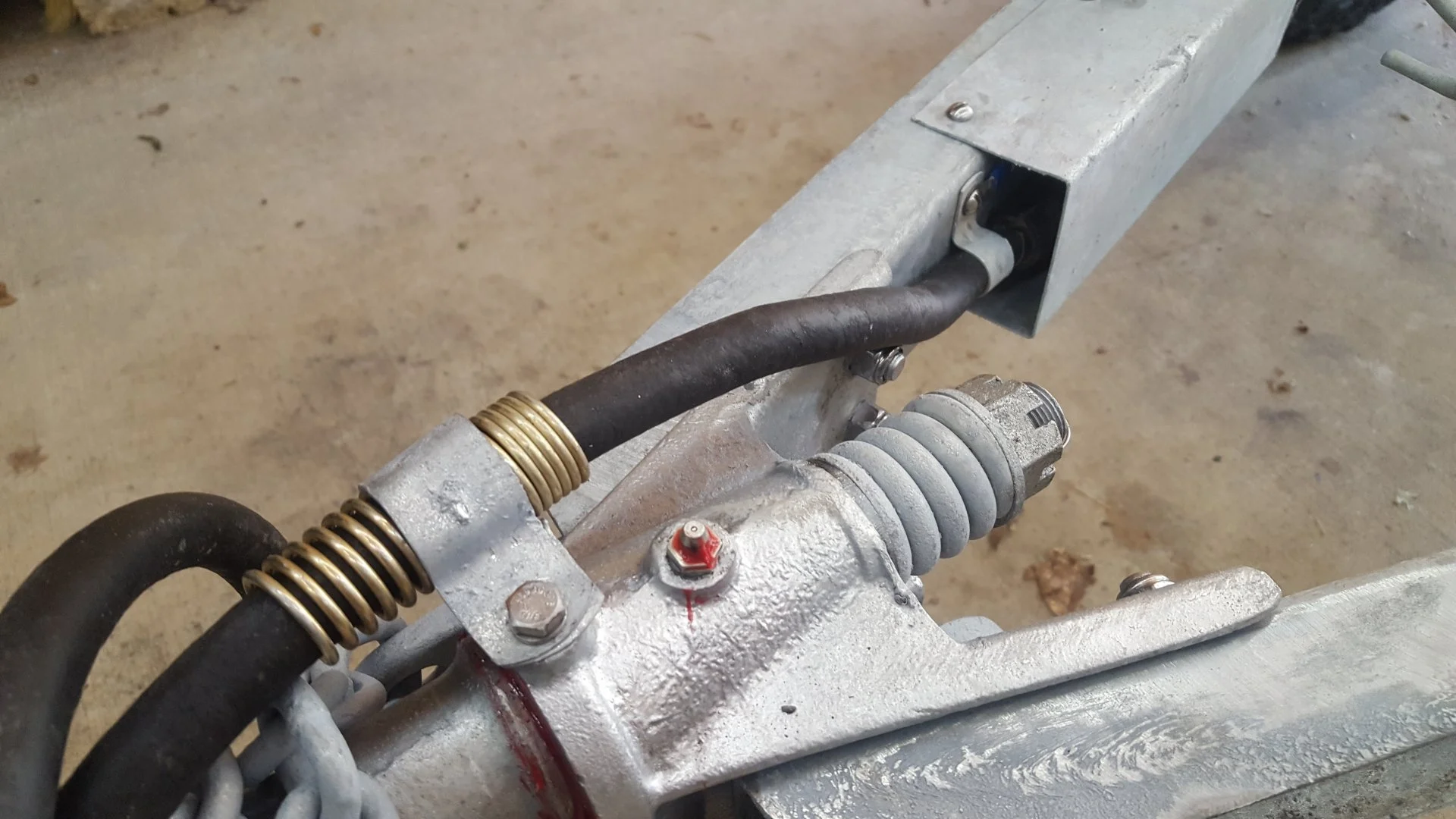

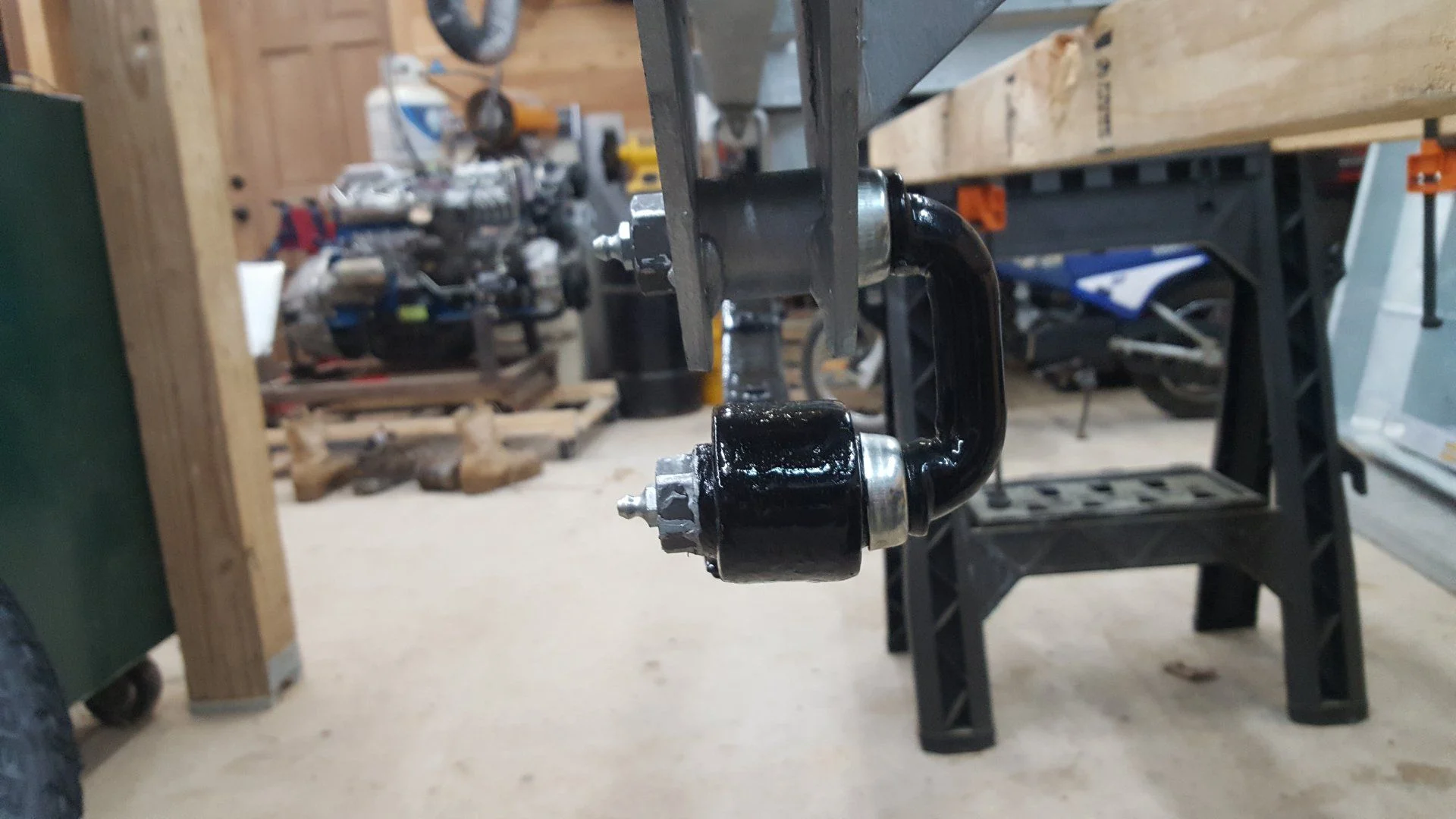

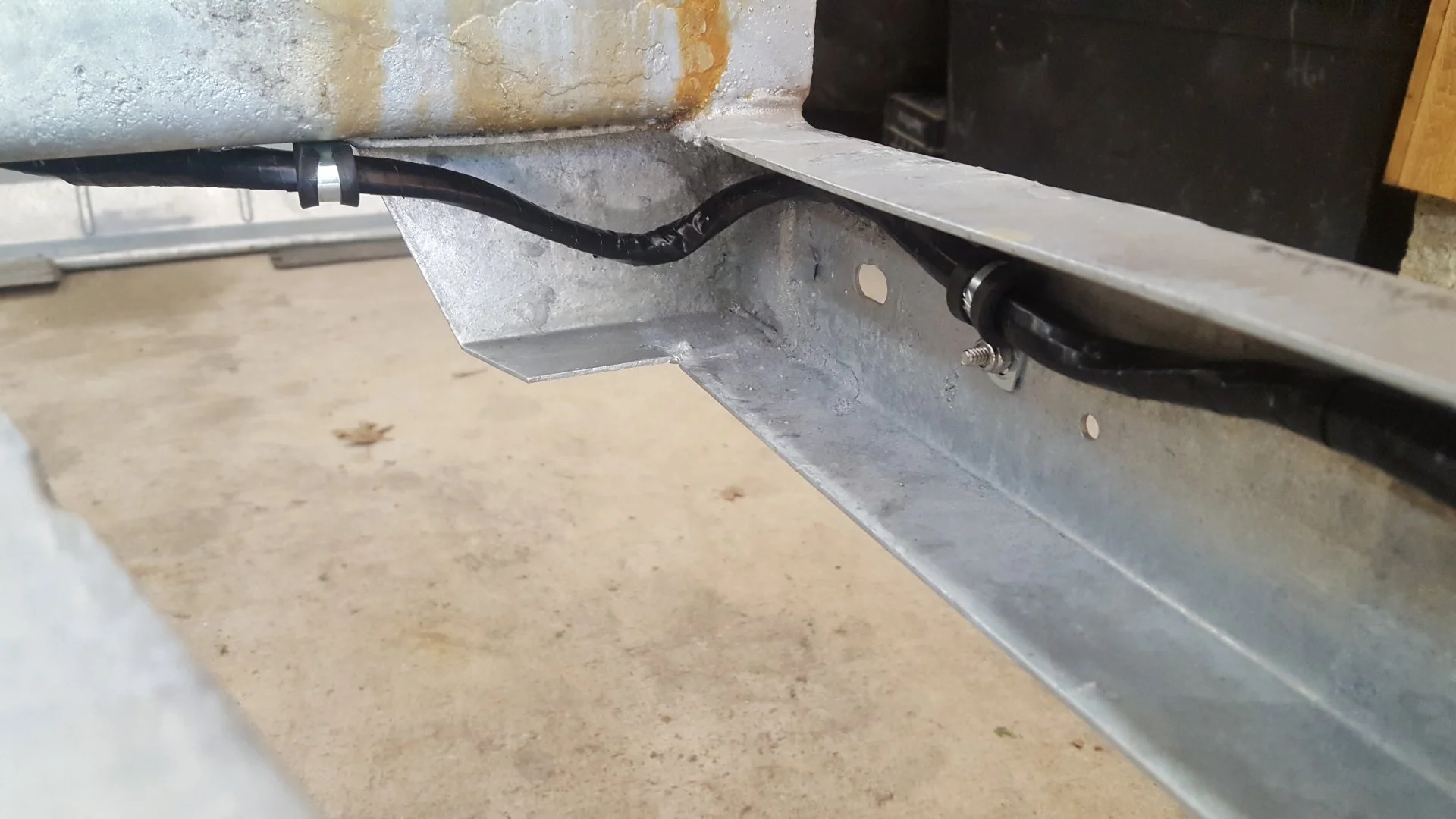

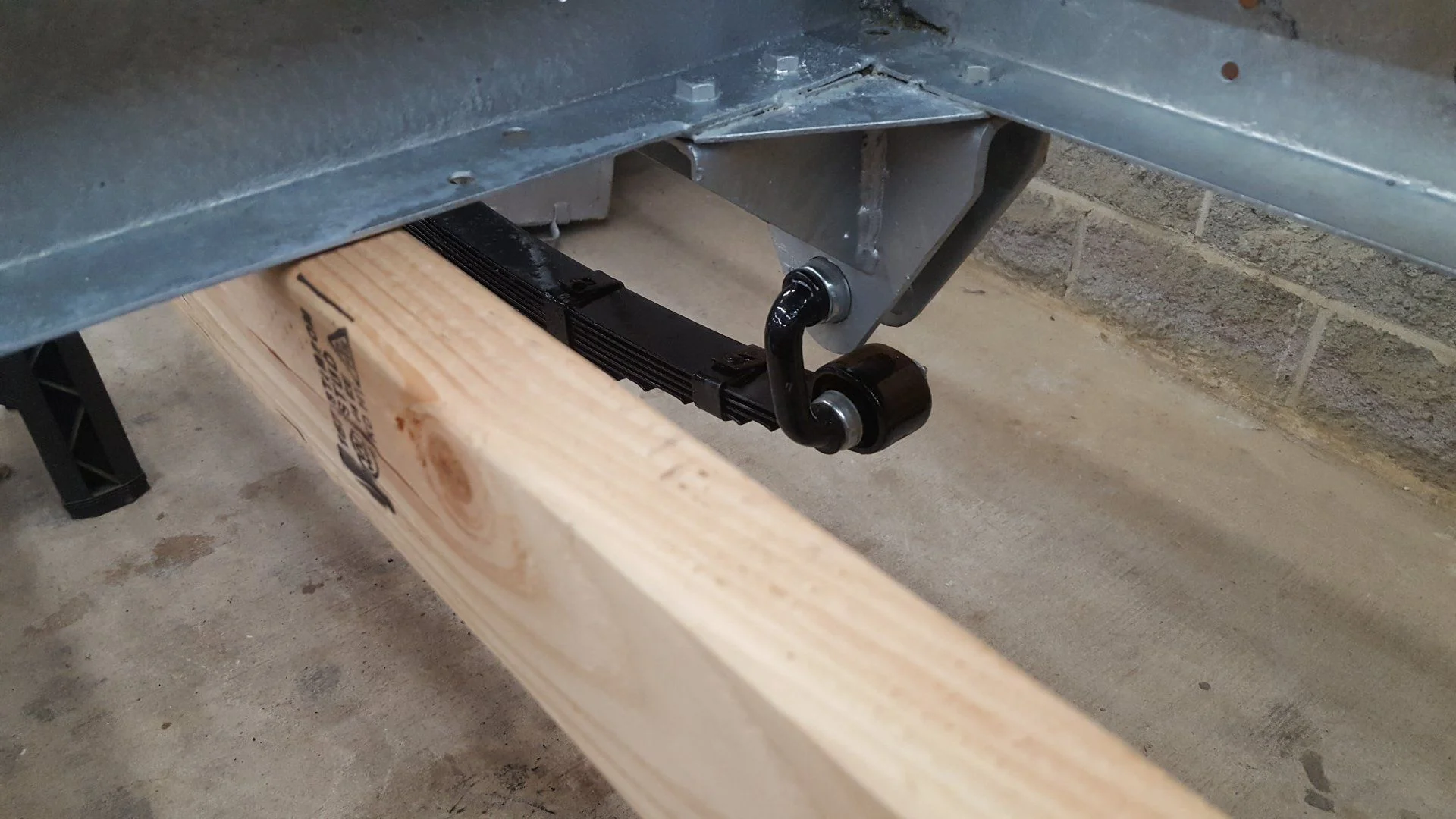

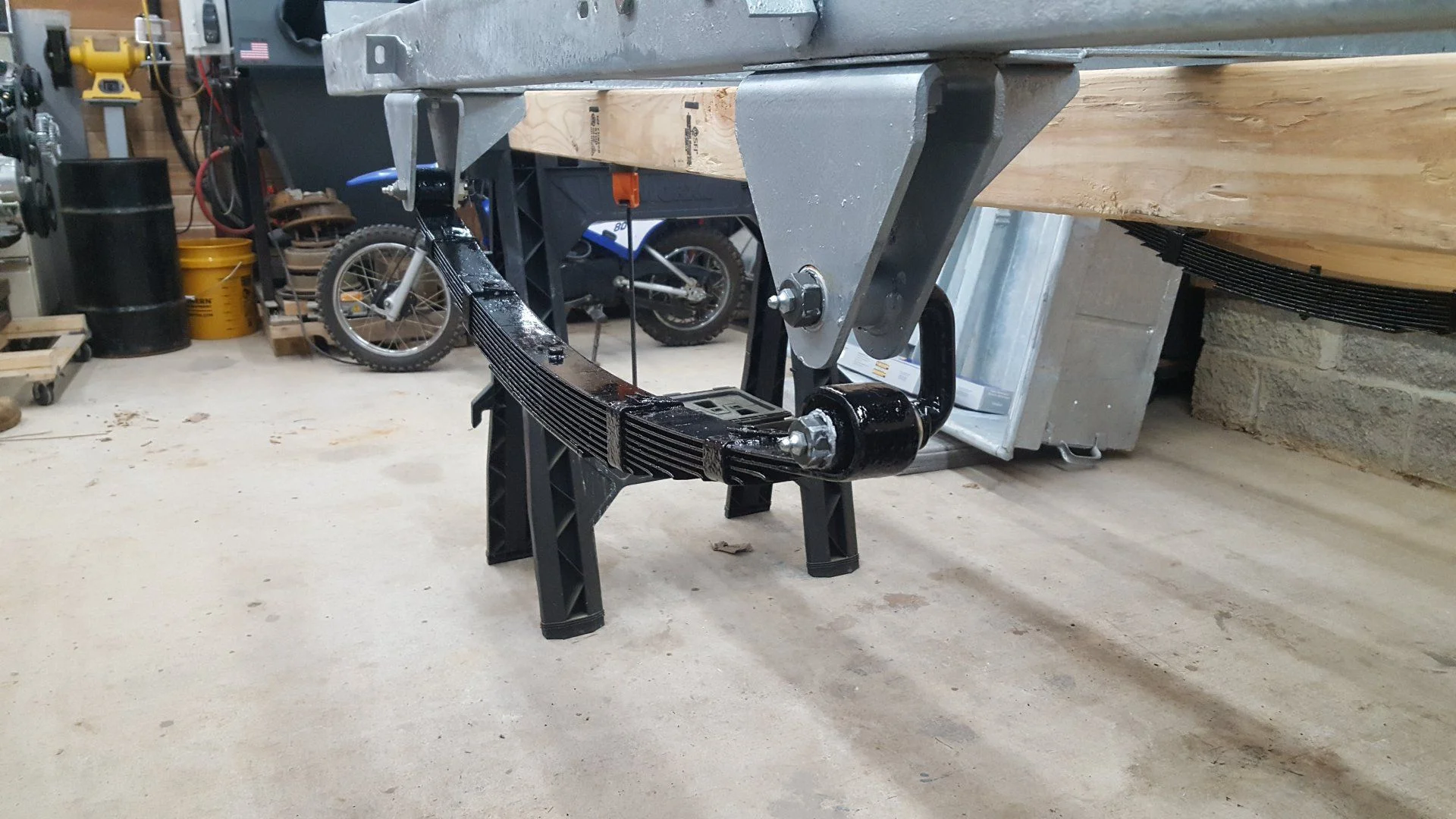

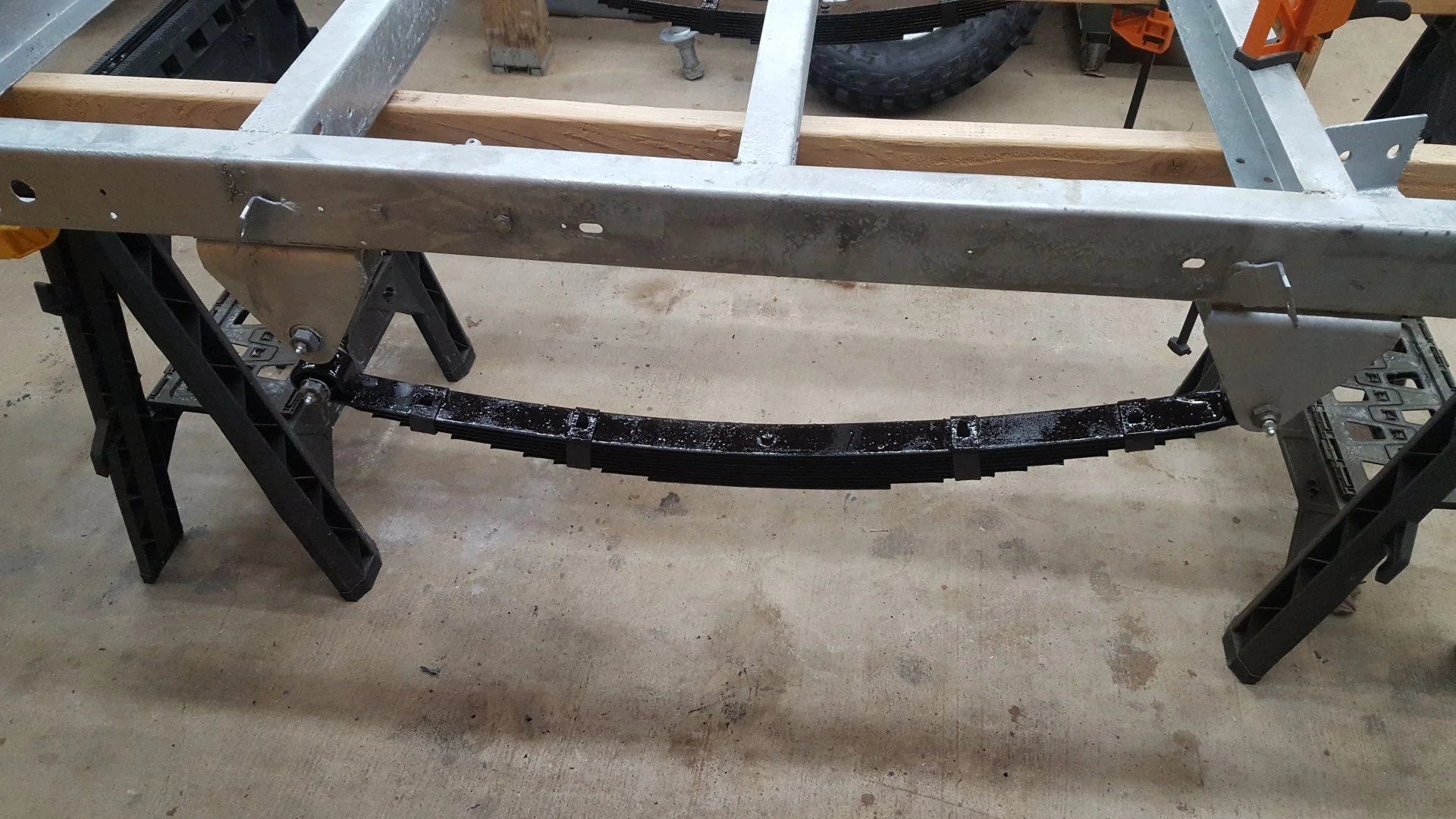

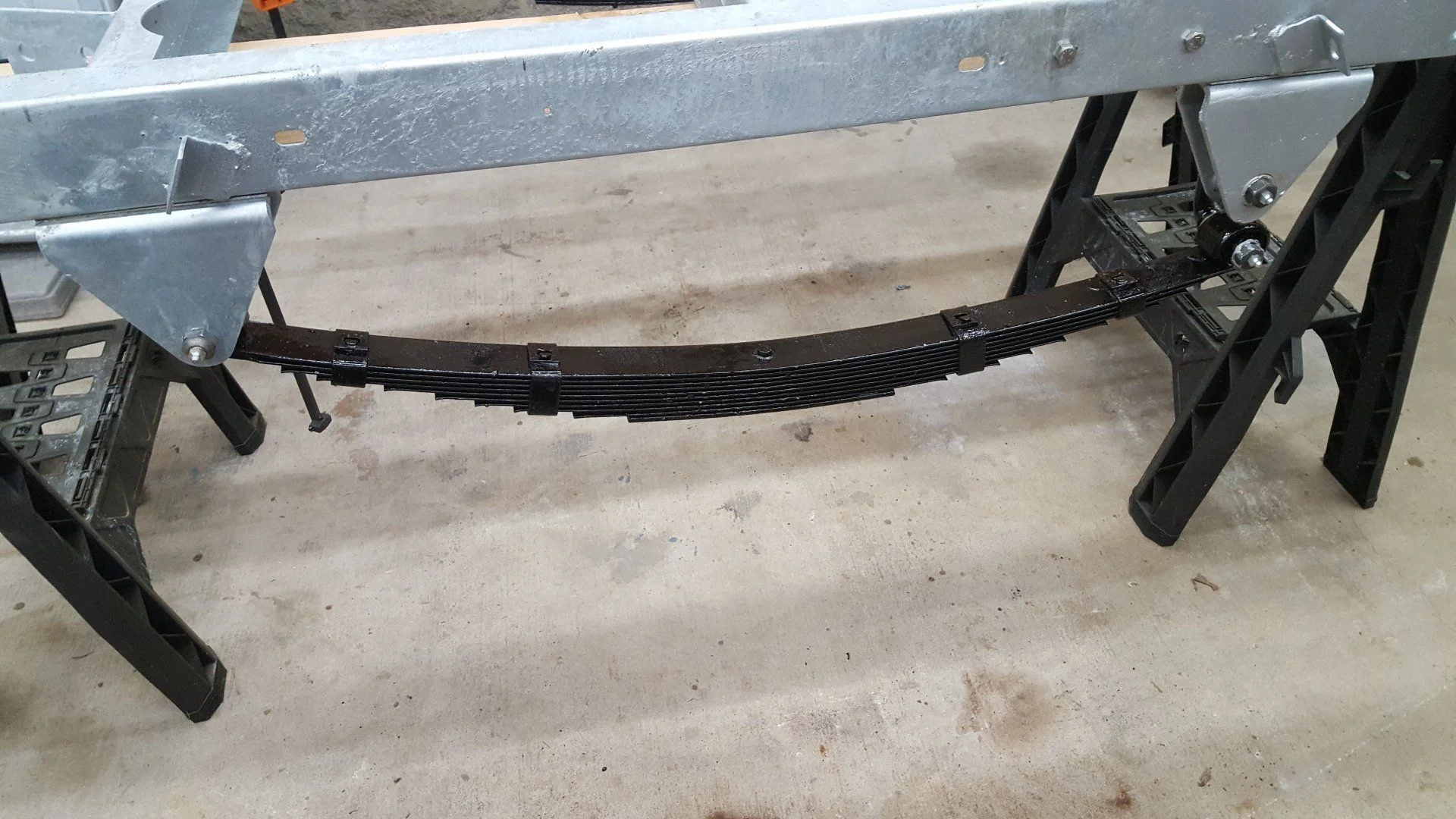

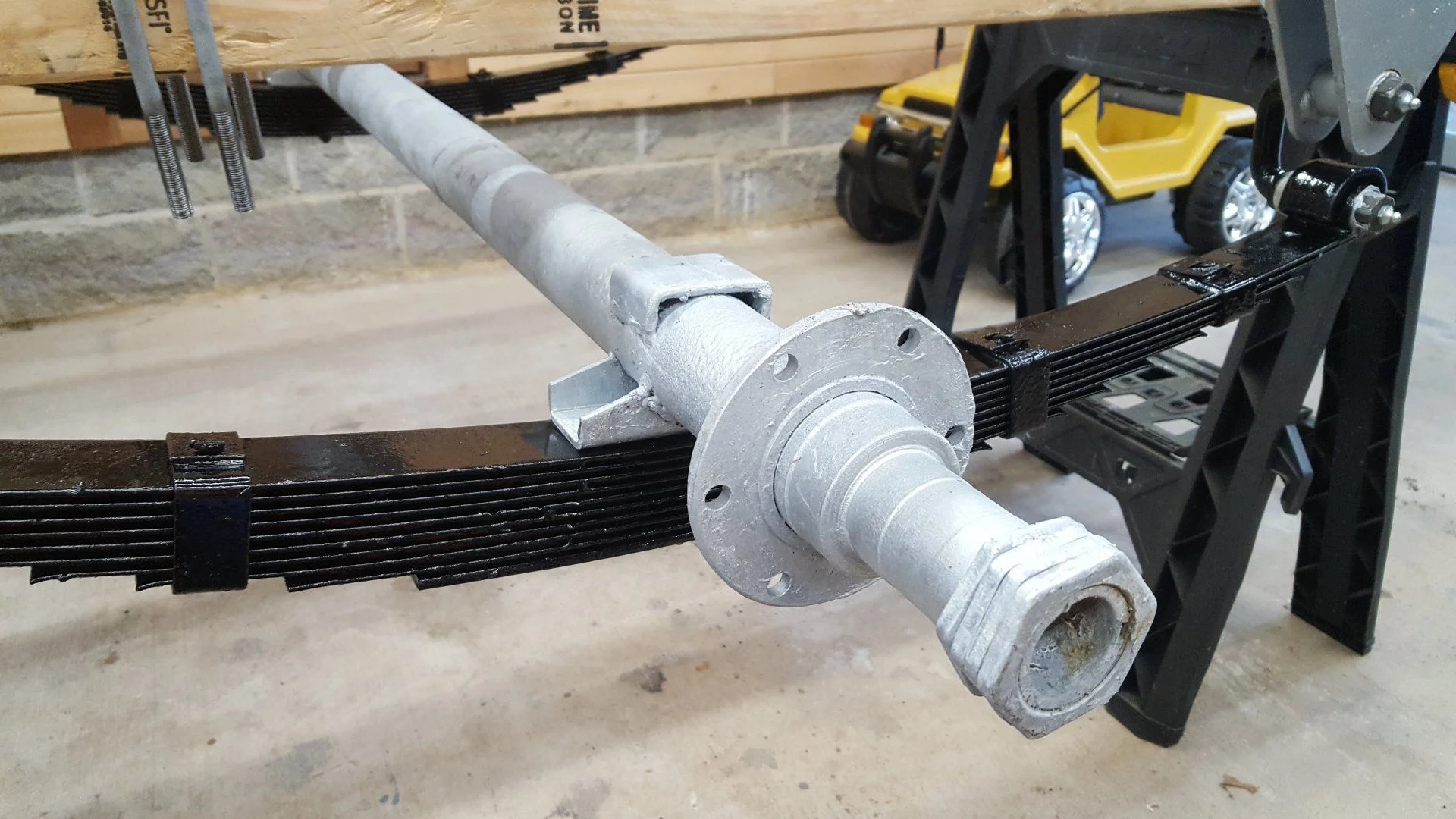

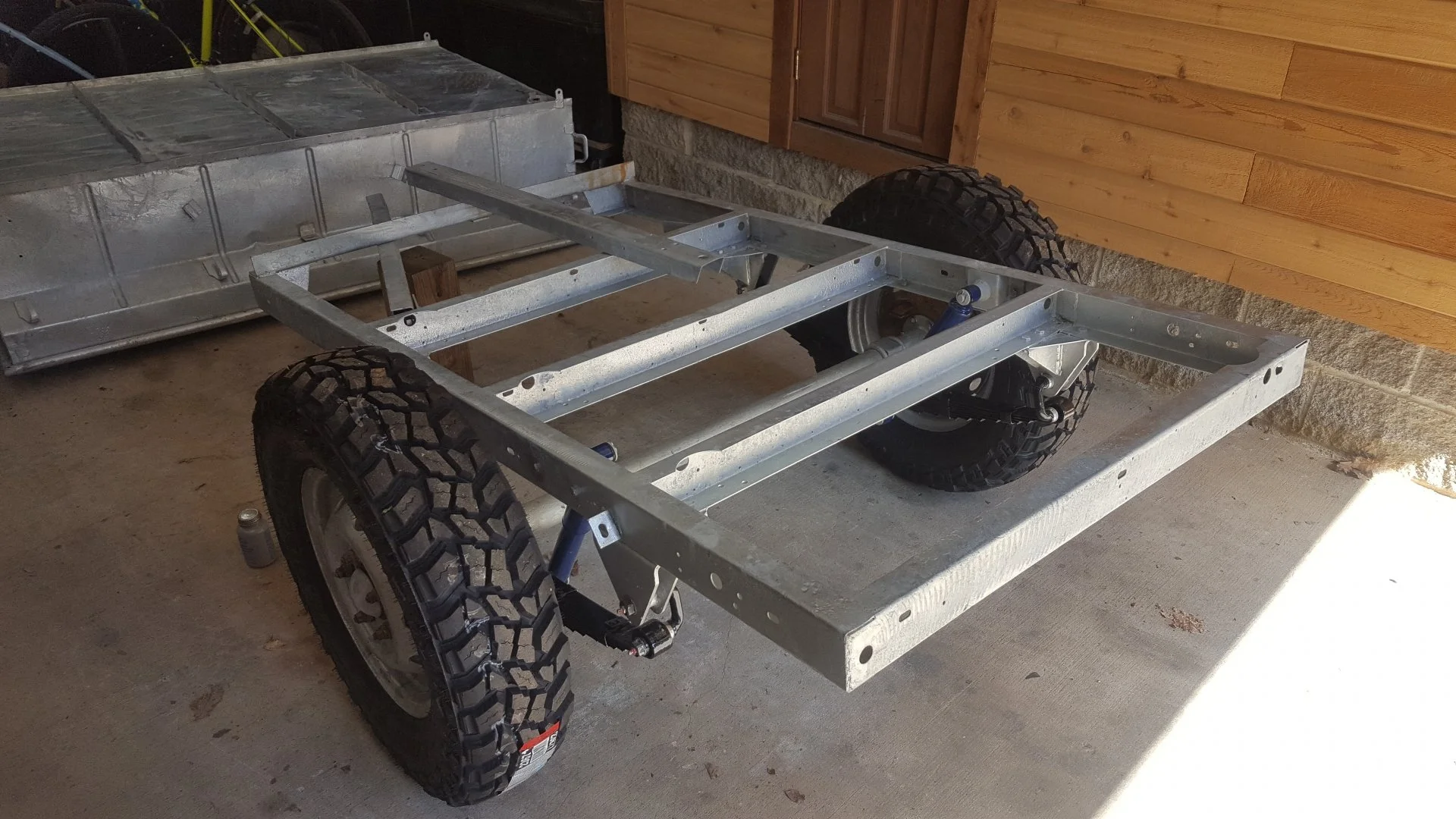

I gave the springs and the new shackles a coat of rust bullet and bolted them together. Lots of antisieze between the shackle sleeves and the frame and spring so hopefully they will be a little easier to disassemble if the need arises.
