PCV hose? RTH needed!

Joined
Oct 13, 2013
Messages
747
Location
Bryan, TX

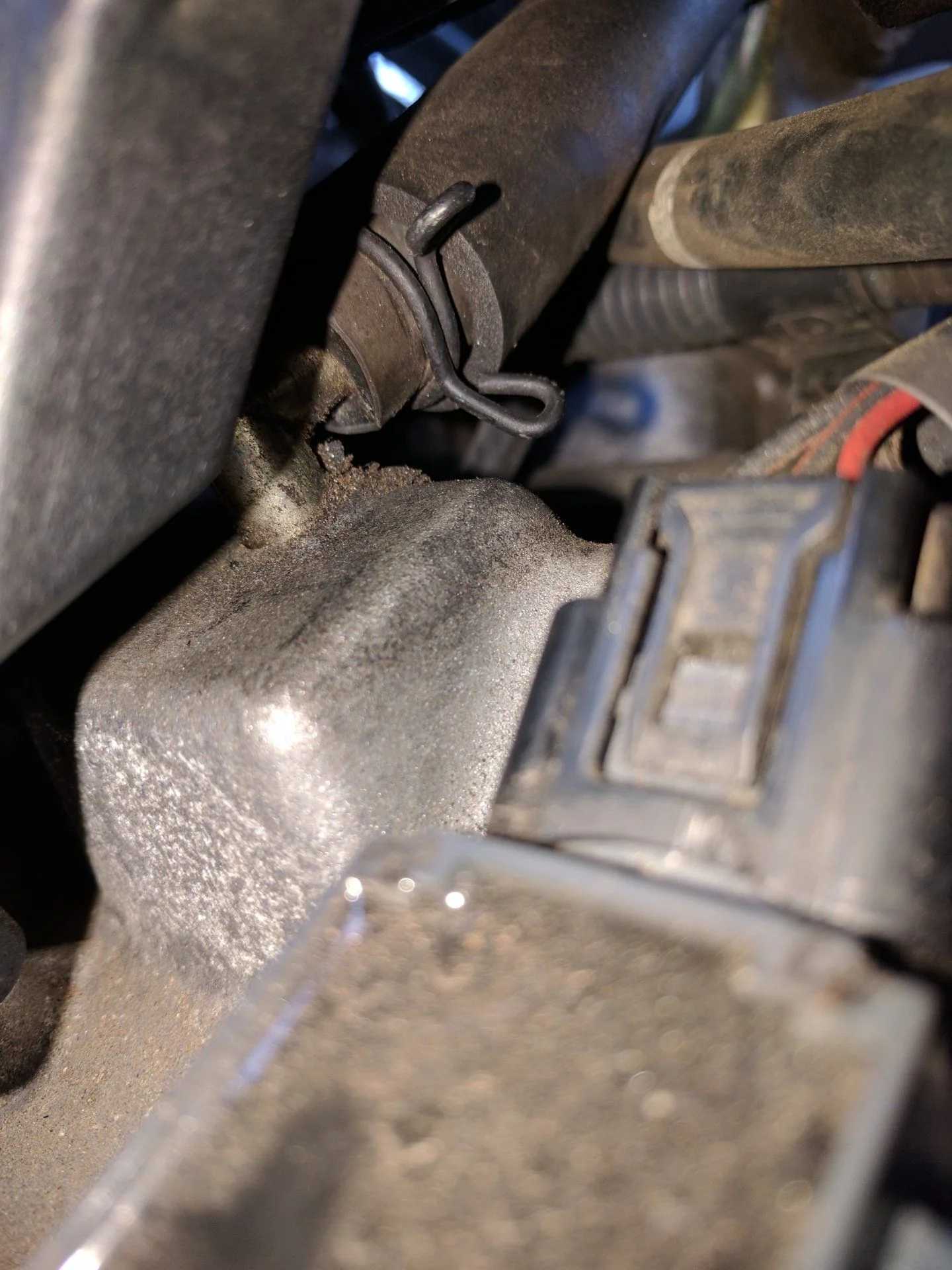

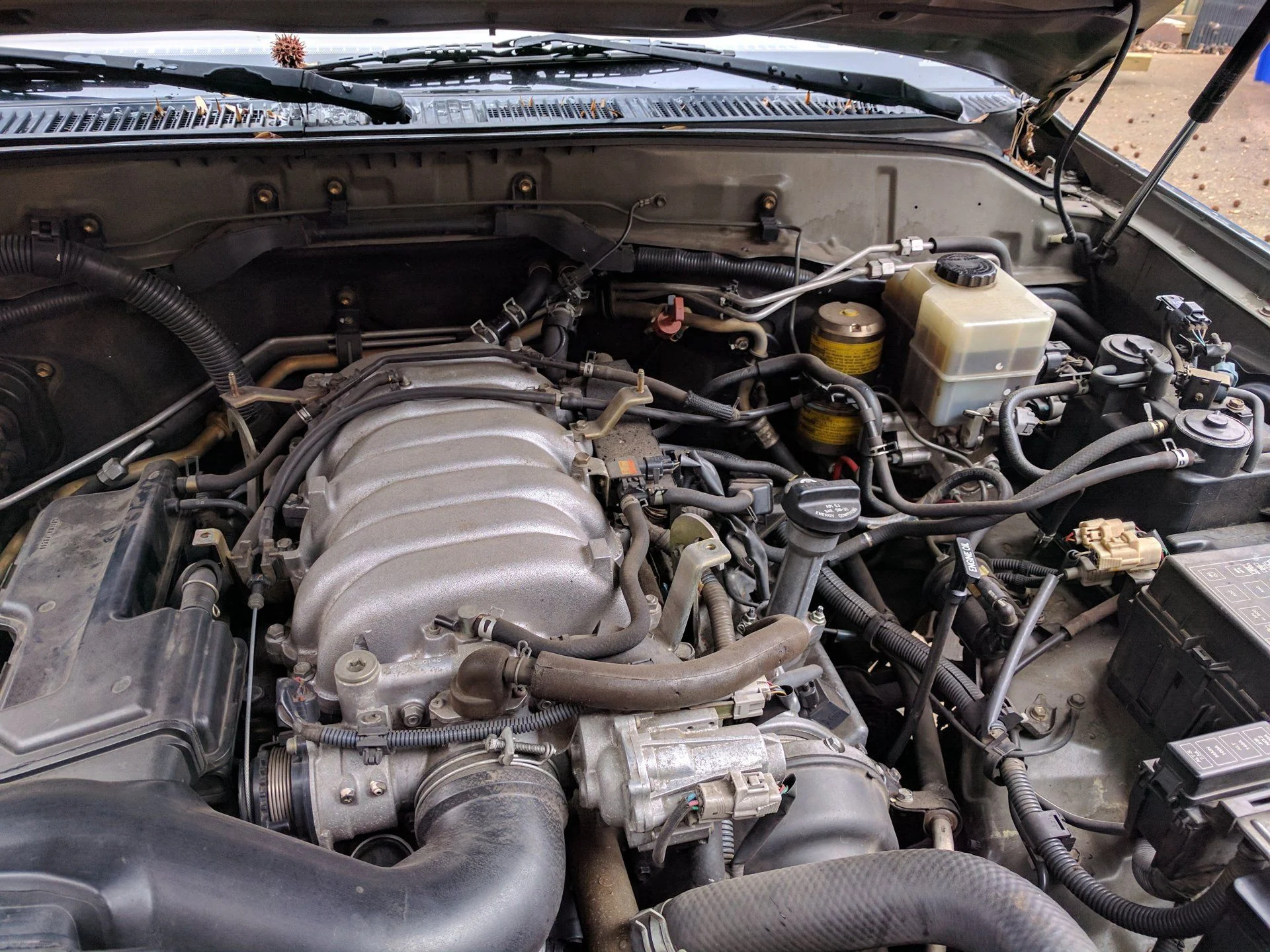

I'm trying to replace the PO's K&N with a stock box. After getting the stock piece installed, I found that one hose and nipple did not seem to match up. The nipple is way too big for that hose.
Could anyone verify I'm trying to connect this correctly?
If so, what am I missing?








Joined
Jul 1, 2015
Messages
1,197
Location
Canton, GA

hi enfield,
Your first pic is the passenger side pcv, it should route right under the air box to a nipple in the head cover. This pic is from me standing at the front pass. head light, with #2 coil pack in the foreground.

Your second and third pic are the rear most air hose on the air box.

Joined
Oct 13, 2013
Messages
747
Location
Bryan, TX
That's weird, I've got a house coming from the cover, to the air box.

I also can't find that big air hose.

Can anyone show me a pic, or diagram of the routing of these air box hoses?


Thanks


Joined
Oct 13, 2013
Messages
747
Location
Bryan, TX
:bang:


I see what you are trying to say now. Sorry. Been sick and the head isn't right yet, lol.

Joined
Oct 13, 2013
Messages
747
Location
Bryan, TX
Looks like the factory pcv hose has a reducing end on it. I've just got a straight piece of small hose. Can I find something like that at NAPA, or is it a dealer-only part?

Joined
Dec 2, 2004
Messages
1,568



That's weird, I've got a house coming from the cover, to the air box.

I also can't find that big air hose.

Can anyone show me a pic, or diagram of the routing of these air box hoses?


Thanks


The connection for the larger hose is under the plastic air cleaner, induction assembly. You can take the plastic unit off, make the 5 hoses, two hose clamps, one electrical connector and a clip that holds a hose and you will be able to connect it

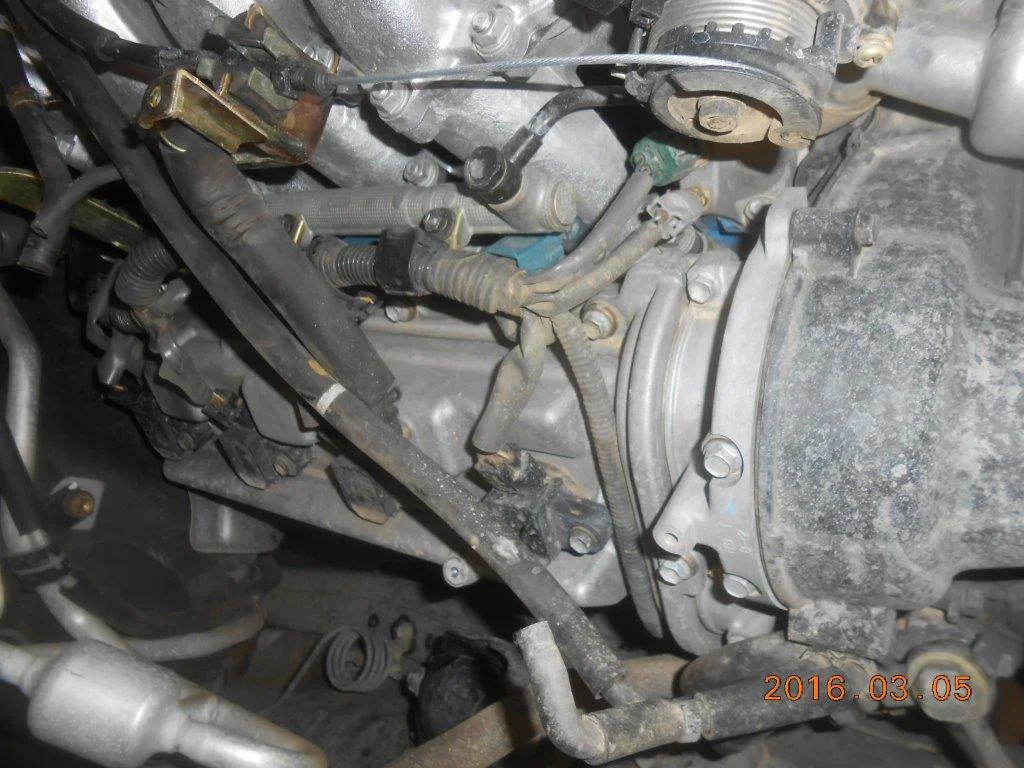

Here is a tilted pic of the other end of the big hose, under the plastic portion of the induction..The hose in question is touching the cadmium mount for the engine cover

Big Hose.jpg

Joined
Oct 13, 2013
Messages
747
Location
Bryan, TX
Thanks, I see where it's connected to, but I don't have the factory hose. I just have that small ID hose connected to the PCV and it won't fit over the air cleaner nipple.
