So I really love the concept of an expedition type trailer setup, but I wanted to have the ability to have everything an expo trailer has with the ability to haul cargo/an atv/dirt bikes/etc. The following will document the build from concept to completion of what I have come up with. I'm just getting started but by the end of the thread I hope to have a comprehensive documentation of my build.

So far it's a bit more of a dream than a reality, but I hope to become involved in desert racing in the near future. Even if only in a supportive roll. I believe my 80 as I plan to build it along with this trailer will make an excellent chase platform in addition to being a luxurious back country camping platform.

The basis of my trailer is a retired service/utility body that I picked up on Craigslist. It is in my opinion almost perfectly suited to my purposes and will only require modifications to the floor and supporting structure.

I plan to utilize one side of the trailer for a full kitchen including stove, sink, refrigerator and possibly even a microwave, space and electrical permitting.

The opposite side will handle tool storage, shower, and electrical compartments. The trailer will have a full on-board water and electrical system(12/120/220V). I plan to carry approximately 75 gallons of fresh water in tanks under the belly of the trailer. This should allow comfortable showers and plenty of water for drinking/food prep etc. I also plan to carry approximately 30-50 gallons of fuel. This will serve as the fuel tank for the generator as well as an aux fuel tank for the tow vehicle. A simple fuel transfer pump will be utilized to transfer fuel from the trailer to the tow vehicle. Additionally this will allow for fueling of toys(ATVs/dirtbikes/etc) if necessary.

A large RTT will handle sleeping duties while the majority of the bed will remain open below for storage/hauling. Approximately 2' of the front of the bed will have to be sacrified for the fridge and generator to live in.

The entire trailer will sit on a scratch-built frame sitting on a 3500# axle from ABC Trailer Parts - Trailer Axles - Trailer Axle Kits with electric brakes.

A pintle hitch will be used initially for cost reasons, but a lock-n-roll or similar will eventually be installed.

Enough talking. On to the pics.

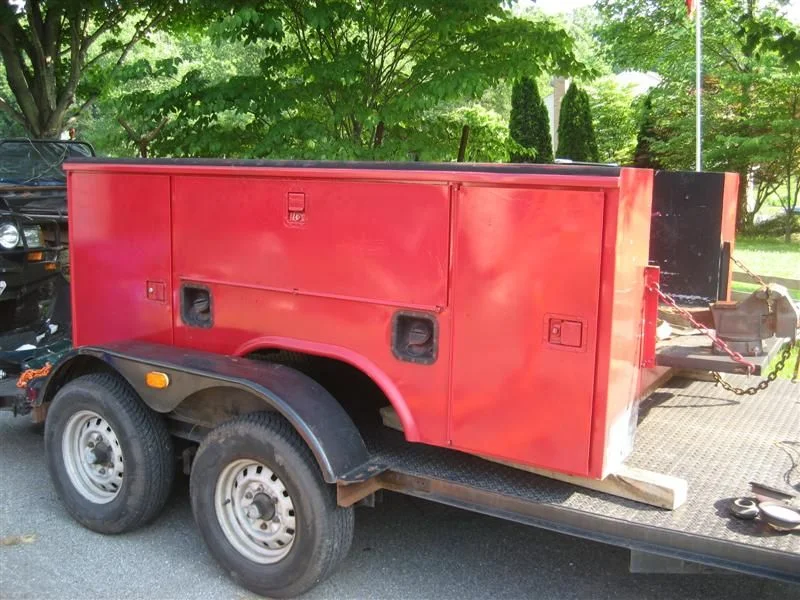

Camping Trailer Build 001 (Medium).jpg
Camping Trailer Build 002 (Medium).jpg

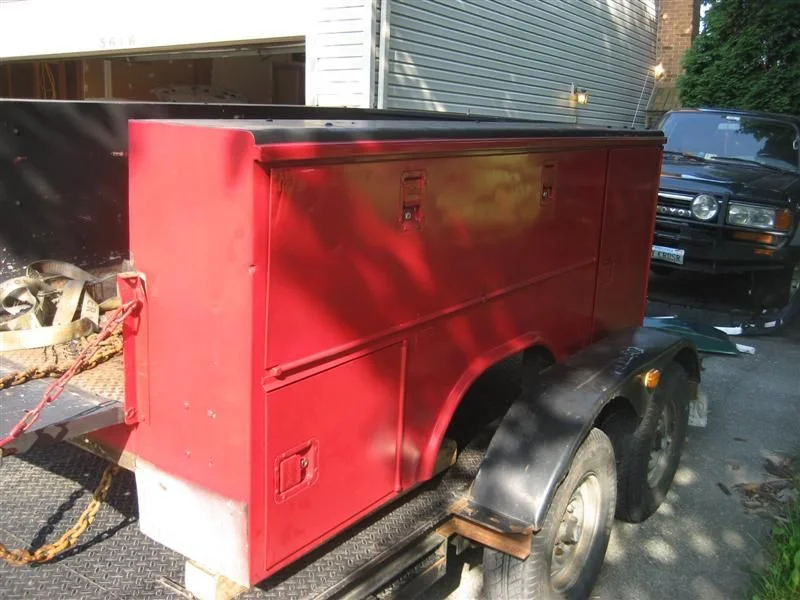

Camping Trailer Build 005 (Medium).jpg

Last edited:
Joined
Dec 2, 2003
Messages
3,400
Location
Rockville, MD

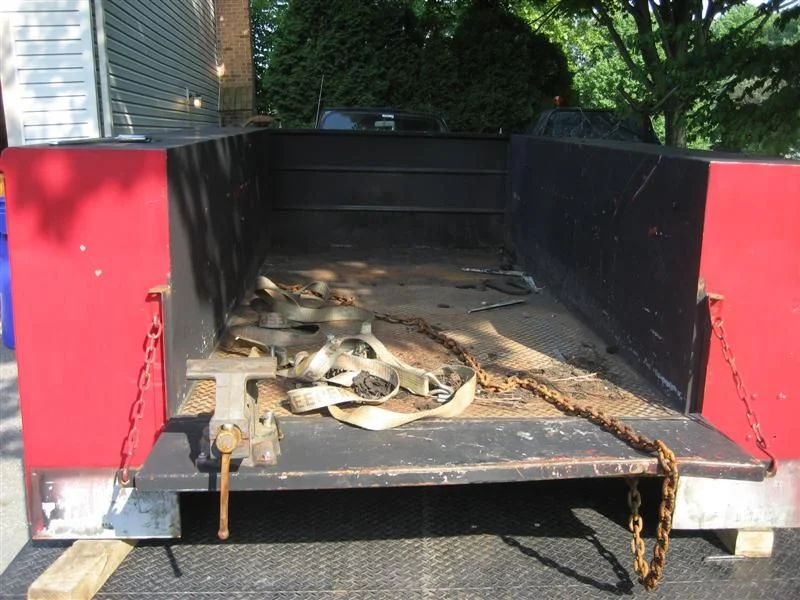

This is the bed as I purchased it off of Craigslist for $450. It came off of an F250 and is an 8' bed.

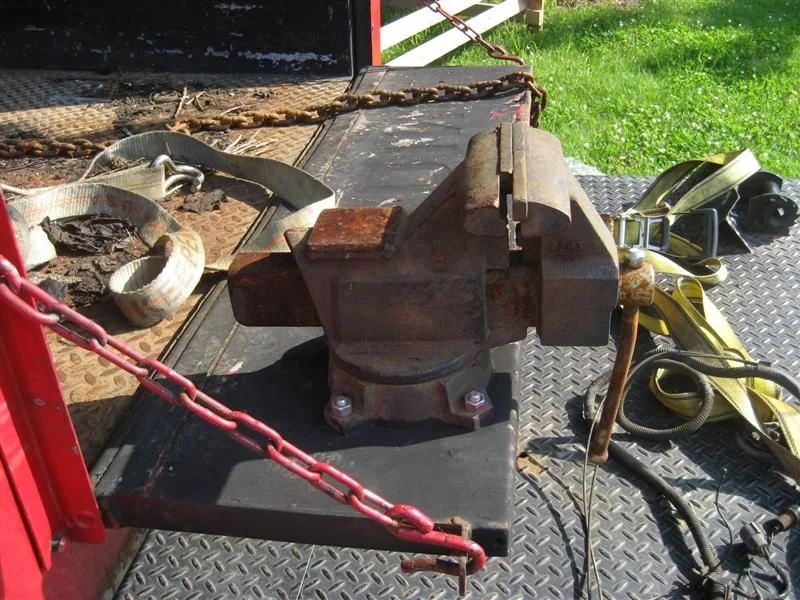

In came with a nice American made vice on the tailgate which I plan to keep as part of the trailer.

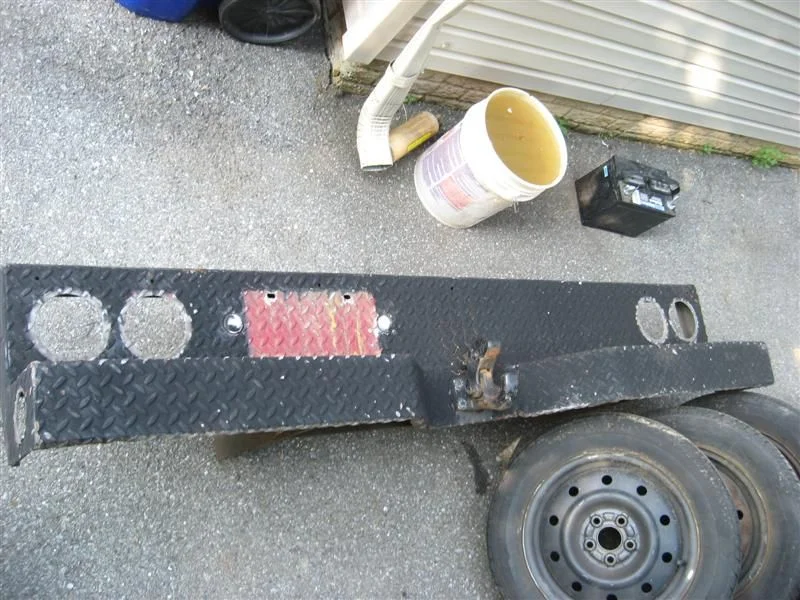

It also came with a rear bumper that has a pintle hitch on it. I won't be using the bumper, but the recessed lights and hitch will most likely be utilized.
Camping Trailer Build 003 (Medium).jpg
Camping Trailer Build 004 (Medium).jpg
Camping Trailer Build 008 (Medium).jpg

Joined
Dec 2, 2003
Messages
3,400
Location
Rockville, MD
The bed sat largely untouched for most of the summer as my garage was occupied by my ex-gf's subaru that I was repairing.

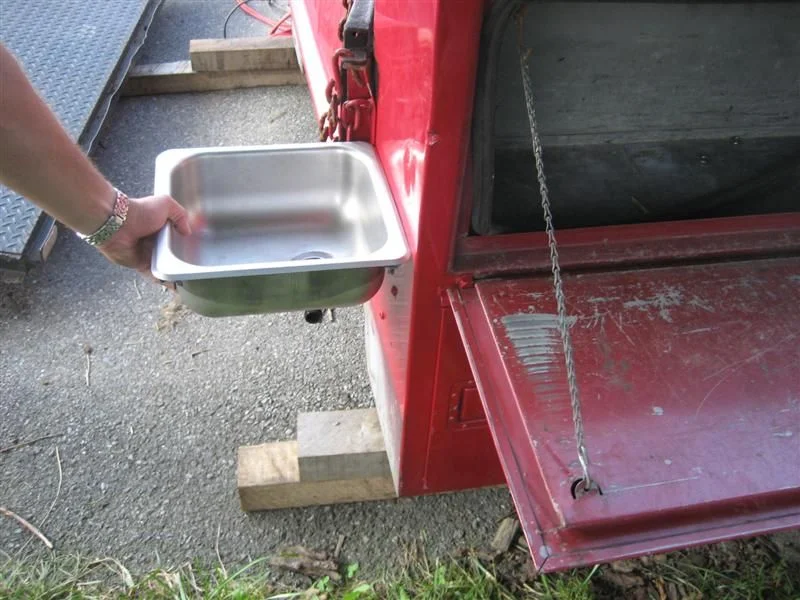

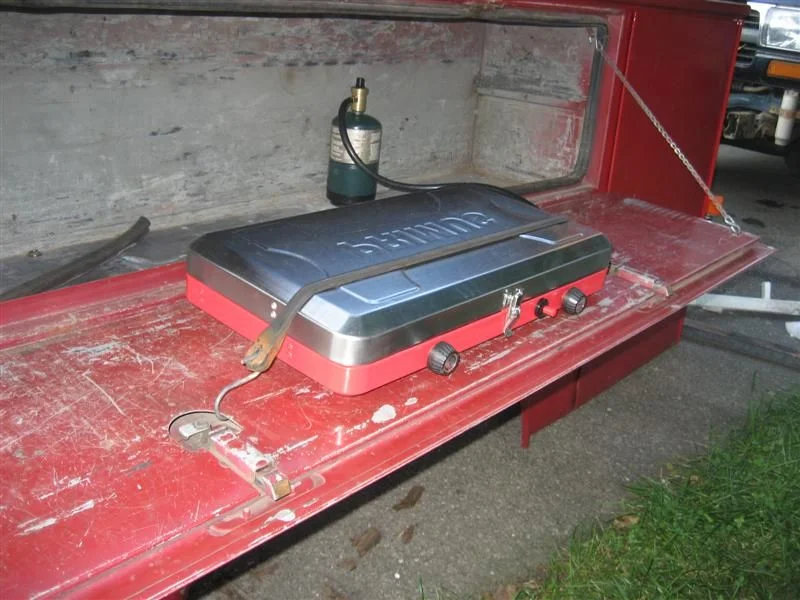

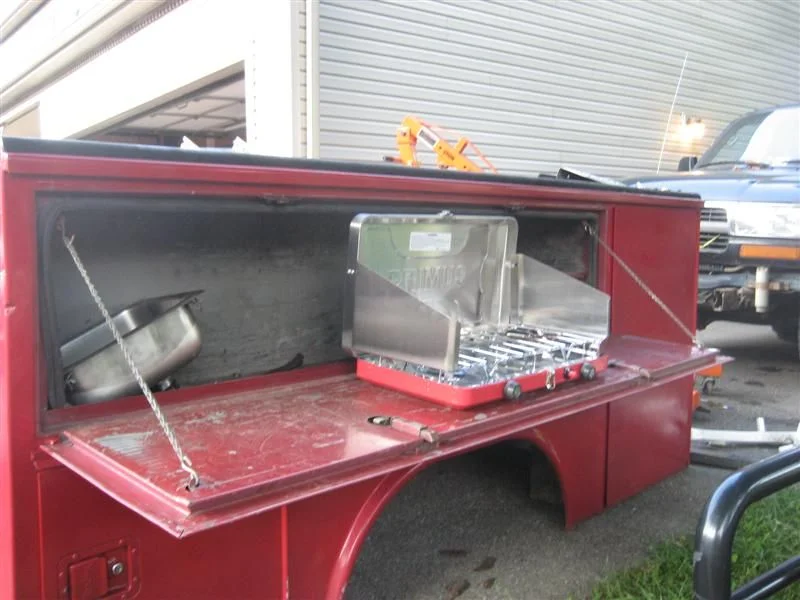

I did tinker with the layout of the kitchen a bit. The bungee cord holding the stove down is temporary. The stove will be mounted to the door and although a tight fit the door does close with the stove still attached. The sink is shown in its approximate future locaiton. It will be removable with the faucet being located behind a door in the rear of the trailer. Essentially the faucet will always be accesible, but the sink will be stowed until needed.
Camping Trailer Build 011 (Medium).jpg
Camping Trailer Build 012 (Medium).jpg
Camping Trailer Build 014 (Medium).jpg

Joined
Dec 2, 2003
Messages
3,400
Location
Rockville, MD

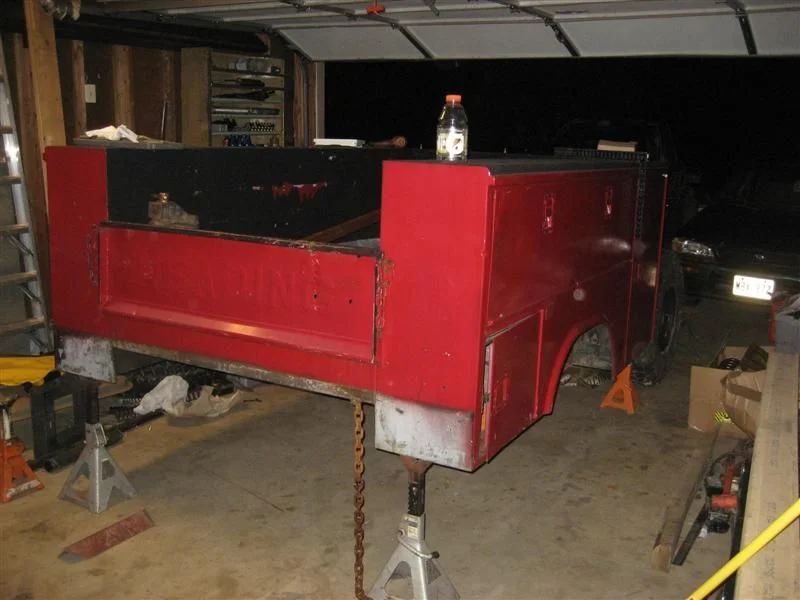

Yesterday I was finally able to clear space in the garage and wrestle this beast in there.

I weighed it using several bathroom scales and it's in the neighborhood of 7-800#'s. I hope to trim that down significantly by replacing the 1/8" steel floor with aluminum and removing a lot of bracing that will become redundant once the new frame is in place.

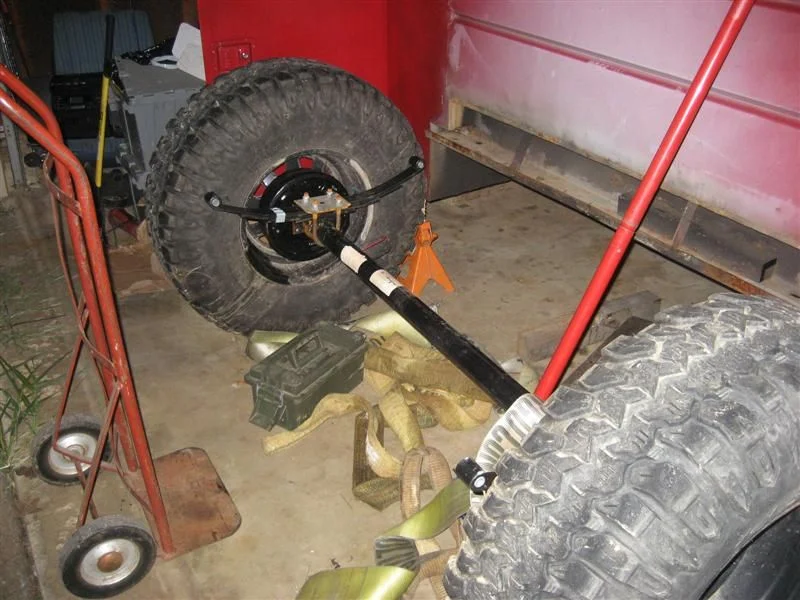

As you can see the axle/suspension is already mocked up. The tires are 35x12.50R16 TrXus MT's that will match what I'm putting on my 80. The plan is to carry 2 spares on the trailer and possibly one more on the truck.
Camping Trailer Build 015 (Medium).jpg
Camping Trailer Build 018 (Medium).jpg
Camping Trailer Build 017 (Medium).jpg

Joined
Sep 28, 2007
Messages
161
Location
San Antonio, Texas
Website
ranchosanpedro.4t.com
That's pretty cool. Reminds me of a sankey trailer, sort of. Looks like it would be perfect for what you want it for. I ordered the same axle kit minus the brakes from ABC as well. I'm not an expert on this but the springs that came with it, like what you have, look to small? I tossed mine in the scrap pile. Keep the pics rolling in!:cheers:

Joined
Nov 22, 2008
Messages
3,190
Location
Richmond B.C.
x2 on the springs wimpy

Joined
Dec 2, 2003
Messages
3,400
Location
Rockville, MD
Are you basing these opinions on experience or just looks? I agree they look wimpy, but they're the same as the springs on my car hauler which holds up my 5000# mini-truck just fine...

I'm not set on keeping these, but I do already have them. I would eventually like to go to an independent suspension setup, but want to do leaf springs for now to get moving with the rest of it.

Joined
Sep 6, 2003
Messages
3,185
Location
Tulsa, OK
looking forward to seeing what you do with this - I almost bought one of those beds earlier this summer to do the same thing, but my brother convinced me it'd be too heavy, and my wife convinced me she'd divorce me if I started any new projects before getting rid of some old ones.

Joined
Sep 28, 2007
Messages
161
Location
San Antonio, Texas
Website
ranchosanpedro.4t.com
Are you basing these opinions on experience or just looks? I agree they look wimpy, but they're the same as the springs on my car hauler which holds up my 5000# mini-truck just fine...

I'm not set on keeping these, but I do already have them. I would eventually like to go to an independent suspension setup, but want to do leaf springs for now to get moving with the rest of it.

I'm no expert on this. I'm just basing this on looks? We did order 3500# kits so it is supposed to work? I used mine on my M416 and decided to order original springs for it that are a lot bigger than the kit came with. I'm think that if we are going to do any kind of offroad the longer the better? Just my 2cents.:cheers:

Joined
Nov 22, 2008
Messages
3,190
Location
Richmond B.C.
They may take the weight but on the off road they will hop more than a longer soft riding spring.

Joined
Dec 2, 2003
Messages
3,400
Location
Rockville, MD
They may take the weight but on the off road they will hop more than a longer soft riding spring.

Gotcha. Yeah, when they arrived I was like WTF are these things? but then I crawled under the car hauler and they were pretty much identical so I figured they'd work. I'll probably tack these in for now to get it to rolling status and search for some alternatives in the mean time.

Joined
Aug 27, 2009
Messages
134
I am looking forward to using you as the guinea pig. I am curious to see what it looks like rolling and behind a rig. Keep it coming! Do you know of any links to projects similar to this. I didn't find any.


Awl_TEQ

Supporting Vendor
Joined
Aug 27, 2008
Messages
3,907
Location
Calgary Alberta
:popcorn: This should be fun!
