Lenz Snorkel for FJCs

BMThiker

I aim to misbehave
Moderator
SILVER Star

Joined
Sep 19, 2006
Messages
8,934
Location
Atlanta

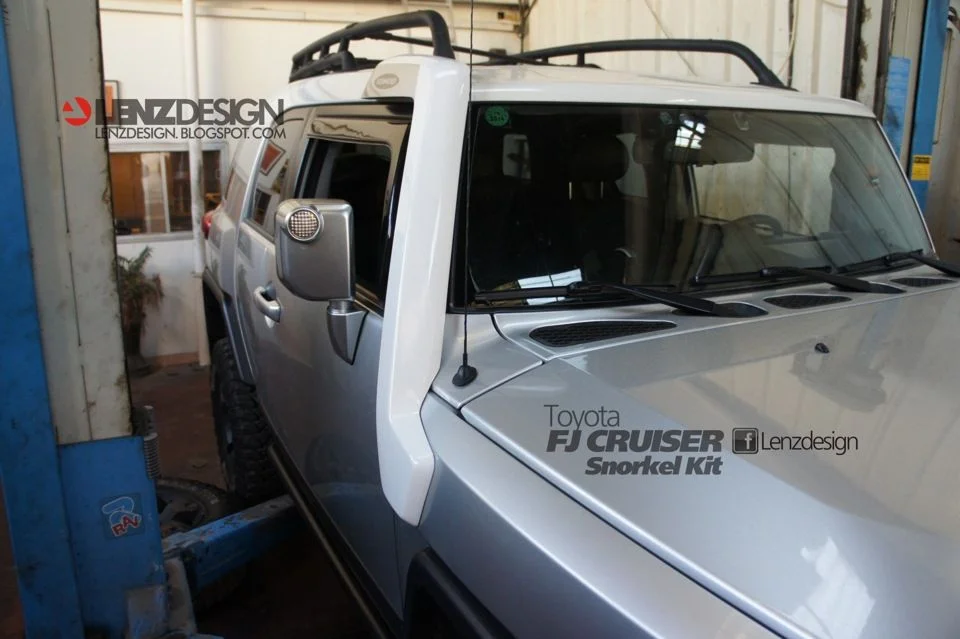

I've been avoiding snorkels for years. Hated the look of the Safari, saw very little competition or ingenuity in design, and ultimately thought I'd fabricate one myself. That is until I saw this one. It's made by a guy in Israel and he does small batches (currently only FJC and GX470). ACC Garage was going to do a group buy, so I said heck yeah. That looks sleek and not like a clunky piece of roto-molded garbage can plastic. This won't be a step by step install, more of a overview and analysis of the install and product.
LenzDesign-snorkel (1).jpg

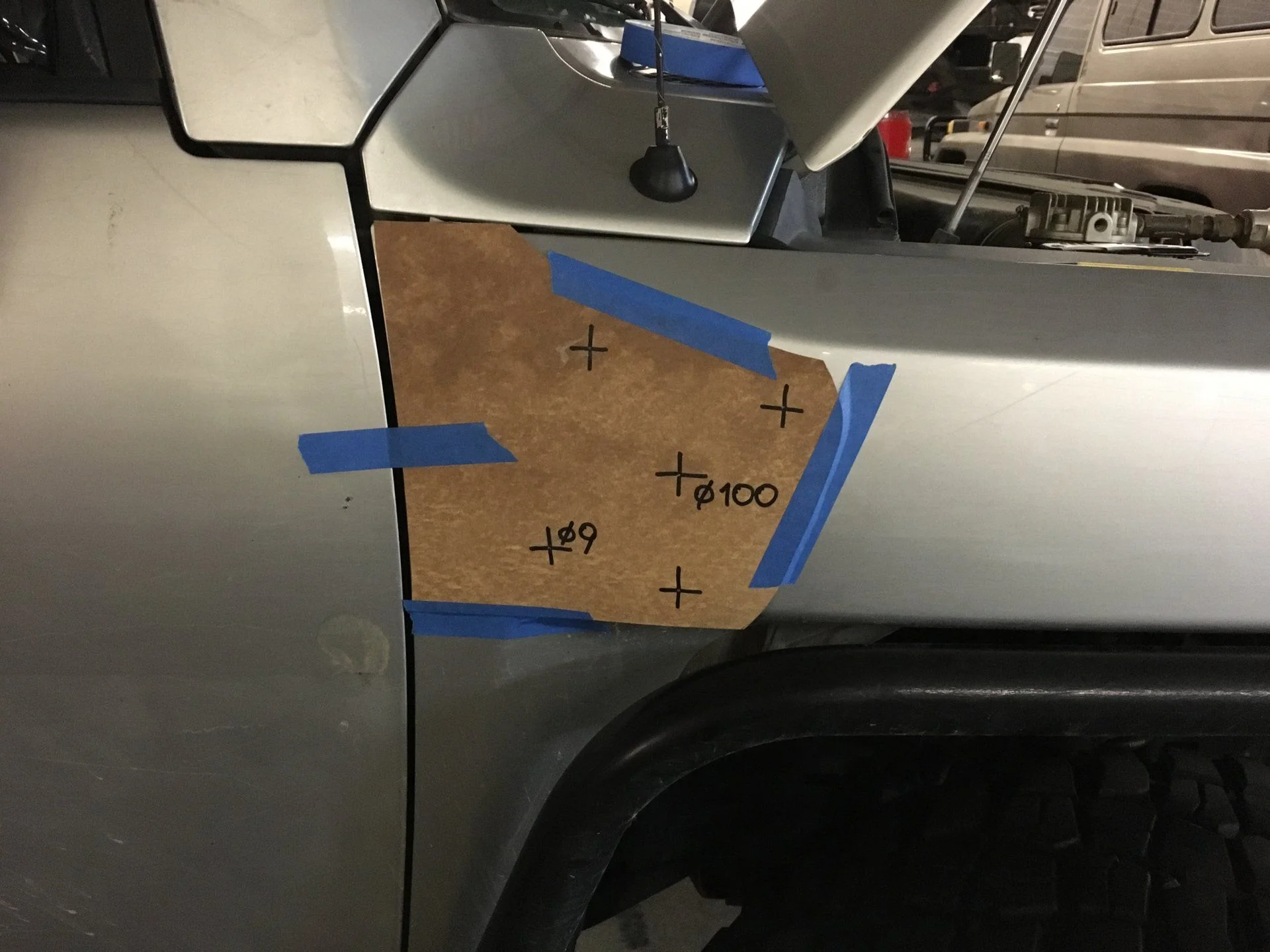

It came in an was already prepped for paint. It's made of fiberglass and is skimmed and primed. Mounting hardware is embedded in the fiberglass and the kit consists of the main snorkel, two fiberglass elbow joints and section of corrugated rubber tubing. The parts kit comes with nuts/washers, but I can't remember if I picked up the hose clamps myself or if they came with it. There is also a paperboard template that lines up with the trailing fender edge near the door hinge. The template had some vagueness to it, I did my best to "compromise" somewhere in the middle of all the visual cue lines.
LenzDesign-snorkel (2).JPG

I drilled my holes and did some test fitting. It didn't go very well. The vertical portion seemed to be warped and made the intake section stand off the roof of the truck. It's all supposed to lie flat against the A-pillar and roof. If I made it lie flat against the roof then it pulled away from the fender. Holes had been drilled, I was going to make this work.

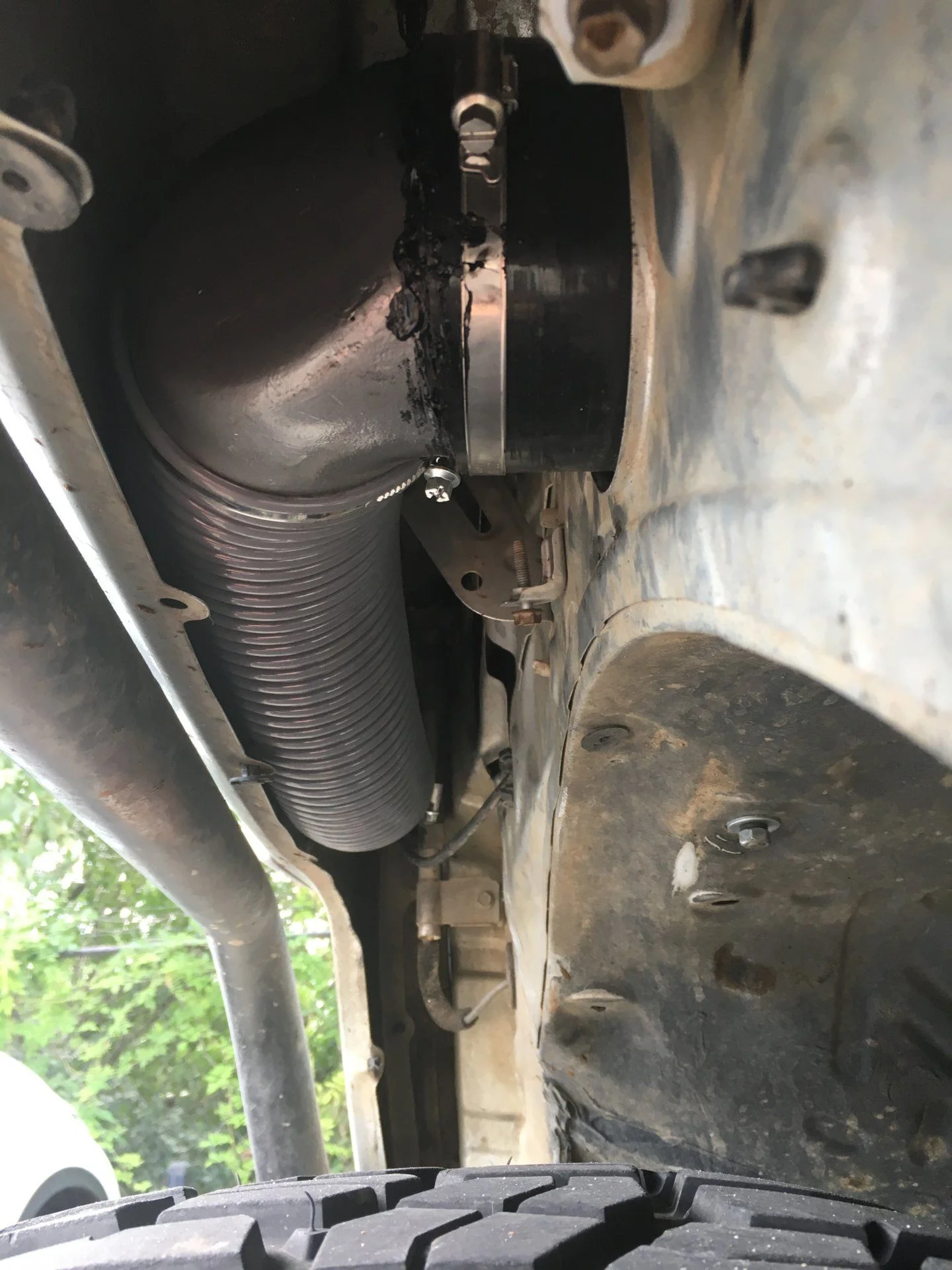

I got the internal parts fitted, but required a short section of silicon tube to adapt to the air intake hose. I had a prefilter "dust spinner" installed in here before and the stock intermediate piece was ditched a long time ago. So the silicon tube filled the gap. I slathered on the FIPG and placed the tube clamps.

LenzDesign-snorkel (4).JPG


I opted to run this as a test fit for a bit to see if the fiberglass would be willing to acquiesce over time. So I bolted it to the fender in the 4 provided places, plumbed the tubing and then zip tied the top of the snorkel. This was necessary because the two studs and bracket that normally go on a factory roof or roof rack needed to be redesigned around my Prinsu roof rack arrangement. As you can see, this didn't stop me from taking it out on the trails before it was fully mounted. It got some pinstriping but never took a heavy hit.

LenzDesign-snorkel (5).JPG


BMThiker

I aim to misbehave
Moderator
SILVER Star

Joined
Sep 19, 2006
Messages
8,934
Location
Atlanta
Fast forward a couple months until this past weekend. I finally decided it was time to take the Prinsu under the knife. The inside edge of the snorkel was clashing with the forward part of the side rail. I traced out my Lenz intake and put the sawzall and body saw to work. Knowing that I wouldn't be able to use the Lenz mounting studs embedded in the inside edge, I lopped those off.

LenzDesign-snorkel (6).JPG

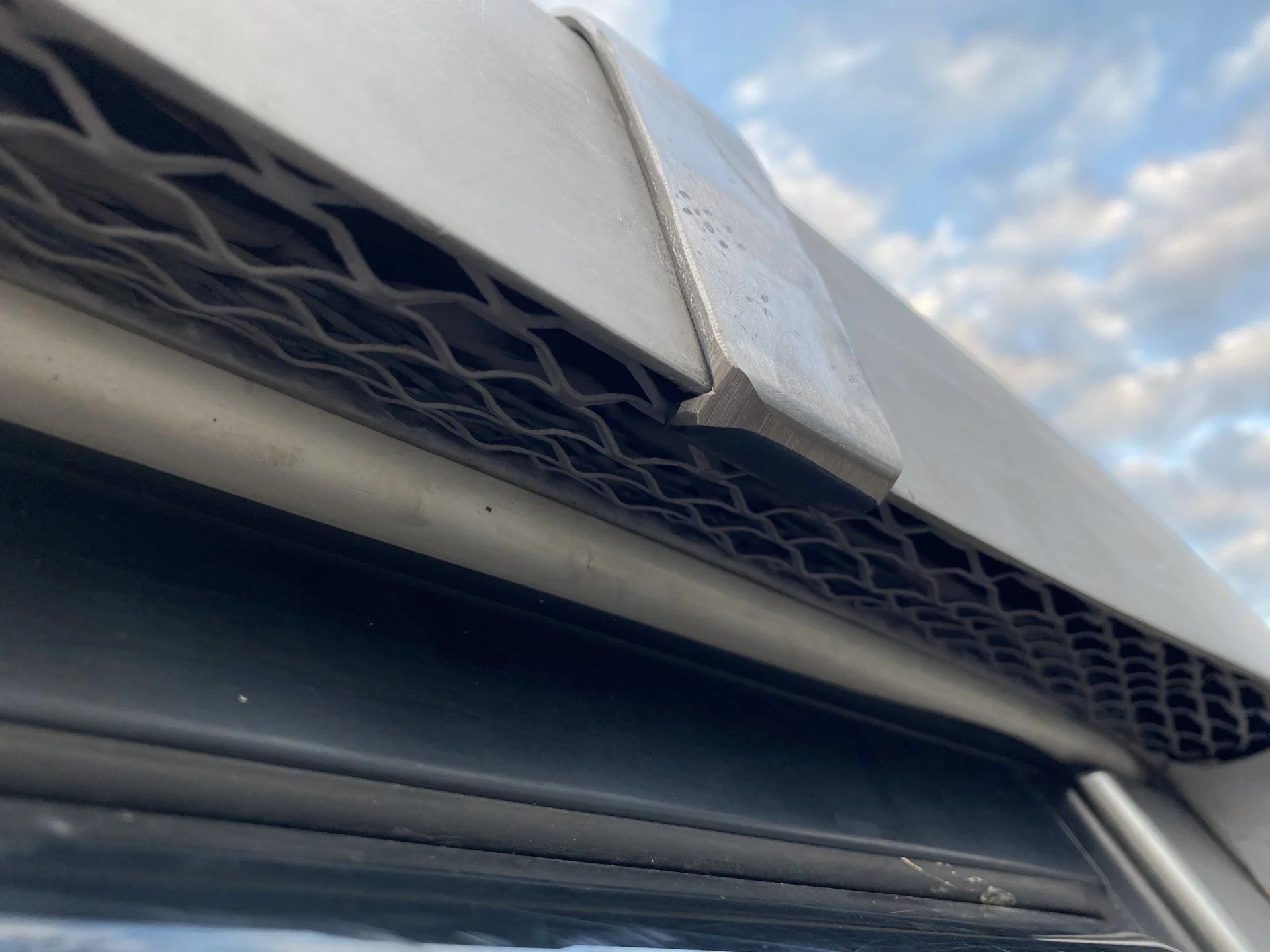

Instead I decided to fabricate my own bracket that would help with the warping in the fiberglass. It did not acquiesce on its own, so coercion was the new tactic. I loosened up the mounting holes in the fender and even wound up drilling them out a bit bigger to give me some maneuverability while coaxing it all to fit nicely against the A-pillar.

LenzDesign-snorkel (7).JPG

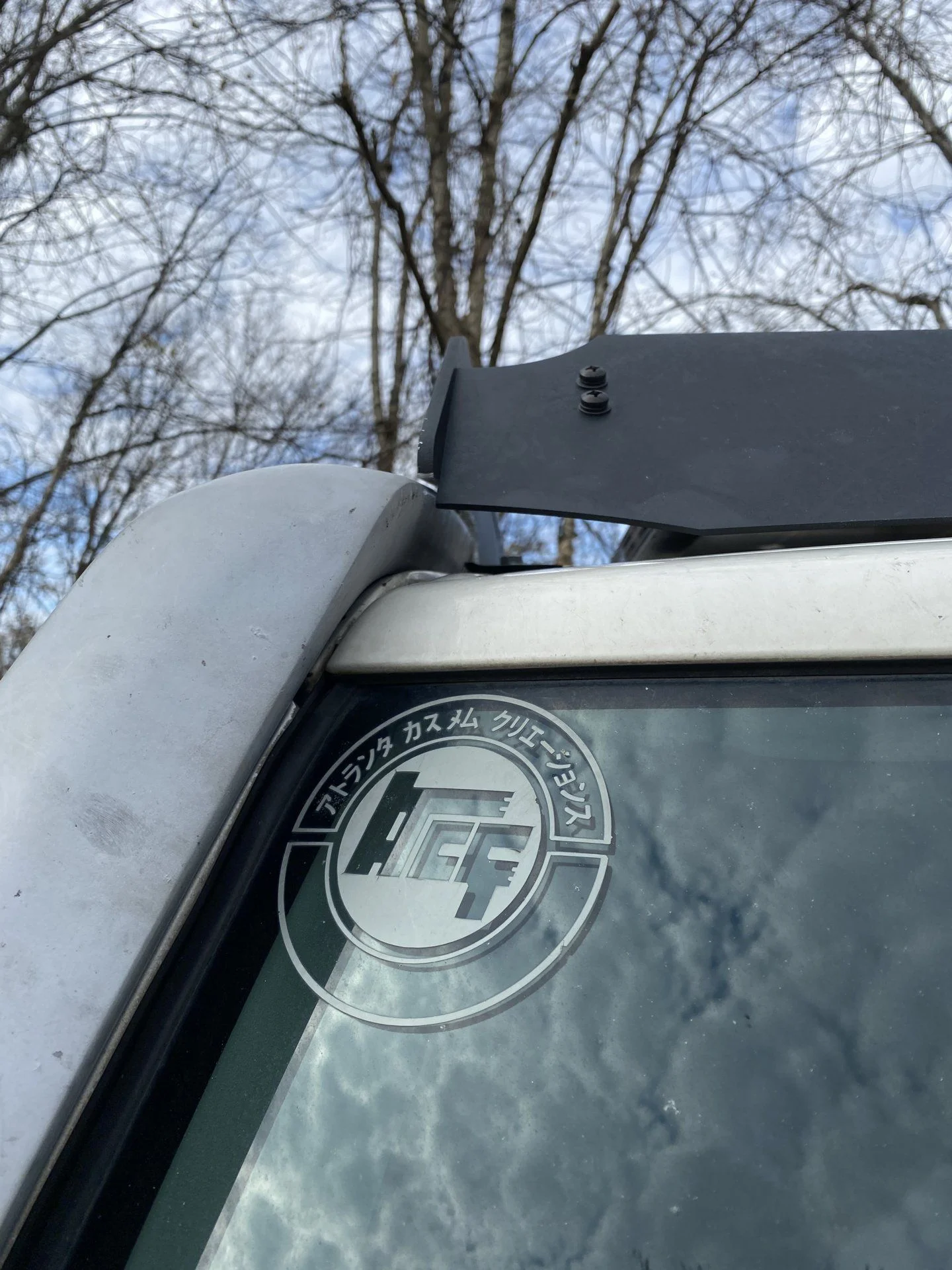

I wished I didn't have to take so much of the Prinsu material, but it was necessary to make it lie flat.

LenzDesign-snorkel (8).JPG

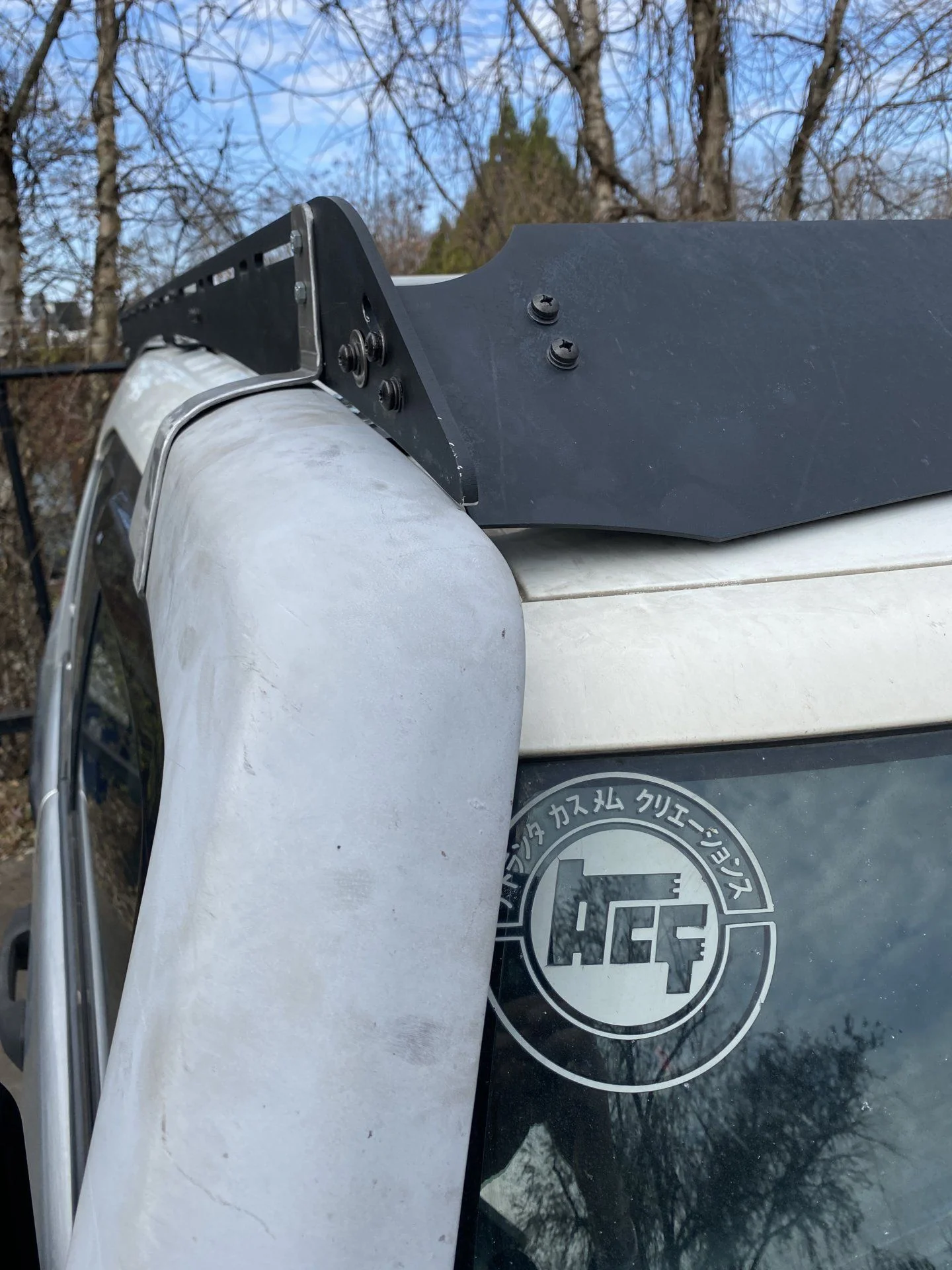

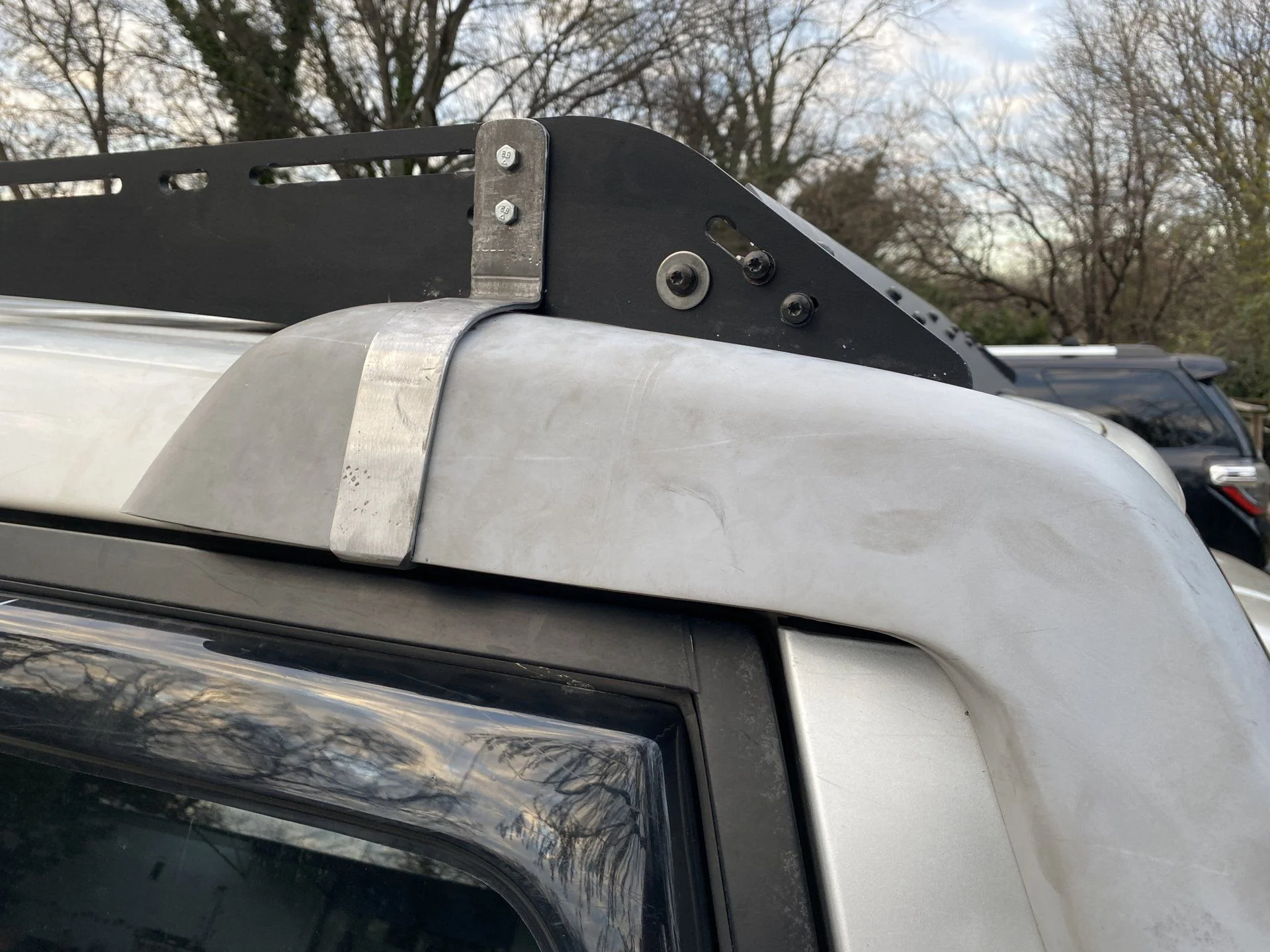

Part of what this steel bracket is doing is pushing down on the snorkel, as well as keeping the trailing edge from "flagging away" from the roof line.
LenzDesign-snorkel (9).JPG

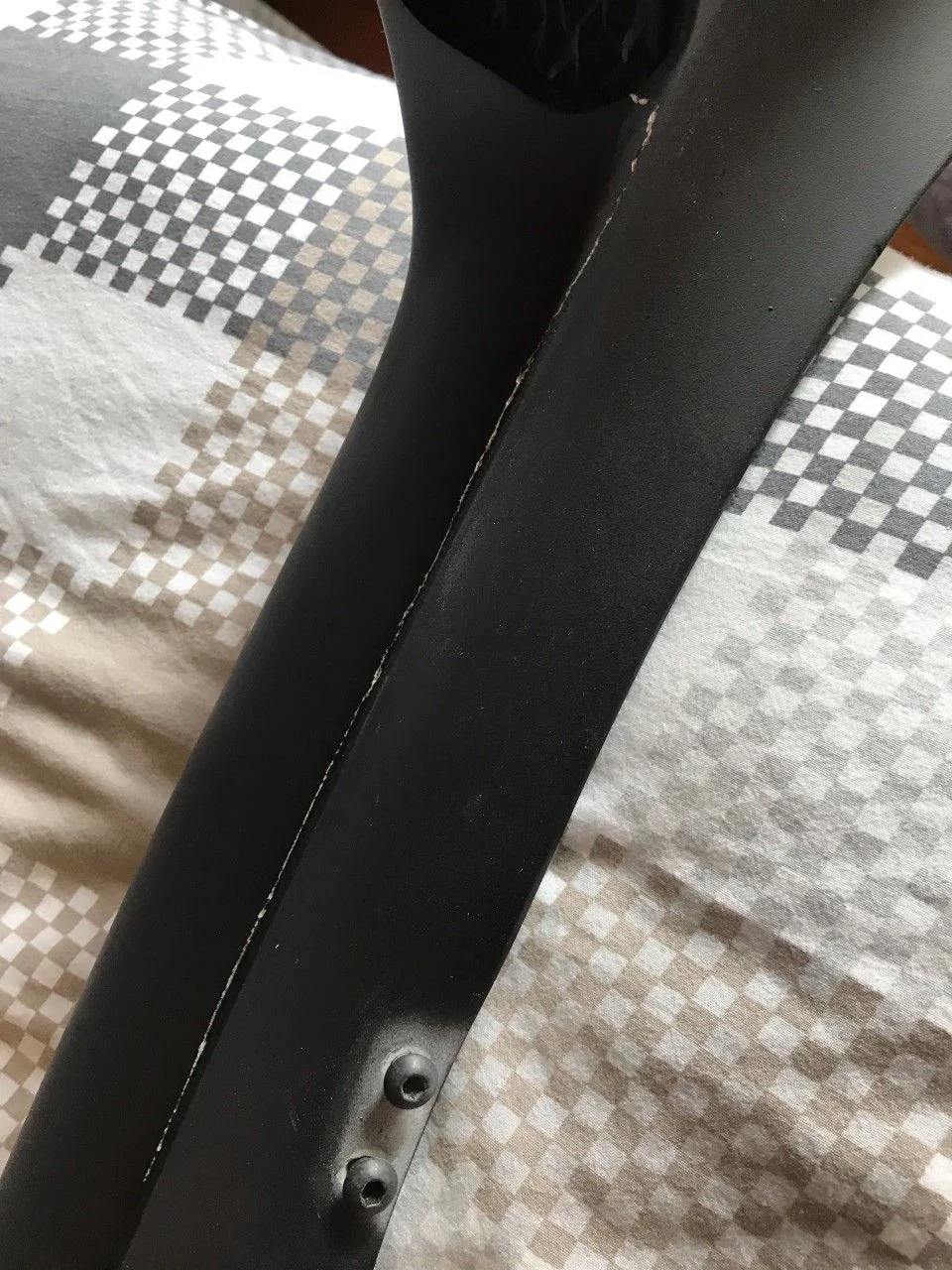

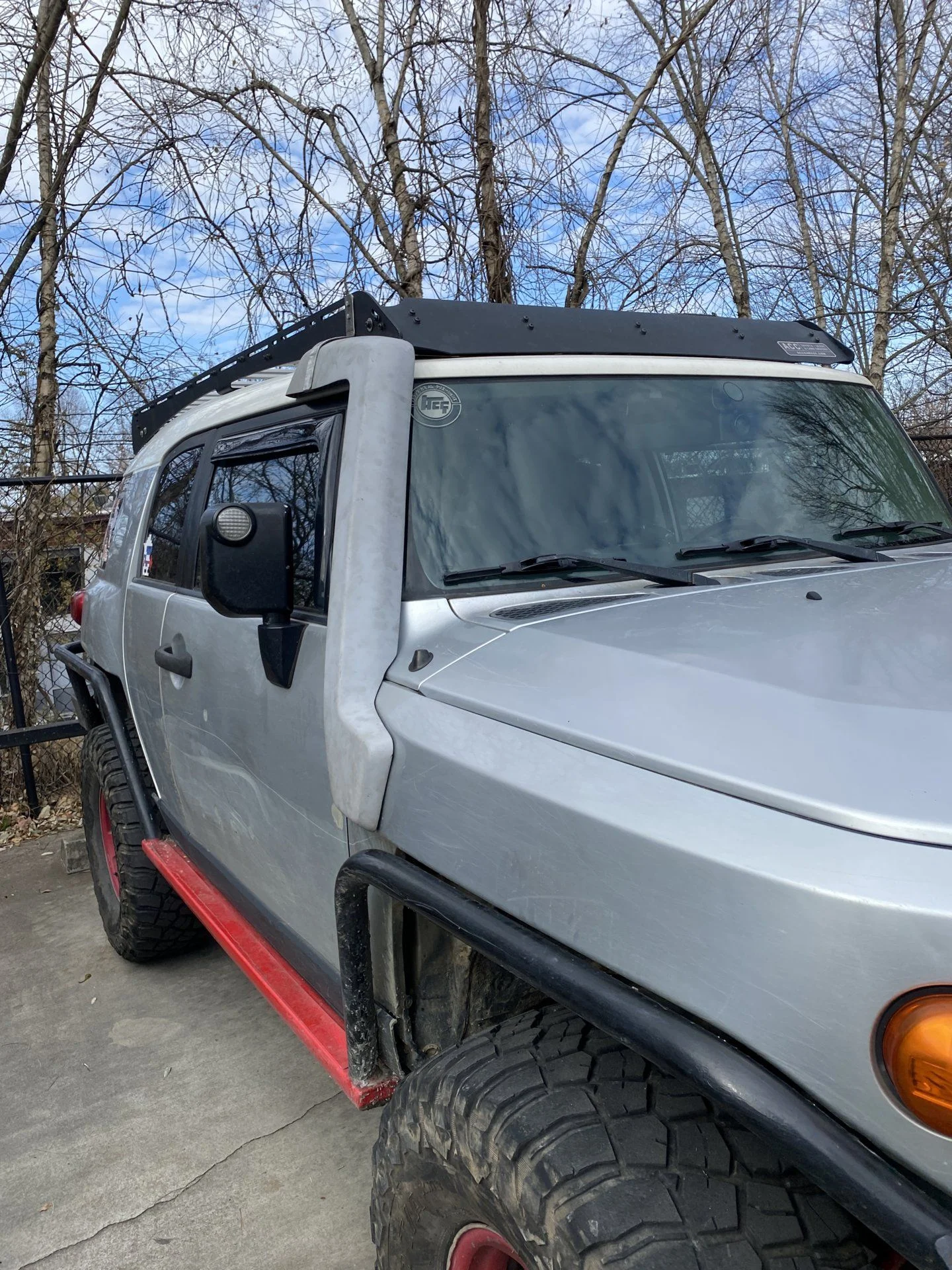

Even still, this is temporary. It will all come off so that I can powdercoat the steel bracket and re-prep the snorkel for another coat of primer and Titanium Silver paint. I ended up cracking the first elbow piece that backs up against the fender sheet metal, so it's also being epoxied and reinforced.
LenzDesign-snorkel (11).JPG

Last edited:

bmoonhajjar

GOLD Star
Joined
Oct 22, 2019
Messages
100
Location
San Diego
Love the look. I would be a little concerned about wind noise though. Looks a heck of a lot better than any I have seen.


BMThiker

I aim to misbehave
Moderator
SILVER Star

Joined
Sep 19, 2006
Messages
8,934
Location
Atlanta

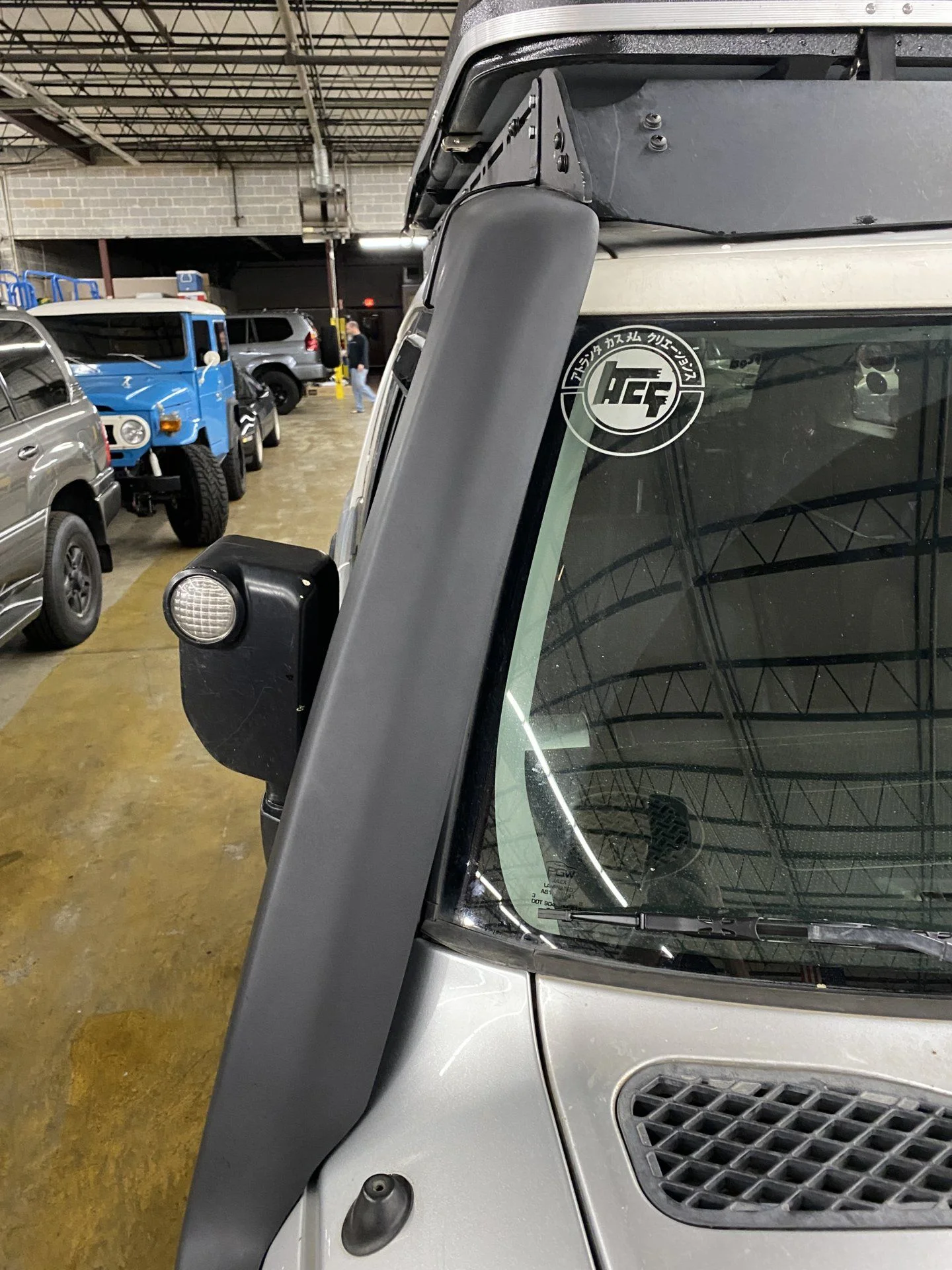

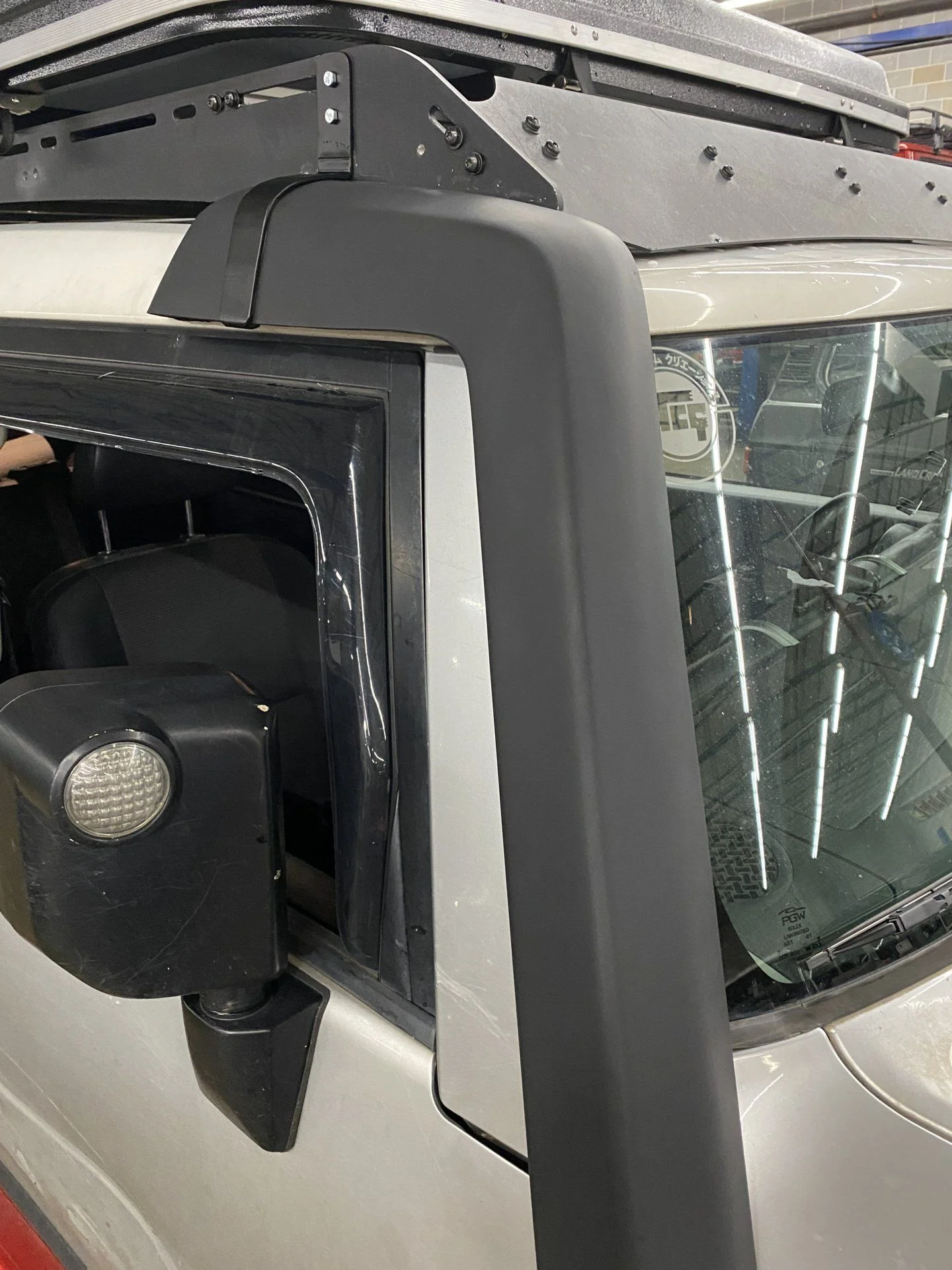

Cleaned it up and re-primered it. Then powdercoated the steel bracket. Lastly, fresh paint and final fitment.


LenzSnorkel (1).JPG


LenzSnorkel (2).JPG


LenzSnorkel (3).JPG


LenzSnorkel (4).JPG


BMThiker

I aim to misbehave
Moderator
SILVER Star

Joined
Sep 19, 2006
Messages
8,934
Location
Atlanta
Love the look. I would be a little concerned about wind noise though. Looks a heck of a lot better than any I have seen.
It does buffet wind against the vent visor unfortunately, which causes the visor oscillate at upper highway speeds. I'm going to stiffen up the vent visor with some clear acrylic applied to the inside surface to reduce vibrations.
