Many of you are familiar with the the IBS Dual Battery System. I've had one on the shelf for awhile and just now getting around to putting it in my truck.
It's straightforward to set up. I'm planning to put the the relay on the driver side upper firewall of my 80 series Landcruiser. I also have the RBM which I will put on the passenger side upper firewall.
Here's the problem:
With the older style relay the posts are pointed down. the AUX battery power cable should connect to the Post labeled "30", and the MAIN battery power cable should connect to the post labeled "87". If I keep this mounting position, the "30" Post (which is for the AUX battery) is on the drivers side. And the "87" Post (which is for the MAIN battery) is on the passenger side. This forces me to cross the battery cables that looks really weird and not secure. Or, I can try to find a different location for the relay, but space is at a premium.
So, can I swap aux and main battery terminals on the relay, as long as I am keeping the other wires from the Battery Monitor with the appropriate battery (aux or main). In other words:
Power Cables:
MAIN battery Power Cable - To "30" Post on Relay (changed from "87")
AUX battery Power Cable - To "87" Post on Relay (changed from "30")
RBM Wires:
Red - to "30" (changed from "87")
Blue - to "87" (changed from "30")
Yellow - to "86" (changed from "85")
Green - to "85" (changed from "86")
Black - GROUND
Battery Monitor Cables.
Red - MAIN battery
Black - Ground wire to MAIN battery
Blue - AUX Battery
Green - to "85" (changed from "86")

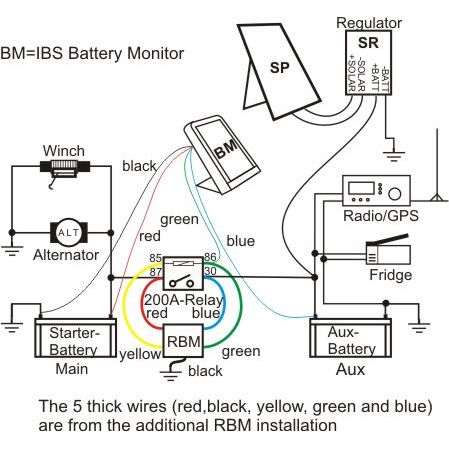

Does this make sense? I've attached a diagram from the installation manual for reference.
It's straightforward to set up. I'm planning to put the the relay on the driver side upper firewall of my 80 series Landcruiser. I also have the RBM which I will put on the passenger side upper firewall.
Here's the problem:
With the older style relay the posts are pointed down. the AUX battery power cable should connect to the Post labeled "30", and the MAIN battery power cable should connect to the post labeled "87". If I keep this mounting position, the "30" Post (which is for the AUX battery) is on the drivers side. And the "87" Post (which is for the MAIN battery) is on the passenger side. This forces me to cross the battery cables that looks really weird and not secure. Or, I can try to find a different location for the relay, but space is at a premium.
So, can I swap aux and main battery terminals on the relay, as long as I am keeping the other wires from the Battery Monitor with the appropriate battery (aux or main). In other words:
Power Cables:
MAIN battery Power Cable - To "30" Post on Relay (changed from "87")
AUX battery Power Cable - To "87" Post on Relay (changed from "30")
RBM Wires:
Red - to "30" (changed from "87")
Blue - to "87" (changed from "30")
Yellow - to "86" (changed from "85")
Green - to "85" (changed from "86")
Black - GROUND
Battery Monitor Cables.
Red - MAIN battery
Black - Ground wire to MAIN battery
Blue - AUX Battery
Green - to "85" (changed from "86")
Does this make sense? I've attached a diagram from the installation manual for reference.
