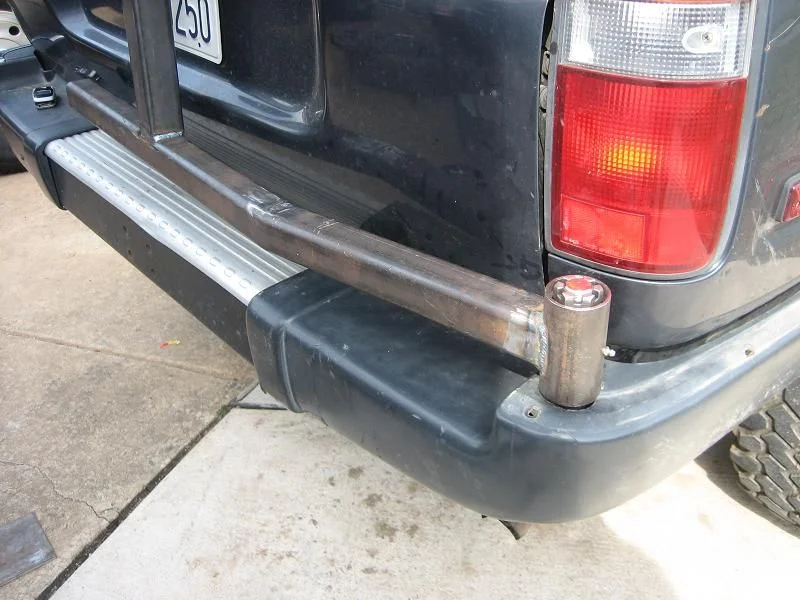

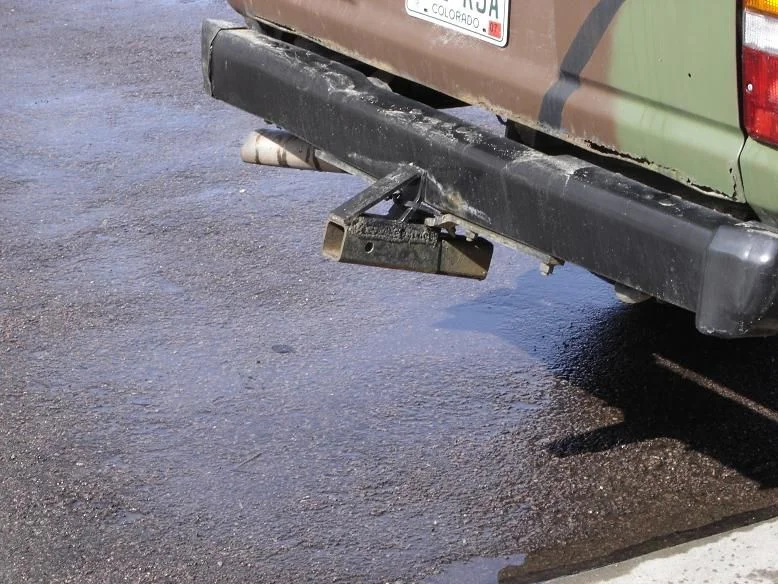

So thanks to Wildyoats I decided to build a tire carrier. It looked fairly simple all I had to do was borrow a welder from a buddy and try to weld. Let me know what you guys think and any ideas, by the way its not done yet, gotta make license plate braket and light.


By the way if you were wondering what that little shiny sticker is on it, it was a piece of chrome moly left over from a frinds wrecked dragster.

Cheers:beer:
H
U
Hhg

miked

miked

Joined
Mar 9, 2004
Messages
630
Location
Imperial Valley, CA
very interesting. I've been wondering as of late what kind of support was under the corner. I see you added allot.

AKcruiserfreak

AKcruiserfreak

Joined
Jul 10, 2006
Messages
2,312
Location
North Pole, AK
That looks quite trick! Can you snap a few more shots of your spindle fab work and the finished product please?

TK

slow91fj90

slow91fj90

Joined
Jun 4, 2006
Messages
834
Location
Fairfax, VA
Home made tirecarrier

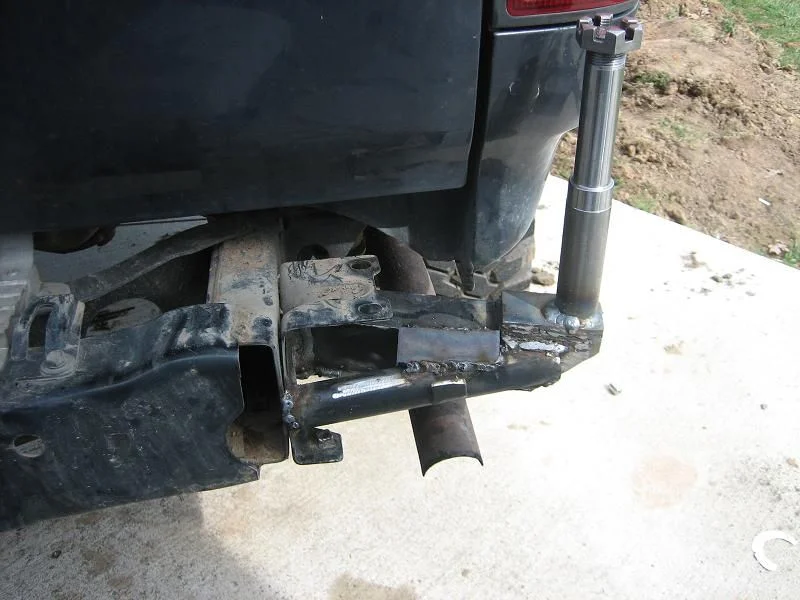

Just a couple more pics.:beer:

Take an easy on some of the welds:whoops:
U
Yyt
Hjtt

slow91fj90

slow91fj90

Joined
Jun 4, 2006
Messages
834
Location
Fairfax, VA
home made tirecarrier some more

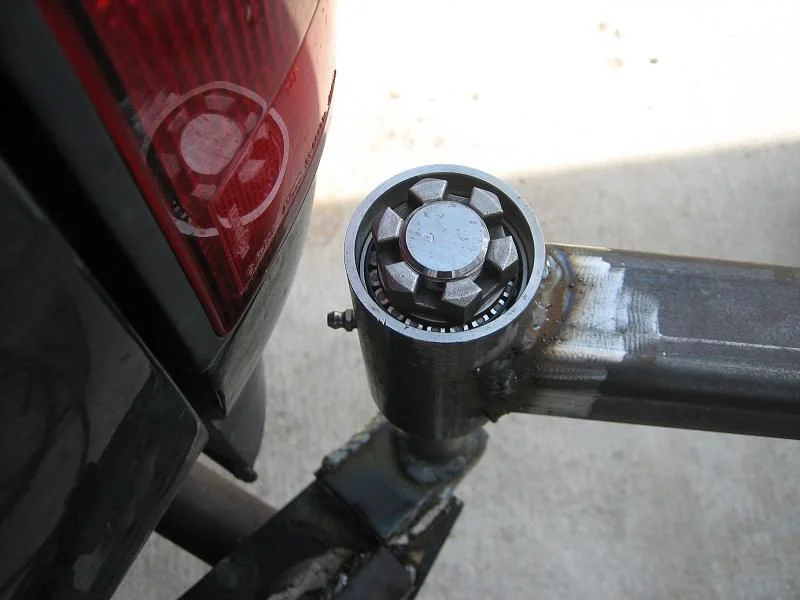

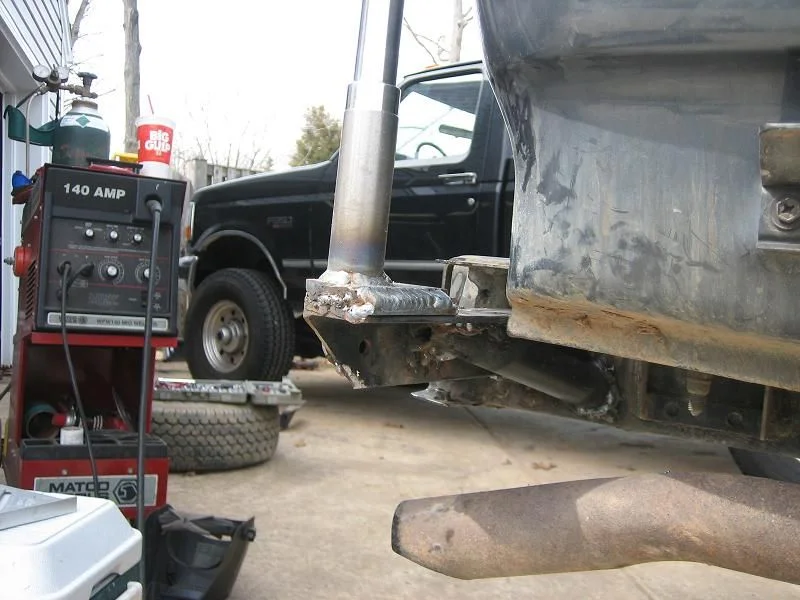

Here are some more
Lk
Dg
 p

Polak

Polak

Joined
Dec 9, 2004
Messages
1,294
Location
KIND
Take an easy on some of the welds:whoops:

That's not going to be easy. I would guess your gas was either too low or you forgot to turn it on (or it was windy outside) on a couple of those, no? I only say that because I've done it.:eek:

All in all I like it. It looks like you threw enough spank on the welds, function over form I say!:cheers:

450 DUDE

450 DUDE

Joined
Aug 12, 2005
Messages
1,733
Location
Ione CA
I really like the idea and I think the basics are good.
Here comes the BUT.





I not sure on the latch imo not strong enough.
The welds and the reinforcement to the spindle,again not strong enough.
The nice thing is these items are easy to remedy.

Good principal but maybe needs some fine tune.


My .02

ken

mikeyb

mikeyb

Joined
Apr 23, 2007
Messages
73
Location
San Diego, CA
That's really nice. I like the look with a stock bumper. Did you have to make any cuts once you took the plastic off? This might be really cool as some kind of bolt on kit.

Take an easy on some of the welds:whoops:

Thats better welding than I could ever do!

2badfjs

2badfjs

Joined
Jan 26, 2005
Messages
4,874
Location
in the garage
is the bottom of the spindle just welded to a plate?

you might want to add some mid-spindle support there. :eek:

IdahoDoug

IdahoDoug

Joined
Aug 8, 2003
Messages
9,030
Nah, if properly welded to thick plate, it's solid. That's how a lot of trailers are built - the spindle is simply welded to a plate and it's good for thousands of pounds.

DougM

sleeoffroad

sleeoffroad

Supporting Vendor
Joined
Mar 27, 2003
Messages
6,356
Website
www.sleeoffroad.com
is the bottom of the spindle just welded to a plate?

you might want to add some mid-spindle support there. :eek:

I am with Jim here. Way back did a design like that. You need to gusset the spindle. It will eventually break off. The stresses and the leverage of the carrier and wheel is not the same as a trailer.

2badfjs

2badfjs

Joined
Jan 26, 2005
Messages
4,874
Location
in the garage
Nah, if properly welded to thick plate, it's solid. That's how a lot of trailers are built - the spindle is simply welded to a plate and it's good for thousands of pounds.

DougM

but the load of a wheel and tire are basicly centered over the spindle, not loaded 2-3 ft out.

PabloVTA

PabloVTA

beside La Caja China
SILVER Star
Joined
Sep 30, 2005
Messages
2,541
Location
Ventura Ca. USA
I think you did an awesome job for a first try.

Put a fat old tire on there, and go try to knock it off in a parking lot close by.
Check for cracks, and keep modifying it.

2badfjs

2badfjs

Joined
Jan 26, 2005
Messages
4,874
Location
in the garage
I think you did an awesome job for a first try.

Put a fat old tire on there, and go try to knock it off in a parking lot close by.
Check for cracks, and keep modifying it.

i totally agree.

just a heavy piece of triangled steel will help it out a ton!

e9999

e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
17,936
Location
US
if you have good support under the latching end so that the bumper there carries much of the weight of the tire it won't exert anywhere as much leverage and shock stress on the spindle as if it's left floating.
