Heat Riser Open or Close Direction

Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL
My stock exhaust manifold's heat riser/flapper works fine. Had the manifolds blasted, cleaned up, and treated with a coating. And of course I put the manifolds back on and just now putting the bi-metal spring on. I can figure out which way to put the spring, if I just knew what direction opens or closes the valve. Does anyone know off hand which direction it should rotate when warmed up?
I can't believe I did this again. I'd hate to pull the exhaust pipe off to look up in there. Any help appreciated.


Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL

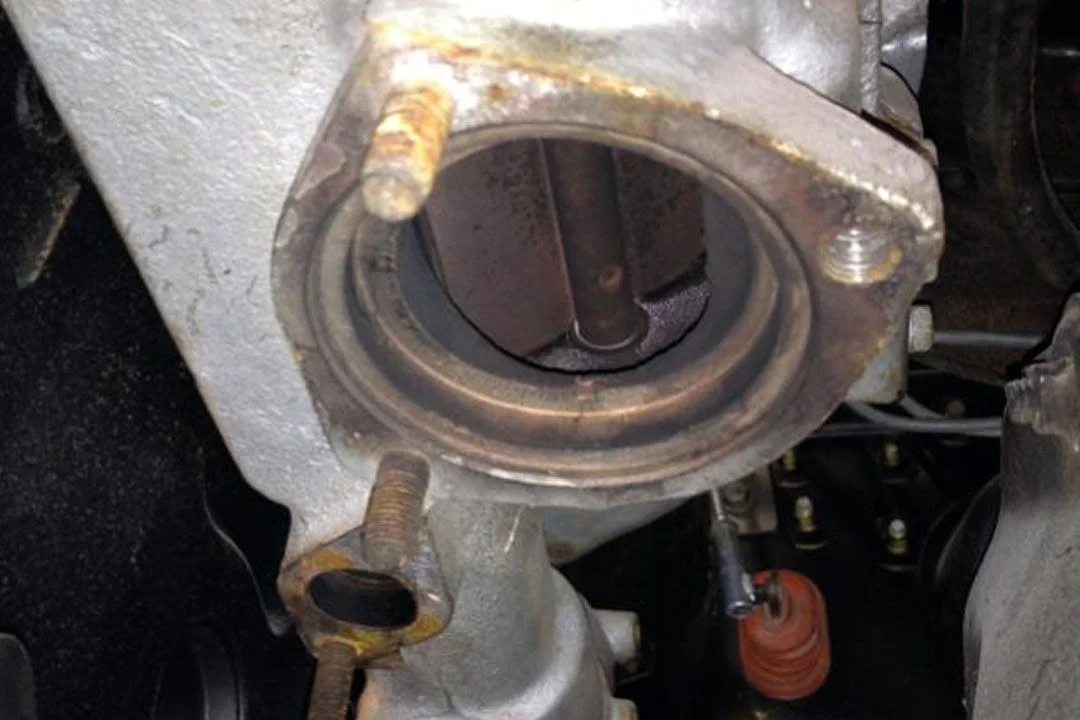

Well I found this pic of a 2F manifold with 3 studs. My F.5 has two studs but I’m guessing the flapper action/rotation would be the same. The flapper in the pic looks like it is in the, “heat up the intake” position. So, if that’s correct, then looking from the front, a clockwise rotation would close off heat to the intake manifold.

This is all that’s holding up my Sniper first start up. So, I think I’ll go with it. If someone sees it’s wrong, let me know and I’ll change it.

ExhstFlpr 01.jpg


bb67tlc

SILVER Star
Joined
May 24, 2016
Messages
327
Location
Bainbridge Island, Washington

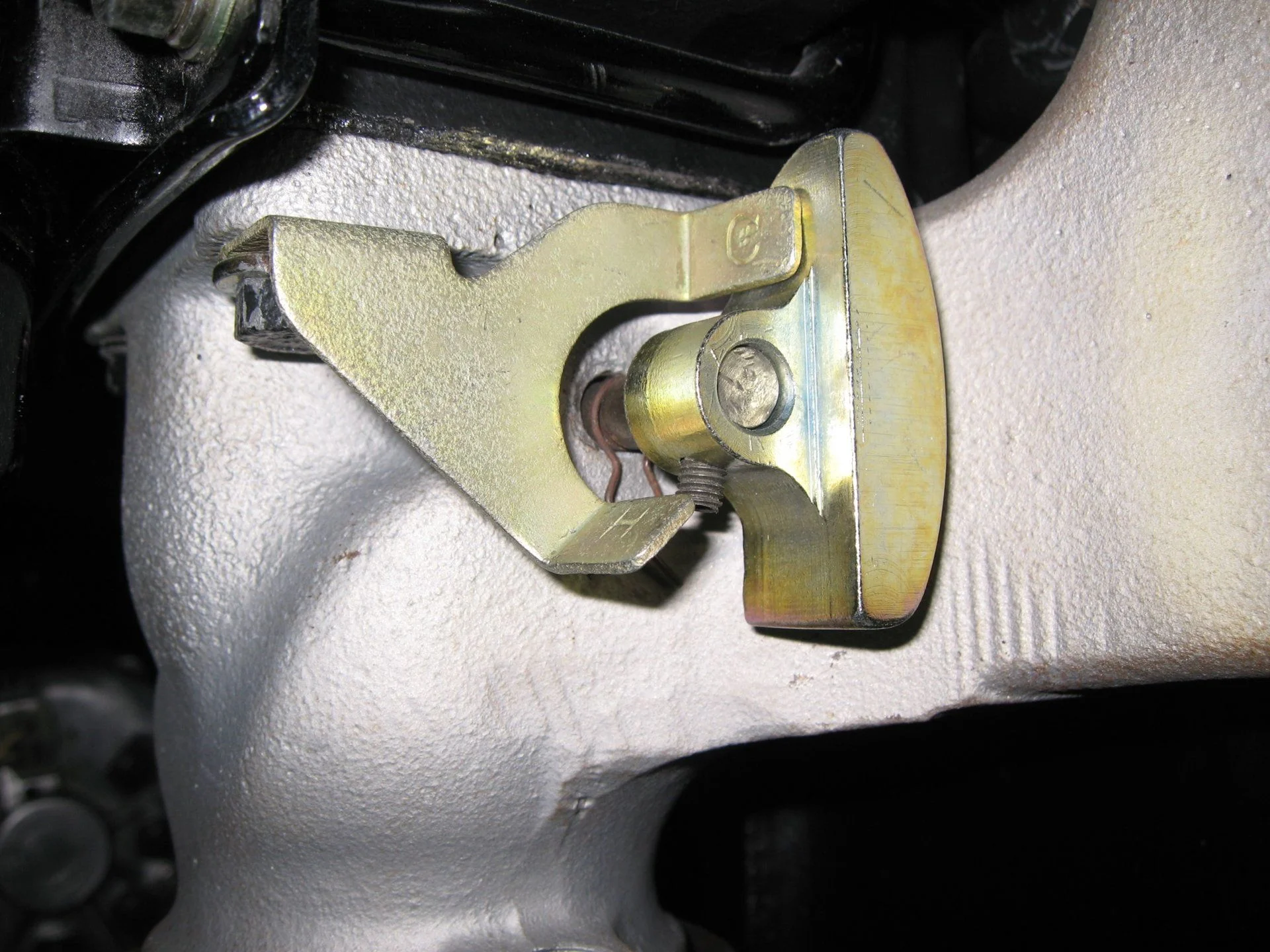

No idea if my 67 would be the same direction but, don't see why it wouldn't be. This is on the rear of the manifold, and you can see the C for Cold and H for Hot on the bracket that stops the rotation.



Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL
Ah hah! That makes sense now. I have it backwards. From the front, it rotates counter-clockwise when it warms up. I'll flip the spring in the morning. Thank you Sir! 🍺


Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL
This link should illustrate the arrangement for your 1972:

I have a 74 but "Yes" that link with your pics did it. Your pic of the spring in place corrected another mistake I was making. I was believing that the spring un-coiled when heated. I was wrong. It coils up tighter when heated. Just checked with a heat gun.
All clear now. Thank you!


Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL

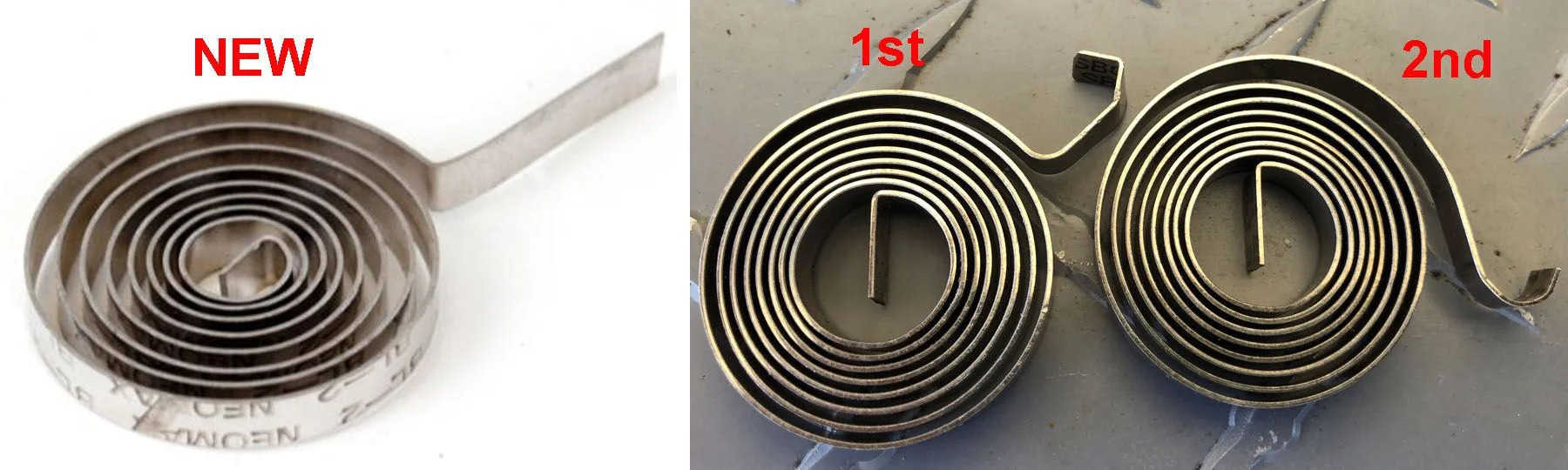

I'm on the original spring that came with the new SOR manifold I got in 2000. Fairly rusty but seems to be working. It was fun trying to move a piece of sand cloth around that spiral to clean it up.
I'd be very interested to find a new alternative spring. What do you suggest?


73FJ40

After another night of rust removal!
SILVER Star

Joined
Dec 28, 2006
Messages
1,021
Location
Western Massachusetts
@Steamer


Things have changed regarding price and vendor since I posted this, but if you do a google search on
Omix-Ada 17625.02
you will find a number of vendors if you click on shopping.


Steamer

SILVER Star

Joined
Jul 20, 2009
Messages
916
Location
Miami, FL
"Ordered" Looks like I'll just have to bend the hook on the end. Expected delivery 3-5 days from Amazon. Thank you sir. Never thought I'd have a chance at replacing it.

"EDIT" thought I'd add the pic

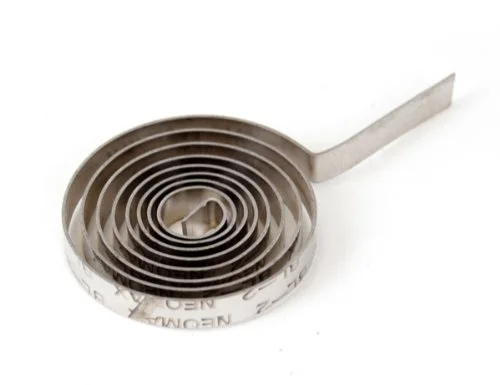

Omix-Ada 17625.02.jpg
