Wanted H41 transmission

[brew8]

Location

United States

Looking for an H41 four speed tranny, can arrange shipping, I have no idea what the price will be, let me know what you have, thanks, Larry



[447xpro]

Try Cruiserparts.net they have 4 speeds $400 shipped might have a 41 but mostly 42's



[Poser]

16 or 19 spline Larry?

One piece t-case or split case?



[brew8]

16 spline non split, orion case, thanks, Steve



[65swb45]

Non-sequitur. Orion's don't come in 19 spline. You must be looking for a 16. I don't have any right now, but I will have a rebuilt one with a brand new output shaft in about a month.



[brew8]

Thanks Mark, I'm a patient guy, thanks, Larry thanks for straighting me out.



[WhereToRodeo]

I think mine may be an H42... not sure. Was just trying to figure this out. Will try and look at identifying numbers, etc tomorrow if I can...



[brew8]

Thanks for getting back but that was a year ago, I just went with an Orion case for the gears instead, worked out well, thanks, Larry



[Living in the Past]

I think mine may be an H42... not sure. Was just trying to figure this out. Will try and look at identifying numbers, etc tomorrow if I can...

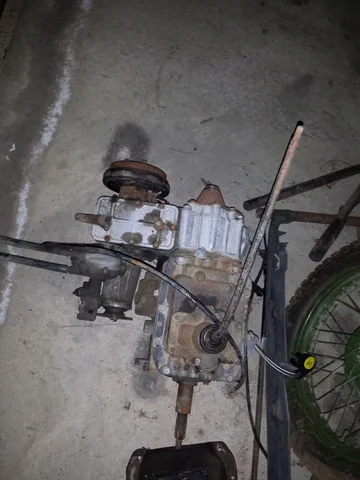

View attachment 1029954 View attachment 1029955 View attachment 1029956 View attachment 1029957

It is most likely a H42, US market never got the H41. With the transfer case in high range put the transmission in first gear. If you have a H42 you should have to rotate the transmission input shaft around three and half times for the drum brake to rotate once. With the H41 it would right at five times to do the same thing.



[WhereToRodeo]

Oh cool, thanks for the insight. Ill check it out!



[FJ60mudder]

Looking for an H41 four speed tranny, can arrange shipping, I have no idea what the price will be, let me know what you have, thanks, Larry

I have a tranny that came out of fj60 I will have to check if it is H41 or 42



[Turdzoplenty]

about 5 years too late......



[FJ60mudder]

about 5 years too late......

haha
