I am creating this thread so we can consolidate OEM part numbers for the GX 460. This is just for OEM parts.

If you find errors or parts are year specific let me know. IMO: This will save a lot of time for current and future owners. This first post will be edited for quite some time and just getting the ball rolling on info. If you don't see a part number next to something and know what it is PM or fill out the form. Thanks!

[Air filters]
PN: 17801-38051 / Engine
PN: 87139-50100 / Cabin
======================================================
[Alternator]
PN: 2706038080
======================================================
[Automatic Transmission]
PN: 90301-15004 / Fill plug O-ring
PN: 35178-30010 / AT pan drain plug
PN: 35178-30010 / AT pan fluid level check plug
PN: 00289ATFWS / ATF Fluid
======================================================
[Automatic Transmission Cooler]
PN: 32910-60171 / Cooler
======================================================
[Belt]
PN: 90916-02680 / 90916-A2023
======================================================
[Brake Pads]
PN: 04465-60320 / Front
PN: 04466-60140 / Rear
======================================================
[Brake Rotors]
PN: 43512-60191 / Front
PN: 42431-60311 / Rear
======================================================
[Clips - Misc]
PN: 9046710201 / Center Console
PN: 9046712080 / Center Console
PN: 90468-04157 / Center Console
PN: 90467-07217 / Radiator Cover
======================================================
[Cooling Fan Bracket]
PN: 16380-0S020
======================================================
[Crawl Control Switches]
PN: 84970-60090 / 2010-2019 NON-AVS/RAHC models
PN: 84970-60070 / 2010-2019 for AVS/RAHC models (adjustable suspension & Airbags)
======================================================
[Cross Bars/Roof Rack]
PN: PT27860170
======================================================
[Cup Holder Divider]
PN: 55618-60190 / 2010-2013 models
PN: / 2014-2020 models
======================================================
[Differental-Front]
PN: 1215710010 / Front Diff Fill Washer
PN: 9043024003 / Front Diff Drain Washer
======================================================
[Differental-Rear]
PN: 1215710010 / Rear Diff Fill Washer
PN: 1215710010 / Rear Diff Drain Washer
======================================================
[Door Edge Guards]
PN: PT9366017008 / Nightfall Mica
PN: PT9366011002 / Black Onyx
PN: PT9366011003 / Claret Mica
PN: PT9366012004 / Fire Agate Pearl
PN: PT9366011011 / Knight's Armor Pearl
PN: PT9366012020 / Nebula Gray Pearl
PN: PT9366011004 / Satin Cashmere Metallic
PN: PT9366012010 / Silver Lining Metallic
PN: PT9366011010 / Starfire Pearl
PN: PT9366011001 / Tungsten Pearl
======================================================
[Door Lock Actuator]
PN: 69040-42250 / Driver's Door
PN: / Front Passenger Door
PN: /Rear Driver Side Door
PN: /Rear Passenger Side Door
======================================================
[Drain Plugs]
PN: Oil
PN: Transfer Case
PN: Front Differential
PN: Rear Differential
PN: Transmission Pan
PN: Transmission Fluid Level Check Valve
======================================================
[F-Sport]
PN: PTR27-60120 / Wheel-Rim installation kit
PN: PTR5430120 / Grill for 2010-2013 models
PN: PTR56-60120 / Wheel-Rim
PN: PT93260120 / Exhaust Tip (Oval) / Non-Oval ---> PN: PT93260100
======================================================
[Headlight Bulbs]
PN: 90981-20024 / 2010-2013 models with HID
======================================================
[Idler Pulley]
PN: 16603-38011
======================================================
[Multi Terrain Select ECU]
PN: 859A1-60020 / 2010-2013
PN: 859A1-60040 / 2014-2019
======================================================
[Oil Drain Plug Washer]
PN: 90430-12031
======================================================
[Oil Filters]
PN: 04152-YZZA3
PN: 04152-YZZA5 (if you need End Cap Plug O-ring) - metal cap retrofit mod/if you aren't replacing O-ring just get "A3"
======================================================
[Oil Filter Metal Cap Retrofit]
PN: 15643-31050 / End Cap Plug
PN: 15620-31060 / Cap Housing
======================================================
[PCV Valve]
PN: 12204-38010
======================================================
[Radiator]
PN: 16400-38253 / Assembly
PN: 16401-30020 / Cap
PN: 16572-38151 / Lower Hose
PN: 16571-38100 / Upper Hose
======================================================
[Remote Start Kit (RES) for 10-15 models]
PN: PT398-60112
======================================================
[Skid plate bolts]
PN: 90109-06330
(Need other ones)
======================================================
[Smart Card Key]
PN: 89994-48142 (There is a another model that will work but not sure of PN)
======================================================
[Spark Plugs]
PN: 90919-A1002-DS or 90919-A1002
======================================================
[Starter]
PN: 28100-0S060
======================================================
[Thermostat]
PN: 16031-38010
======================================================
[Throttle Body]
PN: 22030-0S021 Throttle Body Assembly
======================================================
[Tow Hitch Receiver]
PN: PT22860140 / Assembly
PN: PT72534140 / 7-Pin And 4-Pin Trailer Connector. Towing Wire Harnesses And Adapters
======================================================
[Transfer Case]
PN: 08885-81080 / Fluid
PN: 90430A0003 / Fill washer
PN: 90430A0003 / Drain washer
======================================================
[Water Pump]
PN: 16100-09525
======================================================
[Window Belt Moldings] - Window external
PN: 75712-60090 / Driver door
PN: Need to find / Front Passenger door
PN: 75721-60090 / Right Rear Door
PN: Need to find / Left Rear Door
======================================================
[Windshield Molding Clips]
PN: 75545-53011
======================================================
[Windshield Reveal Molding]
PN: 75535-60020 / Passenger Side
PN: 75536 -60010 / Driver Side
======================================================
[Windshield Wiper Full Blade Replacements/Frame]
PN: 85212-YZZ2H-LX / Driver
PN: 85212-YZZ2E-LX / Passenger
PN: 85252-YZZRE-LX / Rear
======================================================
[Windshield Wiper Inserts]
PN: 85214-60120 / Passenger Side
PN: 85214-02340 / Driver Side
PN: 85214-42040 / Rear



[VirginiaCruiser]

thanks for putting this together



[tampacruiser95]

This is great



[r2m]

I found this while looking for some fonts: Lexus Brand Guideline - https://issuu.com/lukaszkulakowski/docs/lexusbrandguideline
Thought it may be an interesting addition to add here.



[jakemccurdy]

Replacing my front control arms upper and lower soon, and I think I should do all the stabilizer bar bushings while I'm in there. Can anyone help me confirm the part numbers?

Lexus parts sites list an L and R version in the assembly list, but when you click into the item details, they both have the same part number. That goes for both the bar to link bushing and the bar to control arm bushings. Neither version of the repair manual I have lists part numbers.

Can anyone confirm that there are NOT different L and R versions for both bushing types?

Control arm to bar - 4884960041 (L&R?)
Control arm to links - 4881560320 (L&R?)



[Acrad]

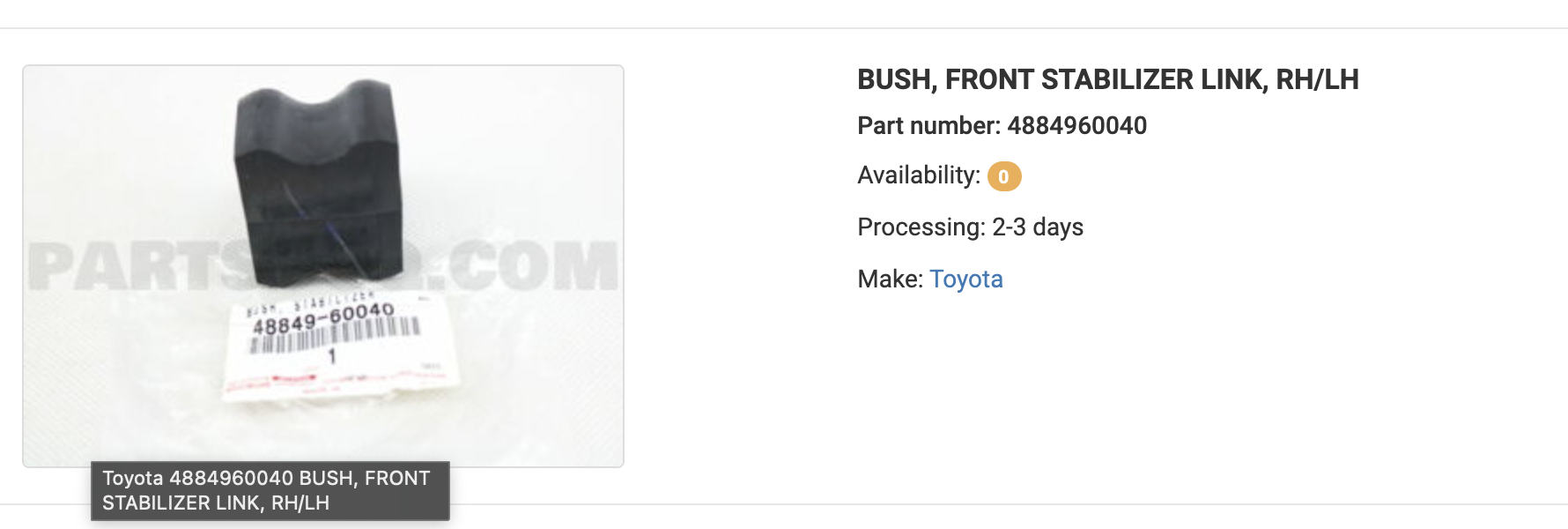

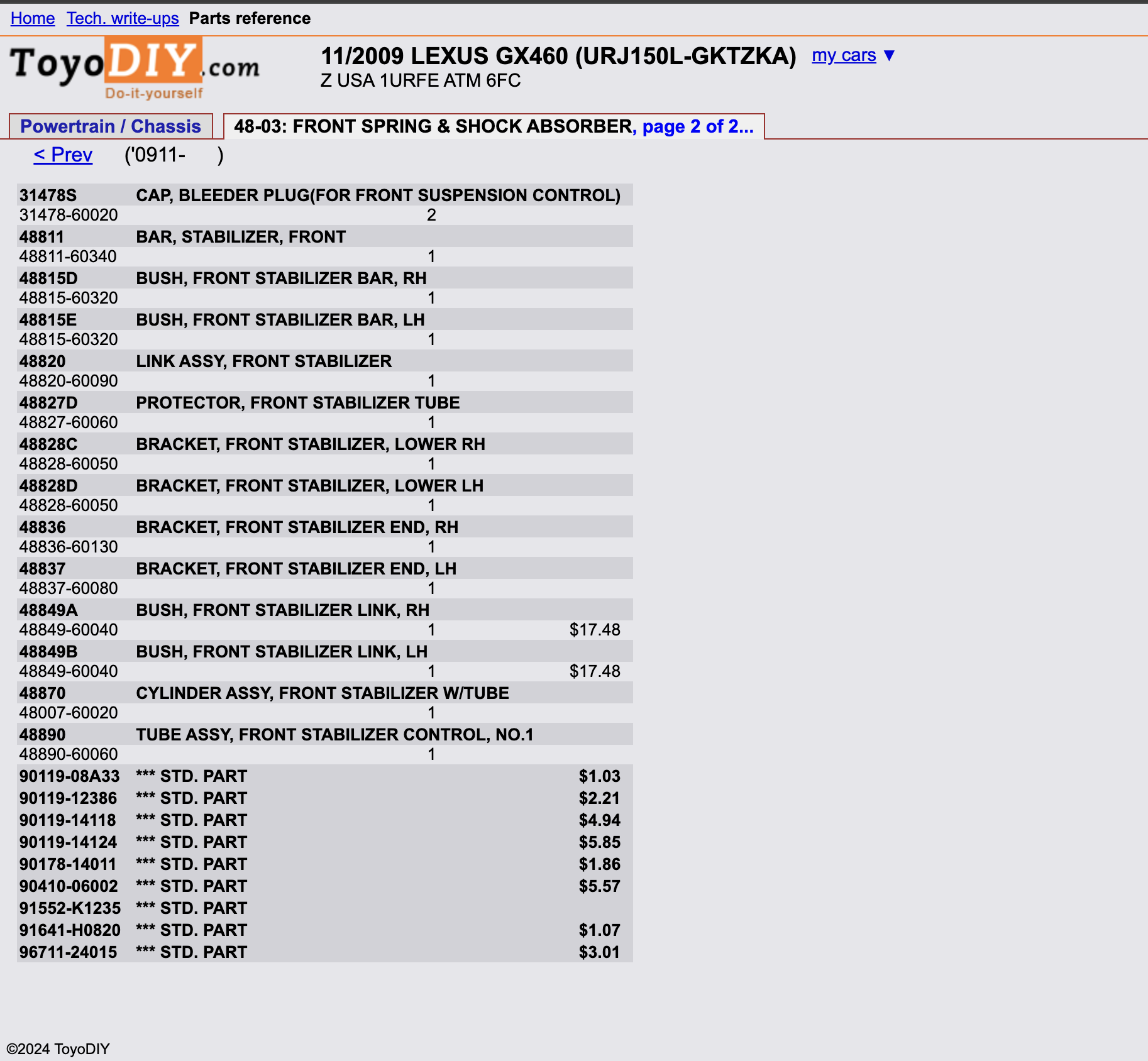

Toyodiy shows they use the same PN as well.. but older rev there

ToyoDIY.com

https://partsouq.com/en/search/all?q=4884960041

https://partsouq.com/en/search/all?q=4881560320



[jakemccurdy]

Toyodiy shows they use the same PN as well.. but older rev there

View attachment 3554810

Thank you, sir. Much appreciated.

Looks like they’ve got the wrong part in the picture for their bar to arm bushes. Even though it’s an old rev, it should have a whole in the middle for the bar. There’s so many freaking parts that even Lexus has the wrong image half the time. Annoying.

Any suggestions on what else I should swap out while Im in there? I should probably check my tie rods ends but those are usually good for 250k-ish I think and Im at 180.

And do you think its worth adding the part numbers for these to your reference at the top if you get a sec?

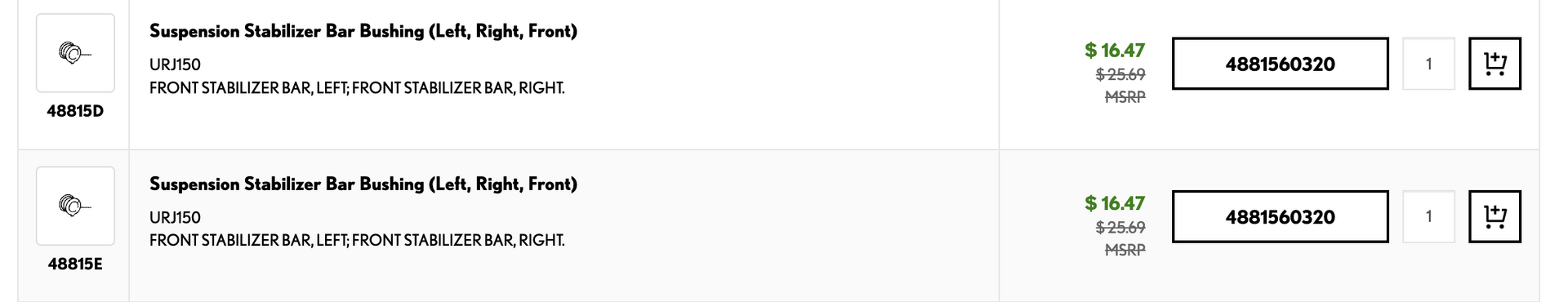

Suspension Control Arm (Left, Front, Lower)	4806960051	$264.60​
1	Suspension Control Arm (Right, Front, Lower)	4806860051	$264.60​
2	BUSH	4884960041	$14.74​
2	Suspension Stabilizer Bar Bushing (Left, Right, Front)	4881560320	$16.47​



[xychromosome]

How are your CV boots? Are they the originals?



[jakemccurdy]

How are your CV boots? Are they the originals?

Thats a good call out. I think they’re in pretty good shape though (surprisingly since its been lifted almost 2 years now). I was hoping to leave the knuckle in place make it easier. I was thinking I would do the UCA’s then reattached them to the spindle, and then do the LCA’s leaving the spindle hanging from the uppers.



[xychromosome]

curious as to why replacing UCA and LCAs? Which ones you installing?



[jakemccurdy]

curious as to why replacing UCA and LCAs? Which ones you installing?

Ironman gave me a set of ProForge uppers I never installed, and they just sent me a second set because of a recall so it's time to get them in. At 180K, I just want to be proactive on the LCA's (OEM) and not run into any BJ issues on the trail or align again later (since the uppers require an alignment anyway). The lower bushes have been cracking for a while, and I'm starting to hear a slight clunk when going one wheel into the driveway, so I'm guessing that's what it is. I think 200K is a good time to replace all the BJ's even if they're still good (I'm not in the DFIIINB crowd).

Taking the family on a 2-week, 4-5 national park road trip in June, so I am just covering my maintenance bases to make sure we're tip-top. We might stop through Moab on the way back, so I want to make sure we're solid as a rock up front.



[xychromosome]

sounds like a good plan. Please post a review on whether the UCAs affected your alignment or handling any. I never bothered with replacing mine after my lift and now after 3 years I’m wondering if I’m missing out.



[jakemccurdy]

sounds like a good plan. Please post a review on whether the UCAs affected your alignment or handling any. I never bothered with replacing mine after my lift and now after 3 years I’m wondering if I’m missing out.

I’ll probably do a video.
