Fog light wiring diagram

[4G63 POWER]

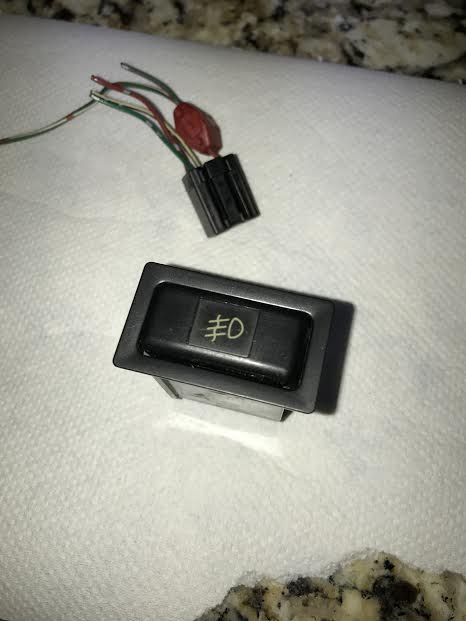

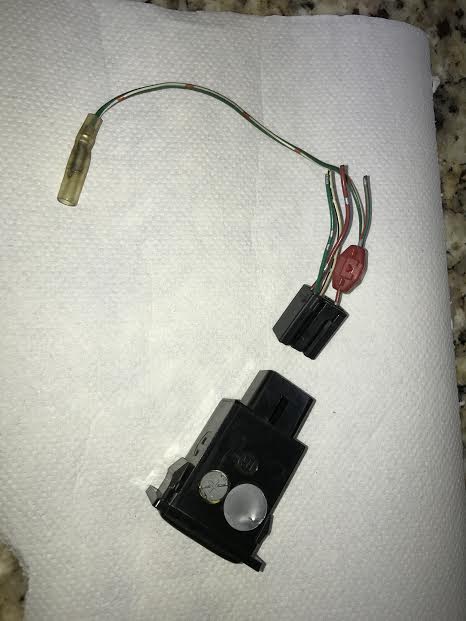

Specifically the oem switch. Anyone ever seen this diagram? I'm wondering if it's supoosed to illuminate when you turn it on? Or just green when your parking lights are on? There are 4 wires. 2 for in/out, 1 for ground and one for dimmer?



[4G63 POWER]



[4G63 POWER]

ttt



[thatcabledude]

Sounds like you have it figured out. No?



[4G63 POWER]

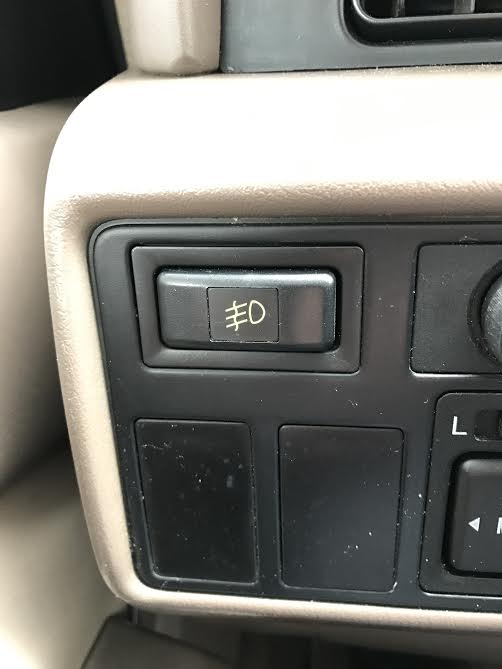

Well I got it to work but not sure if the background is supposed to light up like the defroster button does. If it is supposed to then no I didn't hook it up right.



[jstew0903]

Does anyone have the Toyota part number for that switch?
