I seem to have an extra pipe I cant connect.

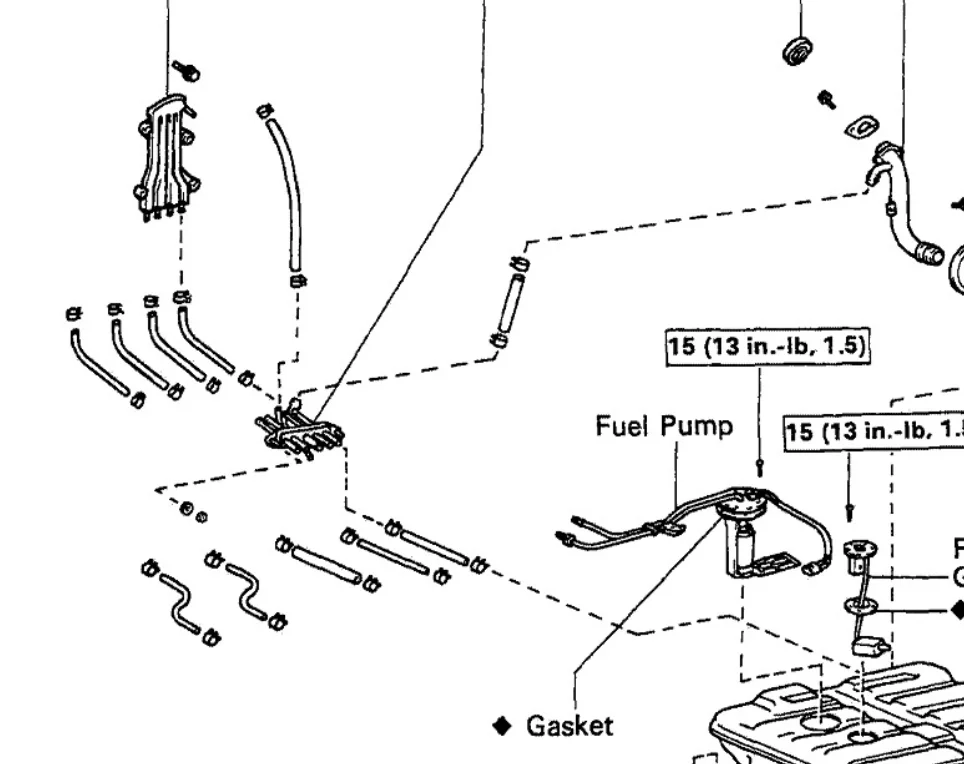

The metal pipe adapter shows 6 pipes on the internal (in-cab) side, but only 5 on the Fuel tank side? The fuel tank also has 5 connections! So where does the 6th pipe go? (it comes from the top of the breather apparatus!). Its the pipe on the bottom of the adapter thingy, and you can see in the above diagram its showing a dottted line to something, but I cant align that up with anything. I'm putting it all back together after a full rebuild, and didn't take pics of this part.



[cps432]

Calling @cruisermatt



[cruisermatt]

There’s a hardline that runs to front of the truck to the charcoal canister. That’s what the sixth hose goes to. I think it’s on the Fuel tank/Tube parts diagram page

60 Series Fuel Tank Vent Hose Kit — CruiserMatt's Off-Road & Performance

This kit includes all six correctly-sized fuel tank/canister vent hoses pre-cut to correct lengths, and all new associated OEM Toyota clips. Several of these hoses are no longer manufactured Toyota, so this takes the guess-work out of this important maintenance and safety concern! Fitment is the sa

www.cruisermatts.com



[cruisermatt]

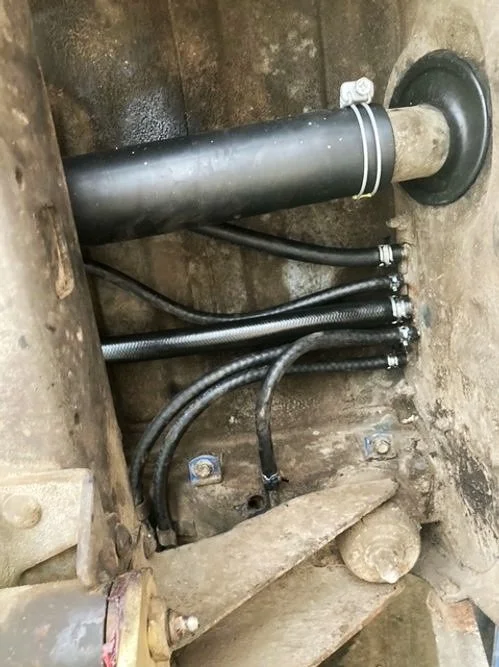

From the instructions included with our kit

Hose labeled CC goes to that hard line. Connections 1-5 are on the tank.
